USER MANUAL DCM-60KE Hoshizaki

CUBELET ICE DISPENSER

DISTRIBUTEUR DE CUBELETS

CUBELETEISDISPENSER

CUBELET-IJSDISPENSER

(original instructions)

NOTICE D'UTILISATION

Line drawing of a laboratory water heater with control panel and base (no text or symbols)

DCM-60KE

DCM-60KE

DCM-60KE-P

DCM-120KE

DCM-120KE-P

ENGLISH

IMPORTANT SAFETY INFORMATION .... 1

I. INSTALLATION INSTRUCTIONS....3

1. CONSTRUCTION 3
2. ACCESSORIES 3
3. UNPACKING....3
4. LOCATION 4
5. INSTALLATION....4
6. ELECTRICAL CONNECTIONS....5
7. WATER SUPPLY AND DRAIN CONNECTIONS....5

II. OPERATING INSTRUCTIONS 6

1. START UP....7
2. DISPENSING ICE 8
3. FRONT COVER 8
4. PORTION CONTROL 8
5. SWITCH LOCK FUNCTION....9
6. SHUT DOWN 9
7. PREPARING THE ICE DISPENSER FOR LONG STORAGE 10

III. MAINTENANCE 10

1. CLEANING....10
2. INSPECTION AND MAINTENANCE 12
3. BEFORE CALLING FOR SERVICE....13
4. DISPOSAL 13
5. WARRANTY 14

SPECIFICATIONS....14

FRANCAIS

INFORMATIONS DE SECURITE IMPORTANTES....16

I. CONSIGNES D'INSTALLATION....18

1. CONSTRUCTION 18
2. ACCESSOIRES 18
3. DEBALLAGE 18
4. EMPLACEMENT 19
5. INSTALLATION....20
6. BRANCHEMENTS ELECTRIQUES....20
7. BRANCHEMENTS D'ARRIVEE ET DE VIDANGE D'EAU 21

II. CONSIGNES D'UTILISATION 21

1. MISE EN MARCHE....23
2. DISTRIBUTION DE GLACONS 23
3. PANNEAU AVANT 23
4. COMMANDE DE PORTIONS DE GLACE 23
5. FONCTION DE VERROUILLAGE DES COMMUTATEURS 24
6. ARRET 25
7. PREPARATION DU DISTRIBUTEUR DE GLACONS EN VUE D'UN ENTREPOSAGE DE LONGUE DUREE....25

III. ENTRETIEN....26

1. NETTOYAGE 26
2. INSPECTION ET ENTRETIEN 28
3. AVANT D'APPELER UN REPARATEUR....28
4. MISE AU REBUT 29
5. GARANTIE 29

SPECIFICATIONS....30

DEUTSCH

IMPORTANT SAFETY INFORMATION

Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit.

▲WARNING	Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
▲CAUTION	Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE	Indicates a hazardous situation which, if not avoided, could result in damage to the unit.
▲HYGIENE	Indicates important precautions for hygiene and food safety.
IMPORTANT	Indicates important information about the use and care of the unit.

IMPORTANT

This booklet is an integral and essential part of the product and should be kept and preserved by the user.

Please read carefully the guidelines and warnings contained herein as they are intended to provide the installer/user with essential information for the proper installation and the continued safe use and maintenance of the product.

Please preserve this booklet for any further consultation that may be necessary.

⚠WARNING

This is a commercial ice dispenser, and should be destined only to be used for the purpose for which it has been expressly designed.Any other use should be considered improper and therefore dangerous. The manufacturer will not be held liable or responsible for any damage caused by improper, incorrect and unreasonable use.

The installation, and relocation if necessary, must be carried out by qualified personnel, in accordance with current regulations, according to the manufacturer's instructions.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

The use of any electrical appliance involves the observance of some fundamental rules. In particular:

* Instances of high humidity and moisture increase the risk of electrical short circuits and potential electrical shocks. If in doubt, disconnect the ice dispenser.
* Do not damage the power cord or pull it in order to disconnect the ice dispenser from the electrical supply network.
* If the supply cord and/or the plug should need to be replaced, it should only be done by a qualified service engineer.
* Do not touch the electrical parts or operate the switches with damp hands.
* This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, it can however be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge providing they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
* Children shall not play with the appliance.
* Cleaning and user maintenance shall not be made by children without supervision.
* Do not attempt to modify the ice dispenser. Only qualified personnel may disassemble or repair the appliance.

I. INSTALLATION INSTRUCTIONS

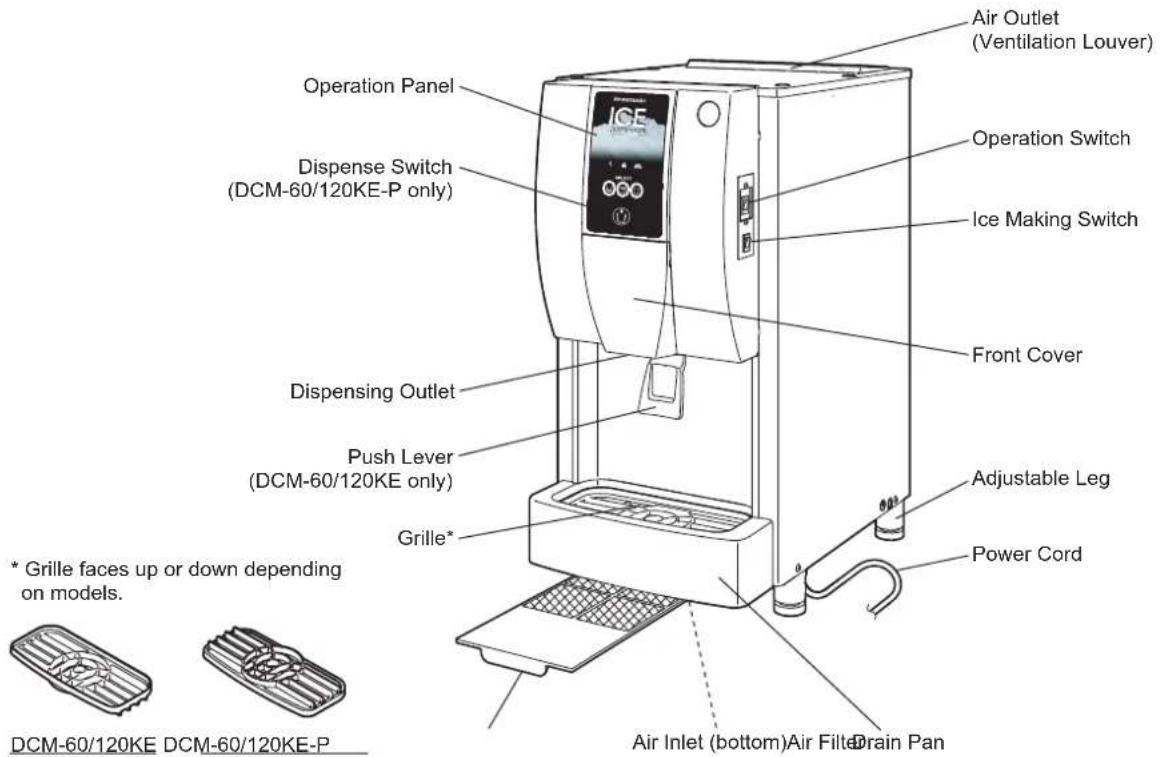

1. CONSTRUCTION

Air Outlet (Ventilation Louver) Operation Panel Operation Switch Dispense Switch (DCM-60/120KE-P only) Ice Making Switch Front Cover Dispensing Outlet Push Lever (DCM-60/120KE only) Grille* Adjustable Leg Power Cord * Grille faces up or down depending on models. DCM-60/120KE DCM-60/120KE-P Air Inlet (bottom) Air Filter Drain Pan

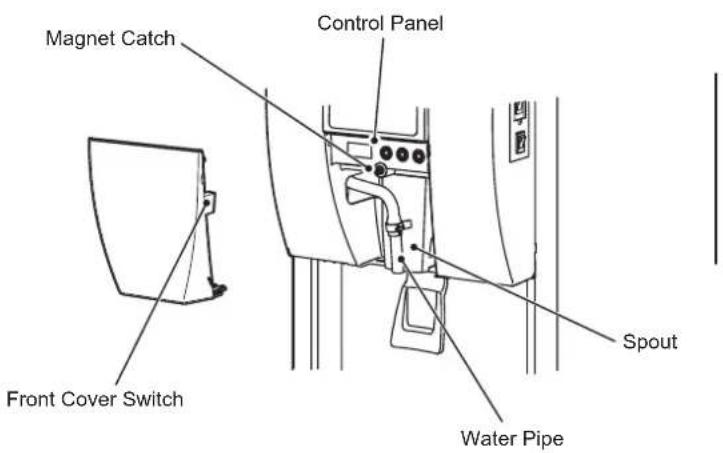

Magnet Catch Control Panel Front Cover Switch Water Pipe Spout

2. ACCESSORIES

CD	1
Grille 1
Inlet Hose 1
Drain Hose 1
Hose Clamp 1
Brush 1

CD Grille

Drain Hose

BrushHose ClampInle

3. UNPACKING

WARNING

Children should not be allowed in reach of the packaging elements (plastic bags and expanded polystyrene) as they are potential sources of danger.

▲CAUTION

Do not lift or manoeuvre the carton by using the shipping bands.

When moving the unit by hand, hold the unit bottom.

Do not hold the filter to lift up the unit. The condenser fins inside may cause injury.

Always wear protective gloves when carrying the unit.

When handling the carton or the unpacked unit, work in pair to prevent injury.

NOTICE

Remove shipping carton, tape(s) and packing. If packing material is left in the ice dispenser, it will not work properly.

To prevent damage, do not tilt the ice dispenser more than 45°.

1) After removing the packaging, make sure that the ice dispenser is in good condition. If in doubt, please do not use the ice dispenser but apply to professionally qualified personnel.
2) Remove the protective plastic film from the exterior. If the ice dispenser is exposed to the sun or to heat, remove the film after the ice dispenser cools.
3) Remove the package of accessories. Check the contents according to "2. ACCESSORIES".

4. LOCATION

▲WARNING

This ice dispenser is not intended for outdoor use.

The ice dispenser should not be located next to ovens, grills or other high heat producing equipment.

This appliance is not suitable for installation in an area where a water jet could be used.

△CAUTION

The location should provide a firm and level foundation for the ice dispenser.

NOTICE

Do not place anything on top of the ice dispenser to obstruct the ventilation louver.

IMPORTANT

Normal operating ambient temperature should be within 5°C to 40°C. Water connection is cold water only. Operation of the ice dispenser, for extended periods, outside of these normal temperature ranges may affect production capacity.

Allow the clearance specified below for proper air circulation and ease of maintenance and/or service should they be required.

Top View Rear 15cm Left 15cm ICE DISPENSER 15cm Right Front

e View Top 15cm Front ICE DISPENSER 15cm Rear

5. INSTALLATION

△CAUTION

Incorrect installation can cause harm to people, animals or other items, for which the manufacturer cannot be held responsible.

Keep the adjustable leg height within 0 to 15 mm to prevent reduction in leg strength or injury caused by a falling adjuster.

* Place the ice dispenser on a firm level surface at counter top height.
* Turn the leg adjusters to level the unit in both the left-to-right and front-to-rear directions (tilt limit: within 1 cm).

Leg Adjuster Longer Shorter

6. ELECTRICAL CONNECTIONS

⚠WARNING

THIS APPLIANCE MUST BE EARTHEDThis ice dispenser requires an earth that meets the national and local electrical code requirements.

To prevent possible severe electrical shock to individuals or extensive damage to the unit, install a proper earth wire to the ice dispenser.

Disconnect the main power supply before any maintenance, repairs or cleaning is undertaken.

* This appliance requires a separate 220 - 240VAC, 13A supply. The electrical supply must be protected by a suitable circuit breaker.
* Usually an electrical permit and services of a licensed electrician are required.

For the U.K. and the Republic of Ireland only

* The wires in the mains lead are coloured in accordance with the following code:

Green & Yellow = Earth

Blue = Neutral

Brown = Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green-and-Yellow must be connected to the terminal in the plug which is marked with the letter E or by the symbol ± or coloured Green or Green-and-Yellow. The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

* Should the socket outlets in the installation site not be suitable for the plug supplied with your product, the plug must be removed (cut off if it is moulded on plug) and an appropriate plug fitted.

If the non-rewirable plug has been cut from the power supply cord, it must be disposed of. There should be no attempt to reuse it. Inserting such a plug into a socket elsewhere presents a serious risk of electrical shock.

* The non-rewirable plug must never be used without a fuse cover being fitted.

The correct replacement for the detachable fuse cover is identifiable from the manufacturer's reference number stamped on the plug.

Supply of replacement fuse covers can be obtained from Hoshizaki Parts/Service Centres.

Fuses should be rated at 13A and approved to BS 1362.

7. WATER SUPPLY AND DRAIN CONNECTIONS

⚠WARNING

Connect to potable cold water supply only.

* The connections to the mains water supply must be made in accordance with the countries' current requirements of the Water Supply or Water Fittings Regulations.
* To avoid performance reduction or malfunction caused by scaling, the water supply should have a hardness of not more than 50 mg/L and a silica content of not more than 30 mg/L. Otherwise, installation of a proper water treatment device will be required.

* Water supply pressure should be minimum 0.05 MPa (0.5 bar) and maximum 0.78 MPa (8 bar). If the pressure exceeds 0.78 MPa (8 bar), use a proper pressure reducing valve. Do NOT throttle back the supply tap.

* A plumbing permit and services of a licensed plumber may be required in some areas.

* The ice dispenser drain is gravity flow, so ensure drain hose has an adequate pitch or fall.

* Drain lines should not be installed directly to the sewer system. A vertical air gap of a minimum of 5 cm should be between the end of the drain hoses from the ice dispenser and the floor drain.

* Be sure to use the new hose-sets supplied with the appliance. Do not reuse any old hose-sets.

1) Attach the angled end of flexible inlet hose (accessory) to the G3/4 fitting at the bottom of the ice dispenser as indicated, ensuring rubber sealing washer is correctly positioned. Hand tighten sufficiently to provide leak free joint.

2) Attach the other end of inlet hose to the water tap, noting washer is correctly positioned before hand tightening as above. It is a wise precaution to have a stop valve within easy reach.

3) Attach the grey flexible drain hose (accessory) to the fitting at the bottom of the drain pan. Use the hose clamp (accessory) to obtain a leak free joint.

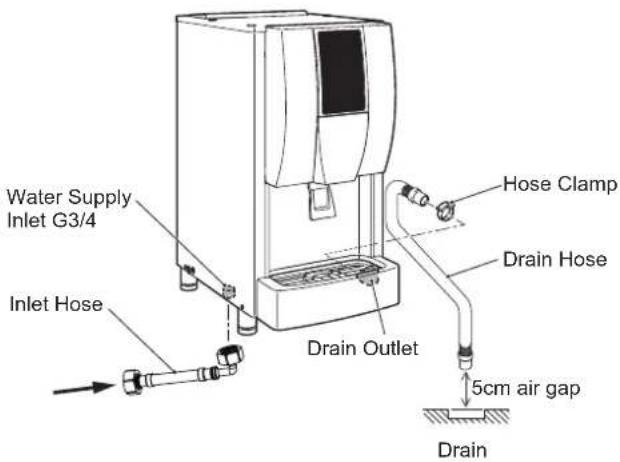

Water Supply Inlet G3/4 Inlet Hose Hose Clamp Drain Hose Drain Outlet 5cm air gap Drain

Water Supply Tap Inlet Hose

II. OPERATING INSTRUCTIONS

CAUTION

Do not put your hands into the dispensing outlet. The icemaking mechanism may suddenly move, resulting in injury.

NOTICE

All parts are factory-adjusted. Improper adjustments may result in failure.

If the unit is turned off, wait for at least 3 minutes before restarting the ice dispenser to prevent damage to the compressor.

Periods of 5 to 6 hours without dispensing ice could result in wet ice or an ice bridge forming in the storage bin. Always turn off the ice making switch, and remove ice from the storage bin within 2 hours. Soggy and sticky ice should be removed continuously as produced.

This ice dispenser is programmed to suspend ice dispensing action when the push lever/dispense switch is continuously pressed for more than 2 minutes. Also, pressing and releasing the push lever/dispense switch repeatedly for extended periods may cause the protector to stop the ice dispenser.

AHYGIENE

This ice dispenser is designed to produce edible ice. To keep the ice dispenser hygienic, follow the instructions in "III. 1. CLEANING".

IMPORTANT

To prevent ice and/or water from scattering or splashing:

[DCM-60/120KE]

* Use a container with more than a 7 cm opening.

* Place the container about 1 cm below the dispensing outlet when pressing the push lever to dispense ice and/or water.

Min 7 cm About 1 cm

[DCM-60/120KE-P]

* Use a container with more than a 7 cm opening and more than a 12 cm height.
* Place the container in the round centre of the grille when pressing the dispense switch to dispense ice and/or water.

Min 7 cm Min 12 cm Place in round centre

Clean out the storage bin once a day, or stored ice may melt and refreeze, causing mechanical problems. For efficient use of ice, turn off the ice making switch before shutting down the ice dispenser. Ice remains available until the storage bin becomes empty, and water is always available.

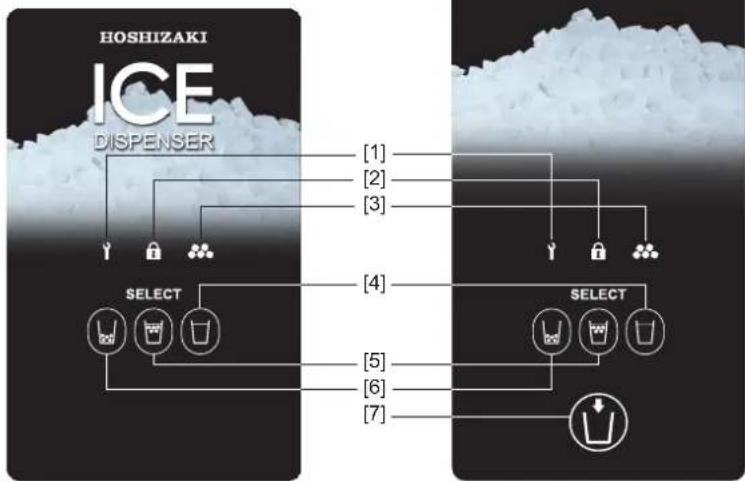

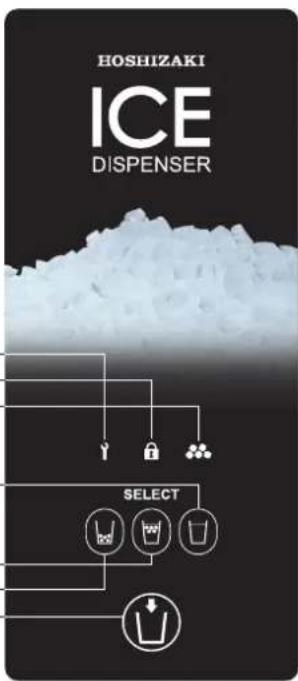

Operation Panel

[1] Service Call Lamp (red)
[2] Lock Lamp (white)
[3] Ice Making Lamp (white)
[4] Water Switch
[5] Ice & Water Switch
[6] Ice Switch
[7] Dispense Switch

[DCM-60/120KE]

HOSHIZAKI ICE DISPENSER SELECT

[DCM-60/120KE-P]

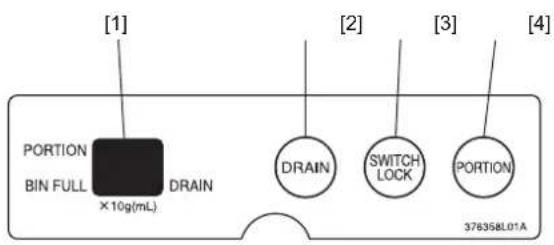

Control Panel

[1] Display PORTION: Lights up when portion control is activated BIN FULL: Lights up when storage bin is full DRAIN: Lights up during drain cycle Indicates error code "E" in case of error [2] Drain Switch [3] Lock Switch [4] Portion Control Switch

[1] PORTION BIN FULL ×10g(mL) DRAIN [2] DRAIN SWITCH LOCK [3] PORTION 3763S8L01A

1. START UP

1) Plug in the ice dispenser.
2) Open the water supply tap.
3) Move the operation switch, located on the right side of the ice dispenser, to the "ON" position. The display on the control panel shows the current operating status.
4) Move the ice making switch, located on the right side of the ice dispenser, to the "ON" position. The ice making lamp on the operation panel lights up, and the ice dispenser starts the automatic ice making process in 5 minutes.
5) Check the water supply and drain connections for water leaks.

6) After 10 minutes, push the ice switch on the operation panel.
7) Press the push lever/dispense switch, and check for proper ice dispensing action.
8) The ice dispenser stops the ice making process automatically in 1 hour or so when the storage bin is filled with ice, and restarts when ice is used.

Note: Soggy and sticky ice may be produced depending on water conditions.

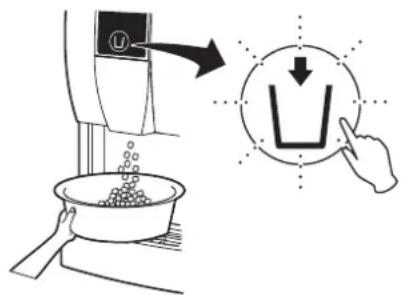

2. DISPENSING ICE

1) Select your dispensing choice by pushing ice switch, ice & water switch, or water switch on the operation panel (factory adjusted to ice & water). The selected switch lights up.
2) Position a container, and dispense a desired amount of ice and/or water.

[DCM-60/120KE]

Ice and/or water keeps being dispensed while the push lever is pressed.

[DCM-60/120KE-P]

Ice and/or water keeps being dispensed while the dispense switch is held down, or a preset amount is dispensed when the dispense switch is pressed once (portion control).

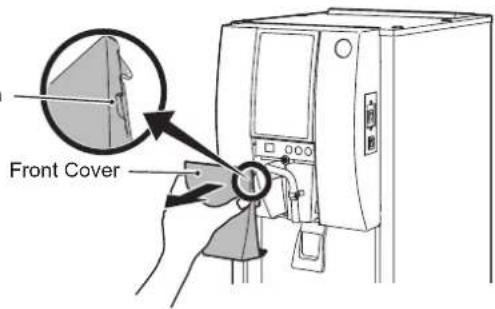

3. FRONT COVER

The front cover is equipped with a safety device. When the front cover is removed, the ice switch, ice & water switch, and water switch flash and no dispensing action is available.

After accessing the control panel for adjustments, replace the front cover in its correct position.

Notch (both sides)

Front Cover

NOTICE

To prevent damage to the magnet provided inside, do not drop the front cover from a height.

1) To remove, hold the notches on both sides of the front cover, and pull it toward you.
2) To replace, hold both sides of the front cover, insert the hooks into the holes, and securely attach it to the magnet catch.

4. PORTION CONTROL

Pushing the portion control switch on the control panel activates the preset portion control for ice and/or water dispensing. The portion control is deactivated in the default setting.

The amount of ice dispensed in the portion control depends on water quality and storage bin level. The amount of water dispensed in the portion control depends on water pressure.

Model Default Setting Adjustable Range
DCM-60KE	Ice: 40g	Ice: 20 - 990g (in 10g steps)
DCM-120KE	Water: Not adjustable	Water: Not adjustable
DCM-60KE-P	Ice: 40g	Ice: 20 - 990g (in 10g steps)
DCM-120KE-P	Water: 120mL	Water: 20 - 990mL (in 10mL steps)

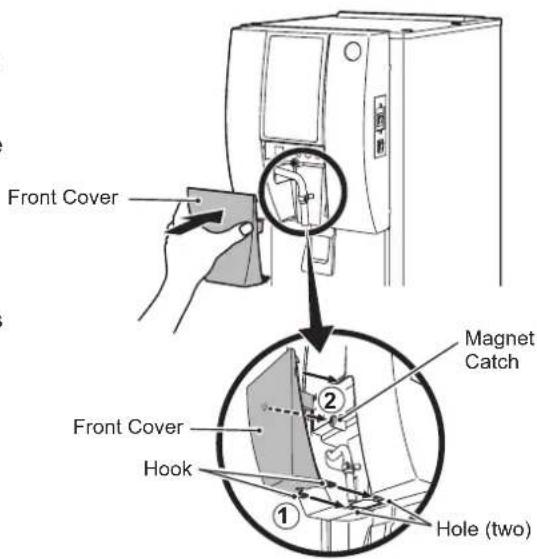

Front Cover Magnet Catch Front Cover Hook Hole (two)

[a] Activating portion control

1) Remove the front cover.
2) Press the portion control switch on the control panel. The display illuminates "PORTION".

3) To deactivate the portion control, press the portion control switch again. The display goes off.
4) Replace the front cover in its correct position.

[b] Adjusting portion control

1) Remove the front cover.
2) Press and hold the portion control switch on the control panel for 3 seconds. The display shows the current portion control setting for ice dispensing.
3) Press the flashing ice (-) switch or water (+) switch on the operation panel to adjust the amount of ice. The value in the display decreases or increases by "1" every time the switch is pressed (e.g. "06" = 60g).

[DCM-60/120KE]

4) Press the portion control switch on the control panel. The display illuminates "PORTION".
5) Replace the front cover in its correct position.

[DCM-60/120KE-P]

4) Press the portion control switch on the control panel. The display goes off and illuminates the setting again when it is stored. Then, the display shows the current portion control setting for water dispensing.
5) Press the flashing ice (-) switch or water (+) switch on the operation panel to adjust the amount of water. The value in the display decreases or increases by "1" every time the switch is pressed (e.g. "15" = 150mL).
6) Press the portion control switch on the control panel. The display goes off and illuminates the setting again when it is stored. Then, the display illuminates "PORTION".
7) Replace the front cover in its correct position.

5. SWITCH LOCK FUNCTION

Pushing the lock switch on the control panel locks the ice switch, ice & water switch, and water switch operations. The switch lock function is deactivated in the default setting.

1) Remove the front cover.
2) Select your dispensing choice by pushing ice switch, ice & water switch, or water switch on the operation panel. The selected switch flashes. Press the lock switch on the control panel. The lock lamp on the operation panel lights up.
3) To deactivate the switch lock function, press the lock switch again. The lock lamp goes off.
4) Replace the front cover in its correct position.

6. SHUT DOWN

This ice dispenser must be shut down and drained every day at the end of service hours.

1) Move the ice making switch, located on the right side of the ice dispenser, to the "OFF" position.

[DCM-60/120KE]

2) Check that the lock lamp on the operation panel is off. If it is on, press the lock switch on the control panel to deactivate the switch lock function.
3) Press the ice switch on the operation panel. The ice switch lights up.
4) Place a large container right under the dispensing outlet, and keep pressing the push lever until no more ice is dispensed.
5) Remove the front cover.

[DCM-60/120KE-P]

2) Press and hold the ice switch, ice & water switch, and water switch at the same time for 3 seconds. The dispense switch flashes, and the continuous dispensing becomes available.

Line drawing of a person pouring liquid into a bowl on a machine (no text or symbols)

Note: To deactivate the continuous dispensing, move the ice making switch to the "ON" position or remove the front cover.

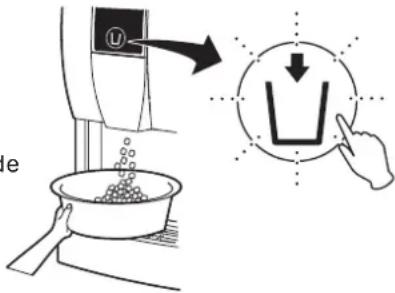

3) Place a large container right under the dispensing outlet, and press the dispense switch once. The ice dispenser keeps dispensing ice for 2 minutes.

Note: To stop dispensing ice within 2 minutes, press the dispense switch again.

4) Press the dispense switch again to check no more ice is dispensed.

5) Remove the front cover. The dispense switch stops flashing, and the continuous dispensing is deactivated.

Diagram illustrating a washing machine operation with a hand gesture pointing to a downward arrow and a circular button labeled 'C'.

[All models]

6) Press the drain switch on the control panel. The display illuminates "DRAIN" during the drain cycle of about 30 seconds.

7) After about 30 seconds, check that the display is off.
8) Replace the front cover in its correct position.
9) Move the operation switch, located on the right side of the ice dispenser, to the "OFF" position.
10) Unplug the ice dispenser.
11) Close the water supply tap.

NOTICE

When restarting the ice dispenser, make sure that more than 3 hours have passed since the ice making switch was moved to the “OFF” position, then follow the instructions in “1. START UP”.

7. PREPARING THE ICE DISPENSER FOR LONG STORAGE

NOTICE

This ice dispenser will not work at subfreezing temperatures. To prevent damage to the water supply line, drain the ice dispenser when air temperature is below zero.

△HYGIENE

When shutting down the ice dispenser for two or more days, drain the ice dispenser to prevent contamination in the water circuit.

1) Follow the instructions in "6. SHUT DOWN".
2) Remove the inlet hose from the water supply tap, and drain the hose.
3) Ask for draining of the ice dispenser by professional qualified personnel.

III. MAINTENANCE

1. CLEANING

⚠ WARNING

Before carrying out any cleaning or maintenance operations, unplug the ice dispenser from the electrical supply network.

This appliance must not be cleaned by use of a water jet.

⚠ CAUTION

When using a neutral cleaner or sodium hypochlorite, thoroughly read and understand the instructions provided to prevent potential health problems.

NOTICE

Ask a trained service person to clean and sanitise the ice dispenser water system at least twice a year and to check and clean the condenser at least once a year.

To prevent possible damage, do not clean the plastic parts with water above 40^ C or in a dishwasher.

[a] Exterior

Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off grease or dirt.

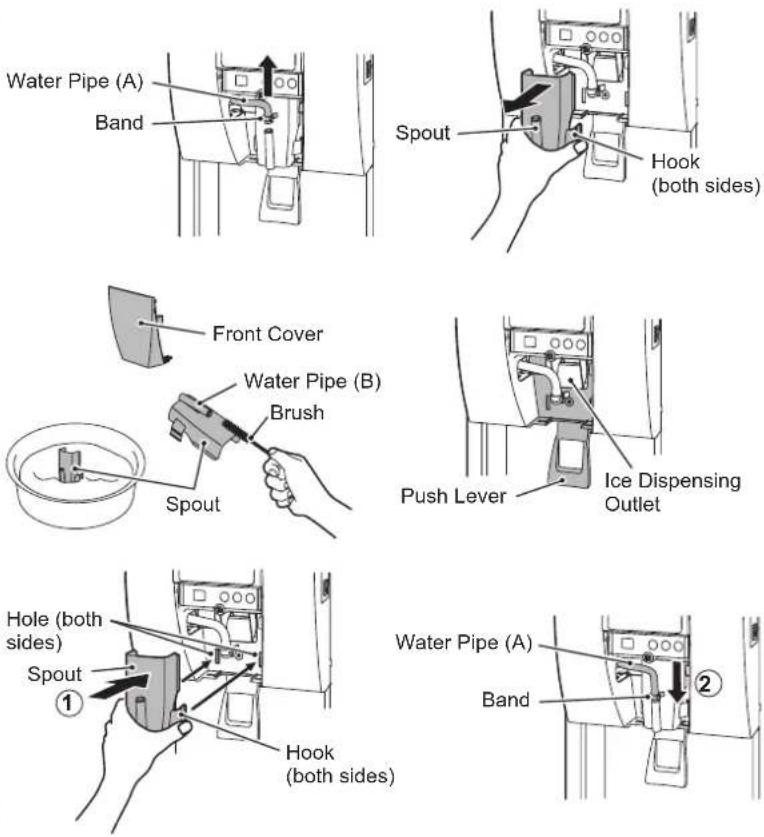

[b] Front Panel, Spout, Push Lever, Ice Dispensing Outlet Cleaning/Sanitisation (Daily)

1) Remove the front cover by holding the notches on both sides and pulling it toward you. See "II. 3. FRONT COVER".
2) Loosen the band to disconnect the water pipe (A).
3) Hold the hooks on both sides of the spout, and pull it toward you.
4) Either mix 1 litre of water with 4 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed.
5) Soak a clean cloth with the solution, and wipe the front cover.
6) Soak the spout in the solution for more than 3 minutes. Use the accessory brush to clean the water pipe (B). Rinse thoroughly, and shake to remove surplus liquid.

Note: Using a cloth to dry may re-contaminate.

7) Soak a clean cloth with the solution, and wipe the parts around the ice dispensing outlet and the push lever.

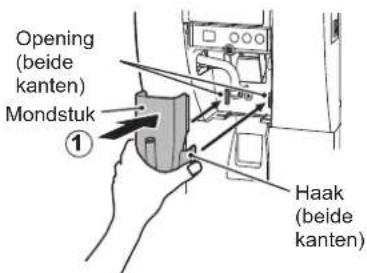

8) Replace the spout by holding the hooks on both sides and inserting them into the holes.
9) Use the band to reconnect the water pipe (A) to the spout.

10) Replace the front cover by holding both sides, inserting the hooks into the holes, and securely attaching it to the magnet catch. See "II. 3. FRONT COVER".

11) The remaining solution can be used to sanitise utensils.

Note: Do not wipe dry or rinse after sanitising, but allow to air dry.

[c] Grille, Drain Pan Cleaning/Sanitisation (Daily)

1) Either mix 1 litre of water with 4 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed.
2) Lift the grille off the drain pan.
3) Soak the grille in the solution for more than 3 minutes. Rinse thoroughly, and shake to remove surplus liquid.

Note: Using a cloth to dry may re-contaminate.

Grille Drain Pan Top Lift off

DCM-60/120KE
DCM-60/120KE-P

Grille must be lower than the top of drain pan.

Grille must be level with the top of drain pan.

4) Use the accessory brush to clean the three drain holes in the drain pan.
5) Place the grille in its correct position and direction.

Line drawing of a hand using a tool to adjust or install a rectangular component (no text or symbols present)

[d] Air Filter

CAUTION

To prevent injury, be careful not to touch the condenser fins when removing the air filter.

Plastic mesh air filters remove dirt or dust from the air, and keep the condenser from getting clogged. If the filters get clogged, the ice dispenser's performance will be reduced. Remove and clean the air filter(s) at least twice per month:

1) Pull out the air filter from the bottom of the drain pan.
2) Clean the air filter by using a vacuum cleaner. When severely clogged, use warm water and a neutral cleaner to wash the air filter.
3) Rinse and dry the air filter thoroughly.

Air Filter Handle

NOTICE

After cleaning, be sure to place the air filter back in position with the handle facing down.

2. INSPECTION AND MAINTENANCE

NOTICE

To achieve optimum ice dispenser performance, the following parts need periodic inspection and maintenance: Extruding head (upper bearing) Housing (lower bearing) Mechanical seal

[a] Inspection

These parts should be inspected after two years from installation or 10,000 hours of operation, whichever comes first, and once a year afterwards. Replacement of these parts is required if wear exceeds factory recommendations.

Their service life, however, depends on water quality and environment. More frequent inspection and maintenance are recommended in bad or severe water conditions.

Consult with your local Hoshizaki service agent about inspection and maintenance service.

[b] Replacement

The extruding head (upper bearing) and mechanical seal must be replaced after four years from installation or 20,000 hours of operation, whichever comes first, to prevent the risk of serious accidents or failures. Contact your local Hoshizaki service agent for replacement.

When the total operating time reaches 20,000 hours, the service call lamp on the operation panel lights up and the display on the control panel flashes "PC". Then, after 500 hours, the unit shuts down to ensure safety and the service call lamp starts flashing. Contact your local Hoshizaki service agent for replacement as soon as the service call lamp lights up.

Once the unit shuts down after 500 hours and the service call lamp starts flashing, the operation can be resumed by turning off the operation switch and turning it back on. But the unit shuts down again after 500 hours. To resume the operation, contact your local Hoshizaki service agent for the required replacement.

Replacement of the housing (lower bearing) may be required depending on water quality and wear condition.

3. BEFORE CALLING FOR SERVICE

⚠WARNING

Do not damage the refrigerant circuit.

[a] Error Code Indication

If the error code "E" is indicated on the display, before calling for service, check the following.

Code	Remedy
E0	Possibility of water leaks. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
E1	Low ice production. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
E2	Water supply circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
E3	Gear motor failure. Turn OFF operation switch, and turn it ON again after 10 minutes. If error code appears again, call for service.
E4	Abnormal high side pressure. Clean air filter. Check that ice dispenser is properly installed. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
E5	Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
Eb	Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
Ed	Operation board communication error. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EE	Gear motor failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EF	Supply voltage is too low. Check that voltage is in required range and ice dispenser is not sharing a single receptacle with other appliances. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EL	Bin control switch failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EP	Model setting number error. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EU	Controller board failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.

[b] No Error Code Indication

If the ice dispenser does not work properly or does not work at all with the ice making lamp on the operation panel flashing and no error code is indicated on the display, before calling for service, check that:

* The power is supplied to the unit.

* The water is turned on.

* The air filter is clean.

For further assistance or advice, contact your local Hoshizaki service agent.

4. DISPOSAL

Comply with local regulations regarding disposal of this appliance and its refrigerant gas.

Correct disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

5. WARRANTY

Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the “warranty period”. The warranty shall be effective for two years from the date of installation. Hoshizaki’s liability under the terms of the warranty are limited and shall exclude routine servicing, cleaning, essential maintenance and/or repairs occasioned by misuse and installations not in accordance with Hoshizaki guidelines.

Warranty repairs should be completed by an approved Hoshizaki dealer or service agency using genuine Hoshizaki components.

To obtain full details of your warranty and approved service agency, please contact your dealer/supplier, or the nearest Hoshizaki Service office:

Europe, Middle East, Africa

Hoshizaki UK - UK, Ireland

TEL: [phone]

FAX: [phone]

[e-mail]

Hoshizaki Middle East - Middle East

TEL: [phone]

FAX: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

FAX: [phone]

[e-mail]

Hoshizaki Nederland & België - Netherlands, Belgium,
Luxembourg
TEL: [phone] (Nederland)
TEL: [phone] (België)
FAX: [phone]
[e-mail] (Nederland)
[e-mail] (België)
Hoshizaki France - France
TEL: [phone]
FAX: [phone]
[e-mail]
Hoshizaki Iberia - Spain, Portugal
TEL: [phone]
FAX: [phone]
[e-mail]
Hoshizaki Europe B.V. - all other countries within Europe
Asia, Oceania

Note: The above specifications are for the representative models.
and Africa
TEL: [phone]
FAX: [phone]
[e-mail]
Hoshizaki Singapore
TEL: [phone]
FAX: [phone]
Hoshizaki Hong Kong
TEL: [phone]
FAX: [phone]
Hoshizaki Taiwan
TEL: [phone]
FAX: [phone]
SPECIFICATIONS

Model DCM-60KE DCM-60KE-P
Type Air-cooled, cubelet ice, push lever type Air-cooled, cubelet ice, dispense switch type
Power Supply 1 phase 220-240	50Hz / 220-230V 60Hz 1 phase 220-240 50Hz /	220-230V 60Hz
Electric Consumption 280/320W	(ambient 32°C, water 21°C) 280/320W (ambient 32°C, water 21°C)
Ice Production per 24h 60kg (ambient 10°C, water 10°C) 60kg (ambient 10°C, water 10°C)
Dimensions 350mm(W) x 585mm(D) x 695(-710)mm(H) 350mm(W) x 585mm(D) x 695(-710)mm(H)
Refrigerant R134a, 0.21kg	(GWP: 1430, CO2: 0.300t)	R134a, 0.21kg(GWP: 1430, CO2: 0.300t)
Insulation Foam Blowing Agent	HFC-free	HFC-free
Weight	Net: 47kg (Gross: 56kg)	Net: 47kg (Gross: 56kg)
Ambient Temp	5 - 40°C	5 - 40°C
Water Supply Temp	5 - 35°C	5 - 35°C
Water Supply Pressure	0.05 - 0.78 MPa (0.5 - 8 bar)	0.05 - 0.78 MPa (0.5 - 8 bar)
Voltage Range	Rated voltage ± 6%	Rated voltage ± 6%
Model DCM-120KE DCM-120KE-P
Type Air-cooled, cubelet ice, push lever type Air-cooled, cubelet ice, dispense switch type
Power Supply 1 phase 220-240	50Hz / 220-230V 60Hz 1 phase 220-240 50Hz /	220-230V 60Hz
Electric Consumption 480/560W	(ambient 32°C, water 21°C) 480/560W (ambient 32°C, water 21°C)
Ice Production per 24h 125kg (ambient 10°C, water 10°C) 125kg (ambient 10°C, water 10°C)
Dimensions 350mm(W) x 585mm(D) x 815(-830)mm(H) 350mm(W) x 585mm(D) x 815(-830)mm(H)
Refrigerant R134a, 0.21kg	(GWP: 1430, CO2: 0.300t)	R134a, 0.21kg(GWP: 1430, CO2: 0.300t)
Insulation Foam Blowing Agent	HFC-free HFC-free
Weight	Net: 57kg (Gross: 66kg)	Net: 57kg (Gross: 66kg)
Ambient Temp	5 - 40°C	5 - 40°C
Water Supply Temp	5 - 35°C	5 - 35°C
Water Supply Pressure	0.05 - 0.78 MPa (0.5 - 8 bar)	0.05 - 0.78 MPa (0.5 - 8 bar)
Voltage Range	Rated voltage ± 6%	Rated voltage ± 6%

This product includes a hermetically sealed refrigeration system that contains fluorinated greenhouse gases.

INFORMATIONS DE SECURITE IMPORTANTES

Marron = Sous tension

Line drawing of a laboratory setup with a beaker containing granular material and a funnel inserted into it (no text or symbols)

le

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

[d] Filtre à air

ATTENTION

Hoshizaki France - France

TEL: [phone]

FAX: [phone]

[e-mail]

Hoshizaki Iberia - Espagne, Portugal

TEL: [phone]

FAX: [phone]

[e-mail]

Asie, Océanie

Hoshizaki Singapore

TEL: [phone]

FAX: [phone]

Hoshizaki Taiwan

TEL: [phone]

FAX: [phone]

Hoshizaki Middle East - Moyen Orient

TEL: [phone]

FAX: [phone]

[e-mail]

Line drawing of a hand pouring liquid into a bowl on a machine (no text or symbols)

Diagram illustrating a washing machine operation with a hand gesture pointing to a recycling symbol and a magnified view of the process.

Line drawing of a hand using a tool to adjust or install a component inside a container (no text or symbols)

[d] Luftfilter

▲VORSICHT

Min. 7 cm Circa 1 cm

[DCM-60/120KE-P]

[a] Portieregeling activeren

Line drawing of a hand pouring liquid into a bowl on a machine (no text or symbols)

Diagram illustrating a kitchen cleaning process with labeled components and a hand gesture pointing to a button.

Hendel IJsafgifteopening

Line drawing of a hand using a tool to adjust or install a rectangular component (no text or symbols present)

[d] Luchtfilter

AVOORZICHTIG

Line drawing of a person pouring liquid into a bowl on a machine (no text or symbols)

Diagram illustrating a chemical experiment with a U-shaped tube being added to a beaker, accompanied by a hand pointing to the tube's action.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

[d] Filtro de aire

ATENCIÓN

min 7 cm 1 cm circa

[DCM-60/120KE-P]

Line drawing of a person using a tool to generate granular material from a bowl (no text or symbols)

Diagram illustrating a washing machine operation with a hand gesture pointing to a circular button labeled 'Down' and a checkmark.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

ATTENZIONE
