KT-1506S - Kettle Brentwood - Free user manual and instructions

USER MANUAL KT-1506S Brentwood

Brentwood® Appliances

© 2023 Brentwood Appliances, Inc.

TRAVEL KETTLE (Stainless Steel)

HERVIDOR DE VIAJE (Acero Inoxidable) BOUILLOIRE DE VOYAGE (Acier Inoxydable)

ITEM NO.:

KT-1506S

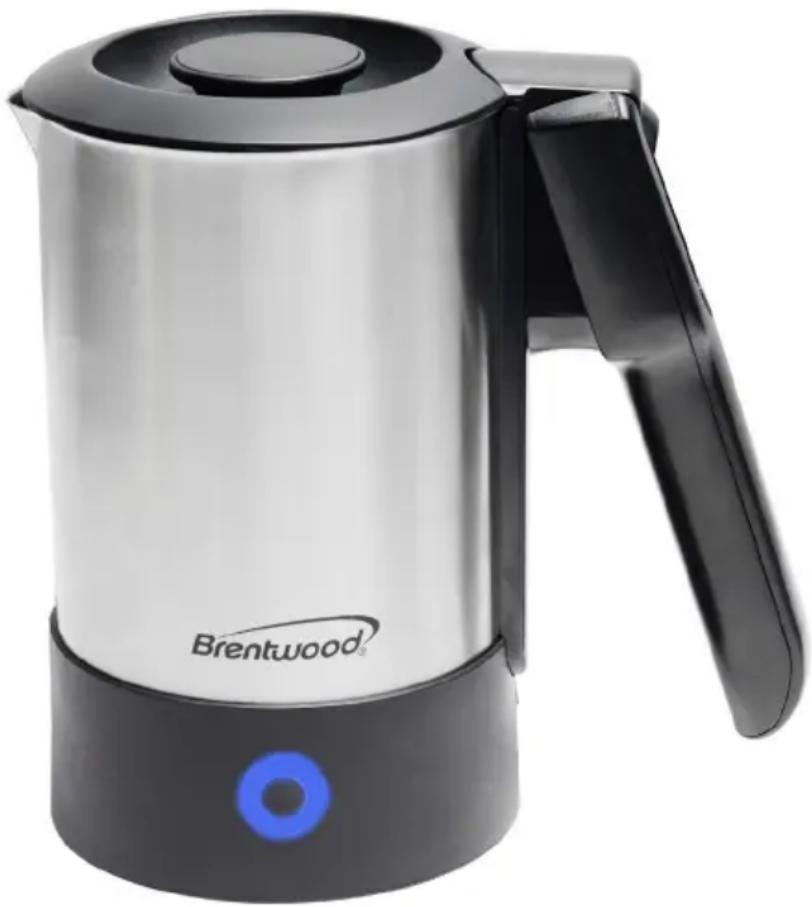

Exterior view of a modern stainless steel water heater with black handle and blue circular button (no text or symbols on body)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.

- Unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

- Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- To protect against the risk of electrical shock, do not immerse or expose the Base, Power Cord, or Plug of this product to water to other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product.

- This appliance generates heat and steam during use. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns and personal injury.

- The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to people. Only use attachments recommended, provided, or sold by the product manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking food for human consumption; do not use the appliance outdoors or for any other purpose.

- Do not operate the appliance empty and do not overfill. Use guideline markings in the interior of the Kettle when filling.

• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Portable – Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
• Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 9.
• Do not overload wall outlet, extension cords, or integral convenience holders, as this can result in a fire or electric shock.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.
• Do not use for other than intended use.

SPECIAL INSTRUCTIONS:

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• This appliance comes with a 3-wire grounded cord, the extension must also be 3-wire grounded cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a 3-prong grounding type. This is a safety feature. The plug will fit into an outlet one way ONLY. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord and the extension cord must be a grounding-type 3 wire cord. DO NOT attempt to defeat the safety purpose of the plug.

WARNING

FOR HOUSEHOLD USE ONLY. PLEASE READ INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE.

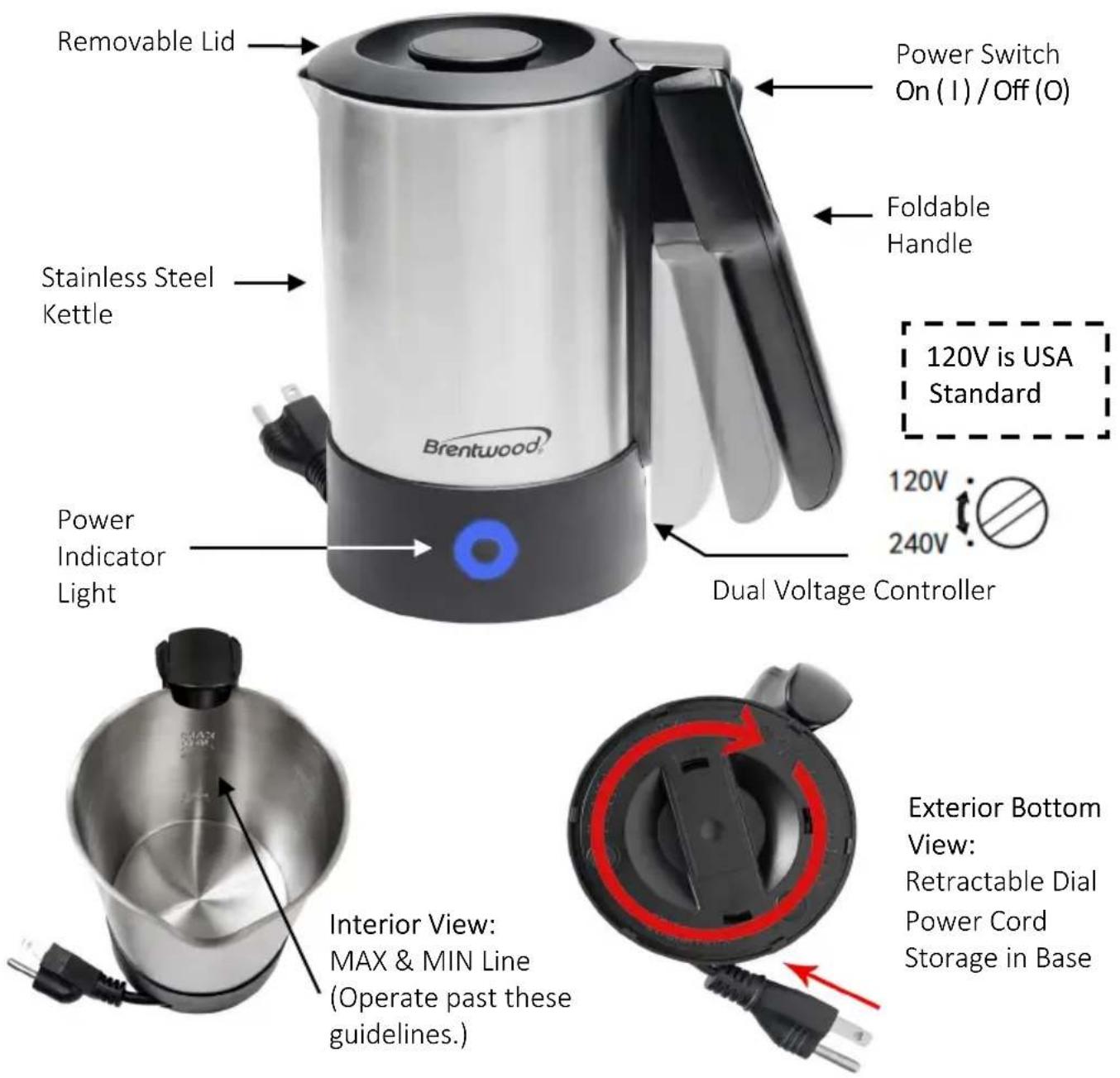

Parts:

Removable Lid Stainless Steel Kettle Power Indicator Light Brentwood Power Switch On (1) / Off (O) Foldable Handle Dual Voltage Controller 120V is USA Standard 120V 240V Interior View: MAX & MIN Line (Operate past these guidelines.) Exterior Bottom View: Retractable Dial Power Cord Storage in Base

IMPORTANT NOTES AND WARNINGS:

Please read all instructions carefully.

• This Kettle has dual voltage. Before plugging in to an electrical outlet, take care and select the level of voltage to be used. Standard USA voltage is 120.
  • This Kettle has auto shut off and boil dry protection. If plugged in dry, Kettle will shut off.
• If your Kettle is exposed to freezing temperatures for some time, do not use. Keep kettle in room temperature for a minimum of two hours prior to operating.

• Always make sure the lid is on during operation. Scalding may occur when the lid is off. The kettle will not shut off and boiling water may splash out of the kettle. This can cause severe injuries.

• Do not try to remove the lid while in operation.

• Be gentle with the lid when placing it onto the Kettle. Do not use force to secure the lid. If the lid breaks, the Kettle will not work properly.
• Do not fill the kettle with anything but water.
• Do not add instant soups or any other soluble to the Kettle.
• Do not use the Kettle to thaw food of any kind.
• Do not use the Kettle to make sauces or to melt cheese, butter, or any other items.
  • Never immerse the Kettle in any liquid.
  • Never put Kettle in the dishwasher.

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: Do not place any part of the product in a dishwasher.

Before your first official use we recommend running your Kettle twice before using the final boiled water for consumption. These steps are a quick run through to get your appliance ready for use. PLEASE READ ALL INSTRUCITONS BEFORE USE AS THE IMPORTANT DETAILS ARE IN THE 'USING YOUR KETTLE' PORTION BELOW.

1. Pull the Power Cable out of the Storage Base.
2. Pull out Foldable Handle and remove Lid.
3. Check correct voltage is selected.
4. Place on stable counter and check that the Power Button is on the (O) = OFF position and plug into the nearest outlet.
5. Fill the Kettle with clean water to the MAX level mark in the interior of the appliance.
6. Place Lid back on to the Kettle and flip Power Switch from O to I and wait until water comes to a boil.
7. The Kettle will automatically shut off. Unplug the Kettle and wait 3 minutes before repeating.
8. Once the 3 minutes have passed, discard the heated water, and repeat steps one more time.
9. Your Kettle is now ready to be used.
10. To reduce hardened mineral deposits, also known as scaling, ensure the Kettle is emptied and dried after each use.

Using Your Travel Kettle:

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

Important: Place the Kettle on a flat clean surface and make certain the Power Button is set to (O) before plugging into an outlet. Power On (I) / Power Off (O)

1. Wash the kettle and lid using warm soapy water. Concealed heating element makes it easy for you to rinse and wash. Take care not to wet the power plug end. Check plug end and wipe with dry paper towel if wet.

2. Pull Foldable Handle OUT during the entire operation. You will need to have your Foldable Handle in the OUT position to pour your hot water from the Kettle.

WARNING: DO NOT TOUCH ANY PART OTHER THAN THE PULLED-OUT HANDLE DURING OPERATION AND IMMEDIATELY AFTER. THE STAINLESS-STEEL KETTLE WILL BE VERY HOT AND CAN SCALD.

IMPORTANT

IF YOU DO NOT PULL THE FOLDABLE HANDLE OUT BEFORE POWERING UP THE KETTLE, YOU CAN STEADILY HOLD THE KETTLE IN PLACE BY HOLDING THE KETTLE DOWN BY THE KNOB ON THE LID. GENTLY AND SLOWLY PULL THE FOLDABLE HANDLE OUT. TAKE CARE NOT TO PULL ON THE HANDLE ROUGHTLY.

1. Choose Voltage: 120v is the standard volts used in the United States. To select the correct voltage, you may need a small paper clip or small tweezers to change the voltage setting.

2. Retractable Power Cord: Hold the Kettle by the Foldable Handle and pull out the Power Cord by the end. The first time might be difficult. You may need to pull out the Power Cord and twist it back into the Storage Base a few times for the cord to unstick itself and realign in the Base. Take care not to over pull. Gently pull out the Power Cable as far as you can, then use the Retractable Dial found under the Base to wind it back in. These steps will loosen up the Power Cord. This will become easier after the first or second use.

3. Once the Power Cord is fully out of the Storage Base place the Stainless-Steel Kettle on a clean and level counter near an outlet. NOTE: The Kettle is specifically designed with a short Power Cord for safety reasons.

4. Plug in your Kettle to the nearest electrical outlet. REMINDER: Pull the Foldable Handle out before starting the power.

5. Grab the Foldable Handle with one hand and pull the Lid off the Kettle with the other.

6. Place Lid on a clean paper towel.

7. Fill the Kettle to the MAX level guideline with cool drinking bottled water, and place Lid back on the Kettle. NOTE: Do not over fill. Water should NOT exceed the MAX guideline found in the interior of the Kettle. NOTE: Never operate the Kettle without the Lid.

8. Plug in your Kettle and press the Power switch to (I) for On.

9. Power indicator Light will illuminate, letting you know the appliance is on.

10. Once the water comes to a boil, the appliance will automatically shut off and the indicator light will go out.

Note: Do not attempt to operate this appliance when empty. It will shut itself off.

1. Unplug your Kettle from the electrical outlet.

WARNING: ONCE THE KETTLE HAS REACHED THE BOILING POINT AND SHUTS OFF, DO NOT GRAB THE BODY OF THE KETTLE. THIS ITEM GETS EXTREMELY HOT AND CAN SCALD.

REMINDER: ALWAYS PULL OUT THE FOLDABLE HANDLE PRIOR TO POWERING UP THE KETTLE.

NOTE: IF THE COLLAPSABLE HANDLE IS NOT IN THE OUT POSITION, HOLD DOWN THE KETTLE BY THE KNOB OF THE LID AND GENTLY PULL THE HANDLE OUT. USE A STEADY HAND TO NOT TIP THE KETTLE OVER.

1. With the Foldable Handle, raise your Kettle and pour out your hot water into your favorite mug, container, or bowl.

2. TIP: To extend the life of your Kettle, allow it to cool for a minimum of 3 minutes before starting a second batch.
   • Always discard any unused water to reduce the level of limescale buildup.

3. Enjoy!

Caution: Parts will be hot. Allow appliance to cool before handling the Kettle to clean and dry. Always dry before storing away in a cool and dry environment.

Cleaning Your Travel Kettle:

WARNING: Always unplug the appliance and allow it to cool before cleaning or storing it.

• Before cleaning always make sure the appliance is on (O). Unplug it from the outlet and allow it to cool down.
• It is recommended to rinse parts immediately after use to make cleaning easier.
• Discard any remaining water from the Kettle and rinse with warm water and wipe the outside thoroughly with a dry or damp cloth.
• NEVER immerse the Kettle into water or wash in a dishwasher.
• Avoid using abrasive and chemical cleaning agents (i.e., liquid bleach, hydrochloric acid, etc.) to clean any accessory parts of the appliance.
• Store product in a cool, dry place, away from the reach of children.

Descaling Your Kettle:

WARNING: Always unplug the product before any cleaning. Dry all parts after every use. Descale your pot regularly to avoid tougher stains.

Descaling:

Descaling is the removal of mineral deposits from glass and stainless steel. All water contains minerals including purified and filtered water. After your first use, you may

see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

Note: Do not reheat coffee or any other ingredient besides water in your Kettle, for this may discolor or stain the surface at the base.

To descale your pot, fill the pot full of water, add a small amount of white vinegar, and boil. Unplug the pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have been built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

Close-up of a black circular device with red arrows indicating rotation or flow, and a plug inserted (no text or symbols visible)

©2023 Brentwood Appliances, Inc.
