USER MANUAL GA-134BK Brentwood

Brentwood® Appliances

© 2023 Brentwood Appliances, Inc.

ESPRESSO & CAPPPUCCINO MAKER

MÁQUINA DE CAFÉ ESPRESSO Y CAPUCHINO CAFETIÈRE ESPRESSO ET CAPPUCCINO

ITEM NO: GA-134BK

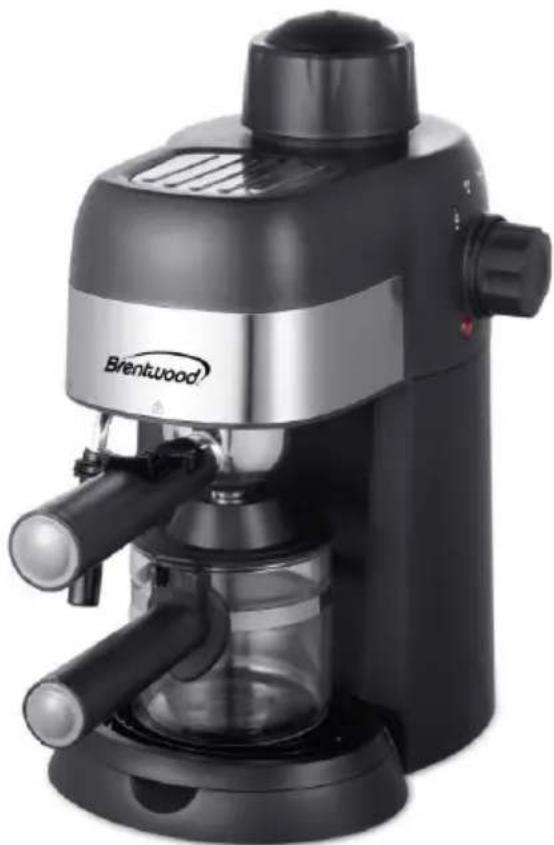

Exterior view of a Brentwood coffee maker with black and silver casing (no visible text or symbols)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

Technical diagram of a microwave oven with labeled parts including tray, fan, and control buttons

Name of Parts

ENGLISH

1. Water Tank Lid
2. Steel Mesh Filter
3. Top cover
4. Metal Funnel
5. Press Bar
6. Steam Knob
7. Indicator
8. Funnel Handle
9. Steam Conduit
10. Carafe Cover
11. Frothing Device
12. Carafe Handle
13. Carafe
14. Main Body
15. Drip Tray
16. Scoop & Tamp
17. Espresso Brew Function
18. Pause Function
19. Off Position
20. Steam Function
21. Insert Metal Funnel
22. Lock Metal Funnel

WARNING: The espresso machine cannot be kept working continuously. If a second serving is needed, please wait for 3 minutes after releasing the steam.

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

ENGLISH

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.

- After use, always unplug the appliance from the electrical outlet and allow the appliance to cool before assembling, disassembling, relocating, or cleaning.

- Do not leave the product unattended while it is in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles and protective oven mitts or gloves to avoid burns or personal injury.

- This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal/ property damage.

- Only use attachments recommended, provided, or sold by the product manufacturer.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing hot food, water, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

• Do not operate the product empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 12.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for

use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

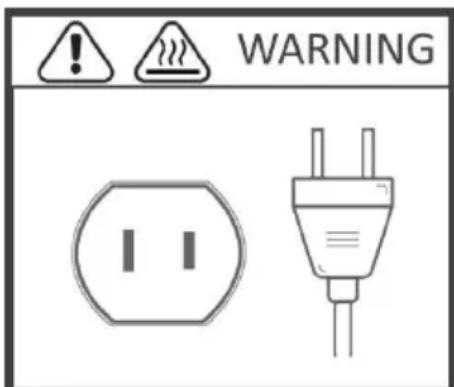

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will into a polarized outlet only one way. If you are unable to insert the plug into the electric outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of polarized plug.

WARNING

HOUSEHOLD USE ONLY READ THESE INSTRUCTIONS & SAVE FOR FUTURE REFERENCE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Wash the Carafe, Porta Filter, and Filter Basket with warm soapy water. Rinse and dry thoroughly.

Note: to avoid breaking your glass carafe, be sure to keep it away from any extreme cold temperatures especially just prior to use!

1. Place parts together and run a brew cycle with water only. Do not add coffee.

Repeat 2-3 times to remove any dust or debris from manufacturing.

1. When the brewing cycle is complete, turn your espresso maker off. Empty the water from the carafe once it has cooled, rinse the carafe, carafe lid, and filter basket.

How to Brew Espresso

Before setting up to brew, the 'Control Dial' should be set to the 'OFF' position. Do not plug your appliance in before setting up. Keep your espresso maker unplugged from the outlet when not in use. This step will prolong the life of your appliance.

1. Always turn control dial to "OFF" position and check that it is NOT connected to the electrical outlet before filling with water. Never overflow water tank or use more than the recommended amount of water. Recommended amount of water is on the carafe.

2. Use the Scoop & Tamp tool to scoop fresh, medium ground coffee into the Filter Basket. Fill to the '2' or '4' (2 servings or 4 servings) inside level markers in the 'Steel Mesh Filter'. Then use the 'Tamp' end of the Scoop & Tamp tool to gently level and tamp the coffee grounds in the 'Steel Mesh Filter'.

3. Place the 'Steel Mesh Filter' into the 'Metal Funnel'. Make sure the 'Steel Mesh Filter', when placed in, fits flushed with the Funnel.

NOTE: the next step requires both hands on the appliance. Left hand will hold the appliance firmly, while the Right hand will turn the Press Bar firmly to the right.

1. With the ‘Press Bar’ laying flush with the handle, insert the ‘Metal Funnel’ into the underside of the machine. Insert Funnel to the right of the unlock symbol. This might take a few tries. You will know when it is in the correct position when the funnel fits up into the machine. Once in, using both hands, place LEFT HAND on the ‘Top Lid’ while the RIGHT HAND will turn the ‘Press Bar’ firmly towards the right. Handle will sit directly aligned under the “LOCK” symbol.

2. Fill the carafe with water to the '2' or '4' level markers*, matching the amount of coffee grounds used in the 'Steel Mesh Filter'. Remove cap from the top of the

machine and pour water from the carafe into the water tank. Replace the cap and turn right until seal is tight.

*NOTE: If steaming or frothing, you must add additional water to the tank at this time. Refer to 'How to Steam' Section below for details.

1. Place the empty carafe on the drip tray, positioning the carafe's lid directly under the 'Metal Funnel' spout.
2. Turn the control dial from the 'OFF' position to "Espresso Cup" icon (brew cycle) and wait 2 minutes, the machine will begin to brew.
3. Once espresso has reached the desired serving level, slowly turn the control dial from the ‘Espresso Cup’ icon to the ‘PAUSE’ position.
4. Espresso is now ready, and you may remove the Carafe and serve.
5. Once the Carafe is away from the machine, you must release any remaining pressure by using a wet clean cloth and placing the cloth over the 'Steam Conduit' and slowly turn the control dial from 'PAUSE' to the 'STEAM' icon. Any additional steam will release into the towel. Make sure you keep your face and hands away from the 'Steam Conduit' when releasing and using this Steam feature.
6. When all remaining steam has been released, turn the dial to 'OFF' and unplug from outlet. This appliance does not have a power switch.

WARNING: Do not leave the espresso maker unattended during use, as you need to manually operate it.

CAUTION: YOU MUST ALWAYS RELEASE THE REMAINING PRESSURE BEFORE YOU TURN THE MACHINE OFF.

CAUTION: machine, parts, and liquids are very hot during and after use.

1. To avoid spillage or injury, DO NOT detach the 'Metal Funnel' while the machine is operating. Before removing the 'Metal Funnel', ALWAYS RELEASE the pressure from the water tank by moving the control dial to the "Steam" position. Keeping hands and face away from the machine, allow steam to escape until there is none left.

WARNING: YOU MUST ALWAYS RELEASE THE PRESSURE BEFORE SHUTTING APPLIANJCE DOWN.

1. Turn the control dial to the "OFF" position and wait until the 'Metal Funnel' has cooled before removing.

2. Once cooled, and carafe has been removed, you may now remove the 'Metal Funnel', by going clockwise from the Lock position to the Unlock position.

3. Once you have removed the 'Metal Funnel' flip the 'Press Bar' up, so it holds the 'Metal Funnel' in place using your thumb. Turn the 'Metal Funnel' over to tap out grounds over a trash receptacle. Wash 'Metal Funnel' and Steel Mesh Filter in warm soapy water, dry, and reassemble for storage.

4. Always release pressure and allow unit to cool for at least 5 minutes before storing or starting next brew cycle. Machine and parts are very hot during and after use.

How to Steam Milk (Non-Fat or 2% Recommended)

1. Fill the carafe with water to the 'STEAM' icon level marker and add water to the water tank.
2. Following the 'How to Brew Espresso' instructions, pour '2' or '4' servings of water into the water tank, then immediately fill the carafe up to the 'Steam' icon level marker and add to the water tank.
3. Follow the 'How to Brew Espresso' through step 7, espresso has brewed and reached the desired '2' or '4' level marker.
4. Move the control dial from the 'Espresso Cup' icon to the 'Pause' position. Remove the carafe from the drip tray, away from the machine.
5. Ensure the ‘Frothing Device’ is installed on the ‘Steam Conduit.’ Place a damp towel over the steam wand and briefly purge by slowly moving the control dial from ‘PAUSE’ to the ‘Steam’ icon, clearing any residue. Turn the dial back to ‘PAUSE.’
6. Now you are ready for the next steps below.

Steam Milk – Creates Hot Milk for Lattes

a. Fill up to 2/3 cold milk in a stainless-steel frothing pitcher or similarly sized cup.
b. Position the frothing pitcher under the steam wand, submerging the tip deeper into the milk creating less bubbles.
c. Slowly turn the dial towards the "Steam" position to start steaming. Continue to steam milk until pitcher is almost too hot to handle.
d. Turn the dial to the off position before moving the wand outside of the milk.

Froth & Steam Milk – Creates Hot Milk with Foam for Cappuccino

a. Fill frothing pitcher or similarly sized cup with 1/3 cold milk.
b. Place the wand into the frothing pitcher, submerging it just below the milks surface. Slowly turn the dial towards the “Steam” position to start steaming.
c. Keep the wand just below the surface of the milk to create microbubbles, the frothy foam used for cappuccinos. Continue to steam until volume doubles.
d. Slowly lower the wand towards the bottom of the pitcher and keep until the froth and milk becomes silky smooth and the pitcher is almost too hot to handle. Turn the dial to the off position before moving the wand outside of the milk. Heavier steamed milk will settle at the bottom of the pitcher and will pour out before the froth. Left over froth is used as a top layer on drinks.

Latte	DirectionsFollow the “Steam Milk” instructions.Prepare espresso. Pour espresso into an 8-10oz latte cup. Pour freshly steamed milk aiming at the center. Top with a thin layer of foam with the left-over froth.
Ingredients• 1 Part Espresso• 3 Parts Steamed Milk• Thin Layer of Froth
Cappuccino	DirectionsFollow the “Froth & Steam Milk” instructions. Prepare of espresso. Pour espresso into a 6-8oz cappuccino cup.Start to pour freshly frothed milk starting at the center of the cup and follow a circular pattern out to the rim of the cup.
Ingredients• 1 Part Espresso• 1 Part Steamed Milk• 1 Part Frothed Milk
Latte Macchiato	DirectionsFollow the “Steam Milk” instructions.Prepare espresso. Pour freshly steamed milk into an 8-10oz latte cup. Pour freshly pulled espresso at the center. Top with layer of frothed milk.
Ingredients• 1 Part Steamed Milk• 1 Part Espresso• 1 Part Frothed Milk

DAILY CARE AND CLEANING (DO NOT PLACE ANY PARTS IN DISHWASHER)

1. Unplug machine from power outlet and allow to cool before cleaning.
2. Clean the machine with a soft, damp cloth. Never submerge machine in water.
3. Clean the Metal Funnel, Steel Mesh Filter, Carafe, and Scoop & Tamp in warm, soapy water.
4. Place all clean parts together and run brew cycle with water only. Do not add coffee.
5. Do the same cleaning process for the Steam Conduit. Repeat a few times to remove any dust inside and any residue.

TIP: This little step after every use, will extend the life of your appliance.

NOTE: This should be done monthly or more for places with extra hard water.

1. Always clean and dry coffee maker completely before storing.

Instructions - Limescale Cleaning and Reduction

Limescale is inevitable as all water contains minerals, even filtered water.

NOTE: You may need more regular cleaning depending on the mineral content of the water you use.

Limescale Cleaning

Once a month clean the machine with distilled white vinegar.

1. Allow the vinegar to sit overnight.

2. Brew 2 cycles, allowing the vinegar to clear through both the drip and the steamer nozzles.

3. Release steam in short bursts into a clean cool damp kitchen towel.

4. Always keep hands and face away from the tip of the steamer nozzle.
5. Brew 2 cycles of normal water to flush out any remaining vinegar.
6. Continue to enjoy your espresso!

Reducing the impact of limescale

• Never leave water in the reservoir outside of brewing and steaming.
• Allow the reservoir to fully air dry prior to replacing the cap.
• Maintain regular cleaning, usually with vinegar once a month.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
