USER MANUAL TS-222BK Brentwood

Brentwood® SELECT

© 2023 Brentwood Appliances, Inc.

12 CUP COFFEE MAKER

CAFETERA DE 12 VASOS / CAFETIÈRE FILTRE 12 TASSES

ITEM NO.: TS-222BK

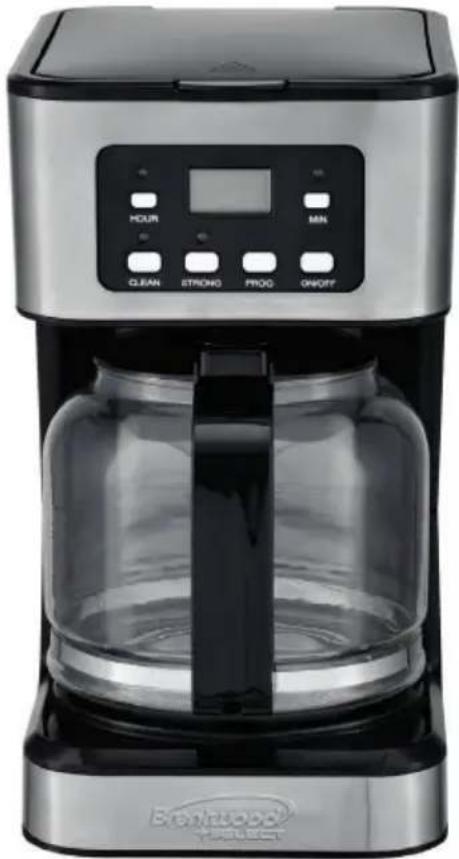

Exterior view of a modern coffee maker with digital display and control buttons (no text or symbols on the device itself)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING - To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.
• Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam. Do not touch hot surfaces and se handles when handling.
• Do not use attachments not recommended or sold by the product manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing hot food, water, or other liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the product empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 8.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for

use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

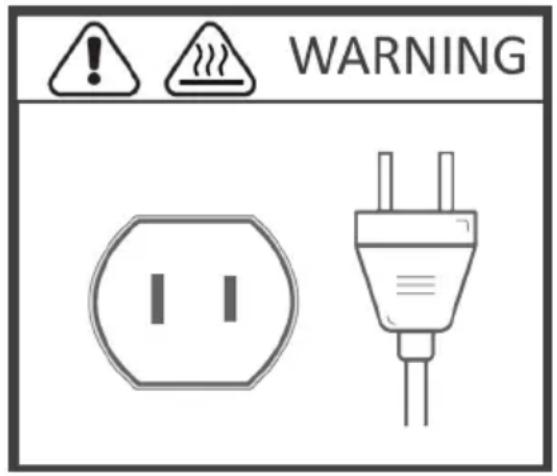

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

WARNING

FOR HOUSEHOLD USE ONLY. READ THESE INSTRUCTIONS AND SAVE FOR FUTURE REFERENCE!

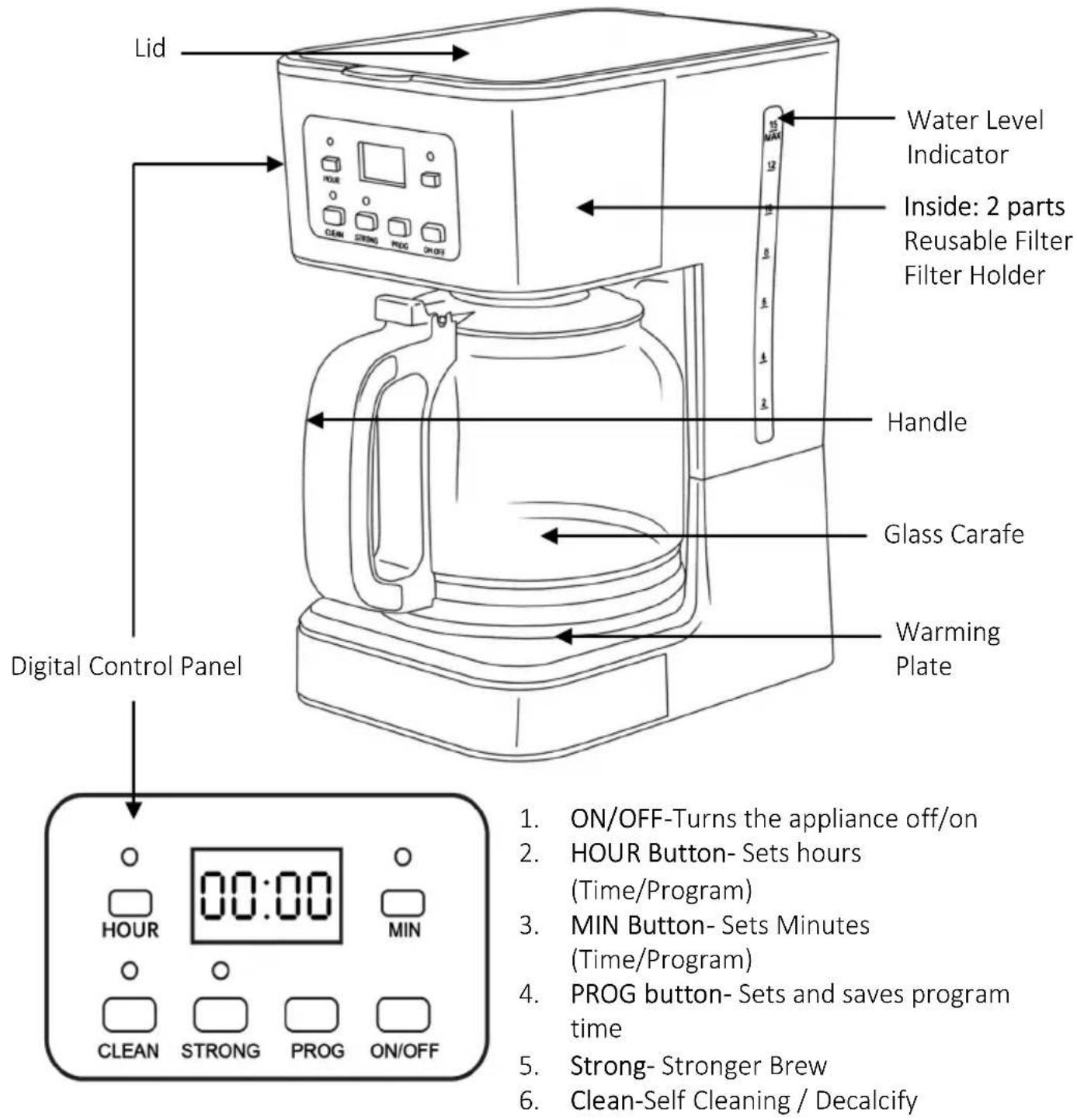

Parts:

Lid Water Level Indicator Inside: 2 parts Reusable Filter Filter Holder Handle Glass Carafe Warming Plate Digital Control Panel 1. ON/OFF-Turns the appliance off/on 2. HOUR Button- Sets hours (Time/Program) 3. MIN Button- Sets Minutes (Time/Program) 4. PROG button- Sets and saves program time 5. Strong- Stronger Brew 6. Clean-Self Cleaning / Decalcify

*Note: MIN on Control Panel will have a continuous RED blinking indicator light while brewing.

Before First Use: Check that the unit is not damaged. Add water into water tank to the max level and brew water for several times without coffee, then discard the water. Clean all detachable parts thoroughly with warm water.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

MANUAL BREWING:

CAUTION: Avoid contact with hot parts.

For best results, use and measure medium ground coffee with a tablespoon (included).

1. Lift the lid to the open position.
2. Fill the reusable filter with appropriate amount of medium ground coffee. (See chart) Paper filters may be used in place of the included reusable filter. Accepts #4 Paper Cone Filters with a Flat Bottom.
3. Gently shake the reusable filter side to side to level grounds and place the reusable filter into the filter holder. Place inside the coffee maker.

4. Use the Glass Carafe to pour fresh, cold water into the water reservoir. Do not fill past the "Max" line. Close the lid and place the empty Glass Carafe onto the warming plate.
   Note: Make sure the Glass Carafe is fully placed on the warming plate or the water and the grounds will overflow from the filter basket. This can cause injury and damage to property. The amount of coffee brewed will always be less than the amount of water poured in the water reservoir due to absorption by the coffee grounds.

5. Press the 'ON/OFF' button once to start. The 'MIN' indicator light will begin to flash when brewing begins.

*NOTE: To Cancel press ON/OFF again.

1. The keep warm function will keep your coffee hot for a couple hours before automatically shutting off.

NOTE: This coffee maker has a Pause and Serve feature that allows you to sneak a cup of coffee from the Glass Carafe. This usually allows you to remove the Glass Carafe for about 30 seconds.

CAUTION: Wait 5 minutes between multiple brews to allow appliance to cool.

Suggested Coffee Measurement Chart
Water	Regular Coffee	Strong Coffee
4 cups	3 tbsp.	4 tbsp.
6 cups	5 tbsp.	5.5 tbsp.
8 cups	5.5 tbsp.	6.5 tbsp.
10 cups	7 tbsp.	8 tbsp.
12 cups	9 tbsp.	9.5 tbsp.

PROGRAM BREWING:

NOTE: Program (Pro) setting is only possible when clock time is set.

1. Setting Clock: Press and hold "HR" button for 3 seconds. The screen will flash, then press "HR" again to set the Hour. Do the same for the "MIN" button to set the minute. Wait and allow the time to set.

2. Setting Timer: Press "Pro" button once, then press the "HR" and "MIN" buttons to program the brew start time. Then press the "Pro" button or wait 3 seconds to save.

3. Make sure there is water and coffee grounds in machine for the program to run.

NOTE: the program time will save after 3 seconds. Then the clock time will display.

Note: The Program function and Clock time will be deleted when you unplug the coffee maker from the outlet.

STRONG BREWING:

Add coffee using the measuring scoop provided. Brew coffee with the coffee water ratio you normally use when you prepare ground coffee. If you prefer strong coffee, we recommend the following European method, which produces rich, full-bodied flavor. Use one level scoop for each cup or 10 level scoops per full pot of coffee. Experiment with the amount of coffee used in order to adjust the flavor to your taste. Do not exceed the Max level. NOTE: Lengthens the brewing time.

1) Press ON/OFF button
2) Press STRONG button
3) Green light will be on over STRONG button

Glass Carafe Special Instructions This decanter is designed for use only with the Brentwood Coffee Maker. Never use on a range top stove, oven, or microwave of any kind. Do not use if cracked or if it has loose or weakened handle or if it is ever boiled dry. Do not disassemble.

Cleaning Your Coffee Maker:

CLEAN BUTTON (Decalcifying)

After 60 uses (approximately), Clean Light Button will flash notifying you that the coffee maker needs to be cleaned. NOTE: Recommend 4 times a year or when you notice an obvious slowdown in brewing time.

1) Solution to clean: 2 tablespoons of white vinegar to 1 carafe of cold water
2) Pour the solution into the water reservoir
3) Follow by normal operating instructions, without a filter in the filter holder
4) Press CLEAN button
5) When brew cycle if finished, empty carafe and rinse with water.
6) Repeat TWICE using ONLY cold water to flush any remaining vinegar solution

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: Do not immerse the coffee maker, or the power cord into water or any liquids

- Wash removable parts in warm water with mild soap. Do not use harsh or abrasive cleaners.

- Do not place in dishwasher. Clean the housing and keep warm plate with a clean, damp cloth.

- Ensure all parts are completely dry before storing or using again.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it. Please keep your proof of purchase.

CUSTOMER RECORD

Date of Purchase Store/Dealer

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

© 2023 Brentwood Appliances, Inc.
