USER MANUAL L 1503 VR Flex

Illustration of a white electric power tool with a button and screw base (no text or symbols)

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 S p i n d e l

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Close-up of a car door handle with a black arrow pointing to a textured surface, no visible text or symbols

Close-up of a car's door handle with a black arrow indicating left-hand rule (no text or symbols on the diagram itself)

Mechanical assembly showing a rotating component being inserted into a motor (no text or symbols visible)

Mechanical component with a circular top and mechanical base, showing a downward arrow indicating motion or force (no text or symbols present)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

27.09.2016

Symbols used in this manual ..... 12

Technical specifications 12

Overview 13

For your safety 14

Noise and vibration ..... 16

Operating instructions 17

Maintenance and care 18

Disposal information 19

(€-Declaration of Conformity ..... 19

Exemption from liability ..... 19

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result inslight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Disposal information for the old machine (see page 19)!

Technical specifications

Machine type		Polisher L1503VR
Tool ∅ max. mm 140
Speed r.p.m. 1200–4900
Power input W 1200
Power output W 700
Weight (without power cord)	kg	1.9
Protection class		II / ☐

Overview

Exploded view diagram of a power tool with numbered parts and exploded view

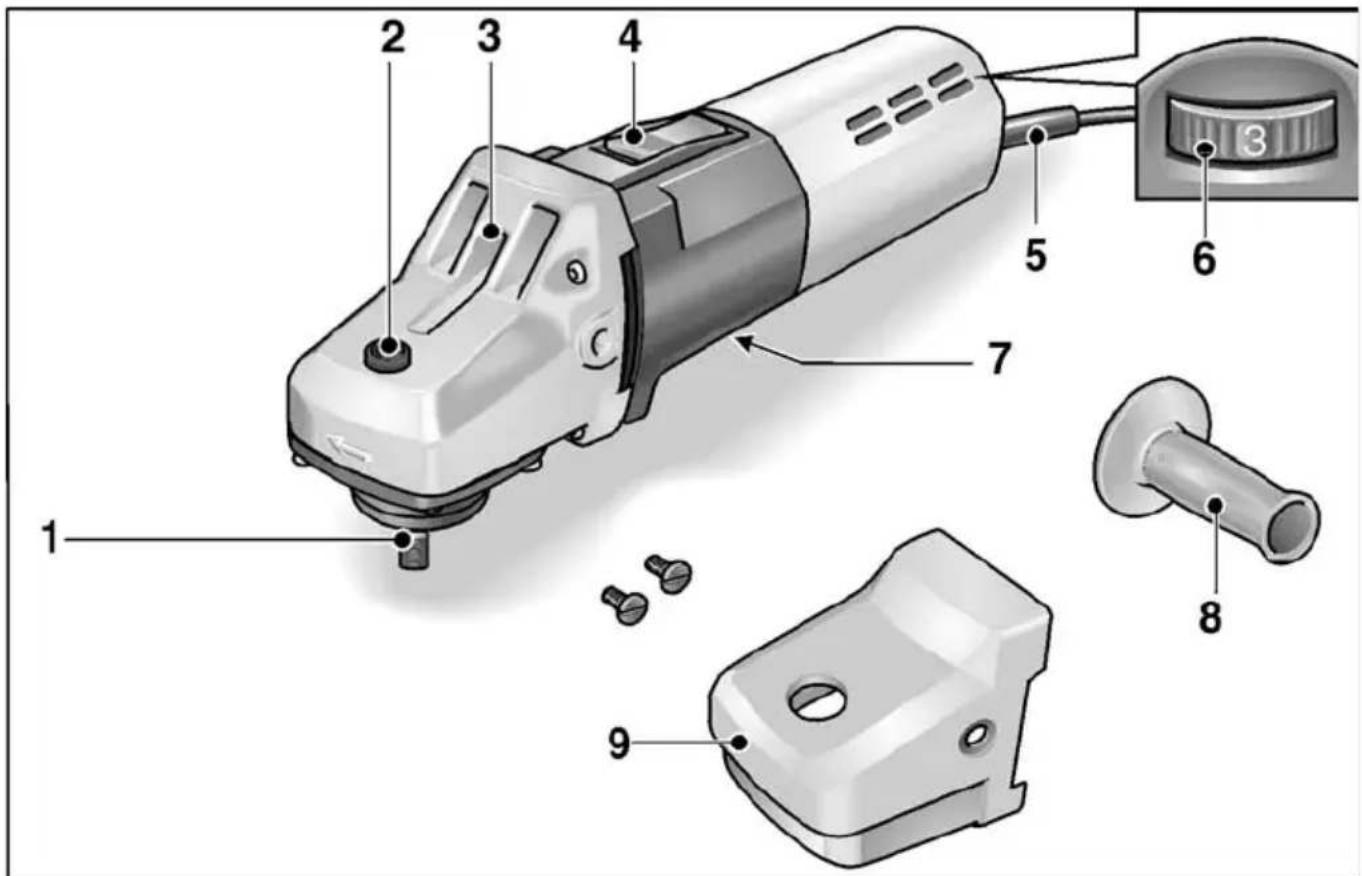

1 S p i n d l e

2 S p i n d l e l

Secures the spindle when the tool is changed.

3 Gear head

With air outlet and direction-of-rotation arrow.

4 S w i t c h r o c k e r

For switching on and off. With notched position for continuous operation.

5 4.0 m power cord with plug

6dDial for preselecting the speed

7 Rating plate

8 H a n d l e

9 Handle cover

For your safety

WARNING!

Before using the polisher, please read and follow:

– these operating instructions,
– the “General safety instructions” on the handling of power tools in the enclosed booklet (leaflet-no.:315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This polisher is state-of-the-art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The polisher may be used only

-used as intended,

-in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

This polisher is designed

– for commercial use in industry and trade,

– for all types of polishing work with polishing sponges, lambskins and woolskins, felt plate, buffing disc

– for use with polishing tools which are permitted to run at a speed of at least 4900 r.p.m.

Safety instructions for polishing

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.

This power tool is intended to function as a polisher. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Operations such as grinding, sanding, wire brushing, or cutting-off are not recommended to be performed with this power tool.
Operations for which the power tool was not designed may create a hazard and cause personal injury.
■ Do not use accessories which are not specifically designed and recommended by the tool manufacturer.
Just because the accessory can be attached to your power tool, it does not assure safe operation.
■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.
Accessories running faster than their rated speed can break and fly apart.
■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.
Incorrectly sized accessories cannot be adequately guarded or controlled.
- Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange.
Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute.

Damaged accessories will normally break apart during this test time.

■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments.

The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.

Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

■ Position the cord clear of the spinning accessory.

If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

■ Never lay the power tool down until the accessory has come to a complete stop.

The spinning accessory may grab the surface and pull the power tool out of your control.

■ Do not run the power tool while carrying it at your side.

Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

■ Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

■ Do not operate the power tool near flammable materials.

Sparks could ignite these materials.

■ Do not use accessories that require liquid coolants.

Using water or other liquid coolants may result reresult in electrocution or shock.

Kickback and Related Warnings:

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

■ Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces.

Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up.

The operator can control torque reactions or kickback forces, if proper precautions are taken.

■ Never place your hand near the rotating accessory.

Accessory may kickback over your hand.

■ Do not position your body in the area where power tool will move if kickback occurs.

Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

■ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.

Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

■ Do not attach a saw chain woodcarving blade or toothed saw blade.

Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Polishing Operations

■ Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece.

Additional safety instructions

■ The mains voltage and the voltage specifications on the rating plate must correspond.
■ Do not press the spindle lock until the tool stops.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745.

The A evaluated noise level of the power tool is typically:

– Sound pressure level: 84 dB(A);
– Sound power level: 97 dB(A);
– Uncertainty: K

Total vibration value (when polishing painted surfaces):

- Emission value: a

– Uncertainty:

$$ \begin{array}{c} \text {h} = 4. 7 \mathrm{m} _ {2} ^ {2} \mathrm{s} \ K \end{array} $$

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool.

However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ.

This may significantly increase the exposure level over the total working period.

For a precise estimation of the vibration load the times should also be considered during which the power tool is switched off or even running, but not actually in use.

This may significantly increase the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

$$ = \quad 3 \quad \mathrm{dB}. $$

Operating instructions

WARNING!

Before carrying out any work on the polisher, always pull out the mains plug.

Before switching on the power tool

Unpack the polisher and check that there are no missing or damaged parts.

Attach handle cover

Technical diagram of a mechanical device with numbered annotations indicating parts of the component.

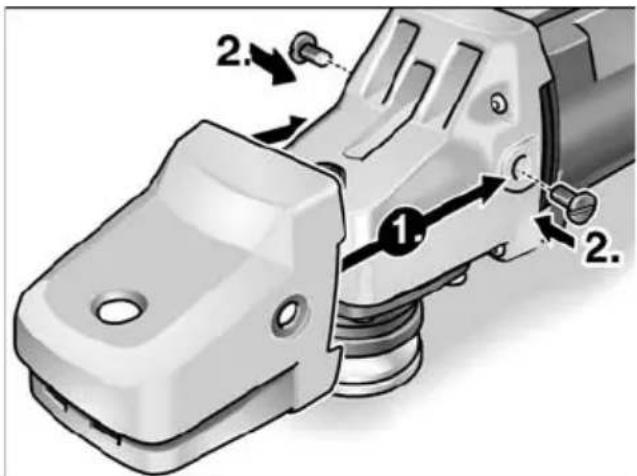

■ Loosen screws or handle.
■ Push on handle cover (1.).
■ Tighten screws (2.).

Switching on and off

Brief operation without engaged switch rocker:

Close-up of a car door handle with an arrow pointing to a device, no visible text or symbols

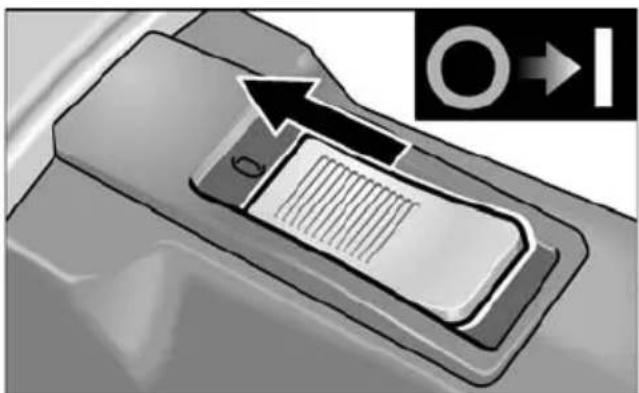

■ Push the switch rocker forwards and hold in position.
■ To switch off the power tool, release the switch rocker.

Continuous operation with engaged switch rocker:

CAUTION!

Following a power failure, the switched-on machine will start running again.

1. 2.

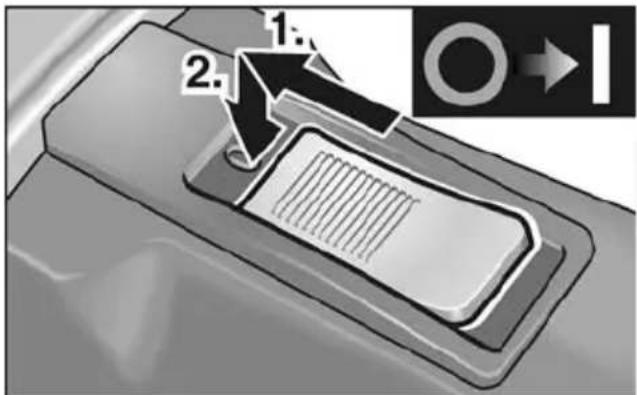

■ Push the switch rocker forwards and engage by pressing the front end.

Close-up of a mechanical component with a downward arrow and directional arrow, no visible text or symbols.

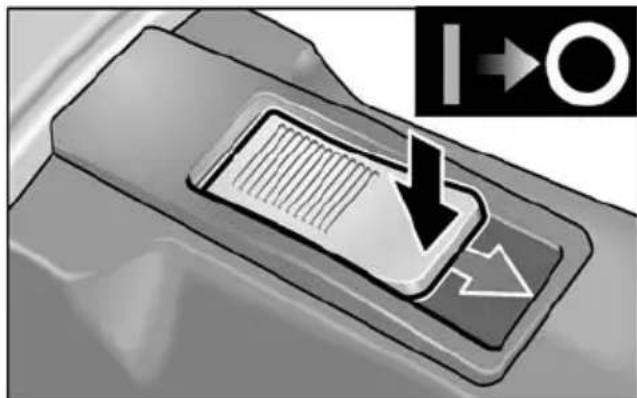

■ To switch off the power tool, release the switch rocker by pressing the rear end.

Preselecting the speed

3 +

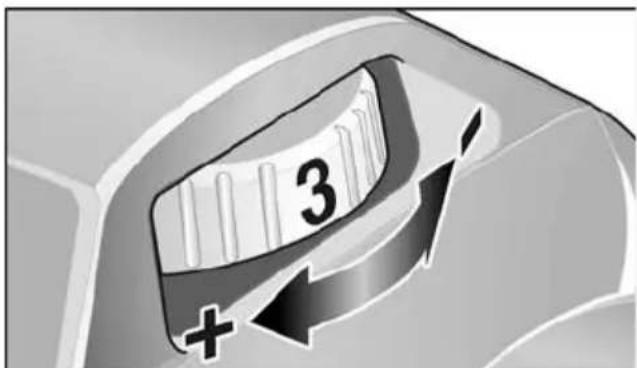

■ To set the operating speed, move the dial to the required value.

CAUTION!

Risk of injury due to destruction of the tool. Use the appropriate tool for the job.

NOTE

If an overload or overheating occurs during continues operation, the power tool automatically reduces the speed until the power tool has cooled down adequately.

Attaching or changing the tool holder

■ Pull out the mains plug.
■ Press and hold down the spindle lock.

Mechanical assembly diagram showing a rotating component being inserted into a workpiece (no text or symbols visible)

■ Screw chuck clockwise onto the spindle and tighten hand-tight.
To loosen, turn chuck anti-clockwise.

Attach or change tools

■ Pull out the mains plug.

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

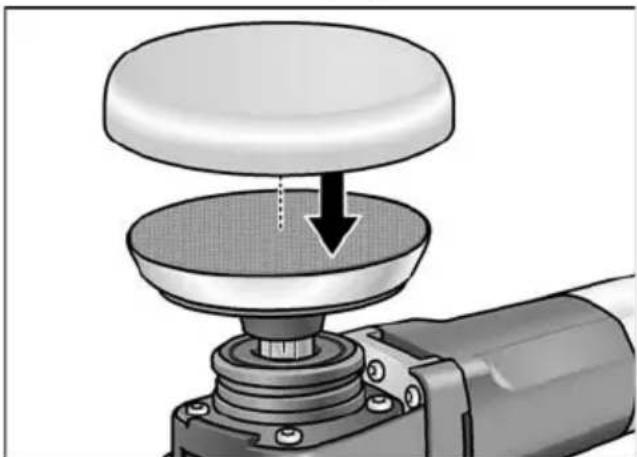

■ Press polishing agent firmly in the centre of the Velcro pad. Use undamaged polishing tools only.
- Carry out a test run to check that the tool is clamped in the centre.

Operating instructions

NOTE

When the power tool is switched off, the tool continues running briefly.

• If using a polishing paste, use the respective tool for each paste.
• In the case of sensitive surfaces (e.g. car paint) do not work aggressively, but at low speeds and with low contact pressure.
• Sponges can be washed in the washing machine.

Maintenance and care

WARNING!

Before carrying out any work on the polisher, always pull out the mains plug.

Cleaning

WARNING!

If metals are work over a prolonged period, conductive dust may become deposited inside the housing. Impairment of the protective insulation! Operate the power tool via a residual-current-operated circuit-breaker (tripping current 30 mA).

Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.

Regularly blow out the housing interior and motor with dry compressed air.

Carbon brushes

The polisher features cut-off carbon brushes. When the wear limit of the cut-off carbon brushes is reached, the polisher switches off automatically.

NOTE

Use only original parts supplied by the manufacturer for replacement purposes. If non-original parts are used, the guarantee obligations of the manufacturer will be deemed null and void.

When the polisher is being used, the carbon brushes can be seen sparking through the rear air inlet apertures.

If the carbon brushes spark excessively, switch off the polisher immediately. Take the polisher to a customer service workshop authorised by the manufacturer.

Gears

NOTE

Do not loosen the screws on the gear head during the warranty period. Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Spare-part/Accessory	Order
Side handle 194.034
Handle cover 259.403

For other accessories, in particular tools and polishing aids, see the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable byremoving the power cord.

Only for EU countries

Do not dispose of electric tools together with household waste material!

In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

NOTE

Please ask your dealer about disposal options for redundant power tools.

CE -Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical Data” conforms to the following standards or normative documents:

EN 60745 in accordance with the regulations of the directives

2014/30/EU, 2006/42/EC, and

no2011/65/EU.

Responsible for technical documents:

Manager Research & Development (R & D)

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matières

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 B r o c h e

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Diagram of a car door handle with an arrow pointing to a battery slot, showing no text or symbols.

Close-up of a car's front panel with a black arrow pointing to a textured surface and directional arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating force (no text or symbols present)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality

Department (QD)

Labeled diagram of a power tool with numbered parts including grip, handle, and socket

1 Alberino
2 Arresto alberino

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

■ Allentare le viti o l'impugnatura.
■ Inserire la cuffia con maniglia (1.).
■ Stringere le viti (2.).

Close-up of a car door handle with a mounted device and directional arrow (no text or symbols)

Close-up of a mechanical component with a black arrow indicating downward motion, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a shaft and arrow indicator (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard Rühle Head of Quality Department (QD)

Exploded view diagram of a power tool with numbered parts for identification

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Close-up of a car door handle with a black arrow pointing to a textured surface, no visible text or symbols

Close-up of a car's air vent with a black arrow pointing to the vent, showing airflow direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical component with a circular top and base, showing a downward arrow indicating a process or movement (no text or symbols present)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

Technical diagram of a power tool with numbered parts and exploded view, including a grip, handle, and socket.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Diagram of a car door handle with an arrow pointing to a slot, showing no text or symbols.

Close-up of a car's door handle with a black arrow pointing to a textured surface, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

N 60745 de acordo com as determinações das directivas 2014/30/UE, 2006/42/CE, 2011/65/UE.

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

Exploded view diagram of a power tool with numbered parts and labeled parts

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Close-up of a car door handle with a black arrow pointing to a textured surface, no visible text or symbols

Close-up of a mechanical component with a black arrow indicating direction, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

Bikks Q - 1

Manager Research & Development (R & D)

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 S p i n d e l

2 Spindellås

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Close-up of a device handle with an arrow pointing to a screen, no visible text or symbols

■ Skub vippekontakten fremad og hold den fast.
■ Slip vippekontakten for at slukke.

Konstant drift med indgreb:

FORSIGTIG!

Close-up of a mechanical component with a downward arrow and directional arrows, no visible text or symbols.

Mechanical assembly showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down a component with a downward arrow indicating motion (no text or symbols present)

Manager Research & Development (R & D)

Head of Quality Department (QD)

27.09.2016

Exploded view diagram of a power tool with numbered parts and exploded view

1 S p i n d e l
2 S p i n d e l s

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Close-up of a car door handle with a black arrow pointing to a textured surface, no visible text or symbols

Close-up of a car's door handle with a black arrow pointing to a textured surface, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a threaded shaft and arrow indicating rotation direction (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a circular component with a downward arrow indicating motion (no text or symbols present)

■ Trykk poleringsmiddel på midten av tallerkenen med borrelås. Bruk kun poleringsverktøy som ikke er skadet.

Manager Research & Development (R & D)

Head of Quality Department (QD)

27.09.2016

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 S p i n d e l

2 Spindellås

Close-up of a car door handle with a black arrow pointing to a textured surface, no visible text or symbols

Close-up of a car's door handle with a black arrow pointing to a textured surface, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a threaded shaft and arrow indicating rotation direction (no text or symbols)

Mechanical component with a circular top and mechanical base, showing a downward arrow indicating motion or force (no text or symbols present)

Bikks Q - 1

Manager Research & Development (R & D)

Technical diagram of a power tool with numbered parts and exploded view, including a grip, handle, and socket.

1 Kara
2 Karalukko

Technical diagram of a mechanical device with numbered annotations indicating parts of the component.

Close-up of a car door handle with an arrow pointing to a textured panel, no visible text or symbols

Close-up of a car's side panel with a black arrow pointing to a textured surface and directional arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

B. H. Q. - 1

Manager Research & Development (R & D)

27.09.2016

Exploded view diagram of a power tool with numbered parts and exploded view

1 'A T ρ α κ τ ο ζ

2 Ασφάλιση ατράκτου

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Close-up of a car door handle with a black arrow pointing to a textured surface, no visible text or symbols

Diagram showing a device's internal structure with directional arrows and a symbol indicating 'I→O'

Mechanical assembly showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating force or pressure (no text or symbols present)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard Rühle Head of Quality Department (QD)

27.09.2016

Exploded view diagram of a power tool with numbered parts and exploded view

1 W r z e c i o n

2 Blokada wrzeciona

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Close-up of a car door handle with a black arrow pointing to a textured panel, no visible text or symbols

Close-up of a mechanical component with a downward arrow and directional arrows, no visible text or symbols.

Mechanical assembly diagram showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

Handwritten signature or scribble with partial text and a curved line, possibly from a document or form.

Manager Research & Development (R & D) 27.09.2016

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 O r s ó

2 Orsórögzítés

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Close-up of a car door handle with a black arrow pointing to a textured panel, no visible text or symbols

Close-up of a mechanical component with a downward arrow and directional arrows, no visible text or symbols.

Mechanical assembly showing a rotating component with a threaded shaft and directional arrow (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a circular component (no text or symbols)

Head of Quality Department (QD)

Exploded view diagram of a power tool with numbered parts and labeled parts

1 V ř e t e n o

2 A r e t a c e v

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Close-up of a car door handle with an arrow pointing to a textured panel, no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a textured surface, no visible text or symbols.

Mechanical assembly showing a rotating component being inserted into a motor (no text or symbols visible)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating force (no text or symbols present)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

27.09.2016

Head of Quality

Department (QD)

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 V r e t e n o

2 A r e t á c i a

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

■ Povol'te skrutky alebo rukovät.
■ Nasuňte uchopovací kryt (1.).
■ Skrutky pevne utiahnite (2.).

Close-up of a car door handle with a black arrow pointing to a textured panel, no visible text or symbols

Close-up of a car's door handle with a black arrow pointing to a textured surface and an arrow pointing to the right (no text or symbols)

Mechanical assembly showing a rotating component being inserted into a motor (no text or symbols visible)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

■ Pritlačte vystredený leštiaci nástroj pevne na tanier so suchým zipsom.

Handwritten mathematical notation with symbols and operators

Manager Research &

Development (R & D)

27.09.2016

Exploded view diagram of a power tool with numbered parts and exploded view

1 Spin d e l

2 Spindli lukustus

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Close-up of a mobile phone interface with an arrow pointing to the screen (no text or symbols visible)

Close-up of a mechanical component with a downward arrow and directional arrows, no visible text or symbols.

Mechanical assembly diagram showing a rotating component with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating force (no text or symbols present)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard Rühle Head of Quality Department (QD)

27.09.2016

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

1 Velenas

2 Veleno fiksatorius

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a device with an arrow pointing to a screen, accompanied by a directional indicator (O→I) and a circular symbol.

Close-up of a car's door handle with a black arrow pointing to a textured surface, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation direction (no text or symbols present)

Mechanical component with a rotating knob and downward arrow indicating force or motion (no text or symbols)

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

27.09.2016

Technical diagram of a power tool with numbered parts and exploded view, including a control knob and mechanical components.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

■ Atlaidiet skrūves vai rokturi.
■ Uzbīdiet roktura apvalku (1.).
■ Pievelciet skrūves (2.).

Close-up of a smartphone with an arrow pointing to the screen area, showing no visible text or symbols.

Close-up of a mechanical component with a downward arrow and directional arrow, no visible text or symbols.

Mechanical assembly showing a rotating component with a threaded shaft and arrow indicator (no text or symbols)

Mechanical assembly diagram showing a presser pressing down on a workpiece with a downward arrow indicating motion (no text or symbols present)

■ Atvienojiet kontaktdakšu.

Handwritten signature or scribble with partial text and a curved line, likely from a document or form.

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including grip, handle, and socket components

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Close-up of a smartphone with an arrow pointing to the screen area, showing no visible text or symbols.

Close-up of a mechanical component with a black arrow indicating downward motion, no visible text or symbols

Mechanical assembly diagram showing a presser pressing a component with an arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a presser pressing down on a component with a downward arrow indicating motion (no text or symbols present)

Bolts Q - 1

Klaus Peter WeinperEckhard F

Manager Research &

Head of Quality

Development (R & D)

Department (QD)

27.09.2016
