USER MANUAL DELTA Max 2000 ECOFLOW

Read all safety tips, warning messages, terms of use, and disclaimers carefully. Refer to the terms of use and disclaimer at https://ecoflow.com/pages/terms-of-use and stickers on the product before use. Users take full responsibility for all usage and operations. Familiarize yourself with the related regulations in your area. You are solely responsible for being aware of all relevant regulations and using EcoFlow products in a way that is compliant.

CONTENTS

1. Specifications

1.1 Specifications of DELTA Max (2000) 1
1.2 Specifications of DELTA Max (1600) 2

2. Safety Instructions

2.1 Usage 3
2.2 Disposal Guide 4

3. Getting Started

3.1 Product Details 5
3.2 LCD Screen 6
3.3 General Product Usage 6
3.4 AC Charging 8
3.5 Solar Charging 9
3.6 Car Charging 9
3.7 Using Smart Extra Battery 10
3.8 APP 10
3.9 X-Boost 10
3.10 Emergency Power Supply (EPS) 11

4. FAQs 11

5. Troubleshooting 12

6. What's In the Box 13

7. Storage & Maintenance 13

1. Specifications

1.1 Specifications of DELTA Max (2000)

General Info

Net Weight	22 kg
Dimensions	49.7×24.2×30.5 cm
Capacity	2016Wh 50.4V
Wi-Fi	Supported

Output Ports

AC (x4)	Pure Sine Wave, 2400W total (surge 4600W), 230V~ (50Hz/60Hz)
Max Device(s) Power Supported by X-Boost	3000W
USB-A (x2)	5V=2.4A 12W max, per port
USB-A Fast Charge (x2)	5V=2.4A 9V=2A 12V=1.5A 18W Max, per port
USB-C (x2)	5/9/12/15/20V=5A 100W max, per port
Car Charger	12.6V=10A, 126W max
DC5521 Output (x2)	12.6V=3A, per port

* Car charger shares power with the DC5521 output port, offering a maximum output of 126W.

Input Ports

AC Charge	X-Stream Fast Charge 2000W max, 10A
AC Input Voltage	220-240V~ 50Hz/60Hz
Solar Charger	11-100V=13A, 800W max
Car Charger	Supports 12V/24V Battery, Default 8A

Battery Info

Cell Chemistry	NCM
Cycle Life	800 cycles to 80%+ capacity
Protection	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection

Environmental Operating Temperature

Optimal Operating Temperature	68°F to 86°F(20°C to 30°C)
Discharge Temperature	-4°F to 113°F (-20°C to 45°C)
Charge Temperature	32°F to 113°F(0°C to 45°C)
Storage Temperature	-4°F to 113°F (-20°C to 45°C) (optimal: 68°F to 86°F [20°C to 30°C])

* Whether the product can be charged or discharged depends on the actual temperature of the battery pack.

Additional Connections

Smart Extra Battery	Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
Smart Generator	Supported (sold separately)

1.2 Specifications of DELTA Max (1600)

General Info

Net Weight	22 kg
Dimensions	49.7×24.2×30.5 cm
Capacity	1612Wh 50.4V
Wi-Fi	Supported

Output Ports

AC (x4)	Pure Sine Wave, 2000W total (surge 4600W), 230V~ (50Hz/60Hz)
Max Device(s) Power Supported by X-Boost	2500W
USB-A (x2)	5V=2.4A 12W max, per port
USB-A Fast Charge (x2)	5V=2.4A 9V=2A 12V=1.5A 18W Max, per port
USB-C (x2)	5/9/12/15/20V=5A 100W max, per port
Car Charger	12.6V=10A, 126W max
DC5521 Output (x2)	12.6V=3A, per port

* Car charger shares power with the DC5521 output port, offering a maximum output of 126W.

Input Ports

AC Charge	X-Stream Fast Charge 1600W max
AC Input Voltage	220-240V~ 50Hz/60Hz, 10A
Solar Charger	11-100V=13A, 800W max
Car Charger	Supports 12V/24V Battery, Default 8A

Battery Info

Cell Chemistry	NCM
Cycle Life	500 cycles to 80%+ capacity
Protection	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection

Environmental Operating Temperature

Optimal Operating Temperature	68°F to 86°F(20°C to 30°C)
Discharge Temperature	-4°F to 113°F (-20°C to 45°C)
Charge Temperature	32°F to 113°F(0°C to 45°C)
Storage Temperature	-4°F to 113°F (-20°C to 45°C) (optimal: 68°F to 86°F [20°C to 30°C])

* Whether the product can be charged or discharged depends on the actual temperature of the battery pack.

Additional Connections

Smart Extra Battery	Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
Smart Generator	Supported (sold separately)

2. Safety Instructions

2.1 Usage

1. Do not use the product near a heat source, such as a fire source or a heating furnace.
2. Avoid contact with any liquid. Do not immerse the product in water or get it wet. Do not use the product in rain or humid environments.
3. Do not use the product in an environment with strong static electricity/magnetic fields.
4. Do not disassemble the product in any way or pierce the product with sharp objects.
5. Avoid using wires or other metal objects that may result in a short circuit.
6. Do not use unofficial components or accessories. If you need to replace any components or accessories, please visit official EcoFlow channels to check relevant information.
7. When using the product, please strictly follow the operating environment temperature specified in this user manual. If the temperature is too high, it may result in a fire or explosion; if the temperature is too low, the product performance may be severely reduced, or the product may cease to work.
8. Do not stack any heavy objects on the product.
9. Do not lock the fan forcibly during use or place the product in an unventilated or dusty area.
10. Please avoid impact, falls, or severe vibrations when using the product. In case of a severe external impact, turn off the power supply immediately and stop using the product. Ensure the product is well fastened during transportation to avoid vibrations and impacts.
11. If you accidentally drop the product into water during use, please place it in a safe open area, and stay away from it until it is completely dry. The dried product should not be used again, and should be properly disposed of according to Section 2.2 below. If the product catches fire, we recommend that you use the fire extinguishers in the following order: water or water mist, sand, fire blanket, dry powder, and finally a carbon dioxide fire extinguisher.
12. Use a dry cloth to clean off dirt on the product ports.
13. Rest the product on a flat surface to avoid damages caused by the product falling over. If the product is overturned and severely damaged, turn it off immediately, place the battery in an open area, keep it away from combustible matter and people, and dispose of it in accordance with local laws and regulations.
14. Ensure that the product is kept out of reach of children and pets.
15. Store the product in a dry and ventilated place.

16. It is recommended to use moisture barrier bags in wet environments (for example, places by the sea or waterways) to prevent the product from getting soaked. If water is found inside the product, it must not be used or turned on again. Please take anti-electric shock measures before touching the product. Following this, place the product in a safe, waterproof and open area. Once complete contact EcoFlow Customer Service immediately.

17. This product is not recommended for powering medical emergency equipment related to personal safety, including but not limited to medical grade ventilators (hospital version CPAP: Continuous Positive Airway Pressure), artificial lungs (ECMO, Extracorporeal Membrane Please follow your doctor's instructions and consult with the manufacturer for restrictions on the use of the equipment. If used for general medical equipment, please be sure to monitor the power status to ensure that the power does not run out.

18. When in use, power supply products will generate electromagnetic fields, which are likely to affect the normal operation of medical implants or personal medical equipment such as pacemakers, cochlear implants, hearing aids, defibrillators etc. If these types of medical equipment are being used, please contact the manufacturer to inquire about any restrictions on the use of such equipment. These measure are fundamental to ensure a safe distance between the medical implants (for example, pacemakers, cochlear implants, hearing aids, defibrillators etc.) and this product while in use.

19. When the power supply is connected in normal mode to a refrigerator, power fluctuations may cause the power supply to automatically shut down. When connecting the power supply to a refrigerator that stores medicine, vaccines or other valuable items, it is recommended to set the AC output to "Always on" in the app. This helps support a continuous power supply and ensures a safe and efficient power consumption state.

2.2 Disposal Guide

1. If conditions permit, make sure that the battery is fully discharged before disposing it in a designated battery recycling bin. The product contains batteries with potentially dangerous chemicals, so it is strictly prohibited to dispose of it in ordinary trash cans. For more details, please follow the local laws and regulations on battery recycling and disposal.

2. If the battery cannot be fully discharged due to a product failure, please do not dispose of the battery directly in the battery recycling box. In such case, you should contact a professional battery recycling company for further processing.

3. Please dispose of over-discharged batteries that cannot be recharged.

3. Getting Started

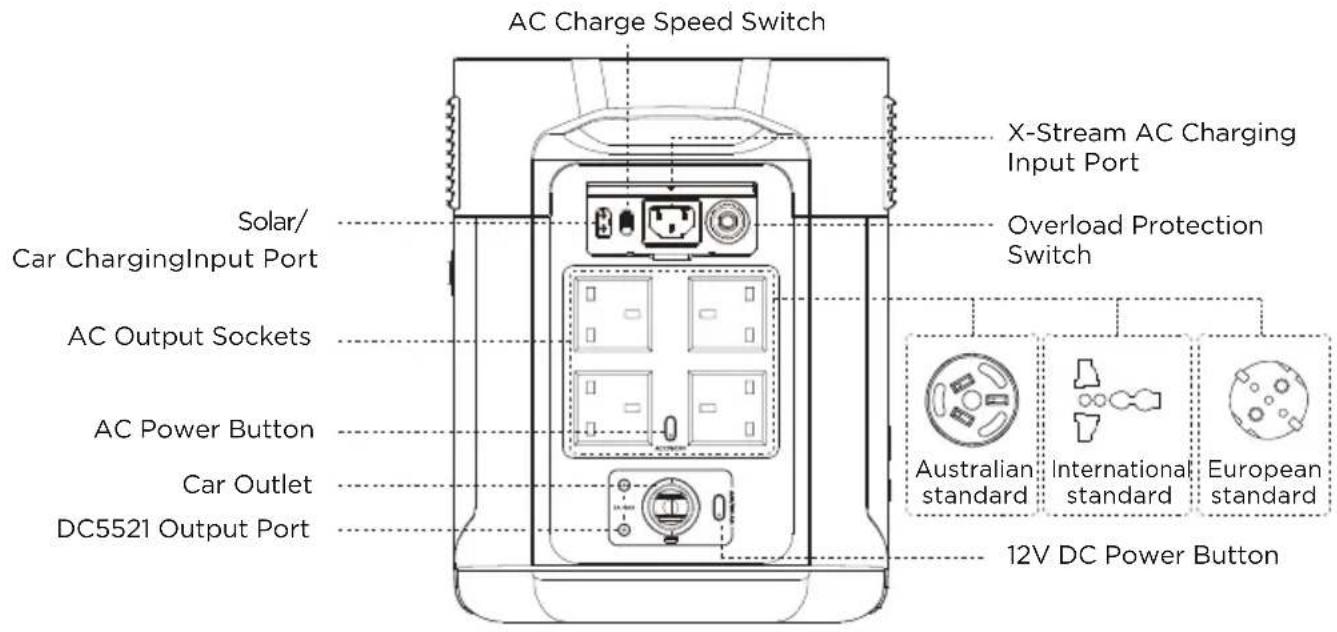

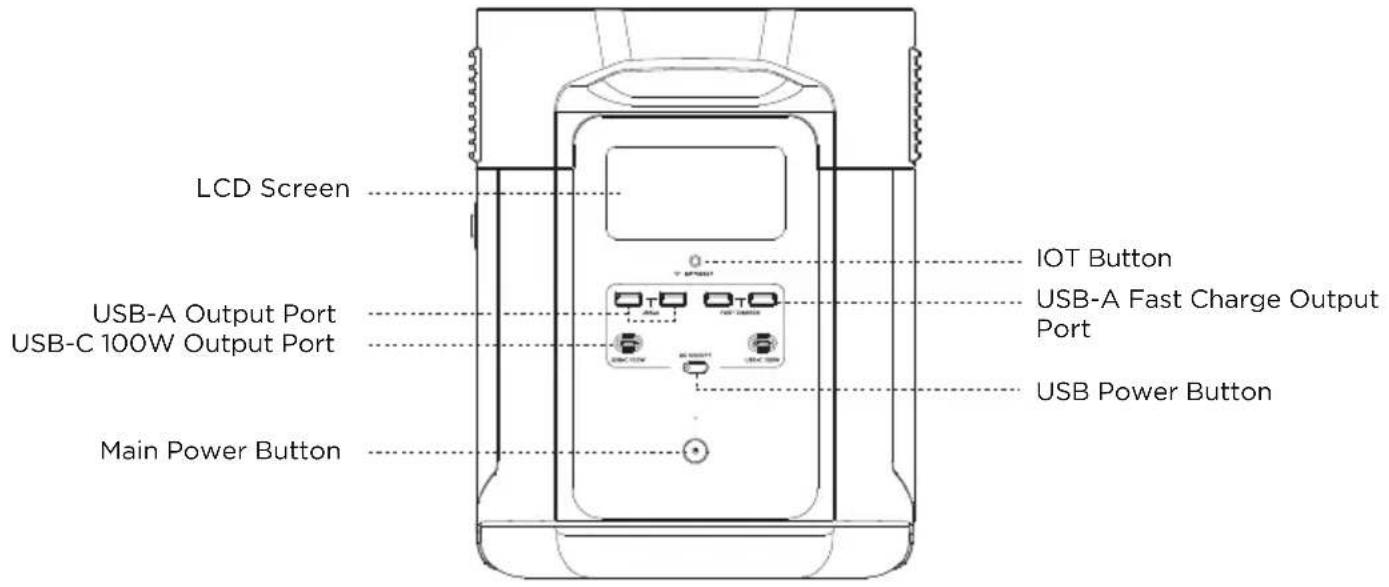

3.1 Product Details

*AC socket adapts according to local standards.

LCD Screen USB-A Output Port USB-C 100W Output Port Main Power Button IOT Button USB-A Fast Charge Output Port USB Power Button

AC Charge Speed Switch X-Stream AC Charging Input Port Overload Protection Switch Solar/ Car ChargingInput Port AC Output Sockets AC Power Button Car Outlet DC5521 Output Port Australian standard International standard European standard 12V DC Power Button

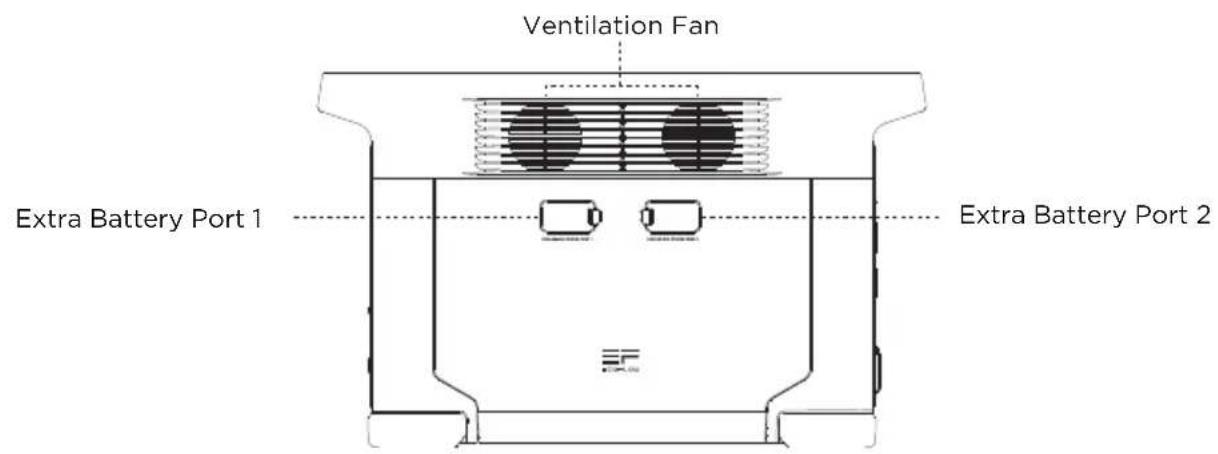

Ventilation Fan Extra Battery Port 1 Extra Battery Port 2

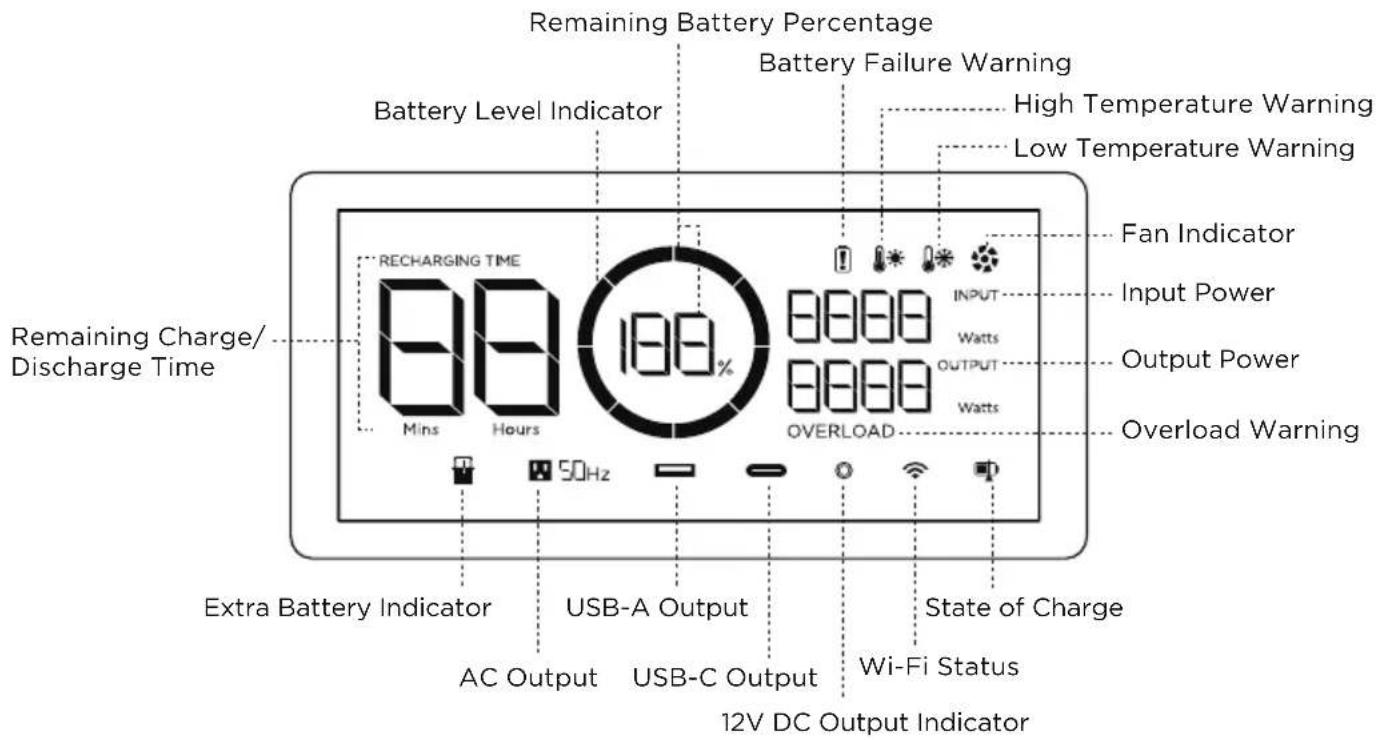

3.2 LCD Screen

Remaining Battery Percentage Battery Failure Warning High Temperature Warning Low Temperature Warning Battery Level Indicator Fan Indicator Input Power Output Power Overload Warning Remaining Charge/ Discharge Time RECHARGING TIME 98% Mins Hours 100% 50Hz OVERLOAD INPUT Watts OUTPUT Watts Extra Battery Indicator USB-A Output State of Charge AC Output USB-C Output Wi-Fi Status 12V DC Output Indicator

Battery Level Indicator: The indicator will repeatedly fill while charging. If product is at 0% charge, the indicator will flash to warn you.

Wi-Fi Status: After pressing the IOT button for 3 seconds, the Wi-Fi status will flash on the LCD screen which indicates that the product is ready for pairing. There're two ways to connect the product with the App, either directly connect to the product's hotspot or using the Internet. If the App is successfully connected to the product's hotspot, the icon will keep flashing; if it is successfully connected to the Internet, the icon will stay on.

* See Section 5 for more troubleshooting steps.

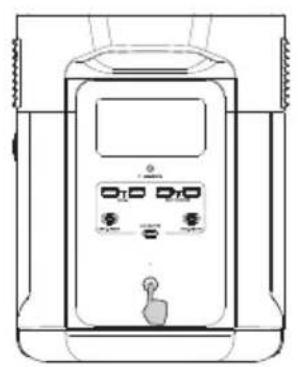

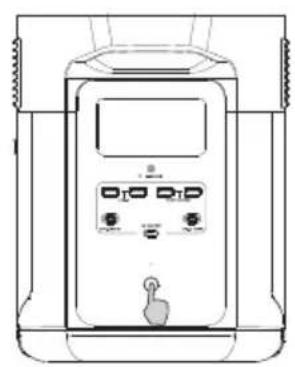

3.3 General Product Usage

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Short Press to Turn On Long Press to Turn Off

Product On, Product Off, LCD Screen On

Short press the Main Power Button to turn on the product; the LCD Screen will light up and the battery level indicator icon will display.

The product enters sleep mode after 5 minutes of idle operation; the LCD Screen will automatically turn off. When the product senses any load change or operations, the LCD Screen will automatically light up. To turn the LCD Screen on or off, please short press the Main Power Button.

To power off the product, press and hold the Main Power Button.

The default product standby time is 2 hours. With other Power Buttons turned off and no other load access for 2 hours, the product will automatically shut down. The standby time can be set on the App.

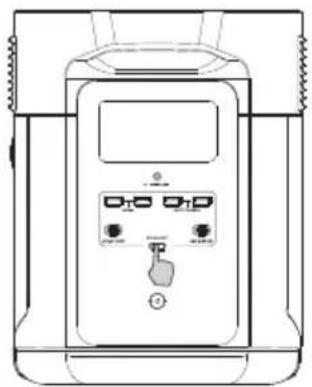

USB Output Port

With the Main Power Button turned on, short press the USB Power Button to use the USB Output Port. Short press the USB Power Button again to turn it off.

With the USB Power Button on, the product will not automatically shut down.

Line drawing of a device front panel with buttons and a dial (no text or symbols)

Short Press USB Power Button

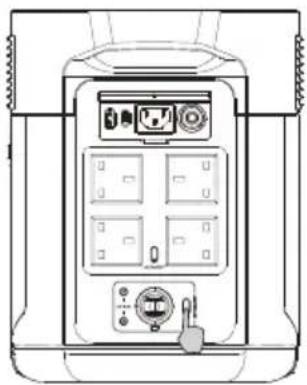

12V DC Output Port

With the Main Power Button turned on, short press the 12V DC Power Button to use the 12V DC Output port. Short press the 12V DC Power Button again to turn it off. With the 12V DC Power Button on, the product will not automatically shut down.

Technical line drawing of a device front panel with buttons and control buttons (no text or symbols)

Short Press 12V DC Power Button

AC Output Port

With the Main Power Button turned on, short press the AC Power Button to use the AC Output ports. Short press the AC Power Button again to turn it off.

The default standby time of the AC Output port is 12 hours. Without any load access for 12 hours, the AC Power will automatically turn off. Please turn off AC power button when not in use to save power consumption.

Technical line drawing of a device front panel with buttons and ports (no text or symbols)

Short Press AC Power Button

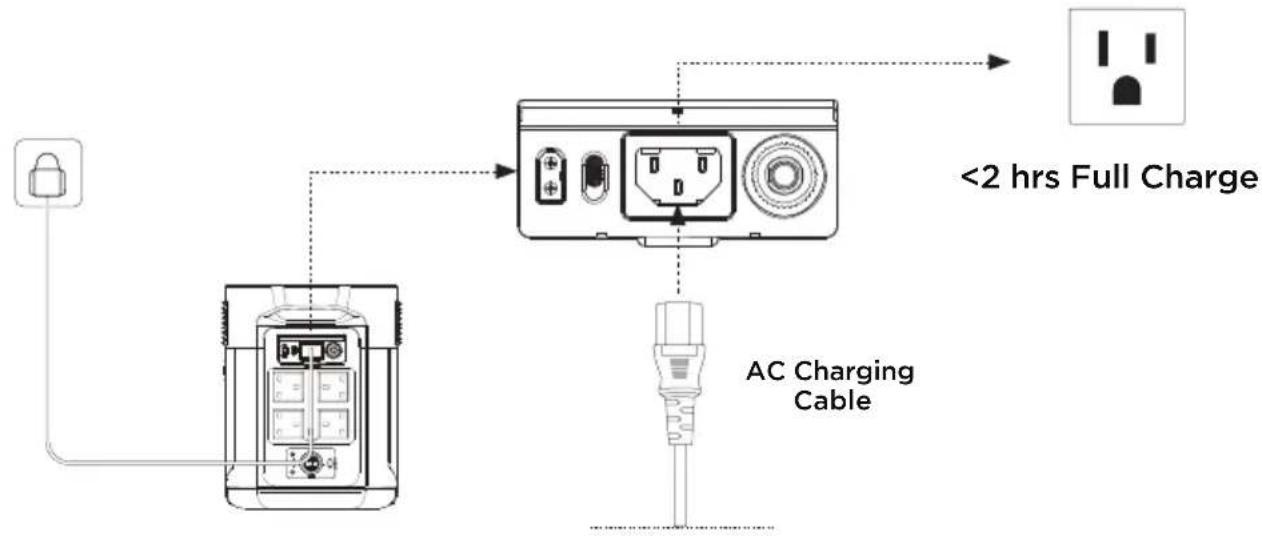

3.4 AC Charging

EcoFlow's X-Stream fast charge technology is specifically designed for AC charging. You can control the charging power through the AC Charge Speed Switch. When set to the top, you will have the maximum charging speed. When set to the bottom it'll be at your custom speed, which is 400W by default, customizable in the EcoFlow App. In case of unusual situations where the AC input current remains higher than 20A, the X-Stream charging input port will initiate a self-protection function, and the Overload Protection Switch on the product will automatically pop up. After confirming that there is no product failure, you can press the Overload Protection Switch to resume charging.

<2 hrs Full Charge AC Charging Cable

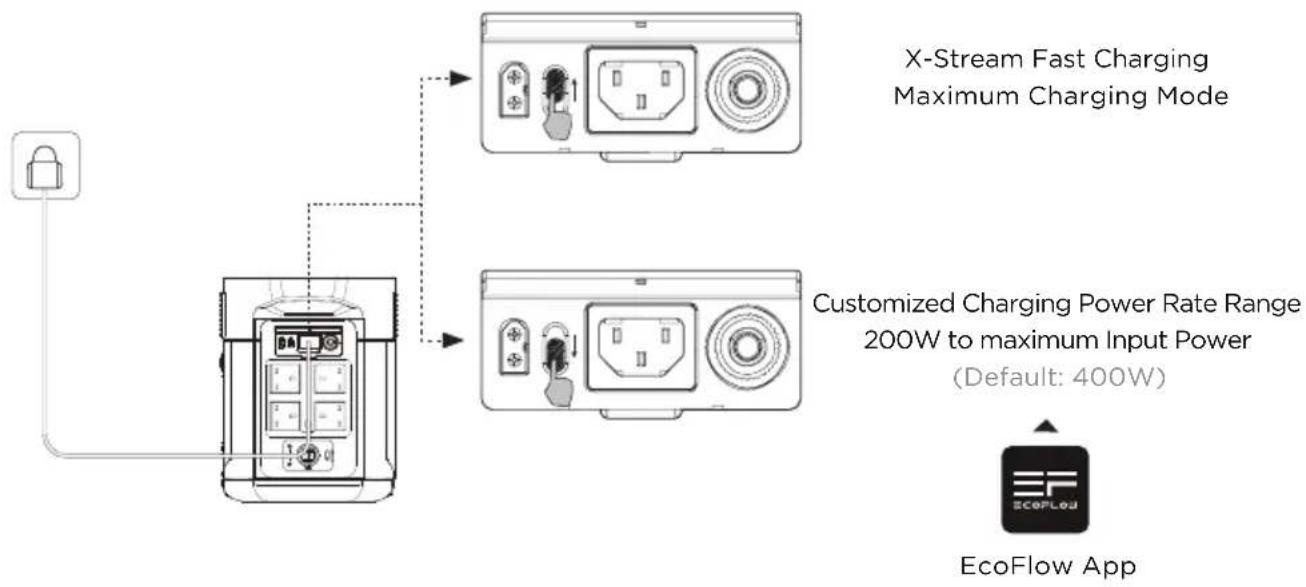

X-Stream Fast Charging Maximum Charging Mode Customized Charging Power Rate Range 200W to maximum Input Power (Default: 400W) EcoFlow App

The charging power can be adjusted through the AC Charge Speed Switch on the back of the product. You can set the charging power range in the EcoFlow App.

Please use EcoFlow AC charging Cable for fast charging. AC Charging Cable should directly plug into 15A(or above) wall outlet. EcoFlow takes no responsibilities for any consequences caused by failures to follow instructions, including but not limited to charging with AC charging Cable.

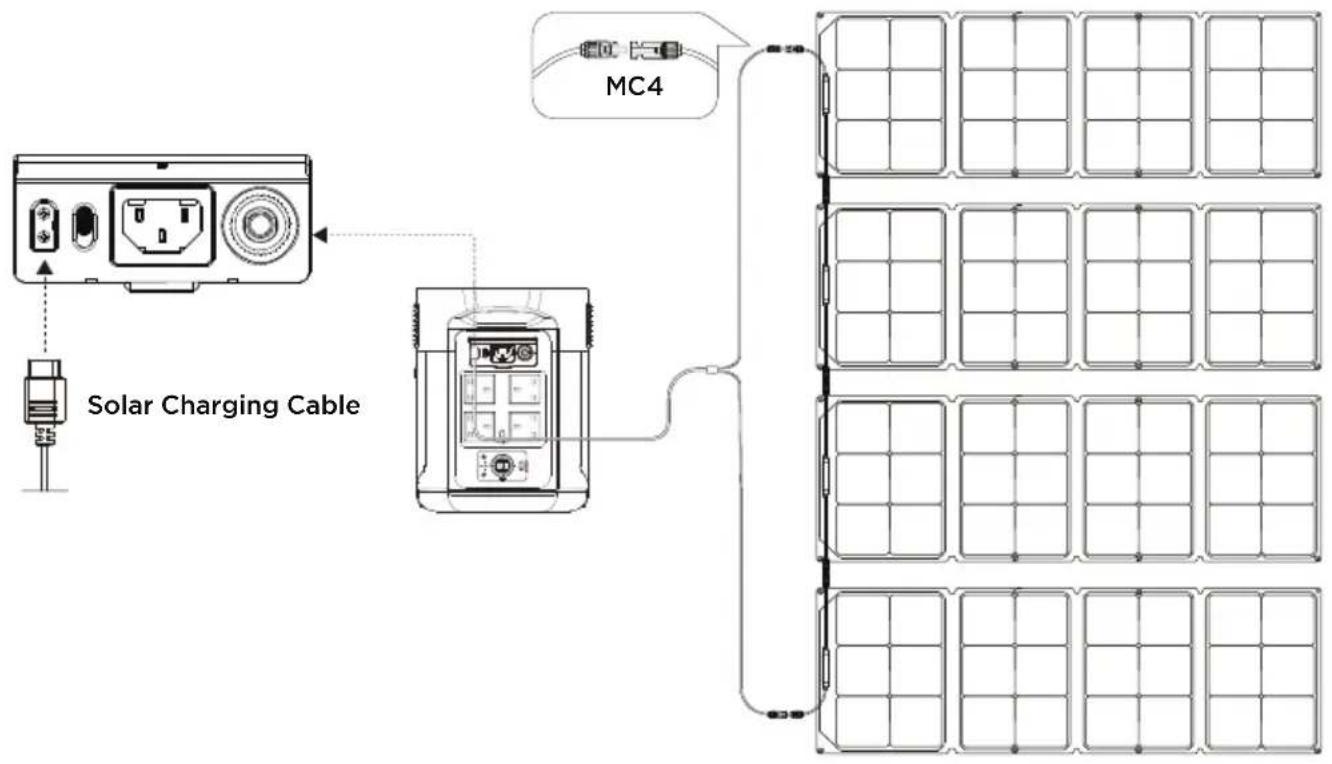

3.5 Solar Charging

Users can connect solar panels in series as shown in the figure to recharge the product.

*Solar charging cable (MC4-XT60 adapter cable) is supplied separately.

When using an EcoFlow solar panel to charge the product, please follow the instructions that come with the solar panel.

Before connecting the solar panel, please ensure that the solar panel's output voltage is with in 100V to avoid product damages.

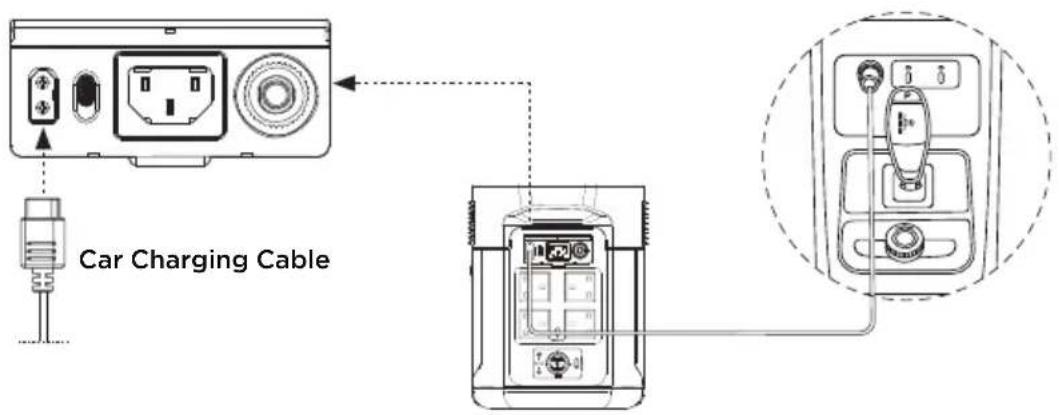

3.6 Car Charging

Users can recharge the product through the Car Charging Input Port. It supports 12V/24V car chargers and an 8A default charging current.

Please charge using the car charger after you've started the car to avoid failure to start due to insufficient car battery. In addition, please make sure that Car Charging Input Port and the Car Charging Cable are in good condition. EcoFlow takes no responsibilities for any losses or damages caused by failures to follow instructions.

Car Charging Cable

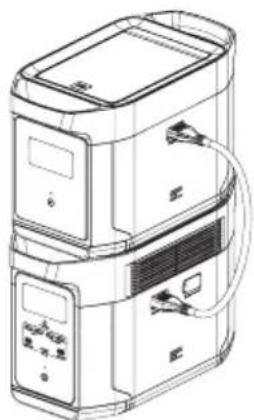

3.7 Using Smart Extra Battery

The product can be connected with up to two Smart Extra Batteries at the same time to meet higher capacity needs. Please refer to the user manuals of DELTA Max Smart Extra Battery and Smart Generator for detailed instructions.

Before using the extra battery, please pay attention to the following instructions:

1. Before connecting the product to a Smart Extra Battery, please make sure that both the product and the Smart Extra Battery are turned off.
2. After connecting the product to a Smart Extra Battery, please make sure that both of their LCD screens display an extra battery icon before using it.
3. Do not directly connect or remove the Smart Extra Battery during charging and discharging processes. If you need to connect or remove it midway, please turn off the product first.
4. Do not touch the metal terminals of the Smart Extra Battery connector with your hands or other objects. If foreign objects adhere to the metal terminals, please gently wipe them with a dry cloth.

Line drawing of a multi-tiered electronic device with ports and cables (no text or symbols)

3.8 APP

The EcoFlow App gives users the ability to control and monitor EcoFlow power stations remotely.

Read the EcoFlow App user guide and access the download link here: https://ecoflow.com/pages/ecoflow-app

Privacy Policy

By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the "About" section of the "User" page on the EcoFlow App or on the official EcoFlow website at https://ecoflow.com/pages/terms-of-use and https://ecoflow.com/pages/privacy-policy

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

To avoid operation failure due to overload protection, the X-Boost feature will be automatically enabled when the total output exceeds the rated output power, which enables the product to power high wattage appliances at the rated output power.

X-Boost Tips:

1. X-Boost is enabled by default; you can enable or disable it in the EcoFlow App.
2. X-Boost is not available when the AC output is turned on in a recharging state (in bypass mode) and when X-Boost is disabled.
3. X-Boost is not applicable for all electrical appliances; it's incompatible with appliances with strict voltage requirements. Appliances with voltage protection (such as precise instruments) are not supported. X-Boost mode is more suitable for heating devices. Please conduct your own tests with your devices with X-Boost enabled.

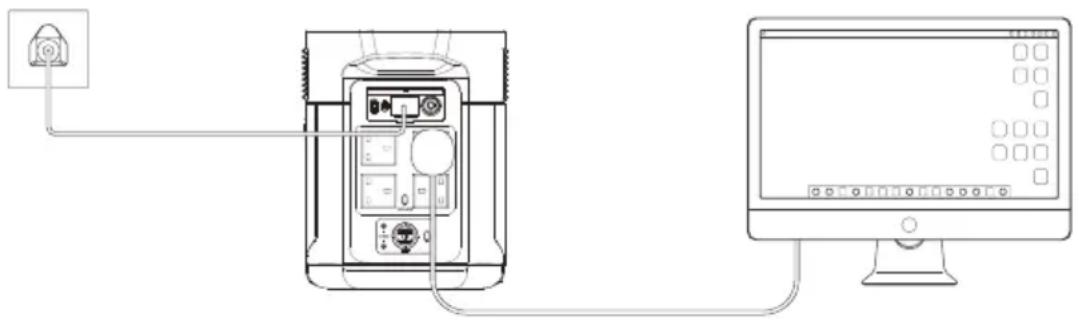

3.10 Emergency Power Supply (EPS)

The product supports EPS. When you connect the grid power to the AC Input Port of the product through an AC Charging cable, you can power electrical devices through the AC Output Sockets (AC power will come from the grid and not the power station in this situation). In case of a sudden blackout, the product can automatically switch to the battery powered supply mode within 30ms. As a basic UPS function, this function does not support Oms switching. Please do not connect the product to any device that requires Oms UPS, such as data servers and workstations. Please test and confirm the compatibility before using the product. We recommend that you only charge one device at a time and avoid using multiple ones at the same time to avoid overload protection. EcoFlow takes no responsibilities for any device failures or data losses caused by failures to follow instructions.

Line drawing of a device connected to a computer monitor, showing wiring and control panel (no text or symbols)

4. FAQs

1. What battery does the product use?

It uses high-quality lithium-ion battery.

1. What devices can the product's AC output port power?

With high rated power and peak power, the product's AC output port can power most household appliances. Before you use it, we recommend that you confirm the power of the appliances first and ensure the power sum of all loaded appliances is lower than the rated power.

1. How long can the product charge my devices?

The charging time is shown on the product's LCD Screen, which can be used to estimate the charging time of most appliances with stable power usage.

1. How can I know if the product is charging?

When it's charging, the remaining charging time will be shown on the LCD Screen. Meanwhile, the charging indicator icon begins to rotate with the remaining battery percentage and the input power shown on the right of the circle.

1. How to clean the product?

Please gently wipe it with a dry, soft, clean cloth or paper towel.

1. How to store the product?

Before storing, please turn off the product first, and then store it in a dry, ventilated place at room temperature. Do not place it near water sources. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months to extend its battery life.

1. Can I bring the product on a plane?

No.

5. Troubleshooting

Indicator Problem			Solution
	OVERLOAD Icons Flash together	USB-A Overload Protection	Resume normal operation by removing the electrical device connected to the USB-A port.
	OVERLOAD Icons Flash together	USB-C Overload Protection	Resume normal operation by removing the electrical device connected to the USB-C port.
	Icons Flash together	USB-C High Temperature Protection	After the product cools down, it will resume normal operation automatically.
RECHARGING TIME	Icons Flash together	High Temperature Charge Protection	Charging can be resumed automatically after the battery cools down.
	Icons Flash together	High Temperature Discharge Protection	The power supply can be resumed automatically after the battery cools down.
RECHARGING TIME	Icons Flash together	Low Temperature Charge Protection	Charging can be resumed automatically after battery temperature rises above 41°F.
	Icons Flash together	Low Temperature Discharge Protection	The power supply can be resumed automatically after the battery temperature rises above 10°F.
SOHz	OVERLOAD Icons Flash together	AC Output Overload Protection	Normal operation will be resumed automatically after you remove the overloaded device and restart the product.Electrical appliances should be used within rated power.(Refer to X-Boost instructions to get more details about power limitations).
SOHz	Icons Flash together	AC High Temperature Protection	Please confirm whether the fan inlet and outlet are blocked, if not, normal operation will be resumed automatically after the product temperature drops.
SOHz	Icons Flash together	AC Low Temperature Protection	Normal operation will be resumed automatically after the product is used at optimum environmental temperatures.
	Icon Flashes	Fan Blockage	Please check if the fan is blocked by foreign materials.
OVERLOAD	Icons Flash together	Car Charger Overload Protection	The product will resume normal operation automatically after you remove the device connected to the car charger.
	Icons Flash together	Car Charger High Temperature Protection	After the product cools down, it will resume normal operation automatically.
	Icon Stays On	Battery Failure	Contact EcoFlow Customer Service

If the Alarm Prompt shows on the product LCD screen during use and does not disappear after a restart, please stop using it immediately (do not try to charge or discharge).

If you require any other assistance, please contact EcoFlow Customer Service.

6. What's In the Box

ECOFLOW

DELTA Max

Car Charging CableAC Charging CableC5525 Cable

User Manual & Warranty Card

7. Storage & Maintenance

1. Please use or store the product in an environment temperature between 68^ F to 86^ F, away from water, heat, and other metal objects.
2. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months.
3. For safety, please do not store the product in an environment temperature higher than 113^ F or lower than 14^ F for a long time.
4. If the remaining battery is less than 1% after you finish using the product, please recharge it to 60% before storing. If the product is left idle for a long time with severely low battery, irreversible damages may be caused to the battery cell and the product service life will be shortened.
5. If the product has been idle for too long and the battery is severely low, it will enter a deep sleep protection mode. In such case, please charge the product before using it again.

ECOFLOW

Line drawing of a gas meter device with control panel and indicator lights (no text or symbols)

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Line drawing of a portable electrical meter device with control panel and indicator lights (no text or symbols)

Technical line drawing of a device front panel with buttons and dials (no text or symbols)

Technical line drawing of a device control panel with buttons and display (no text or symbols)

Line drawing of a multi-tiered electronic device with ports and cables (no text or symbols)

3.8 App

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

Diagram showing connections between a device and a computer monitor, with labeled ports and wiring.

4. FAQ-Bereich

Line drawing of a portable gas meter device with control panel and indicator lights (no text or symbols)

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

Line drawing of a device front panel with buttons and a central display (no text or symbols)

Technical line drawing of a device front panel with buttons and dials (no text or symbols)

Technical line drawing of a device front panel with buttons and dials (no text or symbols)

Diagram showing device connection with lock and labeled ports, including a close-up of a device's internal components.

Line drawing of a multi-tiered electronic device with ports and cables (no text or symbols)

3.8 Application

QR code image containing encoded data, no visible human-readable text

3.9 Technologie X-Boost

Diagram showing connections between a device panel and a computer monitor displaying a numeric keypad interface.

4. Foire aux questions

Pure technical diagram of a container or housing with no visible text, numbers, or symbols.

DELTA Max

Câble de charge CA

Line drawing of a device front panel with buttons and a dial (no text or symbols)

Front view of a device control panel with buttons and gauges (no text or symbols visible)

Front view of a device control panel with multiple switches and buttons (no text or labels visible)

Line drawing of a multi-tiered electronic device with ports and cables (no text or symbols)

3.8 APP

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

Line drawing of a device connected to a computer monitor via cable (no text or symbols present)

4. DOMANDE FREQUENTI

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Line drawing of a handheld electronic device with control panel and buttons (no text or symbols)

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Pulsar interruptor USB

Technical line drawing of a device front panel with buttons and dials (no text or symbols)

Technical line drawing of a device front panel with buttons and ports (no text or symbols)

Line drawing of a multi-tiered electronic device with ports and cables (no text or symbols)

3.8 APP

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

Diagram showing connections between a device panel and a computer monitor, with labeled ports and wiring.

Cable DC5521 a DC5525

Line drawing of a device front panel with buttons and a finger icon (no text or symbols)

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Technical line drawing of a device casing with control panel and buttons (no text or symbols)

Technical line drawing of a device front panel with buttons and display (no text or symbols)

Technical line drawing of a device front panel with buttons and ports (no text or symbols)

Line drawing of a multi-tiered electronic device with attached cables and ports (no text or symbols)

3.8 APP

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

3.10 Noodvoeding (Emergency Power Supply/EPS)

Diagram of a device rack connected to a computer monitor, showing wiring and ports (no text or symbols present)

Pure technical diagram of a device casing with no text or symbols

DELTA Max

AC-oplaadkabel

Line drawing of a device front panel with buttons and a finger icon (no text or symbols)

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

Technical line drawing of a device casing with control panel and buttons (no text or symbols)

Technical line drawing of a device front panel with buttons and dials (no text or symbols)

Technical line drawing of a device front panel with buttons and ports (no text or symbols)

Line drawing of a multi-tiered electronic device with ports and cables (no text or symbols)

3.8 Приложение

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

Line drawing of a device connected to a computer monitor via cable (no text or symbols present)

Pure technical diagram of a container with internal components and no text or symbols

DELTA Max

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

短按啟動

Line drawing of a portable electronic device with control panel and indicator lights (no text or symbols)

長按關閉

產品啟動、關閉及LCD顯示器亮起

Line drawing of a device front panel with buttons and a handle (no text or symbols)

短按USB輸出電源開關

12V 直流輸出端口

Line drawing of a device front panel with buttons and indicators (no text or symbols)

短按 12V 直流電源開關

交流輸出端口

Technical line drawing of a device front panel with buttons and display (no text or symbols)

短按交流電源開關

3.4 交流充電

Technical line drawing of a multi-tiered electronic device with ports and connectors (no text or symbols)

3.8 應用程式

QR code image containing encoded data, no visible human-readable text

3.9 X-Boost

Line drawing of a device connected to a computer monitor via cable (no text or symbols present)

4. 常見問題

1. 產品使用甚麼電池？

產品使用高品質鋰離子電池。

1. 交流輸出端口可為哪些裝置供電？

Technical line drawing of a mechanical component with no visible text or symbols
