RM800 - Robot mower Cramer - Free user manual and instructions

USER MANUAL RM800 Cramer

The following pages contain important safety and operating instructions

Carefully read and review all safety instructions, warnings and cautions contained in this manual.

Failure to read and follow these instructions, warnings and cautionary statements may result in severe injury or death to persons and pets or damage to personal property.

The materials, technical data, and figures in this manual are provided for guidance only and are not binding. The manufacturer reserves the right to make any changes to the technical characteristics and all features of operation, materials, technical data, or figures without prior warning.

Contents

Product Safety 4

Reading the operator manual....4

Operational safety....6

Product Unboxing....7

Installation 8

Planning Layout and Preparation 8

Installing and Connecting the Charging Station....9

Position for the charging station as follows:....9

Connecting the Power Supply.... 10

Initial Charging of the Battery....11

Installing the Boundary Wire....12

Installing a Guide Wire ....15

Calibrating and Initial Start Up....17

Operation....18

Starting and Stopping the Mower....18

Switching Off the Mower....18

Adjusting Cutting Height 18

Lifting and Carrying the Mower....19

Pairing Mobile App to Mower....19

Maintenance....20

Removing the Body from Chassis 20

Cleaning....20

Replacing Blades....21

Maintaining the Battery....21

Replacing the Battery 22

Winter Storage Mower 23

Winter storage Charging Station 23

Troubleshooting....24

Indicator LEDs on Mower 24

Symptoms....25

Breaks in Boundary Wire and Guide Wire....25

Technical Data....26

Environmental Protection....28

Warranty Terms 29

CE Declaration of Conformity....30

As a complement to this operator manual, more information is available on the website: www.cramertools.eu

Explanation of Symbols on the Mower

This is a dangerous power tool. Use care when operating and follow all safety instructions and warnings.

Read the operator manual carefully before operating the mower.

Remove the safety key before working on or lifting the mower.

Hazard of thrown objects during operation.

Keep a safe distance from the mower when operating and keep people, especially children, pets and bystanders away from the area where mower is being operated.

Do not ride on the mower.

Class III appliance

Reading the operator manual

The following symbols are important for reading and understanding the operating instructions.

Wear protective gloves

The following system is used in the operator manual to make it easier to understand:

WARNING! Warning texts alert users and consumers to the existence and nature of hazards so that they can prevent injury by appropriate conduct during use of the product.
CAUTION: Caution texts alert users and consumers to the existence and nature of product risks so that they can prevent damaging the product by appropriate conduct during use of the product.
NOTE: Notes inform users and consumers about additional information about product use.
• Text written in bold italics refers to another section in the operator manual.

IMPORTANT

READ CAREFULLY BEFORE USE! KEEP FOR FUTURE REFERENCE!

Training

WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

• Read the instructions carefully. Be familiar with the controls and the proper use of the machine.
• Never allow people unfamiliar with these instructions or children to use the machine. Local regulations may restrict the age of the operator.
  • The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• Ensure the correct installation of boundary and guide wires as instructed.
• Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
• Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

General

• Never operate the machine with defective guards, or without safety devices, for example the body, in place.
- Do not put hands or feet near or under rotating parts.
- Never pick up or carry an machine while the motor is running.
- Remove (or Operate) the disabling device from the machine
- before clearing a blockage;
- before checking, cleaning or working on the machine.
- Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

Maintenance and storage

• Keep all nuts, bolts, and screws tight to be sure the machine is in safe working condition.
• Replace worn or damaged parts for safety.
• Ensure that only replacement cutting means of the right type are used.
• Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
  In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes, etc.
  Servicing of the machine should be according to manufacturers' instructions.

WARNING! This appliance contains batteries that are only replaceable by a skilled persons.

WARNING! For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

• Text written in bold refers to settings on the mower.

Operational safety

This operator manual contains all of the basic information concerning the safe operation and maintenance of the mower.

Carefully read all the safety precautions and instructions in this operator manual before operating the mower. Save this operator manual for future reference. Follow manufacturer instructions regarding installation, operation, maintenance, and repair.

This mower is designed to mow grass in open and level areas. Use only equipment recommended by the manufacturer. All other types of use are incorrect.

This mower conforms to CE safety standards and directives concerning electromagnetic compatibility, machines, and low voltage.

The mower is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The mower must only be operated, maintained, and repaired by persons that fully understand its special characteristics and safety regulations.

Start the mower in accordance with the instructions. When the safety key is in the Enabled position, keep your hands and feet away from the rotating blades.

Never put your hands and feet under the mower.

Do not modify the original design of the mower. All modifications void the guarantee.

Switch off mower using the STOP button on the mower when persons, especially children, or pets are in the cutting area. It is recommended that the mower be programmed for use during hours when the area is free from persons or pets.

Remove objects from the operating area such as branches, toys, stones, tools that can damage the blades. The mower can fasten on objects in the operating area and help may be required to remove the object before the mower can continue mowing.

Never lift up the mower or carry it with the safety key inserted.

Always switch off the mower using the STOP button when the mower is not in use. The mower can only start when the safety key is inserted and the START button is pressed.

Do not use the mower with a defective blade disc or body.

Do not let persons who do not know how the mower works and behaves use it.

Do not put anything on top of the mower or its charging station.

Always wear protective gloves when working with the mower's blades.

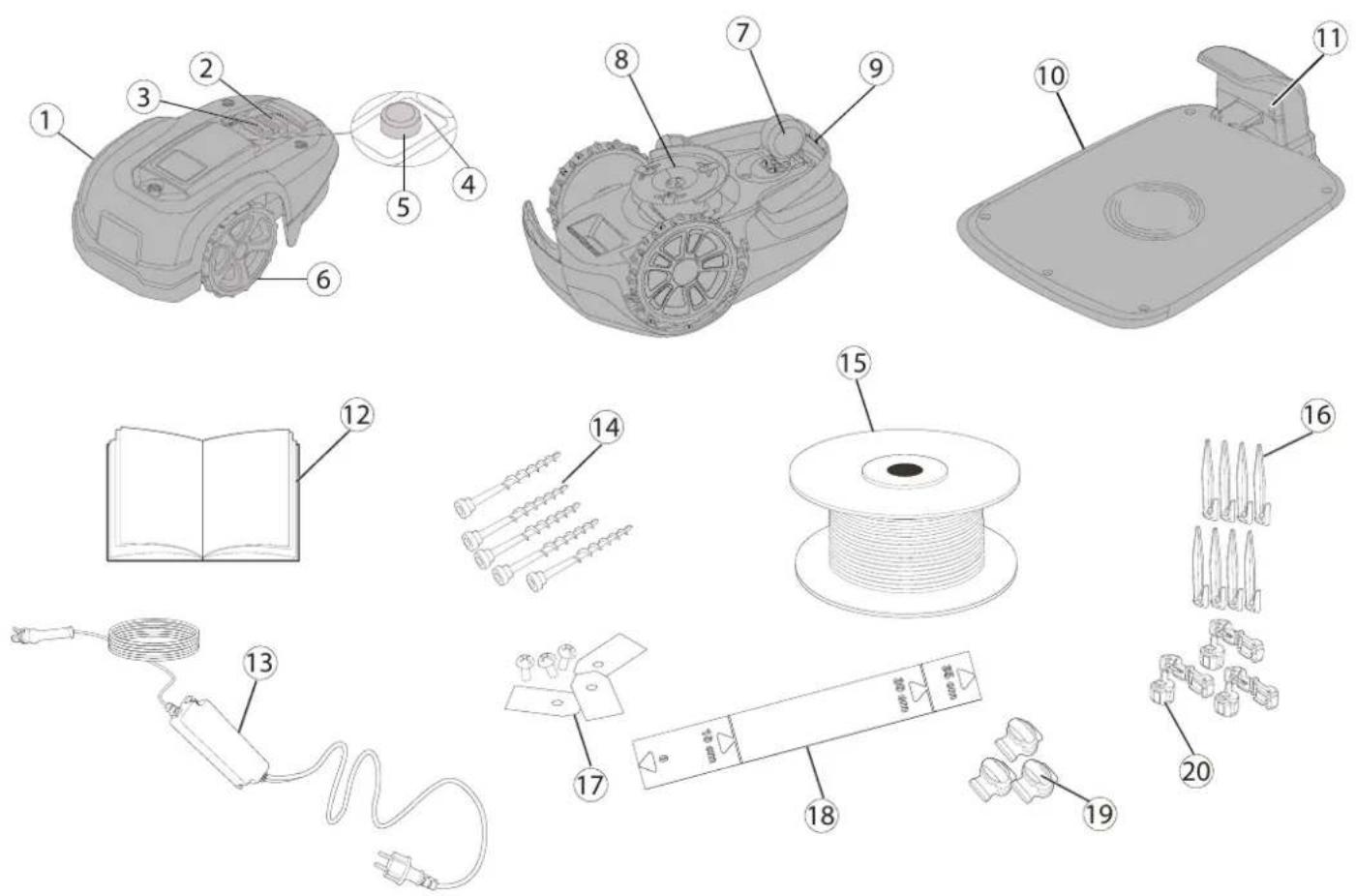

Exploded view diagram of a robotic device with numbered parts for identification and assembly reference.

1 Removable cover
2 Stop button
3 Start button
4 LED indicators
5 Cutting height adjustment
6 Front wheels
7 Rear wheels
8 Blade disc
9 Carrying handle
10 Charging station

11 LED for operation check
12 Operator manual and quick guide
13 Power supply ^4
14 Screws for securing charging station (x5)
15 Loop wire for boundary and guide wire
16 Wire pegs
17 Extra blades and screws (x3)
18 Ruler (break off carton top)
19 Splice and guide wire connectors
20 Loop wire connectors

* The appearance of the power supply may differ depending on market.

Unbox the mower and installation materials. Make certain that all parts shown in Figure 1 are included and undamaged. Contact your retailer if any items are missing or damaged.

Keep the Quick Guide in a safe place since it contains the unique pairing code for your mower.

Read the entire section before beginning installation. Installation affects mower capability.

Plan the installation carefully.

The following are the main tasks within the installation:

• Planning layout and preparation
• Installing and connecting the charging station
• Connecting the power supply
• Initial charging of the battery
• Installing the boundary wire
• Installing the guide wire
• Calibrating and initial start up

Planning Layout and Preparation

Ensure that the following conditions exist in the operating area where the mower will be used:

• The grass is shorter than 10 cm.
There are no stones, loose pieces of wood, wire, live mains cables, and other foreign objects.
• The operating area is even and has no ditches, grooves, and steep slopes greater than 30%.

The following tools are required for installation, but not included:

• Hammer/rubber mallet to drive the pegs into the ground
  • Combination pliers to cut the boundary wire
  • Polygrip to press the couplers together
  • Hex key, 6 mm for securing the charging station to ground

Installing and Connecting the Charging Station

1m >1m 10m >3m >1m 35cm

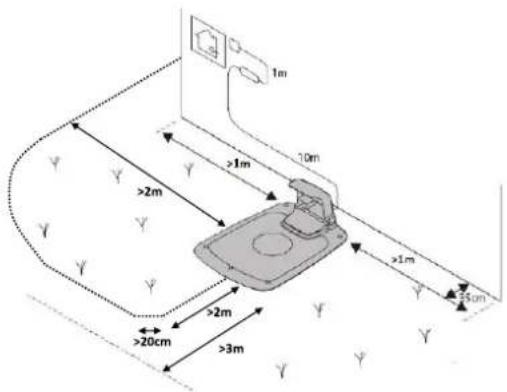

Position for the charging station as follows:

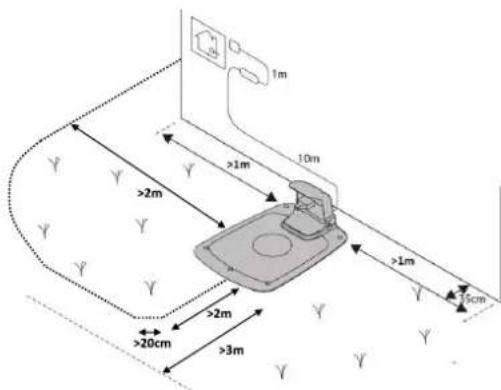

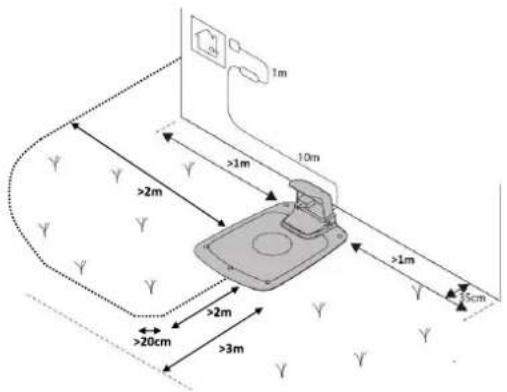

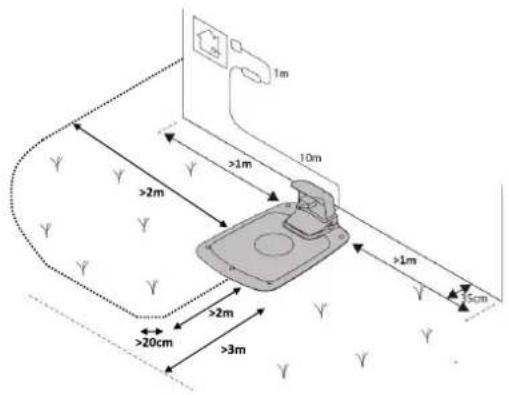

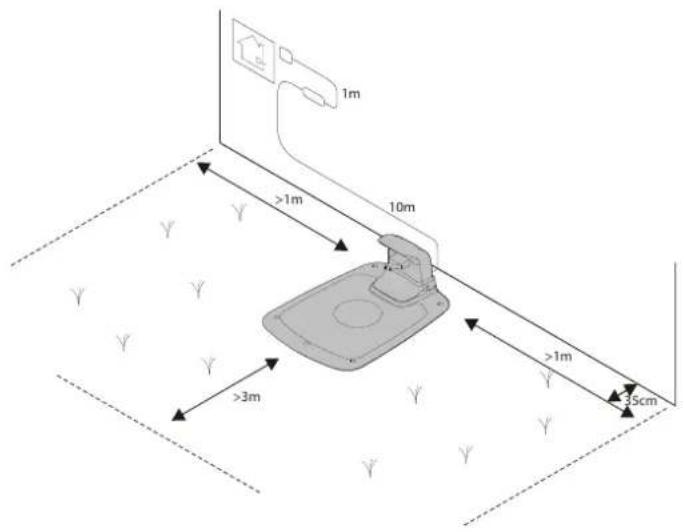

• In a level spot out of direct sunlight (The front end of the charging station must not be 5 cm higher or lower than the back end.)
  • Within reach of a wall socket (The low voltage cable is 10 m long.)

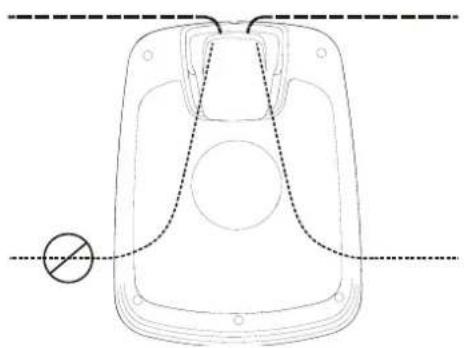

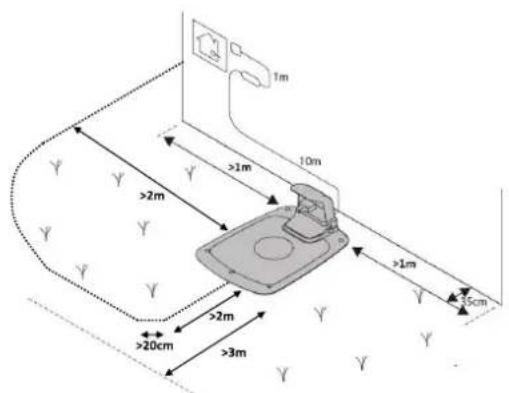

• With at least 3 m in front of it and 1 m to each side (Do not position in confined spaces in the operating area.)

Technical line drawing of a vehicle front panel with no text or symbols

The entire charging station must be inside the operating area as shown in the figure.

Connecting the Power Supply

Connect the power supply in a cool, dry environment; out of direct sunlight.

If the power supply is connected to an electrical socket outdoors, it must be approved for outdoor use.

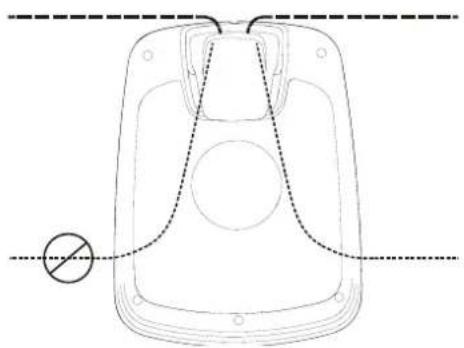

The low voltage cable can cross the operating area if it is stapled down or buried.

CAUTION: Do not cut, splice, or alter the low voltage cable. Altering the low voltage cable will void the product guarantee.

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

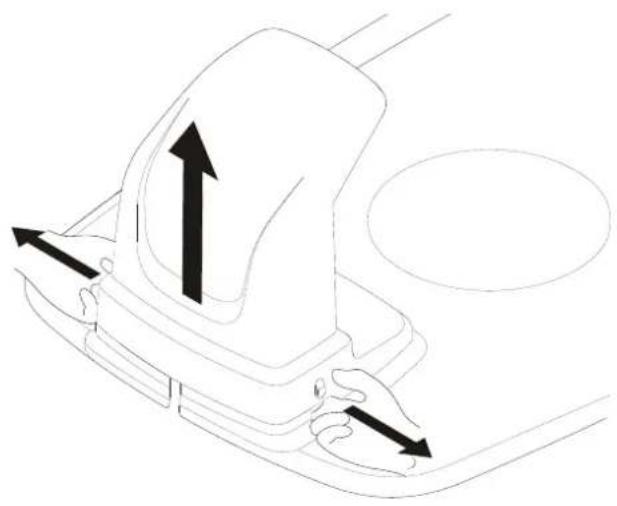

Remove the protective cover on the charging station by pressing in the tabs on each side of the base and lifting away the cover.

Technical line drawing of an electrical component with a black arrow indicating a connection or assembly (no text or symbols present)

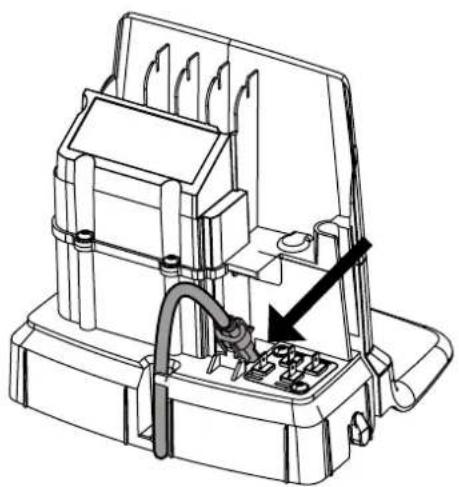

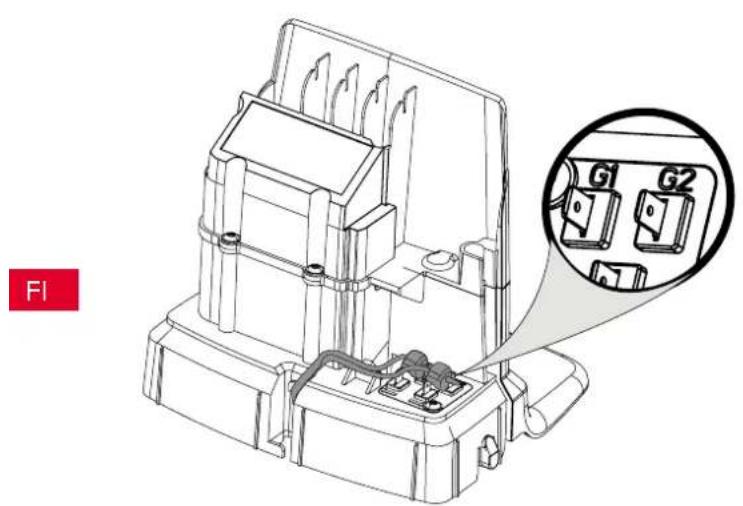

Connect the low voltage cable to the charging station.

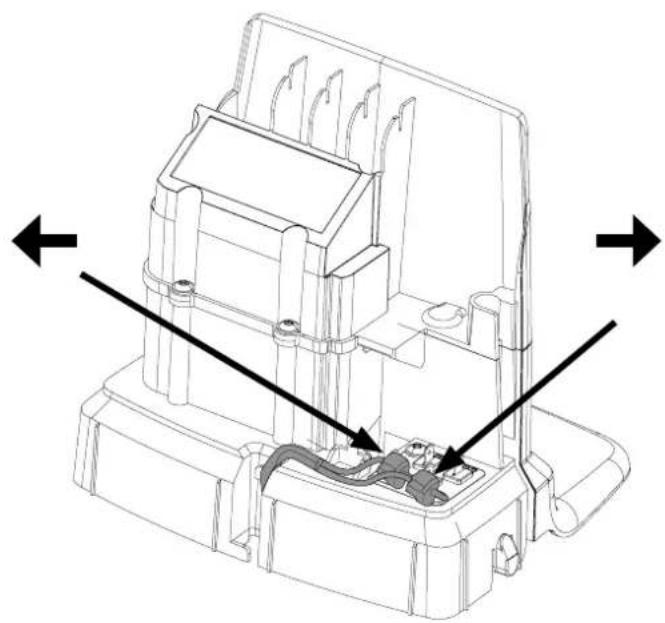

Thread the low voltage cable behind the tabs to hold it in place in the charging station.

Connect the power supply power cable to a 220-240 V wall socket.

Initial Charging of the Battery

Line drawing of a car interior with a small mechanical component inserted (no text or symbols)

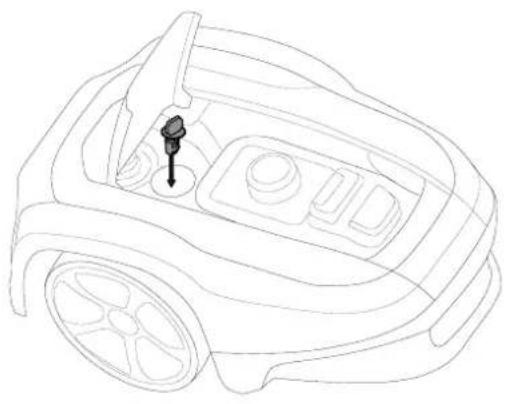

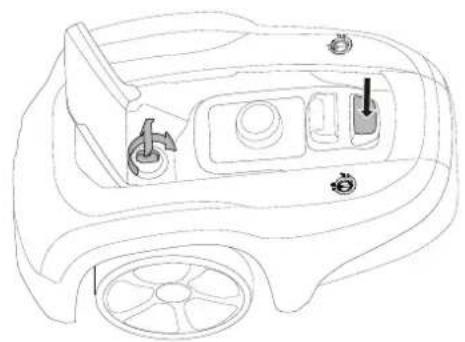

Insert the safety key into the mower and turn to the ON" (1) position.

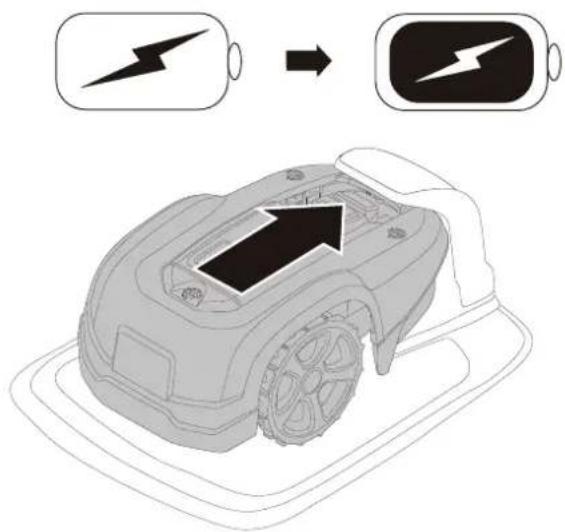

Diagram showing battery charging process with lightning bolt symbol and battery icon

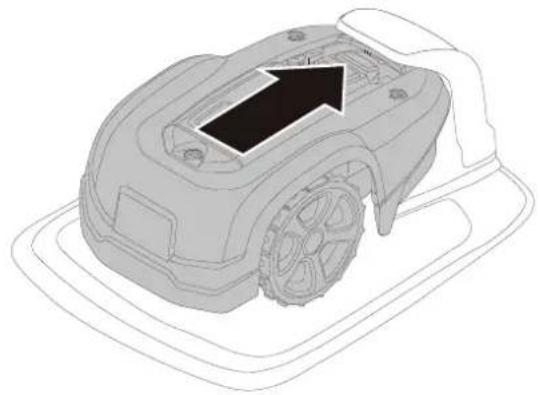

Place the mower into the charging station while the boundary and guide wires are being laid.

3D technical illustration of a robotic car with a black arrow pointing to the top component (no text or symbols)

The mower cannot be used before the installation is complete.

Installing the Boundary Wire

When installing the boundary wire there are a number of situations to consider as described in the table below.

Table 1. Handling Deviations and Obstacles in the Operating Area

Variation Within Operating Area Boundary Wire Planning
Fixed obstacles level with lawn that the mower can traverse (paving stone paths or similar)	Lay the boundary wire under the paving stones or in the joint between the paving stones.Never run the mower over gravel, mulch, or similar material that can damage the blades.
Fixed obstacles ± 1 cm high Lay the boundary wire 10 cm from the obstacle.
Fixed obstacles 1—5 cm high (small ditches, flower beds, or low kerbstones)	Lay the boundary wire 30 cm from the obstacle.
Fixed obstacles 5 cm or higher (fences or walls) Lay the boundary wire 35 cm from the obstacle.
Fixed obstacles taller than 15 cm that can withstand a collision (trees or shrubs)	No measures required; the mower will turn around when it collides with this type of obstacle.
Fixed obstacles that slope slightly such as stones or large trees with raised roots	Lay the boundary wire 30 cm from or remove obstacle.
Fixed obstacles that cannot withstand a collision Lay the boundary wire 30 cm from and around the obstacle and then return it back along the same route.
Long and narrow passages and areas narrower than 1.5 m Install a guide wire.
Borders on a slope, road, precipice, or water Supplement the boundary wire with a physical barrier at least 15 cm high.
Slope up to 30% within operating area No measures required; the mower can operate up to a 30% as long as the slope is not at the boundary of the operating area.
Slope less than 15% at operating area edge Lay boundary wire as normal.
Slope greater than 15% at operating area edge Do not lay boundary wire unless a fixed obstacle (fence or wall) exists to prevent the mower from leaving the operating area.When a part of the operating area outer edge slopes more than 15%; lay the boundary wire 20 cm in on the flat ground before the beginning of the slope.

NOTE: Slope gradient is defined in percentage units (%). The slope as a percentage unit is calculated as the difference in elevation in centimetres for every metre. If, for example, the difference in elevation is 10 cm, the slope gradient is 10%.

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

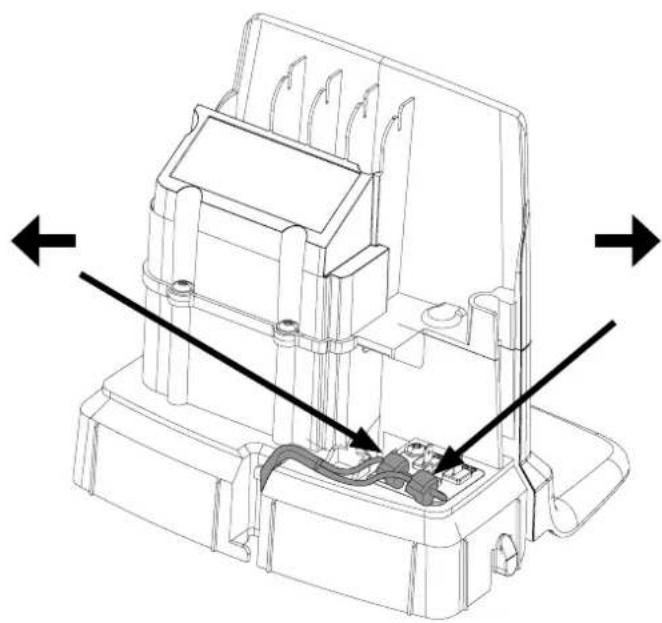

Temporarily secure the end of the loop wire to a peg or other object at the charging station.

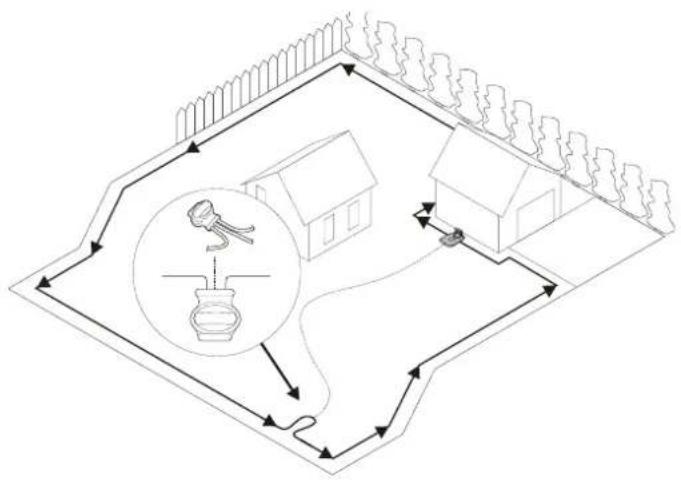

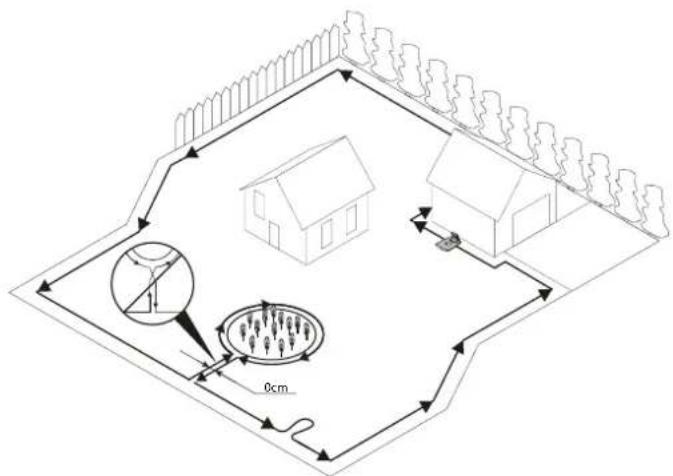

Lay out the loop wire in a counter-clockwise direction alone the planned boundary of the operating area taking into consideration the rules in Table 1 until you return to the charging station.

If you are going to install a guide wire, create an eyelet with about 20 cm of extra boundary wire at the point where the guide wire will later be connected.

See Installing a Guide Wire on page 15 for more information.

If the boundary wire is too short, use provided splice and guide wire connectors to splice additional boundary wire as follows:

1 Insert both ends of the boundary wire into the splice and guide wire connector. Check that the wires are fully inserted into the splice and guide wire connector so that the ends are visible through the splice and guide wire connector.
2 Squeeze down the button on top of the splice and guide wire connector fully using a polygrip until you hear a click.

Lay down the loop wire reel at the charging station.

Go back around the boundary of the operating area and secure the boundary wire either using pegs or buried in the ground. Pegs are recommended since this allows for adjustment during the first few weeks of operation.

When securing the boundary wire with pegs:

• Cut the grass very low with a standard lawnmower or a trimmer where the wire is to be laid.
• Lay the boundary wire on the ground and secure with pegs close together.
• Push or hammer the pegs into the ground.

Do not push the pegs so far into the ground so that they strain the boundary wire.

When burying the boundary wire:

- Bury the boundary wire 1—20 cm into the ground.

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

When the boundary wire is completely laid out and secured, install end loop wire connectors as follows:

1 Open the loop wire connector and place the wire in the loop wire connector grip.
2 Press the loop wire connectors together using a polygrip until you hear a click.

Cut off any surplus boundary wire 1-2 cm above each connector.

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

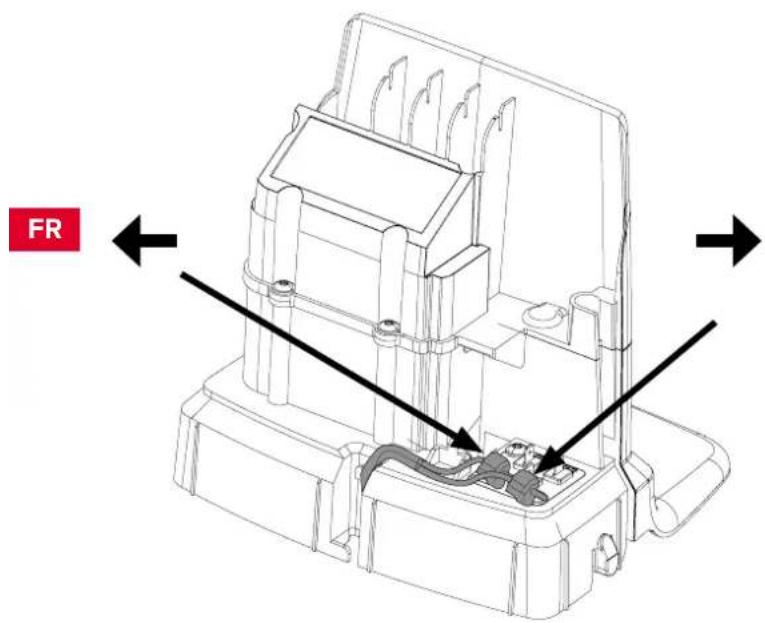

Connect the boundary wire to the charging station as follows:

1 Remove the protective cover on the charging station and thread the wire behind the tabs into the channel at the rear of the charging station.
2 Press the connector onto the metal pins on the charging station (marked with left and right arrows).

NOTE: Make sure the boundary wire to the right of the charging station is connected to the arrow pointing right and the same for the left side.

Installing a Guide Wire

The mower uses the optional guide wire to find its way back to the charging station, but also find hard-to reach areas of the operating area. For example, the guide wire is laid between the charging station and a remote part of the working area or through a narrow passage.

For narrow passages (less than 3 m) or to shorten search times, a guide wire is recommended.

Plan the location of the guide wire before laying out the boundary wire.

Use the same cable roll for both the boundary wire and the guide wire.

The guide wire, like the boundary wire, must be secured to the ground with pegs or buried.

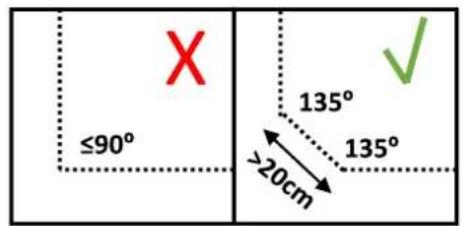

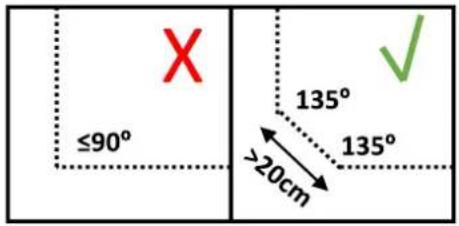

When installing the guide wire on a steep slope, lay the wire at an angle to the slope so it is easier for the mower to follow the guide wire on the slope.

≤90° 135° >20cm 135° ✓

Do not lay the guide wire at sharp angles or the mower will have difficulty following it.

Do not lay the guide wire closer than 30 cm from the boundary wire.

Do not lay the guide wire across the boundary wire.

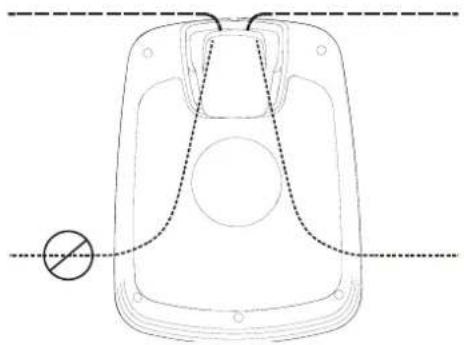

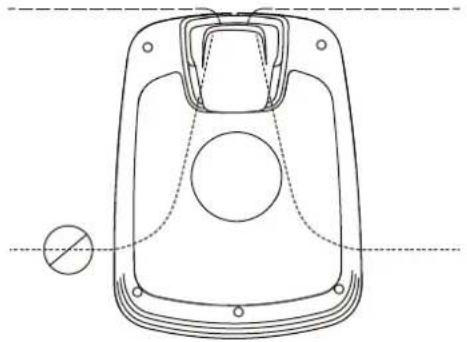

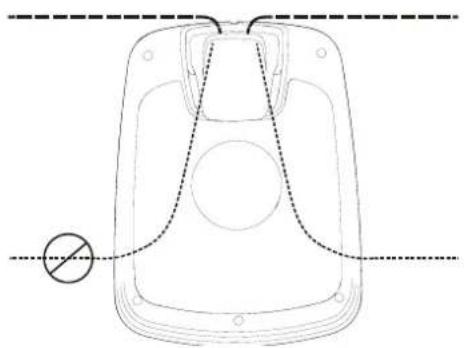

Lay the guide wire straight under the charging plate in the track intended for this and then at least 2 m straight out from the front edge of the plate.

Leave as much space as possible to the left of the guide wire (as seen when facing the charging station).

1m >1m 10m >2m >1m 5cm >2m >20cm >3m

Run the guide wire to the loop on the boundary wire where the guide wire is to be connected.

Cut the boundary wire using the combination pliers.

Three-step diagram showing cable clamp installation: wire connection, grip attachment, and plug attachment (no text or symbols)

Technical line drawing of an electrical connector with a magnified inset showing internal components labeled G1 and G2 (no text or symbols on the diagram itself)

Insert both ends of the boundary wire as well as the end of the guide wire into the splice and guide wire connector. Check that the wires are fully inserted into the splice and guide wire connector so that the ends are visible through the splice and guide wire connector.

Squeeze down the button on top of the splice and guide wire connector fully using a polygrip until you hear a click.

Secure the splice and the boundary and guide wires either using pegs or by burying.

Connect the guide wire to the charging station as follows:

1 Remove the protective cover on the charging station and thread the guide wire behind the tabs into the channel leading to the terminals.

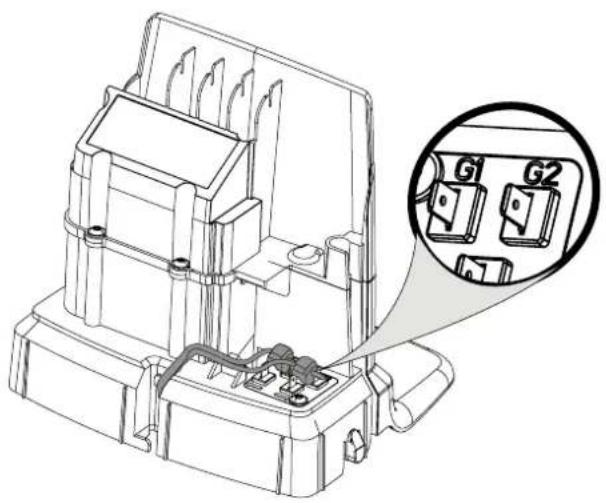

2 Connect the guide wire to the contact pin on the charging station that is labelled G1.

Installing a second guide wire

1 If you have more than one narrow passage or a complicated garden you can install a second guide wire. To do this, follow the steps for installing a guide wire except connecting it to the contact pin on the charging station marked G2.

Calibrating and Initial Start Up

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

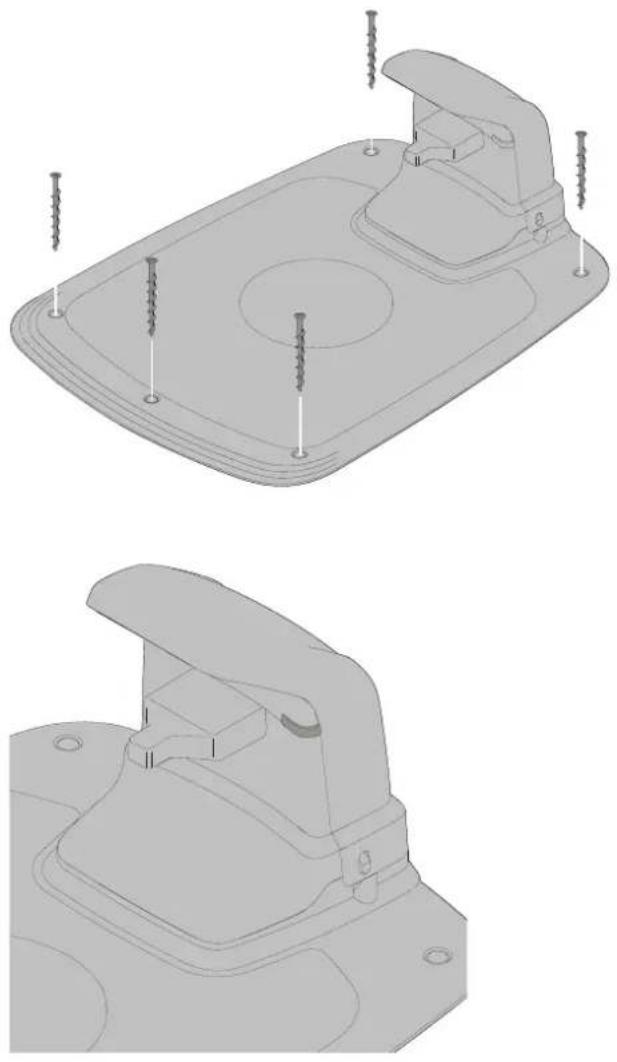

Secure the charging station to the ground using the five supplied fixing screws using a 6 mm hex key.

NOTE: Do not make new holes in the charging station base plate. Only the existing holes may be used to secure the base plate to the ground.

NOTE: Do not step or walk on the charging station base plate.

Check the LED indicator on the charging station:

- LED indicator lights up continuously green, if the output voltage of the power supply is available and the boundary wire is not interrupted.

The LED indicator does not light up when the output voltage of the power supply is not available.

If the Indicator LED does not show a solid or green light, see Indicator LEDs on the Charging Station on page 24 for troubleshooting.

Pair the mower with Mobile App as instructed in Pairing Mobile App to Mower on page 19.

Starting and Stopping the Mower

Start Stop ① ② ① ② S700

Switching Off the Mower

Line drawing of a robotic arm with control panel and buttons (no text or symbols)

Adjusting Cutting Height

MAX MIN 60 20

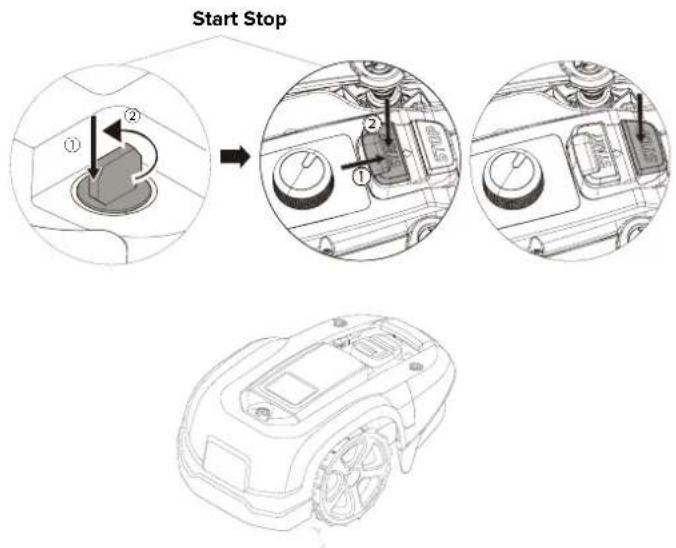

To start the mower:

1 Insert the safety key and rotate counter clockwise to position "1".
2 Slide the START button latch backwards.
3 Press down the START button.

To stop the mower:

Press the STOP button on the mower.

Press the STOP button on the mower and remove the safety key.

WARNING! Always remove the safety key when performing maintenance or if the mower must be moved.

For the first few weeks of mowing, set the cutting height to 60 mm to avoid cutting the boundary wire and guide wire. Lower the setting one step each week thereafter until the desired cutting height is reached.

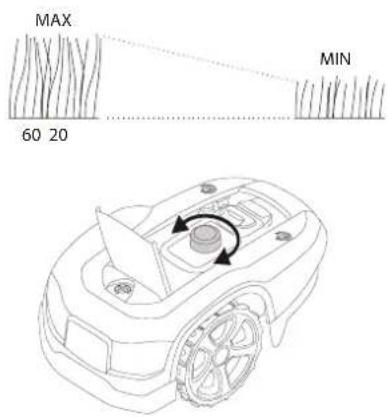

Turn the cutting height adjustment knob to the required setting. The selected setting is the marking on the body that aligns with the arrow on the knob.

Turn clockwise to increase the cutting height.

Turn anti-clockwise to decrease the cutting height.

The cutting height for the mower can be adjusted between 20 mm and 60 mm.

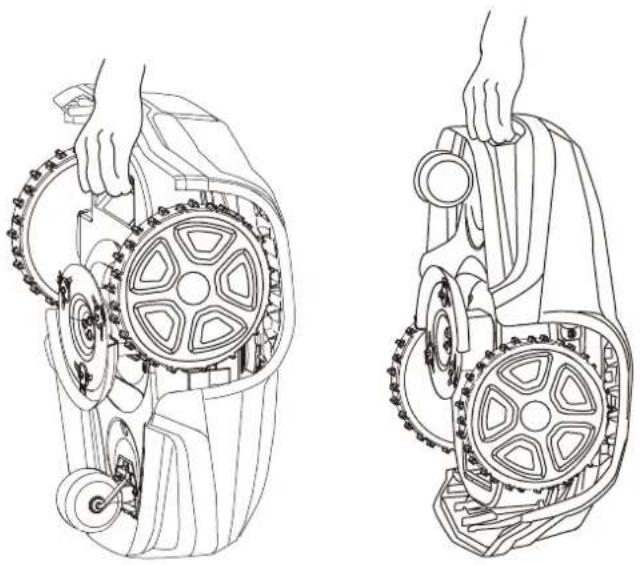

Lifting and Carrying the Mower

Technical line drawings of a mechanical device with two views: top shows hand holding gears, bottom shows wheel assembly (no text or symbols)

Press the STOP button and remove the safety key before lifting.

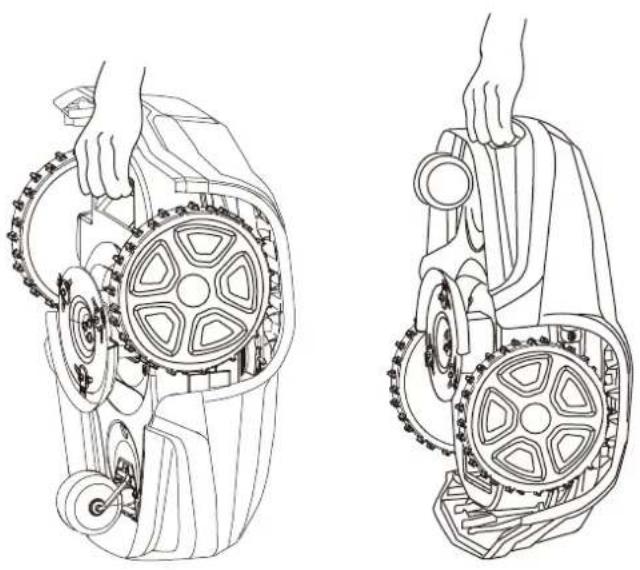

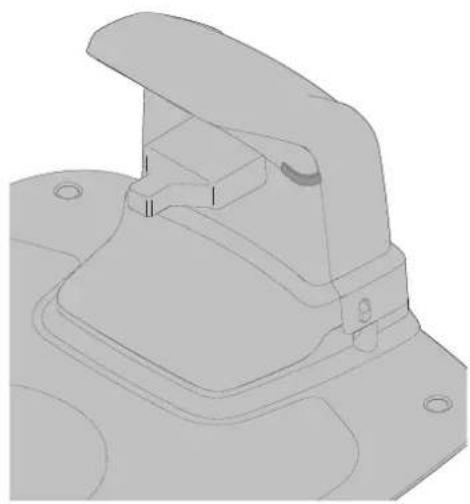

Always lift the mower using the carrying handle.

Pairing Mobile App to Mower

Download Cramer tools App from App Store/Google Play and follow the on-screen instructions for how to pair the mower. Have the unique pairing code (found on the quick guide manual) and the mower at hand.

WARNING! Wear protective gloves when handling or working near the sharp blades.

WARNING! Before working on the mower itself, remove the safety key.

WARNING! Before working on the charging station or power supply, remove the plug from the mains.

• Periodically visually inspect the mower and replace worn or damaged parts for safety.
• Inspect that the blades rotate freely
- Keep all nuts, bolts, and screws tight to be sure that the mower is in safe working condition.
- The normal operating life of the blades is 2 to 6 weeks when used at maximum area capacity and longer for smaller areas.

CAUTION: Dull blades result in the grass being cut poorly; requiring more energy and shorter time between battery loadings.

• Clean the mower regularly for best function.

Removing the Body from Chassis

Diagram showing a car's internal components with directional arrows indicating rotation or movement, including a circular dial indicator.

Cleaning

Technical line drawings of a car showing front and side views (no text or symbols)

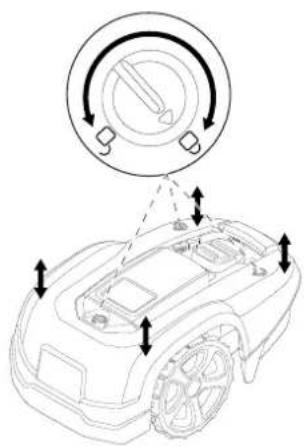

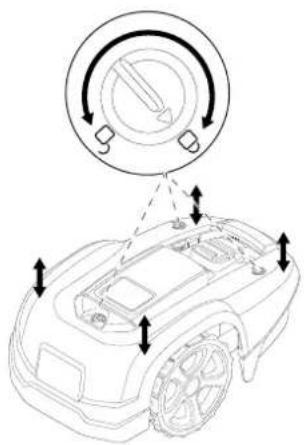

Rotate the knob to the unlock position and lift firmly at one of the corners of the body and repeat for all four corners, until the body pops loose from the chassis.

Replace the body by aligning the body onto the chassis and press down firmly until you hear the click. Rotate the knob to the lock position. Check that the body is firmly attached to the chassis.

WARNING! Press the STOP button and remove the safety key before cleaning.

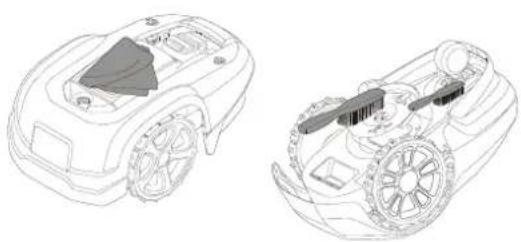

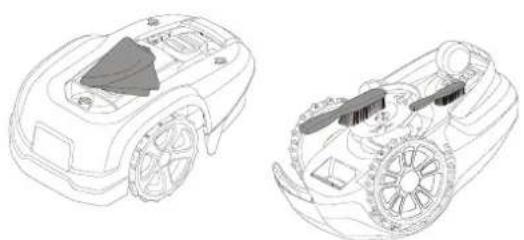

Clean the exterior of the mower thoroughly using a soft brush, damp cloth, and low pressure water hose, if necessary. Remove the body from the chassis.

Turn the mower on its side and clean the blade area and wheels with a stiff brush or scraper to remove compacted grass clippings.

Replacing Blades

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a screwdriver icon

WARNING! Press the STOP button and remove the safety key before replacing blades and wear protective gloves.

WARNING! Use only GLOBE'S blade: 333092355

CAUTION: Use only original replacement parts.

Replace all three blades and screws as a set at the same time.

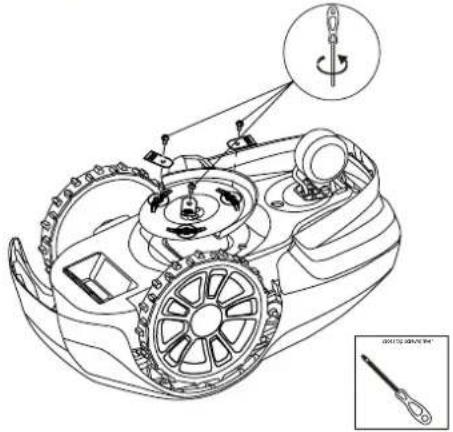

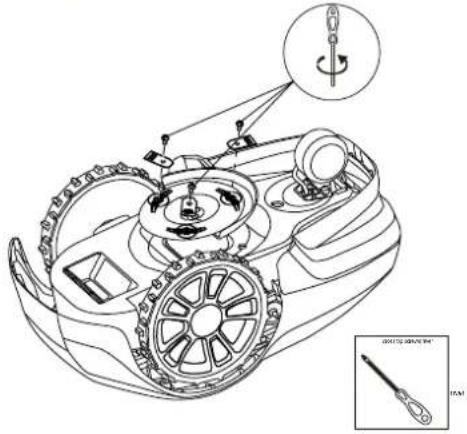

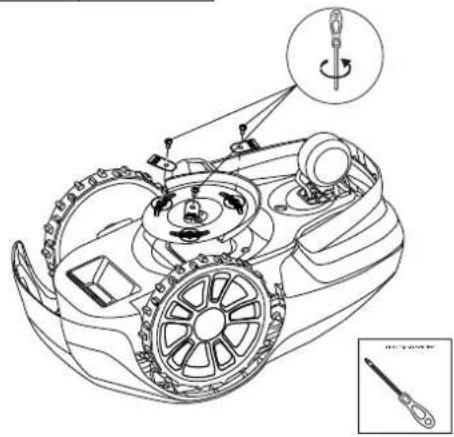

Turn the mower upside down.

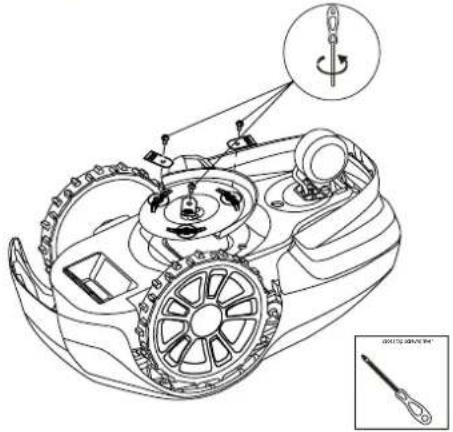

Loosen the screws using a straight slot or cross tip screwdriver.

Remove the blades and the screws.

Screw in the new blades using new screws.

Check that the blades pivot freely

Maintaining the Battery

Diagram showing battery charging process with lightning bolt symbol and battery charging symbol

3D technical illustration of a robotic arm component with a black arrow indicating direction (no text or symbols)

WARNING! In the event of electrolyte leakage, flush with water/neutralizing agent and seek medical care if electrolyte comes in contact with the eyes.

Only charge the battery in the original charging station. Incorrect use may result in electric shock, overheating, or leakage of corrosive liquid from the battery.

The battery is maintenance-free, but has a limited service life of 2 to 4 years depending on the length of the season and how many hours a day the mower is used.

Winter Storage Mower

Always clean the mower before winter storage.

Charge the battery fully before winter storage.

CAUTION: If the battery is not fully charged, it can be damaged and in certain cases be rendered useless.

Inspect the condition of wear items; that the blades are sharp and that blades and front wheels turn freely.

Correct any deficiencies.

Store the mower in a dry, frost-free environment standing on all four wheels.

Winter storage Charging Station

When possible, disconnect the boundary wire and guide wire from the charging station and store the charging station and power supply indoors.

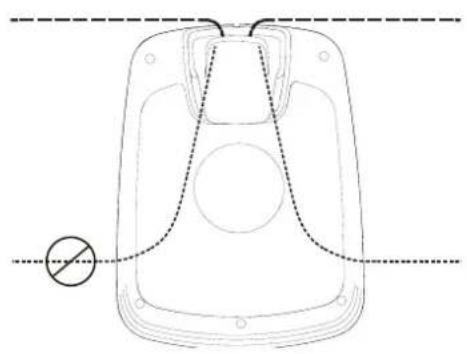

Leave the boundary wire and the guide wire in the ground, but protect the ends of the wires from dampness by connecting them to an original coupler or putting them in a container with grease.

If it is not possible to store the charging station indoors, the charging station must remain connected to the mains, the boundary wire, and the guide wires.

After Winter Storage

Inspect the mower and charging station contact and charging strips for corrosion, burning, or filth. If the charging or contact strips require cleaning, clean using fine grade emery cloth.

This section also presents some symptoms that can guide you if the mower does not work as expected.

Indicator LEDs on Mower

1 2 3 4

LED STATUS MEANING ACTION
1. Operating (Green)	Flashing Recovery mode	Place the robot in charging station with a mobile with the Cramer tools App close to the mower for software update of mower. This can take up to 1 hour until the green LED to stop flashing. If LED doesn't stop flash then restart the robot outside the CS and try again.
	On	Mower in operation mode (charging, parked in Charging station, paused, mowing or searching)
	Off	Mower stopped with Stop button on mower, safety key in Disabled position, mower in error state or mower waiting for PIN code.
2. Connectivity (Blue)	Flashing Mower not ready for Bluetooth connection	If mower stopped with error the mower need to be restarted with the Start button to allow Bluetooth connection again
	On	Mower ready for Bluetooth connection with Mobile App
	Off	Mower not in "Power on mode"
3. Security (Yellow)	Flashing PIN code authorization required	... via Mobile App.
	Off	No pin required	No action required
4. Error (Red)	Flashing Mower stopped with error	Check the reason for the error and then restart by pressing the Start button on the mower.

Indicator LEDs on Charging Station

LED STATUS MEANING ACTION
Green On Boundary wire and Charging station OK No action required.
Blue Flashing Boundary wire broken or not connected Check and repair boundary wire.
Red	Flashing	Electronic fault in charging station or power supply Unit	Please contact your dealer

Symptoms

If your mower does not work as expected, follow the troubleshooting guide below.

SYMPTOMS CAUSE ACTION
Mower has difficulty docking with charging station	The charging station is on a slope. Place the charging station on a surface that is entirely level. See Installing and connecting the Charging Station on page 9.
	The boundary wire is not laid correctly in relation to the charging station.	Check that the charging station and boundary wire has been correctly installed. See Installing and connecting the Charging Station on page 9.
Uneven mowing results	The mower works too few hours per day.	Increase the operation time. See the Scheduling function in the Mobile App.
	The shape of the working area requires manual settings to be made for the mower to find its way to all remote areas.	Adjust lawn coverage to steer the mower to one or more remote areas. See Settings function in the Mobile App.
	The shape of the working area requires manual settings to be made for the mower to find its way to all remote areas.	Try limiting the operating area or extending the operation time. See the Scheduling function in the Mobile App.
	The blades are dull. Replace all the blades and screws so that the rotating parts are balanced. See Replaceing blades on page 21.
	Grass collects on the blade disc or around the motor shaft.	Check that the blade disc rotates easily. If not, remove grass and foreign objects. See Maintenance on page 20.
The mower mows for shorter periods than usual between charges	Grass or other foreign object are blocking the blade disc.	Remove grass and foreign objects. See Maintenance on page 20.
	The battery is worn out.	Contact a service workshop to Replace the Battery.
Mowing and charging times shorter than usual	The battery is worn out.	Contact a service workshop to Replace the Battery.

Breaks in Boundary Wire and Guide Wire

Breaks in the boundary wire and guide wire (if installed) are usually the result of unintentional physical damage.

Inspect the entire boundary wire from the charging station and back.

Inspect the guide wire (if installed) from the charging station to the splice into the boundary wire.

Inspect that all the couplings have been properly squeezed to make connections.

	RM800
Dimensions:
Height 25 cm
Length 57 cm
Width 36 cm
Weight 7.2 kg
Electrical system:
Battery, Special Lithium-Ion battery 20 V / 2.0 Ah, Part No. T0100110-00
Power supply 220-240 V/32 VDC
Low voltage cable length 10 m
Mean energy consumption at maximum use 9 kWh/month for a working area of 800 m ^2
Charge current 1.3 A DC
Average charging time 60 minutes
Average cutting time 60 minutes
Noise emissions:*
Measured sound power noise level **) 58 dB (A)
Guaranteed sound power noise level 61 dB (A)
Sound pressure noise level ***) 47 dB (A)
Mowing:
Cutting system	Three pivoted cutting blades
Average power consumption during cutting	25 W ± 20%
Cutting height	2-6 cm
Cutting width	17 cm
Narrowest possible passage	60 cm
Maximum angle for cutting area	30%
Maximum angle for boundary wire	15%
Maximum length boundary wire	800 m
Maximum working capacity	800 m^2
Recommended area capacity	0 - 700 m^2
IP classification:
Mower IPX5
Charging station	IPX2
Power supply IP67

The noise emission declarations conforms to EN 50636-2-107
**) uncertainties KWA, 3 dB (A)
***) uncertainties KPA, 3 dB (A)

RADIO FREQUENCY DATA SHEET
	Bluetooth (NINA-B112)	Short Range Devices (SRD)(Boundary Wire)
Frequency Bands 2400.0 - 2483.5 MHz 0~148.5KHz
Power Class Class 1.5 (6 dBm) NA

According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

The symbol on the mower or its packaging indicates that this product cannot be treated as domestic waste. It should instead be left at a suitable recycling centre to recycle its electronic components and batteries.

The batteries are enclosed in the chassis.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product.

For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Separate collection of used machine and packaging let you recycle materials and use them again. Use of the recycled materials helps prevent environmental pollution and decreases the requirements for raw materials.

At the end of their useful life, discard batteries with a precaution for our environment. The battery contains material that is dangerous to you and the environment. You must remove and discard these materials separately at a equipment that accepts lithium-ion batteries.

GLOBGRO AB, Globe Group Europe guarantees this product's functionality for a period of three years (from date of purchase), except for the battery that has two years warranty period. The guarantee covers serious faults relating to materials or manufacturing faults. Within the guarantee period, we will replace the product or repair it at no charge if the following terms are met:

• The mower and the charging station may only be used in compliance with the instructions in this operator manual.
• Users or non-authorized third parties must not attempt to repair the product.

Examples of faults which are not included in the guarantee:

• Damage caused by lightning.
• Damage caused by improper battery storage or battery handling.
• Damage caused by using a battery that is not a original battery.
• Damage caused by not using original spare parts and accessories, such as blades and installation material.
• Damage to the loop wire.

The blades are seen as disposable and are not covered by the guarantee.

If a fault occurs with your mower, please contact the dealer for further instructions. Have your receipt and product serial number to hand for quicker assistance.

(Only applicable to European versions)

Name and address of manufacturer:

Manufacturer: GLOBGRO AB, Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Name and address of the person authorized to compile the technical file:

Name: Peter Söderström

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Herewith we declare that the product:

Category: Robotic Lawnmower

Model: RM800

Serial number: See product rating label.

Serial No See product rating label.

• Is in conformity with the provisions of the following other directives:

2014/30/EU

2014/53/EU

2006/42/EC

2011/65/EU & (EU) 2015/863

2014/35/EU

- The following (parts/classes of) European harmonized standards have been used:

EN 60335-1, EN 50636-2-107, EN 60335-2-29, EN 62233, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 EN 61558-1, EN 61558-2-16, EN 62311, EN 303447, EN 300328, EN 301489-1, EN 301489-3, Draft EN 301489-17

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Quality Director

Malmö, 22. 09. 2020

Ted Qu

CE

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Diagram of a vehicle front view with no text or symbols, showing internal components and dashed lines indicating alignment (no text or symbols present)

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a cable and wiring (no text or symbols)

Line drawing of a car interior with a central valve and dashboard (no text or symbols)

Diagram illustrating battery charging process with battery icon and charging button, showing battery symbol and charging mechanism

Diagram illustrating a rural water safety system with irrigation, drainage, and plugging components, including a 0cm scale indicator.

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable installation steps: straight, flexible, and flat (no text or symbols)

Technical line drawing of an electrical connector with labeled parts (G1, G2), showing internal components and wiring (no text or symbols beyond labels)

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Start Stopp ① ② ③

Line drawing of a robotic car interior showing dashboard, wheels, and control buttons (no text or labels)

Technical line drawings of a robotic device with two views: top shows hand holding gear, bottom shows hand holding wheel (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle or system control.

Reinigung

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two labeled diagrammatic shapes with checkmark and cross symbols, likely indicating selection or confirmation steps.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing a screwdriver mechanism.

Diagram showing battery charging process with lightning bolt symbol and battery icon, indicating charging or discharging operation

3D technical illustration of a robotic car with a highlighted component and arrow indicating direction (no text or symbols)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Qualitätsleiter

Malmö, 22. 09. 2020

Reading the operator manual....4

Operational safety....6

Product Unboxing....7

Installation 8

Planning Layout and Preparation 8

Installing and Connecting the Charging Station....9

Position for the charging station as follows:....9

Connecting the Power Supply.... 10

Initial Charging of the Battery....11

Installing the Boundary Wire....12

Installing a Guide Wire ....15

Calibrating and Initial Start Up....17

Operation....18

Starting and Stopping the Mower....18

Switching Off the Mower....18

Adjusting Cutting Height 18

Lifting and Carrying the Mower....19

Pairing Mobile App to Mower....19

Maintenance 20

Removing the Body from Chassis 20

Cleaning....20

Replacing Blades....21

Maintaining the Battery....21

Replacing the Battery 22

Winter Storage Mower 23

Winter storage Charging Station 24

Troubleshooting....25

Indicator LEDs on Mower 26

Symptoms 27

Breaks in Boundary Wire and Guide Wire....25

Technical Data....26

Environmental Protection....27

Warranty Terms....29

CE Declaration of Conformity....30

ES

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Line drawing of a vehicle front panel with no text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or assembly (no text or symbols present)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating electric vehicle charging station layout with labeled components and distance measurement

Three technical line drawings of pliers and connectors (no text or symbols)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector with labeled parts (G1, G2), showing internal components and mounting points (no text or symbols beyond labels)

Line drawing of a robotic car interior showing key components and control buttons (no text or labels)

AJUSTE DE LA ALTURA DE CORTE

MAX MIN 60 20

Line drawing of a car's front engine compartment with internal components and directional arrows (no text or symbols)

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding chain wheel (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle control or steering system.

Technical line drawings of a car's internal components, showing front and side views (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver tool.

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a robotic car with an arrow indicating a component (no text or symbols present)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Director de calidad

Ted Qu Haichao

Malmö, 22. 09. 2020

Ted Qu

ES

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Line drawing of a car interior with no text, numbers, or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a cable and plug, no visible text or symbols

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or connectors, shown in separate views (no text or symbols present)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable installation steps: wire connection, connector insertion, and final assembly (no text or symbols)

Technical line drawing of an electrical connector with internal components and a magnified inset showing two labeled buttons (G1, G2) — no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Avvio Stop IT ① ② ① ② STUD STUD

Line drawing of a robotic car interior with buttons and wheels (no text or symbols)

Line drawing of a car's front engine compartment with internal components and directional arrows (no text or symbols)

Technical line drawings of a mechanical device with hands operating it, showing internal gears and housing (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle wheel or steering system.

Technical line drawings of a car showing front and side views (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver tool.

Diagram showing battery charging process with lightning bolt symbol and battery charging symbol

3D technical illustration of a robotic car with a black arrow indicating a component (no text or symbols present)

Separate collection of used machine and packaging let you recycle materials and use them again. Use of the recycled materials helps prevent environmental pollution and decreases the requirements for raw materials.

At the end of their useful life, discard batteries with a precaution for our environment. The battery contains material that is dangerous to you and the environment. You must remove and discard these materials separately at a equipment that accepts lithium-ion batteries.

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu

Ted Qu Haichao

Direttore Qualità

Malmö, 22. 09. 2020

IT

Exploded view diagram of a remote control device with numbered parts and a label 'FR' in the corner.

1m >1m 10m >3m >1m 35cm

Line drawing of a car interior with no text or symbols

CONNEXION DE L'ALIMENTATION ÉLECTRIQUE

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or assembly (no text or symbols present)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Installation

FR

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m >20cm >3m

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

FR

Technical line drawing of an electrical connector with labeled parts G1 and G2, showing internal components and mounting points (no text or symbols beyond labels)

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic arm interior with no text or symbols

AJUSTEMENT DE HAUTEUR DE COUPE

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and hub (no text or symbols)

Technical line drawings of a mechanical device with hands operating it, showing two views (top and side) without any text or symbols.

Diagram showing a car's front-mounted control panel with directional arrows indicating rotation and adjustment.

Technical line drawings of two views of a robotic car showing internal components (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red X, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver tool.

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic arm component with an arrow indicating direction (no text or symbols)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu

Directeur Qualité

Ted Qu Haichao

Malmö, 22. 09. 2020

Exploded view diagram of a smart home control system with numbered components and an open book.

1m >1m 10m >3m >1m 35cm

Line drawing of a car front view with no text or symbols

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating a rural irrigation system with labeled components and water flow indicators, including a 0cm scale indicator.

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° X 135° 135° >20cm

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

PT

Technical line drawing of an electrical connector housing with a magnified inset showing internal components labeled G1 and G2 (no text or symbols beyond labels)

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic car interior showing mode shift, control buttons, and wheel (no text or labels)

Ajustar A Altura De Corte

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and hub (no text or symbols)

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding a cam mechanism (no text or symbols)

Remover O Corpo Do Chassis

Diagram showing car interior with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a black tag with a red X, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and tool icons, including a screwdriver and gear mechanism.

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu

Ted Qu Haichao

Exploded view diagram of a remote control device with numbered parts and a label 'NL' in red.

1m >1m 10m >3m >1m 35cm

Line drawing of a car interior with no text or symbols

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

NL

Technical line drawing of an electrical connector with internal components and a magnified inset showing two labeled buttons (G1, G2) — no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic arm with control buttons and a rotary knob (no text or symbols)

Line drawing of a car's front bumper with internal components and directional arrows (no text or symbols)

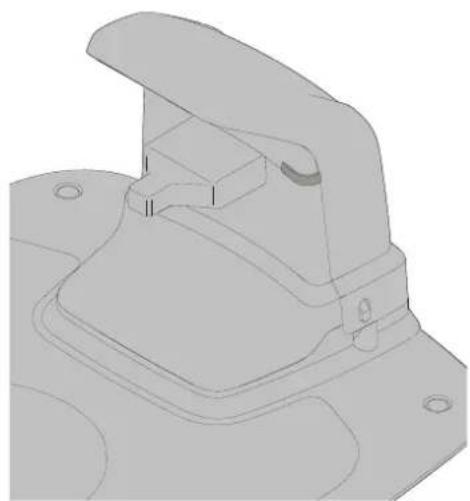

De grasmaaier starten:

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding a cam mechanism (no text or symbols)

Diagram showing car interior components with directional arrows indicating rotation or movement, including a circular dial indicator.

Technical line drawings of a car showing front and side views (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts and checkmark indicators

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu

Ted Qu Haichao

Kwaliteitsdirecteur

Malmö, 22. 09. 2020

Exploded view diagram of a smart home control system with numbered components and labeled parts

1 Съемная крышка

2 Кнопка отключения

3 Кнопка включения

1m >1m 10m >3m >1m 35cm

Line drawing of a car interior with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Line drawing of a car interior with a central hub and dashboard (no text or symbols)

Diagram illustrating battery charging process with battery icon and charging button, showing battery symbol and charging mechanism

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

RU

Three-step diagram showing cable installation steps: wire connection, clamp placement, and end cap (no text or symbols)

Line drawings of three different types of pliers or connectors, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 3cm >20cm >3m

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Technical line drawing of an electrical connector housing with a magnified inset showing internal components labeled G1 and G2 (no text or symbols beyond labels)

3D CAD model of a mechanical component with screws and a central slot (no text or symbols)

3D CAD model of a mechanical clamp or bracket component (no text or symbols visible)

Line drawing of a robotic car interior showing dashboard, wheels, and control panel (no text or symbols)

Line drawing of a car's front bumper with internal components and directional arrows (no text or symbols)

Technical line drawings of a mechanical device with two views: top shows hand holding chains, bottom shows hands operating a motor (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of a robotic car showing internal components and housing (no text or symbols)

Two labeled diagrammatic shapes with checkmark and cross symbols, one gray and one gray with circles

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing tool positioning.

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Тэд Ку Хайчао (Ted Qu Haichao)

Exploded view diagram of a robotic device with numbered parts for identification and assembly reference.

1m >1m 10m >3m >1m 35cm

1.

Technical line drawing of a car interior frame with no text or symbols

Diagram of a car interior showing directional arrows and a circular object, no text or symbols present

Technical line drawing of an electrical connector with a black arrow indicating a component (no text or symbols present)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector housing with a magnified inset showing internal components (no text or symbols)

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic car interior showing dashboard, wheels, and control buttons (no text or labels)

Line drawing of a car's front engine compartment showing valve and hub (no text or symbols)

Technical line drawings of a mechanical device with hands operating the gears and wheels (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle steering or steering system.

Technical line drawings of two car body parts, one showing front and side views with no text or symbols

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing screwdriver mechanism

Diagram showing battery charging process with lightning bolt symbol and battery charging symbol

Technical line drawing of a robotic arm component with an arrow indicating direction (no text or symbols present)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu

Ted Qu Haichao

Laatujohtaja

Malmö, 22. 09. 2020

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Line drawing of a car interior with no text or symbols

Diagram of a car's side panel showing directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of an electrical component with a black arrow indicating a connection or assembly (no text or symbols present)

Anslut lågspänningskabeln till laddstationen.

Line drawing of a robotic car interior with no text or symbols

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating electric shock wave installation with labeled components and grounding points

SV

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Installation

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector with internal components and a magnified inset showing two labeled parts (G1, G2) — no text or symbols present.

3D technical illustration of a mechanical component with screws and a handle (no text or symbols)

SV

3D CAD model of a mechanical component with no visible text or symbols

Line drawing of a robotic car interior showing dashboard, wheels, and control buttons (no text or labels)

JUSTERA KLIPPHÖJDEN

MAX MIN 60 20

Line drawing of a car's front engine compartment showing valve and hub (no text or symbols)

LYFTA OCH BÄRA KLIPPAREN

Technical line drawings of a mechanical device with two views: top shows hand holding chains, bottom shows hands operating a cart (no text or symbols)

Diagram showing car interior with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of a robotic car showing front and side views (no text or symbols)

Two-panel image showing a gray rounded rectangle with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and tool icons

SV

UNDERHÅLLA BATTERIET

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Kvalitetschef

Malmö, 22. 09. 2020

Ted Qu

Operational safety....6

Produktets deler 7

Installasjon 8

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Line drawing of a car interior with no text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with no visible text or symbols

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and charging button, showing battery symbol change from battery to battery.

Diagram illustrating a rural irrigation system with household, barn, and irrigation equipment placement, including a 0cm scale indicator.

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable installation steps: straight, flexible, and flat (no text or symbols)

Technical line drawing of an electrical connector with internal components and a magnified inset showing two labeled buttons (G1, G2) — no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic car interior showing wheel, dashboard, and control panel (no text or symbols)

Line drawing of a robotic car's front wheel assembly with directional arrows indicating rotation (no text or symbols)

Slik starter du gressklilpperen:

Technical line drawings of a mechanical device with hands operating the gears and wheels (no text or symbols)

Trykk på STOPP-knappen på gressklipperen og ta ut sikkerhetsnøkkelen før du løfter gressklipperen.

Løft alltid gressklipperen i selve håndtaket.

Paring Av Mobilappen Med Gressklipperen

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of two car components, one showing front wheel assembly and the other showing internal gear mechanism (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver and tool positioning.

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic arm component with an arrow indicating direction (no text or symbols)

ADVARSEL! Hvis det skulle oppstå elektrolyttlekkasje, må du skylle med vann/nøytrallserende middel og kontakte lege hvis væsken kommer i kontakt med øynene.

Brudd I Grense- Og Ledekabel

Brudd I grensekabelen og ledekabelen (hvis installert) skyldes vanligvis at det har oppstått en fysisk skade.

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Ted Qu

Kvalitetsdirektør

Malmö, 22. 09. 2020

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Placering af ladestation:

Line drawing of a car interior with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Diagram illustrating a rural irrigation system with labeled components and dimensions, including a rural house, irrigation pipe, and plug connections.

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 5cm >20cm >3m

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector with internal components and a magnified inset showing two labeled parts (G1, G2) — no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Start Stop ① ② ① ② ① ②

Line drawing of a robotic car interior showing dashboard, wheels, and control buttons (no text or labels)

Line drawing of a car's front engine compartment showing valve and hub (no text or symbols)

Technical line drawing of a robotic device with two views: top shows hand holding chains, bottom shows hands operating the gear (no text or symbols)

Technical line drawings of a car showing front and side views (no text or symbols)

Two labeled gray shapes with checkmark and cross symbols, one marked green and red.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing a screwdriver.

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Winter storage Charging Station

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Ted Qu

Kvalitetsdirektør

Malmö, 22. 09. 2020

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Technical line drawing of a car interior frame with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection point (no text or symbols present)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery charging symbol

3D technical illustration of a robotic car with a highlighted component and arrow indicating direction (no text or symbols)

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >2m >1m 3cm >20cm >3m

Three-step diagram showing cable installation steps with no text or symbols

Technical line drawing of an electrical connector with a magnified inset showing internal components (no text or symbols)

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Start Stop ① ② ① ②

Wyłączanie Kosiarki

Line drawing of a robotic car interior showing dashboard, vent, and steering wheel (no text or symbols)

PL

Technical line drawing of a robotic device with two views: top shows hand holding chains, bottom shows hands operating the gear (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of a robotic car showing front and side views (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red X mark, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver and tool positioning.

Diagram illustrating battery charging process with battery icon and arrow indicating charging direction

Producent: GLOBGRO AB, Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front view with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical switchgear box with a black arrow indicating a component (no text or symbols present)

Line drawing of a car interior showing dashboard, vent, and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic car with a black arrow indicating a component (no text or symbols present)

Diagram illustrating a rural irrigation system with household, barn, and irrigation equipment placement and water flow indicators.

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

Three-step diagram showing cable installation steps with no text or symbols

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic car interior showing dashboard, vent, and wheel (no text or symbols)

NASTAVENÍ DÉLKY SEKÁNÍ

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and hub (no text or symbols)

Technical line drawing of a robotic device with two views: top shows hand holding chains, bottom shows hands operating the gear (no text or symbols)

Diagram showing car interior components with directional arrows indicating rotation or movement, including a circular dial indicator.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing screwdriver and adjustment mechanism.

Diagram showing battery charging process with lightning bolt symbol and battery icon, indicating charging sequence

3D technical illustration of a robotic car with a highlighted component and arrow indicating direction (no text or symbols)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Ředitel kvality

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front view with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical contactor device with a black arrow indicating a connection point (no text or symbols present)

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

Pred inštaláciou hraničných a vodiacich káblov umiestnite kosačku do nabíjacej stanice.

Technical line drawing of a robotic car with an arrow indicating motion or assembly (no text or symbols present)

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° X 135° 135° >20cm

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic car interior showing dashboard, vent, and steering wheel (no text or symbols)

NASTAVENIE VÝŠKY KOSENIA

SK

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and hub (no text or symbols)

Zapnutie kosačky:

Technical line drawings of a mechanical device with hands operating the wheel rim (no text or symbols present)

Diagram showing car interior with directional arrows and a circular dial indicator, likely illustrating vehicle rotation or steering system.

Technical line drawings of a car showing front and side views (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red X mark, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing a screwdriver.

VAROVANIE! Stlačte tlačidlo STOP a pred výmenou čepelí vyberte bezpečnostný klúč a nasad'te sl ochranné rukavlice.

VAROVANIE! Používajte iba čepel' GLOBE: 333092355

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a robotic arm component with an arrow indicating direction (no text or symbols present)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Riaditel' pre kvalitu

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a smart home control system with numbered components and labeled parts

1 Snemljiv pokrov
2 Gumb Stop (Ustavi)
3 Gumb Start (Zagon)
4 Indikatorske lučke LED
5 Prilagajanje višine košnje
6 Sprednji kolesi
7 Zadnji kolesi
8 Rezalni disk
9 Nosilni ročaj
10 Polnilna postaja
11 Lučka LED za preverjanje delovanja
12 Priročnik za upravljavca in hitri vodnik

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front view with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical switchgear assembly with no visible text or symbols

Line drawing of a car interior showing dashboard, vent, and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic car with a black arrow indicating a component (no text or symbols present)

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

SL

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

Vodilne žice ne polagajte tako, da bo razdalja do mejne žice manjša od 30 cm.

Three-step diagram showing cable installation steps with no text or symbols

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Start (Zagon) Stop (Ustavi)

IZKLOP KOSILNICE

Line drawing of a robotic car interior showing dashboard, vent, and steering wheel (no text or symbols)

PRILAGODITEV VIŠINE KOŠNJE

SL

MAX MIN 60 20

Line drawing of a robotic car interior showing valve and hub components (no text or symbols)

Za zagon kosilnice:

1 Vstavite varnostni ključ in ga obrnite v nasprotni smeri urnega kazalca v položaj »1«.
2 Zapah gumba START (ZAGON) potisnite nazaj.
3 Pritisnite gumb START (ZAGON).

Technical line drawings of a mechanical device with hands operating the gears and wheels (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of a car showing front and side views (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver and tool positioning.

OPOZORILO! Preden zamenjate rezila, pritisnite gumb STOP (USTAVI) In odstranite varnostni ključ, pri tem pa nosite zaščitne rokavice.

OPOZORILO! Uporabite le rezila GLOBE: 333092355

POZOR: Uporabite le originalne nadomestne dele.

Odstranite rezila in vijake.

Privijte nova rezila z novimi vijaki.

Preverite, ali se rezila nemoteno vrtijo.

VZDRŽEVANJE BATERIJE

Diagram showing battery charging process with lightning bolt symbol and battery charging symbol

3D technical illustration of a robotic car with a black arrow indicating direction (no text or symbols)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Direktor za preverjanje kakovosti

Malmö, 22. 09. 2020

Ted Qu

Sljedeće stranice sadrže važne sigurnosne upute i upute za rukovanje.

Exploded view diagram of a smart home control system with numbered components and labeled parts

1 Obavijest na skidljivom poklopcu
2 Gumb za zaustavljanje
3 Gumb za pokretanje
4 LED indikatori
5 Podešavanje visine košnje
6 Prednji kotači
7 Stražnji kotači
8 Disk za noževe
9 Drška za prenošenje
10 Stanica za punjenje
11 LED za provjeru rada
12 Priručnik za rukovatelja i brzi vodič

13 Izvor napajanja*
14 Vijci za pričvršćivanje stanice za punjenje (x5)
15 Žica za petlje za graničnu žicu i žicu vodilicu
16 Kolčići za žicu
17 Dodatni noževi i vijci (x3)
18 Ravnalo (dio koji se otkida s vrha kartonske kutije)
19 Spojnice upletke i žice vodilice
20 Spojnice za žicu za petlje

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front view with no text or symbols

Line drawing of a car interior showing dashboard, vent, and steering wheel (no text or symbols)

Umetnite sigurnosni ključ u kosilicu i okrenite ga u položaj „ON” (1).

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a robotic car with an arrow indicating motion or assembly (no text or symbols present)

Diagram illustrating a rural irrigation system with labeled components and water flow indicators, including a 0cm scale indicator.

Privremeno pričvrstite kraj žice za petlju na kolčić ili neki drugi predmet na stanici za punjenje.

Line drawings of three different types of pliers or tools, no text or symbols present

HR

Kad položite svu graničnu žicu i pričvrstite je, montirajte spojnice za žicu za završne petlje na sljedeći način:

1 Otvorite spojnicu za žicu za petlje i stavite žicu u ležište unutar spojnice za žicu za završne petlje.
2 Stisnite spojnice za žicu za završne petlje zajedno papagajkama dok ne čujete klik.

Odrežite sav višak granične žice od 1 do 2 cm iznad svake spojnice.

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

Spojite graničnu žicu na stanicu za punjenje na sljedeći način:

≤90° X 135° 135° >20cm

Nemojte polagati žicu bliže od 30 cm od granične žice.

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Utaknite oba kraja granične žice kao i kraj žice vodilice u spojnicu za upletke i žicu vodilicu. Provjerite jesu li žice do kraja umetnute u spojnicu za upletke i žicu vodilicu tako da se krajevi vide kroz spojnicu za upletke i žicu vodilicu.

Stisnite prema dolje gumb na vrhu spojnice za upletke i žicu vodilicu papagajkama dok ne čujete klik.

Line drawing of a robotic car interior showing dashboard, vent, and wheel (no text or symbols)

PODEŠAVANJE VISINE REZANJA

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and wheel (no text or symbols)

Pokretanje rada kosilice:

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding gear with multiple wheels (no text or symbols)

Diagram showing a car's internal components with directional arrows indicating rotation or movement, including a circular dial indicator.

Okrenite gumb u položaj za otključavanje i čvrsto podignite na jednom od kutova kućišta i ponovite za sva četiri kuta, tako da se kućište odvoji od šasije.

Technical line drawings of a car showing internal components and external assembly (no text or labels)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver mechanism.

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic arm component with an arrow indicating direction (no text or symbols)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Direktor kvalitete

Ted Qu Haichao

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front panel with no text or symbols

The low voltage cable can cross the operating area if it is stapled down or buried.

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with no visible text or symbols

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a robotic car with an arrow indicating motion or assembly (no text or symbols present)

Diagram illustrating a rural water treatment or irrigation system with labeled components including a rural house, pipe, and outdoor structure.

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

Three-step diagram showing cable installation steps with no text or symbols

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Line drawing of a robotic car interior showing dashboard, vent, and steering wheel (no text or symbols)

Line drawing of a car's front engine compartment showing valve and hub (no text or symbols)

Technical line drawings of a mechanical device with hands operating the gears and wheels (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle or control system components.

Technical line drawings of a car's front and side views, showing engine compartment and wheel assembly (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical device with labeled parts and a close-up inset showing screwdriver assembly details.

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic car with a highlighted component and arrow indicating direction (no text or symbols)

This section also presents some symptoms that can guide you if the mower does not work as expected.

Connecting the Power Supply....10

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front view with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical switchgear box with a cable and component, no text or symbols present

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic car with a black arrow indicating a component (no text or symbols present)

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or connectors, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Start Stop ① ② ① ② ① ②

OPRIREA ROBOTULUI

Line drawing of a robotic car interior showing dashboard, vent, and wheel (no text or symbols)

REGLAREA ÎNĂLTÎMII DE TĂIERE Cutting Height

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and wheel (no text or symbols)

Pentru a porni robotul de tuns iarba:

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding a cam mechanism (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle wheel or steering system.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red X, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver tool.

Diagram showing battery charging process with lightning bolt symbol and battery icon, indicating charging sequence

Technical line drawing of a robotic car with an arrow indicating a component (no text or symbols present)

Fabricant: GLOBGRO AB, Globe Group Europe

Adresa: Riggaregatan 53, 211 13 Malmö, Sweden

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Exploded view diagram of a smart home control system with numbered components and labeled parts

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle front panel with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or assembly (no text or symbols present)

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

3D technical illustration of a robotic car with a black arrow indicating a component (no text or symbols present)

Diagram illustrating a rural water management system with labeled components including a manhole, houses, and vegetation monitoring.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° X 135° 135° >20cm

1m >1m 10m >2m >1m >20cm >3m

Three-step diagram showing cable installation steps with no text or symbols

Technical line drawing of an electrical connector with a magnified inset showing two labeled components (G1 and G2), no text or symbols present.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Line drawing of a robotic car interior showing dashboard, vent, and steering wheel (no text or symbols)

РЕГУЛИРАНЕ НА ВИСОЧИНАТА НА РЯЗАНЕ

MAX MIN 60 20

Line drawing of a car's front engine compartment with valve and wheel (no text or symbols)

Technical line drawings of mechanical components, showing hands operating gear and wheel assemblies (no text or symbols)

Diagram showing car dashboard with directional arrows and a circular dial indicator, likely illustrating vehicle control or steering system.

Technical line drawings of a car body panel and its internal components (no text or symbols)

Two-panel image showing a gray tag with a green checkmark and a red 'X' symbol, likely indicating selection or confirmation.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver and component details.

Diagram showing battery charging process with lightning bolt symbol and battery charging symbol

3D technical illustration of a robotic car with a black arrow indicating a component (no text or symbols present)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Тед Чу Хайчао
