About This Guide

The EVE F-50Z Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Never disconnect this product from power by pulling on the cord.
• Do not use if the power cable is damaged in any way.
• DO NOT allow flammable materials close to the unit while operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• The product is not intended for permanent installation.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• The maximum ambient temperature is 104^ (40 °C). Do not operate this product at higher temperatures.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT open this product. It contains no user-serviceable parts.
  • To eliminate unnecessary wear and improve its lifespan, during periods of disuse completely disconnect the product from the power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information.

To Begin

Unpack your EVE F-50Z and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

What is Included

• EVE E-50Z • Barn doors
- Seetronic Powerkon Power cord • Warranty Card
- Gel Frame • Quick Reference Guide

Product Description

EVE F-50Z is an LED Fresnel that shines a soft, warm white wash. It features D-Fi USB compatibility for wireless, Master/Slave, or DMX control. You can operate EVE F-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units

Overview

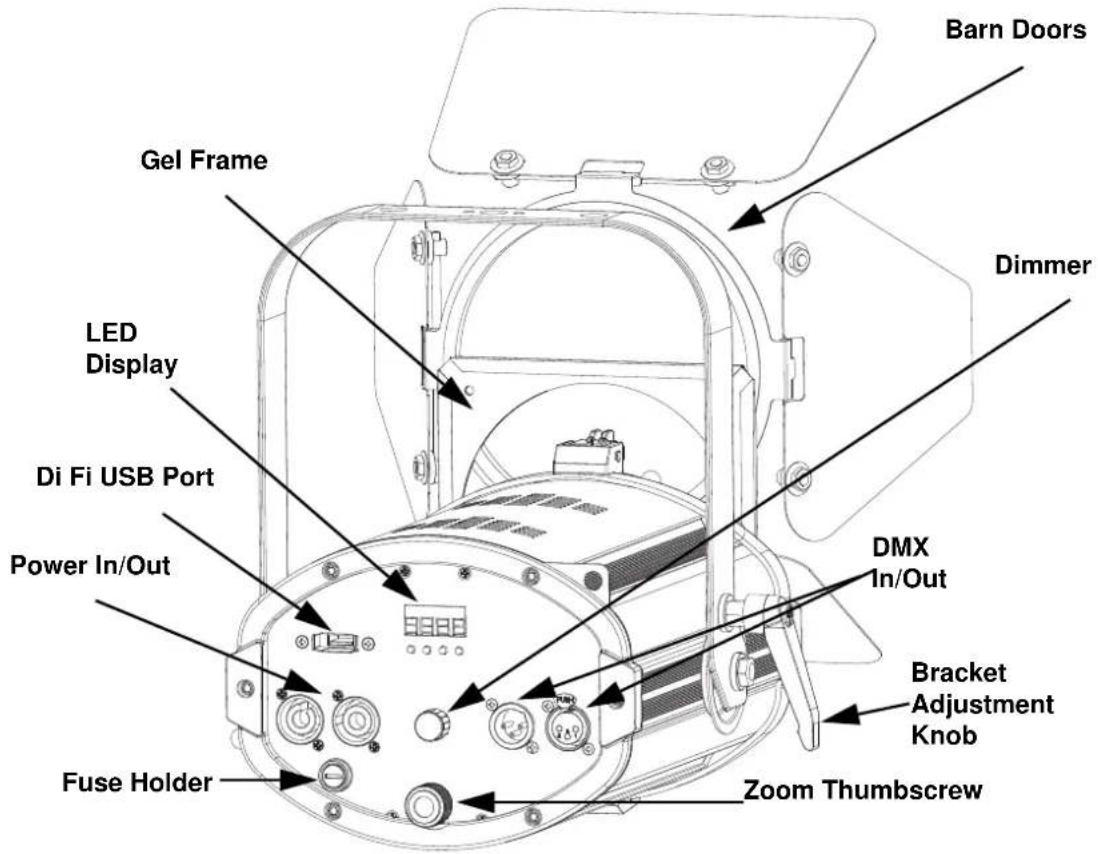

Gel Frame LED Display Di Fi USB Port Power In/Out Fuse Holder Barn Doors Dimmer DMX In/Out Bracket Adjustment Knob Zoom Thumbscrew

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of disuse completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of EVE F-50Z that can be power linked at 120 V or at 230 V, see the User Manual or the label on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

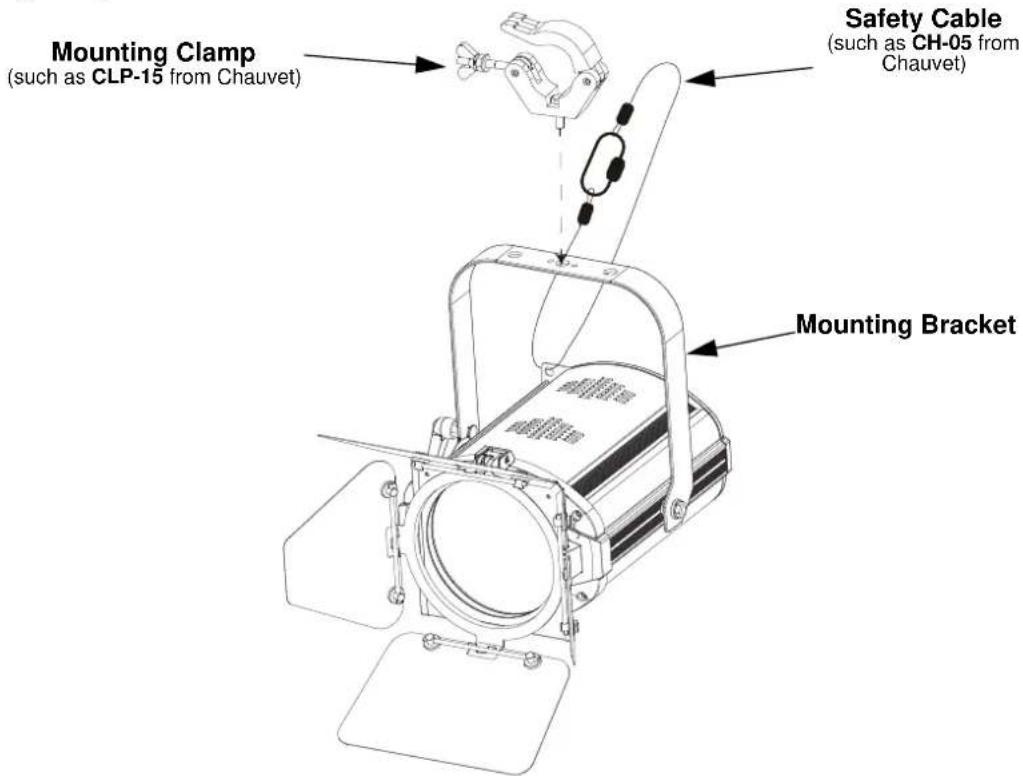

Mounting Diagram

Mounting Clamp (such as CLP-15 from Chauvet) Safety Cable (such as CH-05 from Chauvet) Mounting Bracket

Control Panel Description

BUTTON FUNCTION
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

MODE PROGRAMMING LEVELS DESCRIPTION
DMX Mode	1-CH	d--1-512	Selects DMX personality and DMX starting address
	3-CH
Dimmer U-- d000—255 Dimmer control
Dimmer Speed Mode	dIM	OFF	Dimmer speed settings, off, fast, medium, or slow
		dIM1
		dIM2
		dIM3
Fan FAN		AUTO	Sets fan speed, auto or full on
		ON

DMX Linking

The EVE F-50Z can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX or DIP-switch configuration, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to the two personalities available in DMX mode, the highest recommended DMX address is 510.

Master/Slave Connection

The EVE F-50Z uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

D-FI USB Connectivity

The EVE F-50Z is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address. Further instructions for D-Fi USB operation for this product are in the User Manual.

Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. Manual Digital Display / Menu Buttons

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

DMX Values

3-CH

CHANNEL FUNCTION VALUE PERCENT/SETTING
1 Dimmer 000 ⇔ 255 0-100%
2 Strobe		000 ⇔ 010 No Function
		011 ⇔ 255 Strobe (slow to fast)
3	Dimmer Speed Mode	000 ⇔ 051 Dimmer speed set from Display
		052 ⇔ 101 Dimmer Speed Mode Off
		102 ⇔ 152 Dimmer Speed Mode 1 - fast
		153 ⇔ 203 Dimmer Speed Mode 2 - medium
		204 ⇔ 255 Dimmer Speed Mode 3 - slow

1-CH

CHANNEL FUNCTION VALUE PERCENT/SETTING

1 Dimmer 000 ⇔ 255 0-100%
