USER MANUAL ORH-451-NFX Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL LIVRE D'INSTRUCTIONS LIBRO DE INSTRUCCIONES

www.orima.pt

facebook.com/orima.pt

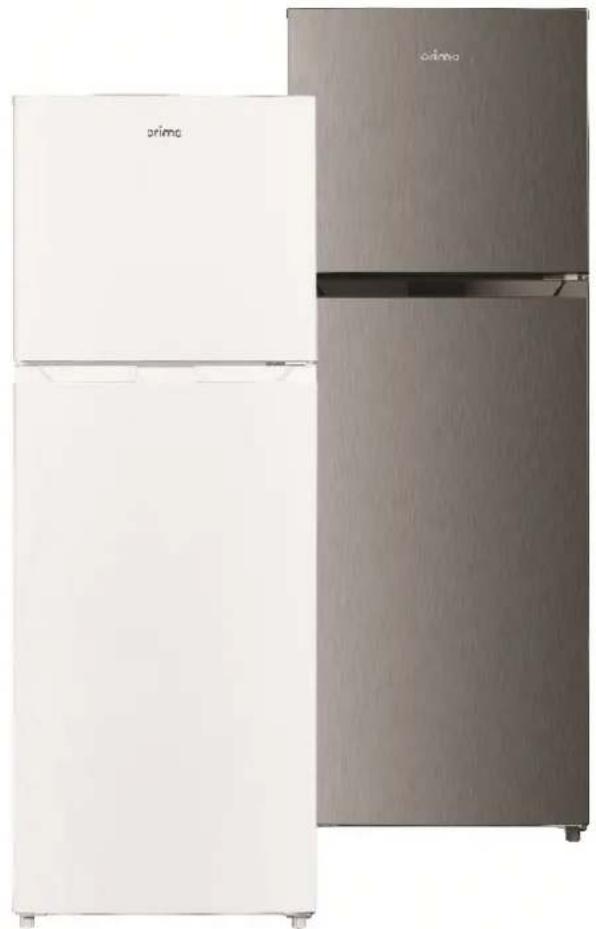

Exterior view of a modern refrigerator with two white units and a gray side panel (no visible text or symbols)

MMA

MÁSIO MIRANDA DE ALMEIDA

FRIGORÍFICO

Simple line drawing of a mechanical device positioned on a vertical surface with diagonal lines (no text or symbols)

Simple line drawing of a corner with a small object near the edge (no text or symbols)

Diagram showing two mechanical components with mounting holes and a curved arrow indicating transformation (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

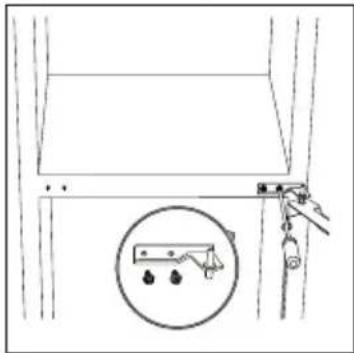

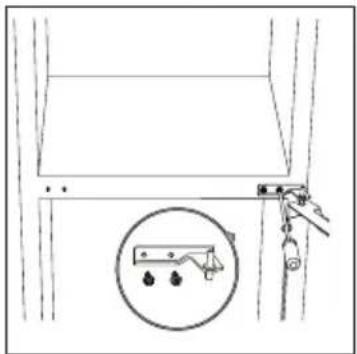

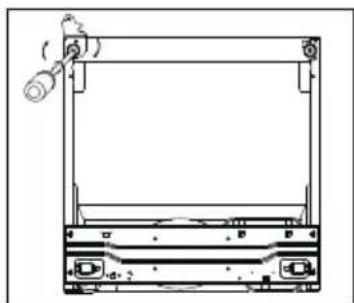

1. Desaparafuse a dobradiça central.

Simple line drawing of a cabinet or lift with a hand adjusting the handle and a circular inset showing a hanging device (no text or symbols)

Diagram showing a geometric structure with labeled points and a curved line, likely illustrating a mathematical or physical concept.

Pure mechanical diagram showing two symmetrical components with circular features and connecting lines, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a rectangular device with internal components and a hanging knob (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a person sitting on a chair near a wall, no text or symbols present

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a desk with a laptop on top, no text or symbols present

UTILIZAÇÃO DIÁRIA

F H G 90° I F

A	600
B	665
C	1700
D	min=50
E	min=50
F	min=50
G	1200
H	1265
I	135°

Two labeled diagrams showing a checkmark and a cross symbol on a document or sign, likely indicating approval or cancellation.

Posicionamento

Line drawing of a hand holding a shelf with a wooden plank (no text or symbols)

Simple line drawing of a container with two upward arrows indicating flow or movement (no text or symbols)

Dicas úteis

Diagram showing a mechanical or fluidic system with arrows indicating direction, no text or symbols present

- All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

!

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

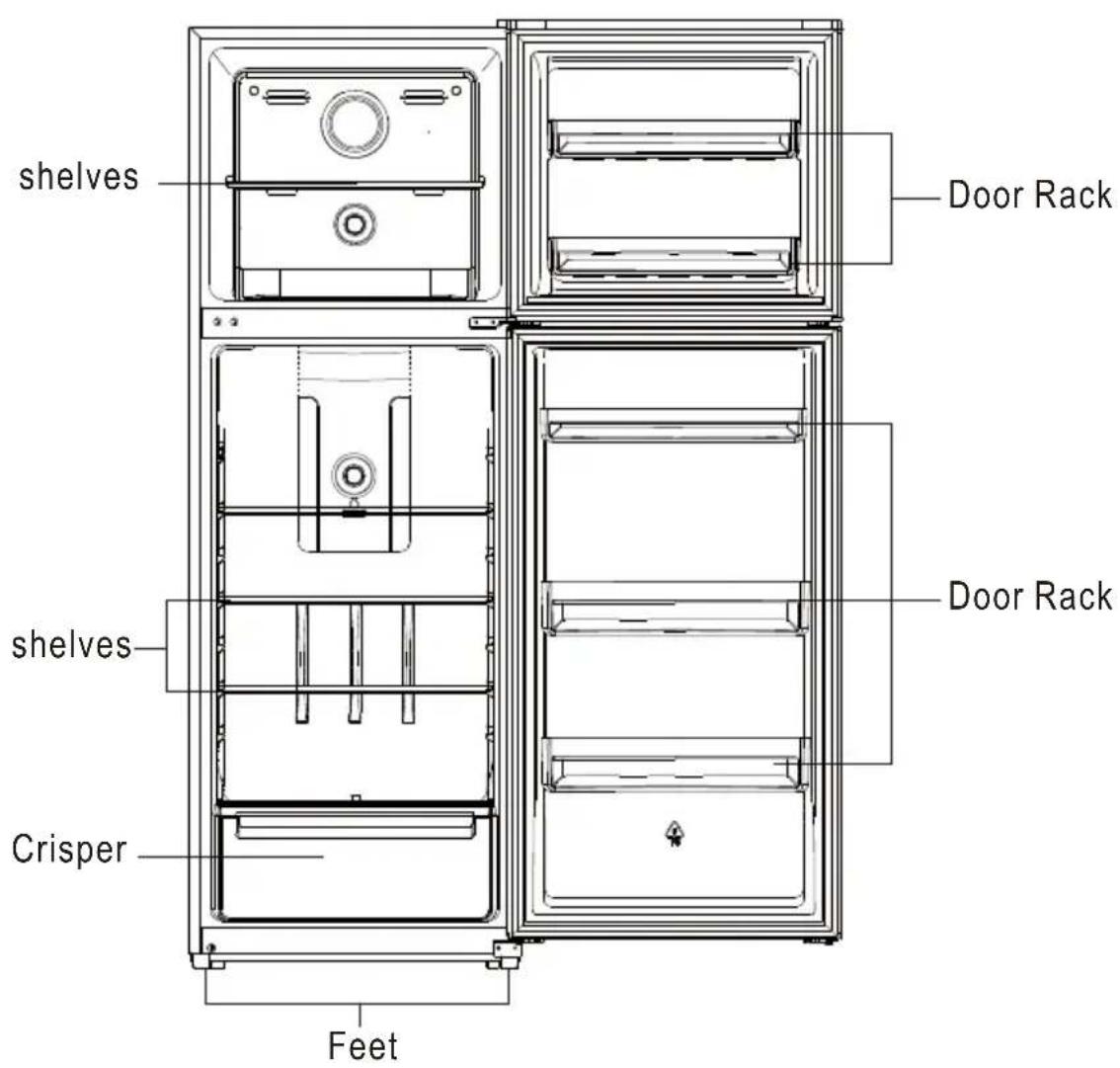

shelves Door Rack shelves Crisper Feet Door Rack

This illustration is only for hinting, the detail please check your appliance.

Simple line drawing of a mechanical or architectural component with no text or symbols

Simple line drawing of a person standing on a pole with a diagonal line, no text or symbols present

Diagram showing two mechanical components with mounting holes and a curved arrow indicating transformation (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Simple line drawing of a ladder with a hanging hook and a circular inset showing a device (no text or symbols)

1. Move shaft sleeve and pin hole plug from left side to right side.

Simple line drawing of a rectangular frame with a curved top edge and base, no text or symbols present.

1. Move the hinge hole covers from left side to right side.

Pure mechanical diagram showing two vertical supports with circular holes and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

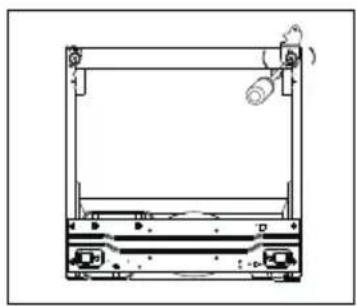

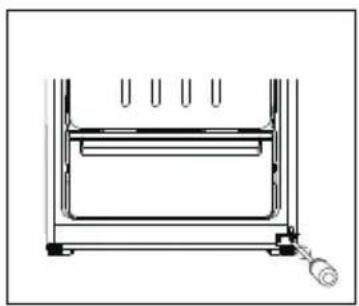

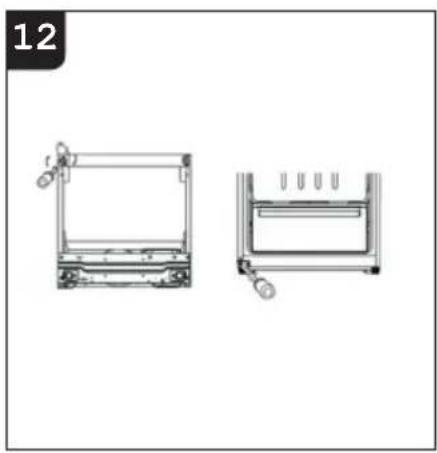

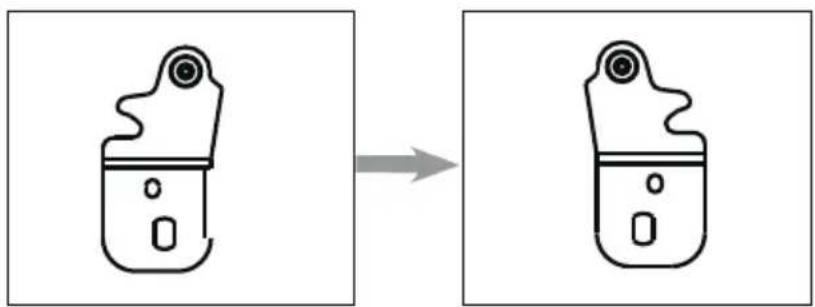

1. Disassemble right hinge, find out right bottom hinge from spare parts bags and fix it.

Diagram showing a device being processed from a left-side to the right-side view (no text or symbols present)

Technical line drawing of a mechanical frame or enclosure with no visible text or symbols

Line drawing of a heating element with cooling fins and a hanging spring (no text or symbols)

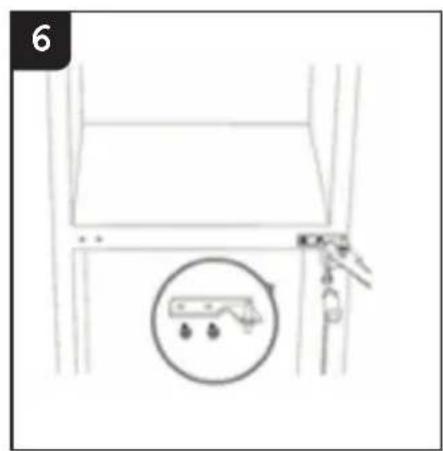

1. Make the middle hinge reverse the direction180C, then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seal are closed on all sides before finally tightening the top hinge. Then inert the top hinge and screw it to the top of unit and then fix hinge cover (in accessory bag) by screw.

Simple line drawing of a corner with a small figure at the base (no text or symbols)

Simple line drawing of a mechanical or architectural component with diagonal lines and a small vehicle (no text or symbols)

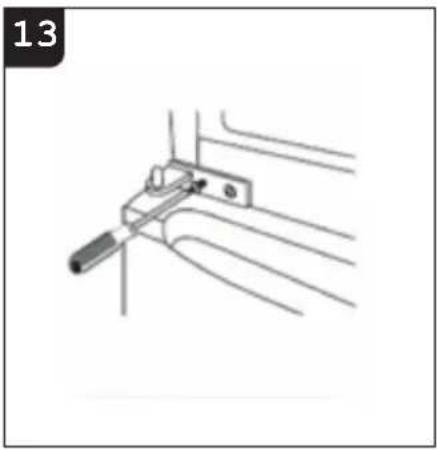

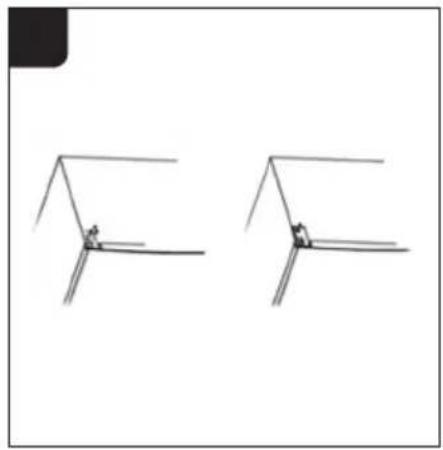

1. Fix the screw cover.

Simple line drawing of a corner joint or bracket (no text or symbols)

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Simple line drawing of a document with arrows indicating rotation around it (no text or symbols)

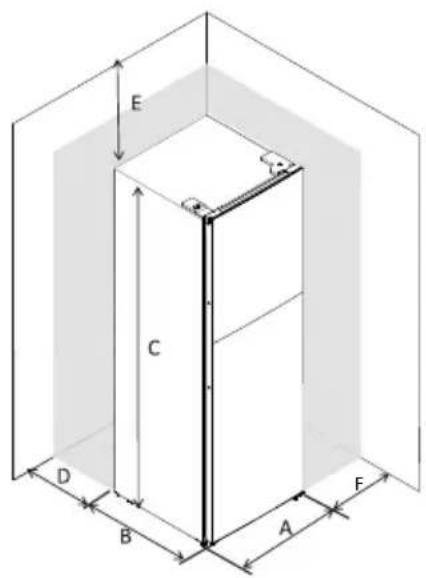

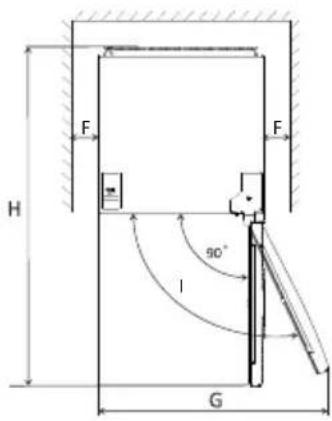

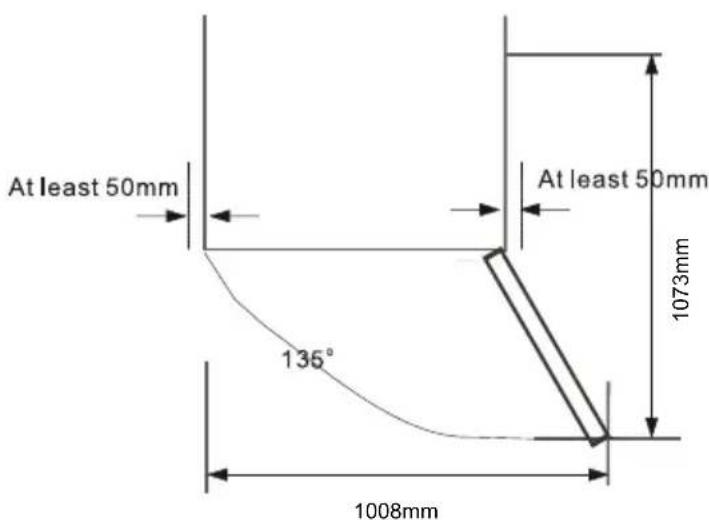

Space Requirement

Keep enough space of door open.

Keep at least 50mm gap at two sides and back.

E C D B A F

F H G 90° I F

A	600[
B	665]
C	1700
D	min=50[
E	min=50]
F	min=50]
G	1200[
H	1265[
I	135°]

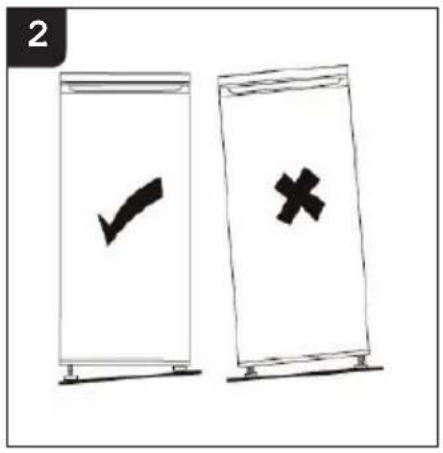

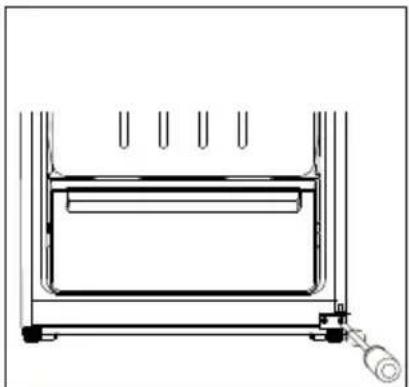

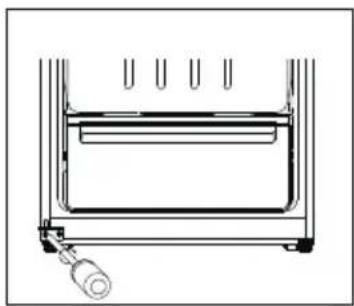

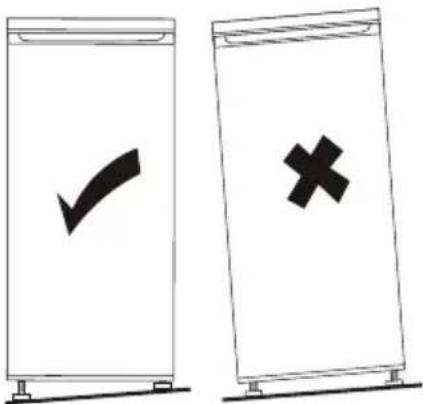

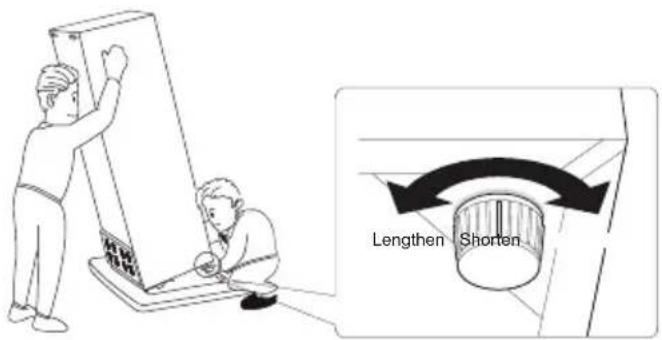

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Lengthen Shorten

Diagram showing two labeled containers with checkmarks and an 'X' symbol, likely indicating cancellation or rejection status.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

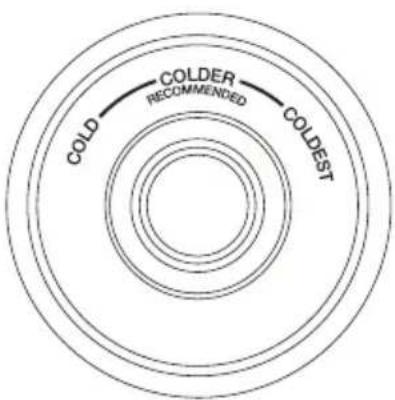

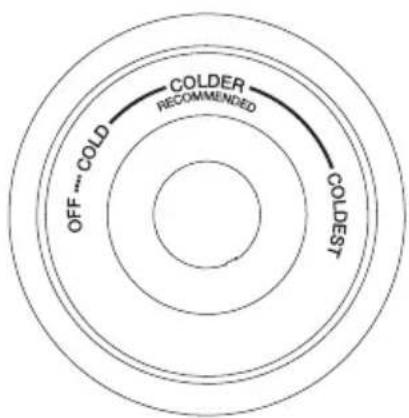

Using the Control Panel

COLD COLDER RECOMMENDED COLDEST

COLDER RECOMMENDED COLDERT OFF .... COLD

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	Foods for long-term storage.Bottom drawer/shelf for raw meat, poultry, fish.Middle drawer/shelf for frozen vegetables, chips.Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Temperature setting recommendation

Environment Temperature	Freezer compartment	Fridge compartment
Summer
	Set on colder~coldest	Set on colder~coldest
Normal
	Set on colder	Set on colder
Winter
	Set on colder~coldest	Set on colder~coldest

setting.

coldest

coldest set only apply

or ice making), and need turn back after special need.

Impact on Food Storage

Under Recommended setting, the best storage time of freezer is no more than 1 month.

The best storage time may reduce under other settings.

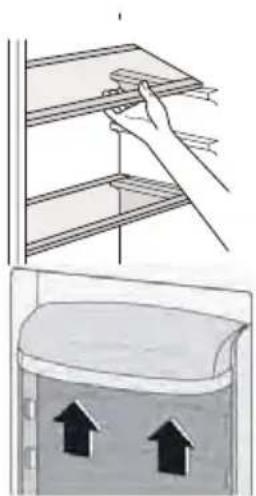

Illustration showing a hand placing a component above a shelf, and a container with upward arrows indicating flow or movement (no text or symbols)

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There will be some sound/noise during normal operation (compressor or refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Model
Total Net Volume, L	334
Refrigerator Net Volume, L	257
Freezer net volume, L	77
Actual consumption depends on how the device is used and the location
Energy Class based on EU 2019/2016	E
Power Consumption: KWh/year	225
Climate class N,ST,T
Dimensions (A x L x P), mm	1700*600*670
Noise level, db(A) re 1pw	39
Electrical Information See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.

IMPORTADO POR: MÁRIO MIRANDA DE ALMEIDA, SA

APARTADO 1, 3060-752 CORTICEIRO DE CIMA, PORTUGAL

orima

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

Simple line drawing of a mechanical component or bracket with a diagonal line (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

2 Quita pasadora dondestornilladagirasoportel thisagra. Lueguelv colocapernparsoportel thisagra.

Diagram showing two mechanical components with mounting holes and a curved arrow indicating transformation (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

1. Desenrosque la bisagra central.

Simple line drawing of a cabinet or lift with a hand holding a tool, and an inset showing a hanging object (no text or symbols)

Simple line drawing of a roof structure with a curved top and base, no text or symbols present

Pure mechanical diagram showing two symmetrical components with circular features and connecting lines (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a rectangular device with internal components and a base, no text or symbols present

Diagram showing a device with a handle and internal components before and after transformation (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a person sitting on a ladder leaning against a wall, no text or symbols present

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a corner joint or bracket (no text or symbols)

3D diagram of a rectangular box with an upward arrow and 100mm dimension label inside, enclosed in a transparent cube (no text or symbols beyond measurement)

At least 50mm At least 50mm 135° 1008mm 1073mm

Diagram showing two labeled signs: a checkmark and an 'X' symbol, likely indicating approval or rejection status.

Posicionamiento

Illustration of a hand installing or adjusting a shelf panel (no text or symbols visible)

Simple illustration of a container with two upward-pointing arrows inside (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and internal components

Etagères

Pieds

Illustration showing a hand cleaning a shelf and a recycling bin with upward arrows (no text or symbols)

1 100mm At least 50mm At least 50mm 136° 1078mm 1008mm

2

Simple line drawing showing two vertical supports with a small object on one side, no text or symbols present

180°

Pure mechanical diagram showing a lever mechanism with no text or symbols

Simple line drawing of a vehicle interior with a circular diagram showing a device and water droplets (no text or symbols)

Simple line drawing of a simple geometric structure resembling a tent or arch (no text or symbols)

Pure mechanical diagram showing two symmetrical components with no text or symbols

Technical line drawings of two mechanical components, one with a frame and circular ports, the other with a handle and base (no text or symbols)

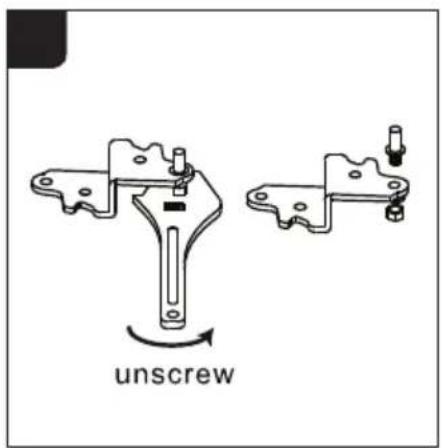

unscrew

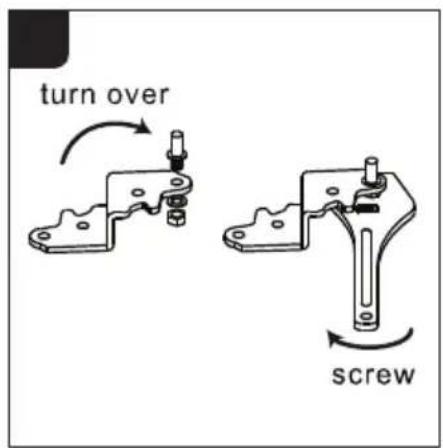

turn over screw

Technical line drawing of two mechanical components with no visible text or symbols

Pure mechanical linkage diagram without any text, numbers, or symbols

Two identical line drawings of a V-groove with a small object on one end, no text or symbols present.

Simple line drawing of a right angle with a small square on the hypotenuse (no text or symbols)

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: ORIMA
Supplier's address: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752 CORTICEIRO DE CIMA, PT
Model identifier: ORH 451 NF X / W
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No			Other refrigerating appli-ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1 700		Total volume (dm3 or l) 334
	Width 600
	Depth 670
EEI 100 Energy efficiency class			E
Airborne acoustical noise emis-sions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		225	Climate class:		temperate, subtropi-cal, tropical
Minimum ambient tempera-ture (°C), for which the refrigerating appliance is suitable		16	Maximum ambient tem-perature (°C), for which the refrigerating appliance is suitable		43
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol-ume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These set-tings shall not con-tradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 257,0 4 - A
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star	Yes	77,0	-18	3,6	A
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 36 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: www.orima.pt
Ficha de información del producto
REGLAMENTO DELEGADO (UE) 2019/2016 DE LA COMISIÓN en lo relativo al etiquetado energético de los aparatos de refrigeración domésticos
Nombre o marca comercial del proveedor: ORIMA
Dirección del proveedor: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752 CORTICEIRO DE CIMA, PT
Identificador del modelo: ORH 451 NF X / W
Tipo de aparato de refrigeración:
Aparato de bajo nivel de ruido: No Tipo de diseño: De libre instalación
Armarios para la conservación de vinos:		No	Otros aparatos de refrigeración:		Sí
Parámetros generales del producto:
Parámetro Valor Parámetro Valor
(milímetros)	Altura	1 700	Volumen total (dm3 o l) 334
	Anchura	600Dimensiones totales
	Pro-fundidad	670
IEE 100 Clase de eficiencia energé-			tica		E
Ruido acústico aéreo emitido [dB(A) re 1 pW]		39	Clase de ruido acústico aéreo emitido		C
Consumo de energía anual (kWh/a)		225 Clase climática:			templada, tropical, tropical
Temperatura ambiente mínima (°C) en la que puede funcionar el aparato de refrigeración		16	Temperatura ambiente máxima (°C) en la que puede funcionar el aparato de refrigeración		43
Ajuste de invierno		No
Parámetros de los compartimentos:
Tipo de compartimento		Parámetros y valores de los compartimentos
		Volumen del compartimento (dm3 o l)	Ajuste de temperatura recomendado para la conservación optimizada de los alimentos (°C).Estos ajustes no con-tradirán las condiciones de conservación contempladas en el anexo IV, cuadro 3.	Capacidad de con-gelación (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Despensa No - - - -
Conservación de vinos No - - - -
Compartimento bodega	No - - -
Alimentos frescos Sí 257,0 4 - A,
Helador No - - - -
0 estrellas o fabricación de hielo	No - - -
1 estrella No - - - -
2 estrellas No - - - -
3 estrellas No - - - -
4 estrellas Sí 77,0		-18 3,6	A,
Sección 2 estrellas	No - - -
Compartimento de temperatura variable	-	- - - -
En compartimentos de 4 estrellas
Capacidad de congelación rápida			No
Parámetros de las fuentes luminosas:
Tipo de fuente luminosa			LED
Clase de eficiencia energética			G
Duración mínima de la garantía ofrecida por el fabricante: 36 meses
Información adicional:
Enlace del sitio web del fabricante, en el que se encuentra la información contemplada en el punto 4, letra a), del anexo del Reglamento (UE) 2019/2019: www.orima.pt
Fiche d’information sur le produitRÈGLEMENT DÉLÉGUÉ (UE) 2019/2016 DE LA COMMISSION en ce qui concerne l’étiquetage énergétique des dispositifs d’affichage électronique
Nom du fournisseur ou marque commerciale. ORIMA
Adresse du fournisseur: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752 CORTICEIRO DE CIMA, PT
Référence du modèle: ORH 451 NF X / W
Type d’appareil de réfrigération:
Appareil à faible niveau de bruit:		Non Type de construction: à pose libre
Appareil de stockage du vin: Non			Autre appareil de réfrigération:		Oui
Paramètres généraux du produit:
Paramètre Valeur Paramètre Valeur
(millimètres)	Hau-teur	1 700	Volume total (dm3ou l) 334
	Largeur	600Dimensions hors tout
	Profondeur	670
IEE 100 Classe d’efficacité énergé-			tique		E
Émissions de bruit acoustique dans l’air [dB(A) re 1 pW]		39	Classe d’émission de bruit acoustique dans l’air		C
Consommation d’énergie annuelle (kWh/an)		225 Classe climatique:			tempérée, subtropicale, tropicale
Température ambiante mini-male (oC) à laquelle l’appareil de réfrigération est adapté		16	Température ambiante maximale (oC) à laquelle l’appareil de réfrigération est adapté		43
Réglage hiver		Non
Paramètres des compartiments:
Type de compartiment		Paramètres et valeurs de compartiment
		Volume de compartiment (dm3ou l)	Réglage de température recommandé pour un stockage optimisé des denrées alimen-taires (oC) Ces réglages nedoivent pas être en contradiction avec les conditions de stockage prévues à l'annexe IV, tableau 3	Pouvoir de congélation (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Garde-manger Non - - - -
Stockage du vin Non - - - -
Cave Non - - - -
Denrées alimentaires fraîches	Oui 257,0 4 - A
Denrées hautement périssables	Non - - -
Sans étoile ou fabrication de glace	Non - - -
1 étoile Non - - - -
2 étoiles Non - - - -
3 étoiles Non - - - -
4 étoiles Oui 77,0		-18 3,6	A
Zone 2 étoiles	Non - - -
Compartiment à température variable	-	- - -
Compartiments “quatre étoiles”
Dispositif de congélation rapide			Non
Paramètres de la source lumineuse:
Type de source lumineuse			LED
Classe d’efficacité énergétique			G
Durée minimale de la garantie offerte par le fabricant: 36 mois
Informations supplémentaires:
Lien internet vers le site web du fabricant où se trouvent les informations visées au point 4 a) de l’annexe du règlement (UE) 2019/2019 de la Commission: www.orima.ptFicha de informação do produto
REGULAMENTO DELEGADO (UE) 2019/2016 DA COMISSÃO respeitante à etiquetagem energética dos aparelhos de refrigeração
Marca comercial ou nome do fornecedor: ORIMA
Endereço do fornecedor: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752 CORTICEIRO DE CIMA, PT
Identificador de modelo: ORH 451 NF X / W
Tipo de aparelho de refrigeração:
Aparelho de baixo ruído: Não Tipo de construção: De instalação livre
Aparelho de armazenagem de vinhos:	Não		Outro aparelho de refrige-ração:		Sim
Parâmetros gerais do produto:
Parâmetro Valor Parâmetro Valor
metros)	Altura	1 700	Volume total (dm3 ou l) 334
	Largura	600Dimensões totais (mil)
	Pro-fundidade	670
IEE 100 Classe de eficiência ener-			gética		E
Emissão de ruído aéreo (dB(A) re 1 pW)		39	Classe de emissão de ruído aéreo		C
Consumo anual de energia (kWh/a)		225 Classe climática:			temperada, subtropical, tropical
Temperatura ambiente mínima (°C) para a qual o aparelho de refrigeração é adequado		16	Temperatura ambiente máxima (°C) para a qual o aparelho de refrigeração é adequado		43
Regulação de inverno Não
Parâmetros dos compartimentos:
Tipo de compartimento		Parâmetros e valores dos compartimentos
		Volume do compar-timento (dm3 ou l)	Regulação de tempe-ratura re-comenda-da para otimizar a conserva-ção dos ali-mentos (°C)Estas regu-lações nãopodem contradizer as condições de conservação estabelecidas no anexo IV, quadro 3	Capacida-de de con-gelação (kg/24h)	Defrosting type (au-to-defrost=A, ma-nual defrost=M)
Despensa Não - - - -
Armazenagem de vi-nhos	Não - - -
Cave Não - - - -
Alimentos frescos Sim 257,0 4 - A
Ultrarrefrigeração Não - - - -
0 estrelas ou produção de gelo	Não - - -
1 estrela Não - - - -
2 estrela Não - - - -
3 estrela Não - - - -
4 estrela Sim 77,0 -18		3,6 A
Secção de 2 estrelas	Não - - -
Compartimento de temperatura variável	-	- - - -
Compartimentos de quatro estrelas
Função de congelamento rápido			Não
Parâmetros de fontes de luz:
Tipo de fonte de luz			LED
Classe de eficiência energética			G
Duração mínima da garantia do fabricante: 36 meses
Informações adicionais:
Hiperligação para o sítio Web do fabricante onde se encontram as informações previstas no anexo II, ponto 4, alínea a), do Regulamento (UE) 2019/2019 da Comissão: www.orima.pt
