USER MANUAL ÉPIX Strip Tour Chauvet

The ÉPIX Strip Tour Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual for the ÉPIX Drive 900 from www.chauvetprofessional.com for more details.

Disclaimer The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- CAUTION: This product's housing may be hot when lights are operating.
- Mount this product in a location with adequate ventilation, at least 20 in (50~cm) from adjacent surfaces.
DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
USE a safety cable when mounting this product overhead.
DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
DO NOT operate this product if the housing, or I/O ports appear damaged. Have the damaged parts replaced by a Chauvet certified technician at once.
DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to an EPIX Drive 900.
- ONLY use the hanging/mounting bracket to carry this product.
In the event of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for more information.

What Is Included

• ÉPIX Strip Tour
• White Frost Filter
• Quick Reference Guide

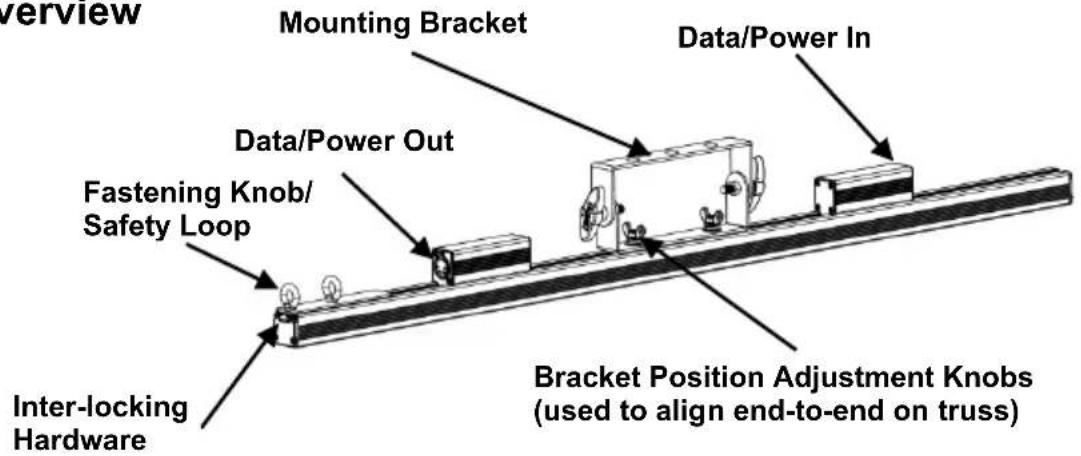

Product Overview

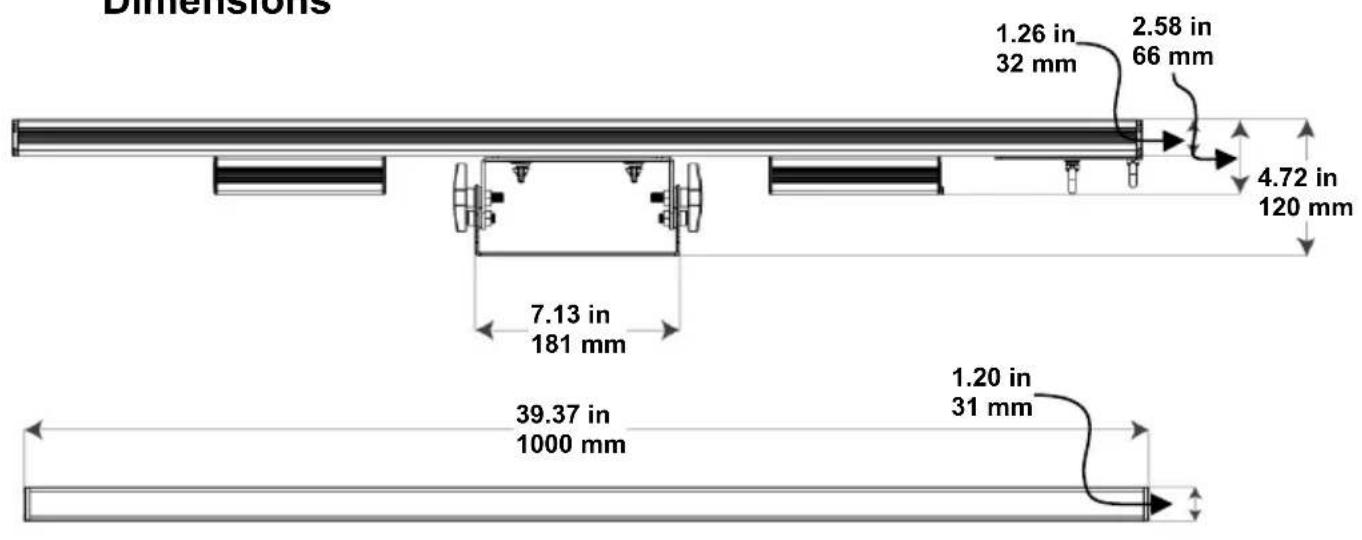

Product Dimensions

Filter Installation

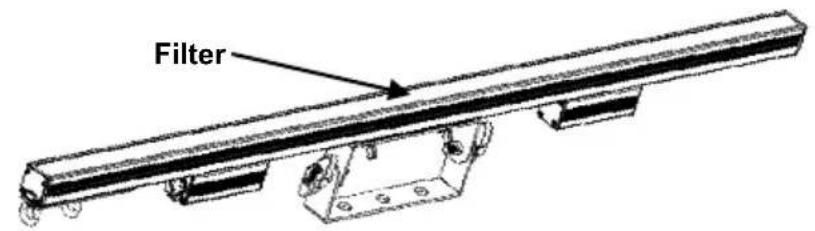

The EPIX Strip Tour includes a black stealth filter already installed. Follow the procedure below to install the frost filter.

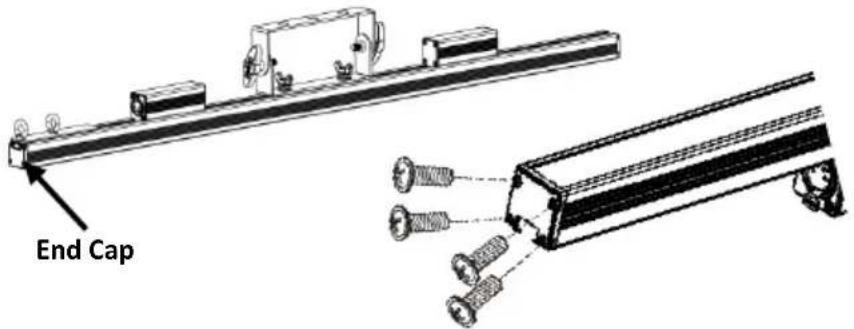

1. Locate the end cap of the product that does not have the connecting hardware.
2. Remove the 4 screws from the end cap of the product.
3. Remove filter.
4. Re-install end cap.

Be sure to install the frost filter with the shiny side facing toward the LEDs.

Power

This product is powered by an EPIX Drive 900. Refer to the EPIX Drive 900 user manual for detailed instructions on how to connect this product to power.

Linking

You can link up to 18 ÉPIX Strip Tour products at on each ÉPIX Drive 900 product. Never exceed this number.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the EPIX Drive 900 from power via breaker or by unplugging it.

Scrambled Pulse-Width Modulation

This product features Scrambled-PWM (S-PWM) technology, which desynchronizes the pulse widths of each color of the multi-color LEDs. This ensures that there is always some LED output, reducing flicker, and maintaining the same grayscale performance.

Mounting

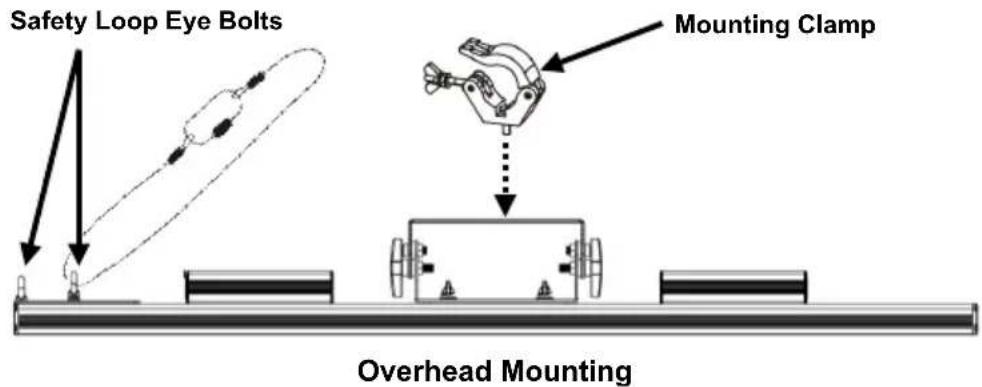

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/.

Vertical Mounting Instructions

1. Attach the clamp to the mounting bracket.
2. Attach the clamp to the desired structure or surface.
3. Attach a safety cable to the product's safety loop.

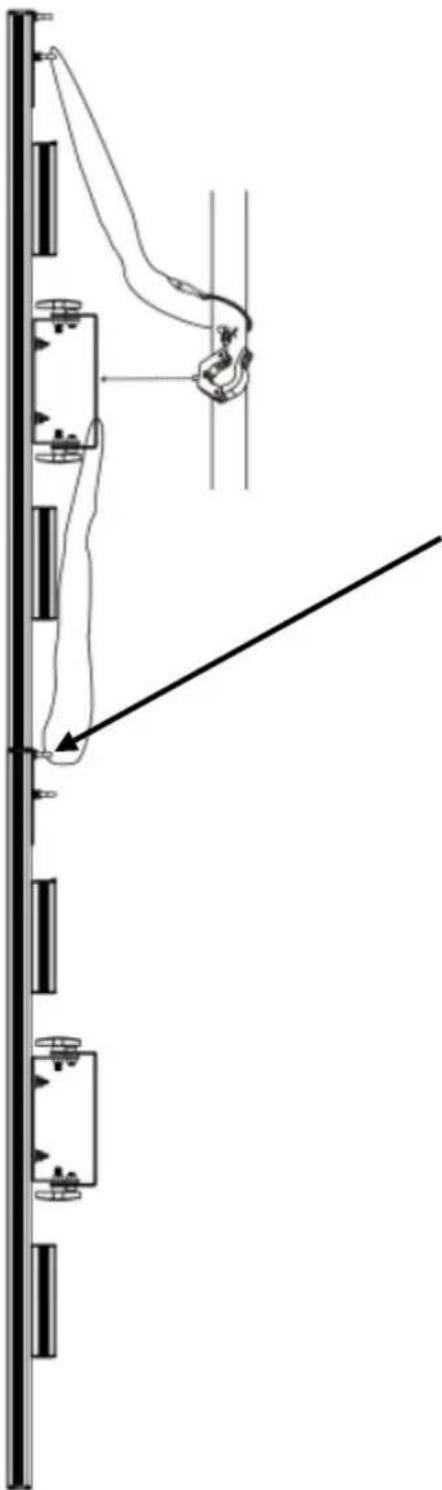

When hanging 4 products vertically, attach the safety cable from the bracket of the previous product to the safety loop of the next product.

Never attach more than 4 products together when hanging vertically.

Series The EPIX Strip Tour can be attached in an end to end formation to create a strip up to 4 meters long from just one rigging point. Do not connect any more than 4 EPIX Strip Tours products in a row when hanging vertically.

1. Loosen the 2 fastening eye bolts.
2. Slide the connecting bracket out until it stops and tighten the eye bolt closest to the center of the product.
3. Slide the second EPIX Strip Tour into the connecting bracket and tighten the remaining eye bolt.

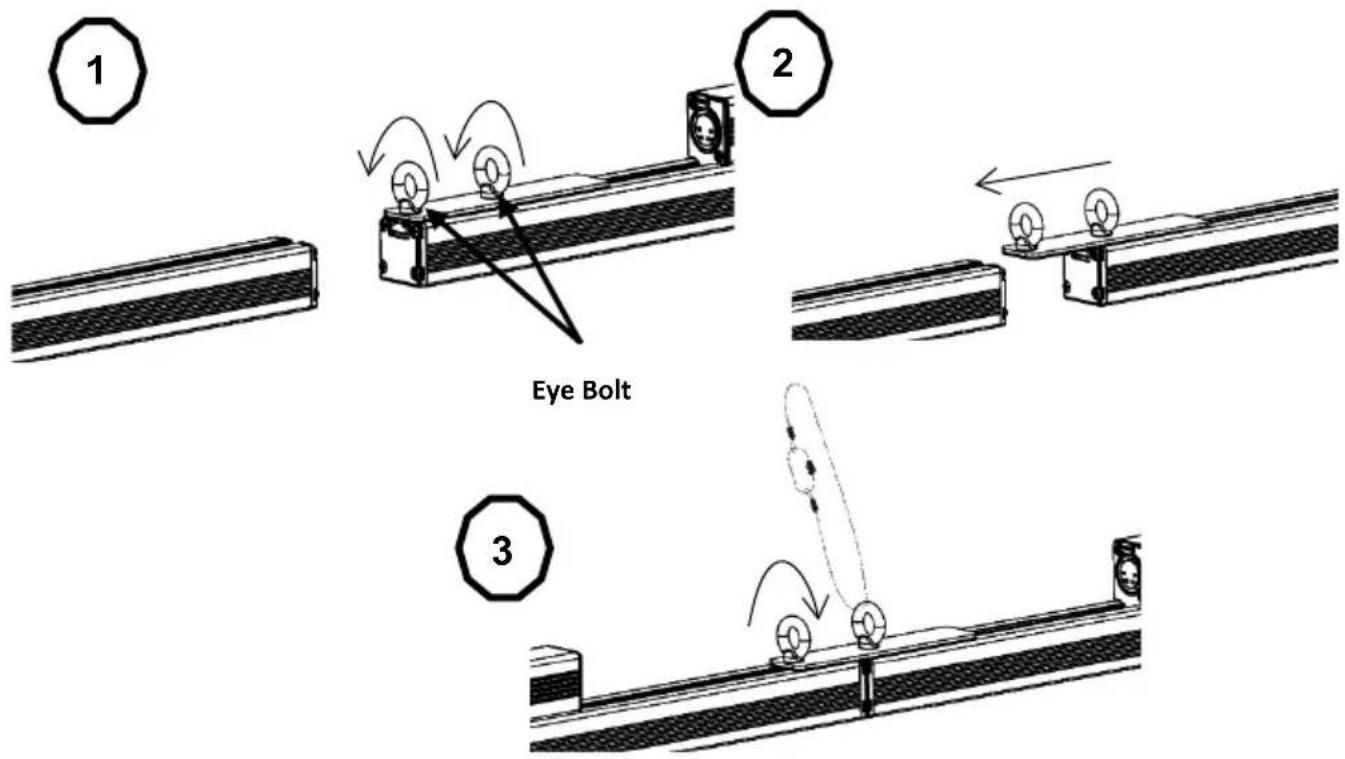

4. Attach the safety cable as shown in fig. 3.

Be sure to install the safety cable last when attaching the products in series.

Technical Specifications

Dimensions and Weight	Length	Width	Height		Weight
	39.4 in (1000 mm)	4.72 in (120 mm)	1.18 in (30 mm)		3.44 lb (1.56 kg)
Electrical	Note: Dimensions in inches rounded to the nearest decimal digit.
	Power Supply		Range
	ÉPIX Drive 900		100-240 VAC, 50/60 Hz
	Parameter	120 V, 60 Hz	208 V 60 Hz		230 V, 50 Hz
	Consumption	17 W	17 W		17 W
	Operating	0.14 A	0.08 A		0.07 A
	Power	48 VDC
	I/O		Input/ Output
	Connector port		4-pin XLR
	Cord plug		4-pin XLR
Power Linking	Max. per Epix Drive 900
	18
Light Source	Type		Lifespan
	LED		50,000 hours
	Color		Quantity/Pixels
	Tri-color SMD 5050 LEDs		50
Photometrics	Parameter	Stealth Filter		Frosted Filter	Dome Filter
	Luminance	267 NITS		1,094 NITS	701 NITS
	Pixel Pitch	20 mm
	Refresh Rate	4,700 Hz
	Viewing Angle	125°		125°	180°
Thermal	Max. External Temperature		Cooling System
	113 °F (45 °C)		Convection
Data Connections	I/O Connectors	Channel Range
	4-pin XLR	Kling-Net		Determined by ArKaos MediaMaster software
Ordering		Art-Net/sACN		150 channels each
	Product Name	Item Code		UPC Number
	ÉPIX Strip Tour	03091139		781462214876
	Dome accessory	03091142		781462214906
