About This Guide

The EZLink FSBT Quick Reference Guide (QRG) contains basic information about the product, such as product overview, operation, and technical specifications.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
  • DISCONNECT from power before cleaning.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.

• DO NOT allow flammable materials close to the product when it is operating.
DO NOT touch the product's housing when it is on because it will be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
- Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• E Z L i n k F S B T

• External power supply
- Quick Reference Guide

To Begin

Unpack your EZLink FSBT and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging external power supply that can work with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Battery Power

The EZLink FSBT comes with a rechargeable lithium battery for cable free operation.

Charging the Battery

The battery charges whenever the EZLink FSBT is plugged into the external charger and the charger is plugged into a power source. If the product is plugged in and not in operation, make sure the product is turned off.

Battery Charge Notes

• Avoid depleting the battery below 10% .
  • For best results, charge the battery in a temperature between 32 °F (0 °C), and 95 °F (35 °C).
• When charging the battery, keep the product at least 1 m from any open flame or hot plate.
• If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.
• While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
• Do not charge the battery in a closed container.
• Do not charge the battery for more than 24 hours.

Battery Run Time
Maximum Run Time Recharge Time
Up to 8 hours 2 hours
Footswitch Operation

Pedal Action Function
1	B	Moves backward through the preset playbacks
2 Blackout		Blackout fixtures
3	N	Moves forward through the preset playbacks

Bluetooth Control

The EZLink FSBT can be operated with the BTAir application over a Bluetooth connection. Pair the EZLink FSBT with the BTAir application. In playback mode, use the pedals to move from one playback to the other. For more information on using the BTAir app, download the BTAir User Manual from www.chauvetdj.com.

*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

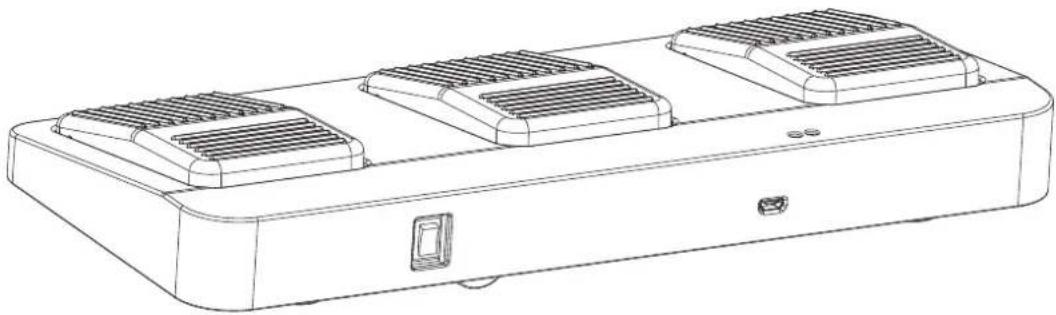

Product Overview

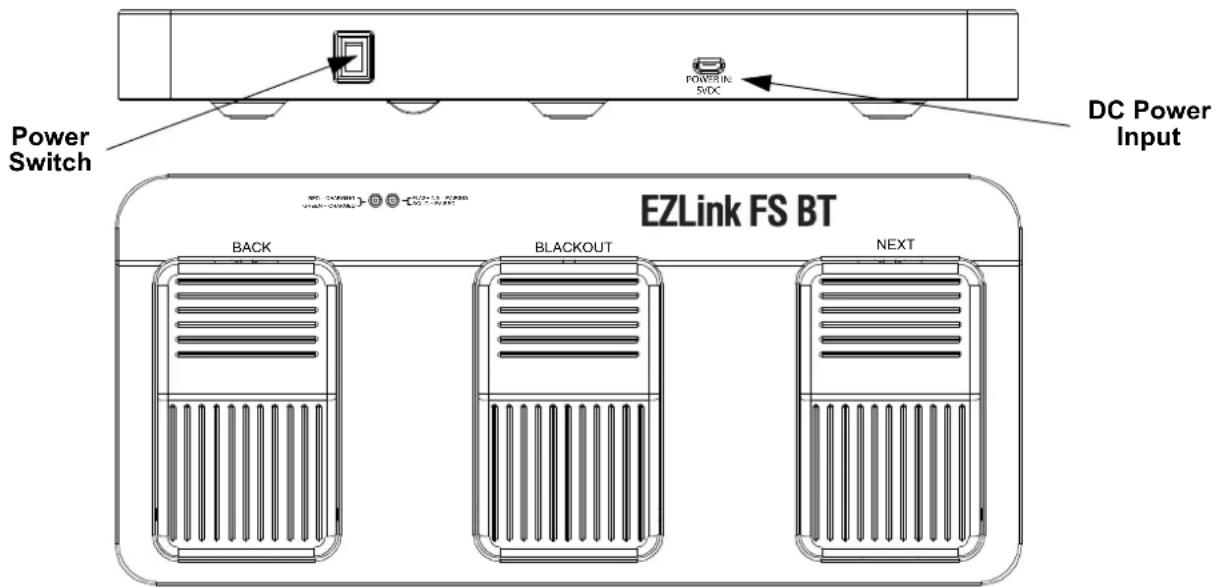

Power Switch DC Power Input EZLink FS BT BACK BLACKOUT NEXT

• The EZLink FSBT only works while the BTAir application is in playback mode.
- Only 1 footswitch at a time can be paired to the BTAir application.

Technical Specifications

Dimensions and Weight

Length Width Height Weight

12 in (310 mm) 5.5 in (140 mm) 1.5 in (37 mm) 1.2 lb (0.6 kg)

Note: Dimensions in inches are rounded.

Power

Parameter EZLink External Power Supply
Input Voltage Fixed Switching (internal)
Range 5 VDC, 1 A 100 to 240 VAC, 50/60 Hz
Voltage Selection	Fixed	Auto-ranging
Thermal
Maximum External Temp.	Cooling
104 °F (40 °C)	Convection
Ordering
Product Name	Item Code	UPC Number
EZLink FSBT	10081544	781462218928
