Product type	DMX/RDM Splitter
Brand	Chauvet
Model	RDMX Splitter 8
Dimensions (L x W x H)	483 x 146 x 45 mm (19 x 5.75 x 1.77 in)
Weight	1.9 kg (4.2 lb)
Power supply	100-240 V AC, 50/60 Hz (universal)
Power consumption	11 W (120 V), 14 W (208 V/230 V)
Nominal current	0.09 A (120 V), 0.06 A (230 V)
DMX inputs	2 ports (A and B) with signal LED indicators
DMX outputs	8 ports (1-8) with signal LED indicators
Operating modes	1x8 (one input to all outputs) or 2x4 (two independent inputs to 4 outputs each)
Power connector	Neutrik® powerCON®
LED indicators	Power, input signal A/B, output signal 1-8
Fuse	Internal, replace with same type and amperage
Max ambient temperature	40 °C (104 °F)
Protection rating	IP20 (indoor use only)
Mounting	19-inch rack, safety cable mandatory when mounted overhead
Housing material	Metal
Warranty	Limited (see conditions on Chauvet website)
Repairability	No user-serviceable parts

Frequently Asked Questions - RDMX Splitter 8 Chauvet

How to connect the RDMX Splitter 8 to a DMX controller?

Connect the DMX cable from the controller to one of the input ports (A or B) on the front of the device. Make sure the signal is present (the corresponding input indicator lights up). In 1x8 mode, the signal will be distributed to all outputs 1 to 8. In 2x4 mode, you can use both inputs separately.

What is the difference between 1x8 and 2x4 modes?

In 1x8 mode, the DMX signal received on input port A (or B) is sent to all 8 outputs. In 2x4 mode, input ports A and B are used separately: signal from A is sent to outputs 1-4, and signal from B to outputs 5-8. This allows managing two separate DMX universes with a single device.

Can I use this splitter with RDM devices?

Yes, the RDMX Splitter 8 supports the RDM (Remote Device Management) protocol. This allows configuring and monitoring compatible RDM devices remotely via the DMX cable, without manual intervention.

How to install the device in a 19-inch rack?

The RDMX Splitter 8 is designed for 19-inch rack mounting, with a height of 1U (45 mm). Use appropriate mounting screws (not included) to secure it firmly. When mounting overhead, always attach a safety cable to the back of the device to prevent falls.

What to do if the power indicator does not light up?

First check the power cord connection and that the wall outlet is live. If the indicator remains off, the internal fuse may be blown. Unplug the device, then replace the fuse with one of the same type and amperage (see manual for exact values). If the problem persists, contact Chauvet technical support.

Can I daisy chain multiple RDMX Splitter 8?

Yes, you can cascade multiple splitters by connecting the DMX output of one splitter to the input of another. Ensure you respect the maximum DMX cable length (typically 300 m) and use DMX terminators on the last unused output to avoid signal reflections.

What is the maximum power supported by the outputs?

The RDMX Splitter 8 does not provide power on the DMX outputs. It only transmits the data signal. Connected devices must have their own power supply. The indicated maximum output current (15 A) refers to the power throughput output, not the DMX ports.

How to replace the fuse?

First unplug the device from the power source. The fuse holder is usually located next to the power input connector. Open the fuse holder with a small screwdriver, remove the old fuse and insert a new fuse of the same type and amperage (see the manual or label on the device). Close the fuse holder then plug the device back in.

Is the device compatible with 120-ohm DMX cables?

Yes, the RDMX Splitter 8 is designed to work with standard DMX cables of 120 ohms impedance. Use professional quality cables (XLR 3 or 5 pin depending on your connectors) to ensure reliable transmission over long distances.

Where to find the full user manual?

The full user manual is available for free download on Chauvet's website: www.chauvetprofessional.com. There you will find detailed information on installation, DMX configuration, menu options, and troubleshooting.

USER MANUAL RDMX Splitter 8 Chauvet

Line drawing of a rectangular electronic device with multiple ports labeled 'PUB' and 'RUB', no text or symbols present.

About This Guide

The RDMX Splitter 8 Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
  • DO NOT allow flammable materials close to the product when it is operating.
  DO NOT touch the product's housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
  • Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
  • Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
  • The maximum ambient temperature is 104 °F ( 40 °C ). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
  • DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact your distributor to request support or return a product. From inside the U.S., UK, Ireland, Mexico, France, Germany, or Benelux, use the information in Contact Us at the end of this QRG.

What is Included

• RDMX Splitter 8
• Neutrik® powerCON® power cord
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

The maximum output current from the RDMX Splitter 8 is 15A. See the User Manual or the specification sticker on the product for more details.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC live Black Brown Yellow/brass
AC neutral White Blue Silver
AC ground Green/yellow Green/yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

DMX Linking

The RDMX Splitter 8 will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

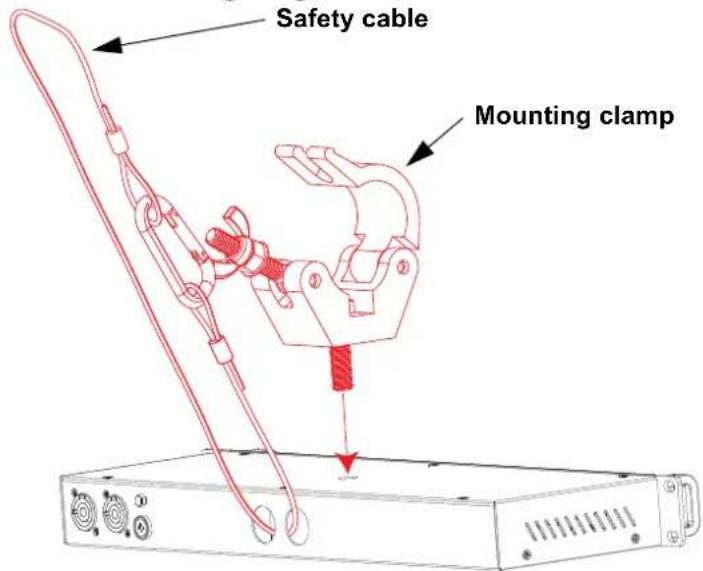

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

Product Mounting Diagram

Safety cable Mounting clamp

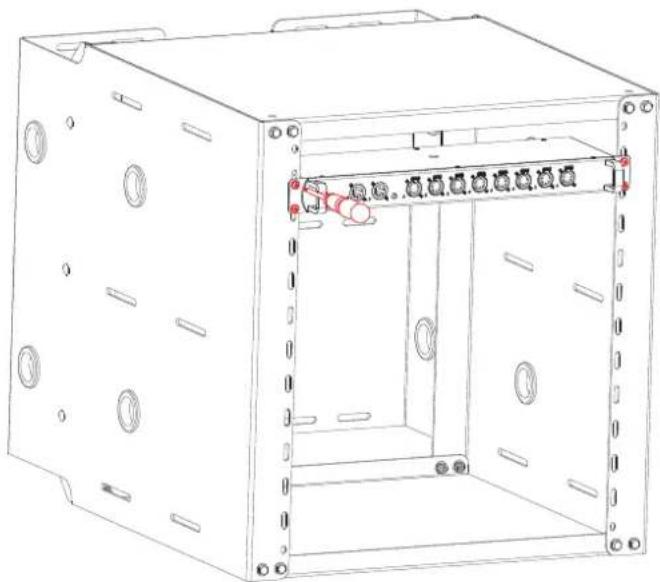

Technical line drawing of an open electrical enclosure with mounting holes and internal panel (no text or symbols)

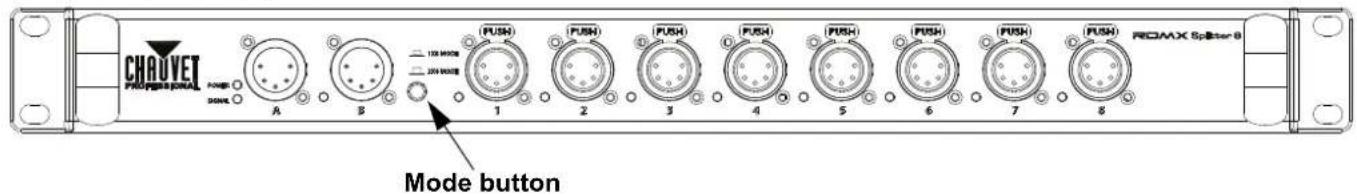

Front Panel Description

CHAUVET PROFESSIONAL POWER ZONE A B 120 MHz 254 MHz PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH + Mode button

Panel Item Function
	Illuminates when power has been applied to the product
Input	DMX Input port A. Indicator light will illuminate when input signal is being received.
Input	DMX Input port B. Indicator light will illuminate when input signal is being received.
Mode button	Selects 1x8 Mode or 2x4 Mode:1x8 Mode sends the DMX signal received from input port A to all 8 signal output ports.2x4 Mode sends the DMX signal received from input port A into signal output ports 1 to 4 and from port B into signal output ports 5 to 8.
Signal output <1> to <8>	DMX Output ports 1 to 8. Indicator lights on each port will illuminate when a signal is being output through the port.

To use the RDMX Splitter 8 as a switch between 2 different input sources, plug the DMX Input lines into Signal Output Ports 5 to 8. Use the Mode button to switch between sources.

Technical Specifications

Dimensions and Weight

LENGTH	WIDTH	HEIGHT	WEIGHT
19 in (483 mm)	5.75 in (146 mm)	1.77 in (45 mm)	4.2 lb (1.9 kg)

Note: Dimensions in inches are rounded.

Power

POWER SUPPLY TYPE	RANGE	VOLTAGE SELECTION
Switching (internal) 100 to 240 VAC, 50/60 Hz		Auto-ranging
PARAMETER	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz
Consumption	11 W	14 W	14 W
Operating current	0.09 A	0.06 A	0.06 A
POWER I/O	U.S./WORLDWIDE		UK/EUROPE
Power input connector	Neutrik® powerCON®		Neutrik® powerCON®
Power output connector	Neutrik® powerCON®		Neutrik® powerCON®
Power cord plug	Edison (U.S.)		Local plug

Thermal

MAXIMUM EXTERNAL TEMPERATURE	COOLING SYSTEM
113 °F (45 °C)

DMX

DEVICE DATA INPUTS	DEVICE DATA OUTPUTS
5-pin XLR (2 total)	5-pin XLR (8 total)

Ordering

PRODUCT NAME	ITEM NAME	ITEM CODE	UPC NUMBER
RDMX Splitter 8	RDMXSPLITTER8	09081463	781462218119

Acerca de Esta Guía

Technical line drawing of a rectangular electronic enclosure with mounting holes and internal panel (no text or symbols)

ENTRÉE	SORTIE
5-pin XLR (2)	5-pin XLR (8)

Thermique

TEMPÉRATURE EXTERNE MAXIMUM	SYSTÈME DE REFROIDISSEMENT
45 °C (113 °F)

Commande

DESCRIPTION DE L'APPAREIL	NOM DE L'APPAREIL	CODE DE L'ARTICLE	CODE UPC
RDMX Splitter 8	RDMXSPLITTER8	09081463	781462218119

Technical line drawing of an electrical enclosure with mounting holes and internal panel (no text or symbols)

Technical line drawing of an open electrical enclosure with mounting holes and internal panel (no text or symbols)
