USER MANUAL Ovation H-265WW Chauvet

Technical line drawing of a cylindrical mechanical device with a mesh grille and handle (no text or symbols)

Model ID: OVATIONH265WW

About This Guide

The Ovation H-265WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• This luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.

- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 11.5 ft (3.5) m is not expected.

- CAUTION: This product's housing may be hot when lights are operating.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)

• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.

- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

- USE a safety cable when mounting this product overhead.

- DO NOT operate this product if the housing, lenses, or cables appear damaged.

- DO NOT connect this product to a dimmer or rheostat.

- ONLY connect this product to a grounded and protected circuit.

- ONLY use the hanging/mounting bracket to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced with a special cable or cord exclusively available from the manufacturer or its service agent.

- The light source contained in this luminaire shall only be replaced by the manufacturer, its service agent, or a similarly qualified person.

- In the event of a serious operating problem, stop using immediately.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Ovation H-265WW
• 65^ , 45^ and 25^ lenses

• 80^ filter

• Egg crate

• Quick Reference Guide

AC Power

This product has a auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

Replacing The Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

DMX Linking

The Ovation H-265WW will work with a DMX controller using a 5-pin DMX serial or a hard wire connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation H-265WW uses a 5-pin DMX or a hard wire data connection for its DMX personalities: 1Ch, 2Ch, 3Ch, or 6Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation H-265WW uses the DMX data connection for its Master/Slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. The Ovation H-265WW supports RDM protocol that allows feedback to monitor temperature and changes to DMX Address, DMX Personality, Dimmer Mode, and LED Frequency menu options. Download the User Manual from www.chauvetprofessional.com for more details.

Wireless Operation

In optimal conditions, the Ovation H-265WW can operate up to 300 m (900 ft) away from the W-DMX transmitter. The W-DMX receiver in the Ovation H-265WW must be paired with the W-DMX transmitter for wireless operation.

Initial Setup

1. Turn the W-DMX transmitter on.
2. Connect the W-DMX transmitter to a DMX controller.
3. Place the Ovation H-265WW within 300 m from the W-DMX transmitter.
4. Disconnect any DMX cable from the Ovation H-265WW.
5. Turn the Ovation H-265WW on.

Configuration

1. From the Ovation H-265WW control panel, go to DMX Address.
2. Select the start address, as with any other DMX compatible product.
3. Go to Wireless Setting > Receive On/Off.
4. Select On. (The Signal Strength Indicator will show a ? in front of the bars)
5. Press the reset button on the W-DMX transmitter. (The Signal Strength Indicator on the Ovation H-265WW will show a 4 in front of the bars for 3 seconds while a connection is established.

Product Pairing

If the Ovation H-265WW has already been paired with the W-DMX transmitter, the Signal Strength Indicator in the middle of the LCD screen will show the strength of the signal. In this case, the Ovation H-265WW is ready to work in Wireless mode. Pairing the Ovation H-265WW and a new W-DMX transmitter:

1. From the Ovation H-265WW control panel, go to Wireless Setting.
2. Select the Receive Reset. The Signal Strength Indicator on the Ovation H-265WW will show a ? in front of the bars.
3. From the W-DMX transmitter, press (the Signal Indicator on the transmitter will flash).
4. Once the transmitter has found the Ovation H-265WW, the Signal indicator on the W-DMX transmitter will illuminate solid.
5. The Signal Strength Indicator in the middle of the LCD screen on the Ovation H-265WW will show the strength of the signal.

W-DMX operation can be interrupted or inhibited by liquid masses between the transmitter and receiver such as water, snow, or people. For best results, keep the area between the transmitter and receiver clear of any liquid mass.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

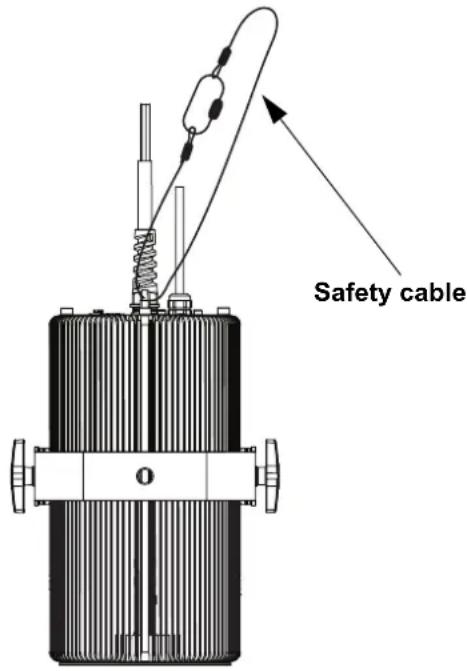

Product Mounting Diagram

Safety cable O

Pendent Mounting

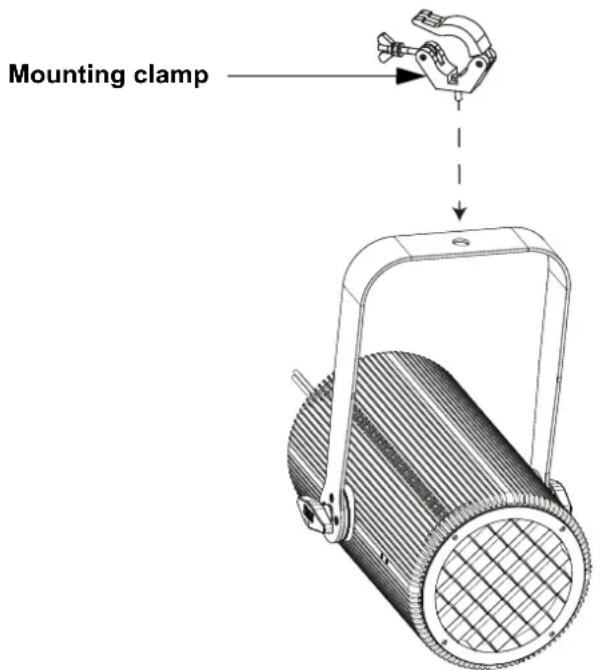

Mounting clamp

Overhead Mounting

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
DMX Address Address 001-512 Selects the starting address
DMX Channel	1Ch 1-channel: dimmer
	2Ch 2-channel: dimmer,		16-bit dimmer
	3Ch 3-channel: dimmer,		16-bit dimmer, strobe
	6Ch		6-channel: dimmer, 16-bit dimmer, strobe, auto programs, auto speed, control
Static	Dimmer	000-255	Controls intensity
	Strobe Controls strobe rate
Auto Show	Auto 1	001-100	Selects automatic programs and auto program speed
	Auto 2
	Auto 3
Master/Slave	Master Master mode
	Slave Slave mode
Dimmer Curve	S-CurveLinearSquareInverse Square		Sets the dimmer curve
Dimmer Mode	Off No dimmer
	Dimmer 1		Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
	Dimmer 2
	Dimmer 3
LED Frequency	600Hz1200Hz2000Hz4000Hz6000Hz25KHz		Selects the PWM output frequency
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2Min		Turns off display backlight after 2 minutes of inactivity
	Always On Display backlight always on
Wireless Setting	Receive On/Off	On Turns on the wireless setting
		Off Turns wireless DMX function off
	Receive Reset	No Turns on the wireless setting
		Yes	No action is taken when DMX signal is lost.
Emergency mode	On Turns product on when DMX signal is lost
	Off No action is taken when DMX signal is lost
Information	Fixture Hours	____H	Shows total hours the product has been powered on
	LED Hours	____H	Shows the total hours the LED lights have been on
	Version	V._	Shows installed software version
	UID:	_____	Shows product UID
Reset Factory	No		Reset to factory defaults
	Yes

QUICK REFERENCE GUIDE

EN

DMX Values

1Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%

2Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2	Dimmer fine	000 ⇔ 255	0-100%

3Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2	Dimmer fine	000 ⇔ 255	0-100%
3	S t	r 000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast	b e

6Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2	Dimmer fine	000 ⇔ 255	0-100%
3	S t	r 000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast	b e
4 Auto programs		000 ⇔ 015 No function016 ⇔ 095 Auto program 1096 ⇔ 175 Auto program 2176 ⇔ 255 Auto program 3
5 Auto speed 000 ⇔ 255 0-100%
6	Control(hold for 3 seconds, then release)	000 ⇔ 007 No function008 ⇔ 015 Dimmer reset016 ⇔ 023 Dimmer: S-Curve024 ⇔ 031 Dimmer: linear032 ⇔ 039 Dimmer: square040 ⇔ 047 Dimmer: inverted square048 ⇔ 055 Dimmer speed mode off056 ⇔ 063 Dimmer speed mode 1064 ⇔ 071 Dimmer speed mode 2072 ⇔ 079 Dimmer speed mode 3080 ⇔ 255 No function (reserved)
