Product type	LED PAR Projector
Brand	Chauvet
Model	COLORdash Par-Quad 18
Power supply	100-240 VAC, 50/60 Hz, universal
Power consumption	Not specified
Light sources	18 LEDs (Red, Green, Blue, Amber)
DMX modes	4-channel, 6-channel, 10-channel
Main functions	DMX, auto, static, manual, master/slave, strobe, dimmer, color macros
Safety distance	Do not look at the light source from less than 5.9 m
Max ambient temperature	40 °C
Protection rating	Indoor use only
Mounting	Using a safety cable is mandatory
Cooling	Natural ventilation, leave 50 cm around
Connectors	DMX input/output, IEC power connector
Power linking	Up to 11 units at 100 V, 13 at 120 V, 25 at 240 V
Fuse	Replaceable, type not specified
Serviceability	Light source not user replaceable; fuse replaceable
Maintenance	Clean lenses with a soft cloth; avoid moisture and condensation
Included accessories	Power cord, gel frame holder, Reference Manual

Frequently Asked Questions - COLORdash Par-Quad 18 Chauvet

How to connect the COLORdash Par-Quad 18 to a DMX controller?

Use a standard DMX cable to connect the controller's output to the DMX In of the fixture. You can daisy-chain up to 32 units. Set the DMX address via the Address menu.

How to replace the fuse of the COLORdash Par-Quad 18?

Disconnect the fixture. Use a Phillips screwdriver to unscrew the fuse holder cover. Replace the fuse with a new one of the same type. Screw the cover back on and reconnect.

How to set up Master/Slave mode?

Set the master fixture to M/S Mode > Master. Set the slaves to M/S Mode > Slave. Connect the DMX output of the master to the input of the slaves.

What are the available DMX modes and how many channels do they use?

The available modes are: 4-channel (Red, Green, Blue, Amber), 6-channel (dimmer, Red, Green, Blue, Amber, strobe) and 10-channel (dimmer, Red, Green, Blue, Amber, strobe, macros, auto, auto speed, dimmer speed).

How to adjust white balance?

In the White Balance menu, adjust the maximum values of the Red, Green and Blue LEDs (0-255) to obtain the desired color temperature.

What is the required power supply voltage?

The fixture accepts an input voltage of 100 to 240 VAC, 50/60 Hz. It automatically adapts to the local voltage.

How to clean the COLORdash Par-Quad 18?

Disconnect the fixture. Use a soft, dry cloth to clean the lenses and the housing. Avoid abrasive products or excessive moisture. Let the fixture acclimate in case of temperature change.

Can I use an external dimmer or rheostat?

No. Never connect this fixture to a dimmer or rheostat. This could damage the electronic components. Always use a direct power supply.

How many COLORdash Par-Quad 18 units can I link together electrically?

The number depends on the voltage: up to 11 units at 100 V, 13 at 120 V, 22 at 208 V, 24 at 230 V, and 25 units at 240 V.

What to do if condensation forms inside the fixture?

Let the fixture acclimate to room temperature before powering it on. Do not turn it on until the condensation has disappeared to avoid electrical damage.

USER MANUAL COLORdash Par-Quad 18 Chauvet

COLORdash Per-Qued 18

Quick Reference Guide

English EN

Español ES

Français FR

Nederlands NL

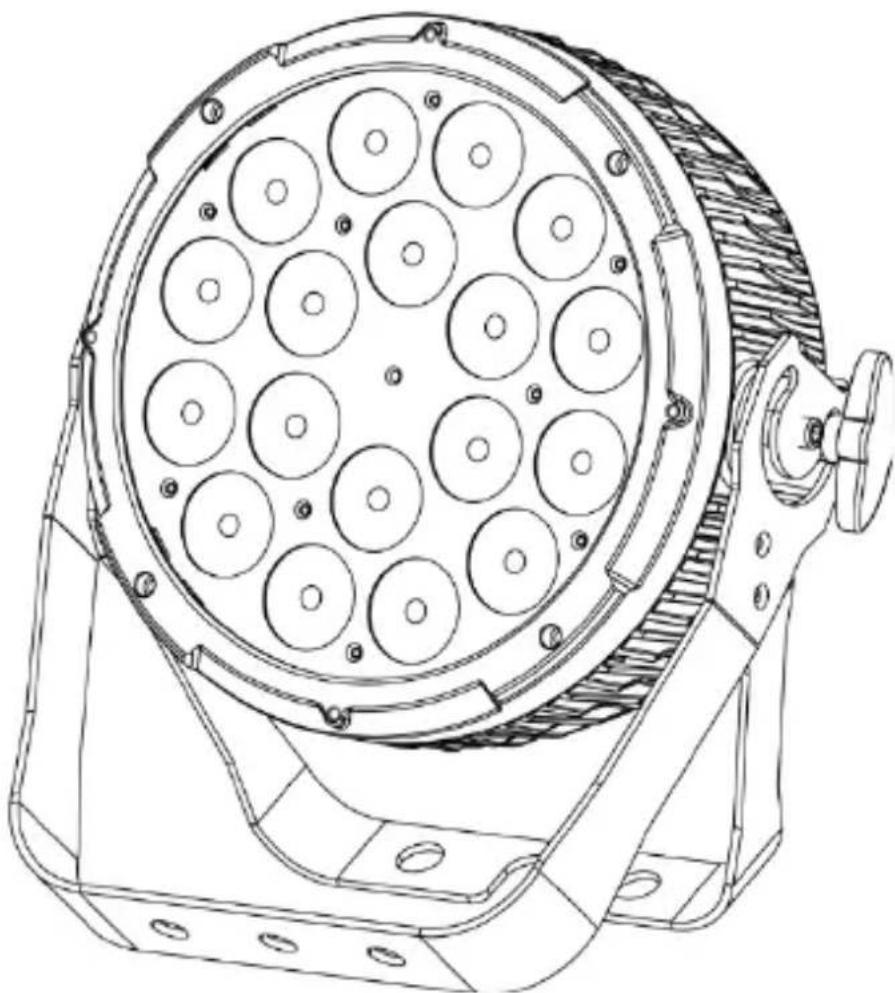

Technical line drawing of a circular mechanical component with multiple holes and mounting brackets (no text or symbols)

Model ID: COLORDASHPARQUAD18

About this Guide

The COLORdash Par-Quad 18 Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

•The information and specifications contained in this QRG are subject to change without notice.

LIMITED FOR WARRANTY REGISTRATION AND COMPLETE TERMS WARRANTY AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany:

www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety • Notes

The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 19.4 ft (5.9 m) is not expected.

- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.

- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

- The luminaire is intended for professional use only.

• DO NOT open this product. It contains no user-serviceable parts.

• DO NOT look at the light source when the product is on.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

- CAUTION: This product's housing may be hot when lights are operating.

- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

Safety Notes• (cont.)

DO NOT leave any flammable material within 20 in (50 cm) of this product while operating or connected to power.

• USE a safety cable when mounting this product overhead.
- DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the hanging/mounting bracket to carry this product.
- In the event of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

Contact Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is•

COLORdash Par-Quad 18

- Gel Frame Holder

Included\*

Power Input Cord

- Quick Reference Guide

- Gel Frame

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

PowerYou can link up to 11 COLORdash Par-Quad 18 products at 100 VAC, 13

Linking at 120 VAC, 22 at 208 VAC, 24 at 230 VAC, or 25 at 240 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

Fuse1. Disconnect this product from power.

Replacement

1. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
2. Remove blown fuse and replace with a good fuse of the same type and rating.
3. Screw the fuse holder cap back in place and reconnect power.

DMXThe COLORdash Par-Quad 18 will work with a DMX controller using a

Linking

regular DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX The COLORdash Par-Quad 18 uses a regular DMX data connection for its

Connection

DMX personalities: 4 Ch, 6 Ch, and 10 Ch. See the User Manual to connect and configure for DMX operation.

Master/Slave

The COLORdash Par-Quad 18 uses the DMX data connection for its Master/Slave mode. See the User Manual to connect and configure for Master/Slave operation.

Connection

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to trusst.com/productcategory/base-plates-accessories-clamps/.

Product Mounting Diagram

Technical line drawing of a mechanical device with circular components and directional arrows (no text or symbols)

Secure the safety cable using the passageway on the back of the product.

Technical line drawing of a mechanical component with circular holes and mounting bracket (no text or symbols)

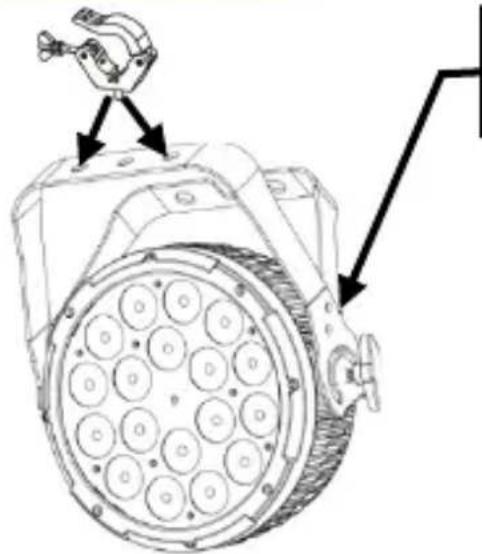

Overhead Mounting

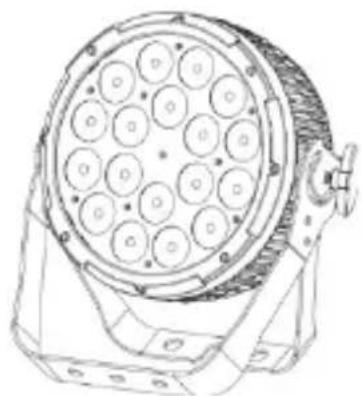

Floor Mounting

Control Panel Description	Button	Function
		Exits from the current menu or function
		Enables the currently displayed menu or sets the currently selected value into the selected function
		Navigates upwards through the menu list and increases the numeric value when in a function
		Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map Refer to the COLORdash Par-Quad 18 product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels					Description
Auto	Auto 1-5		Speed		0-100	5 automatic programs
Static	Fix C			R		Red
				G		Green
				B		Blue
				A		Amber
				GB		Green/Blue
				RB		Red/Blue
				RG		Red/Green
				RGB		Red/Green/Blue
				RA		Red/Amber
				GA		Green/Amber
				BA		Blue/Amber
				RGA		Red/Green/Amber
				RBA		Red/Blue/Amber
				GBA		Green/Blue/Amber
				RGBA		Red/Green/Blue/Amber
	Manu C	R		Value	0-255	Combine red, green, blue, and amber to make a custom color
		G
		B
		A
Dim Mode	Off					No dimmer
	DIM 1-3					Dimmer curve
BackLite	10S					Turns off display backlight after 10 sec of inactivity
	20S					Turns off display backlight after 20 sec of inactivity
	30S					Turns off display backlight after 30 sec of inactivity
	On					Display backlight always on
Info	Auto			Test		Turns on all LEDs in sequence for testing
	FixHours					Shows total product hours
	Version					Shows installed software version
Address 001-509						Selects DMX address (highest channel restricted to personality chosen)
Channel	4 Ch					4-channel: R/G/B/A control
	6 Ch					6-channel: R/G/B/A, dimmer, strobe
	10 Ch					10-channel: R/G/B/A dimmer, strobe, color macro, auto, dimmer speed, auto speed
M/S Mode	Master					DMX mode
	Slave					Slave mode
White Balance	R		Value		White Balance	Sets red LED maximum value
	G					Sets green LED maximum value
	B					Sets blue LED maximum value

DMX Values

10 ChChannel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Red	000 ⇔ 255	0–100%
3	Green	000 ⇔ 255	0–100%
4	Blue	000 ⇔ 255	0–100%
5	Amber	000 ⇔ 255	0–100%
6	Strobe	000 ⇔ 010	No function
		011 ⇔ 255	Slow to fast
7	Color Macro + White Balance	000 ⇔ 010	No function
		011 ⇔ 030	R: 100% G: 0–100% B: 0
		031 ⇔ 050	R: 100%-0 G: 100% B: 0
		051 ⇔ 070	R: 0 G: 100% B: 0–100%
		071 ⇔ 090	R: 0 G: 100%-0 B: 100%
		091 ⇔ 110	R: 0–100% G: 0 B: 100%
		111 ⇔ 130	R: 100% G: 0 B: 100%-0
		131 ⇔ 150	R: 100% G: 0–100% B: 0–100%
		151 ⇔ 170	R: 100%-0 G: 100%-0 B: 100%
		171 ⇔ 200	RGBA: 100%
		201 ⇔ 205	White 1
		206 ⇔ 210	White 2
		211 ⇔ 215	White 3
		216 ⇔ 220	White 4
		221 ⇔ 225	White 5
		226 ⇔ 230	White 6
		231 ⇔ 235	White 7
		236 ⇔ 240	White 8
		241 ⇔ 245	White 9
		246 ⇔ 250	White 10
		251 ⇔ 255	White 11
8	Auto Programs	000 ⇔ 051	No function
		052 ⇔ 101	Auto 1
		102 ⇔ 152	Auto 2
		153 ⇔ 203	Auto 3
		204 ⇔ 254	Auto 4
		255	Auto 5
9	Auto Speed	000 ⇔ 255	Slow to fast
10	Dimmer Speed	000 ⇔ 051	Preset dimmer speed from display menu
		052 ⇔ 101	Linear dimmer
		102 ⇔ 152	Nonlinear dimming curve 1 (fastest)
		153 ⇔ 203	Nonlinear dimming curve 2
		204 ⇔ 255	Nonlinear dimming curve 3 (slowest)

COLORdash Par-Quad 18 QRG EN

6 ChChannel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Red	000 ⇔ 255	0–100%
3	Green	000 ⇔ 255	0–100%
4	Blue	000 ⇔ 255	0–100%
5	Amber	000 ⇔ 255	0–100%
6 Strobe		000 ⇔ 010	No function
		011 ⇔ 255	Slow to fast

4 Ch Channel	Function	Value	Percent/Setting
1	Red	000 ⇔ 255	0–100%
2	Green	000 ⇔ 255	0–100%
3	Blue	000 ⇔ 255	0–100%
4	Amber	000 ⇔ 255	0–100%

Acerca de Esta Guía

Technical line drawing of a mechanical component with circular holes and a clamp, no text or symbols present

Montaje en Altura

Technical line drawing of a circular mechanical component with bolt holes and mounting bracket (no text or symbols)

Montaje en Suelo

Technical line drawing of a mechanical device with circular components and a clamp, no text or symbols present

Montage en Hauteur

Technical line drawing of a circular mechanical component with multiple holes and mounting brackets (no text or symbols)

Montage au Sol

Technical line drawing of a mechanical device with circular components and a tool, no visible text or symbols

Technical line drawing of a mechanical component with circular holes and mounting bracket (no text or symbols)
