USER MANUAL Ovation B-565FC Chauvet

Technical line drawing of a mechanical device with circular holes and spring connectors (no text or symbols)

About This Guide

The Ovation B-565FC Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

- CAUTION: This product's housing may be hot when lights are operating.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.

- USE a safety cable when mounting this product overhead.

- DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)

• DO NOT operate this product if the housing, lenses, or cables appear damaged.

- DO NOT connect this product to a dimmer or rheostat.

- ONLY connect this product to a grounded and protected circuit.

- ONLY use the hanging/mounting bracket or the handles to carry this product.

• In the event of a serious operating problem, stop using immediately.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, UK, Ireland, France, Germany, Benelux, or Mexico, contact your distributor to request support or return a product. From inside the US, UK, Ireland, France, Germany, Benelux, or Mexico, use the information in Contact Us at the end of this QRG.

What is Included

• Ovation B-565FC

• Neutrik® powerCON® power cord

• Wall washing filter

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 13 Ovation B-565FC products at 120 V, 22 products at 208 V, or 23 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

Signal Connections

You can link the Ovation B-565FC to a controller or controller software using a DMX connection or an Ethernet connection. If using other Art-Net™ - or sACN-compatible products with the Ovation B-565FC, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Control Personalities

The Ovation B-565FC uses DMX, Art-Net™, and sACN for its 17 control personalities, ranging from 3CH to 31CH in 1-cell modes and 2-cell modes:

Mode	1-Cell	2-Cell
DMX-VCW-CCT	3	N/A
HSV	3	6
RGB	3	6
RGBA	4	8
RGBAL	5	10
RGB EXT	8	15
RGBA EXT	9	17
RGBAL EXT	10	19
RGBAL Fine	10	20
RGBAL FULL	17	31

DMX Connection

The Ovation B-565FC will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available from www.chauvetprofessional.com.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).

Master/Slave Connection

The Ovation B-565FC uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. The Ovation B-565FC supports RDM protocol that allows feedback to monitor temperature and changes to DMX Address and DMX Channel menu options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

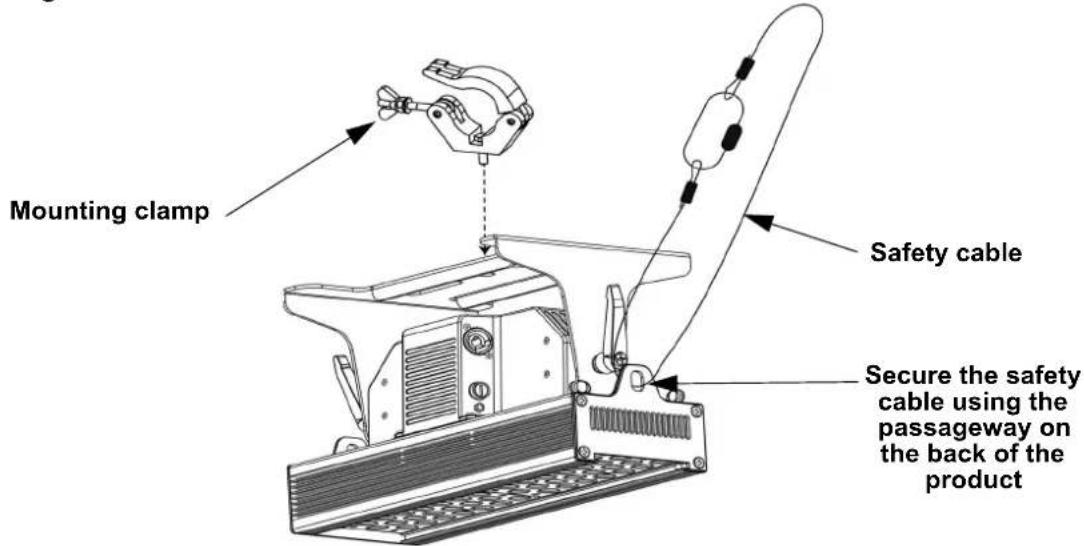

Mounting Diagram

Mounting clamp Safety cable Secure the safety cable using the passageway on the back of the product

Virtual Color Wheel

The Ovation B-565FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and also as a control channel in select DMX personalities. More than 30 pre-mixed colors, custom blended by our engineers, are available to call up for easier programming.

The DMX values used to mix these colors are provided below. You may adjust the overall intensity of the Ovation fixture in order to more closely replicate colors you are familiar with. A chart is available on our website www.chauvetprofessional.com to compare our pre-mixed colors with popular gel colors. This chart is for comparison purposes only and is not a representation that our pre-mixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

DMX Channel Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ⇔ 005	--	000	000	000	000	000
006 ⇔ 013	C3050 - Md Yellow	150	125	002	255	043
014 ⇔ 021	C3040 - Lt Yellow	235	108	005	255	076
022 ⇔ 028	C3240 - Amb Yellow	171	036	000	120	255
029 ⇔ 035	C2340 - VLt Amber	255	015	017	255	170
036 ⇔ 043	C2040 - Lt Amber	255	000	010	255	143
044 ⇔ 051	C2050 - Md Amber	255	000	003	255	075
052 ⇔ 059	C2060 - Dk Amber	188	000	002	255	044
060 ⇔ 067	C1050 - Lt Red	255	000	002	021	002
068 ⇔ 075	C1080 - Md Red	255	000	002	000	000
076 ⇔ 083	C1020 - NC Pink	255	130	025	255	027
084 ⇔ 091	C1030 - Md Pink	255	013	041	235	182
092 ⇔ 099	C1630 - Dk Pink	255	015	027	030	255
100 ⇔ 107	C1250 - Md Red Amber	255	000	004	115	009
108 ⇔ 115	C1060 - Dk Red Amber	255	000	004	011	008
116 ⇔ 121	C1650 - Magenta	255	000	022	081	039
122 ⇔ 130	C6170 - Dk Magenta	160	000	025	000	004
131 ⇔ 138	C6020 - Lt Lavender	255	162	043	255	140
139 ⇔ 146	C5030 - Lt Blue	012	255	070	076	115
147 ⇔ 154	C5020 - VLt Blue	030	187	085	215	255
155 ⇔ 162	C5430 - Lt Blue 2	004	255	062	093	049
163 ⇔ 170	C5070 - Blue	005	255	190	003	012
171 ⇔ 178	C5050 - Md Blue	008	250	145	005	088
179 ⇔ 186	C5060 - Dk Blue	005	209	255	015	074
187 ⇔ 194	C5690 - Indigo	005	000	200	013	003
195 ⇔ 202	C5080 - VDk Blue	007	112	255	005	007
203 ⇔ 210	C5081 - VDk Blue 2	004	108	255	003	004
211 ⇔ 218	C4370 - Yel Green	004	255	000	005	003
219 ⇔ 226	C4070 - Green	027	255	006	000	020
227 ⇔ 234	C4550 - Turquoise	007	255	021	070	076
235 ⇔ 242	C4560 - Aqua	007	255	031	085	115
243 ⇔ 250	C4570 - Blue Green	002	255	017	002	020
251 ⇔ 255	--	000	000	000	000	000

Note: The colors above are simulated renditions of the color output produced as compared to other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Color Temperature Chart

DMX Channel Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ⇔ 005	--	000	000	000	000	000
006 ⇔ 025	2800K	237	120	036	255	255
026 ⇔ 050	3000K	220	128	050	255	255
051 ⇔ 075	3200K	176	128	057	255	255
076 ⇔ 100	3500K	154	128	080	255	255
101 ⇔ 125	4000K	128	128	112	255	255
126 ⇔ 150	4500K	108	128	133	255	255
151 ⇔ 175	5000K	097	128	152	255	255
176 ⇔ 200	5600K	087	128	170	255	255
201 ⇔ 225	6000K	075	128	177	255	255
226 ⇔ 250	6500K	066	128	187	255	255
251 ⇔ 255	--	000	000	000	000	000

Note: The color temperatures above are simulated renditions of the color output produced as compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
Protocol	DMX512		Selects the control protocolArtNet
	sACN
Start Address 001-510*			Selects starting address (*highest channel restricted to personality chosen)
Personality	1-Cell	DMX-VCW-CCT 3CH	3-channel: dimmer, virtual color wheel, color temperature
		HSV 3CH 3-channel: HSV control
		RGB 3CH 3-channel: RGB
		RGBA 4CH 4-channel: RGBA
		RGBAL 5CH 5-channel: RGBAL
		RGB EXT 8CH	8-channel: 16-bit dimmer, RGB, virtual color wheel, color temperature, strobe
		RGBA EXT 9CH	9-channel: 16-bit dimmer, RGBA, virtual color wheel, color temperature, strobe
		RGBAL EXT 10CH	10-channel: 16-bit dimmer, RGBAL, virtual color wheel, color temperature, strobe
		RGBAL Fine 10CH	10-channel: 16-bit RGBAL
		RGBAL FULL 17CH	17-channel: 16-bit dimmer, 16-bit RGBAL, virtual color wheel, color temperature, strobe, color macros, dimmer mode
	2-Cell	RGB 6CH 6-channel: RGB (per cell)
		HSV 6CH 6-channel: HSV control (per cell)
		RGBA 8CH 8-channel: RGBA (per cell)
		RGBAL 10CH 10-channel: RGBAL (per cell)
		RGB EXT 15CH	15-channel: 16-bit dimmer, RGB (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBA EXT 17CH	17-channel: 16-bit dimmer, RGBA (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL EXT 19CH	19-channel: 16-bit dimmer, RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL Fine 20CH	20-channel: 16-bit RGBAL (per cell)
		RGBAL FULL 31CH	31-channel: 16-bit dimmer, 16-bit RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell), color macros, dimmer mode

Main Level Programming Levels Description
Virtual Color Wheel	Virtual Color Wheel	C3050 - Md Yellow		Dimmer	<000-255>	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart section for specific values.
		C3040 - Lt Yellow
		C3240 - Amb Yellow
		C2340 - VLt Amber
		C2040 - Lt Amber
		C2050 - Md Amber
		C2060 - Dk Amber
		C1050 - Lt Red
		C1080 - Md Red
		C1020 - NC Pink
		C1030 - Md Pink
		C1630 - Dk Pink
		C1250 - Md Red Amber
		C1060 - Dk Red Amber
		C1650 - Magenta
		C6170 - Dk Magenta
		C6020 - Lt Lavender
		C5030 - Lt Blue
		C5020 - VLt Blue
		C5430 - Lt Blue 2
		C5070 - Blue
		C5050 - Md Blue
		C5060 - Dk Blue
		C5690 - Indigo
		C5080 - VDk Blue
		C5081 - VDk Blue 2
		C4370 - Yel Green
		C4070 - Green
		C4550 - Turquoise
		C4560 - Aqua
		C4570 - Blue Green
	Color Temperature		2800K			Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Control Panel Description section for specific values.
			3000K
			3200K
			3500K
			4000K
			4500K
			5000K
			5600K
			6000K
			6500K
	Manual Color Mixer			Red		Combine red, green, blue, amber, and lime to make a custom color (0-100%)
				Green
				Blue
				Amber
				Lime
Auto Show	Auto 1			Speed 1-100		Selects automatic programs and auto program speed
	Auto 2
	Auto 3
	Auto 4
	Auto 5
	Auto 6
	Auto 7
	Auto 8
	Auto 9
	Fade

Main Level Programming Levels Description
Master/Slave	Master Master mode
	Slave Slave mode
Dimmer Mode	Off Linear dimmer
	Dimmer 1 Fast dimmer curve
	Dimmer 2 Medium dimmer curve
	Dimmer 3 Slow dimmer curve
White Balance	Off Uses factory default white setting
	Manual	Red		Sets red LED maximum value
		Green Sets green LED maximum value
		Blue Sets 125-255 maximum value
		Amber Sets amber LED maximum value
		Lime Sets lime LED maximum value
LED Frequency	600Hz			Selects the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Display	Normal Normal display orientation
	Inverse Inverted display
Back Light	10S			Turns off display backlight after 10 seconds of inactivity
	30S			Turns off display backlight after 30 seconds of inactivity
	2Min			Turns off display backlight after 2 minutes of inactivity
	On Display backlight always on
Ethernet Setting	Universe	1 (DMX)		Sets universe for Art-NetTM or sACN0-255 (Art-NetTM)
		1-256 (sACN)
	IP Address	--- --- --- ---		Sets IP address
Information	Fixture Hours	----		Shows total product hours
	Version	V__.-V__		Shows installed software version
	Device ID	-----		Shows product device ID
	UID:	-----		Shows product UID
Factory Setting	No			Reset to factory defaults
	Yes

DMX Values

2-Cell Personalities

2-Cell RGBAL FULL 31CH

Channel Function Value Percent/Setting
1 Dimmer 000		255 0-100%
2 Dimmer fine 000		255 0-100%
3	R e d	1 255 0-100%
4 Red fine 1 000		255 0-100%
5	G r e e	n 255 0-100%	000
6 Green fine 1 000		255 0-100%
7	B l u e	255 0-100%	000
8 Blue fine 1		000 255 0-100%
9	A m b e	r 255 0-100%	000
10	Amber fine 1	000 255 0-100%
11	Lime 1	000 255 0-100%
12	Lime fine 1	000 255 0-100%
13	Virtual Color Wheel 1	000 255	Refer to theVirtual Color Wheel Chartsection for specific values
14	Color Temperature 1	000 255	Refer to theControl Panel Descriptionsection for specific values
15	Strobe 1	000 010 No function011 255 Strobe, slow to fast
16	Red 2	000 255 0-100%
17	Red fine 2 000	255 0-100%
18	Green 2 000	255 0-100%
19	Green fine 2	000 255 0-100%
20	Blue 2 000	255 0-100%
21	Blue fine 2	000 255 0-100%
22	Amber 2	000 255 0-100%
23	Amber fine 2	000 255 0-100%
24	Lime 2	000 255 0-100%
25	Lime fine 2	000 255 0-100%
26	Virtual Color Wheel 2	000 255	Refer to theVirtual Color Wheel Chartsection for specific values
27	Color Temperature 2	000 255	Refer to theControl Panel Descriptionsection for specific values
28	Strobe 2	000 010 No function011 255 Strobe, slow to fast
29	Strobe all	000 010 No function011 255 Strobe, slow to fast
30	Color macros	000 015 No function016 255 Color macros
31	Dimmer speed	000 051 Preset dimmer speed from display menu052 101 Dimmer speed mode off102 152 Dimmer speed mode 1 (fastest)153 203 Dimmer speed mode 2204 255 Dimmer speed mode 3 (slowest)

2-Cell RGBAL Fine 20CH

Channel Function Value Percent/Setting
1	R	e	d	1 ⇔ 255 0-100%	000
2 Red fine 1 000				⇔ 255 0-100%
3	G	r	e e	n ⇔ 255 0-100%	000
4 Green fine 1 000				⇔ 255 0-100%
5	B	l	u e	⇔ 255 0-100%	000
6 Blue fine 1 000				⇔ 255 0-100%
7	A	m	b e	r ⇔ 255 0-100%	000
8 Amber fine 1				⇔ 255 0-100%
9	L	i	m e	⇔ 255 0-100%	000
10	Lime fine 1			000 ⇔ 255 0-100%
11	Red 2			000 ⇔ 255 0-100%
12	Red fine 2 000			⇔ 255 0-100%
13	Green 2			000 ⇔ 255 0-100%
14	Green fine 2			000 ⇔ 255 0-100%
15	Blue 2 000			⇔ 255 0-100%
16	Blue fine 2			000 ⇔ 255 0-100%
17	Amber 2			000 ⇔ 255 0-100%
18	Amber fine 2			000 ⇔ 255 0-100%
19	Lime 2			000 ⇔ 255 0-100%
20	Lime fine 2			000 ⇔ 255 0-100%

2-Cell RGBAL EXT 19CH

Channel Function Value Percent/Setting
1 Dimmer 000				255 0-100%
2 Dimmer fine 000				255 0-100%
3	R	e	d	1 255 0-100%	000
4	G	r	e e	n 255 0-100%	000
5	B	l	u e	255 0-100%	000
6	A	m	b e	r 255 0-100%	000
7	L	i	m e	255 0-100%	000
8 Virtual Color Wheel 1 000				255	Refer to theVirtual Color Wheel Chartsection for specific values
9 Color Temperature 1 000				255	Refer to theControl Panel Descriptionsection for specific values
10	Strobe 1			000 010 No function011 255	Strobe, slow to fast
11	Red 2			000 255 0-100%
12	Green 2			000 255 0-100%
13	Blue 2 000			255 0-100%
14	Amber 2			000 255 0-100%
15	Lime 2			000 255 0-100%
16	Virtual Color Wheel 2			000 255	Refer to theVirtual Color Wheel Chartsection for specific values
17	Color Temperature 2			000 255	Refer to theControl Panel Descriptionsection for specific values
18	Strobe 2			000 010 No function011 255	Strobe, slow to fast
19	Strobe all			000 010 No function011 255	Strobe, slow to fast

2-Cell RGBA EXT 17CH

Channel Function Value Percent/Setting
1 Dimmer 000				255 0-100%
2 Dimmer fine 000				255 0-100%
3	R	e	d	1 255 0-100%
4	G	r	e e	n 255 0-100%
5	B	l	u e	255 0-100%
6	A	m	b e	r 255 0-100%
7 Virtual Color Wheel 1				255	Refer to theVirtual Color Wheel Chartsection for specific values
8 Color Temperature 1				255	Refer to theControl Panel Descriptionsection for specific values
9	S	t	r o	000 010 No function011 255 Strobe, slow to fast
10	Red 2			000 255 0-100%
11	Green 2			000 255 0-100%
12	Blue 2 000			255 0-100%
13	Amber 2			000 255 0-100%
14	Virtual Color Wheel 2			000 255	Refer to theVirtual Color Wheel Chartsection for specific values
15	Color Temperature 2			000 255	Refer to theControl Panel Descriptionsection for specific values
16	Strobe 2			000 010 No function011 255 Strobe, slow to fast
17	Strobe all			000 010 No function011 255 Strobe, slow to fast

2-Cell RGB EXT 15CH

Channel Function Value Percent/Setting
1 Dimmer 000				255 0-100%
2 Dimmer fine 000				255 0-100%
3	R	e	d	1 255 0-100%	000
4	G	r	e e	n 255 0-100%	000
5	B	l	u e	255 0-100%	000
6 Virtual Color Wheel 1				255	Refer to theVirtual Color Wheel Chartsection for specific values
7 Color Temperature 1				255	Refer to theControl Panel Descriptionsection for specific values
8	S	t	r o	000 010 No function011 255 Strobe, slow to fast
9	R	e	d	2 255 0-100%	000
10	Green 2 000			255 0-100%
11	Blue 2			000 255 0-100%
12	Virtual Color Wheel 2			000 255	Refer to theVirtual Color Wheel Chartsection for specific values
13	Color Temperature 2			000 255	Refer to theControl Panel Descriptionsection for specific values
14	Strobe 2			000 010 No function011 255 Strobe, slow to fast
15	Strobe all			000 010 No function011 255 Strobe, slow to fast

2-Cell RGBAL 10CH

Channel Function Value Percent/Setting
1	R	e	d		1 ⇔ 255 0-100%00
2	G	r	e	e	n ⇔ 255 0-100%	000
3	B	l	u	e	⇔ 255 0-100%	000
4	A	m	b	e	r ⇔ 255 0-100%1	000
5	L	i	m	e	⇔ 255 0-100%	000
6	R	e	d		2 ⇔ 255 0-100%00
7	G	r	e	e	n ⇔ 255 0-100%2	000
8	B	l	u	e	⇔ 255 0-100%	000
9	A	m	b	e	r ⇔ 255 0-100%2	000
10 Lime	2			000	⇔ 255 0-100%

2-Cell RGBA 8CH

Channel Function Value Percent/Setting
1	R	e	d		1 ⇔ 255 0-100%00
2	G	r	e	e	n ⇔ 255 0-100%	000
3	B	l	u	e	⇔ 255 0-100%	000
4	A	m	b	e	r ⇔ 255 0-100%1	000
5	R	e	d		2 ⇔ 255 0-100%00
6	G	r	e	e	n ⇔ 255 0-100%2	000
7	B	l	u	e	⇔ 255 0-100%	000
8	A	m	b	e	r ⇔ 255 0-100%2	000

2-Cell RGB 6CH

Channel Function Value Percent/Setting
1	R	e	d		1 ⇔ 255 0-100%00
2	G	r	e	e	n ⇔ 255 0-100%	000
3	B	l	u	e	⇔ 255 0-100%	000
4	R	e	d		2 ⇔ 255 0-100%00
5	G	r	e	e	n ⇔ 255 0-100%	000
6	B	l	u	e	⇔ 255 0-100%	000

2-Cell HSV 6CH

Channel Function Value Percent/Setting
1	H	u	e	1 ⇔ 255 0-100%00
2	Saturation 1			000 ⇔ 255 0-100%
3	Va	l	u e	⇔ 255 0-100%	000
4	H	u	e	2 ⇔ 255 0-100%00
5	Saturation 2			000 ⇔ 255 0-100%
6	Va	l	u e	⇔ 255 0-100%	000

1-Cell Personalities

1-Cell RGBAL FULL 17CH

Channel Function Value Percent/Setting
1 Dimmer 000		255 0-100%
2 Dimmer fine 000		255 0-100%
3	R e d	000 255 0-100%
4 Red fine 000		255 0-100%
5	G r e e	n 255 0-100%
6 Green fine 000		255 0-100%
7	B l u e	255 0-100%
8	Blue fine	000 255 0-100%
9	A mb e r	255 0-100% 000
10	Amber fine	000 255 0-100%
11	Lime	000 255 0-100%
12	Lime fine	000 255 0-100%
13	Virtual Color Wheel	000 255	Refer to theVirtual Color Wheel Chartsection for specific values
14	Color Temperature	000 255	Refer to theControl Panel Descriptionsection for specific values
15	Strobe	000 010 No function011 255 Strobe, slow to fast
16	Color macros	000 015 No function016 255 Color macros
17	Dimmer speed	000 051 Preset dimmer speed from display menu052 101 Dimmer speed mode off102 152 Dimmer speed mode 1 (fastest)153 203 Dimmer speed mode 2204 255 Dimmer speed mode 3 (slowest)

1-Cell RGBAL Fine 10CH

Channel Function Value Percent/Setting
1	R ed				265 0-100%
2 Red fine 000					255 0-100%
3	G re e n				255 0-100%	000
4 Green fine 000					255 0-100%
5	B lu e				255 0-1000%
6	Blue fine				000 255 0-100%
7	A mb e r				255 0-100%	000
8 Amber fine			000		255 0-100%
9	L im e				000 255 0-100%
10	Lime fine				000 255 0-100%

1-Cell RGBAL EXT 10CH

Channel Function Value Percent/Setting
1 Dimmer 000					255 0-100%
2 Dimmer fine 000					255 0-100%
3	R	e	d		000 255 0-100%
4	G	r	e	e	n 255 0-100%
5	B	l	u	e	2550-100%
6	A	m	b	e	r 255 0-100%
7	L	i	m	e	25500-100%
8 Virtual Color Wheel 000					255	Refer to theVirtual Color Wheel Chartsection for specific values
9 Color Temperature 000					255	Refer to theControl Panel Descriptionsection for specific values
10	Strobe				000 010 No function011 255	Strobe, slow to fast

1-Cell RGBA EXT 9CH

Channel Function Value Percent/Setting
1 Dimmer 000					255 0-100%
2 Dimmer fine 000					255 0-100%
3	R	e	d		000 255 0-100%
4	G	r	e	e	n 255 0-100%
5	B	l	u	e	255 0-100%
6	A	m	b	e	r 255 0-100%
7 Virtual Color Wheel 000					255	Refer to theVirtual Color Wheel Chartsection for specific values
8 Color Temperature 000					255	Refer to theControl Panel Descriptionsection for specific values
9	S	t	r	o	000 010 No function011 255	Strobe, slow to fast

1-Cell RGB EXT 8CH

Channel Function Value Percent/Setting
1 Dimmer 000					255 0-100%
2 Dimmer fine 000					255 0-100%
3	R	e	d		000 255 0-100%
4	G	r	e	e	n 255 0-100%
5	B	l	u	e	2550-100%
6 Virtual Color Wheel 000					255	Refer to theVirtual Color Wheel Chartsection for specific values
7 Color Temperature 000					255	Refer to theControl Panel Descriptionsection for specific values
8	S	t	r	o	000 010 No function011 255	Strobe, slow to fast

1-Cell RGBAL 5CH

Channel Function Value Percent/Setting
1	R	e	d		000 255 0	100%
2	G	r	e	e	n 255 0	100%00
3	B	l	u	e	25500	100%
4	A	m	b	e	r 255 0	100%00
5	L	i	m	e	25500	100%

1-Cell RGBA 4CH

Channel Function Value Percent/Setting
1	R	e	d		000 255 0-100%
2	G	r	e	e	n 255 0-100%
3	B	l	u	e	25500-100%
4	A	m	b	e	r 255 0-100%

1-Cell RGB 3CH

Channel Function Value Percent/Setting
1	R	e	d		000 255 0-100%
2	G	r	e	e	n 255 0-100%
3	B	l	u	e	2560-100%

1-Cell DMX-VCW-CCT 3CH

Channel Function Value Percent/Setting
1 Dimmer 000		255 0-100%
2 Virtual Color Wheel 000		255	Refer to theVirtual Color Wheel Chartsection for specific values
3 Color Temperature	000	255	Refer to theControl Panel Descriptionsection for specific values

1-Cell HSV 3CH

Channel Function Value Percent/Setting
1	H u e	000 ⇔ 255 0	100%
2	Saturation	000 ⇔ 255 0	100%
3	Value	000 ⇔ 255 0	100%

Acerca de Esta Guía

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, the UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

ART NET

ETHERNET

UL 1573

CSA C22.2 No. 166

E113093

RoHS
