Owner's Manual

Over The Range Microwave Oven

Household Use Only

KOTR30XV

ATTACHED INSTALLATION INSTRUCTION PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT, AND SAVE THIS MANUAL FOR FUTURE USE.

CONTENTS

Safety Information

IMPORTANT SAFETY INSTRUCTIONS 7-8

Utensils 9

Radio Interference.... 10

Grounding Instructions 10-11

Installation Instructions 12

Food Preparation.... 13-14

Cookware guide....15

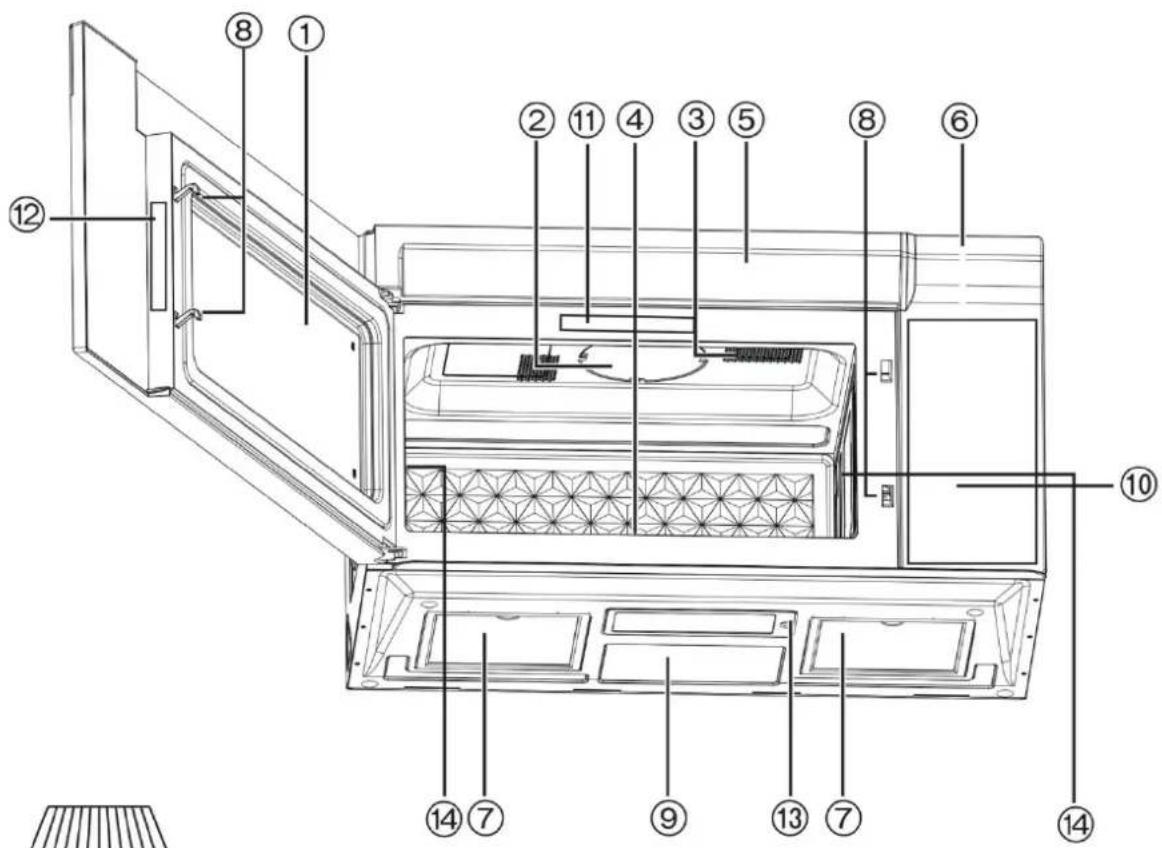

Oven Components Diagram 16

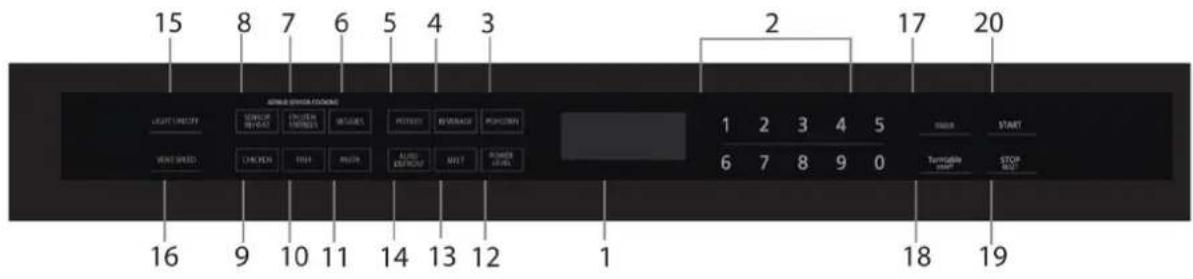

Control Panel 17

Operation

Using the Microwave for the First Time 18

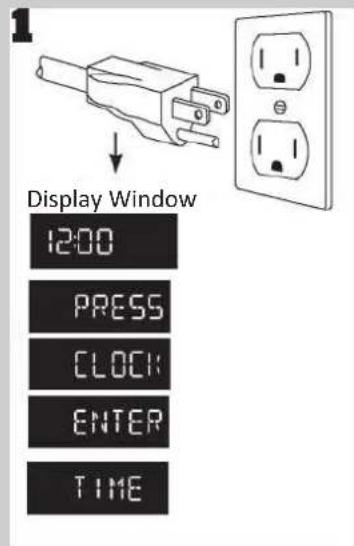

Setting the Clock....18

Setting the Child Safety Lock 18

Setting Light 19

Setting Turntable On/Off 19

Setting Fan 19

Cooking 20

Setting the Timer 20

Potato 21

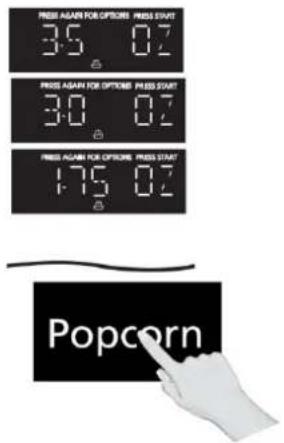

Popcorn 21

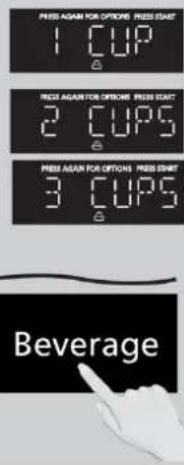

Beverage 21

Sensor Menu 22-23

Melt 24

Auto Defrost 25

Placement of the Roller Ring 26

For best cooking Results 1-Level cooking 27

Food Characteristics 27-28

Maintenance

Care and Cleaning of Your Microwave Oven 29-32

Before Requesting Service 33

Specifications 34

Warranty 35

Your safety and the safety of others are very important.

We have provided important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER", "WARNING" or "CAUTION". These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

You can be exposed to a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) DO NOT attempt to operate this oven with the door open, since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) DO NOT place any object between the oven front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) DO NOT operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance. When using this electric appliance, basic safety precautions should be followed, including the following:

WARNING

To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1. Re ad all instructions before using this appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY," above.
3. This appliance must be grounded. Connect only to a properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 6.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instructions found on page 5.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water (for example, near a kitchen sink, in a wet basement, or near a swimming pool or similar locations).
8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals, vapors or non-food products in this appliance. This type of oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks.
9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth.

IMPORTANT SAFETY INSTRUCTIONS (continued)

1. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that because a child has mastered one cooking skill he/she can cook everything.
2. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
3. DO NOT immerse cord or plug in water.
4. Keep cord away from heated surfaces.
5. DO NOT let cord hang over edge of a table or counter.
6. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service center for examination, repair or adjustment.
7. Some products such as whole eggs, with or without shell, narrow neck bottles and sealed containers (for example, closed glass jars) may explode and should not be heated in this oven.
8. To reduce the risk of fire in the oven cavity:

(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity when not in use.

1. Superheated Liquids: Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without showing evidence (or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave oven. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING.
(b) DO NOT heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent eruption.
(c) DO NOT use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.

1. DO NOT cook directly on the turntable. It can crack, and cause injury or damage to the oven.
2. This appliance is suitable for use above both gas and electric cooking equipment 91.4 cm (36 inches) or less wide. To reduce the risk of fire and electric shock, install at least 34.6 cm (1 35/8 inches), above a cooktop, measured to the bottom of the oven.
3. Clean Ventilating hoods Frequently - Grease should not be allowed to accumulate on hood or filter.
4. Use care when cleaning the Grease filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter. Clean in hot detergent solution every month.
5. Never flame foods under the oven, with the vent fan operating, because it may spread the flames.

SAVE THESE INSTRUCTIONS

WARNING

TO AVOID THE RISK OF SHOCK:

DO NOT remove outer panel from oven. Repairs must be done only by a qualified service person.

Illustration of hands holding a megaphone with a prohibition symbol (no text or labels)

TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:

DO NOT tamper with, or make any adjustments or repairs to Door, Control Panel Frame, Safety Interlock Switches, or any other part of the oven. Microwave leakage may result.

Safety Precautions

TO AVOID THE RISK OF FIRE:

1. DO NOT operate the microwave oven empty or use metal containers. When using the microwave oven without water or food, microwave energy cannot be absorbed and will continuously reflect throughout the cavity. This is oven cavity, door or other component hazard.

Warning sign showing a microwave with a prohibition symbol crossed out, indicating no protection or absence of the microwave.

1. DO NOT store flammable materials next to, on top of, or in the oven.

2. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or paper bags for cooking.

3. DO NOT hit or strike Control Panel. Damage to controls may occur.
4. DO NOT use recycled paper products unless the paper product is labeled as safe for microwave oven use. Recycled paper products may contain

Glass Tray

1. DO NOT operate the oven without the Roller Ring and the Glass Tray in place.
2. DO NOT operate the oven without the Glass Tray fully engaged on the drive hub. Improper cooking or damage to the oven could result. Verify that the Glass Tray is properly engaged and rotating by observing its rotation when you press Start.

impurities, which may cause sparking.

TO AVOID THE RISK OF SCALDING:

POT HOLDERS should always be used when removing items from the oven. Heat is transferred from the HOT food to the cooking container and from the container to the Glass Tray. The Glass Tray can also be very HOT after removing the cooking container from the oven.

Hand holding a dark cylindrical object with a small metallic element, possibly a container or basin (no visible text or symbols)

Note: The Glass Tray can turn in either direction.

1. Use only the Glass Tray specifically designed for this oven. DO NOT substitute any other Glass Tray.
2. If the Glass Tray is hot, allow to cool before cleaning or placing in water.
3. DO NOT cook directly on the Glass Tray. Always place food in a microwave safe dish, or on a rack set in a microwave safe dish.
4. If food or utensil on the Glass Tray touches oven walls, causing the tray to stop moving, the tray will automatically rotate in the opposite direction.

Roller Ring

1. The Roller Ring and oven floor should be cleaned frequently to prevent excessive noise.
2. Always replace the Roller Ring and the Glass Tray in their proper positions.
3. The Roller Ring must always be used for cooking along with the Glass Tray.

For proper use of your oven, read remaining safety cautions and operating instructions.

UTENSILS

CAUTION

Personal Injury Hazard:

Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

Line drawing of a microwave oven with a bowl inside (no text or symbols)

1. Cook on maximum power for 1 min.
2. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
3. DO NOT exceed 1 min cooking time.

CAUTION

KEEP THE CAVITY CLEAN

Line drawing of a hand cleaning a microwave oven with a circular button (no text or symbols)

RADIO INTERFERENCE

1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

(a) Clean door and sealing surface of the oven.
(b) Reorient the receiving antenna of radio or television.
(c) Relocate the microwave oven with respect to the receiver.
(d) Move the microwave oven away from the receiver.
(e) Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

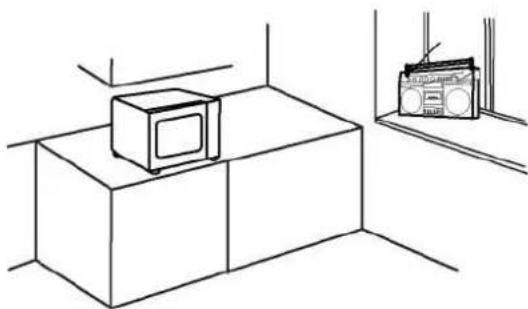

Line drawing of a microwave on a cabinet and a radio on a wall, no text or symbols present

GROUNDING INSTRUCTIONS

WARNING

Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

!DANGER

Electric shock Hazard:

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric shock Hazard:

Improper use of the grounding can result in electric shock.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets, or extension cords, are not recommended.
3. If a long cord or extension cord is used:

(a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
(b) The extension cord must be a grounding-type 3-wire cord.
(c) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

WARNING: IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.

Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Grounding Instructions

THIS APPLIANCE MUST BE

GROUNDED. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.

3-Prong Receptacle

The plug must be plugged into an outlet that is properly installed and grounded.

• Plug into properly installed and grounded three-prong outlet.
  • DO NOT remove ground prong.
  • DO NOT use an adapter.

Wiring Requirements

• The oven must be operated on a DEDICATED CIRCUIT. No other appliance should share the circuit with the microwave oven. If it does, the branch circuit fuse may blow or the circuit breaker may trip.
• The oven must be plugged into at least a 20 A, 120 V, 60 Hz GROUNDED OUTLET. Where a standard two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet.
• The VOLTAGE used must be the same as specified on this microwave oven (120 V, 60 Hz).
• Using a higher voltage is dangerous and may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Midea is NOT responsible for any damages resulting from the use of the oven with any voltage other than specified.

TV / RADIO/WIRELESS EQUIPMENT INTERFERENCE

This product has been tested and found to comply with the limits or Microwave Oven, pursuant to Part 18 of the FCC Rules. This product can radiate radio frequency energy, which could cause interference to such products as radio, TV, baby monitor, cordless phone, Bluetooth, wireless router, etc., which can be confirmed by turning this product off and on. If present, the user is encouraged to try to correct by taking one or more of the following countermeasures:

(1) Increase the spacing distance between the microwave oven and other product receiving the interference.
(2) If possible, use a properly installed receiver antenna and/or reorient the receiving antenna of the other product receiving the interference.
(3) Plug the microwave oven into a different outlet from the other product receiving the interference.
(4) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your Microwave Oven)

Examine Your Oven

Unpack oven, remove all packing material and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged.

Placement of Oven

1. This oven must be installed in at least a 76 cm (30") inch opening, it is suitable for use above gas or electric cooking equipment 91.4 cm (36 inches) or less wide.

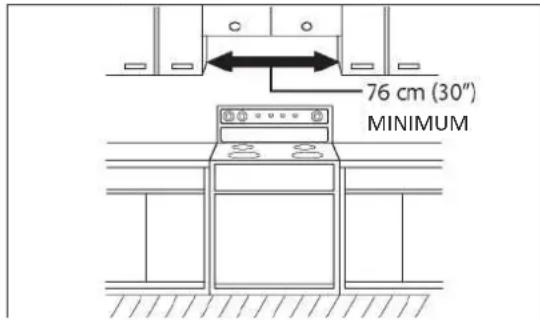

76 cm (30") MINIMUM

1. Be sure to install this oven only in accordance with the additional installation instructions provided.
2. It is recommended that the product be mounted to a flush wall of 5 x 10 cm (2" x 4") stud and 1cm ( 18 ) minimum thickness drywall or plaster/lath construction. For further information, please consult the additional installation instructions provided.
3. Make sure the kitchen cabinet height is as high as the specification described in the installation instructions.
4. This oven was manufactured for household use only.

The Hood

1. The vent fan in your oven will operate automatically under certain cooktop operating conditions. This is normal. Caution is required to prevent the starting and spreading of accidental cooking fires while the vent fan is in operation.
2. Never leave surface units unattended at high heat setting. Boil over causes smoking and greasy spillovers that may ignite and spread if vent fan is operating. To minimize automatic fan operation, use adequate sized utensils and use high heat settings only when necessary.
3. In the event of a grease fire, smother flaming pan on surface unit by covering pan completely with well-fitting lid, cookie sheet or flat tray.
4. Keep hood and grease filters clean, according to instructions on page 25, to maintain adequate venting and avoid grease fires.
5. To protect the automatic fan feature, always keep the filter clean (see page 25). Should the fan require repair, do not operate microwave oven until it has been repaired.

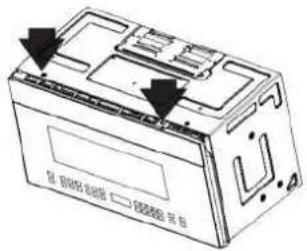

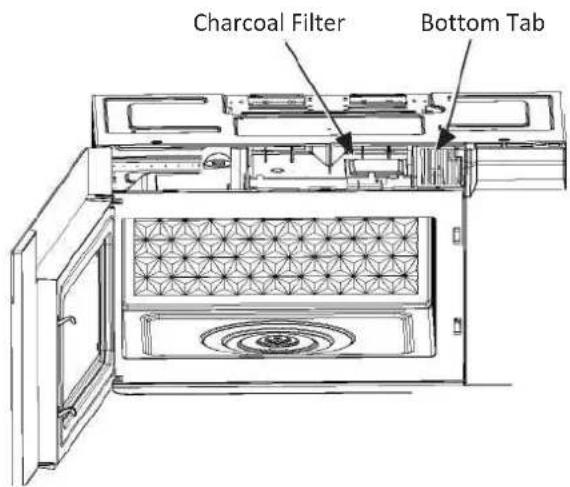

6. Charcoal filter should be replaced periodically. It may be purchased from a local dealer.

Indoor Venting

If the air exhaust must be recirculated by this unit inside the kitchen, a charcoal filter must be used. A charcoal filter has been installed for your convenience. However, we recommend that this filter be changed as soon as possible with the replacement charcoal filter kit that can be purchased from your local dealer.

Food Preparation

Follow these Safety Precautions when cooking in your oven.

IMPORTANT

Proper cooking depends upon the power, the time setting and quantity of food. If you use a smaller portion than recommended but cook at the time for the recommended portion, fire could result.

1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL QUANTITIES OF FOODS

• DO NOT use your oven for home canning. Your oven cannot maintain the food at the proper canning temperature. The food may be contaminated and then spoil.
- DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is difficult to keep the oven at the high temperature needed for sterilization.
- DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities of food or foods with low moisture content can dry out, scorch or catch on fire if overheated.

2) POPCORN

Popcorn may be popped in a microwave oven corn popper. Microwave popcorn that pops in its own package is also available. Follow popcorn manufacturers' directions and use a brand suitable for the cooking power of your microwave oven.

CAUTION: When using pre-packaged microwave popcorn, you can follow recommended package instructions or use the Popcorn pad (refer to page 15). Otherwise, the popcorn may not pop adequately or may ignite and cause a fire. Never leave the oven unattended when popping popcorn. Allow the popcorn bag to cool before opening, and always open the bag facing away from your face and body to prevent steam burns.

Black-and-white photo of a train interior with thick smoke rising above the window, no visible text or symbols

3) D EEP FAT FRYING

- DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames and may cause damage to the oven and may result in burns. Microwave utensils may not withstand the temperature of the hot oil, and can shatter or melt.

• DO NOT COOK / REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL.

Steam buildup in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED eggs is safe.

Prohibition symbol of a circle with no text or numbers, depicting a prohibition (no text present)

Abstract 3D geometric shape with no text or symbols

Potatoes, apples, whole squash and sausages are examples of foods with nonporous skins. These types of foods must be pierced before microwave cooking to prevent them from exploding.

CAUTION: Cooking dry or old potatoes can cause fire.

Close-up of a fork interacting with a textured surface (no text or symbols visible)

• Cooking containers get hot during microwaving. Heat is transferred from the HOT food to the container and the Glass Tray. Use pot holders when removing containers from the oven or when removing lids or plastic wrap covers from cooking containers, to avoid burns.
• The Glass Tray will get hot during cooking. It should be allowed to cool before handling or before paper products, such as paper plates or microwave popcorn bags, are placed in the oven for microwave cooking.
• When using foil in the oven, allow at least 1-inch (2.5 cm) of space between foil and interior oven walls or door.
• Dishes with metallic trim should not be used, as arcing may occur.

Food Preparation (continued)

6) PAPER TOWELS / CLOTHS

- DO NOT use paper towels or cloths that contain a synthetic fiber woven into them. The synthetic fiber may cause the towel to ignite. Use paper toweling under supervision.

7) BROWNING DISHES / OVEN COOKING BAGS

• Browning dishes or grills are designed for microwave cooking only. Always follow instructions provided by the manufacturer. DO NOT preheat browning dish more than six minutes.
• If an oven cooking bag is used for microwave cooking, prepare according to package directions. DO NOT use a wire twist-tie to close bag. Instead use plastic ties, cotton string or a strip cut from the open end of the bag.

8) THERMOMETERS

• DO NOT use a conventional meat thermometer in your oven. Arcing may occur. Microwave safe thermometers are available for both meat and candy.

g to e stic the / ss ar ot nd

- DO NOT heat baby formula or baby food in the microwave oven. The glass jar or surface of the food may appear warm while the interior can be so hot as to burn the infant's mouth and esophagus.

Prohibition sign with a circle and diagonal line crossing over a bottle, indicating no smoking or disinfection.

10) REHEATING PASTRY PRODUCTS

- When reheating pastry products, check temperatures of any fillings before eating. Some foods have fillings, which heat faster and can be extremely hot, while the surface remains warm to the touch (for example, jelly donuts).

11) GENERAL OVEN USAGE GUIDELINES

- DO NOT use the oven for any purpose other than the preparation of food.

Cookware Guide

This section answers the question, "Can I use in the Microwave?"

Aluminum Foil

It is not recommended to use. Arcing can occur if foil is too close to oven wall or door and cause damage to your oven.

Glass Jars

No. Most glass jars are not heat resistant.

Check Microwave Safe manufacturers' directions for recommended uses. Some microwave safe plastic containers are not suitable for cooking foods with high fat or sugar content. The heat from hot food may cause warping.

Browning Dish

Yes. Only use browning dishes that are designed for microwave cooking. Check browning dish information for instructions/heating chart. Do not preheat for more than six minutes.

Heat Resistant Oven

Glassware/ Ceramic

Yes, but only ones for microwave cooking and browning. (See

CONTAINER TEST below.)

Plastic, Melamine

No. This material absorbs microwave energy. Dishes get HOT!

Brown Paper Bags

No. They may cause a fire in the oven.

Metal Bakeware

No. Metal can cause arcing and damage to your oven.

Plastic Foam Cups

Yes, with caution. Plastic foam will melt if foods reach a high temperature. Use short term only to reheat foods to a low serving temperature. Do not microwave paper cups; they may overheat and ignite.

Microwave Safe

Yes. If labeled Microwave Safe, check manufacturers' directions for use in microwave heating. Some dinnerware may state on the back of the dish, "Oven-Microwave Safe".

Metal Twist-Ties

No. May cause arcing which could cause a fire in the oven.

Plastic Wrap

Yes. Use to cover food during cooking to retain moisture and prevent splattering. Should be labeled "Suitable for Microwave Heating". Check package directions.

Dinnerware

If unlabeled, use CONTAINER TEST below.

Disposable Polyester Paperboard Dishes

Yes. Some frozen foods are packaged in these dishes. Also can be purchased in some grocery stores.

Oven Cooking Bag

Yes. Follow manufacturers' directions. Close bag with the nylon tie provided, a strip cut from the end of the bag, or a piece of cotton string. Do not close with metal twist-tie. Make six 1/2-inch slits near the closure.

Paper Plates/Cups

Yes. Use to warm cooked foods, and to cook foods that require short cooking time, such as hot dogs. Do not microwave paper cups; they may overheat and ignite.

Straw, Wicker, Wood

Yes, short term only. Use only for short term reheating and to bring food to a low serving temperature. Wood may dry out, split or crack.

Fast Food Cartons with Metal Handle

No. Metal handle may cause arcing.

Towels & Napkins

Yes, only paper napkins/towels. Use to warm rolls and sandwiches, only if labeled safe for microwave use. Do NOT use recycled paper towels.

Thermometers

Only microwave safe thermometers can be used, NOT conventional thermometers.

Frozen Dinner Trays

If made for the microwave, then yes. If it contains metal, then no.

Parchment Paper

Yes. Use as a cover to prevent splattering.

Plastic Cookware

Yes, with caution. Should be labeled, "Suitable for Microwave Heating."

Wax Paper

Yes. Use as a cover to prevent splattering and to retain moisture.

CONTAINER TEST

TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in the microwave oven along side the empty container to be tested; heat one (1) minute a: PL-HI (HIGH). If the container is microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This test cannot be used for plastic containers.

Water faucet with a glass of water, no text or symbols visible

Oven Components Diagram

Technical diagram of a refrigerator internal structure with numbered components for identification

Shelf

Do not place SHELF permanently in the oven cavity. Use SHELF for 2-level cooking only.

Glass Tray

Roller Ring

1 See-through Oven Window
2 Waveguide Cover (do not remove)
3 Oven Light
4 Glass Tray (Turntable)
5 Oven Air vent (Vent Grille is removable and can be cleaned, see page 25)
6 Panel
7 Grease Filter (Grease filter is removable and can be cleaned, see page 25)
8 Door Safety Lock System
9 Warning Label
10 Cooking Guide Label
11 Rating Label
12 CSA Label
13 Cook-top Light
14 Shelf Supports

NOTE:

The illustration is for reference only.

Control Panel

15 8 7 6 5 4 3 2 17 20 LIGHT WIRELL SINIC LIME LEMON MINT POTATO MINIMUM MINIMUM 1 2 3 4 5 START 6 7 8 9 0 TURRIC LIME STOP LIME 16 9 10 11 14 13 12 1 18 19

1. Display Window
2. Number Pads
3. Popcorn Pad
4. Beverage Pad
5. Potato Pad
6. Veggies Pad
7. Frozen Entrees Pad
8. Sensor Reheat Pad
9. Chicken Pad
10. Fish Pad
11. Pasta Pad
12. Power Level Pad
13. Melt Pad
14. Auto Defrost Pad
15. Light On/Off Pad
16. Vent Speed
17. Timer
18. Turn Table On/Off Pad
19. Stop/Reset Pad

Before cooking: one tap clears all your instructions. During cooking: one press temporarily stops the cooking process. Another press cancels all your instructions, and time of day or colon appears in the display window.

1. Start pad

After cooking program setting, one press allows oven to begin functioning. If door is opened or Stop/Reset pad is pressed once during oven operation, Start pad must be pressed again to restart oven.

Operation

Using the Microwave for the First Time

1 ↓ Display Window 12:00 PRESS CLOCK ENTER TIME

Plug into a properly grounded electrical outlet. "12:00 PRESS CLOCK ENTER TIME" message scrolls across display window.

2

12:30 STOP RESET

The oven automatically defaults to the imperial measure system (oz/lb). Press Start to cycle between the weight system, Metric(g/kg) or Imperial (oz/lb)

NOTES:

These choices can be selected only when you plug-in the oven.

Setting the Clock

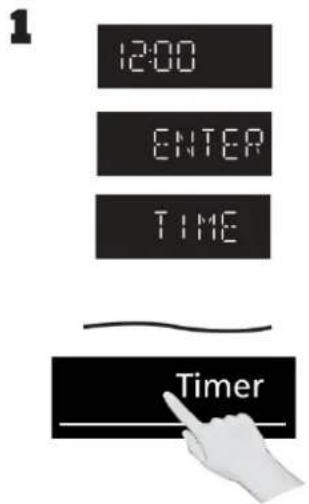

1 12:00 ENTER TIME Timer

Press Clock/Timer once, then press number pad to input the current time.

2 10:59 PRESS START START

Press Start once to confirm.

Current time is displayed.

If no operation in 5 minutes, the setting will be cancelled.

Setting the Child Safety Lock

1 12:30 START

When the time of day appears in the display, press Start three times; Current time will appear in the display.

2 12:30 STOP RESET

Press Stop/Reset three times; Current time will display and Child Lock will be cancelled.

NOTES:

1. This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
2. You can set Child Lock feature when the display shows a colon or time of day. Setting Light

Operation (continued)

Setting Light

1 ON OFF Light On/Off

This feature allows you to control the brightness of Cooktop Light.

Press Light pad once to turn on the light. Twice to turn off the light.

Setting Turntable On/Off

1 ON OFF Turntable on/off

For best cooking results, leave the turntable on. It can be turned off for large dishes.

Press Turntable On/Off pad to turn the turntable on or off. When you turn it off, on or off. will appear in the display window.

NOTES:

1. When "Turntable Off" is selected, it will automatically return to "On" again after the heating cycle is completed. Do not operate the oven "Turntable Off" when cooking foods.
2. Sometimes the glass tray can become too hot to touch. Be careful when touching the glass tray during and after cooking.
3. When a large dish or more than one dish is used for cooking, the turntable can be turned off. For best results, rotate each dish or interchange multiple dishes, and stir foods occasionally during cooking. For foods that cannot be stirred, (e.g. lasagna) the center of foods should be cut with a knife, to ensure it is well heated through.

Setting Fan

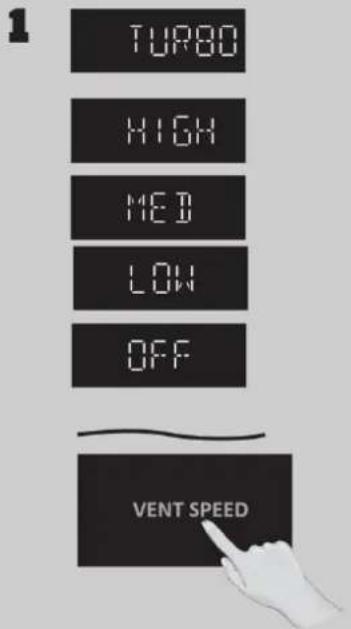

1 TURBO HIGH MED LOW OFF VENT SPEED

The Fan (Vent Fan) removes steam and other vapors from the cooking surface below the microwave oven. Press Vent Fan pad once for Turbo fan speed, twice for High fan speed, 3 times for Med. fan speed, and 4 times for Low fan speed, 5 times for fan speed off.

NOTES:

1. The High fan speed will run for one second even though the Low fan setting is selected. This is absolutely normal.
2. If the temperature from the range or cooktop below the oven gets too hot, the vent fan will automatically turn on to protect the oven. It may stay on up to an hour to cool the oven. When this occurs, the Vent pad will not turn the fan off.

Operation (continued)

Cooking

1

Press Power Level until the desired power level appears in the display. PL--HI is the highest and PL--O is the lowest.

Press	Power Level
once	PL--HI (HIGH)
twice	PL--90
3 times	PL--80
4 times	PL--70
5 times	PL--60
6 times	PL--50
7 times	PL--40
8 times	PL--30
9 times	PL--20
10 times	PL--10
11 times	PL--0

DO NOT OVERCOOK: This oven requires less time to cook than older units. Overcooking will cause food to dry out and may cause a fire. A microwave oven's cooking power tells you the amount of microwave power available for cooking.

Stage Cooking:

For more than one stage of cooking, repeat steps 1 and 2 for each stage of cooking before pressing Start. The maximum number of stages for cooking is three. When operating, two beeps will sound between each stage. Three beeps will sound at the end of the entire sequence.

2

5:00 PASS START 5 0 0

Set Cooking Time using the Number pads. The max. time is 99 minutes, 99 seconds.

3

COOK 5:00 START

Press Start; the cooking will start and the time will count down in the display. At the end of cooking, three beeps will sound. Potato

Setting the Timer

1

ENTER TIME Timer

This feature allows you to program the oven as a kitchen timer. Press Clock/Timer twice.

2

3:00 Press START 3 0 0

Set desired amount of time using Number pads (up to 99 minutes, 99 seconds).

3

3:00 START

Press Start. The timer will count down without cooking and three beeps when done.

Notes:

1. END is displayed when timer finished.
2. During setting, press STOP/RESET to exit timer setting

Operation (continued)

Potato

This feature allows you to cook potatoes without setting weight and time. The oven simplifies programming.

1

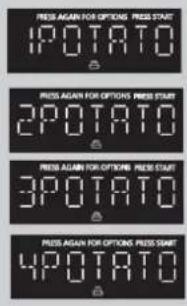

Press AGAIN FOR OPTIONS PRESS START 1POTATO Press AGAIN FOR OPTIONS PRESS START 2POTATO Press AGAIN FOR OPTIONS PRESS START 3POTATO Press AGAIN FOR OPTIONS PRESS START 4POTATO

Potato

Twice for 2 potatoes.

Three times for 3 potatoes.

Four times for 4 potatoes.

2

POTATO START

Press Start. Cooking time appears in the display window and begins to count down.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Popcorn

This feature allows you to pop popcorn without setting weight and time. The oven simplifies programming.

1

PRESS AGAIN FOR OPTIONS PRESS START 3.5 0.7 PRESS AGAIN FOR OPTIONS PRESS START 3.0 0.7 PRESS AGAIN FOR OPTIONS PRESS START 1.75 0.7 Popcorn

Press Popcorn once for 3.5 Oz.

Twice for 3.0 Oz.

Three times for 1.75 Oz.

2

POPORN START

Press Start. Cooking time appears in the display window and begins to count down. NOTES:

1. Pop one bag at a time.
2. Place bag in oven according to manufacturers' directions.
3. Start with popcorn at room temperature.
4. Allow popped corn to sit unopened for a few minutes.
5. Open bag carefully to prevent burns, because steam will escape.
6. Do not reheat unpopped kernels or reuse bag.
7. If popcorn is of a different weight than listed, follow instructions on popcorn package.
8. Never leave the oven unattended.
9. Overcooking can burn popcorn or cause fire.

Beverage

This feature allows you to reheat beverage without setting weight and time. The oven simplifies programming.

1

PRESS AGAIN FOR OPTIONS PRESS START 1 CUP PRESS AGAIN FOR OPTIONS PRESS START 2 CUPS PRESS AGAIN FOR OPTIONS PRESS START 3 CUPS Beverage

Press Beverage once for 1 cup.

Twice for 2 cups.

Three times for 3 cups.

2

BEVERAGE START

Press Start. Cooking time appears in the display window and begins to count down.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Operation (continued)

Sensor Menu-Veggies

1

Press Veggies once for fresh vegetables. Twice for frozen vegetables.

2

Press Start. Fresh veggies or Frozen veggies appears in the display window.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Sensor Menu-Sensor Reheat

1

Press Sensor Reheat to choose reheat menu.

2

Press Start. Reheat appears in the display window.

NOTES:

1. END is displayed when cooking finished and beeps three times.

DO NOT USE SENSOR REHEAT:

1. To reheat bread and pastry products. Use manual power and time for these foods.
2. For raw or uncooked foods.
3. If oven cavity is warm.
4. For beverages.
5. For frozen foods.

Sensor Menu-Chicken

1

Press Chicken once.

2

Press Start. Chicken appears in the display window.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Operation (continued)

Sensor Menu-Fish

1 FISH FISH

Press Fish once.

2 COOK FISH START

Press Start. Fish appears in the display window.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Sensor Menu-Frozen Entree

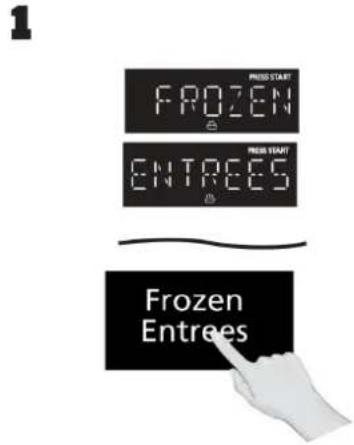

1 FROZEN PRESS START ENTREES PRESS START Frozen Entrees

Press Frozen Entree once.

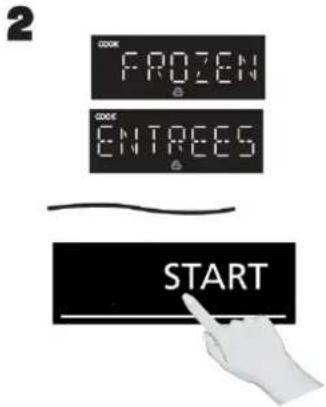

2 CODE FROZEN CODE ENTREES START

Press Start. Frozen entree appears in the display window.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Sensor Menu-Pasta

1 PASTA PASTA

Press Pasta once.

2 PASTA START

Press Start. Pasta appears in the display window.

NOTES:

1. END is displayed when cooking finished and beeps three times.

Operation (continued)

Melt

The oven uses low power to melt and soften items.

1. Butter
2. Chocolate
3. Cheese

1

PRESS AGAIN FOR OPTIONS PRESS START BUTTER PRESS AGAIN FOR OPTIONS PRESS START CHOCOLATE PRESS AGAIN FOR OPTIONS PRESS START CHEESE

Press Melt once for butter; twice for chocolate; three times for cheese.

2

Press Start to set the weight.

1

2

Enter the desired weight by pressing number pads 1 or 2.

3

BUTTER CHOCOLATE CHEESE

START

Press Start to start cooking.

MELT	TABLE
CATEGORY	AMOUNT	DIRECTION
BUTTER	3.5/7.0 Oz (100/200g)	Unwrap and place in microwavable container. No need to cover butter. Stir at the end of cooking to complete melting.
CHOCOLATE	7.0/10 Oz (200/300g)	Chocolate chips or squares of baking chocolate may be used. Unwrap squares and place in microwavable container. Stir at the end of cycle to complete melting.
CHEESE	1.75/3.5 Oz (50/100g)	Unwrap and place in microwavable container. Cream cheese will be at room temperature and ready for use in recipe.

Operation (continued)

Auto Defrost

1. MEAT
2. POULTRY
3. FISH

1

PRESS AGAIN FOR OPTIONS PRESS START HEAT PRESS AGAIN FOR OPTIONS PRESS START POULTRY PRESS AGAIN FOR OPTIONS PRESS START FISH Auto Defrost

Press Auto Defrost once for meat; twice for poultry; three times for fish.

2

ENTER WEIGHT START

Press Start to set the weight.

3

5:0 PROS START 5 0

Enter the desired weight by pressing number pads. The weight is 0.1-6.0 Lbs.

4

FISH START

Press Start to start defrosting. Cooking time counts down.

The auto defrost feature provides you with the best defrosting method for frozen foods. The cooking guide will show you which defrost sequence is recommended for the food you are defrosting.

For added convenience, the Auto Defrost includes a built-in beep mechanism that reminds you to check, turn over, separate, or rearrange the food in order to get the best defrost results.

Operating Tips

• For best results, remove fish, shell fish, meat and poultry from its original closed paper or plastic package (wrapper). Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook.
• For best results, roll your ground meat into a ball before freezing. During the DEFROST cycle, the microwave will signal when it is time to turn the meat over. Scrape off any excess frost from the meat and continue defrosting.
• Place foods in a shallow container or on a microwave roasting rack to catch drippings.

Weight conversion table

You are probably used to measuring food in pounds and ounces that are fractions of a pound (for example, 4 ounces equals 1/4 pound). However, in order to enter food weight in Auto Defrost, you must specify pounds and tenths of a pound.

If the weight on the food package is in fractions of a pound, you can use the following table to convert the weight to decimals.

Equivalent Weight
OUNCES	DECIMAL WEIGHT
1.6	.10
3.2	.20
4.0	.25 One-Quarter Pound
4.8	.30
6.4	.40
8.0	.50 One-Half Pound
9.6	.60
11.2	.70
12.0	.75 Three-Quarters Pound
12.8	.80
14.4	.90
16.0	1.0 One Pound

Operation (continued)

How to Use the Shelf When Microwaving

1. The shelf must be positioned on Shelf Supports securely to prevent damage to the oven from arcing.
2. DO NOT use a microwave browning dish on the shelf. The shelf and dish could overheat.
3. DO NOT use the oven with the shelf on the microwave floor. This could damage the microwave.
4. Use pot holders when handling the shelf—it may be hot.

Placement of the Roller Ring

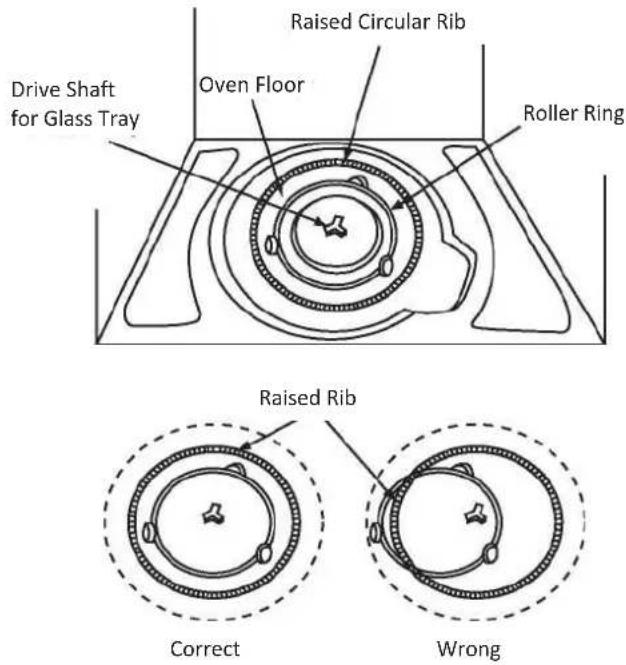

Before using the microwave oven, be sure the Roller Ring is properly installed. Incorrect installation can result in improper cooking, damage to the oven or spillage of food. The Roller Ring must be located on the surface between the raised rib and raised floor.

Drive Shaft for Glass Tray Oven Floor Raised Circular Rib Roller Ring Raised Rib Correct Wrong

For best cooking Results 1 -Level cooking

Food microwaves best when placed onto the turntable, with turntable on (rotating).

(Turntable On) For best results

When a large dish or more than one dish is used for cooking, the turntable can be turned off. For best results, rotate each dish or interchange multiple dishes, and stir foods occasionally during cooking. For foods that cannot be stirred, (e.g. lasagna) the center of foods should be cut with a knife, to ensure it is well heated through.

(Turntable Off) Rotate each dish halfway through cooking

(Turntable Off) Interchange dish halfway through cooking

For best cooking results, remove the shelf unless you are reheating on more than one level.

Simple line drawing of a box with a cross mark, no text or symbols present

Uneven results

Interchange dishes halfway through cooking

DO NOT use the shelf or operate Turntable Off when cooking foods on Popcorn | Inverter Turbo Defrost / Keep Warm / Sensor Reheat/Sensor Cook.

Food Characteristics

Food Characteristics

Bone and Fat

Both bone and fat affect cooking. Bones may cause irregular cooking. Meat next to the tips of bones may overcook while meat positioned under a large bone, such as a ham bone, may be undercooked. Large amounts of fat absorb microwave energy and the meat next to these areas may overcook.

Density

Porous, airy foods such as breads, cakes or rolls take less time to cook than heavy, dense foods such as potatoes and roasts. When reheating donuts or other foods with different centers be very careful. Certain foods have centers made with sugar, water, or fat and these centers attract microwaves (for example, jelly donuts). When a jelly donut is heated, the jelly can become extremely hot while the exterior remains warm to the touch. This could result in a burn if the food is not allowed to cool properly in the center.

Quantity

Two potatoes take longer to cook than one potato. As the quantity of the food decreases so does the cooking time. Overcooking will cause the moisture content in the food to decrease and a fire could result. Never leave microwave unattended while in use.

Shape

Uniform sizes heat more evenly. The thin end of a drumstick will cook more quickly than the meaty end. To compensate for irregular shapes, place thin parts toward the center of the dish and thick pieces toward the edge.

Size

Thin pieces cook more quickly than thick pieces.

Starting Temperature

Foods that are at room temperature take less time to cook than if they are chilled, refrigerated or frozen.

Cooking Techniques

Piercing

Foods with skins or membranes must be pierced, scored or have a strip of skin peeled before cooking to allow steam to escape. Pierce clams, oysters, chicken livers, whole potatoes and whole vegetables. Whole apples or new potatoes should have a 1-inch strip of skin peeled before cooking. Score sausages and frankfurters. Do not Cook/Reheat whole eggs, with or without the shell. Steam buildup in whole eggs may cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED eggs is safe.

Browning

Foods will not have the same brown appearance as conventionally cooked foods or those foods which are cooked utilizing a browning feature. Meats and poultry may be coated with browning sauce, Worcestershire sauce, barbecue sauce or shake-on browning sauce. To use, combine browning sauce with melted butter or margarine and brush on before cooking. For quick breads or muffins, brown sugar can be used in the recipe in place of granulated sugar, or the surface can be sprinkled with dark spices before baking.

Spacing

Individual foods, such as baked potatoes, cupcakes and appetizers, will cook more evenly if placed in the oven equal distances apart. When possible, arrange foods in a circular pattern.

Covering

As with conventional cooking, moisture evaporates during microwave cooking. Casserole lids or plastic wrap are used for a tighter seal. When using plastic wrap, vent the plastic wrap by folding back part of the plastic wrap from the edge of the dish to allow steam to escape. Loosen or remove plastic wrap as recipe directs for stand time. When removing plastic wrap covers, as well as any glass lids, be careful to remove them away from you to avoid steam burns. Various degrees of moisture retention are also obtained by using wax paper or paper towels.

Cooking Time

Cooking times will vary because of food shape variations, starting temperature, and regional preferences. Always cook food for the minimum cooking time given in a recipe and check for doneness. If the food is undercooked, continue cooking. It is easier to add time to an undercooked product. Once the food is overcooked, nothing can be done.

Food Characteristics (continued)

Stirring

Stirring is usually necessary during microwave cooking. Always bring the cooked outside edges toward the center and the less cooked center portions toward the outside of the dish.

Rearranging

Rearrange small items such as chicken pieces, shrimp, hamburger patties or pork chops. Rearrange pieces from the edge to the center and pieces from the center to the edge of the dish.

Turning

It is not possible to stir some foods to distribute the heat evenly. At times, microwave energy will concentrate in one area of the food. To help ensure even cooking, these foods need to be turned. Turn over large foods, such as roasts or turkeys, halfway through cooking.

Standing Time

Most foods will continue to cook by conduction after the microwave oven is turned off. After cooking meat, the internal temperature will rise 5 °F to 15° F (3 °C to 8 °C), if allowed to stand, tented with foil, for 10 to 15 minutes.

Casseroles and vegetables need a shorter amount of standing time, but this standing time is necessary to allow foods to complete cooking to the center without overcooking on the edges.

Test for Doneness

The same tests for doneness used in conventional cooking may be used for microwave cooking. Meat is done when fork-tender or splits at fibers. Chicken is done when juices are clear yellow and drumstick moves freely. Fish is done when it flakes and is opaque. Cake is done when a toothpick or cake tester is inserted and comes out clean.

Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures.

To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave oven use.

Cook all food to these minimum internal temperatures as measured with a food thermometer before removing food from oven. For reasons of personal preference, you may choose to cook food at higher temperatures.

Product	Minimum Internal Temperature & Rest Time
Beef, Pork, Veal & Lamb Steaks, chops, roasts	145 °F (63 °C) and allow to rest for at least 3 minutes
Ground meats	160 °F (71 °C)
Ham, fresh or smoked (uncooked)	145 °F (63 °C) and allow to rest for at least 3 min.
Fully Cooked Ham (to reheat)	Reheat cooked hams packaged in USDA-inspected plants to 140 °F (60 °C); all others to 165 °F (74 °C).
All Poultry (breasts, whole bird, legs, thighs, and wings, ground poultry, and stuffing)	165 °F (74 °C)
Eggs	160 °F (71 °C)
Fish & Shellfish	145 °F (63 °C)
Leftovers	165 °F (74 °C)
Casseroles	165 °F (74 °C)

Care and Cleaning of Your Microwave Oven

Illustration of various food items including baking soda, butter, and instant noodles (no text or symbols)

Helpful Hints

An occasional thorough wiping with a solution of baking soda and water keeps the inside fresh.

Be sure the power is off before cleaning any part of this microwave oven.

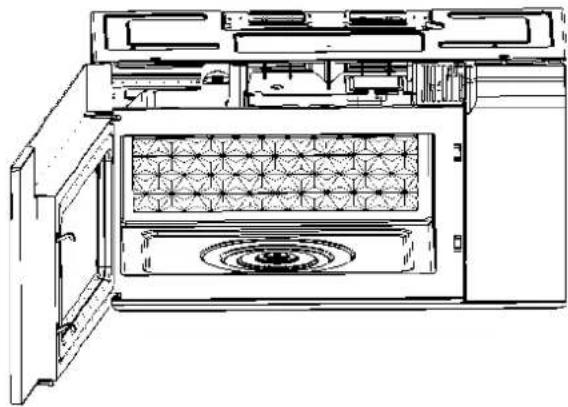

Technical line drawing of an open microwave oven with internal grating and ventilation duct (no text or symbols)

How to Clean the Inside

Walls, Floor, Inside Window, Metal and Plastic Parts on the Door

Some spatters can be removed with a paper towel; others may require a damp cloth. Remove greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not use abrasive cleaners or sharp utensils on oven walls.

Never use a commercial oven cleaner on any part of your microwave.

Simple line drawing of a circular ring placed inside a rectangular chamber (no text or symbols)

Removable Turntable and Turntable Roller Ring

To prevent breakage, do not place the turntable into water just after cooking. Wash it carefully in warm, sudsy water or in the dishwasher. The turntable and roller ring can be broken if dropped. Remember, do not operate the oven in the microwave mode without the turntable and roller ring seated and in place.

Care and Cleaning of Your Microwave Oven

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

Line drawing of a front panel with three internal compartments and a top panel (no text or symbols)

How to Clean the Outside

We recommend against the use of spray cleaners and using cleaners with ammonia or alcohol, as they can damage the appearance of the microwave oven. If you choose to use a common household cleaner, first apply the cleaner directly to a clean cloth, then wipe the soiled area.

Case

Clean the outside of the microwave with a sudsy cloth. Rinse and then dry. Wipe the window clean with a damp cloth.

Door Panel

Before cleaning the front door panel, make sure you know what type of panel you have. Refer to the eighth digit of the model number. "S" is stainless steel "B", "W" or "C" are plastic colors.

Stainless Steel (on some models)

The stainless steel panel can be cleaned with Stainless Steel Magic or a similar product using a clean, soft cloth. Apply stainless cleaner carefully to avoid the surrounding plastic parts. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel finishes.

Plastic Color Panels

Use a clean, soft, lightly dampened cloth, then dry thoroughly.

Door Seal

It's important to keep the area clean where the door seals against the microwave. Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Bottom

Clean off the grease and dust on the bottom often. Use a solution of warm water and detergent.

Care and Cleaning of Your Microwave Oven

About the exhaust feature

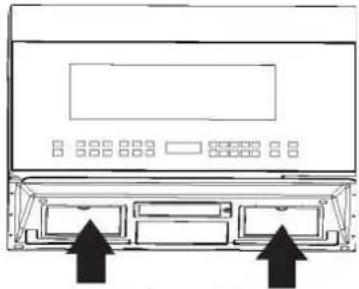

Diagram of a front panel with two arrows pointing to internal compartments (no text or symbols)

Reusable vent filters (on all model)

Vent Fan

The vent fan has two metal reusable vent filters. Models that recirculate air back into the room also use a charcoal filter.

Grease Filters

The metal filters trap grease released by foods on the cooktop. They also prevent flames from foods on the cooktop from damaging the inside of the oven. For this reason, the filters must always be in place when the hood is used. The vent filters should be cleaned once a month, or as needed.

Care and Cleaning of Your Microwave Oven

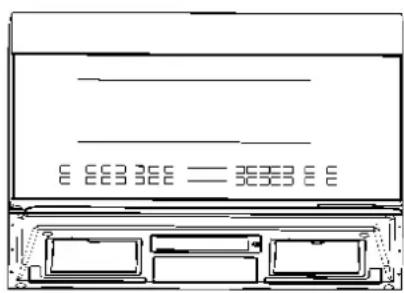

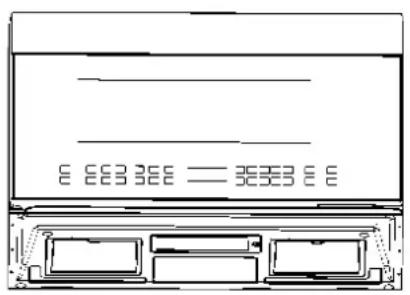

Line drawing of a hand inserting a device into a rack with multiple compartments (no text or symbols)

Removing and Cleaning the Filters To

remove, slide them to the rear using the tabs. Pull down and out.

To clean the vent filters, soak them and then swish around in hot water and detergent. Don't use ammonia or ammonia products because they will darken the metal. Light brushing can be used to remove embedded dirt.

Rinse, shake and let dry before replacing.

To replace, slide the filters into the frame slots on the back of each opening. Press up and to the front to lock into place.

Charcoal Filter

The charcoal filter cannot be cleaned. It must be replaced.

If the model is not vented to the outside, the air will be recirculated through a disposable charcoal filter that helps remove smoke and odors.

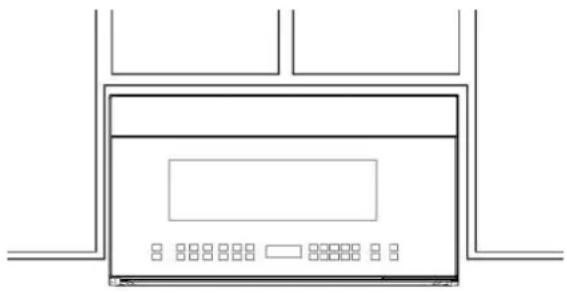

Line drawing of a device casing with arrows indicating components (no text or symbols)

Remove 2 grille screws to remove the grille.

Charcoal Filter Bottom Tab

The charcoal filter should be replaced when it is noticeably dirty or discolored (usually after 6 to 12 months, depending on usage).

To Remove the Charcoal Filter

To remove the charcoal filter, first disconnect power at the main fuse or circuit breaker, or pull the plug. Remove the top grille by removing only the two screws that hold it in place, as shown.

You may need to open the cabinet doors to remove the screws.

Press back on the top of the filter with both hands until the filter lays down almost horizontal. Lift the filter at the bottom until it comes free of the tabs. Slide the filter down and out.

Before Requesting Service

See below before calling for service, as most problems can easily be remedied by following these simple solutions:

Problem	Solution
The oven causes TV interference.	Some radio, TV, Wi-Fi, cordless telephone, baby monitor, blue tooth or other wireless equipment interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.
Steam accumulates on oven door and warm air comes from the oven vents.	During cooking, steam and warm air are given off from the food. Most of the steam and warm air are removed from the oven by the air which circulates in the oven cavity. However, some steam will condense on cooler surfaces such as the oven door. This is normal. After use, the oven should be wiped dry (see page 23).
Oven will not turn on.	The oven is not plugged in securely or needs to be reset; remove plug from outlet, wait ten seconds and re-insert.Main circuit breaker or main fuse is tripped; reset main circuit breaker or replace main fuse.There is a problem with the outlet; plug another appliance into the outlet to check if it is working.
Oven will not start cooking.	The door is not completely closed; close the oven door securely.Start was not pressed after programming; press Start.Another program is already entered into the oven; press Stop/Reset to cancel the previous program and enter new program.The program is not correct; program again according to the Operating Instructions.Stop/Reset has been pressed accidentally; program oven again.
The Glass Tray wobbles.	The Glass Tray is not positioned properly on the Roller Ring or there is food under the Roller Ring; take out Glass Tray and Roller Ring. Wipe with a damp cloth and reset Roller Ring and Glass Tray properly.
When the oven is operating, there is noise coming from the Glass Tray.	The Roller Ring and oven bottom are dirty; clean these parts according to Care and Cleaning of Your Microwave Oven (see page 23).
The word “LOCK” appears in the display.	The CHILD SAFETY LOCK was activated by pressing Start three times; Deactivate CHILD SAFETY LOCK by pressing Stop/Reset three times.
The word “DEMO MODE” appears on the Display Window.	Demo mode was selected “On”. Deactivate mode by pressing Power Level Pad once Start Pad 4 times and Stop/Reset Pad 4 times.
The oven stops cooking and “SERVICE” appears in the display.	The oven’s power supply has failed; please contact an authorized Service Center (see next page).

Specifications

Power Source	120 V~, 60 Hz
Power Consumption	1,550 W
Cooking Power*	1,000 W
Outside Dimensions (W x H x D)	29 7/8" x 16 7/16" x 15 11/16"(759mm x 471.1mm x 398.8 mm)
Oven Cavity Dimensions (W x H x D)	504 x350 x 231mm
Charcoal Filter
Operating Frequency	2,450 MHz
Ventilation Power	Turbo (300 CFM)
Net Weight	Approx. 24.95Kg - 55Lb

Specifications subject to change without notice.

* IEC Test procedure is applied for measuring output wattage.
** This is the classification of ISM(Industrial, Scientific and Medical) equipment described in the International Standard CISPR11 and 14-2.
*** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less. In compliance with standards set by :

FCC - Federal Communication Commission Authorized.

DHHS - Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J.

- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for use in USA or Canada.

WHAT THIS LIMITED WARRANTY COVERS

The Warranty coverage provided by Bertazzoni SpA (“Bertazzoni”) in this statement applies exclusively to the original Bertazzoni appliance (“Product”) sold to the consumer (“Purchaser”) by an authorized Bertazzoni dealer/distributor/retailer, purchased and installed in the United States, District of Columbia, or Canada, and which has always remained within the country of original purchase (United States, District of Columbia, or Canada).

The warranty coverage is activated on the date of original retail purchase of the Product and has a duration of two (years.

Warranty coverage is non-transferable.

In the event parts are replaced or the entire product is replaced, the replacement Product (or parts) shall assume the remaining original Warranty activated with the original retail purchase document. This Warranty shall not be extended with respect to such replacement.

Bertazzoni SpA will repair or replace any component/part which fails or proves defective due to materials and/or workmanship within 2 years from the date of original retail purchase and under conditions of normal residential, non-commercial use. Repair or replacement shall be free of charge, including labor at standard rates and shipping expenses. Purchaser is responsible for making the Product reasonably accessible for servicing. Repair service must be performed by a Bertazzoni Authorized Service company during normal working hours. Labor performed at overtime or premium rates shall not be covered by the Warranty.

IMPORTANT

Retain proof of original purchase to establish the warranty period.

• issues resulting from incorrect transport, handling and/or installation (i. e: dents, broken, bent or deformed structures or components, broken glass components)
• slight color variations in painted/enameled components
• differences caused by natural or artificial lighting, location or other similar factors
  • stains/corrosion/discoloration caused by external substances and/or environmental factors
• labor costs, display, floor, B-stock, out-of-box, "as is" appliances and demo units.

2GLASS PROTECTION POLICY

This warranty covers range oven door glass breakage for the following duration:

EXTERNAL & MIDDLE GLASSES: 90 days after original purchase date.

INNER GLASS: 180 days after original purchase date.

HOW TO OBTAIN SERVICING

To receive warranty servicing, the Purchaser must contact Bertazzoni Service for determining the problem and correct service procedures.

Model number, serial number and date of original retail purchase will be requested.

IMPORTANT

Retain proof of original purchase to establish the warranty period.

If located in the USA

866 905 0010

Bertazzoni's liability on any claim of any kind, with respect https://us.bertazzoni.com/more/support

to the goods and/or services provided, shall in no event exceed the value of the goods or service or part thereof which gives origin to the claim.

30-Day Cosmetic warranty

Inspection of the product must be made by the Purchaser at time of delivery. Bertazzoni warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from the date of original retail purchase of the Product.

If located in CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

This coverage includes:

- Paint blemishes

- Chips

• Macroscopic finish defects.

Cosmetic warranty does NOT cover:

WARRANTY EXCLUSIONS – WHAT IS NOT COVERED

• Use of the Product in any non-residential, commercial application.
• Use of the Product for anything other than its intended purpose.
  • Repair service provided by a party other than a Bertazzoni authorized service agency.
• Damage or repair service to correct servicing provided by an unauthorized agency or the use of unauthorized parts.
  • Installation not in accordance with local/state/city/county fire codes, electrical codes, gas codes, plumbing codes, building codes, regulations, or laws.

• Defects or damage due to improper storage of the Product.

• Defects or damage or missing parts on products sold out of the original factory packaging or from displays.
  • Service calls or repairs to correct the incorrect installation of the product and/or related accessories.

• Replacement of parts/service calls to connect, convert or otherwise repair the electrical wiring and/or gas line to properly use the Product.
• Replacement of parts/service calls to provide instructions and training on the use the Product.
• Replacement of parts/service calls to correct issues due to product usage in a manner other than what is normal and customary for residential use.
• Replacement of parts/service calls due to wear and tear such as gaskets, knobs, pan supports, shelving, cutlery baskets, buttons, touch displays, scratched or broken ceramic glass tops.
• Replacement of parts/service calls for lack of/improper maintenance such as but not limited to: residue build up, stains, scratches, discoloration, corrosion.
• Replacement of glass components and light bulbs if claim arises after 30 days from original retail purchase date.
• Defects and damages arising from accidents, alteration, misuse, abuse, improper installation.
• Defects and damages arising from transport, logistics and handling of the Product. Inspection of the Product must be made at the time of delivery. Any issues from handling, transport or logistics must be notified to the vending dealer/delivery company after receipt and inspection.
• Defects and damage arising from external forces beyond the control of Bertazzoni SpA, including, but not limited to: wind, rain, sand, fires, floods, mudslides, freezing temperatures, excessive moisture or extended exposure to humidity, power surges, lightning, structural failures surrounding the appliance and other acts of God.
• Products with altered/damaged/tampered serial number.

- Water line connection must be done by a trained and licensed professional. Issues due to incorrect water line connections such as, but not limited to, leakage and water damage to flooring and/or cabinetry, are not considered a Product issue and are not covered under manufacturer warranty.

In no case shall Bertazzoni be held liable or responsible for damage to surrounding property, including furniture, cabinetry, flooring, panels and other structures surrounding the Product.

Bertazzoni is not liable nor responsible for the Product if located in a remote area or an area where certified trained technicians are not reasonably available. The Purchaser must bear any transportation and delivery costs of the Product to the nearest authorized Service center or for the additional displacement rates of a certified trained technician.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MARKETABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON BERTAZZONI. BERTAZZONI SHALL NOT BE HELD LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, TIME AWAY FROM WORK, MEALS, LOSS OF FOOD OR BEVERAGES, TRAVELING OR HOTEL EXPENSES, EXPENSES TO RENT OR PURCHASE APPLIANCES, REMODELING/CONSTRUCTION EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BERTAZZONI, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF BERTAZZONI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST BERTAZZONI BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY BERTAZZONI AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY BERTAZZONI NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF BERTAZZONI. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NON-TRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Bertazzoni does not assume any responsibility for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state or province to province.

Any questions about this Limited Warranty may be directed to Bertazzoni Customer Care.

If located in the USA

866 905 0010

https://us.bertazzoni.com/more/support

If located in CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

DU BUREAU DE NOTRE PRÉSIDENT

Illustration of hands holding a megaphone with a prohibition symbol (no text or labels)

Warning symbol showing a microwave oven without a prohibition sign, indicating no protection or absence of the device.

Hand holding a dark cylindrical object with a small inset image, possibly a container or basin (no visible text or symbols)

Line drawing of a microwave oven with a bowl inside (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a lid (no text or symbols)

INTERFÉRENCE RADIO

Line drawing of a microwave on a cabinet next to a radio, both in perspective view (no text or symbols)

INSTRUCTIONS POUR LA MISE À LA TERRE

AVERTISSEMENT

Black-and-white photo of a fire inside a fire truck with visible smoke rising from the chimney (no text or symbols)

3) F RIRE DES ALIMENTS DANS UN BAIN D'HUILE

Black and white photo of a circle with a diagonal line crossing through it, containing scattered small round objects (no text or symbols)

Abstract 3D geometric shape with no visible text or symbols

Close-up of a fork interacting with a smooth, rounded object (no text or symbols visible)

5) PLATEAU EN VERRE/RÉCIPIENTS DE CUISSON/PELLICULES PLASTIQUE

Prohibition symbol of a cigarette crossed out, no text or numbers present

9) LAIT POUR BÉBÉ/ALIMENTS POUR BÉBÉ

Prohibition sign with a circular object and diagonal line, indicating no prohibition or prohibition in the background.

Prohibition sign with a black circle and white bottle, indicating no smoking or disinfection.

10) RÉCHAUFFAGE DES PRODUITS DE PÂTISSERIE

Close-up of a faucet with water being poured into a glass (no text or symbols visible)

Technical diagram of a refrigerator internal structure with numbered components for identification

Grille

1 ON OFF Light On/Off

1 ON OFF Turntable on/off

1 TURBO HIGH MED LOW OFF VENT SPEED

BUTTER CHOCOLATE CHEESE

START

Simple line drawing of a box with a cross mark, no text or symbols present

Illustration of various food items including baking soda, soap bottle, and rolled cheese (no text or symbols)

Conseils utiles

Technical line drawing of an open microwave oven with internal grating and ventilation (no text or symbols)

Simple line drawing of a rectangular container with a circular ring at the bottom (no text or symbols)

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

Front view of a server rack with indicator lights and ventilation slots (no text or symbols visible)

Diagram of a front panel with two arrows pointing to internal compartments (no text or symbols)

Line drawing of a hand inserting a device into a rack with multiple compartments (no text or symbols)

Technical diagram of a battery pack with Chinese labels indicating internal components and directional arrows

https://us.bertazzoni.com/more/support

Si situé au CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

EXCLUSIONS DE LA GARANTIE - CE QU'ELLE NE COUVRE PAS

https://us.bertazzoni.com/more/support

Si situé au CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

www.bertazzoni.com

Via Palazzina, 8
