USER MANUAL MD24X BERTAZZONI

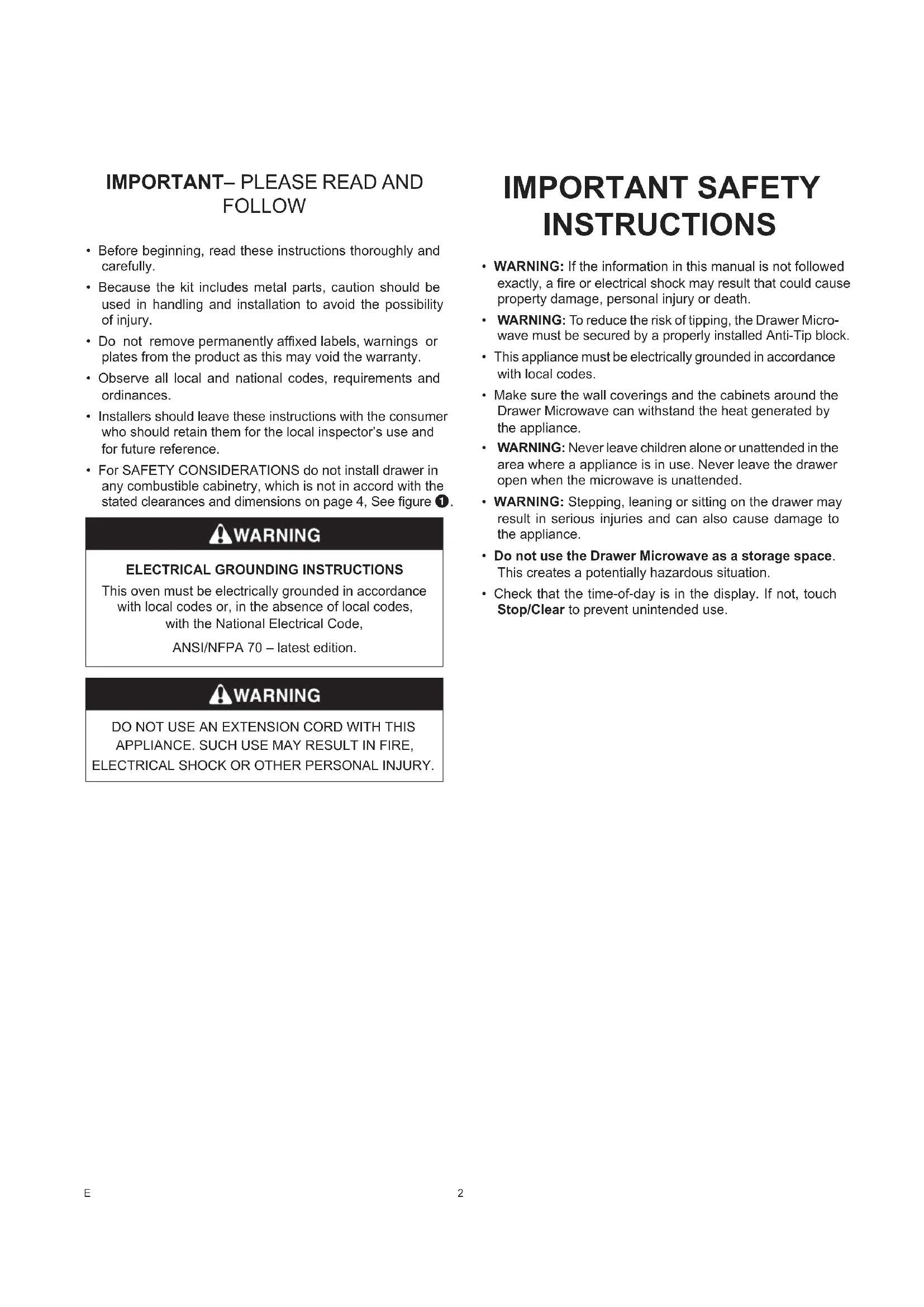

• Before beginning, read these instructions thoroughly and carefully.

• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.

• Do not remove permanently afxed labels, warnings or plates from the product as this may void the warranty.

• Observe all local and national codes, requirements and ordinances.

• Installers should leave these instructions with the consumer who should retain them for the local inspector’s use and for future reference.

• For SAFETY CONSIDERATIONS do not install drawer in any combustible cabinetry, which is not in accord with the stated clearances and dimensions on page 4, See gure 1.

ELECTRICAL GROUNDING INSTRUCTIONS

This oven must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 – latest edition. DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE. SUCH USE MAY RESULT IN FIRE, ELECTRICAL SHOCK OR OTHER PERSONAL INJURY. IMPORTANT SAFETY INSTRUCTIONS

• WARNING: If the information in this manual is not followed exactly, a re or electrical shock may result that could cause property damage, personal injury or death.

• WARNING: To reduce the risk of tipping, the Drawer Micro- wave must be secured by a properly installed Anti-Tip block.

• This appliance must be electrically grounded in accordance with local codes.

• Make sure the wall coverings and the cabinets around the Drawer Microwave can withstand the heat generated by the appliance.

• WARNING: Never leave children alone or unattended in the area where a appliance is in use. Never leave the drawer open when the microwave is unattended.

• WARNING: Stepping, leaning or sitting on the drawer may result in serious injuries and can also cause damage to the appliance.

• Do not use the Drawer Microwave as a storage space. This creates a potentially hazardous situation.

• Check that the time-of-day is in the display. If not, touch Stop/Clear to prevent unintended use.E3

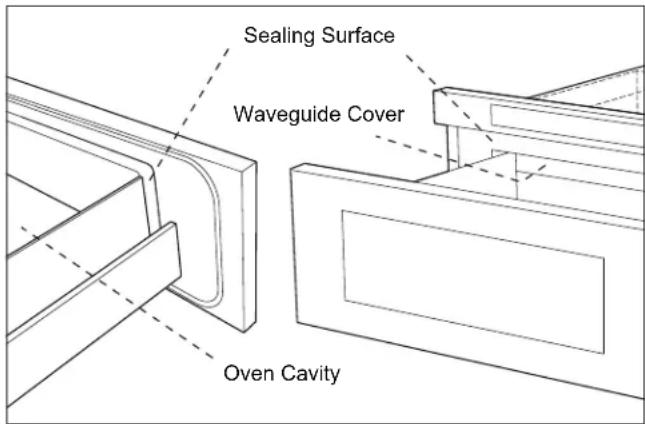

• Remove all packing materials from inside the Drawer Mi- crowave. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the top of the appliance. Sealing Surface Waveguide Cover Oven Cavity

• Remove the feature sticker, if there is one. Check the drawer for any damage, such as misaligned or bent drawer, dam- aged drawer seals and sealing surfaces, broken or loose drawer guides and dents inside the cavity or on the front side of the drawer. If there is any damage, do not operate the appliance and contact your AUTHORIZED SERVICER.

IMPORTANT NOTES TO THE INSTALLER

• Read all of the Installation Manual before installing the Drawer Microwave.

• Remove all packing material before connecting the electri- cal supply.

• Observe all governing codes and ordinances.

• Be sure to leave these instructions with the consumer.

IMPORTANT NOTES TO THE CONSUMER

Keep this manual with your Use and Care Manual for future reference.

• As when using any microwave oven generating heat, there are certain safety precautions you should follow. These are listed in the Use and Care Manual. Read all and follow carefully.

• Be sure your Drawer Microwave Oven is installed and grounded properly by a qualied installer or service tech- nician.

CLEARANCES AND DIMENSIONS

• Dimensions that are shown in gure 1 must be used. Given dimensions provide minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand corner of the cutout. See gure 4.

• Contact surface must be solid and level. Pay special at- tention to the oor on which the appliance will sit. The oor of the opening should be constructed of plywood strong enough to support the weight of the oven (about 100 pounds).

• Check location where the Drawer Microwave will be in- stalled for proper electrical supply.

• Your appliance can be built into a cabinet or wall by itself or under a gas or electric wall oven.

• Be sure that the clearance of the oor between the wall oven and the Drawer Microwave is a minimum of 2".

• The microwave interior will easily accommodate a 9" x 13" oblong dish or a bag of microwave popcorn. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The Drawer Microwave is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances.

WARNING: Improper use of the grounding plug can result in

a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a qualied electri- cian or serviceman install an outlet near the appliance. 3-Prong PlugGrounding Pin3-ProngReceptacleGroundReceptacle BoxPERMANENT AND CORRECT INSTALLATION4E

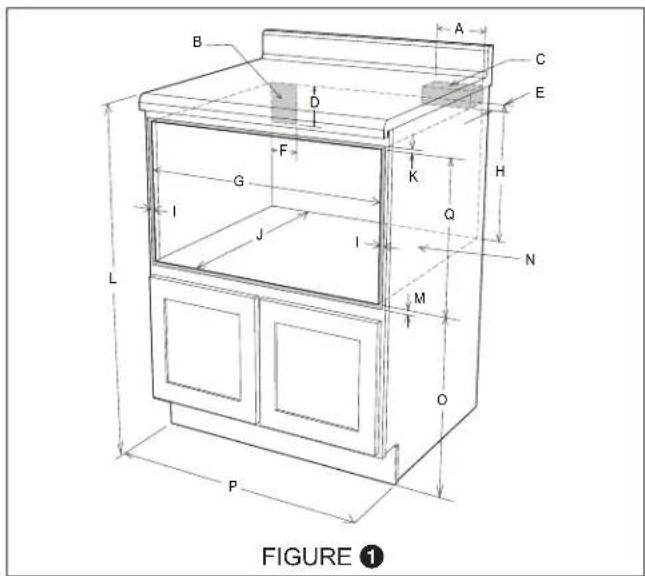

FIGURE 1 A. 6" (152.40 mm) B. Suggested electrical outlet location* C. Anti-Tip block D. 5" (127 mm) E. 3-1/2" (88.90 mm) F. 4" (101.60 mm) G. 22-1/8" (561.98 mm) opening H. 14-13/16" (376.24 mm) to bottom of Anti-Tip block

I. Allow 7/8" (22.23 mm) overlap

J. 23-1/2" (596.90 mm) minimum depth K. Allow 3/16" (4.76 mm) overlap L. 36" (914.4 mm) countertop height M. Allow 1/8" (3.17 mm) overlap N. Floor must support 100 lb (45.4 kg) O. 19" (482.60 mm) to top of oor P. 24" (609.6 mm) cabinet minimum Q. 15-9/16" (395.27 mm) opening

J. 4" (101.6 mm) Figures 1 and 2 contain many Drawer Microwave measure- ments for reference when planning the drawer’s location. This Drawer Microwave can be installed below any electric or gas wall oven.

• Can also be installed using an electrical outlet in an adja- cent cabinet within the area where the provided electrical cord can reach. Power cord access hole in cabinet should be a minimum 1-1/2" diameter hole and deburred of all sharp edges. IMPORTANT - Always allow sufcient power cord length to the electrical outlet to prevent tension. Always check electrical codes for requirements.E5 ANTI-TIP BLOCK

NORMAL INSTALLATION STEPS

Anti-Tip Block Installation Instructions

• To reduce the risk of tipping of the drawer, the Anti-Tip block must be properly installed located 14-13/16" above the oor on which the appliance will sit. The 6" Anti-Tip block must be provided by the installer. See gure 1 and 3. The Anti-Tip block prevents serious injury that might result from spilled hot liquids.

• If the Drawer Microwave is ever moved to a different loca- tion, the Anti-Tip block must also be moved and installed. When installed to the wall, make sure that the screws completely penetrate the dry wall and are secured in wood or metal so that the block is totally stable. When fastening, be sure that the screws do not penetrate electrical wiring or plumbing.

(152.4 mm) 3 1/2" (89 mm) Suggested electrical outlet location* Anti-Tip block FIGURE 3 ELECTRICAL OUTLET The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided. The Drawer Microwave is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. Should you only have a 2-prong outlet, have a qualied electrician install a correct wall receptacle. Note: If you have any questions about the grounding or elec- trical instructions, consult a qualied electrician or service person.

• Can also be installed using an electrical outlet in an adjacent cabinet within the area where the provided electrical cord can reach. Always check electrical codes for requirements. 4" (101.6 mm)5" (127 mm) 6"(152.4 mm)3 1/2"(89 mm) Suggested electricaloutlet location* Anti-Tip block FIGURE 46E DRAWER INSTALLATION Mounting Screws

1. Place the drawer adjacent to the wall or cabinet opening.

Plug the power supply cord into the electrical outlet.

2. Carefully guide the drawer into the prepared opening. Avoid

pinching the cord between the oven and the wall.

3. Slide the drawer all the way until the mounting ange is

ush with the face of the cabinet. See gure 5A.

4. Open the drawer. Using the 4 holes on the drawer as a tem-

plate, pre drill the cabinet using a 1/16" bit. See gure 5A.

5. Secure the drawer with the 4 screws supplied. See gure

LOCATION The nameplate includes model number and serial number. Open the Drawer Microwave fully. The label is slightly beyond the back wall of the microwave cavity facing up from the at surface.

MAINTENANCE Refer to the Use and Care Manual for cleaning instructions.

BEFORE YOU CALL FOR SERVICE

Read the BEFORE YOU CALL and operating instruction sec- tions in your Use and Care Manual. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this range. Refer to the warranty in your Use and Care Manual for toll- free service number and address. Please call or write if you have inquiries about your microwave product and/or need to order parts. Visit www.encompass.com to purchase spare parts.1 F FOUR À MICRO-ONDES MONTÉ AU DESSUS D’UNE CUISINIÈRE
