USER MANUAL Rogue R2X Wash VW Chauvet

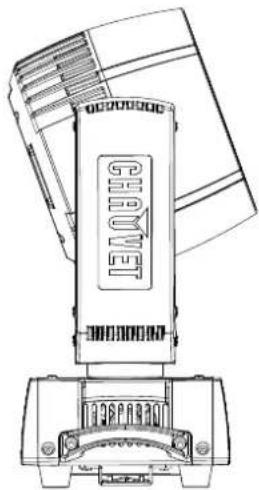

Technical line drawing of a GHVET radar or optical instrument with circular components and control panel (no text or symbols)

About This Guide

The Rogue R2X Wash VW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Rogue R2X Wash VW
• N e ^® powerCON ^® ipower cord

• Omega bracket with mounting hardware
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

It is possible to power link up to 3 Rogue R2X Wash VW products at 100 V, 4 products at 120 V, 7 products at 208 V, or up to 8 products at 230 V or 240 V. Never exceed this number. Power-linking cables can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect the product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue R2X Wash VW will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue R2X Wash VW uses a 3- or 5-pin DMX data connection for its DMX personalities: 15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH, and 36CH MS. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue R2X Wash VW supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

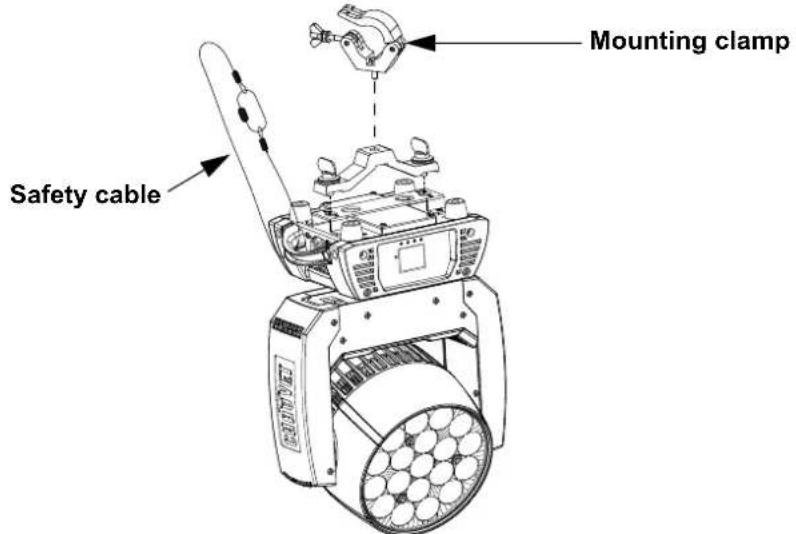

Mounting Diagram

Mounting clamp Safety cable

Technical line drawing of a mechanical device labeled 'CHROVET' with no readable text or symbols beyond the label

Overhead Mounting Floor Mounting

When using only one mounting clamp, be sure to use a clamp with a captive bolt to prevent accidental loosening.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map

Refer to the Rogue R2X Wash VW product page on www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
Address 001-512 Sets the starting address
Run Mode	DMX	15CH		Selects the DMX personality
		18CH
		23CH
		23CH MS
		34CH
		36CH
		36CH MS
	Auto Test Auto test all functions
	Manual Test	Pan	000-255 Manually control and test all settings through the control panel
		Tilt
		Dimmer
		Shutter
		Warm white
		Cool white
		Zoom
Main Level	Programming Levels			Description
Setup	Pan Reverse	OFF Normal pan
		ON Reversed pan
	Tilt Reverse	OFF Normal tilt
		ON Reversed tilt
	Pan Angle	540 540° pan range
		360 360° pan range
		180 180° pan range
	Tilt Angle	230 230° tilt range
		180 180° tilt range
		90 90° tilt range
	Fans	Auto Fan speed according to product temperature
		Full Fan speed set on high
	Display	OFF		Display turns off after 30 seconds in inactivity
		ON Display stays on
	Screen Rev	OFF Normal display
		ON Inverted display
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth Smooth dimmer speed
		Fast Fast dimmer speed
	PWM Option	600Hz		Sets the PWM (pulse width modulation) frequency
		1200Hz
		2000HZ
		4000Hz
		6000Hz
		15000HZ
	Color Calibration	ON Factory default white balance
		OFF Turn off white balance
		Custom Customize white balance
	Reset Function	Pan/Tilt	NO	Reset individual functions or all functions from start-up
			YES
		Zoom	NO
			YES
		All	NO
			YES
	Factory Set Reset to factory default settings
Sys Info	System Information	Ver V_ Shows firmware version
		Running Mode ____	Shows current running mode
		DMX Address	____	Shows current starting address
		Temperature	____	Shows current product temperature in °C
		Fixture Time	____	Shows number of hours product has been powered on

Rogue R2X Wash VW Zones for DMX Control

1 1 1 2 1 2 3 4 5 5 5 5 5 5 5

DMX Values

36CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0–100%
2	Pan fine	000 ⇔ 255	Fine control (16-bit)
3	T i l t	000 ⇔ 255 0–100%
4	Tilt fine	000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed	000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Dimmer fine	000 ⇔ 255	Fine control (16-bit)
8	S t r o	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Fade on and off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
9	Warm white 1	000 ⇔ 255	0–100%
10	Warm white 1 fine	000 ⇔ 255	Fine control (16-bit)
11	Cool white 1	000 ⇔ 255	0–100%
12	Cool white 1 fine	000 ⇔ 255	Fine control (16-bit)
13	Warm white 2	000 ⇔ 255	0–100%
14	Warm white 2 fine	000 ⇔ 255	Fine control (16-bit)
15	Cool white 2	000 ⇔ 255	0–100%
16	Cool white 2 fine	000 ⇔ 255	Fine control (16-bit)
17	Warm white 3	000 ⇔ 255	0–100%
18	Warm white 3 fine	000 ⇔ 255	Fine control (16-bit)
19	Cool white 3	000 ⇔ 255	0–100%
20	Cool white 3 fine	000 ⇔ 255	Fine control (16-bit)
21	Warm white 4	000 ⇔ 255	0–100%
22	Warm white 4 fine	000 ⇔ 255	Fine control (16-bit)
23	Cool white 4	000 ⇔ 255	0–100%
24	Cool white 4 fine	000 ⇔ 255	Fine control (16-bit)
25 Warm white 5 000 ⇔ 255 0–100%
26	Warm white 5 fine	000 ⇔ 255	Fine control (16-bit)
27	Cool white 5	000 ⇔ 255	0–100%
28	Cool white 5 fine	000 ⇔ 255	Fine control (16-bit)
29 Color temperature		000 ⇔ 004	No function
		005 ⇔ 019	3200K
		020 ⇔ 040	3600K
		041 ⇔ 060	3800K
		061 ⇔ 080	4000K
		081 ⇔ 100	4600K
		101 ⇔ 120	4800K
		121 ⇔ 140	5000K
		141 ⇔ 160	5200K
		161 ⇔ 180	5400K
		181 ⇔ 200	5600K
		201 ⇔ 220	5800K
		221 ⇔ 240	6000K
		241 ⇔ 255	No function
30 Zone selection		000 ⇔ 007	Zone 1, 2, 3, 4, 5
		008 ⇔ 015	Zone 2, 3, 4, 5
		016 ⇔ 023	Zone 3, 4, 5
		024 ⇔ 031	Zone 4, 5
		032 ⇔ 039	Zone 5
		040 ⇔ 047	No function
		048 ⇔ 055	Zone 1
		056 ⇔ 063	Zone 1, 2
		064 ⇔ 071	Zone 1, 2, 3
		072 ⇔ 079	Zone 1, 2, 3, 4
		080 ⇔ 087	Zone 1, 2, 3, 4, 5
		088 ⇔ 095	Zone 1
		096 ⇔ 103	Zone 2
		104 ⇔ 111	Zone 3
		112 ⇔ 119	Zone 4
		120 ⇔ 127	Zone 5
		128 ⇔ 135	Zone 1, 2
		136 ⇔ 143	Zone 2, 3
		144 ⇔ 151	Zone 3, 4
		152 ⇔ 159	Zone 4, 5
		160 ⇔ 167	Zone 1, 5
		168 ⇔ 175	Zone 1, 2, 3
		176 ⇔ 183	Zone 2, 3, 4
		184 ⇔ 191	Zone 3, 4, 5
		192 ⇔ 199	Zone 1, 4, 5
		200 ⇔ 207	Zone 1, 2, 5
		208 ⇔ 215	Zone 1, 2, 3, 4
		216 ⇔ 223	Zone 2, 3, 4, 5
		224 ⇔ 231	Zone 1, 3, 4, 5
		232 ⇔ 239	Zone 1, 2, 4, 5
		240 ⇔ 247	Zone 1, 2, 3, 5
		248 ⇔ 255	Zone 1, 2, 3, 4, 5

Channel Function Value Percent/Setting
31 Programs	000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48

32 Auto speed 000 ⇔ 255 0–100%

Channel Function Value Percent/Setting
33 Movement macros	Movement macros	000 ⇔ 007	No function
		008 ⇔ 023	Movement macro 1
		024 ⇔ 039	Movement macro 2
		040 ⇔ 055	Movement macro 3
		056 ⇔ 071	Movement macro 4
		072 ⇔ 087	Movement macro 5
		088 ⇔ 103	Movement macro 6
		104 ⇔ 119	Movement macro 7
		120 ⇔ 135	Movement macro 8
		136 ⇔ 151	Movement macro 9
		152 ⇔ 167	Movement macro 10
		168 ⇔ 183	Movement macro 11
		184 ⇔ 199	Movement macro 12
		200 ⇔ 215	Movement macro 13
		216 ⇔ 231	Movement macro 14
		232 ⇔ 247	Movement macro 15
		248 ⇔ 255	Movement macro 16
34	Movement macro speed	000 ⇔ 255	Movement macro speed, fast to slow
35	Zoom	000 ⇔ 255	0–100%
36	Control(5 second activation delay)	000 ⇔ 009	No function
		010 ⇔ 014	Blackout during pan/tilt
		015 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	Reset all
		075 ⇔ 079	No function
		080 ⇔ 084	Reverse pan and tilt movement
		085 ⇔ 089	Reverse pan movement
		090 ⇔ 094	Reverse tilt movement
		095 ⇔ 099	Normal pan movement
		100 ⇔ 104	Normal tilt movement
		105 ⇔ 109	Normal pan and tilt movement
		110 ⇔ 124	No function
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto speed
		135 ⇔ 139	Fast dimmer curve
		140 ⇔ 144	Smooth dimmer curve
		145 ⇔ 255	No function

36CH MS

Channel Function Value Percent/Setting
1	P a n		000 ⇔ 255 0–100%
2	Pan fine		000 ⇔ 255	Fine control (16-bit)
3	T i l t		000	⇔ 255 0–100%
4	Tilt fine		000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed		000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Dimmer fine		000 ⇔ 255	Fine control (16-bit)
8	S t r o		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
9 Color temperature			000 ⇔ 004 No function005 ⇔ 019 3200K020 ⇔ 040 3600K041 ⇔ 060 3800K061 ⇔ 080 4000K081 ⇔ 100 4600K101 ⇔ 120 4800K121 ⇔ 140 5000K141 ⇔ 160 5200K161 ⇔ 180 5400K181 ⇔ 200 5600K201 ⇔ 220 5800K221 ⇔ 240 6000K241 ⇔ 255 No function

Channel Function Value Percent/Setting
10 Zone Selection	000 ⇔ 007	Zone 1, 2, 3, 4, 5
	008 ⇔ 015	Zone 2, 3, 4, 5
	016 ⇔ 023	Zone 3, 4, 5
	024 ⇔ 031	Zone 4, 5
	032 ⇔ 039	Zone 5
	040 ⇔ 047	No function
	048 ⇔ 055	Zone 1
	056 ⇔ 063	Zone 1, 2
	064 ⇔ 071	Zone 1, 2, 3
	072 ⇔ 079	Zone 1, 2, 3, 4
	080 ⇔ 087	Zone 1, 2, 3, 4, 5
	088 ⇔ 095	Zone 1
	096 ⇔ 103	Zone 2
	104 ⇔ 111	Zone 3
	112 ⇔ 119	Zone 4
	120 ⇔ 127	Zone 5
	128 ⇔ 135	Zone 1, 2
	136 ⇔ 143	Zone 2, 3
	144 ⇔ 151	Zone 3, 4
	152 ⇔ 159	Zone 4, 5
	160 ⇔ 167	Zone 1, 5
	168 ⇔ 175	Zone 1, 2, 3
	176 ⇔ 183	Zone 2, 3, 4
	184 ⇔ 191	Zone 3, 4, 5
	192 ⇔ 199	Zone 1, 4, 5
	200 ⇔ 207	Zone 1, 2, 5
	208 ⇔ 215	Zone 1, 2, 3, 4
	216 ⇔ 223	Zone 2, 3, 4, 5
	224 ⇔ 231	Zone 1, 3, 4, 5
	232 ⇔ 239	Zone 1, 2, 4, 5
	240 ⇔ 247	Zone 1, 2, 3, 5
	248 ⇔ 255	Zone 1, 2, 3, 4, 5

Channel Function Value Percent/Setting
11 Programs	000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48
12 Auto speed 000 ⇔ 255 0–100%
Channel Function Value Percent/Setting
13 Movement macros	Movement macros	000 ⇔ 007	No function
		008 ⇔ 023	Movement macro 1
		024 ⇔ 039	Movement macro 2
		040 ⇔ 055	Movement macro 3
		056 ⇔ 071	Movement macro 4
		072 ⇔ 087	Movement macro 5
		088 ⇔ 103	Movement macro 6
		104 ⇔ 119	Movement macro 7
		120 ⇔ 135	Movement macro 8
		136 ⇔ 151	Movement macro 9
		152 ⇔ 167	Movement macro 10
		168 ⇔ 183	Movement macro 11
		184 ⇔ 199	Movement macro 12
		200 ⇔ 215	Movement macro 13
		216 ⇔ 231	Movement macro 14
		232 ⇔ 247	Movement macro 15
		248 ⇔ 255	Movement macro 16
14	Movement macro speed	000 ⇔ 255	Movement macro speed, fast to slow
15	Zoom	000 ⇔ 255	0–100%
16	Control(5 second activation delay)	000 ⇔ 009	No function
		010 ⇔ 014	Blackout during pan/tilt
		015 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	Reset all
		075 ⇔ 079	No function
		080 ⇔ 084	Reverse pan and tilt movement
		085 ⇔ 089	Reverse pan movement
		090 ⇔ 094	Reverse tilt movement
		095 ⇔ 099	Normal pan movement
		100 ⇔ 104	Normal tilt movement
		105 ⇔ 109	Normal pan and tilt movement
		110 ⇔ 124	No function
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto speed
		135 ⇔ 139	Fast dimmer curve
		140 ⇔ 144	Smooth dimmer curve
		145 ⇔ 255	No function
17 Warm white 1 000 ⇔ 255 0–100%
18	Warm white 1 fine	000 ⇔ 255	Fine control (16-bit)
19	Cool white 1	000 ⇔ 255	0–100%
20	Cool white 1 fine	000 ⇔ 255	Fine control (16-bit)
21 Warm white 2 000 ⇔ 255 0–100%
22	Warm white 2 fine	000 ⇔ 255	Fine control (16-bit)
23	Cool white 2	000 ⇔ 255	0–100%
24	Cool white 2 fine	000 ⇔ 255	Fine control (16-bit)
25 Warm white 3 000 ⇔ 255 0–100%
26	Warm white 3 fine	000 ⇔ 255	Fine control (16-bit)
27	Cool white 3	000 ⇔ 255	0–100%
28	Cool white 3 fine	000 ⇔ 255	Fine control (16-bit)
29 Warm white 4 000 ⇔ 255 0–100%
30	Warm white 4 fine	000 ⇔ 255	Fine control (16-bit)
31	Cool white 4	000 ⇔ 255	0–100%
32	Cool white 4 fine	000 ⇔ 255	Fine control (16-bit)
33	Warm white 5	000 ⇔ 255	0–100%
34	Warm white 5 fine	000 ⇔ 255	Fine control (16-bit)
35	Cool white 5	000 ⇔ 255	0–100%
36	Cool white 5 fine	000 ⇔ 255	Fine control (16-bit)

34CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0–100%
2	Pan fine	000 ⇔ 255	Fine control (16-bit)
3	Tilt	000 ⇔ 255	0–100%
4	Tilt fine	000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed	000 ⇔ 255	Fast to slow
6	Dimmer	000 ⇔ 255	0–100%
7	Dimmer fine	000 ⇔ 255	Fine control (16-bit)
8	S t r o	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
9	Warm white 1	000 ⇔ 255	0–100%
10	Warm white 1 fine	000 ⇔ 255	Fine control (16-bit)
11	Cool white 1	000 ⇔ 255	0–100%
12	Cool white 1 fine	000 ⇔ 255	Fine control (16-bit)
13	Warm white 2	000 ⇔ 255	0–100%
14	Warm white 2 fine	000 ⇔ 255	Fine control (16-bit)
15	Cool white 2	000 ⇔ 255	0–100%
16	Cool white 2 fine	000 ⇔ 255	Fine control (16-bit)
17	Warm white 3	000 ⇔ 255	0–100%
18	Warm white 3 fine	000 ⇔ 255	Fine control (16-bit)
19	Cool white 3	000 ⇔ 255	0–100%
20	Cool white 3 fine	000 ⇔ 255	Fine control (16-bit)
21	Warm white 4	000 ⇔ 255	0–100%
22	Warm white 4 fine	000 ⇔ 255	Fine control (16-bit)
23	Cool white 4	000 ⇔ 255	0–100%
24	Cool white 4 fine	000 ⇔ 255	Fine control (16-bit)
25 Warm white 5 000 ⇔ 255 0–100%
26	Warm white 5 fine	000 ⇔ 255	Fine control (16-bit)
27	Cool white 5	000 ⇔ 255	0–100%
28	Cool white 5 fine	000 ⇔ 255	Fine control (16-bit)
29 Color temperature		000 ⇔ 004	No function
		005 ⇔ 019	3200K
		020 ⇔ 040	3600K
		041 ⇔ 060	3800K
		061 ⇔ 080	4000K
		081 ⇔ 100	4600K
		101 ⇔ 120	4800K
		121 ⇔ 140	5000K
		141 ⇔ 160	5200K
		161 ⇔ 180	5400K
		181 ⇔ 200	5600K
		201 ⇔ 220	5800K
		221 ⇔ 240	6000K
		241 ⇔ 255	No function
30 Zone Selection		000 ⇔ 007	Zone 1, 2, 3, 4, 5
		008 ⇔ 015	Zone 2, 3, 4, 5
		016 ⇔ 023	Zone 3, 4, 5
		024 ⇔ 031	Zone 4, 5
		032 ⇔ 039	Zone 5
		040 ⇔ 047	No function
		048 ⇔ 055	Zone 1
		056 ⇔ 063	Zone 1, 2
		064 ⇔ 071	Zone 1, 2, 3
		072 ⇔ 079	Zone 1, 2, 3, 4
		080 ⇔ 087	Zone 1, 2, 3, 4, 5
		088 ⇔ 095	Zone 1
		096 ⇔ 103	Zone 2
		104 ⇔ 111	Zone 3
		112 ⇔ 119	Zone 4
		120 ⇔ 127	Zone 5
		128 ⇔ 135	Zone 1, 2
		136 ⇔ 143	Zone 2, 3
		144 ⇔ 151	Zone 3, 4
		152 ⇔ 159	Zone 4, 5
		160 ⇔ 167	Zone 1, 5
		168 ⇔ 175	Zone 1, 2, 3
		176 ⇔ 183	Zone 2, 3, 4
		184 ⇔ 191	Zone 3, 4, 5
		192 ⇔ 199	Zone 1, 4, 5
		200 ⇔ 207	Zone 1, 2, 5
		208 ⇔ 215	Zone 1, 2, 3, 4
		216 ⇔ 223	Zone 2, 3, 4, 5
		224 ⇔ 231	Zone 1, 3, 4, 5
		232 ⇔ 239	Zone 1, 2, 4, 5
		240 ⇔ 247	Zone 1, 2, 3, 5
		248 ⇔ 255	Zone 1, 2, 3, 4, 5

Channel Function Value Percent/Setting
31 Programs		000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48
32 Auto speed 000 ⇔ 255 0–100%
33	Zoom	000 ⇔ 255 0–100%
Channel Function Value Percent/Setting
34	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 124 No function125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto speed135 ⇔ 139 Fast dimmer curve140 ⇔ 144 Smooth dimmer curve145 ⇔ 255 No function

23CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0-100%
2	Pan fine	000 ⇔ 255	Fine control (16-bit)
3	T i l t	000	⇔ 255 0-100%
4	Tilt fine	000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed	000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0-100%
7	S t r o	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
8	Warm white 1	000 ⇔ 255	0-100%
9	Cool white 1	000 ⇔ 255	0-100%
10	Warm white 2	000 ⇔ 255	0-100%
11	Cool white 2	000 ⇔ 255	0-100%
12	Warm white 3	000 ⇔ 255	0-100%
13	Cool white 3	000 ⇔ 255	0-100%
14	Warm white 4	000 ⇔ 255	0-100%
15	Cool white 4	000 ⇔ 255	0-100%
16	Warm white 5	000 ⇔ 255	0-100%
17	Cool white 5	000 ⇔ 255	0-100%
18	Color temperature	000 ⇔ 004 No function005 ⇔ 019 3200K020 ⇔ 040 3600K041 ⇔ 060 3800K061 ⇔ 080 4000K081 ⇔ 100 4600K101 ⇔ 120 4800K121 ⇔ 140 5000K141 ⇔ 160 5200K161 ⇔ 180 5400K181 ⇔ 200 5600K201 ⇔ 220 5800K221 ⇔ 240 6000K241 ⇔ 255 No function

Channel Function Value Percent/Setting
19 Zone Selection	000 ⇔ 007	Zone 1, 2, 3, 4, 5
	008 ⇔ 015	Zone 2, 3, 4, 5
	016 ⇔ 023	Zone 3, 4, 5
	024 ⇔ 031	Zone 4, 5
	032 ⇔ 039	Zone 5
	040 ⇔ 047	No function
	048 ⇔ 055	Zone 1
	056 ⇔ 063	Zone 1, 2
	064 ⇔ 071	Zone 1, 2, 3
	072 ⇔ 079	Zone 1, 2, 3, 4
	080 ⇔ 087	Zone 1, 2, 3, 4, 5
	088 ⇔ 095	Zone 1
	096 ⇔ 103	Zone 2
	104 ⇔ 111	Zone 3
	112 ⇔ 119	Zone 4
	120 ⇔ 127	Zone 5
	128 ⇔ 135	Zone 1, 2
	136 ⇔ 143	Zone 2, 3
	144 ⇔ 151	Zone 3, 4
	152 ⇔ 159	Zone 4, 5
	160 ⇔ 167	Zone 1, 5
	168 ⇔ 175	Zone 1, 2, 3
	176 ⇔ 183	Zone 2, 3, 4
	184 ⇔ 191	Zone 3, 4, 5
	192 ⇔ 199	Zone 1, 4, 5
	200 ⇔ 207	Zone 1, 2, 5
	208 ⇔ 215	Zone 1, 2, 3, 4
	216 ⇔ 223	Zone 2, 3, 4, 5
	224 ⇔ 231	Zone 1, 3, 4, 5
	232 ⇔ 239	Zone 1, 2, 4, 5
	240 ⇔ 247	Zone 1, 2, 3, 5
	248 ⇔ 255	Zone 1, 2, 3, 4, 5
Channel Function Value Percent/Setting
20 Programs		000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48
21 Auto speed 000 ⇔ 255 0–100%
22	Zoom	000 ⇔ 255 0–100%

Channel Function Value Percent/Setting
23	Control(5 second activation delay)	000 ⇔ 009	No function
		010 ⇔ 014	Blackout during pan/tilt
		015 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	Reset all
		075 ⇔ 079	No function
		080 ⇔ 084	Reverse pan and tilt movement
		085 ⇔ 089	Reverse pan movement
		090 ⇔ 094	Reverse tilt movement
		095 ⇔ 099	Normal pan movement
		100 ⇔ 104	Normal tilt movement
		105 ⇔ 109	Normal pan and tilt movement
		110 ⇔ 124	No function
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto speed
		135 ⇔ 139	Fast dimmer curve
		140 ⇔ 144	Smooth dimmer curve
		145 ⇔ 255	No function

23CH MS

Channel Function Value Percent/Setting
1	P a n		000 ⇔ 255 0–100%
2	Pan fine		000 ⇔ 255	Fine control (16-bit)
3	T i l t		000	⇔ 255 0–100%
4	Tilt fine		000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed		000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	S t r o		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On

Channel Function Value Percent/Setting
8 Color temperature	000 ⇔ 004 No function005 ⇔ 019 3200K020 ⇔ 040 3600K041 ⇔ 060 3800K061 ⇔ 080 4000K081 ⇔ 100 4600K101 ⇔ 120 4800K121 ⇔ 140 5000K141 ⇔ 160 5200K161 ⇔ 180 5400K181 ⇔ 200 5600K201 ⇔ 220 5800K221 ⇔ 240 6000K241 ⇔ 255 No function
9 Zone Selection	000 ⇔ 007 Zone 1, 2, 3, 4, 5008 ⇔ 015 Zone 2, 3, 4, 5016 ⇔ 023 Zone 3, 4, 5024 ⇔ 031 Zone 4, 5032 ⇔ 039 Zone 5040 ⇔ 047 No function048 ⇔ 055 Zone 1056 ⇔ 063 Zone 1, 2064 ⇔ 071 Zone 1, 2, 3072 ⇔ 079 Zone 1, 2, 3, 4080 ⇔ 087 Zone 1, 2, 3, 4, 5088 ⇔ 095 Zone 1096 ⇔ 103 Zone 2104 ⇔ 111 Zone 3112 ⇔ 119 Zone 4120 ⇔ 127 Zone 5128 ⇔ 135 Zone 1, 2136 ⇔ 143 Zone 2, 3144 ⇔ 151 Zone 3, 4152 ⇔ 159 Zone 4, 5160 ⇔ 167 Zone 1, 5168 ⇔ 175 Zone 1, 2, 3176 ⇔ 183 Zone 2, 3, 4184 ⇔ 191 Zone 3, 4, 5192 ⇔ 199 Zone 1, 4, 5200 ⇔ 207 Zone 1, 2, 5208 ⇔ 215 Zone 1, 2, 3, 4216 ⇔ 223 Zone 2, 3, 4, 5224 ⇔ 231 Zone 1, 3, 4, 5232 ⇔ 239 Zone 1, 2, 4, 5240 ⇔ 247 Zone 1, 2, 3, 5248 ⇔ 255 Zone 1, 2, 3, 4, 5
Channel Function Value Percent/Setting
10 Programs		000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48
11	Auto speed	000 ⇔ 255 0–100%
12	Zoom	000 ⇔ 255 0–100%

Channel Function Value Percent/Setting
13	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 124 No function125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto speed135 ⇔ 139 Fast dimmer curve140 ⇔ 144 Smooth dimmer curve145 ⇔ 255 No function
14	Warm white 1	000 ⇔ 255	0–100%
15	Cool white 1	000 ⇔ 255	0–100%
16	Warm white 2	000 ⇔ 255	0–100%
17	Cool white 2	000 ⇔ 255	0–100%
18	Warm white 3	000 ⇔ 255	0–100%
19	Cool white 3	000 ⇔ 255	0–100%
20	Warm white 4	000 ⇔ 255	0–100%
21	Cool white 4	000 ⇔ 255	0–100%
22	Warm white 5	000 ⇔ 255	0–100%
23	Cool white 5	000 ⇔ 255	0–100%

18CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0–100%
2	Pan fine	000 ⇔ 255	Fine control (16-bit)
3	T i l t	000	⇔ 255 0–100%
4	Tilt fine	000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed	000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Dimmer fine	000 ⇔ 255	Fine control (16-bit)
8	S t r o	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
9	Warm white	000 ⇔ 255	0–100%
10	Warm white fine	000 ⇔ 255	Fine control (16-bit)
11	Cool white	000 ⇔ 255	0–100%
12	Cool white fine	000 ⇔ 255	Fine control (16-bit)
13	Color temperature	000 ⇔ 004 No function005 ⇔ 019 3200K020 ⇔ 040 3600K041 ⇔ 060 3800K061 ⇔ 080 4000K081 ⇔ 100 4600K101 ⇔ 120 4800K121 ⇔ 140 5000K141 ⇔ 160 5200K161 ⇔ 180 5400K181 ⇔ 200 5600K201 ⇔ 220 5800K221 ⇔ 240 6000K241 ⇔ 255 No function

Channel Function Value Percent/Setting
14 Zone Selection	000 ⇔ 007 Zone 1, 2, 3, 4, 5008 ⇔ 015 Zone 2, 3, 4, 5016 ⇔ 023 Zone 3, 4, 5024 ⇔ 031 Zone 4, 5032 ⇔ 039 Zone 5040 ⇔ 047 No function048 ⇔ 055 Zone 1056 ⇔ 063 Zone 1, 2064 ⇔ 071 Zone 1, 2, 3072 ⇔ 079 Zone 1, 2, 3, 4080 ⇔ 087 Zone 1, 2, 3, 4, 5088 ⇔ 095 Zone 1096 ⇔ 103 Zone 2104 ⇔ 111 Zone 3112 ⇔ 119 Zone 4120 ⇔ 127 Zone 5128 ⇔ 135 Zone 1, 2136 ⇔ 143 Zone 2, 3144 ⇔ 151 Zone 3, 4152 ⇔ 159 Zone 4, 5160 ⇔ 167 Zone 1, 5168 ⇔ 175 Zone 1, 2, 3176 ⇔ 183 Zone 2, 3, 4184 ⇔ 191 Zone 3, 4, 5192 ⇔ 199 Zone 1, 4, 5200 ⇔ 207 Zone 1, 2, 5208 ⇔ 215 Zone 1, 2, 3, 4216 ⇔ 223 Zone 2, 3, 4, 5224 ⇔ 231 Zone 1, 3, 4, 5232 ⇔ 239 Zone 1, 2, 4, 5240 ⇔ 247 Zone 1, 2, 3, 5248 ⇔ 255 Zone 1, 2, 3, 4, 5
Channel Function Value Percent/Setting
15 Programs		000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48
16	Auto speed	000 ⇔ 255 0–100%
17	Zoom	000 ⇔ 255 0–100%
18	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 124 No function125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto speed135 ⇔ 139 Fast dimmer curve140 ⇔ 144 Smooth dimmer curve145 ⇔ 255 No function

15CH

Channel Function Value Percent/Setting
1	P a n		000 ⇔ 255 0–100%
2	Pan fine		000 ⇔ 255	Fine control (16-bit)
3	T i l t		000	⇔ 255 0–100%
4	Tilt fine		000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed		000 ⇔ 255	Fast to slow
6	Dimmer		000 ⇔ 255	0–100%
7	S t r o		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On

Channel Function Value Percent/Setting
8 Warm white 000 ⇔ 255 0–100%
9 Cool white 000 ⇔ 255 0–100%
10 Color temperature		000 ⇔ 004 No function005 ⇔ 019 3200K020 ⇔ 040 3600K041 ⇔ 060 3800K061 ⇔ 080 4000K081 ⇔ 100 4600K101 ⇔ 120 4800K121 ⇔ 140 5000K141 ⇔ 160 5200K161 ⇔ 180 5400K181 ⇔ 200 5600K201 ⇔ 220 5800K221 ⇔ 240 6000K241 ⇔ 255 No function
11 Zone Selection		000 ⇔ 007 Zone 1, 2, 3, 4, 5008 ⇔ 015 Zone 2, 3, 4, 5016 ⇔ 023 Zone 3, 4, 5024 ⇔ 031 Zone 4, 5032 ⇔ 039 Zone 5040 ⇔ 047 No function048 ⇔ 055 Zone 1056 ⇔ 063 Zone 1, 2064 ⇔ 071 Zone 1, 2, 3072 ⇔ 079 Zone 1, 2, 3, 4080 ⇔ 087 Zone 1, 2, 3, 4, 5088 ⇔ 095 Zone 1096 ⇔ 103 Zone 2104 ⇔ 111 Zone 3112 ⇔ 119 Zone 4120 ⇔ 127 Zone 5128 ⇔ 135 Zone 1, 2136 ⇔ 143 Zone 2, 3144 ⇔ 151 Zone 3, 4152 ⇔ 159 Zone 4, 5160 ⇔ 167 Zone 1, 5168 ⇔ 175 Zone 1, 2, 3176 ⇔ 183 Zone 2, 3, 4184 ⇔ 191 Zone 3, 4, 5192 ⇔ 199 Zone 1, 4, 5200 ⇔ 207 Zone 1, 2, 5208 ⇔ 215 Zone 1, 2, 3, 4216 ⇔ 223 Zone 2, 3, 4, 5224 ⇔ 231 Zone 1, 3, 4, 5232 ⇔ 239 Zone 1, 2, 4, 5240 ⇔ 247 Zone 1, 2, 3, 5248 ⇔ 255 Zone 1, 2, 3, 4, 5
Channel Function Value Percent/Setting
12 Programs		000 ⇔ 015 No function016 ⇔ 020 Program 1021 ⇔ 025 Program 2026 ⇔ 030 Program 3031 ⇔ 035 Program 4036 ⇔ 040 Program 5041 ⇔ 045 Program 6046 ⇔ 050 Program 7051 ⇔ 055 Program 8056 ⇔ 060 Program 9061 ⇔ 065 Program 10066 ⇔ 070 Program 11071 ⇔ 075 Program 12076 ⇔ 080 Program 13081 ⇔ 085 Program 14086 ⇔ 090 Program 15091 ⇔ 095 Program 16096 ⇔ 100 Program 17101 ⇔ 105 Program 18106 ⇔ 110 Program 19111 ⇔ 115 Program 20116 ⇔ 120 Program 21121 ⇔ 125 Program 22126 ⇔ 130 Program 23131 ⇔ 135 Program 24136 ⇔ 140 Program 25141 ⇔ 145 Program 26146 ⇔ 150 Program 27151 ⇔ 155 Program 28156 ⇔ 160 Program 29161 ⇔ 165 Program 30166 ⇔ 170 Program 31171 ⇔ 175 Program 32176 ⇔ 180 Program 33181 ⇔ 185 Program 34186 ⇔ 190 Program 35191 ⇔ 195 Program 36196 ⇔ 200 Program 37201 ⇔ 205 Program 38206 ⇔ 210 Program 39211 ⇔ 215 Program 40216 ⇔ 220 Program 41221 ⇔ 225 Program 42226 ⇔ 230 Program 43231 ⇔ 235 Program 44236 ⇔ 240 Program 45241 ⇔ 245 Program 46246 ⇔ 250 Program 47251 ⇔ 255 Program 48
13 Auto speed 000 ⇔ 255 0–100%
14	Zoom	000 ⇔ 255 0–100%
Channel Function Value Percent/Setting
15	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 124 No function125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto speed135 ⇔ 139 Fast dimmer curve140 ⇔ 144 Smooth dimmer curve145 ⇔ 255 No function

Acerca de Esta Guía

Technical line drawing of a handheld device with no visible text or symbols

Montage au Sol

RDM (Remote Device Management)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

General Information Technical Support

World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093

RoHS
