USER MANUAL Maverick MK3 Profile CX Chauvet

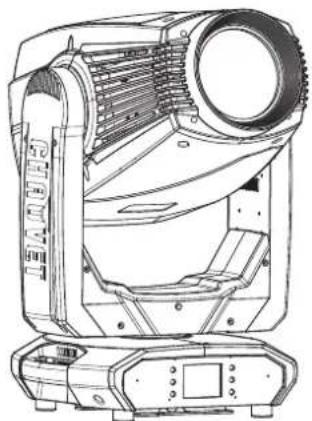

Technical line drawing of a large industrial lamp or projector with internal components and mounting base (no text or symbols)

About This Guide

The Maverick MK3 Profile CX Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• CAUTION: Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  • DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America, and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Maverick MK3 Profile CX
- Seetronic Powerkon IP65 power cord
• 2 Omega Brackets with Mounting Hardware
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect the product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Maverick MK3 Profile CX will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Maverick MK3 Profile CX uses a 3- or 5-pin DMX data connection for its DMX personalities: 38Ch and 54Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Signal Connection

The Maverick MK3 Profile CX can link to controller software using an Ethernet connection. If using other Art-Net ^™ or sACN-compatible products with the Maverick MK3 Profile CX, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Maverick MK3 Profile CX supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

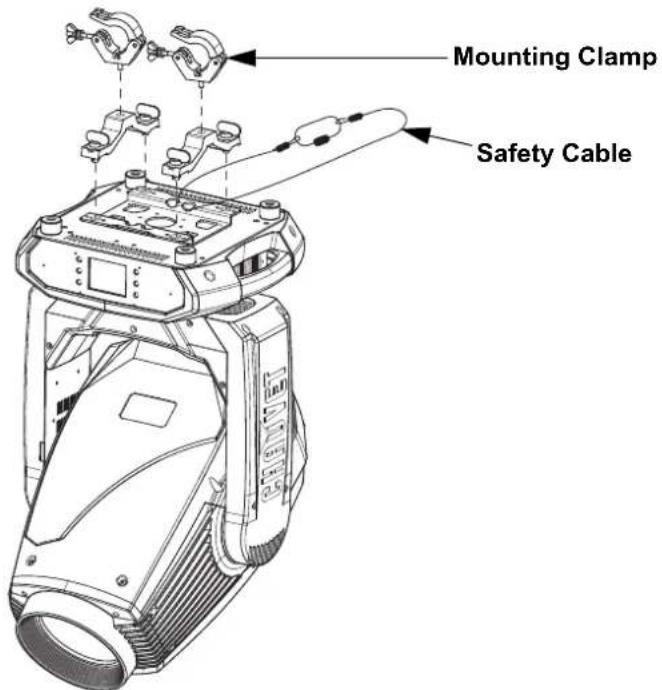

Mounting Diagram

Mounting Clamp Safety Cable

Technical line drawing of a mechanical device with no visible text or symbols

Overhead Mounting Floor Mounting
Control Panel Description

Button Name Function
<↑>		Navigates upwards through the menu list or increases the numeric value when in a function
<≡>		Exits from the current menu or function
<↓>		Navigates downwards through the menu list or decreases the numeric value when in a function
<↔>		Navigates leftwards through the menu list
<↔>		Enables the currently displayed menu or sets the currently selected value into the selected function
<→>		Navigates rightwards through the menu list

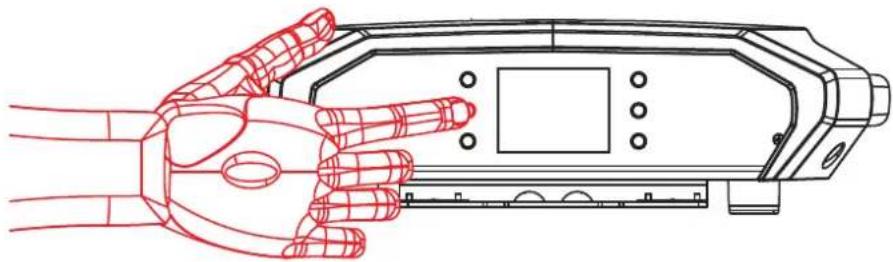

Battery Powered Display

Press and hold until menu screen appears (approximately 15 seconds).

Line drawing of a robotic hand holding a device panel (no text or symbols)

Menu Map

Main Level Programming Levels Description
Address 001-512 Sets the starting address
Network Setup	IP Mode	Manual Manually set IP address
		DHCP Network sets IP address
		Static Product sets IP address
	Universe	000-255 (Art-NetTM)001-256 (sACN)	Sets the universe
	Ip 002._ _ _ _ _ Sets the IP address in Manual mode
	SubMask _ _ _ _ Sets the Subnet Mask in Manual mode
Personality	Dmx Mode 38 CH	YES	Selects the 38-channel mode
		NO
	Dmx Mode 54 CH	YES	Selects the 54-channel mode
		NO
Settings	Control Mode	DMX	Sets the control protocol
		WDMX
		ArtNet
		sACN
	Pan Reverse	NO Normal pan
		YES Reversed pan
	Tilt Reverse	NO Normal tilt
		YES Reversed tilt
	Screen Reverse	NO Normal display
		YES Inverted display
		AUTO Automatic display orientation
	Pan Angle	540	540° pan range
		360	360° pan range
		180	180° pan range
	Tilt Angle	270	270° tilt range
		180	180° tilt range
		90	90° tilt range
	BL. O. P/T Move	NO Do not black out while panning/tilting
		YES Blackout while panning/tilting
	BL. O. Color Move	NO Do not black out while color wheel moving
		YES Blackout while color wheel moving
	BL. O. Gobo Move	NO Do not black out while gobo wheels moving
		YES Blackout while gobo wheels moving
	Calibration	NO Calibration disabled
		YES Calibration enabled
	Touchscreen Lock	NO Touch screen enabled
		YES Touch screen disabled
	Lock Screen	NO	Lock the buttons and touch screen
		YES	Passcode: 0920
	Swap XY	NO Do not swap pan and tilt
		YES Pan controls tilt, tilt controls pan
	WDMX Reset	NO Do not reset WDMX
		YES Reset WDMX
	Backlight Timer	30S	Display turns off after 30 seconds
		1M	Display turns off after 1 minute
		5M	Display turns off after 5 minutes
		ON Display stays on
	Loss of Data	Hold	Holds last signal received
		Close Blacks out fixture

Main Level Programming Levels Description
Settings (cont.)	Fans		Auto Fan speed according to product temperature
			Full Fan speed set on high
			ECO Quiet mode
			TV25	Maintains LED output up to an ambient temperature of 77°F (25°C) (TV25) or 95°F (35°C) (TV35).When using these fan modes, please set the PWM Options to 6000Hz or 15000Hz to prevent any possible harmonization noise.
			TV35
	Dimmer Curve		Linear	Set the dimmer curve
			Square
			I Squa
			SCurve
			Linear2
	PWM Option		600Hz	Sets the Pulse Width Modulation frequency
			1200Hz
			2000Hz
			4000Hz
			6000Hz
			15000Hz
	Preset Select		PRESET A	Recorded preset menu options PRESET B
			PRESET C
	Preset Sync		NO Allows recorded preset menu options to be transferred to otherMaverick MK3 Profile CX fixtures in the DMX daisy chain
			YES
	Reset Function	Pan/Tilt		NO/YES
		Iris/Prism
		Color/CMY/Blade
		Gobo/Gobo Rotate
		Frost/Animation
		All
	Factory Settings		NO	Reset to factory default settings
			YES
Test	Auto Test Auto test all functions
	Manual Test	Pan		000-255
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Gobo
		Gobo Rotate
Main Level	Programming Levels			Description
Test (cont.)	Manual Test (cont.)	Gobo Index	000-255	Manually control and test all settings through the control panel
		Gobo2
		Animation
		Animation Rotate
		Blade1- 1
		Blade1- 1 Fine
		Blade1- 2
		Blade1- 2 Fine
		Blade2- 1
		Blade2- 1 Fine
		Blade2- 2
		Blade2- 2 Fine
		Blade3- 1
		Blade3- 1 Fine
		Blade3- 2
		Blade3- 2 Fine
		Blade4- 1
		Blade4- 1 Fine
		Blade4- 2
		Blade4- 2 Fine
		Blade Rotate
		Blade. Rota Fine
		Focus
		Focus Fine
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Prism2
		Prism2 Rotate
		Iris
		Frost
		Frost2
		CMY Macro
		CMY Macro Speed
		Special Function
Information	Fixture Information	Ver V_ Shows firmware version
		Running Mode __ Shows current running mode
		DMX Address __ Shows current starting address
		Temperature __		Shows current product temperature in °C
		Fixture Hours __		Shows number of hours product has been powered on
		Ip __ Shows current IP address
		SubMask __ Shows current Subnet Mask
		MAC __ Shows current MAC address
	Fan Information	head Fan1-6 Speed __ Shows speed of head fans in rpm
	Error Information		____	Shows any errors, or No Error!
	Channel Information	Frequency	----	Shows all current values from input signals, 000-255
		Pan
		Pan Fine
Main Level Programming Levels Description
Information (cont.)	Channel Information (cont.)	Tilt	---	Shows all current values from input signals, 000-255
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Gobo
		Gobo Rotate
		Gobo Index
		Gobo2
		Animation
		Animation Rotate
		Blade1- 1
		Blade1- 1 Fine
		Blade1- 2
		Blade1- 2 Fine
		Blade2- 1
		Blade2- 1 Fine
		Blade2- 2
		Blade2- 2 Fine
		Blade3- 1
		Blade3- 1 Fine
		Blade3- 2
		Blade3- 2 Fine
		Blade4- 1
		Blade4- 1 Fine
		Blade4- 2
		Blade4- 2 Fine
		Blade Rotate
		Blade. Rota Fine
		Focus
		Focus Fine
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Prism2
		Prism2 Rotate
		Iris
		Frost
		Frost2
		CMY Macro
		CMY Macro Speed
		Special Function

DMX Values
Dmx Mode 54 CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0–100%
2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
3	T i l t	000 ⇔ 255 0–100%
4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed	000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
8 Shutter		000 ⇔ 003 Closed004 ⇔ 007 Open008 ⇔ 076 Strobe, slow to fast077 ⇔ 145 Pulse strobe, slow to fast146 ⇔ 215 Random strobe, slow to fast216 ⇔ 255 Open
9 Virtual Strobe		000 ⇔ 001 No function002 ⇔ 128 Shaking strobe, slow to fast129 ⇔ 255 Fading shake, slow to fast
10	Cyan	000 ⇔ 255 0–100%
11	Magenta	000 ⇔ 255 0–100%
12	Yellow	000 ⇔ 255 0–100%
13	CTO	000 ⇔ 255 0–100%
14	Color Wheel	000 ⇔ 007 Open008 ⇔ 015 Red016 ⇔ 023 Orange024 ⇔ 031 Green032 ⇔ 039 Yellow040 ⇔ 047 Dark blue048 ⇔ 059 8000K CTB060 ⇔ 187 Color wheel indexing188 ⇔ 219 Color scroll, fast to slow220 ⇔ 223 Stop224 ⇔ 255 Reverse color scroll, fast to slow
15	Gobo Wheel 1	000 ⇔ 007 Open008 ⇔ 015 Gobo 1 (Sail Boats)016 ⇔ 023 Gobo 2 (Radial Dot)024 ⇔ 031 Gobo 3 (Mower Blade)032 ⇔ 039 Gobo 4 (Bolts)040 ⇔ 047 Gobo 5 (Shower Glass)048 ⇔ 055 Gobo 6 (Ballistic Clouds)056 ⇔ 063 Gobo 7 (Four Eyes)064 ⇔ 071 Gobo 7 shaking072 ⇔ 079 Gobo 6 shaking080 ⇔ 087 Gobo 5 shaking088 ⇔ 095 Gobo 4 shaking096 ⇔ 103 Gobo 3 shaking104 ⇔ 111 Gobo 2 shaking112 ⇔ 119 Gobo 1 shaking120 ⇔ 127 Open128 ⇔ 191 Gobo scroll, slow to fast192 ⇔ 255 Reverse gobo scroll, slow to fast
Channel	Function	Value	Percent/Setting
16 Gobo 1 Rotate		000 ⇔ 063	Rotating gobo index
		064 ⇔ 145	Gobo rotation, fast to slow
		146 ⇔ 149	Stop
		150 ⇔ 231	Reverse gobo rotation, slow to fast
		232 ⇔ 255	Bounce effect, short to long
17	Gobo Wheel 1 Index Fine	000 ⇔ 255	Fine control (16-bit)
18 Gobo Wheel 2		000 ⇔ 005	Open
		006 ⇔ 011	Gobo 1 (Beam)
		012 ⇔ 017	Gobo 2 (Bars)
		018 ⇔ 023	Gobo 3 (Circles)
		024 ⇔ 029	Gobo 4 (Breakup)
		030 ⇔ 035	Gobo 5 (Dots)
		036 ⇔ 041	Gobo 6 (Circles)
		042 ⇔ 047	Gobo 7 (Triangles)
		048 ⇔ 053	Gobo 8 (Forest)
		054 ⇔ 063	Gobo 9 (Rainbows)
		064 ⇔ 069	Gobo 9 shaking
		070 ⇔ 075	Gobo 8 shaking
		076 ⇔ 081	Gobo 7 shaking
		082 ⇔ 087	Gobo 6 shaking
		088 ⇔ 093	Gobo 5 shaking
		094 ⇔ 099	Gobo 4 shaking
		100 ⇔ 105	Gobo 3 shaking
		106 ⇔ 111	Gobo 2 shaking
		112 ⇔ 117	Gobo 1 shaking
		118 ⇔ 127	Open
		128 ⇔ 191	Gobo scroll, slow to fast
		192 ⇔ 255	Reverse gobo scroll, slow to fast
19	Animation Wheel	000 ⇔ 255	Animation effect, 0–100%
20	Animation Wheel Rotate	000 ⇔ 124	Animation wheel rotation, fast to slow
		125 ⇔ 130	Stop
		131 ⇔ 255	Reverse animation wheel, slow to fast
21	Blade 1-1	000 ⇔ 255	0–100%
22	Blade 1-1Fine	000 ⇔ 255	Fine control (16-bit)
23	Blade 1-2	000 ⇔ 255	0–100%
24	Blade 1-2 Fine	000 ⇔ 255	Fine control (16-bit)
25	Blade 2-1	000 ⇔ 255	0–100%
26	Blade 2-1 Fine	000 ⇔ 255	Fine control (16-bit)
27	Blade 2-2	000 ⇔ 255	0–100%
28	Blade 2-2 Fine	000 ⇔ 255	Fine control (16-bit)
29	Blade 3-1	000 ⇔ 255	0–100%
30	Blade 3-1 Fine	000 ⇔ 255	Fine control (16-bit)
31	Blade 3-2	000 ⇔ 255	0–100%
32	Blade 3-2 Fine	000 ⇔ 255	Fine control (16-bit)
33	Blade 4-1	000 ⇔ 255	0–100%
34	Blade 4-1 Fine	000 ⇔ 255	Fine control (16-bit)
35	Blade 4-2	000 ⇔ 255	0–100%
36	Blade 4-2 Fine	000 ⇔ 255	Fine control (16-bit)
37	Frame Rotate	000 ⇔ 255	0–100%
38	Frame Fine Rotate	000 ⇔ 255	Fine control (16-bit)
39 Focus 000 ⇔ 255 0–100%
40	Fine Focus	000 ⇔ 255	Fine control (16-bit)
41 Auto Focus		000 ⇔ 010	No function
		011 ⇔ 030	0–5 m
		031 ⇔ 050	6 m
		051 ⇔ 070	7 m
		071 ⇔ 090	8 m
		091 ⇔ 110	9 m
		111 ⇔ 130	10 m
		131 ⇔ 150	12.5 m
		151 ⇔ 170	15 m
		171 ⇔ 190	17.5 m
		191 ⇔ 210	20–60 m
		211 ⇔ 255	Auto-detect distance
42 Zoom 000 ⇔ 255 0–100%
43	Fine Zoom	000 ⇔ 255	Fine control (16-bit)
44 Prism 1		000 ⇔ 004	No function
		005 ⇔ 255	Prism effect 1
45 Prism 1 Rotate		000 ⇔ 127	Rotating prism 1 index
		128 ⇔ 189	Prism 1 rotation, fast to slow
		190 ⇔ 193	Stop
		194 ⇔ 255	Reverse prism 1 rotation, slow to fast
46 Prism 2		000 ⇔ 004	No function
		005 ⇔ 255	Prism effect 2
47 Prism 2 Rotate		000 ⇔ 127	Rotating prism 2 index
		128 ⇔ 189	Prism 2 rotation, fast to slow
		190 ⇔ 193	Stop
		194 ⇔ 255	Reverse prism 2 rotation, slow to fast
48 Iris		000 ⇔ 063	Big to small
		064 ⇔ 127	Auto change, slow to fast
		128 ⇔ 191	Slow expand, fast shrink (slow to fast)
		192 ⇔ 255	Slow shrink, fast expand (slow to fast)
49 Frost 1 000 ⇔		255	0–100%
50 Frost 2 000 ⇔ 255 0–100%
51	No Function	000 ⇔ 255	No function
52 CMY Macro		000 ⇔ 009	No function
		010 ⇔ 255	CMY macro
53	CMY Macro Speed	000 ⇔ 255	CMY macro speed, fast to slow

Channel Function Value Percent/Setting
54 Control	000 ⇔ 007 No function008 ⇔ 015 XY blackout016 ⇔ 023 C blackout024 ⇔ 031 G blackout032 ⇔ 039 XY/C blackout040 ⇔ 047 XY/G blackout048 ⇔ 055 XY/C/G blackout056 ⇔ 095 No function096 ⇔ 103 X reset104 ⇔ 111 Y reset112 ⇔ 119 Color reset120 ⇔ 127 Gobo wheels and rotation reset128 ⇔ 135 No function136 ⇔ 143 Prisms reset144 ⇔ 151 Framing shutter reset152 ⇔ 159 All reset160 ⇔ 167 Iris reset168 ⇔ 175 Frost reset176 ⇔ 183 Zoom reset184 ⇔ 191 CMY reset192 ⇔ 199 Fan ECO mode200 ⇔ 207 Fan full speed208 ⇔ 215 Fan auto216 ⇔ 220 No function221 ⇔ 225 Iris fast mode226 ⇔ 230 Iris smooth mode231 ⇔ 235 XY swap on236 ⇔ 240 XY swap off241 ⇔ 246 Fan TV25247 ⇔ 250 Fan TV35251 ⇔ 255 No function

Dmx Mode 38 CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0–100%
2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
3	T i l t	000	⇔ 255 0–100%
4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed	000 ⇔ 255	Fast to slow
6	Dimmer	000 ⇔ 255	0–100%
7	Shutter	000 ⇔ 003 Closed004 ⇔ 007 Open008 ⇔ 076 Strobe, slow to fast077 ⇔ 145 Pulse strobe, slow to fast146 ⇔ 215 Random strobe, slow to fast216 ⇔ 255 Open
8	Virtual Strobe	000 ⇔ 001 No function002 ⇔ 128 Shaking strobe, slow to fast129 ⇔ 255 Fade in/out, slow to fast
9	Cyan	000 ⇔ 255	0–100%
10	Magenta	000 ⇔ 255	0–100%
11	Yellow	000 ⇔ 255	0–100%
12	CTO	000 ⇔ 255	0–100%

Channel Function Value Percent/Setting
13 Color Wheel	000 ⇔ 007	Open
	008 ⇔ 015	Red
	016 ⇔ 023	Orange
	024 ⇔ 031	Green
	032 ⇔ 039	Yellow
	040 ⇔ 047	Dark blue
	048 ⇔ 059	8000K CTB
	060 ⇔ 187	Split colors
	188 ⇔ 219	Color scroll, fast to slow
	220 ⇔ 223	Stop
	224 ⇔ 255	Reverse color scroll, fast to slow
14 Gobo Wheel 1	000 ⇔ 007	Open
	008 ⇔ 015	Gobo 1 (Sail Boats)
	016 ⇔ 023	Gobo 2 (Radial Dot)
	024 ⇔ 031	Gobo 3 (Mower Blade)
	032 ⇔ 039	Gobo 4 (Bolts)
	040 ⇔ 047	Gobo 5 (Shower Glass)
	048 ⇔ 055	Gobo 6 (Ballistic Clouds)
	056 ⇔ 063	Gobo 7 (Four Eyes)
	064 ⇔ 071	Gobo 7 shaking
	072 ⇔ 079	Gobo 6 shaking
	080 ⇔ 087	Gobo 5 shaking
	088 ⇔ 095	Gobo 4 shaking
	096 ⇔ 103	Gobo 3 shaking
	104 ⇔ 111	Gobo 2 shaking
	112 ⇔ 119	Gobo 1 shaking
	120 ⇔ 127	Open
	128 ⇔ 191	Gobo scroll, slow to fast
	192 ⇔ 255	Reverse gobo scroll, slow to fast
15 Gobo 1 Rotate	000 ⇔ 063	Rotating gobo index
	064 ⇔ 145	Gobo rotation, fast to slow
	146 ⇔ 149	Stop
	150 ⇔ 231	Reverse gobo rotation, slow to fast
	232 ⇔ 255	Bounce effect

Channel	Function	Value	Percent/Setting
16 Gobo Wheel 2		000 ⇔ 005 Open006 ⇔ 011 Gobo 1 (Beam)012 ⇔ 017 Gobo 2 (Bars)018 ⇔ 023 Gobo 3 (Circles)024 ⇔ 029 Gobo 4 (Breakup)030 ⇔ 035 Gobo 5 (Dots)036 ⇔ 041 Gobo 6 (Circles)042 ⇔ 047 Gobo 7 (Triangles)048 ⇔ 053 Gobo 8 (Forest)054 ⇔ 063 Gobo 9 (Rainbows)064 ⇔ 069 Gobo 9 shaking070 ⇔ 075 Gobo 8 shaking076 ⇔ 081 Gobo 7 shaking082 ⇔ 087 Gobo 6 shaking088 ⇔ 093 Gobo 5 shaking094 ⇔ 099 Gobo 4 shaking100 ⇔ 105 Gobo 3 shaking106 ⇔ 111 Gobo 2 shaking112 ⇔ 117 Gobo 1 shaking118 ⇔ 127 Open128 ⇔ 191 Gobo scroll, slow to fast192 ⇔ 255 Reverse gobo scroll, slow to fast
17	Animation Wheel	000 ⇔ 255 Animation effect
18	Animation Wheel Rotate	000 ⇔ 255 Animation wheel rotation, fast to slow000 ⇔ 255 Stop000 ⇔ 255 Reverse animation wheel, slow to fast
19 Blade 1a 000 ⇔ 255 0–100%
20 Blade 1b 000 ⇔ 255 0–100%
21 Blade 2a 000 ⇔ 255 0–100%
22 Blade 2b 000 ⇔ 255 0–100%
23 Blade 3a		000 ⇔ 255 0–100%
24 Blade 3b 000 ⇔ 255 0–100%
25 Blade 4a 000 ⇔ 255 0–100%
26 Blade 4b 000 ⇔ 255 0–100%
27	Frame Rotate	000 ⇔ 255 0–100%
28 Focus 000 ⇔ 255 0–100%
29 Zoom 000 ⇔ 255 0–100%
30 Prism 1		000 ⇔ 004 No function005 ⇔ 255 Prism effect 1
31 Prism 1 Rotate		000 ⇔ 127 Rotating prism 1 index128 ⇔ 189 Prism 1 rotation, fast to slow190 ⇔ 193 Stop194 ⇔ 255 Reverse prism 1 rotation, slow to fast
32 Prism 2		000 ⇔ 004 No function005 ⇔ 255 Prism effect 2
33 Prism 2 Rotate		000 ⇔ 127 Rotating prism 2 index128 ⇔ 189 Prism 2 rotation, fast to slow190 ⇔ 193 Stop194 ⇔ 255 Reverse prism 2 rotation, slow to fast
34 Iris		000 ⇔ 063 Big to small064 ⇔ 127 Auto change, slow to fast128 ⇔ 191 Slow zoom out, fast zoom in (slow to fast)192 ⇔ 255 Slow zoom in, fast zoom out (slow to fast)
35 Frost 1 000 ⇔ 255 0–100%
36 Frost 2 000 ⇔ 255 0–100%
Channel Function Value Percent/Setting
37	No Function	000 ⇔ 255	No function
38 Control		000 ⇔ 007	No function
		008 ⇔ 015	XY blackout
		016 ⇔ 023	C blackout
		024 ⇔ 031	G blackout
		032 ⇔ 039	XY/C blackout
		040 ⇔ 047	XY/G blackout
		048 ⇔ 055	XY/C/G blackout
		056 ⇔ 095	No function
		096 ⇔ 103	X reset
		104 ⇔ 111	Y reset
		112 ⇔ 119	Color reset
		120 ⇔ 127	Gobo wheels and rotation reset
		128 ⇔ 135	No function
		136 ⇔ 143	Prisms reset
		144 ⇔ 151	Framing shutter reset
		152 ⇔ 159	All reset
		160 ⇔ 167	Iris reset
		168 ⇔ 175	Frost reset
		176 ⇔ 183	Zoom reset
		184 ⇔ 191	CMY reset
		192 ⇔ 199	Fan low speed
		200 ⇔ 207	Fan full speed
		208 ⇔ 215	Fan auto
		216 ⇔ 220	No function
		221 ⇔ 225	Iris fast mode
		226 ⇔ 230	Iris smooth mode
		231 ⇔ 235	XY swap on
		236 ⇔ 240	XY swap off
		241 ⇔ 246	Fan TV25
		247 ⇔ 250	Fan TV35
		251 ⇔ 255	No function

Acerca de Esta Guía

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand holding a device panel (no text or symbols)

Mapa de Menú

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand holding a device (no text or symbols present)

Plan du Menu

RDM (Remote Device Management)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand holding a device panel (no text or symbols)

Menüstruktur

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand interacting with a device panel (no text or symbols)

Menumap

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093

RoHS
