USER MANUAL Monsoon Mini II AK9528AS Zephyr

EN Use, Care, and Installation Guide

Technical line drawing of a rectangular metal enclosure with a circular opening and mounting flanges (no text or symbols)

Page Safety Information 4-6

Types of Safety Warnings 4

General Safety 4-5

Operation 6

Electrical Requirements 6

List of Materials 7

Installation Instructions 8-17

Ducting Calculation Sheet 8

Mounting Height, Clearance, & Ducting 9-10

Ducting Options ....11

Hood Specifications ....12

Electrical Supply 13

Cable Lock 13

Mounting the Hood.... 14-15

Ducting Preparation ....16

Ductless Recirculation ....17

Recirculating Kit Installation ....17

Features & Controls 18

Electronic Touch Controls 18

Maintenance....19-20

Hood & Filter Cleaning 19-20

LumiLight LED 20

ACT™ Conversion 21-22

Airflow Control Technology (ACT™) 21

Enabling ACT™ 22

Wiring Diagram 23

Troubleshooting.... 24-25

List of Parts & Accessories 26

Limited Warranty 27

Product Registration 28

READ AND SAVE THESE INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words "DANGER" "WARNING" or "CAUTION"

DANGER

Danger means that failure to heed this safety statement may result in severe injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

General Safety

WARNING

To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

READ AND SAVE THESE INSTRUCTIONS

WARNING

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING ^a :

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit

°Based on "Kitchen Firesafety Tips" published by NFPA.

WARNING

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.

WARNING

Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

READ AND SAVE THESE INSTRUCTIONS

Operation

▶ Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

Electrical Requirements

Important:

▶ Observe all governing codes and ordinances.
It is the customer's responsibility to be aware of these below:
▶ To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

▶ Do not ground to a gas pipe.

▶ Check with a qualified electrician if you are not sure the range hood is properly grounded.

▶ Do not have a fuse in the neutral or ground circuit.

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

▶ A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Parts Supplied

Quantity Part

1 Liner hood

2 Hybrid baffle filters

3 Hybrid baffle filters (AK9546AS only)

2 LumiLight LED, 6W (pre-installed)

1 7" round transition collar (pre-installed)

1 3-1/4" x 10" rectangular collar

1 Rectangular top cover plate

1 Dual blower motor (pre-installed)

1 Hardware package

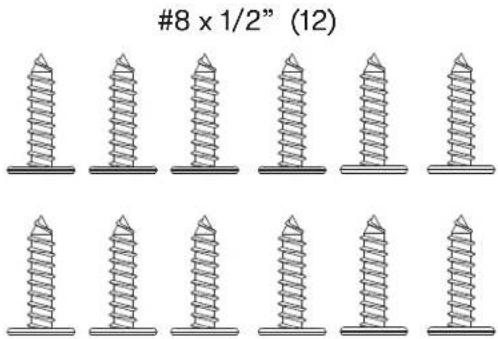

#8 x 1/2" (12)

Three wire cap illustrations in a row, no text or symbols present

Parts Not Supplied

Ducting, conduit and all installation tools

Cable locking connector (if required by local codes)

Recirculating kit (ZRC-9100A)

Ducting Calculation Sheet

Duct pieces		Equivalent number length x used =	Total
	3-1/4"x 10" Rect., straight	1 Ft. x( ) =	Ft.
	6",7",8",10" Round, straight	1 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.90° elbow	15 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.45° elbow	9 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.90° flat elbow	24 Ft. x( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x( ) =	Ft.
	6",7",8" Round in-line damper	15 Ft. x( ) =	Ft.
	6",7",8",10" Round, 90° elbow	15 Ft. x( ) =	Ft.
	6",7",8",10" Round, 45° elbow	9 Ft. x( ) =	Ft.
Subtotal column 1 =			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 150 equivalent feet.

Duct pieces		Equivalent number length x used =	Total
	3-1/4"x 10"Rect. to6" round transition	5 Ft. x( ) =	Ft.
	3-1/4"x 10"Rect. to6" round transition90° elbow	20 Ft. x( ) =	Ft.
	6" round to3-1/4"x 10"rect.transition	1 Ft. x( ) =	Ft.
	6" round to3-1/4"x 10"rect.transition90° elbow	16 Ft. x( ) =	Ft.
	7" round to3 1/4" x 10"rect.transition	8 Ft. x( ) =	Ft.
	7" round to3-1/4" x 10"rect.transition90° elbow	23 Ft. x( ) =	Ft.
	3-1/4"x 10"Rect.wall cap with damper	30 Ft. x( ) =	Ft.
	6", 7", 8", 10"Round, wall cap with damper	30 Ft. x( ) =	Ft.
	6", 7", 8", 10"Round roof cap	30 Ft. x( ) =	Ft.
Subtotal column 2 =Subtotal column 1 =Total ductwork =			Ft.
			Ft.
			Ft.

Mounting Height, Clearance, & Ducting

24" min. 36" max. 36"

Mounting Height, Clearance, & Ducting

A minimum of 7" round or 3-1/4" x 10" rectangular duct must be used to maintain maximum air flow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Also use the ducting calculation sheet (on page 8) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size.

If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.

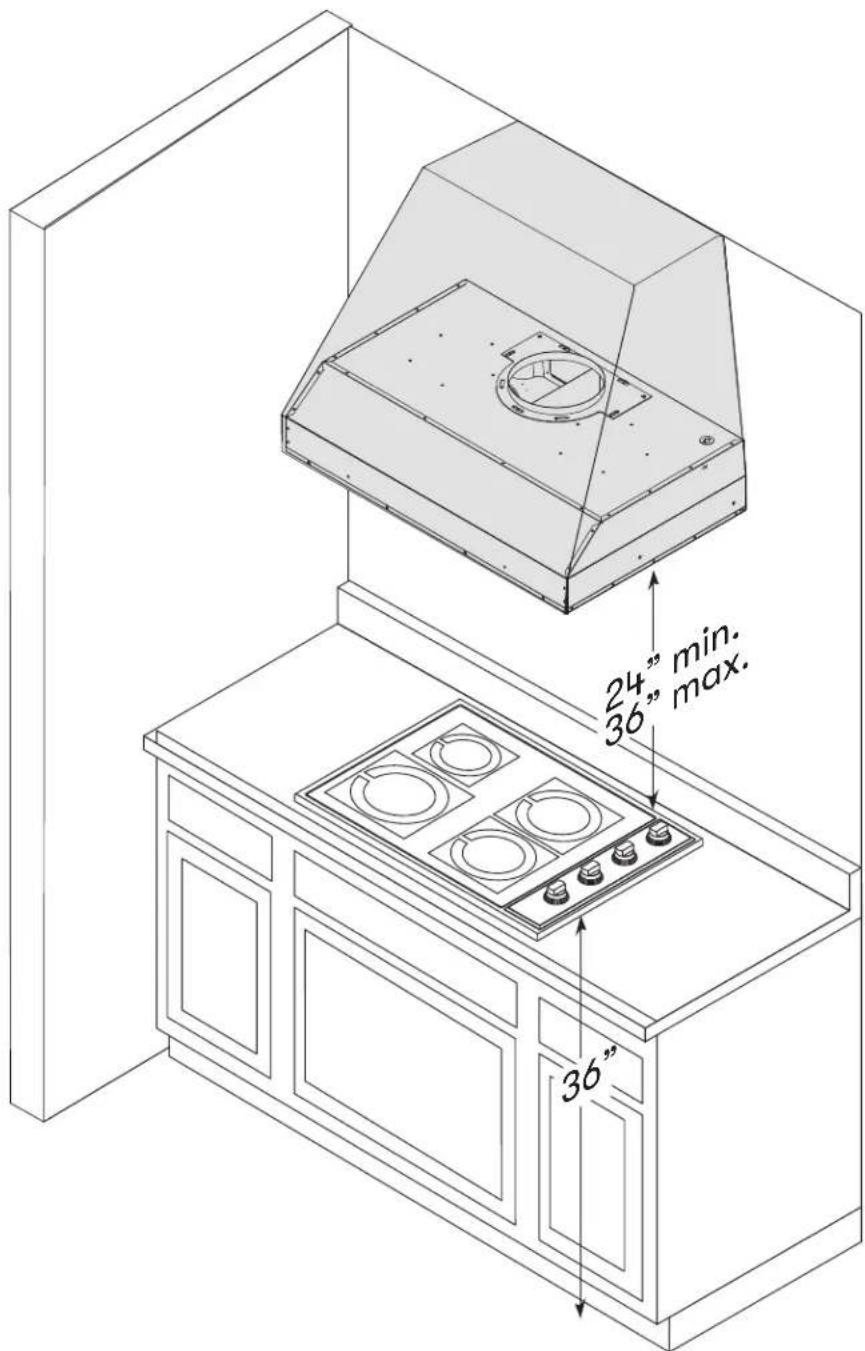

Minimum mount height between range top to hood bottom should be no less than 24".

Maximum mount height should be no higher than 36".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.

If available, also refer range manufacturer's height clearance requirements and recommended hood mounting height above range. Always check your local codes for any differences.

For shipment and installation damages:

▶ Please fully inspect unit for damage before installation.
If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

Ducting Options

WARNING

Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option.

▶ Use single wall rigid metal ductwork only.

▶ Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

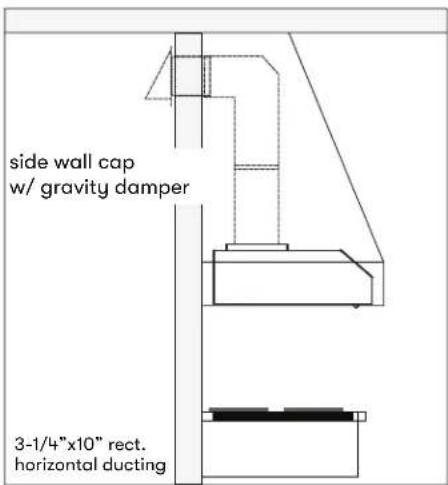

side wall cap w/ gravity damper 3-1/4"x10" rect. horizontal ducting

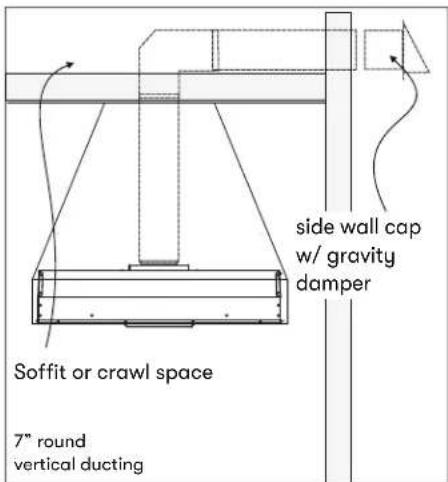

side wall cap w/ gravity damper Soffit or crawl space 7" round vertical ducting

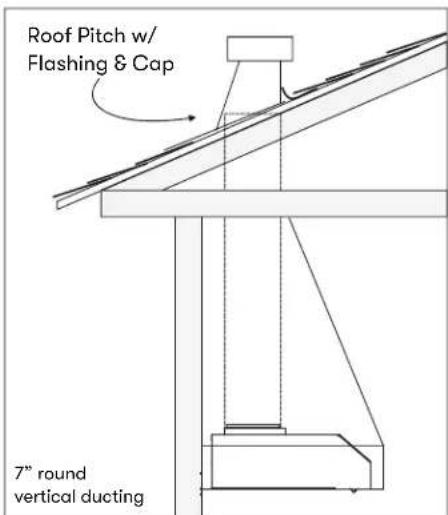

Roof Pitch w/ Flashing & Cap 7" round vertical ducting

Hood Specifications

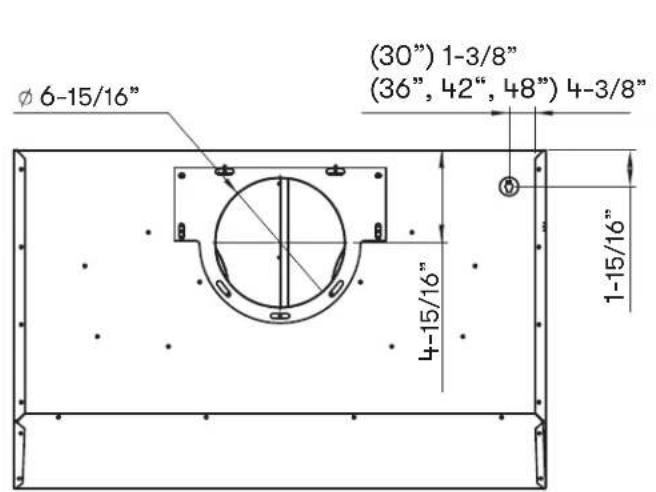

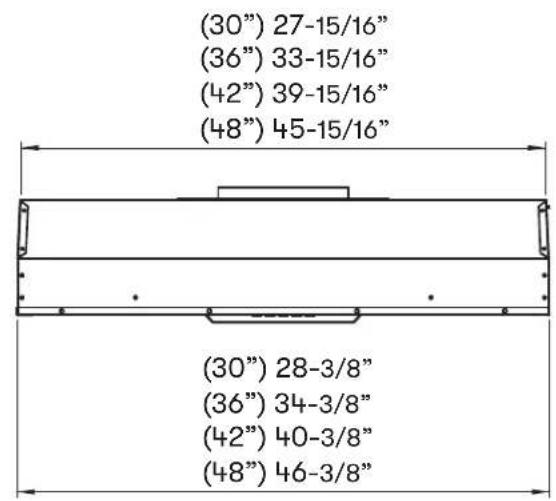

Ø 6-15/16" (30") 1-3/8" (36", 42", 48") 4-3/8" 4-15/16" 1-15/16"

TOP

(30") 27-15/16" (36") 33-15/16" (42") 39-15/16" (48") 45-15/16" (30") 28-3/8" (36") 34-3/8" (42") 40-3/8" (48") 46-3/8"

FRONT

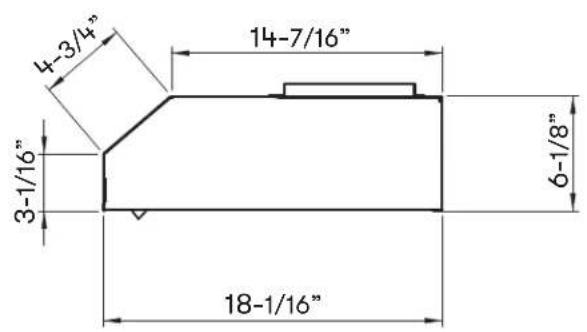

4-3/4" 14-7/16" 3-1/16" 6-1/8" 18-1/16"

SIDE BACK

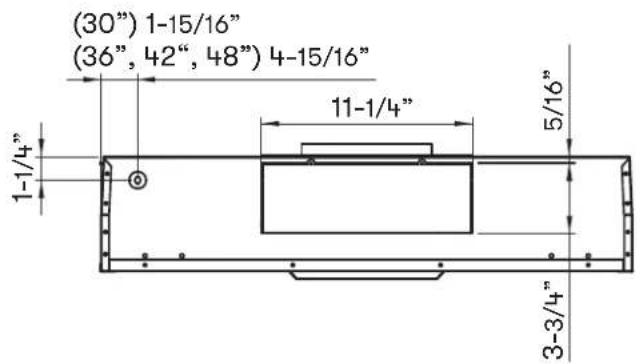

(30") 1-15/16" (36", 42", 48") 4-15/16" 1-1/4" 11-1/4" 5/16" 3-3/4"

Electrical Supply

WARNING

Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn off electrical power at service entrance before wiring.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.

Cable Lock

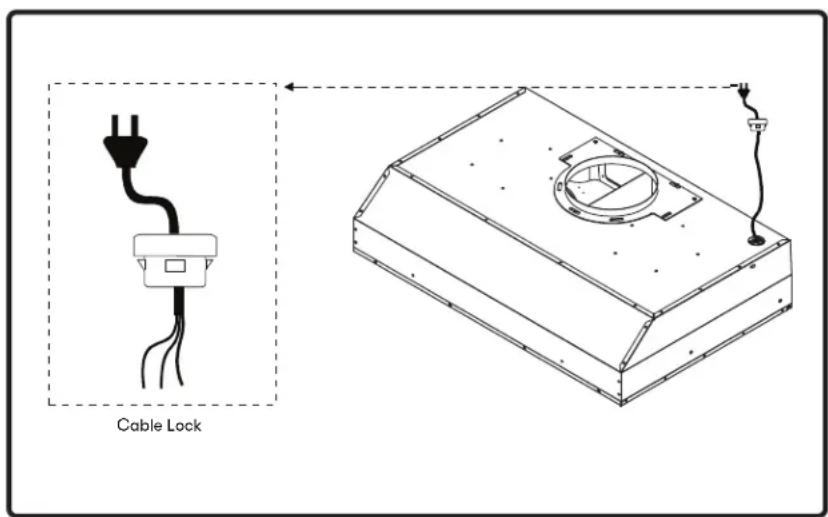

A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)

Cable Lock

FIG. A

Mounting the Hood

CAUTION

At least two installers are required due to the weight and size of the hood.

1. Remove all packing materials and protective film prior to installation. Use caution during installation to prevent scratches or damage to the stainless steel.
2. Cut out an opening in the bottom of the cabinet by following the dimensions in FIG. B. If ducting the one piece liner horizontally, also cut out an opening in the back of the cabinet (if applicable). FIG. C.
3. Prepare hood for installation into cabinet by following the steps on the next page. Continue to Step 4 after preparation is complete.

WARNING

Make sure the surface you are securing the hood to is capable of holding the weight of AK95. Failure to do so may cause personal injury or damage to cooking surface or counter.

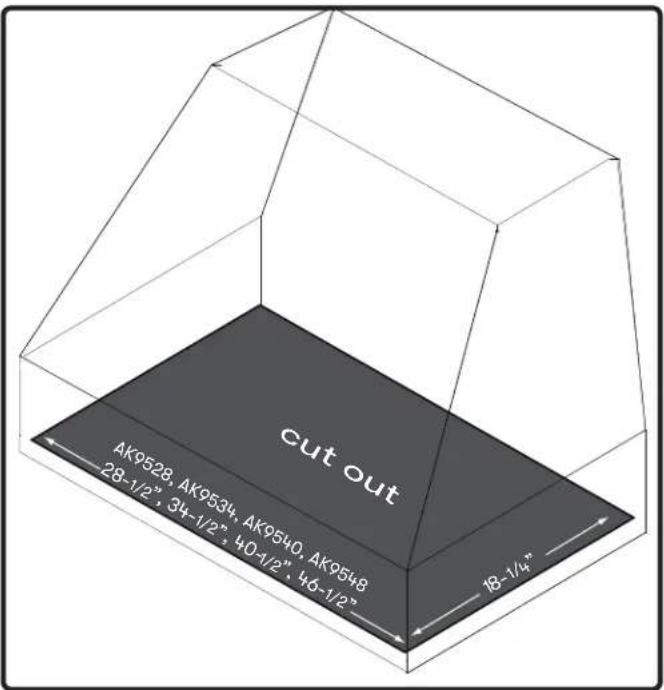

cut out AK9528, AK9534, AK9540, AK9548 28-1/2", 34-1/2", 40-1/2", 46-1/2" 18-1/4*

FIG. B

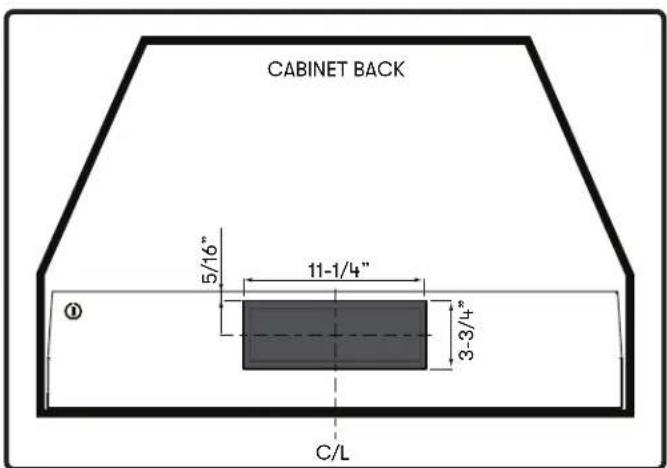

CABINET BACK 5/16" 11-1/4" 3-3/4" C/L

FIG. C

Mounting the Hood

1. Lift hood into bottom opening of cabinet and secure to interior of cabinet using (12) #8 x 1/2" stainless steel screws; (4) screws in the front and (4) screws in the sides and (4) screws in the back. FIG. D.

2. Finalize installation of electrical and duct work. Seal duct work with certified aluminum duct tape. Power on hood, check for leaks around duct tape and verify proper operation.

NOTE: If access to top of hood is not available after installation, electrical and duct work connection may need to be made prior to installing the hood.

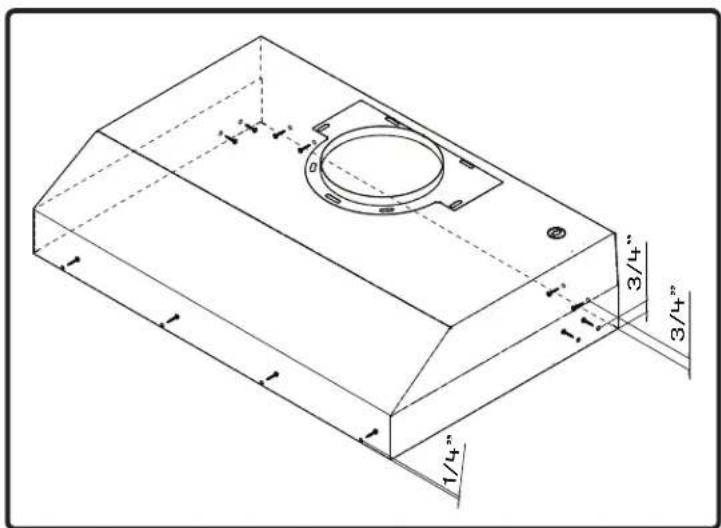

1/4" 3/4" 3/4"

FIG. D

Ducting Preparation

If vertically ducting hood with 7" round collar or if using hood in recirculating mode, skip these steps and turn to the next page.

Vertical Ducting

(3-1/4"x10"

Rectangular)

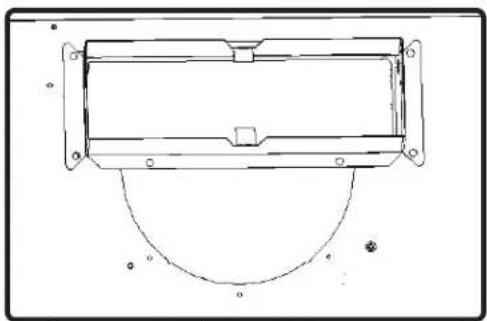

Pure technical diagram of a circular component with mounting holes and centerline, no text or symbols present

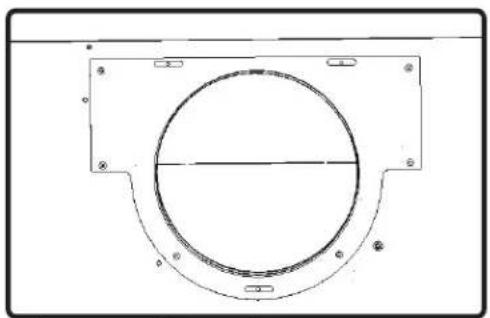

1. Remove 7" round transition collar on top of hood by (6) M4 x 6 screws.

Technical line drawing of a rectangular mechanical component with mounting holes and a curved base (no text or symbols)

1. Secure 3-1/4" x 10" rectangular collar to top of hood using (6) M4 x 6 screws.

Horizontal Ducting

(3-1/4" × 10"

Rectangular)

Pure technical diagram of a circular component with mounting holes and centerline, no text or symbols present

1. Remove 7" round transition collar on top of hood by (6) M4 x 6 screws and secure rectangular top cover plate to top of the hood.

Simple line drawing of a rectangular frame with corner markers and no text or symbols

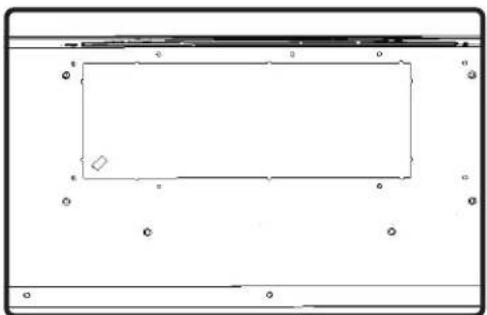

1. Using a flat-head screwdriver, remove the rectangular knock-out plate located on back of hood.

Pure technical diagram of a rectangular frame with mounting holes and mounting points, no text or symbols present

1. Secure 3-1/4" x 10" rectangular collar to back of hood using (6) M4 x 6 screws.

Ductless Recirculation

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and re-circulated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the exhaust option is not possible should you recourse to converting the hood into a recirculating hood.

When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard Metal Filter set. Order according to its part number below. The standard filters are intended to capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from cooking for recirculation.

Recirculating Kit Installation (required if no ducting is used)

For detailed installation instructions, please refer to the manual included with the recirculating kit.

Recirculating Kit

Hood Model Part Number Quantity to Order
AK95 ZRC-9100A 1

1. Remove filter from hood and place charcoal on the back side of the filter. Place filter brackets over charcoal filter and secure in place by tucking each end of the bracket under the mesh filter frame, FIG. E.
2. Reinstall filter.
3. Charcoal filter must be replaced after every 120 hours of use or approximately ever 3 to 4 months based on an average daily use of 1 hour of cooking time.

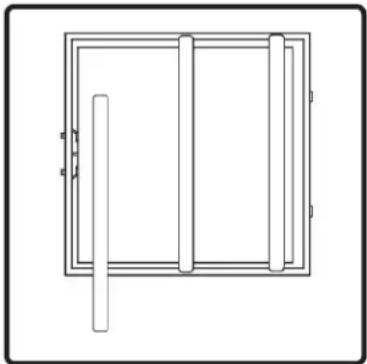

Simple line drawing of a rectangular frame with vertical bars and a diagonal line, no text or symbols present.

FIG. E

Charcoal Filter Replacements

Hood Model Part Number	Quantity to Order
AK95 Z0F-C091 2

DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending on cooking habits.

Electronic Touch Controls

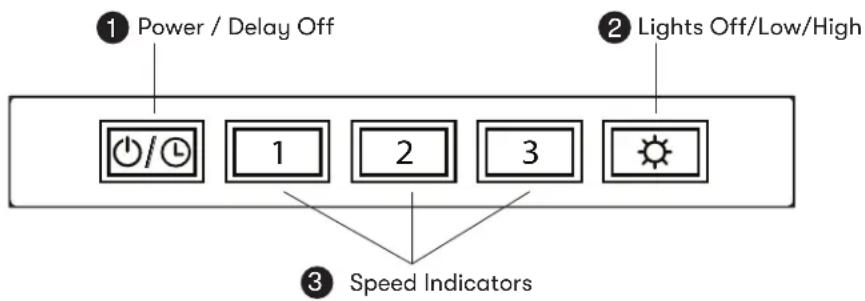

① Power / Delay Off ② Lights Off/Low/High ③ Speed Indicators

1 Power / Delay Off Button

• ⏻/ Seoul Button will turn power on and off for entire hood (fan and lights.)
• Hood will remember the last speed and light level it was last turned off at.

(Example: Press button to turn off hood when on fan speed 3 and high lights.

Press 0/10 on again and the hood will turn back on at speed 3 and high lights.)

Delay Off

• With the fan on, press and hold the ⏻/➊ button for two seconds. The fan will change to speed 1, the ⏻/➊ button will blink on and off indicating the 5 minute delay off timer has started.
• Pressing ⏻ button while delay off function is enabled will turn the hood off and cancel the delay off function.

ACT Verification

• Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
• To verify the maximum fan CFM:

- With hood off, hold the button for five seconds. If all three fan speed indicators illuminate = default maximum CFM. If speed level 1 and 2 indicators illuminate = 390 maximum CFM. If only speed level 1 indicator illuminates = 290 maximum CFM.

② Lights Button

• Lights are two levels, low and high.
• From off, press one time for low. Press again for high. Press again to power lights off.

③ Speed Level Indicators

- Fan is three speed levels. 1 for low speed, 2 for medium speed, and 3 for high speed.

Hood & Filter Cleaning

Surface Maintenance

▶ Do not use corrosive detergents, abrasive detergents or oven cleaners.
▶ Do not use any product containing chlorine bleach or any product containing chloride.
▶ Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.

After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and buff in the direction of the stainless steel grain.

Cleaning Filters

The filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean.

Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions – but this will not affect filter performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled.

Dry filters and re-install before using hood.

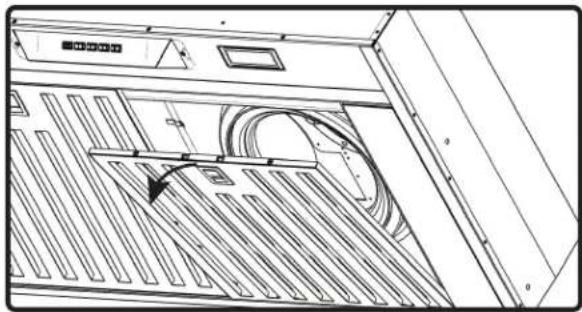

Removing Hybrid Baffle Filters (FIG. F):

1. Pull the filter latch while pivoting the filter downwards from the hood.
2. Remove the filter from the hood.

Technical line drawing of a server rack with ventilation ducts and a door (no text or symbols)

FIG. F

Replacing Hybrid Baffle Filters

Hood Model Part Number Qty. to Order
AK95 50210041 2
AK9546AS 50210041 3

To order parts, visit us online at http://store.zephyronline.com.

LumiLight LED

In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information.

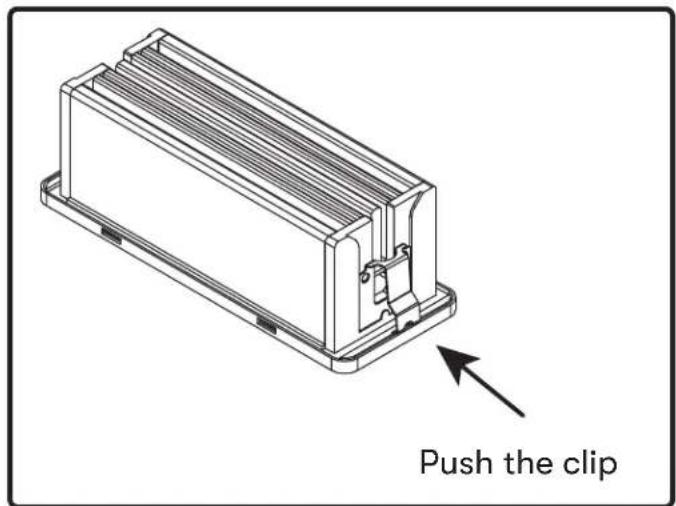

LED Removal (FIG. G):

1. Remove hybrid baffle filters.
2. Remove side panels if applicable, and remove light panels by two screws each.
3. Disconnect LED light quick connector.
4. Push in the two side clips on the ends of the LED light.
5. Push LED light through the light panel opening.

Push the clip

FIG. G

Airflow Control Technology (ACT™)

Some local codes limit the maximum amount of CFM a range hood can move. ACT ^™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT ^™ enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels, 390 or 290 CFM. The usage of ACT ^™ may not be necessary for your installation. Please check your local codes for CFM restrictions.

CAUTION

Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product.

CAUTION

After re-positioning the jumper and powering on the hood, the CFM cannot be changed again.

Enabling ACT™

To enable ACT™:

1. Before hood installation, gain access to PC board by removing filters, side panels (if applicable), and light panel.
2. Change plastic jumper positioning as shown in FIG. H to set the desired maximum blower CFM.
3. Re-install PC board and continue with hood installation.
4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the hood body below the wiring diagram or in another clearly visible location.

To verify if your installer enabled ACT™:

1. With hood off, press and hold the power button for three seconds. If all speed level indicators illuminate = default max. CFM, if speed 1 & 2 level indicators illuminate = 390 max. CFM, if speed 1 level indicator illuminate = 290 max. CFM
2. When ACT ^™ is enabled, the number of blower speeds will be reduced. 390 CFM = max. 2 speeds and 290 CFM = max. 1 speed.
3. There should also be a foil label located inside the hood body near the wiring diagram that indicates the blower CFM.

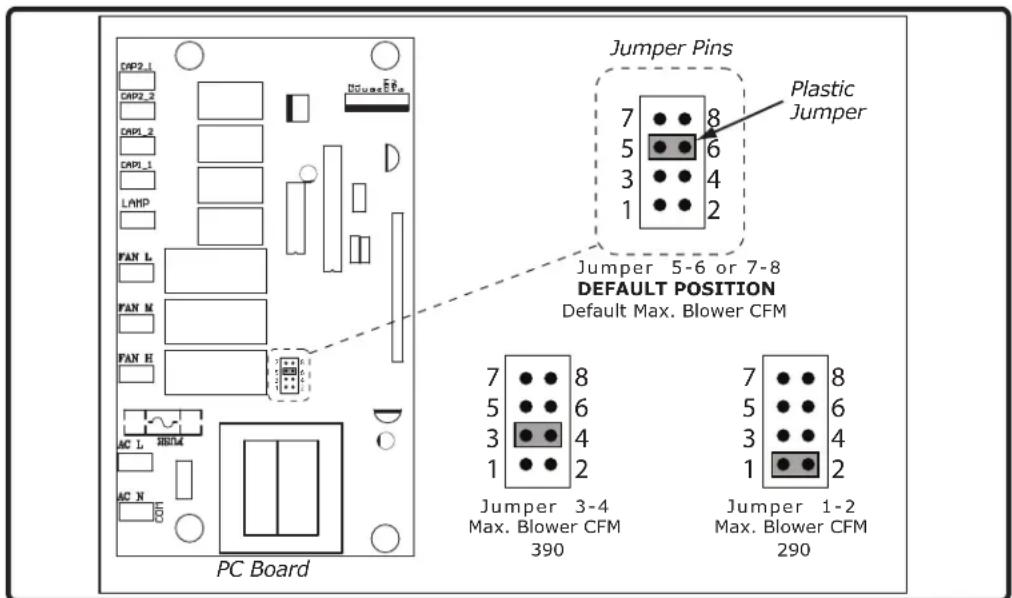

Jumper Pins Plastic Jumper Jumper 5-6 or 7-8 DEFAULT POSITION Default Max. Blower CFM 7 8 5 6 3 4 1 2 Jumper 3-4 Max. Blower CFM 390 Jumper 1-2 Max. Blower CFM 290 PC Board

FIG. H

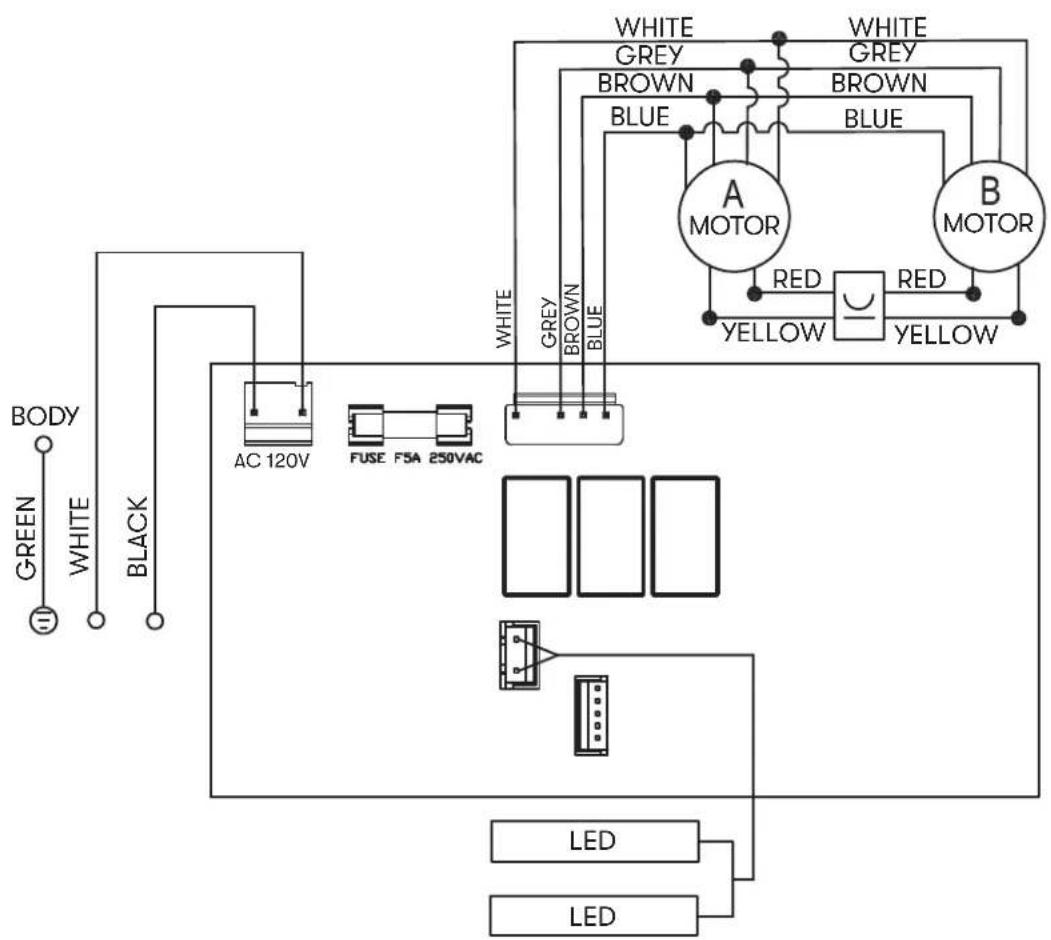

WIRING DIAGRAM

REMARKS:CONDENSER 3.5+3.5uF 300V AC120V 60Hz

Possible Problem Possible Cause Solutions
After installation, the unit doesn't work.	The power source is not turned ON. Make sure the circuit breaker and the unit's power is ON.
	The power line and the cable locking connector is not connecting properly.	Check the power connection with the unit is connected properly.
	The switch board wirings are disconnected.	Make sure the wirings at the switch board are connected properly.
	The switch board is defective. Change the switch board.
Light works, but blower is not turning.	The blower wire is not connected. Make sure the blower wire is plugged into the molex connector.
	The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	The blower will function properly after the thermally protected system cool down.
	Damaged capacitor. Change the capacitor.
	Blower molex plug pin is not making contact.	Disconnect the blower molex plug, check pins inside plug to see if pin is pushed inside the plug too far. Reset pin if needed.
	The blower is defective, possibly seized.	Change the blower.
The unit is vibrating. The	blower is not secured in place. Tighten the blower in place.
	Damaged blower wheel. Replace the blower.
	The hood is not secured in place. Check the installation of the hood.
The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops.
			The duct pipe connections are not sealed or connected properly.	Check the duct pipe connections to be sure all connections are sealed properly.
The blower is working, but the LumiLight LEDs are not.	The LumiLight LED connector is disconnected.	Connect the LumiLight LED connector.
	Defective LumiLight LED. Change the LumiLight LED.
	The switch board is defective. Change the switch board.
The hood is not venting out properly.	Using the wrong size of ducting. Change the ducting to the correct size.
	The hood might be hanging to high from the cook top.	Adjust the distance between the cook top and the bottom of the hood within 24” and 36” range.
	The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	Close all the windows and doors to eliminate the outside wind flow.
	Blockage in the duct opening or ductwork.	Remove all the blocking from the duct work or duct opening.
Filter is vibrating. Filter is	loose. Adjust or change the filter.
	Spring clip is broken on the filter. Change the spring clip.

Description Part Number
Replacement Parts
LumiLight LED, 6W Z0B0047
Hybrid Baffle Filter (each) 50210041
Optional Accessories
Recirculating Kit ZRC-9100A
Replacement Charcoal Filter Z0F-C091
7” Round Damper AK00067

To order parts, visit us online at http://store.zephyronline.com.

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS

United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contact

Canada Customers please call: 1-800-361-0799 or Email: [e-mail]

Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements.

Please check our website for any additional Product information, www.zephyronline.com

Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502

Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

STOP

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368

Monsoon Mini II

AK9528AS, AK9534AS, AK9540AS, AK9546AS

EN Use, Care, and Installation Guide

Technical line drawing of a rectangular metal enclosure with a circular opening and mounting flanges (no text or symbols)

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Pièces fournies

Three identical line drawings of conical flutes, no text or symbols present

M4 x 6mm (6)

Pièces non fournies

Pure technical diagram of a circular component with mounting holes and centerline, no text or symbols present

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

Technical drawing of a circular mechanical component with mounting flanges and bolt holes (no text or symbols)

Simple rectangular outline with labeled corners and a small diamond shape at the center (no text or symbols)

Pure technical diagram of a rectangular frame with mounting holes and no text or symbols

Simple line drawing of a rectangular frame with vertical bars and a vertical rod, no text or symbols present.

FIG. E

Technical line drawing of a server rack with ventilation ducts and ventilation grilles (no text or symbols)

FIG. F

POUR OBTENIR UN SERVICE SOUS GARANTIE OU POUR TOUTE QUESTIONS LIÉES AU SERVICE

Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502

www.zephyronline.com/registration

C'EST IMPORTANT
