RANGE HOOD - Installation instructions

ENGLISH......3

FRANÇAIS......27

Table of Contents

SAFETY INSTRUCTIONS....pag. 4

LIST OF MATERIALS....pag. 8

DUCTING CALCULATION SHEETS....pag. 9

HOOD SPECIFICATION....pag. 10

INSTALLATION

- INTERNAL BLOWER....pag. 11

- EXTERNAL & IN-LINE BLOWER PREPARATION....pag. 14

- DUCTING OPTIONS....pag. 17

- MOUNTING THE RANGE HOOD....pag. 18

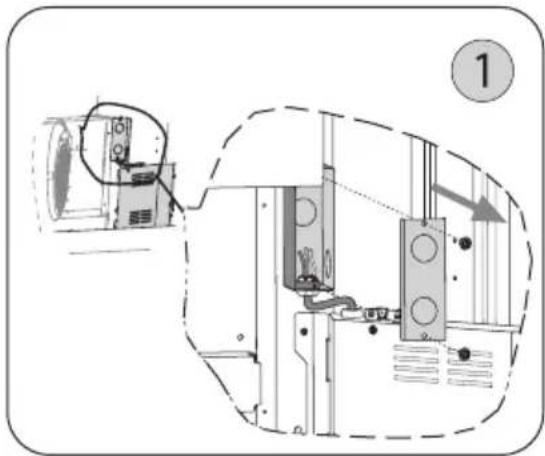

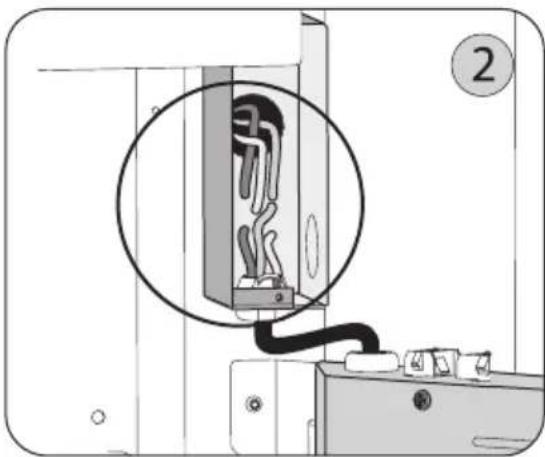

- POWER SUPPLY CONNECTION....pag. 19

TOUCH CONTROL....pag. 20

OPTIONAL REMOTE CONTROL....pag. 21

MAINTENANCE ......pag. 22

WIRING DIAGRAMS....pag. 23

LIST OF PARTS AND ACCESSORIES ......pag. 25

WARRANTY ......pag. 26

Safety instructions 1/4

■ IMPORTANT SAFETY INSTRUCTIONS

■ READ AND SAVE THESE INSTRUCTIONS

■ PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.

■ IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.

■ INSTALLER: Please leave these Instructions with this unit for the owner.

■ OWNER: Please retain these instructions for future reference.

■ Take care when using cleaning agents or detergents.

■ Suitable for use in household cooking area.

■ WARNING - To reduce the risk of fire or electric shock, do not use this fan with any Solid-State Speed Control Device.

■ CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

■ CAUTION - For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

■ CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

■ CAUTION - Please read specification label on product for further information and requirements.

■ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

■ WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smok

Safety instructions 2/4

ing and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking at high heat or when flambeing foods (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè).

C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

E. Keep fan, filters and grease laden surface clean.

F. Use high range setting on range only when necessary. Heat oil slowly on low to medium setting.

G. Don't leave range unattended when cooking.

H. Always use cookware and utensils appropriate for the type and amount off food being prepared.

■ WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

^a Based on “kitchen firesafety tips” published by NFPA

Proper maintenance of the Range Hood will assure proper performance of the unit.

■ INSTALLATION INSTRUCTIONS

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

Safety instructions 3/4

B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.

■ WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

■ WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DANGEROUS.

A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any maintenance operation, disconnect the hood from the electrical service.

■ The manufacturers will not to accept any responsibility for eventual damages, because of failure to observe the above instructions.

Electrical Requirements

Important:

• Observe all governing codes and ordinances.
• It is the customer's responsibility to be aware of these below:
• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

- If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

- Do not ground to a gas pipe.

- Check with a qualified electrician if you are not sure the range hood is properly grounded.

Safety instructions 4/4

• Do not have a fuse in the neutral or ground circuit.
• This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.
• A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.
  * National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
  ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Federal Communication Commission Interface Statement

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

List of Materials

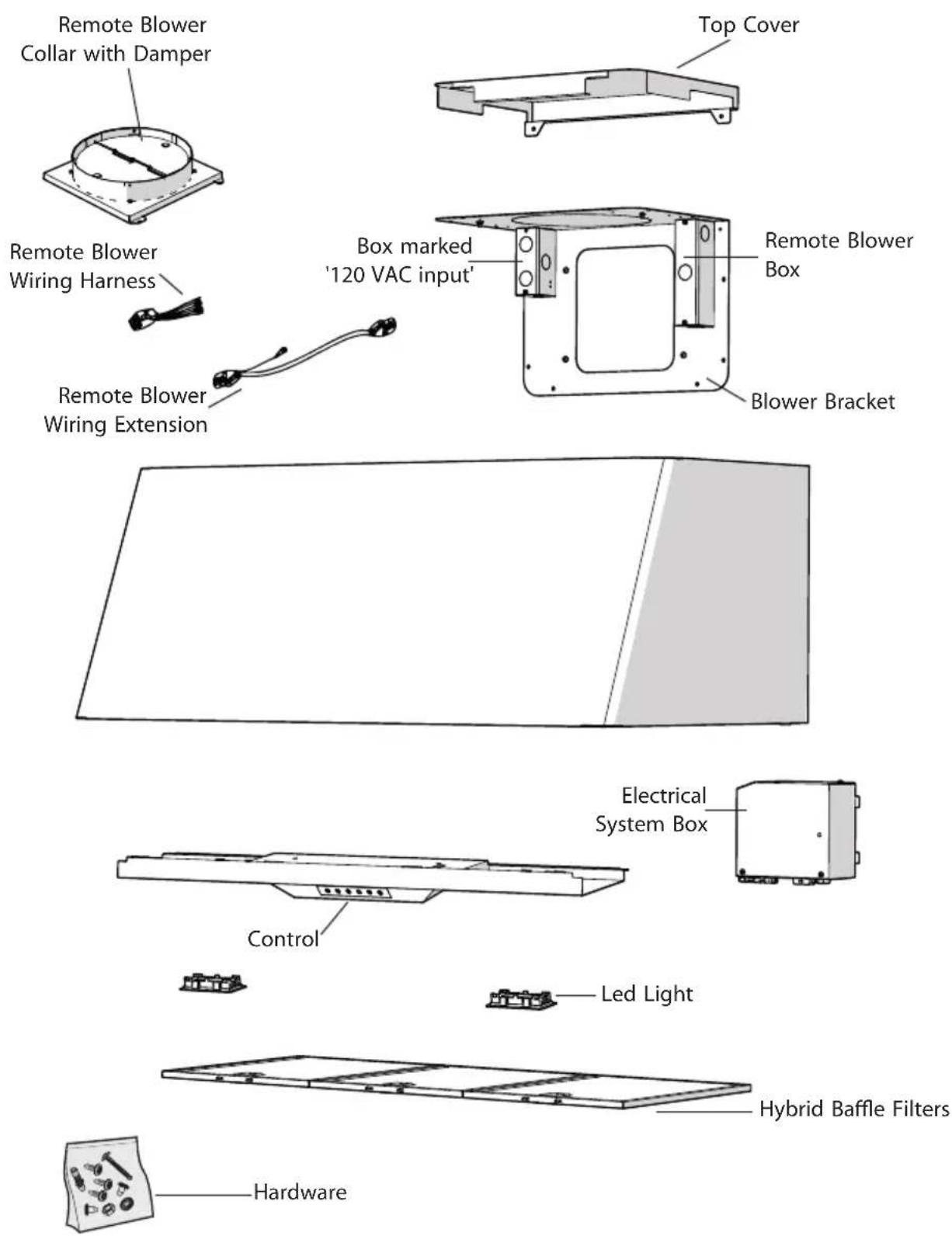

Remote Blower Collar with Damper Top Cover Remote Blower Wiring Harness Box marked '120 VAC input' Remote Blower Box Blower Bracket Remote Blower Wiring Extension Electrical System Box Control Led Light Hybrid Baffle Filters Hardware

Ducting Calculation Sheet

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect., straight	1 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, straight	1 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect. 90° elbow	15 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect. 45 elbow	9 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect. 90 flat elbow	24 Ft. x ( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x ( ) =	Ft.
	6", 7", 8" Round in-line damper	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 90" elbow	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 45" elbow	9 Ft. x ( ) =	Ft.
Subtotal column 1 =			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 150 equivalent feet.

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect. to 6" round transition	5 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect. to 6" round transition 90° elbow	20 Ft. x ( ) =	Ft.
	6" round to 3- 1/ 4" x 10" rect. transition	1 Ft. x ( ) =	Ft.
	6" round to 3- 1/ 4" x 10" rect. transition 90° elbow	16 Ft. x ( ) =	Ft.
	7" round to 3 1/ 4" x 10" rect. transition	8 Ft. x ( ) =	Ft.
	7" round to 3- 1/ 4" x 10" rect. transition 90° elbow	23 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect. wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round roof cap	30 Ft. x ( ) =	Ft.
Subtotal column 2 = Subtotal column 1 = Total ductwork =			Ft.
			Ft.
			Ft.

Hood Specifications

front of hood

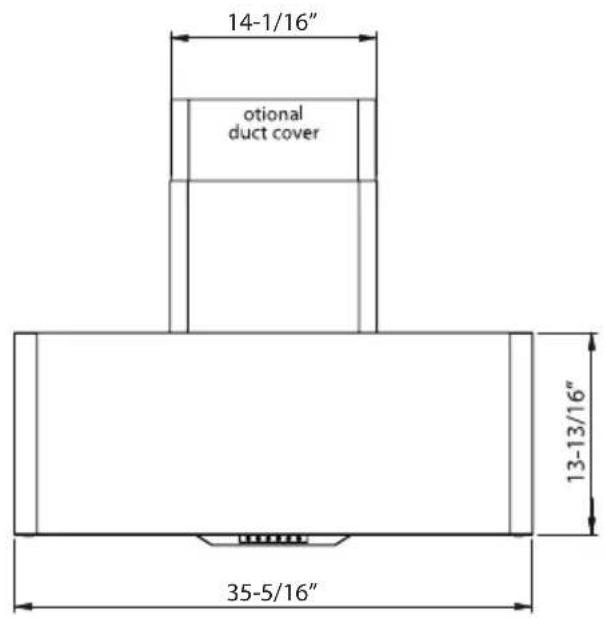

14-1/16" otional duct cover 13-13/16" 35-5/16"

back of hood

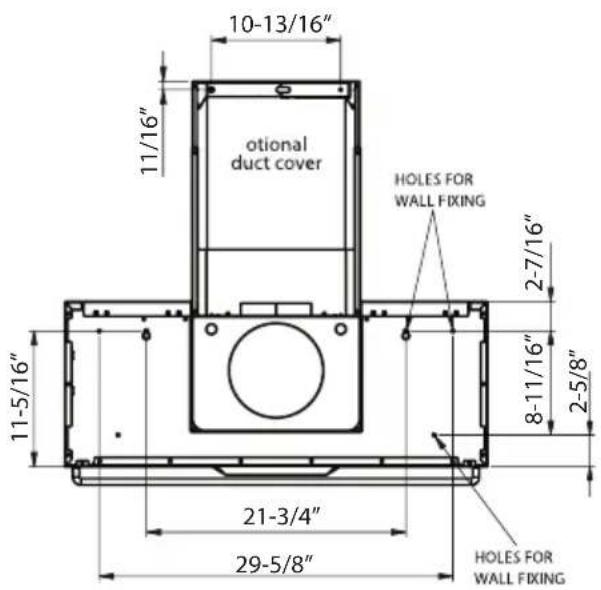

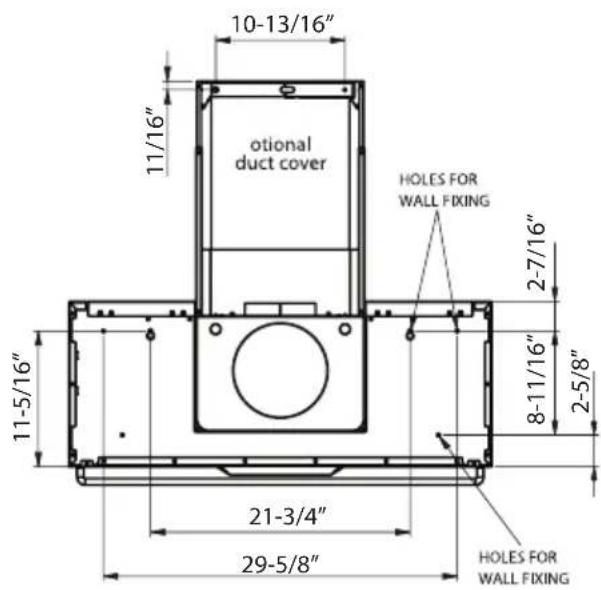

10-13/16" 11/16" 11-5/16" 21-3/4" 29-5/8" HOLES FOR WALL FIXING HOLES FOR WALL FIXING 2-7/16" 8-11/16" 2-5/8"

side of hood

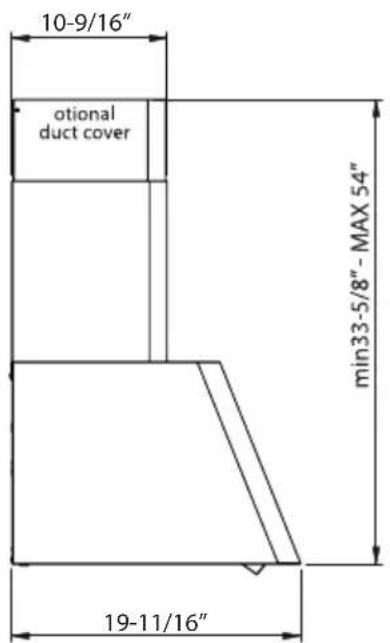

10-9/16" otional duct cover min33-5/8" - MAX 54" 19-11/16"

top of hood

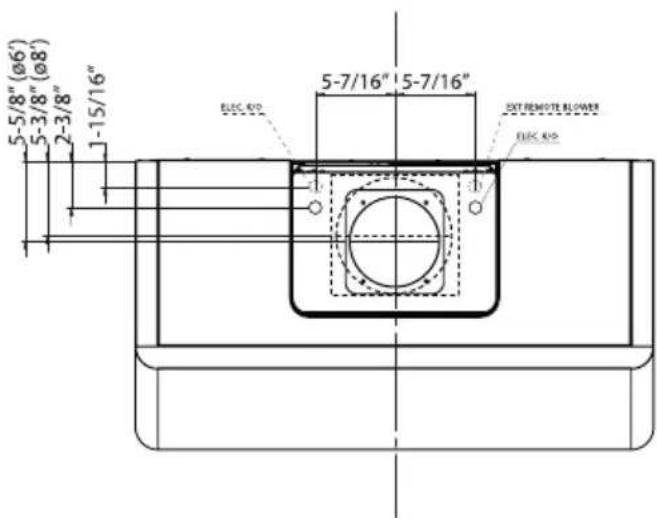

5-5/8" (Ø6') 5-3/8" (Ø8') 2-3/8" 1-15/16" ELEC KG 5-7/16" 5-7/16" EXT REMOTE BLOWER ELEC KG

Installation - Internal Blower

NOTE! The device in this version (with internal suction blower) is equipped for rear discharge of exhaust air. However, if required, it is possible to have the exhaust air discharged from the top. This can be accomplished by carrying out the steps indicated in the following paragraphs; upon reaching step 8, the motor plate must not be rotated.

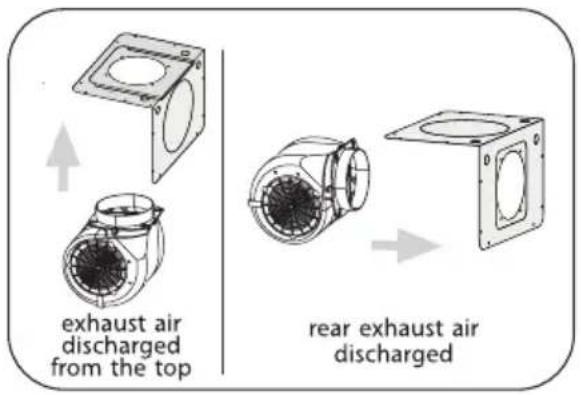

exhaust air discharged from the top rear exhaust air discharged

■ The following instructions are for installing the internal blower. CAUTION: To reduce the risk of fire and electric shock, install this rangehood only with internal blower models CBI-290A or CBI-600A.

For external and in-line blower preparation please turn to page 14.

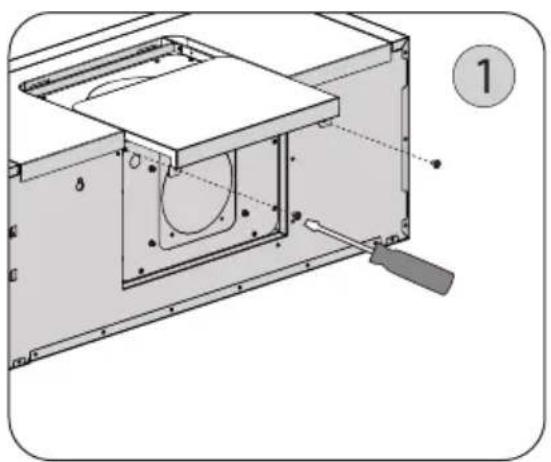

1. Remove the (2) screws securing the top cover. See Fig.1

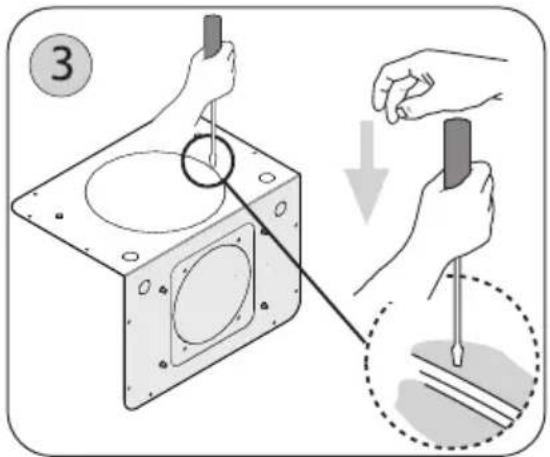

2. Remove the 6" round metal knockout plate from the blower plate by using a flat head screwdriver. See Fig.2

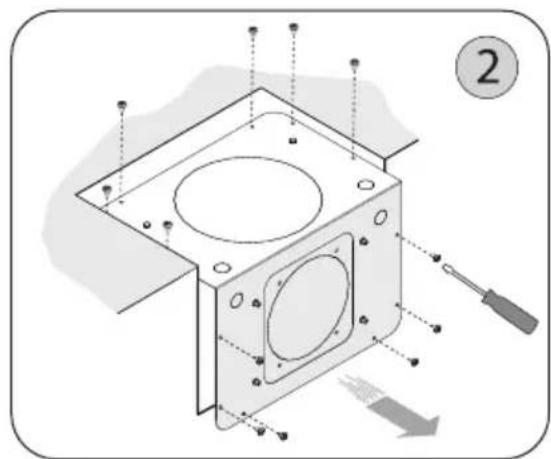

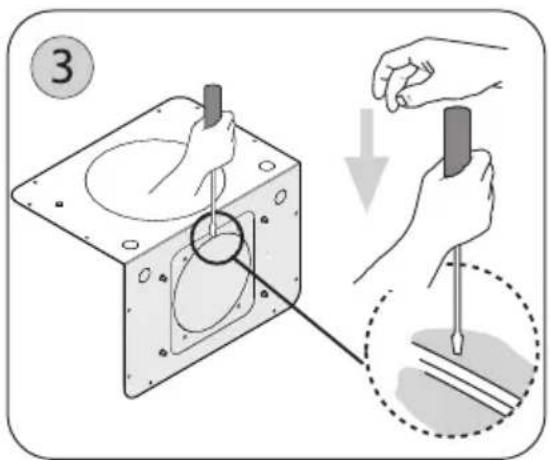

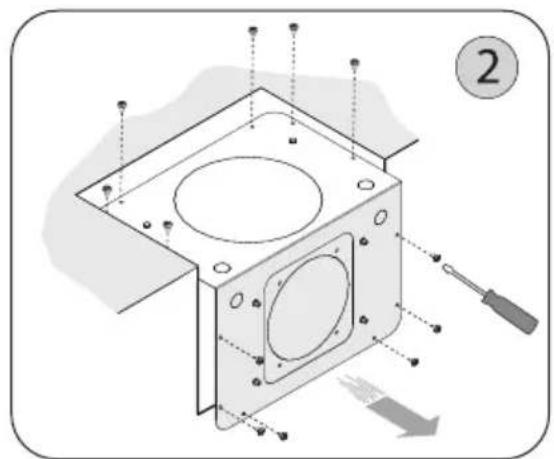

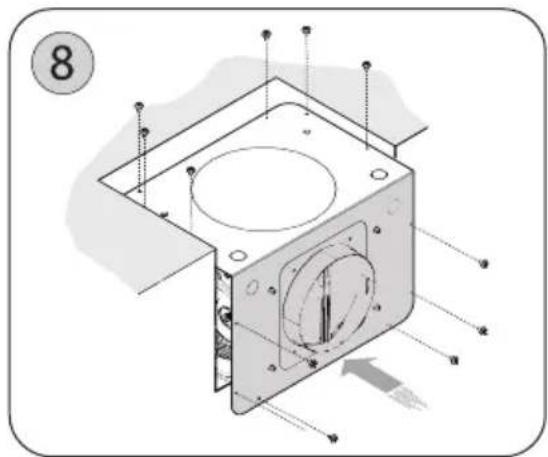

3. Remove the (6) screws securing the blower plate to the blower housing and remove blower plate. See Fig.3

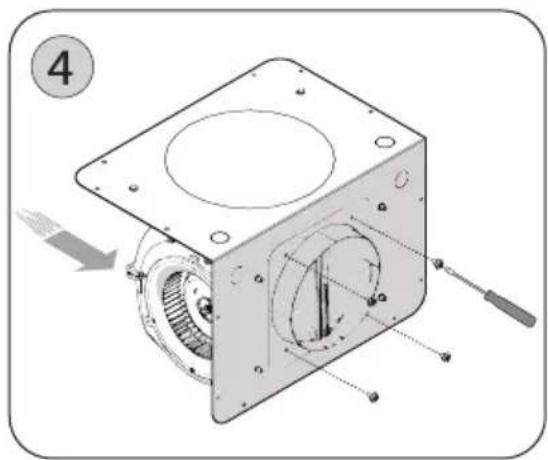

4. Install internal blower into blower plate and secure using (4) screws included with the blower. See Fig.4

Technical diagram of a mechanical assembly with labeled component (1), showing internal components and alignment lines (no text or symbols beyond label)

Technical diagram of a mechanical assembly with mounting holes and a screwdriver (no text or symbols)

3

1. Secure capacitor box connected to the provided cable to the blower plate using (2) screws included with the blower. See Fig.5

2. Secure Green/Yellow ground wire connected to the cable to the provided capacitor to blower plate. Fig.6

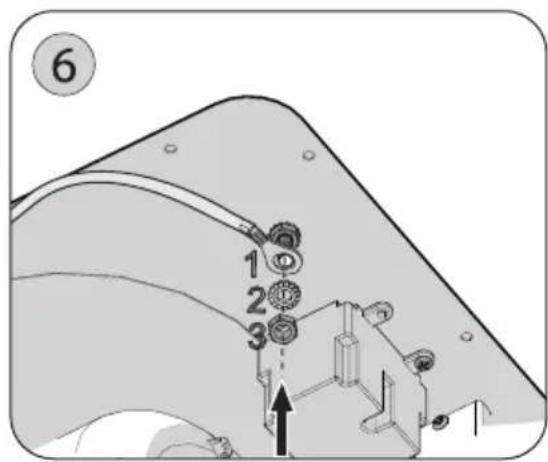

3. Attach the 6 pin male molex connector from blower wire to the 6 pin female mo-lex connector located inside the blower housing. See Fig.7

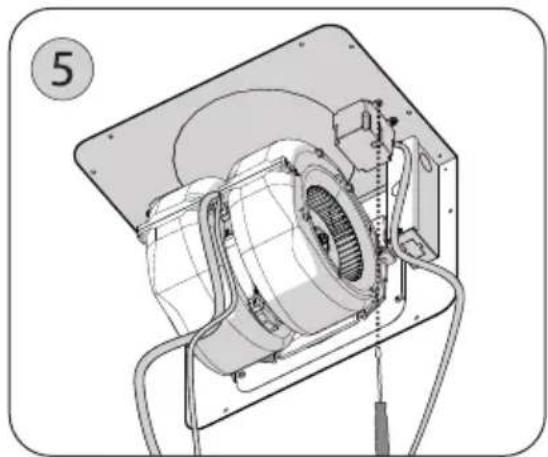

4. Install the blower and plate on the inside of the blower housing: carry out the instructions at step 2 in reverse order then use the screws provided to complete installation. (Tot. 12). Fig.8

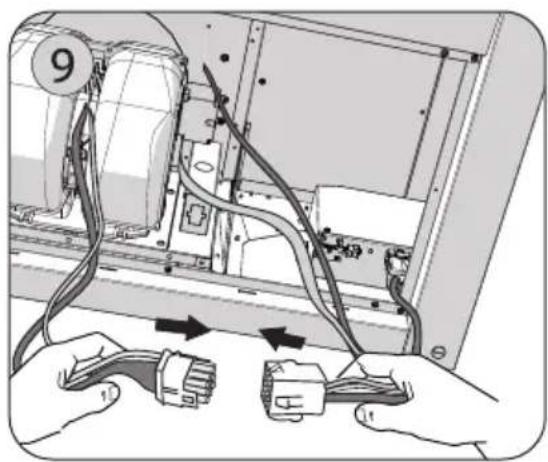

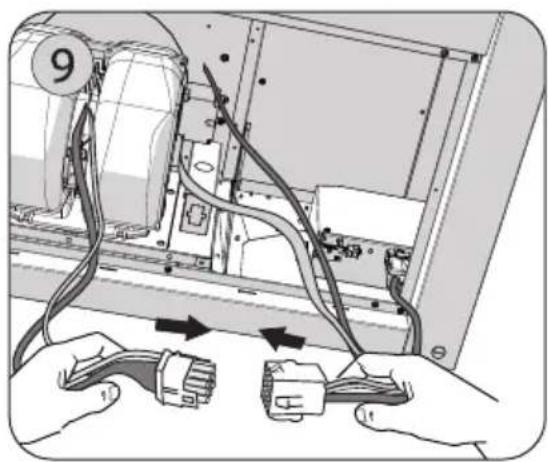

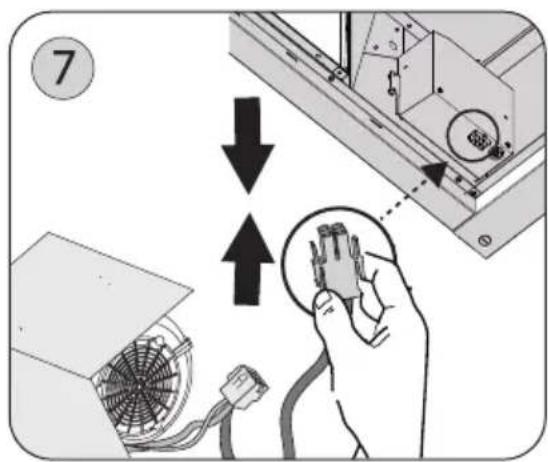

5. Connect 9 pin male molex connector from blower wire to 9 pin female molex connector on the capacitor wire. See Fig.9

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Technical diagram of a mechanical device with internal components and wiring (no text or symbols)

6 1 2 3

7

WARNING! Place electrical wiring inside the blower housing.

1. Put the top cover back on.

The hood is now ready to be installed on the wall.

Technical diagram of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Illustration of hands connecting cables to a computer monitor (no text or symbols visible)

Installation - External & In-Line Blower Preparation

■ NOTE! The device in this version (with external blower) is equipped for rear discharge of exhaust air. However, if required, it is possible to have the exhaust air discharged from the top. This can be accomplished by carrying out the steps indicated in the following paragraphs; upon reaching step 4, the blower plate must be rotated and installed in the opposite direction.

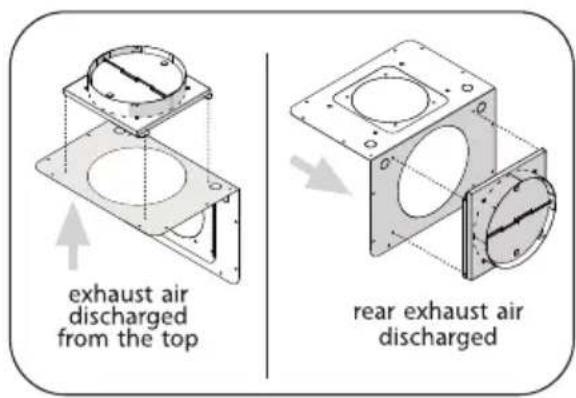

exhaust air discharged from the top rear exhaust air discharged

■ The following instructions are for preparing the hood for use with an external or in-line blowers models CBE-1000 or PBN-1000A.

CAUTION: To reduce the risk of fire and electric shock, install this rangehood only with remote blowers rated maximum 6.2 A.

For internal blower instructions please turn to page 11.

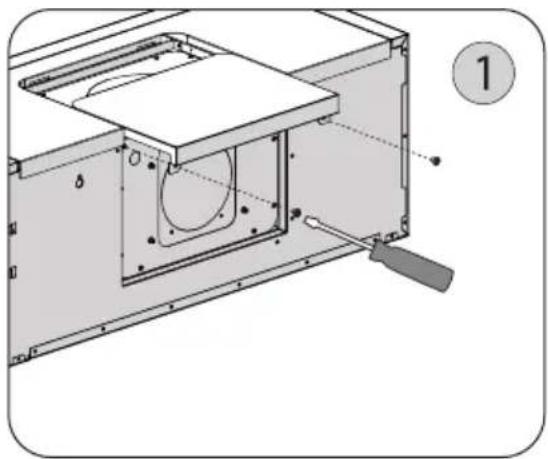

1. Remove the (2) screws securing the top cover. See Fig.1

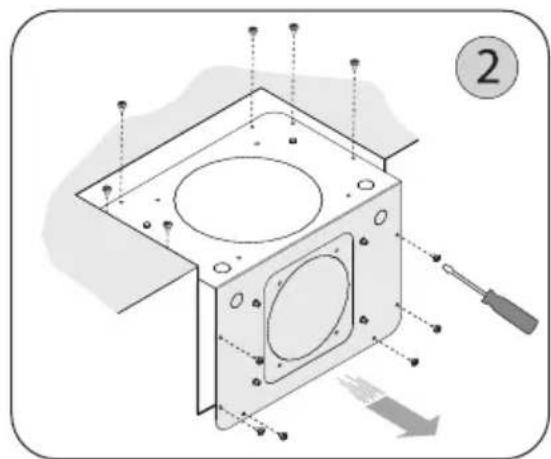

2. Remove the (6) screws securing the blower plate to the blower housing and remove blower plate. See Fig.2

3. Remove the 8" round metal knockout plate from the blower plate by using a flat head screwdriver. See Fig.3

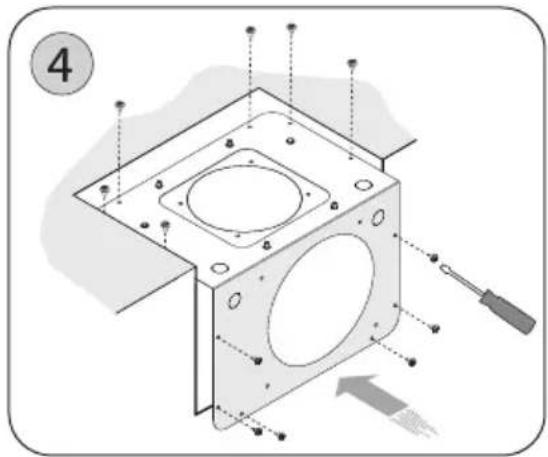

4. Install the plate with the outlet facing the wall, inside the motor casing: carry out the instructions at stage 2 in reverse order then use the screws provided to complete installation. (Tot. 12). See Fig.4

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Technical diagram of a mechanical assembly with mounting holes and a screwdriver (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled steps and a magnified detail view showing tool path and detail.

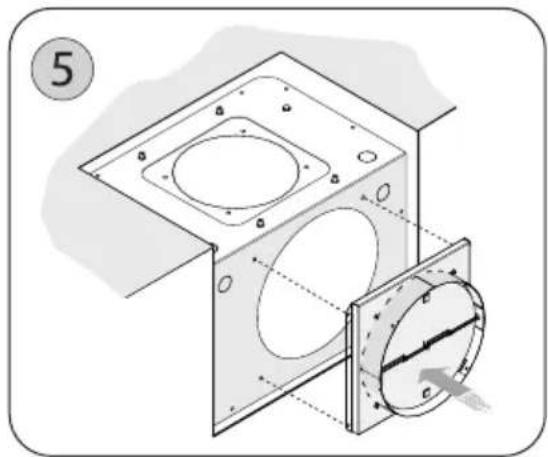

1. Install the flange and fix it to the blower plate with the (4) screws. Fig. 5

2. Put the top cover back on.

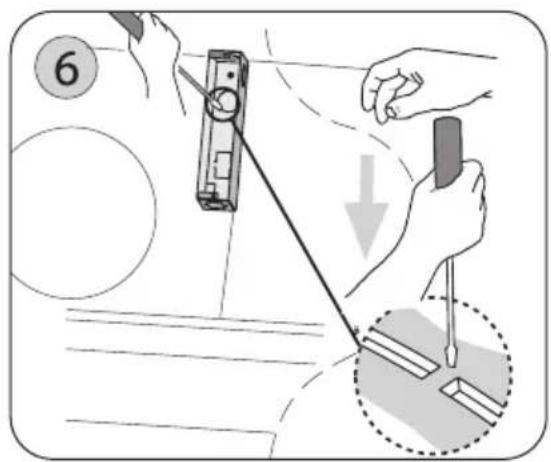

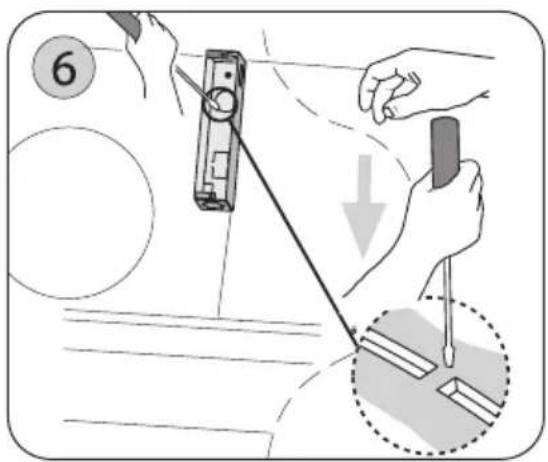

3. With the aid of a slotted screwdriver, break the grommet of circular hole through which the wires pass. Fig. 6

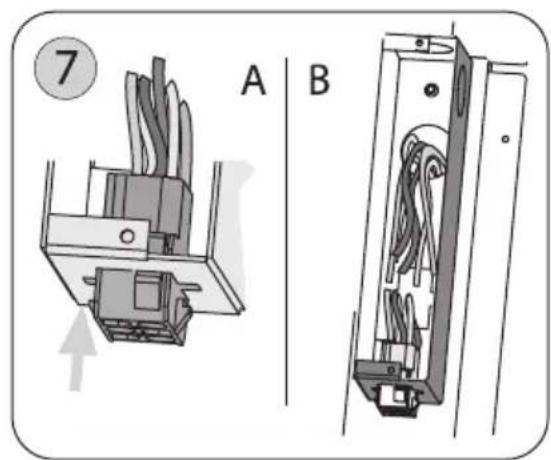

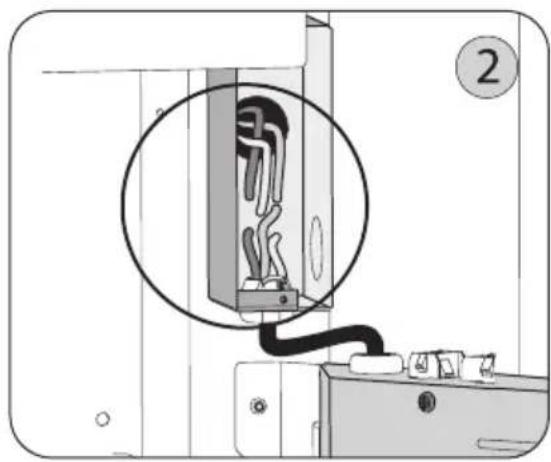

4. Insert the female connector in the terminal box already attached to the hood. Fig. 7A

Pass the wires of the remote motor through the terminal box hole and connect them to the connector wires. Fig.7B

Note: Carry out the power supply connection in accordance with the national electric code, ANSI/NFPA 70-1999.

Note1: A cable lock (not included) may be required by local codes. Please review local codes for more information.

Technical diagram of a mechanical assembly with mounting holes and a tool, no visible text or symbols

Technical illustration of a mechanical assembly with two components, one showing internal circular features and the other a ring with an arrow indicating motion (no text or symbols)

Diagram illustrating a manual tool application with labeled parts and a downward arrow indicating process flow

7 A B

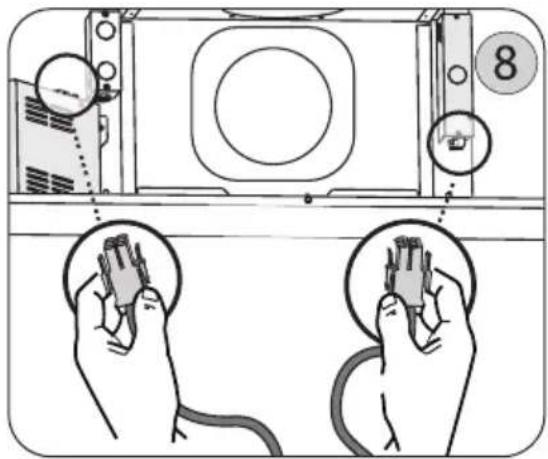

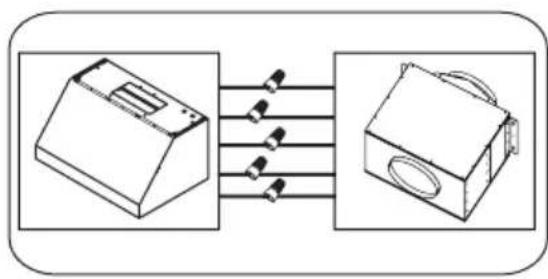

1. Attach 6 pin male molex connectors to 6 pin female molex connectors inside blower housing. See Fig. 8

Note2: Check local codes to determine minimum wire gauge.

Diagram showing two hands holding electrical connectors with numbered labels, illustrating a circuit setup or installation procedure.

See manual included with external and in-line blower for instructions on installing the blower.

Installation - Ducting Options

■ WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.

All exhaust must be ducted to the outside, unless using the recirculating option.

Use single wall rigid Metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

Some Ducting Options

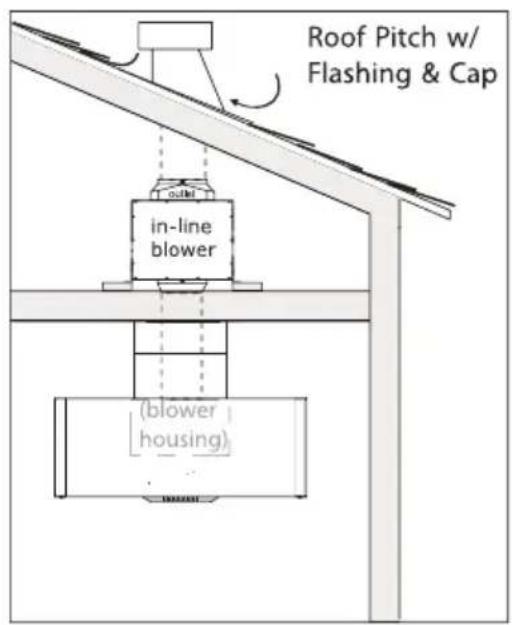

Roof Pitch w/ Flashing & Cap in-line blower (blower housing)

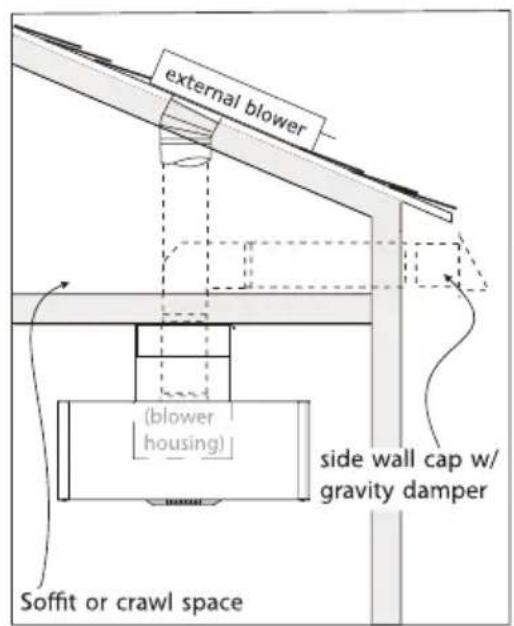

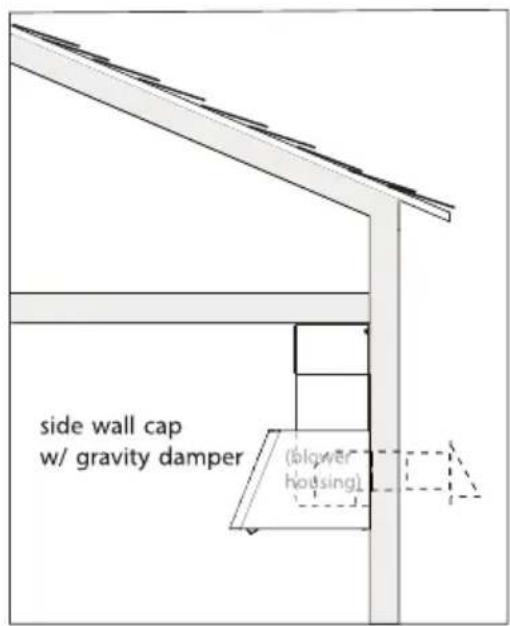

external blower (blower housing) side wall cap w/ gravity damper Soffit or crawl space

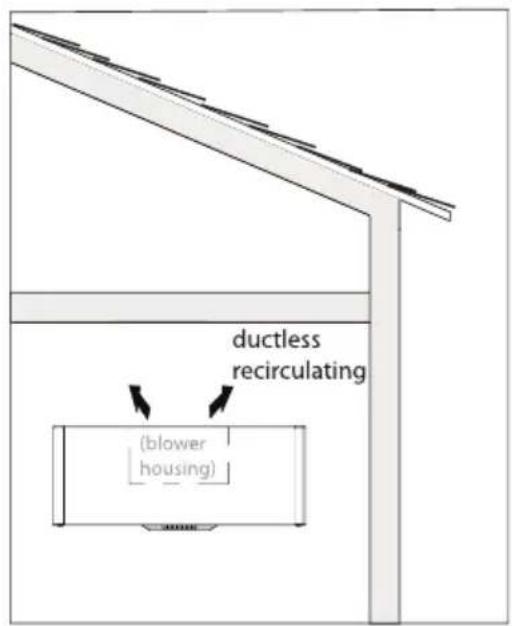

ductless recirculating (blower housing)

side wall cap w/ gravity damper (blower housing)

Installation - Mounting the Range Hood

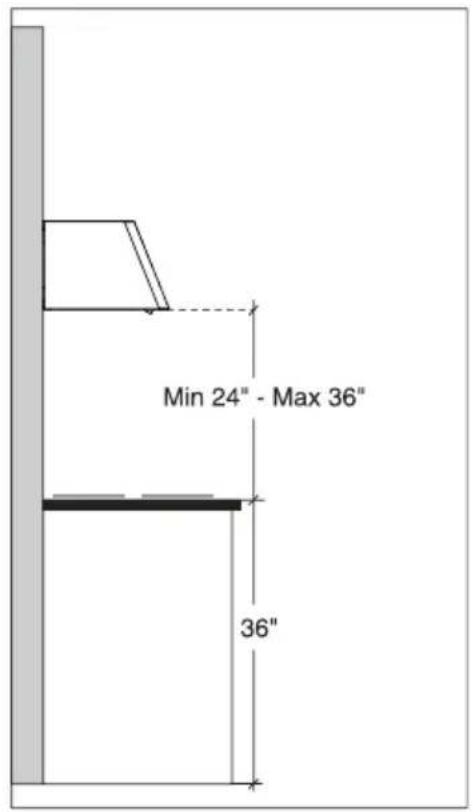

■ MOUNTING HEIGHTS

The range hood must be installed at a minimum height of 24 inches (61cm) from the cooking surface. If a connecting duct work composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the range hood duct to the same duct used to exhaust hot air or fumes from another appliance. Before proceeding with the assembly instructions remove the decorative mesh filters so that the range hood is easier to handle.

■ MOUNTING TO THE WALL

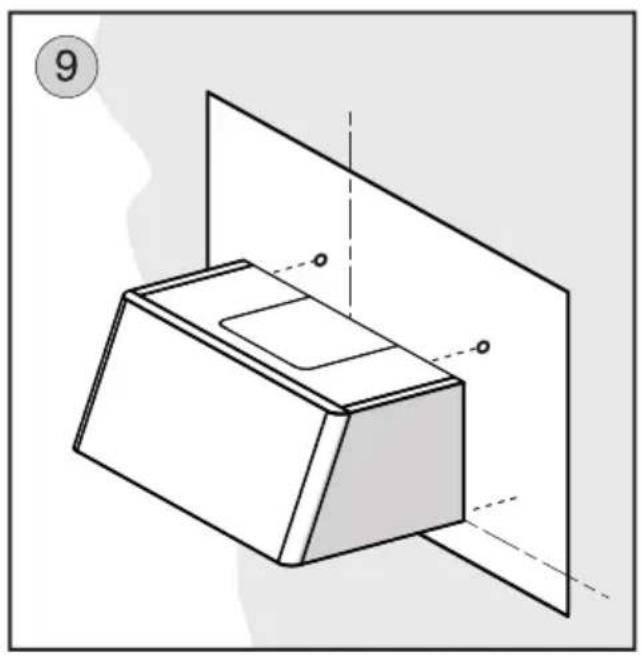

1. Place the paper template included with your hood on the wall to determine where to add the screws for mounting the hood. Make sure the bottom of the template aligns with the bottom of where the hood will be located. See Fig. 9
2. Lift the hood onto the screws and adjust to make sure the hood is level.
3. When the hood has been adjusted tighten the screws to secure the hood in place.

NOTE: Screws must be fastened into wooden studs so wood blocking may be necessary. If using wall anchors make sure to check your local codes for suitability and type of anchors to use.

Min 24" - Max 36" 36"

3D diagram of a rectangular box with a lid, shown in isometric view against a plain background (no text or symbols)

NOTE1: For the various installations use screws and screw anchors suited to the type of wall (minimum screw size: 1/4" diameter x 2-3/4" length).

Installation - Power Supply Connection

GENERAL

- Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.

■ POWER SUPPLY CONNECTION

For connection to the power supply refer to the following:

1. Remove the power supply cover by undoing the (2) screws Fig. 1.
2. Connect the wires of the hood to those of the power supply as described. Fig. 2:

Technical diagram showing a mechanical assembly with a magnified inset view of a device component (no text or symbols present)

BLACK = L line

WHITE = N neutral

GREEN / YELLOW = G ground

- A double-pole switch properly rated must be installed to provide the range hood power supply disconnection.

- Connect the electrical conduit to the Field Wiring Compartment using listed conduit fittings.

- Carry out the power supply connection in accordance with the national electric code, ANSI/NFPA 70-1999.

1. Insert the wires into the box, then close the box cover, securing it using the screws that were previously removed.

Diagram showing electrical connections with a magnified inset of a device (no text or symbols present)

Touch Control

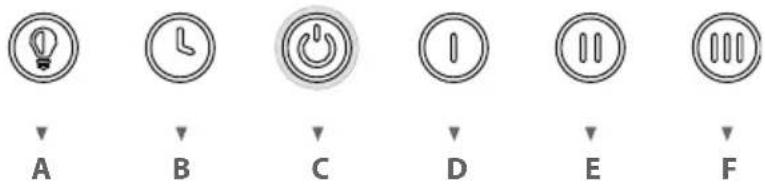

A B C D E F

A – Lights Button: Lights are three level (high, medium, low). From stand-by-on mode, touch once for high, twice for medium, three times for low, four times to cycle back.

B - Delay Off Button: Press the Delay Off Button to enable the ten-minute delay-off function, no matter at what speed the fan is running at. B button will start blinking indicating the delay off function is enabled. After ten minutes the fan and lights will turn off. Delay off function can be disabled by pressing B button, changing the speed, or pressing the Power Button C.

C - Power Button: Press once to activate all button stand by mode allowing control of other button functions. All buttons will illuminate indicating stand by mode. Press the Power Button again to turn the hood off (fan and lights). The stand by mode will remain active for 30 seconds.

D - Low Speed Button: In stand-by mode: Press once for low speed.

E - Medium Speed Button: In stand-by mode: Press once for medium speed.

F - High Speed Button: In stand-by mode: Press once for high speed.

MESH FILTER CLEAN REMINDER (always enabled): after 60 hours of fan usage, button A blinks when the hood is in stand-by, indicating it is time to clean the mesh filters. To Reset the function: with the hood in stand-by, press and hold the B button for 4 to 5 seconds, the A button will stop blinking, and the 60-hour timer will reset.

CHARCOAL FILTER REPLACE REMINDER (disabled by default, must be enabled by user if recirculating hood): To enable Charcoal Filter Replacement Function hold buttons D and F simultaneously for four seconds. The A button will quickly flash 3 times indicating the Charcoal Filter Replacement Function is enabled. After 200 hours of fan usage, the B button will blink while the hood is on, indicating it is time to replace the charcoal filters. To Reset the Charcoal Filter Replace Reminder function: Hold the B button for 4 to 5 seconds until it stops flashing, and the 200-hour timer will reset.

Order replacement charcoal filter kit number Z0F-C010 through your local dealer, www.zephyronline.com, or the Zephyr customer service department.

To disable the Charcoal Filter Replacement function, repeat the enable procedure, the A button will illuminate for 3 seconds then turn off indicating the Charcoal Filter Replacement Function is disabled.

CLEAN AIR FUNCTION (disabled by default, must be enabled by the user). To enable Clean Air function, with hood in stand by, press and hold button E for 4 to 5 seconds. The E button will start blinking, the fan will turn on low speed for 10 minutes. After 10 minutes the fan will turn off and the 4-hour timer will begin. The E button led will continue blinking when Clean Air Function is enabled, even if fan is not on. When Clean Air function is enabled, every 4 hours of non-fan usage the fan will automatically turn on at low speed for 10 minutes. After 10 minutes the fan will turn off and the 4-hour timer will reset.

Optional Remote Control

SYNCHRONIZATION:

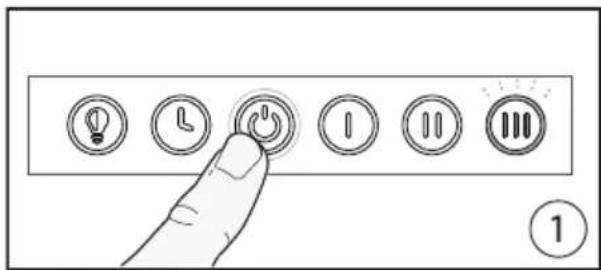

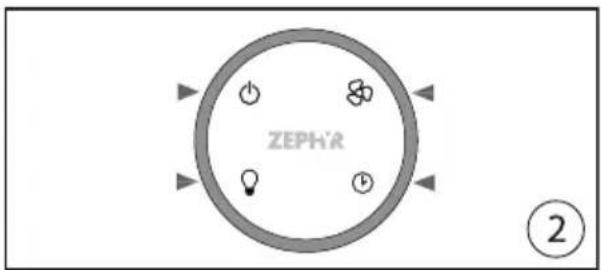

To synchronize the remote control with the range hood for the first time, proceed as follows: 1. With the range hood off, press and hold the "Power" on the hood for 4 seconds (Fig.1) until the "3rd speed" indicator on the hood flashes for 3 times. 2. Press any button on the remote control within 4 seconds to confirm the link (Fig.2). If successful, the lights of the hood will turn on. The range hood is now synchronized with the remote control. If you experience any problems, repeat the procedure.

Diagram showing a finger pressing a button with icons for lighting, time, power, alarm, and three vertical buttons labeled 1, 2, 3.

ZEPHR ②

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

GENERAL INFORMATION:

• Remove any protective film from the remote surface prior to using it.
• The remote control has a range of approximately 10-15 feet.
• The remote control is equipped with a magnetic base and may be attached to ferrous surface for easy storage.
• The remote top is made of a plastic material and is prone to scratches. Use care when handling and cleaning the remote; we suggest using a microfiber cloth to clean it.
• The remote control will enter a sleep mode after 20 seconds of inactivity to conserve battery life. Press any button for one second to wake the remote.

BATTERY REPLACEMENT:

The batteries will last approximately 8 months, depending on usage.

1. Remove rubber cover from bottom (Fig.3).
2. Using an object such as a screwdriver or pen, gently place it in the center opening in the bottom of the remote and push inwards to dislodge the top touch panel from the remote body. (Fig. 4)

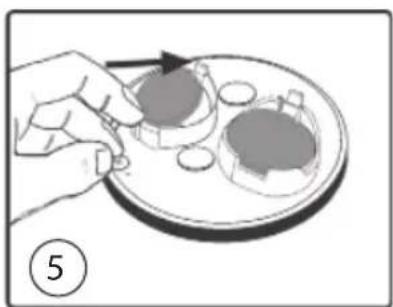

3. Press on the metal spring located in the battery tray to dislodge battery. Replace both batteries with type 3V CR2450 (Fig.5). Re-assemble by following instructions in reverse.

Illustration of a hand pressing down on a circular object with a curved arrow, labeled with number 3 (no text or symbols on the object itself)

Mechanical component diagram showing a rod inserted into a circular base with mounting holes (no text or symbols)

Illustration of a hand placing a small object onto a tray with two circular items, no text or symbols present.

Maintenance

- It is recommended to operate the appliance prior to cooking. It is recommended to leave the appliance in operation for 5 minutes after cooking is completed in order to completely eliminate cooking vapors and odors. The proper function of the range hood is conditioned by the regularity of maintenance.

- The decorative mesh filters capture the grease particles suspended in the air and are therefore subject to clogging because of frequent use. In order to prevent a fire hazard, it is recommended to clean the filter a minimum of every 2 months or when instructed by the Metal Filter Clean indicator on the range hood controls. Clean the range hood by carrying out the following instructions:

- Remove the filters from the range hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.

- Rinse thoroughly with warm water and leave to dry.

- Filters may also be washed in the dishwasher at the lowest setting.

The filters may alter in color after several washes but is not cause for replacement.

- Clean the blower and other surfaces of the range hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.

Wiring Diagram

INTERNAL BLOWER CIRCUIT DIAGRAM

2M Yellow-Green Red Capacitors White Neutral Blue 3*Speed Grey 1*Speed Brown 2*Speed Yellow Red Blue White Grey Black Yellow-Green CONNECTION BLOWER Orange 3# Grey 2# Light Blue 1# Red N Yellow-Green White N VAC Black 10W 12V OUTPUT + Red Brown OUTPUT - RED Blue 1- Black 1- Light Blue

Wiring Diagram

REMOTE BLOWER CIRCUIT DIAGRAM

10W 12V OUTPUT + INT Blue Black Red Blue Black Output + Red Brown Light Blue CONNECTION EXTENSION CABLE ORANGE 3" 4e 4o 4e Grey 2" Light Blue 1" Red N Yellow-Green CONNECTION EXTERNAL BLOWER Black 3"Speed Blue 2"Speed Red 1"Speed White Neutral Yellow-Green CONNECTION MOTOR 2 M Yellow-Green White L VAC N N N N N N N N N N N N N N N N N N N N

List of Parts and Accessories

DESCRIPTION HOOD PART#
REPLACEMENT PARTS
LED Light 1.3W (each)	DME	Z0B0051
OPTIONAL ACCESSORIES
Recirculating Kit	DME	ZRC-01ME
Replacement Charcoal Filters (2x)	DME	Z0F-C010
Duct Cover Extension, Stainless Steel DME-M90ASSX Z1C-00M	MESS
Duct Cover Extension, Matte Black DME-M90AMBX Z1C-00M	MEMB
Duct Cover Extension, Satin Gold DME-M90ASGX Z1C-00ME	SG
Accent Rail, Mesa, SS	DME	MERAIL-00SS
Accent Rail, Mesa, Gold	DME	MERAIL-00SG
Remote Control	DME	14000010
Internal Blower, 290 CFM	DME	CBI-290A
Internal Blower, 600 CFM	DME	CBI-600A
External Blower, 1000 CFM	DME	CBE-1000
In-Line Blower, 1000 CFM	DME	PBN-1000A

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368

UL References
LED Light 1.3W (each) SPK8148
Recirculating Kit KIT0I0518
Replacement Charcoal Filters ACK00061
Duct Cover Extension Inox KIT0I0519
Duct Cover Extension MBlack KIT0I0520
Duct Cover Extension Gold	KIT0I0521
Accent Rail Inox	KIT0I0516
Accent Rail Gold	KIT0I0516

ZEPHYR Limited Warranty

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS: United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contact Canada Customers please call: 1-800-361-0799 or Email: [e-mail]

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements.

Please check our website for any additional Product information, www.zephyronline.com.

Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502

MESA

DME-M90ASSX

DME-M90AMBX

DME-M90ASGX

Simple line drawing of a rectangular box with a recessed top and side gap (no text or symbols)

Instructions De Securite 2/5

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Instructions De Securite 5/5

Specifications Techniques

14-1/16" otional duct cover 13-13/16" 35-5/16"

Arrière de la hotte

10-13/16" 11/16" otional duct cover HOLLES FOR WALL FIXING 2-7/16" 8-11/16" 2-5/8" 11-5/16" 21-3/4" 29-5/8" HOLLES FOR WALL FIXING

10-9/16" otional duct cover min33-5/8" - MAX 54" 19-11/16"

5-5/8" (Ø6') 5-3/8" (Ø8') 2-3/8" 1-15/16" ELEC #0 5-7/16" 5-7/16" EXT REMOTE BLOWER ELEC #0

Technical diagram of a mechanical assembly with labeled component (1), showing internal components and a tool inserted (no text or symbols present)

Technical diagram of a mechanical assembly with mounting holes and a screwdriver (no text or symbols)

3

Technical diagram of a mechanical assembly with labeled parts, showing internal components and a tool (no text or symbols present)

Technical diagram of an industrial lamp or reflector assembly with visible internal components and wiring (no text or labels)

6 1 2 3

7

Technical diagram of a mechanical assembly with mounting holes and internal components (no text or symbols)

Illustration of hands connecting cables to a computer monitor (no text or symbols visible)

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Technical diagram of a mechanical assembly with mounting holes and a tool, no visible text or symbols

Diagram illustrating a mechanical assembly process with labeled parts and a downward arrow indicating direction of motion.

Technical diagram of a mechanical assembly with labeled components and arrows indicating movement (no text or symbols present)

Technical illustration of a mechanical assembly with two components, one showing internal circular features and the other a ring-like structure (no text or symbols)

6

7 A B

Diagram showing two hands holding electrical connectors with numbered labels, illustrating a circuit or device setup.

3D diagram of a rectangular box with a lid, shown in perspective view against a plain background (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset view of a device (no text or symbols present)

Diagram showing electrical connections with a magnified inset of a device (no text or symbols present)

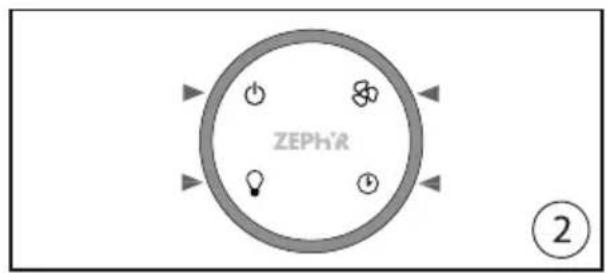

Contrôle tactile

A B C D E F

Diagram showing a hand pressing a button on a control panel with icons for lightbulb, clock, alarm, pause, and stop.

ZEPHR ②

REPLACEMENT DES PILES:

Illustration of a hand pressing down on a circular object with a knob, labeled with number 3 (no text or symbols on the object itself)

Mechanical component with a rod inserted into a circular base, labeled with number 4 (no text or symbols on the object itself)

Illustration of a hand placing a small object onto a plate with a circular inset, labeled with number 5 (no text or symbols on the diagram itself)

Entretien

2M Yellow-Green Red Capacitors White Neutral Blue 3-Speed Grey 1-Speed Brown 2-Speed Yellow Red Blue White Grey Black Yellow-Green CONNECTION BLOWER Orange 5" Grey 2" Light Blue 1" Red N Yellow-Green White N VAC Black 10W 12V OUTPUT + RED BUC OUTPUT + Black LIGHT Blue S

Schéma de câblage

SCHÉMA DU CIRCUIT DE MOTEUR EXTERIEUR

10W 12V OUTPUT + Blue Red Black Black Light Blue Output + Red Brown Red Blue X150V Orange 3" Grey 2" Light Blue 1" Red N Yellow-Green White VAC. N VAC. Black N Yellow-Green CONNECTION EXTENSION CABLE CONNECTION MOTOR CONNECTION EXTERNAL BLOWER Black 3"Speed Blue 2"Speed Red 1"Speed White Neutral Yellow-Green CONNECTION MOTOR

Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502

JAN21.0201

Icon of a document with lines and a pencil, symbolizing writing or editing (no text present)

PRODUCT REGISTRATION

Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

STOP

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368
