Breeze I

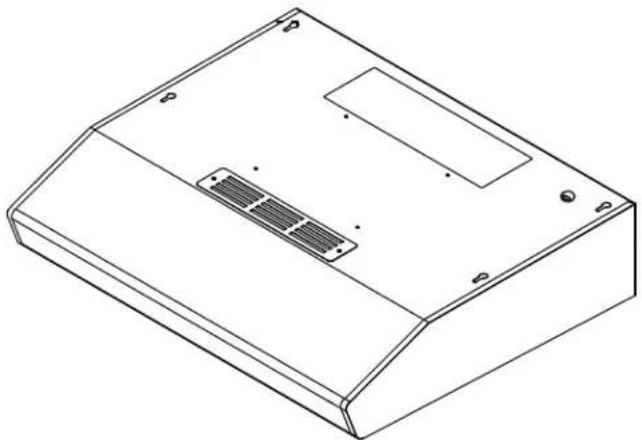

Breeze II

SAFETY NOTICE 2-3

LIST OF MATERIALS 4

INSTALLATION

Ducting Calculation Sheet 5

Mounting Height & Clearance 6

Ducting Options 7

Specifications 8

Preparing Electrical....9

Preparing Electrical and Ducting 10

Converting to Air Recirculating Mode.... 11-12

Mounting the Range Hood 13

FEATURES & CONTROLS

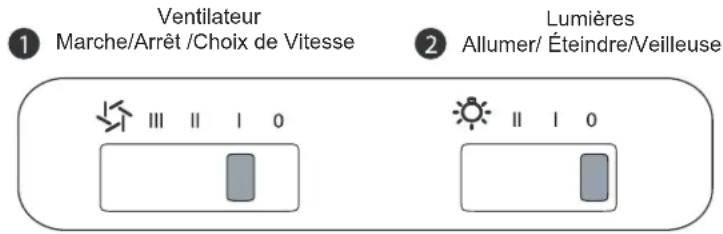

Controls & Features.... 14

MAINTENANCE

Cleaning and Filter Removal.... 15

Lights....16

TROUBLESHOOTING.... 17

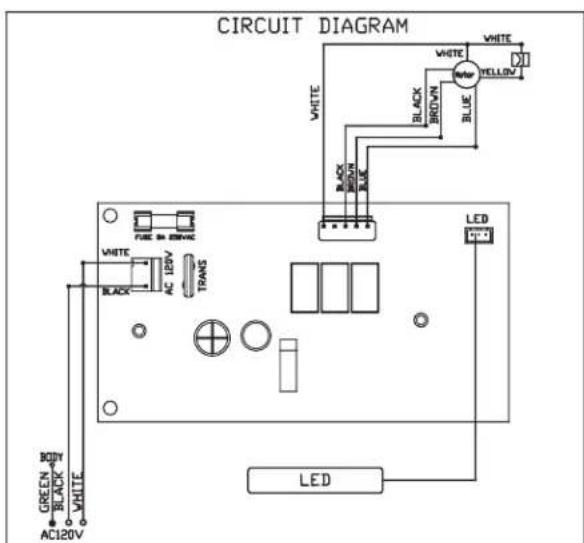

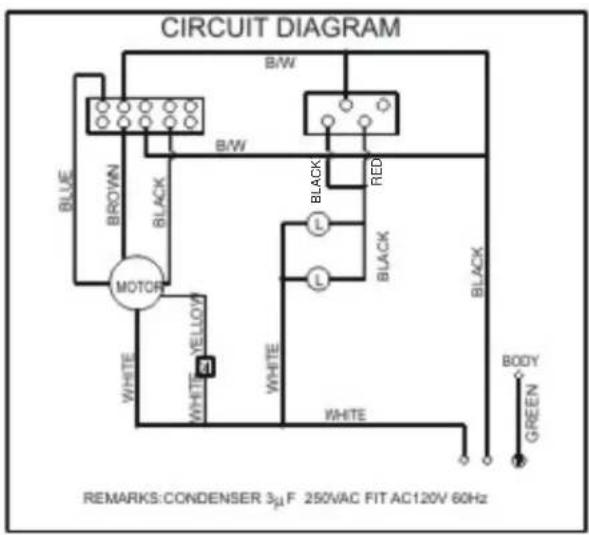

WIRING DIAGRAMS....18

LIST OF PARTS AND ACCESSORIES 19

WARRANTY 20

PRODUCT REGISTRATION......21

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, filters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don't leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Including fire-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFI (Ground Fault Interrupter protected branch circuit).
g. NEVER place a switch where it can be reached from a tub or shower.
h. Make sure the power is off before installing, wiring or maintaining.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. NOT FOR USE OVER AN OUTDOOR GRILL.

CAUTION

To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages.

For indoor use only.

Do not use over cooking equipment greater than 60,000 BTU/hr.

This hood is not intended to be used as a shelf.

OPERATION

Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

ELECTRICAL REQUIREMENTS

Important:

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the range hood is properly grounded.

Do not have a fuse in the neutral or ground circuit.

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

MODELS: BREEZE

BREEZE II - AK1200Bx, AK1236Bx

AK1124x,

AK1100x,

AK1136x

PARTS SUPPLIED

1 - Hood
2 - Aluminum mesh filters
2 - Halogen light bulbs, GU-10 35W, Breeze I Only
1 - LED Light Strip, 5W, Breeze II Only
1 - 3-1/4" x 10" rectangular starting collar with damper (located inside hood body)
1 - Hardware package

HARDWARE PACKAGE CONTENTS

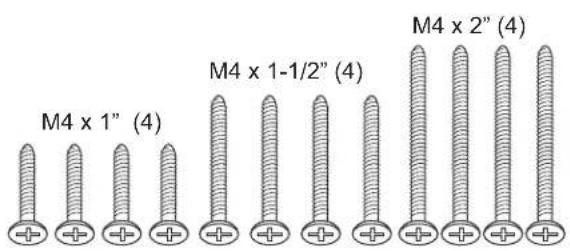

M4 x 1" (4) M4 x 1-1/2" (4) M4 x 2" (4)

M4 × 8 (10)

Illustration of ten lightbulb icons arranged in two rows, each with a plant symbol inside (no text or labels)

Wood screw washers (4)

Wire Caps (3)

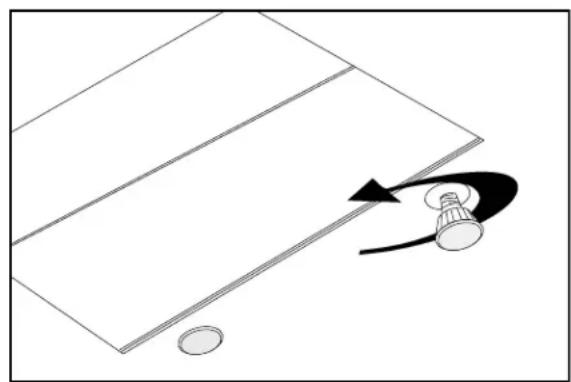

Light bulb removal
Suction Cup (1)
Breeze | Only

Simple line drawing of a laboratory flask with a narrow neck and central opening (no text or symbols)

PARTS NOT SUPPLIED

• Ducting, conduit and all installation tools
• Cable connector (if required by local codes)
• Recirculating Kit (0AK11-21001)

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect., straight	1 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, straight	1 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.90° elbow	15 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.45° elbow	9 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.90° flat elbow	24 Ft. x ( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x ( ) =	Ft.
	6", 7", 8" Round in-line damper	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 45° elbow	9 Ft. x ( ) =	Ft.
Subtotal column 1 =			Ft.

Maximum Duct Length: For satisfactory air movement,
the total duct length should not exceed 100 equivalent feet.

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect.to 6" round transition	5 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.to 6" round transition 90° elbow	20 Ft. x ( ) =	Ft.
	6" round to 3- 1/ 4" x 10" rect. transition	1 Ft. x ( ) =	Ft.
	6" round to 3- 1/ 4" x 10" rect. transition 90° elbow	16 Ft. x ( ) =	Ft.
	7" round to 3 1/ 4" x 10" rect. transition	8 Ft. x ( ) =	Ft.
	7" round to 3- 1/ 4" x 10" rect. transition 90° elbow	23 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect. wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round roof cap	30 Ft. x ( ) =	Ft.
Subtotal column 2 = Subtotal column 1 = Total ductwork =			Ft.
			Ft.
			Ft.

24" min. 32" max. 36"

DUCTING

A minimum 3-1/4" x 10" rectangular duct must be used to maintain maximum air flow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on page 5) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size.

If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.

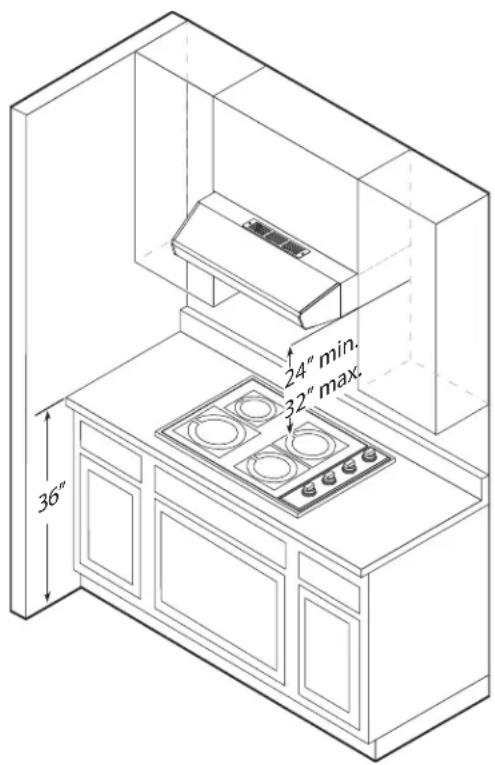

Minimum mount height between range top to hood bottom should be no less than 24".

Maximum mount height should be no higher than 32".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.

If available, also refer range manufacturer's height clearance requirements and recommended hood mounting height above range.

Vertical Ducting:

3-1/4"x10" minimum

Horizontal Ducting:

3-1/4"x10" minimum

DAMAGE-SHIPMENT / INSTALLATION:

• Please fully inspect unit for damage before installation.
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.

Use metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.

Some Ducting Options

Roof Pitch w/ Flashing & Cap 3-1/4"x10" vertical ducting

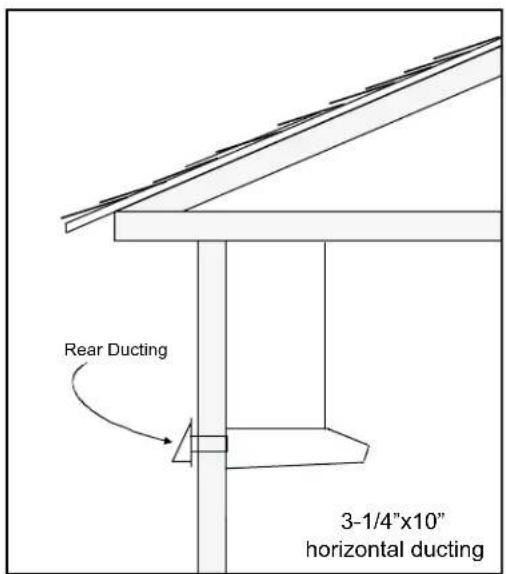

Rear Ducting 3-1/4"x10" horizontal ducting

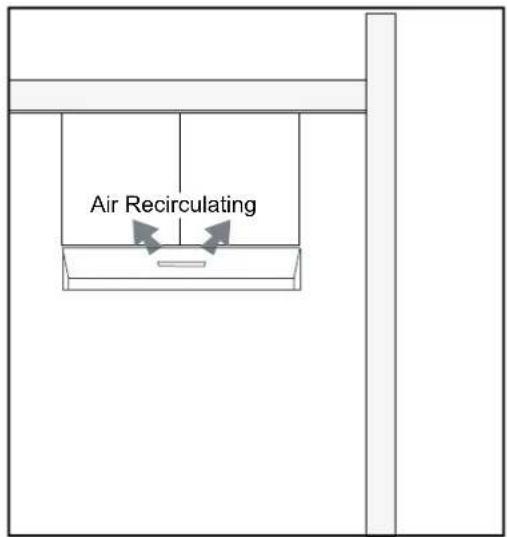

Air Recirculating

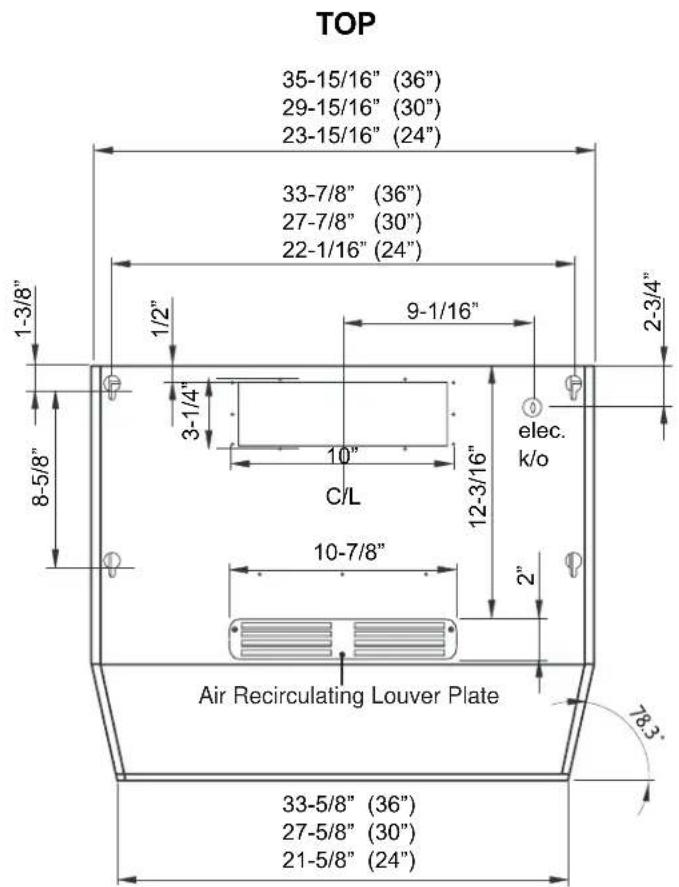

Installation – Specifications

TOP 35-15/16" (36") 29-15/16" (30") 23-15/16" (24") 33-7/8" (36") 27-7/8" (30") 22-1/16" (24") 1-3/8" 1/2" 9-1/16" 2-3/4" 8-5/8" 3-1/4" 10" elec. k/o C/L 12-3/16" 2" Air Recirculating Louver Plate 78.3" 33-5/8" (36") 27-5/8" (30") 21-5/8" (24")

BACKSIDE

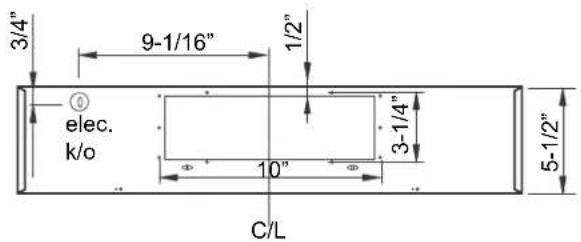

3/4" 9-1/16" 1/2" elec. k/o 3-1/4" 10" 5-1/2" C/L

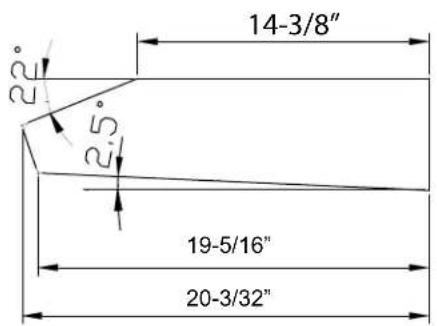

14-3/8" 22 25 19-5/16" 20-3/32"

ELECTRICAL

WARNING

All Electrical work must be performed by qualified electrician or person with similar technical know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ground. Please also refer Electrical Diagram labeled on product.

AK11xxx - 152 Watts @ 1.3 Amps

AK12xxBx - 70 Watts @ 0.8 Amps

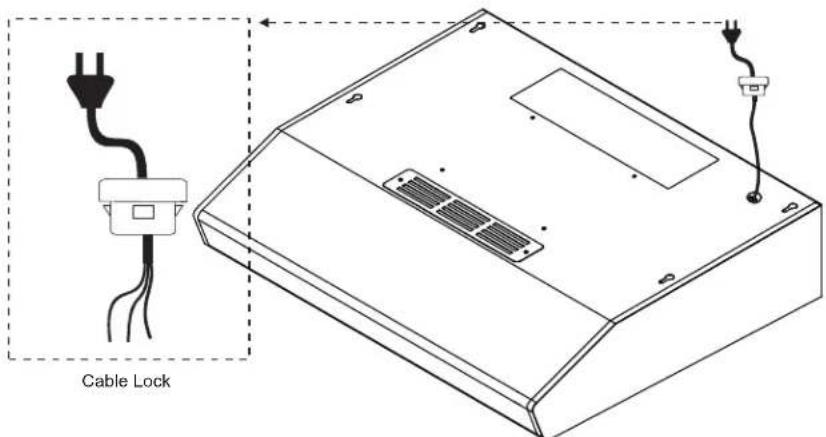

Cable Lock:

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary.

Cable Lock

Hand holding a white electronic device with two circular ports, no visible text or symbols

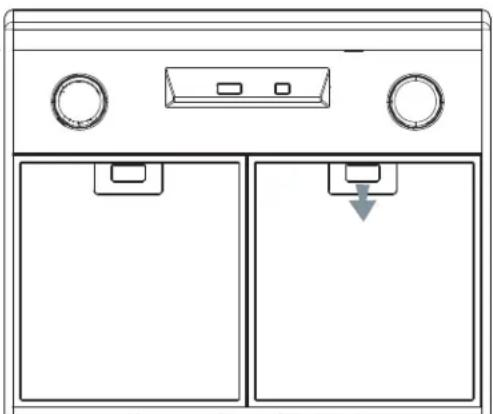

1. Remove filters

Close-up of a hand using a tool to clean or install electronic components, with visible wiring and a fan cover (no text or symbols)

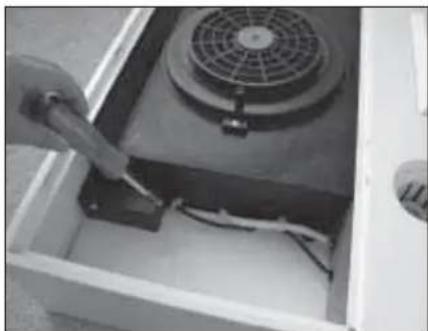

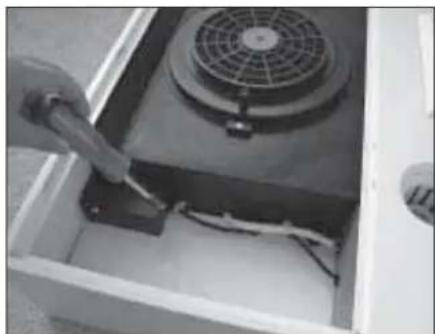

1. Remove cover from junction box to gain access to electrical wiring.

Close-up of a curved wire or hook mounted on a flat surface with directional arrows indicating motion (no text or symbols)

1. If using a cable lock, pry open the desired electrical knockout either on top or back of hood. Feed the wires through the cable lock. Some local codes require the use of a cable lock, check your local codes.

Close-up of a white rectangular object with a crack and small protrusions, resting on textured ground (no visible text or symbols)

1. If using hood in air recirculating mode skip steps 4 and 5.

Close-up of a mechanical component with a tool inserted, no visible text or symbols

1. Secure 3-1/4" x 10" starting collar with damper to the duct opening using (10) M4x8 screws.

Pry open desired 3-1/4" x 10" ducting knock-out either on top or back of hood.

The following instructions are for Breeze II and Breeze I hoods beginning with serial number prefix 13 and later.

NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home.

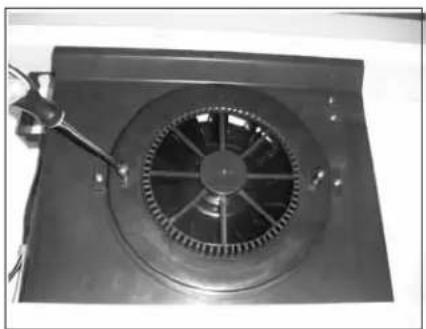

Assorted mechanical components including a perforated ring, fan blade, and plastic housing (no visible text or symbols)

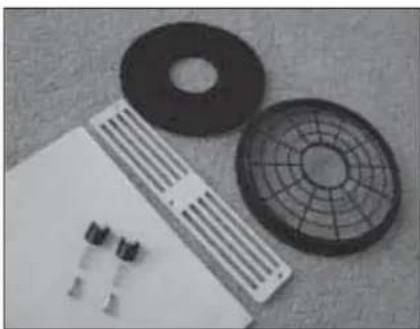

An air recirculating kit (optional) must be purchased before using hood in recirculating mode.

Recirculating kit - 0AK11-21001

Replacement filter - 0AK11-20001

Close-up of a black industrial fan or vent with a handle, showing internal blades and mounting base (no text or symbols visible)

1. Secure each of the (2) spring clips to the safety grille body (A). Do this by inserting the screw through the spring and into the clip. Secure each clip to the safety grille body by using a philips head screwdriver.

Close-up of a hand holding a circular fan component, no visible text or symbols

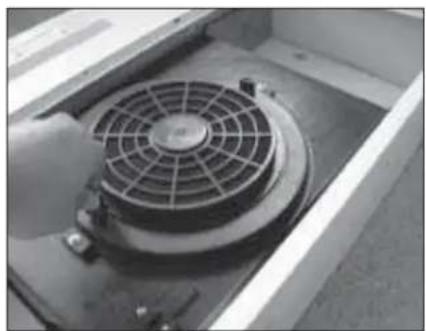

1. Insert charcoal filter into charcoal filter holder (B) and place it over the safety grille body (A)

Close-up of a mechanical fan or vent component with visible internal grid pattern (no text or symbols)

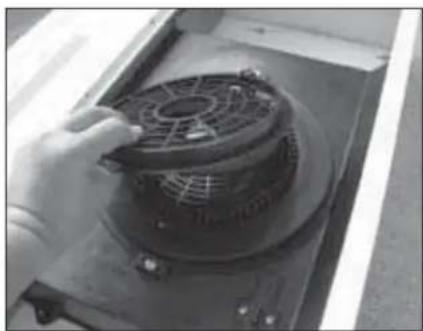

1. Secure charcoal filter holder to safety grill body by lifting up on spring clips and twisting. The clip should cover the lip of the charcoal filter holder securely.

Close-up of a hand holding a pen, pointing at a blank white surface with small dark spots (no text or symbols visible)

1. Remove each screw from recirculating top plate. Plate is located on top of hood towards the front.

Recirculating preparation continued on next page

NOTE: Skip this page if you are ducting the air out of your home.

Close-up of a screwdriver holding a black plastic sheet with a knife inserted (no text or symbols visible)

1. Remove each of the 5 screws holding the (2) interior recirculating panels.

Hand holding a flexible electronic device on a white surface, with no visible text or symbols.

1. Remove (2) interior recirculating panels.

Close-up of a white industrial vent with a tool inserted, showing ventilation grilles (no text or symbols visible)

1. Place louvered recirculating plate over top opening and secure using the screws previously removed.

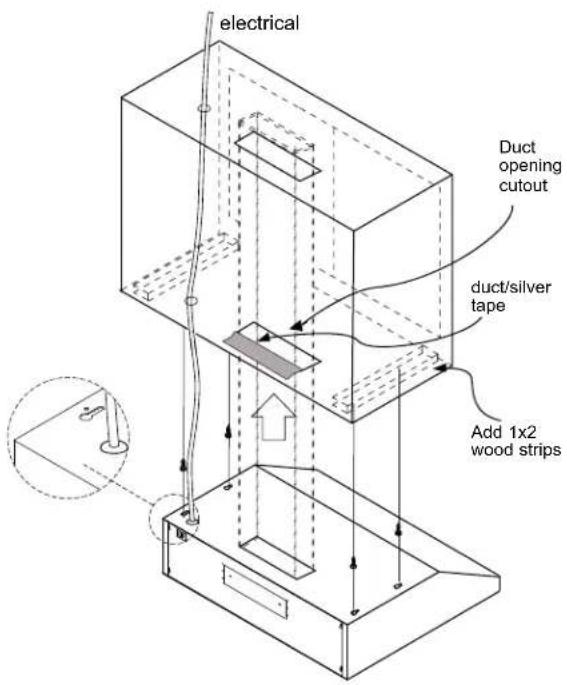

Hood is designed for installation under a kitchen cabinet (Fig 1)

1. Select preferred duct location (vertical or horizontal) if ducting out of kitchen. Refer to page 7 for details.

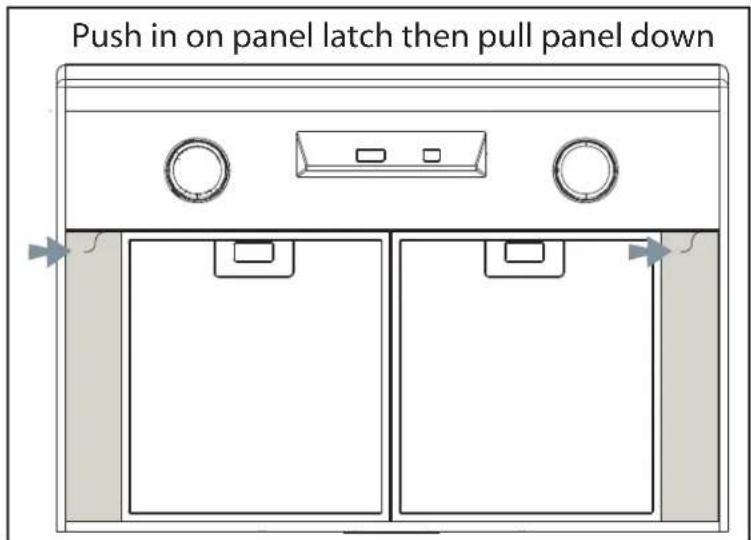

2. Begin installation by removing the filters (if installed) and side spacer panels (36" models only). (Fig 2)
3. Reinforce cabinet with 1"x2" wood strips if additional strengthening is required or if cabinets are framed.
4. Temporarily position the range hood in the desired mounting location. Measure and mark the mounting holes, duct and electrical locations with a pencil.
5. Drill/cut out the required openings for duct and electrical access by following the dimensions on page 8; make sure the duct opening is large enough to apply duct tape.
6. Fasten hood onto cabinet with (4) M4 wood screws with washers provided.
7. Install electrical.
8. Install duct work and seal with duct tape.
9. Reinstall filters and side spacer panels (if applicable).
10. Power up hood and check for leaks around duct tape.
11. If recirculating the hood refer to page 11 and 12 for details.

electrical Duct opening cutout duct/silver tape Add 1x2 wood strips

Fig 1 (Shown as vertical ducting)

Push in on panel latch then pull panel down

Fig 2

Breeze I, AK11xx

1 Blower On/Off/Speed Selection

2 Lights Off/Dim/Bright

Weather and solar panel interface with icons for sun, wind, and sky symbols

1 Blower On/Off/Speed Selection

This switch turns the blower on and off and controls the speed selection. 0 is off, Is low speed, is medium speed and is high speed.

2 Lights Off/Dim/Bright

0 is off, Is dim, ll is bright.

Breeze II, AK12xxBx

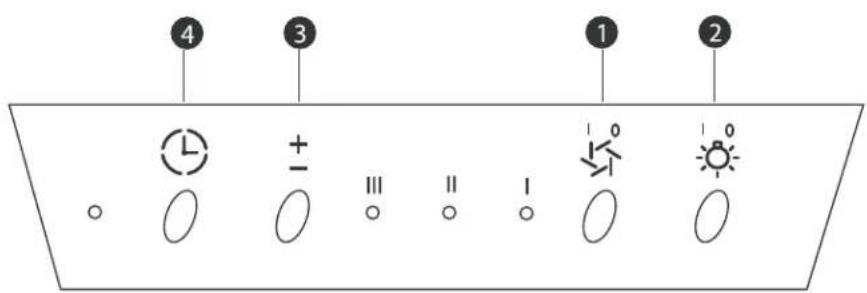

4 3 1 2 0 + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1 On/Off

This button turns the motors on and off. It also shuts off power to the whole hood. If the lights are on and this button is pushed, they will also turn off.

2 Lamp

This button turns the lights on, off and also dims them. Press once to turn them on bright, again for dim and one more time to shut them off.

3 Speed

This button will change the speed setting of the motors. By pushing it you will change the speeds from high to medium to low.

4 Delay Off

This button will put the hood into delay off mode. When pushed, the hood will switch to the lowest speed and the entire hood will shut down all functions after 5 minutes.

SURFACE MAINTENANCE:

Do not use corrosive detergents, abrasive detergents or oven cleaners.

Do not use any product containing chlorine bleach or any product containing chloride.

Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.

After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and buff in the direction of the stainless steel grain.

Cleaning

Black

Stainless

Steel

Clean periodically with warm soapy water and clean cottong cloth or micro fiber cloth. To remove heavier grease build up use a liquid degreaser detergent.

Due to a built-in layer of protective anti-smudge coating, do not use stainless steel polish/cleaners to buff out black stainless steel.

Aluminum Mesh Filters

The aluminum mesh filters are intended to trap residue and grease from cooking. Although the filters should never need replacing, they are required to be cleaned every 30 days or more often depending on cooking habits.

Filters may be placed in dishwasher at low heat or soaked in hot soapy water. Dry filters and re-install before using hood.

Removing Aluminum Mesh Filters (Fig 3)

1. Push in on filter handles.
2. Pivot front of filter downward.
3. Remove filter by pulling away from hood.

Replacing Aluminum Mesh Filters

Hood Model: Part No. Qty. to Order.

AK1124x 50200013 2

AK1100x / AK1136x 50200012 2

AK1200Bx / AK1236Bx 50200012 2

Line drawing of a front-loading washing machine with two doors and control knobs (no text or symbols)

Fig 3

BREEZE I, AK11xx model ONLY

REPLACING LIGHT BULBS

CAUTION: Light bulb becomes extremely hot when turned on.

DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.

Make sure all power is turned off and bulbs are not hot.

Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out.

If bulbs are difficult to turn due to prolonged use, firmly attach a glass suction cup approximately the diameter of the bulb or use a rubber/latex glove and turn counter clockwise.

Replacement bulbs are available at most hardware stores or from www.zephyronline.com Purchase type MR16 (GU-10) 35W halogen.

For Zephyr part numbers please turn to page 19 of the manual.

Simple line drawing of a table with a knob and a curved arrow indicating motion (no text or symbols)

Bottom hood view

TROUBLESHOOTING PROCEDURES FOR BREEZE I AND BREEZE II

Issue Cause W	what to do
After installation, the unit doesn't work.	1. The power source is not turned ON. 1. Make sure	the circuit breaker and the unit's power is ON.
	2. The power line and the cable locking connector is not connecting properly.	2. Check the power connection with the unit is connected properly.
	3. The switch or control board wirings are disconnected.	3. Make sure the wirings at the switch or control board are connected properly.
	4. The wires on control board or switch are loose. 4.	Make sure the wires on the control board or switch are connected properly.
	5. The switch or control board is defective. 5. Change	the switch or control board.
Light works, but blower is not turning.	1. The blower is defective, possible seized. 1. Change	the blower.
	2. The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	2. The blower will function properly after the thermally protected system cool down.
	3. Damaged capacitor. 3. Change the capacitor.
	4. The control board or blower switch is defective. 4.	Change the control board or blower switch.
The unit is vibrating.	1. The blower is not secure in place. 1. Tighten the blower in place.
	2. Damaged blower wheel. 2. Change the blower wheel.
	3. The hood is not secured in place. 3. Check the installation of the hood.
The unit is whistling.	1. The filter is not in the correct position. 1. Adjust	the filters until the whistling stops.
	2. The duct pipe connections are not sealed or connected properly.	2. Check the duct pipe connections to be sure all connections are sealed properly.
The blower is working, but the lights are not.	1. Defective bulb. 1. Change the bulb.
	2. The light bulb is loose.	2. Tighten the light bulb.
	3. The light bulb plug is disconnected.	3. Connect the light bulb plug.
The hood is not venting out properly.	1. The hood might be hanging to high from the cook top.	1. Adjust the distance between the cook top and the bottom of the hood within 24" and 32" range.
	2. The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	2. Close all the windows and doors to eliminate the outside wind flow.
	3. Blockage in the duct opening or duct work.	3. Remove all the blocking from the duct work or duct opening.
	4. The direction of duct opening is against the wind.	4. Adjust the duct opening direction.
	5. Using the wrong size of ducting.	5. Change the ducting to correct size.
Mesh Filter is vibrating.	1. Mesh filter is loose.	1. Make sure the metal clips in the handle are not stuck. Or replace the mesh filter.
	2. Filter sping clip is broken.	2. Uninstall and reinstall filter, push up on filter latch. Replace mesh filter if needed.

C US

182766

Model AK1124,1100,1136

Voltage 120V 60Hz

Power consumption

Total: 152W

Lamp: Max.40Wx2

Fan: 72W

DATE:

THERMALLY PROTECTED

CIRCUIT DIAGRAM B/W B/W BROWN BLACK RED MOTON WHITE YELLOW WHITE L L BLACK BLACK WHITE BODY GREEN REMARKS:CONDENSER 3μF 250VAC FIT AC120V 60Hz

Models: AK1200Bx, AK1236Bx

Voltage120V 60Hz

Power consumption

Total: 70W @0.8A

Lamp: 5W

Fan: 65W

THERMALLY PROTECTED

CIRCUIT DIAGRAM WHITE WHITE YELLOW BLACK BROWN BLUE FUEL B. ENRIVE AC LEDV TRANS WHITE BLACK LED AC120V GREEN BLACK WHITE LED

REMARKS:CAPACITOR 4.5uF 300VAC FIT AC120V 60Hz

DESCRIPTION

PART #

Replacement Parts

Light Bulb, MR16 GU10, 35W (each) (AK11xx Only) Z0B0023

Metal Filter, 24" hoods (each) 50200013

Metal Filter, 30" and 36" hoods (each) 50200012

Optional Accessories

Recirculating Kit 0AK11-21001

Replacement Charcoal Filters (2pk) 0AK11-20001

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368

ZEPHYR

Limited Warranty

STAPLE YOUR RECEIPT HERE

Proof of the original purchase

date is needed to obtain

service under warranty

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:

1-888-880-8368

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and applies in the United States and Canada.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identification number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.

Please check our website for any revisions, www.zephyronline.com.

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

AUG14.0401

PRODUCT REGISTRATION

Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/ registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

STOP

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368

Breeze I

AK1124x, AK1100x, AK1136x

Breeze II

AK1200Bx, AK1236Bx

Line drawing of a technical enclosure or housing component with ventilation slots and mounting holes (no text or symbols)

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

M4 x 1" (4) M4 x 1-1/2" (4) M4 x 2" (4)

M4 × 8 (10)

Grid of nine lightbulb icons with small plant symbols, no text or labels present

Simple line drawing of a laboratory flask (no text or symbols)

PIÈCES NON FOURNIES

3 ^1/4 " x 10" minimum

ENDOMMAGEMENT LORS DE LA LIVRAISON/ INSTALLATION :

14-3/8" 2 25 19-5/16" 20-3/32"

ÉLECTRICITÉ

AVERTISSEMENT

Close-up of a white electronic device with two circular ports and a handle, no visible text or symbols

1. Retirez les filtres.

Close-up of a hand using a tool to clean or install electronic components, with visible wiring and a fan on top (no text or symbols)

Pure electrical circuit lines without any symbols

Close-up of a damaged concrete block with visible cracks and debris (no text or symbols)

Close-up of a mechanical component with a tool inserted, no visible text or symbols

Assorted mechanical components including a perforated washer, flange, and plastic sheet (no visible text or symbols)

Close-up of a black industrial fan or vent with a handle, no visible text or symbols

Close-up of a hand holding a fan blade, partially open to show internal components (no visible text or symbols)

Close-up of a circular industrial fan or vent with radial blades, mounted on a metal frame (no visible text or symbols)

Close-up of a hand holding a pen, pointing at a blank white surface with small dark spots (no text or symbols visible)

Close-up of a screwdriver cutting a black plastic sheet with a knife (no text or symbols visible)

Close-up of a hand holding a small black object on a white surface, next to two dark rectangular electronic components (no visible text or symbols)

Close-up of a hand using a tool to cut or mark a white ventilation grille (no text or symbols visible)

Line drawing of a double-door refrigerator with two doors and control knobs (no text or symbols)

Breeze I, AK11xx

Line drawing of a double-door refrigerator with two doors and circular gauges (no text or symbols)

FIG 3

AK11xx, Breeze I seulement

REMPLACEMENT DES AMPOULES

Simple line drawing of a light bulb and a coin on a flat surface, with an arrow indicating motion (no text or symbols)

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

AUG14.0401

ENREGI STRMENT DU PRODUIT
