USER MANUAL Breeze II AK1200CB Zephyr

EN Use, Care, and Installation Guide

Technical line drawings of a two-tiered industrial fan or enclosure unit (no text or symbols)

Page Safety Information 4-6

Types of Safety Warnings 4

General Safety 4-5

Operation 6

Electrical Requirements 6

List of Materials 7

Installation Instructions 8-20

Ducting Calculation Sheet 8

Mounting Height, Clearance, & Ducting 9-10

Ducting Options ....11

AK11 Hood Specifications ....12

AK12 Hood Specifications ....13

Electrical Supply 14

Cable Lock 14

AK11 Installation Preparation ....15

AK12 Installation Preparation ....16

AK11 Ductless Recirculation Conversion ....17-18

AK12 Ductless Recirculation Conversion ....19

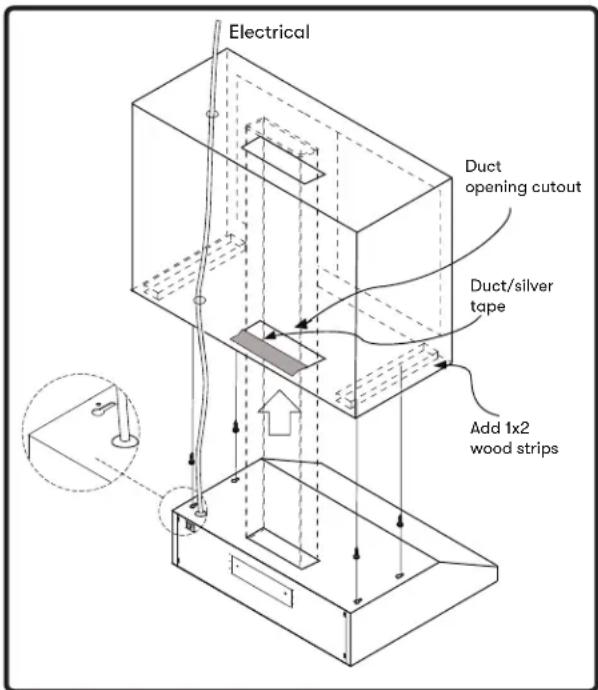

Mounting the Hood 20

Features & Controls 21-22

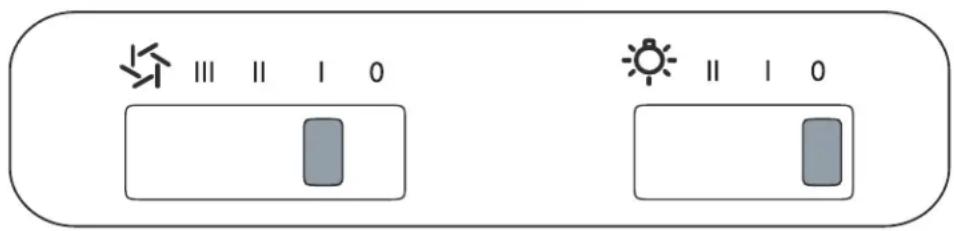

AK11 Slide Controls ....21

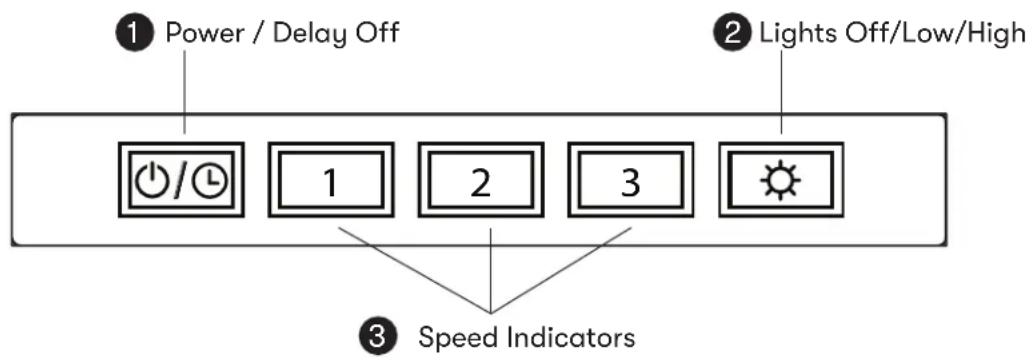

AK12 Electronic Touch Controls 22

Maintenance 23-25

Hood & Filter Cleaning 23-24

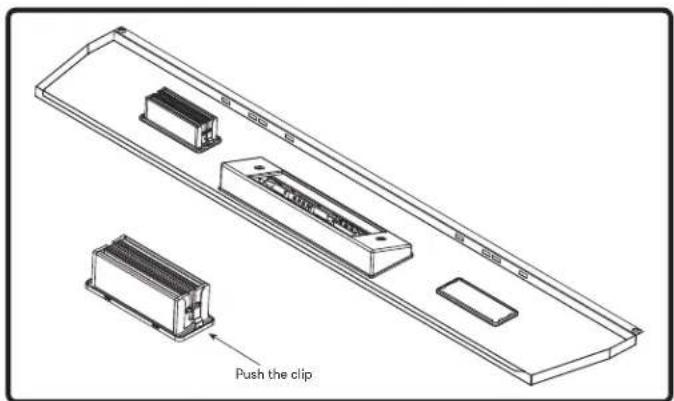

LumiLight LED 25

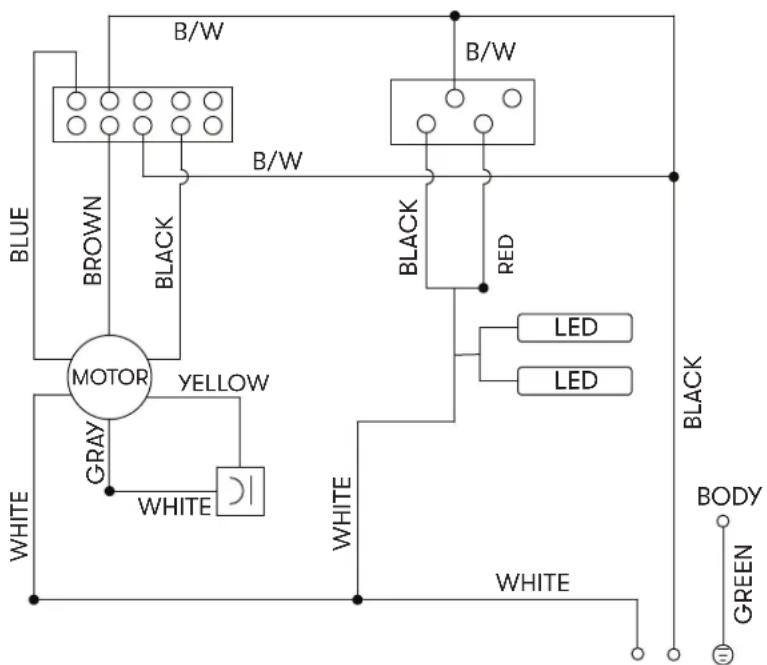

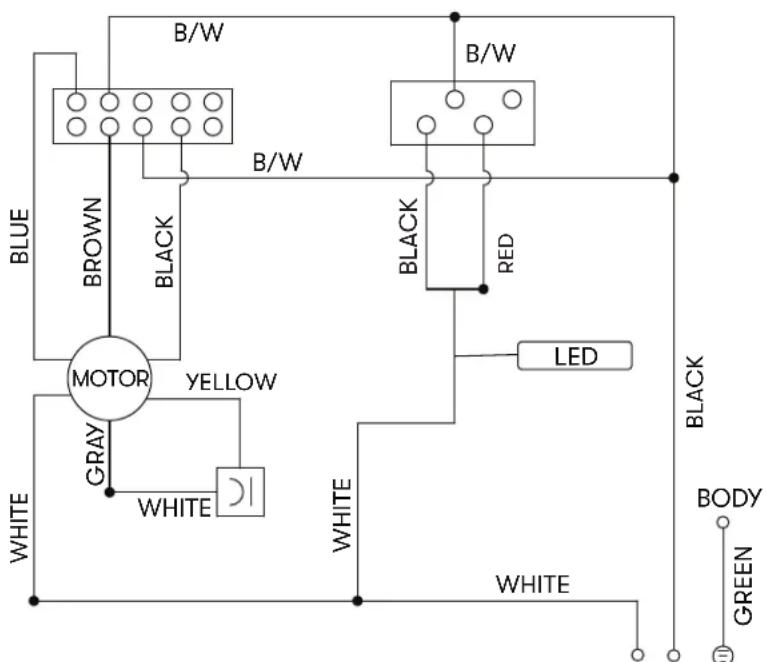

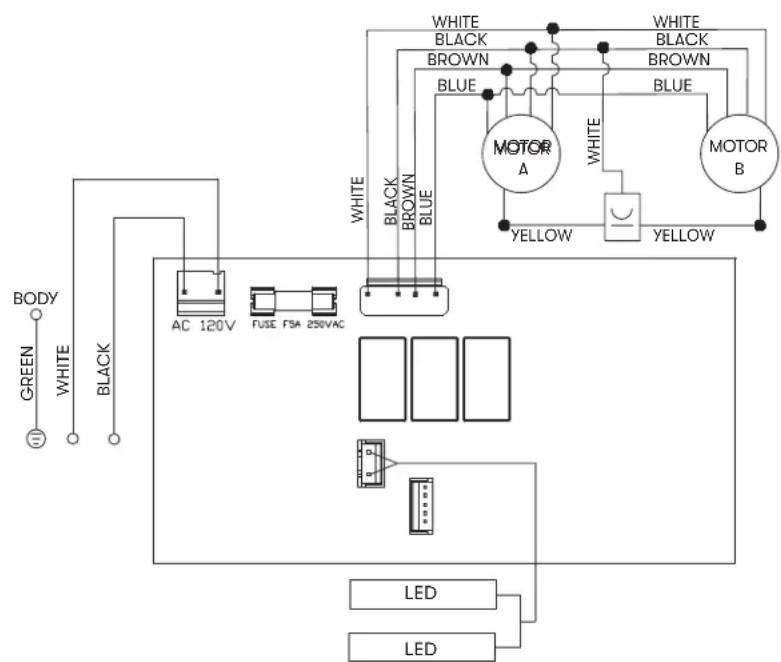

Wiring Diagram.... 26-27

Troubleshooting....28

List of Parts & Accessories ......29

Notes....30

Limited Warranty 31

Product Registration 32

READ AND SAVE THESE INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words "DANGER" "WARNING" or "CAUTION"

DANGER

Danger means that failure to heed this safety statement may result in severe injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

General Safety

WARNING

To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

READ AND SAVE THESE INSTRUCTIONS

WARNING

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING ^a :

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit

°Based on "Kitchen Firesafety Tips" published by NFPA.

WARNING

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.

WARNING

Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

READ AND SAVE THESE INSTRUCTIONS

Operation

▶ Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

Electrical Requirements

Important:

▶ Observe all governing codes and ordinances.
It is the customer's responsibility to be aware of these below:
▶ To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

▶ Do not ground to a gas pipe.

▶ Check with a qualified electrician if you are not sure the range hood is properly grounded.

▶ Do not have a fuse in the neutral or ground circuit.

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

▶ A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Parts Supplied

Quantity Part
1	H
2 Aluminum mesh filters
2 LumiLight LED, 6W
1 3-1/4"x10" rectangular starting collar (AK11 and AK12)
1 7" round transition adapter (AK12 only)(pre-installed)
1 Rectangular top transition plate (AK12 only)
1 Rectangular top cover plate (AK12 only)(pre-installed)

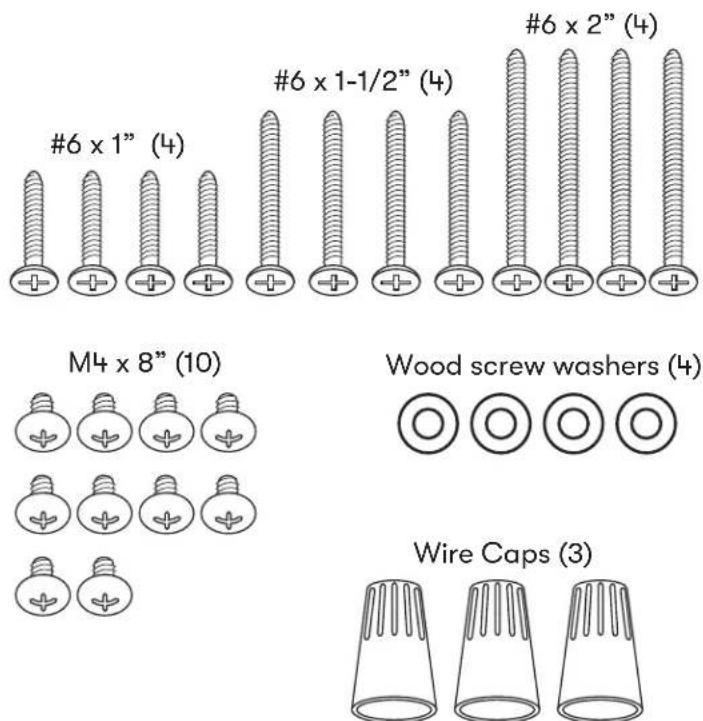

1 Hardware package

O

#6 x 1" (4) #6 x 1-1/2" (4) #6 x 2" (4) M4 x 8" (10) Wood screw washers (4) Wire Caps (3)

Parts Not Supplied

Ducting, conduit and all installation tools

Cable locking connector (if required by local codes)

AK11 recirculating kit (OAK11-21001)

AK12 recirculating kit (ZRC-0012)

Ducting Calculation Sheet

Duct pieces		Equivalent number length x used =	Total
	3-1/4"x 10" Rect., straight	1 Ft. x( ) =	Ft.
	6",7",8",10" Round, straight	1 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.90° elbow	15 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.45° elbow	9 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect.90° flat elbow	24 Ft. x( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x( ) =	Ft.
	6",7",8" Round in-line damper	15 Ft. x( ) =	Ft.
	6",7",8",10" Round, 90° elbow	15 Ft. x( ) =	Ft.
	6",7",8",10" Round, 45° elbow	9 Ft. x( ) =	Ft.
Subtotal column 1 =			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 150 equivalent feet.

Duct pieces		Equivalent number length x used =	Total
	3-1/4"x 10" Rect. to 6" round transition	5 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect. to 6" round transition 90° elbow	20 Ft. x( ) =	Ft.
	6" round to 3-1/4"x 10" rect. transition	1 Ft. x( ) =	Ft.
	6" round to 3-1/4"x 10" rect. transition 90° elbow	16 Ft. x( ) =	Ft.
	7" round to 3 1/4" x 10" rect. transition	8 Ft. x( ) =	Ft.
	7" round to 3-1/4" x 10" rect. transition 90° elbow	23 Ft. x( ) =	Ft.
	3-1/4"x 10" Rect. wall cap with damper	30 Ft. x( ) =	Ft.
	6", 7", 8", 10" Round, wall cap with damper	30 Ft. x( ) =	Ft.
	6", 7", 8", 10" Round roof cap	30 Ft. x( ) =	Ft.
Subtotal column 2= Subtotal column 1= Total ductwork =			Ft.
			Ft.
			Ft.

Mounting Height, Clearance, & Ducting

NOTE: The Breeze I minimum mount height for electric cook tops is 20", but is 24" for gas cook tops. The Breeze II minimum mount height for both electric and gas cook tops is 24". The maximum mount height for both Breeze I and Breeze II is 32" for both electric and gas cook tops.

Mounting Height, Clearance, & Ducting

A minimum 3-1/4"x10" rectangular duct for either vertical ducting or horizontal ducting must be used to maintain maximum air flow efficiency for both the AK11 and AK12. The AK12 may also vertically duct with a minimum 7" round duct to maintain maximum airflow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Use calculation worksheet to compute total available duct run when using elbows, transitions, and caps.

ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size.

If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.

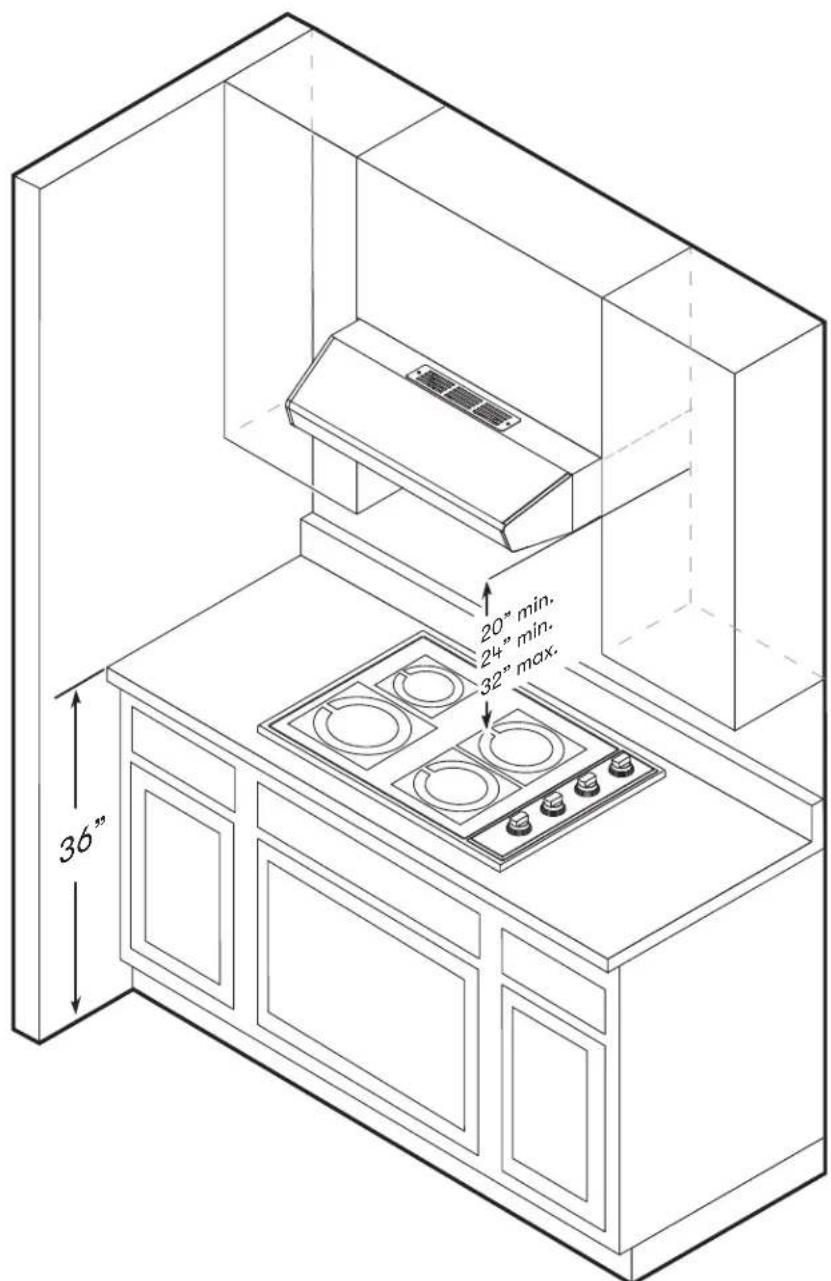

Breeze I: Minimum mount height between range top to hood bottom should be no less than 20" for electric cook tops and 24" for gas cook tops. Maximum mount height should be no higher than 32".

Breeze II: Minimum mount height between range top to hood bottom should be no less than 24" Maximum mount height should be no higher than 32".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose performance and efficiency.

If available, also refer to range manufacturer's height clearance requirements and recommended hood mounting height above range. Always check your local codes for any differences.

For shipment and installation damages:

▶ Please fully inspect unit for damage before installation.
If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

Ducting Options

WARNING

Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option.

▶ Use single wall rigid metal ductwork only.

▶ Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

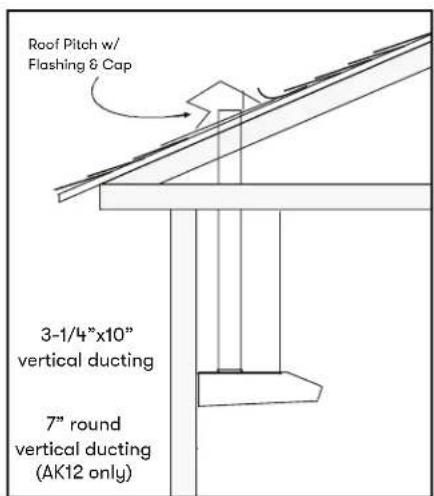

Roof Pitch w/ Flashing & Cap 3-1/4"x10" vertical ducting 7" round vertical ducting (AK12 only)

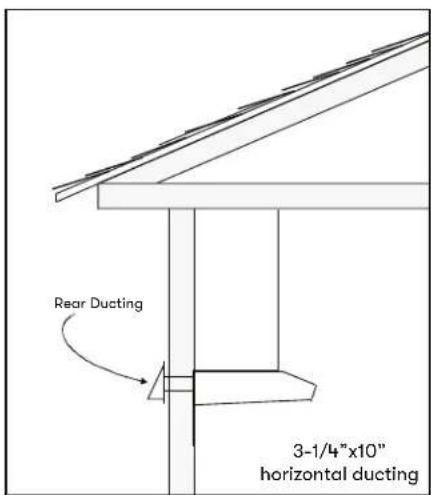

Rear Ducting 3-1/4"x10" horizontal ducting

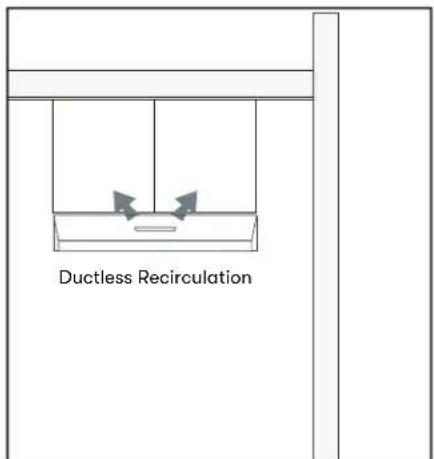

Ductless Recirculation

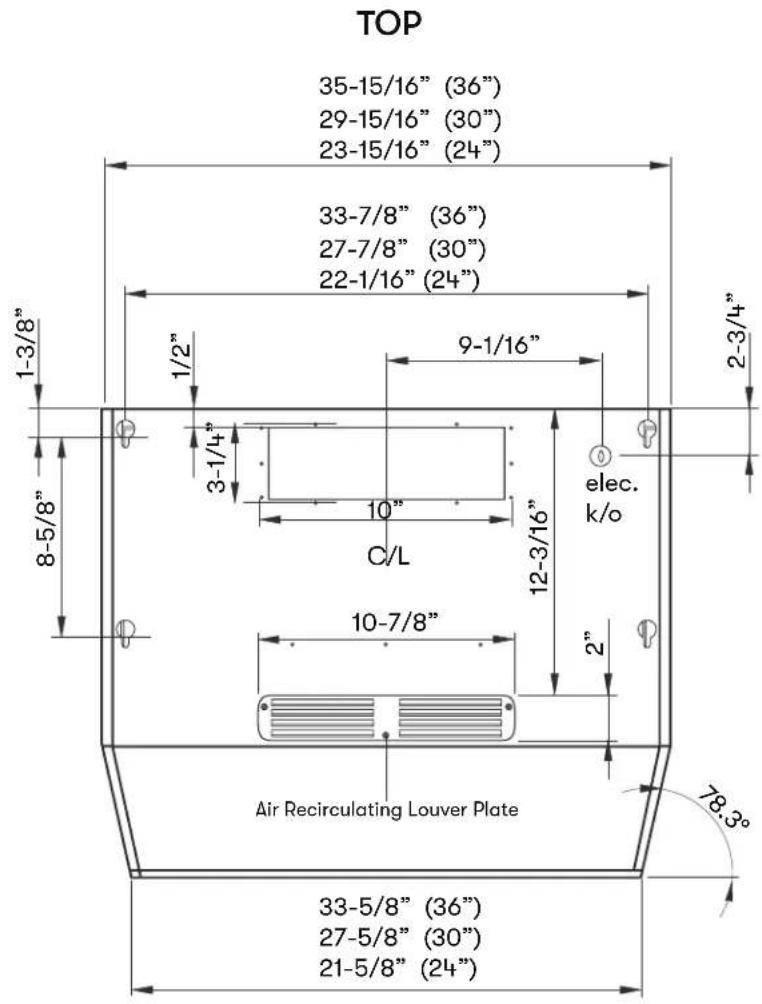

AK11 Hood Specifications

TOP 35-15/16" (36") 29-15/16" (30") 23-15/16" (24") 33-7/8" (36") 27-7/8" (30") 22-1/16" (24") 1-3/8" 1/2" 9-1/16" 2-3/4" 3-1/4" elec. k/o 10" C/L 12-3/16" 2" Air Recirculating Louver Plate 8-5/8" 10-7/8" 2" 78.3° 33-5/8" (36") 27-5/8" (30") 21-5/8" (24")

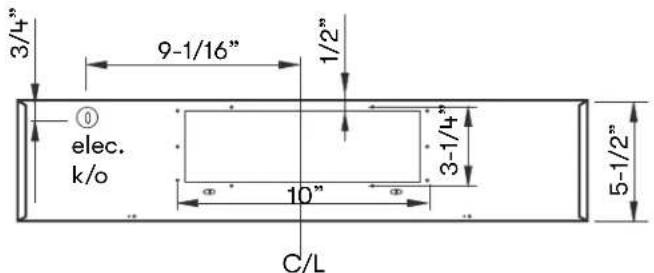

BACKSIDE

3/4" 9-1/16" 1/2" ① elec. k/o 10" C/L 3-1/4" 5-1/2"

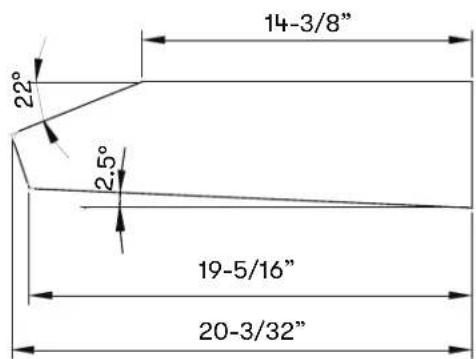

14-3/8" 22° 2.5° 19-5/16" 20-3/32"

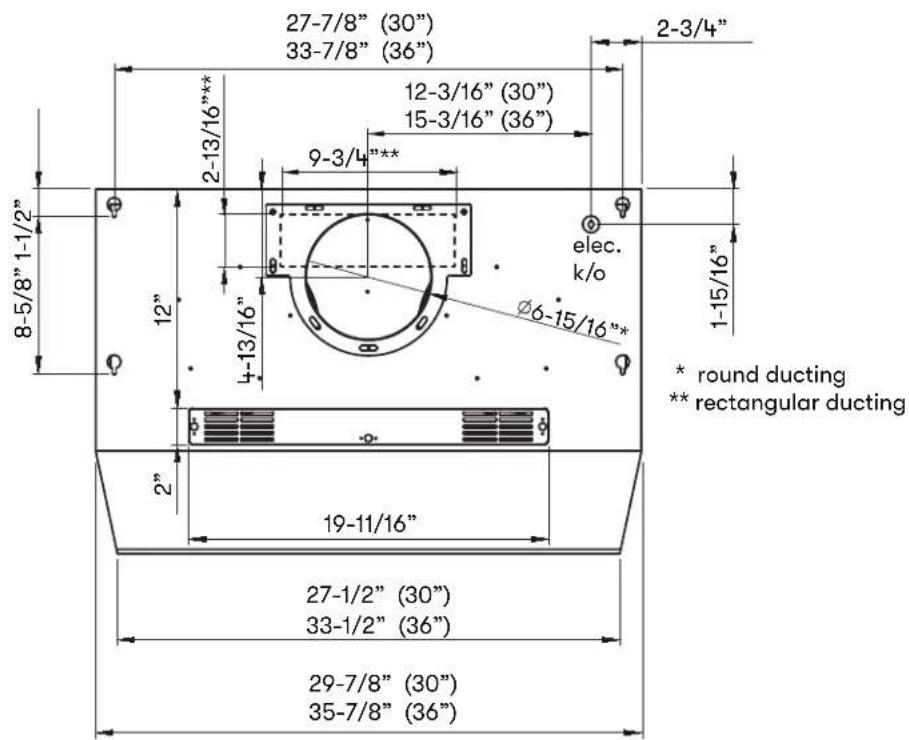

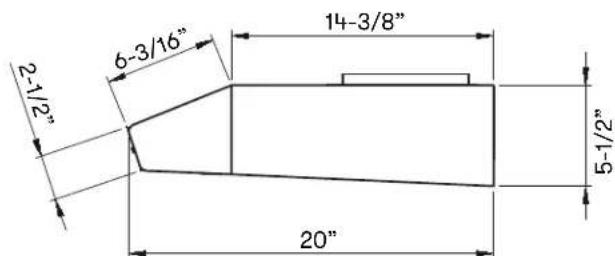

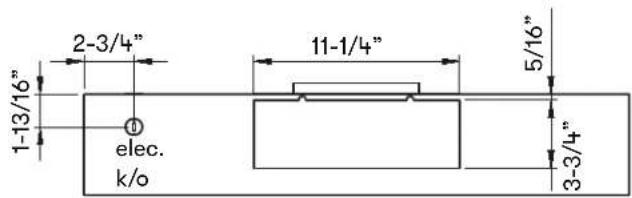

AK12 Hood Specifications

TOP

27-7/8" (30") 33-7/8" (36") 2-3/4" 12-3/16" (30") 15-3/16" (36") 9-3/4"*** 8-5/8" 1-1/2" 12" 4-13/16" elec. k/o Ø6-15/16"** 1-15/16" * round ducting ** rectangular ducting 2" 19-11/16" 27-1/2" (30") 33-1/2" (36") 29-7/8" (30") 35-7/8" (36")

BACK SIDE

2-3/4" 1-13/16" 11-1/4" 5/16" 3-3/4" elec. k/o

2-1/2" 6-3/16" 14-3/8" 5-1/2" 20"

Electrical Supply

WARNING

Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn off electrical power at service entrance before wiring.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.

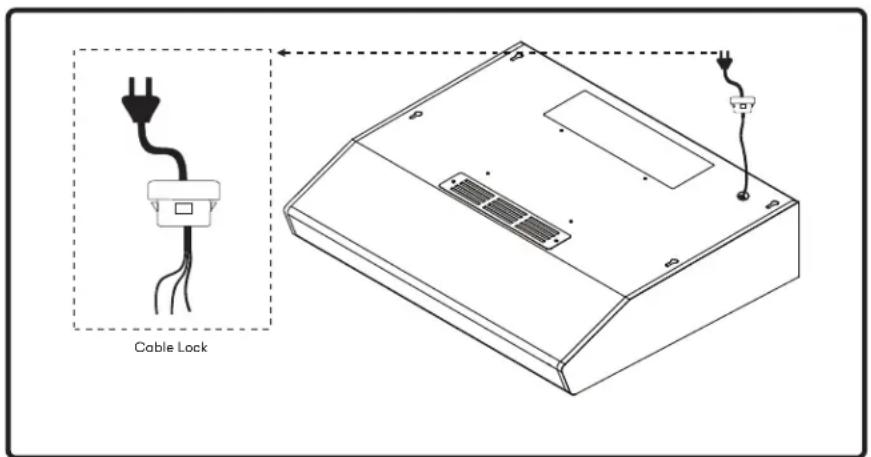

Cable Lock

A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)

Cable Lock

FIG. A

AK11 Installation Preparation

Line drawing of a double-door refrigerator with doors open and one cabinet, showing internal compartments and a fan (no text or symbols)

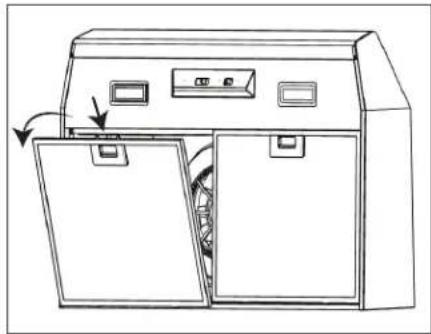

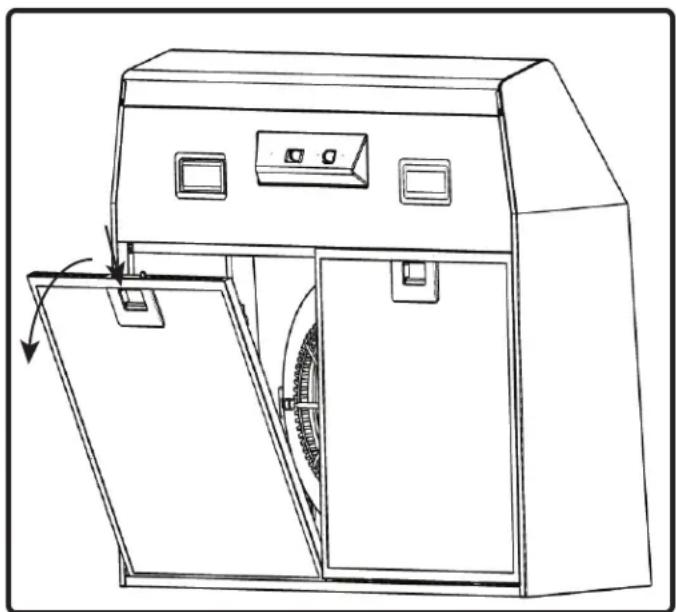

1. Remove filters

Technical line drawing of a mechanical device with a central fan and control panel (no text or symbols)

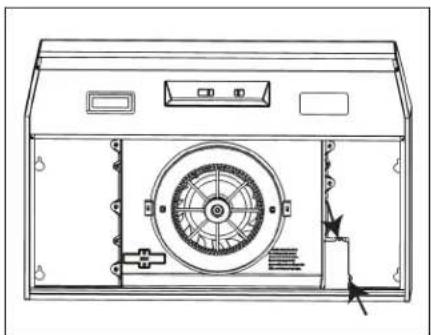

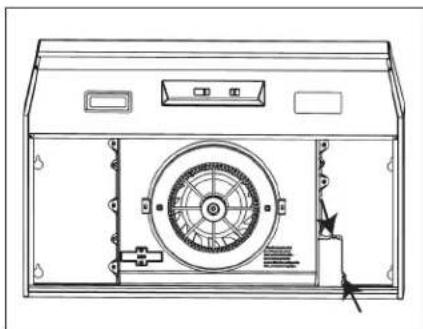

1. Remove cover from junction box by (2) screws to gain access to electrical wiring.

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

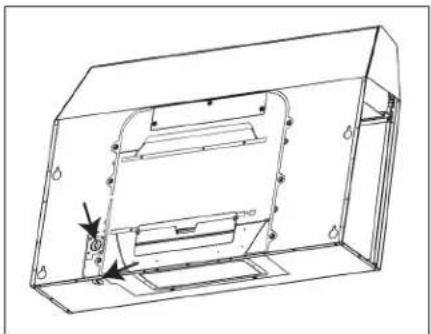

1. If using a cable lock, pry open the desired electrical knockout either top or back of hood. Feed the wires through the cable lock. Some codes require the use of a cable lock, check your local codes.

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows (no text or symbols)

1. If converting hood to ductless recirculation, skip steps 4 and 5.

Technical line drawing of a mechanical assembly inside a transparent enclosure (no text or symbols)

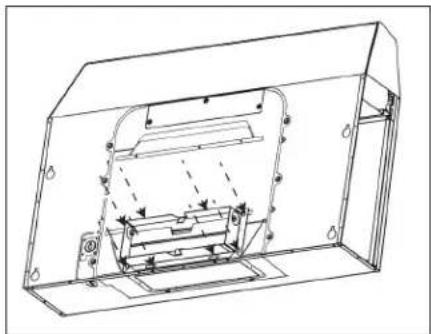

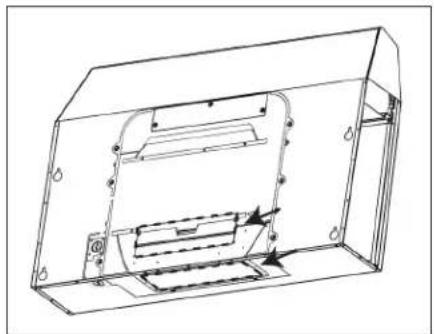

1. Secure 3-1/4" x 10" starting collar with damper to the duct opening using (10) M4x8" screws.
   Phocopen desired 3-1/4" x 10" ducting knock-out either on top or back of hood.

Note: starting collar is secured inside the hood to the left of the motor.

AK12 Installation Preparation

Line drawing of a two-door air purifier with labeled doors and a handle (no text or symbols)

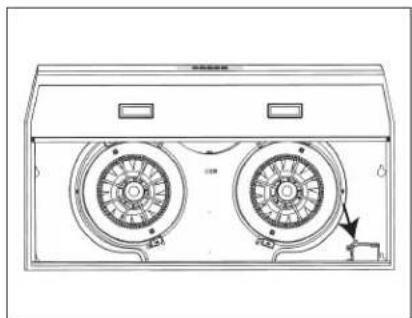

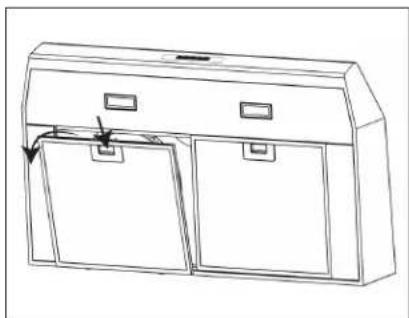

1. Remove filters. 2. Remove cover from junction box to

Technical line drawing of a front-mounted air conditioner unit with two fans and a cooling fan (no text or symbols)

gain access to electrical wiring.

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows (no text or symbols)

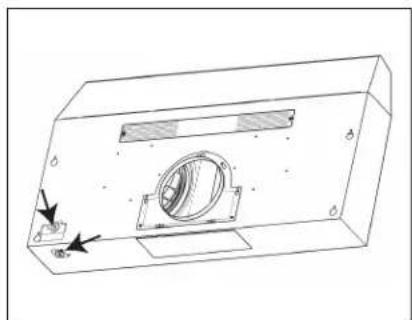

1. If using a cable lock, pry open the desired electrical knockout either top or back of hood. Feed the wires through the cable lock. Some codes require the use of a cable lock, check your local codes.

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows (no text or symbols)

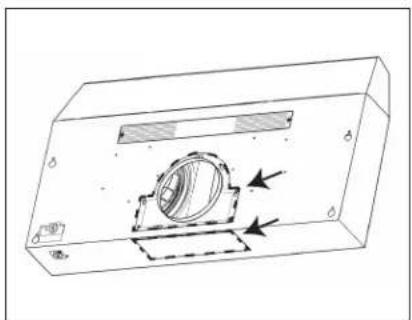

1. If continuing with 7" round vertical ducting or if converting hood to duct-less recirculation, skip steps 4 and 5. local

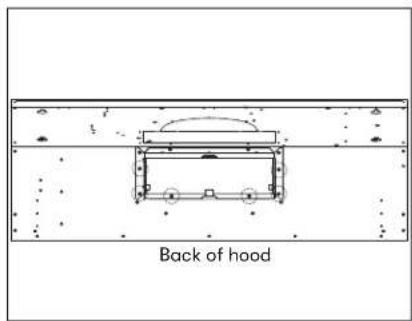

Back of hood

1. For rectangular horizontal ducting: secure 3-1/4" x 10" rectangular starting collar to the duct opening on the back of the hood by using (6) screws. Install the rectangular top transition adapter. Secure rectangular top cover plate to the top of the hood.
   If 3-1/4" x 10" ducting is desired, remove knockout plate on back of hood for horizontal ducting or remove 7" round transition adapter on top of hood for vertical ducting.

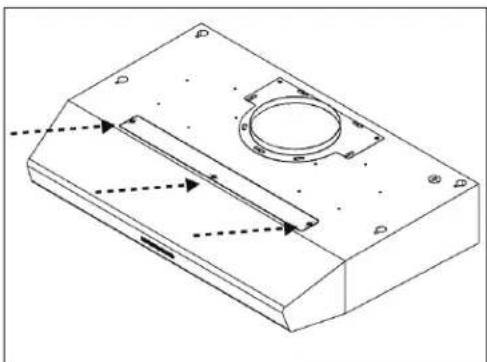

For rectangular vertical ducting: secure 3-1/4" x 10" rectangular top transition plate to the duct opening on top of the hood.

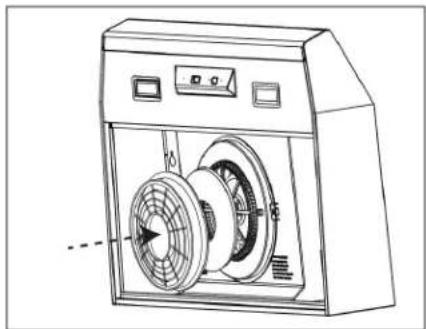

AK11 Ductless Recirculation Conversion

NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home.

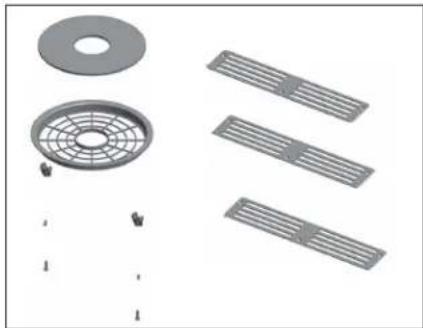

Exploded view of industrial fan components including a circular gasket, mesh fan, and three parallel slats (no text or symbols)

An air recirculating kit (optional) must be purchased before using hood in recirculating mode.

Recirculating kit - OAK11-21001

Replacement filter - OAK11-20001

Technical line drawing of a mechanical device with internal components and no visible text or symbols

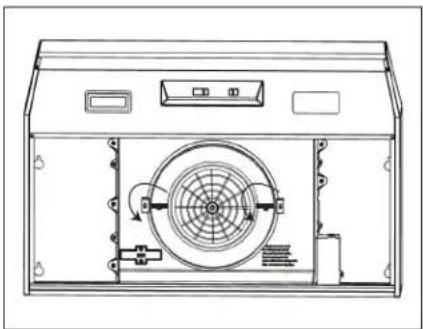

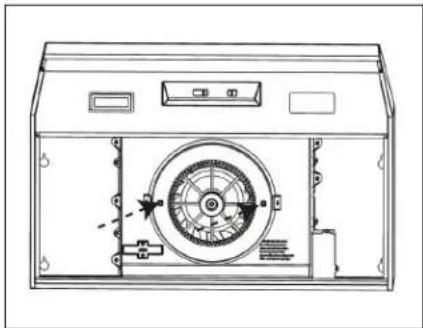

1. Secure each of the (2) spring clips to the safety grille body (A). Do this by inserting the screw through the spring and into the clip. Secure each clip to the safety grille body by using a philips head screwdriver.

Line drawing of a mechanical device with two fans and control panel (no text or symbols)

1. Insert charcoal filter into charcoal filter holder and place it over the safety grille body

Technical line drawing of a mechanical device with fan and internal components (no text or symbols)

1. Secure charcoal filter holder to safety grill body by lifting up on spring clips and twisting. The clip should cover the lip of the charcoal filter holder securely.

Simple line drawing of a rectangular container with internal arrows and dots, no text or symbols present

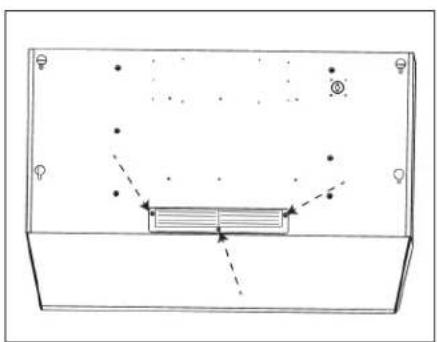

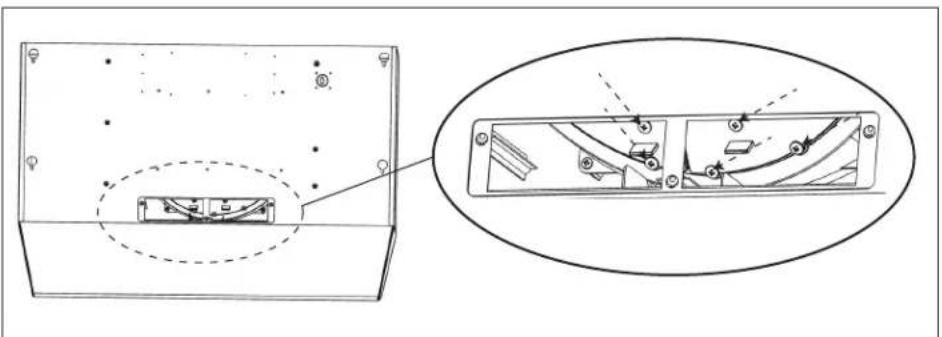

1. Remove each screw from recirculating top plate. Plate is located on top of hood towards the front.

AK11 Ductless Recirculation Conversion

NOTE: Skip this page if you are ducting the air out of your home.

Technical line drawing of a device casing with internal components and an inset view showing internal wiring (no text or symbols)

1. Remove each of the 5 screws holding the (2) interior recirculating panels.
2. Remove (2) interior recirculating panels.

Technical line drawing of a rectangular enclosure with internal structure and mounting points (no text or symbols)

1. Place louvered recirculating plate over top opening and secure using the screws previously removed.

AK12 Ductless Recirculation Conversion

NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home.

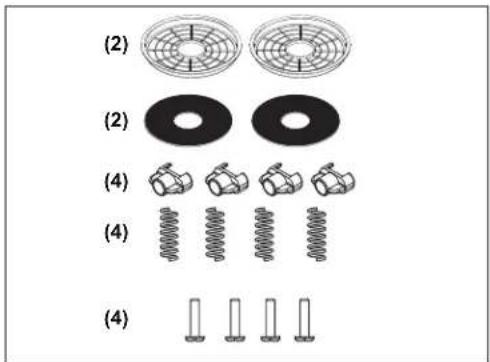

(2) (2) (4) (4) (4)

1. For AK12, an air recirculation kit (optional) must be purchased before using the hood in recirculation mode.
   Recirculation kit - ZRC-0012
   Replacement filter - OAK11-20001

Technical line drawing of a fan assembly with three blades and a central fan (no text or symbols)

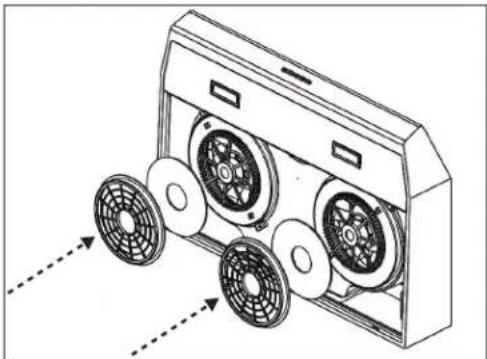

1. Insert charcoal filter into the charcoal filter holder and place it over the safety grille body.

Technical line drawing of a mechanical housing component with mounting holes and internal features (no text or symbols)

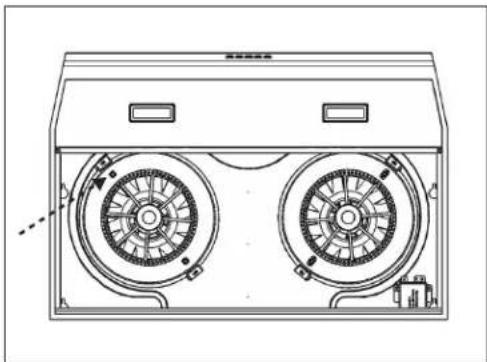

1. Remove each screw from recirculating top plate. Plate is located on top of hood towards the front.

Technical line drawing of a front-mounted air conditioner unit with two fans and cooling fins (no text or symbols)

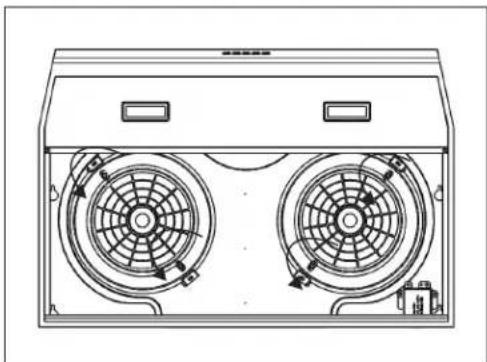

1. Secure each of the (2) spring clips to the safety grille body. Do this by inserting the screw through the spring and into the clip. Secure each clip to the safety grille body by using a Phillips head screwdriver.

Technical line drawing of a front-mounted HVAC unit with two fans and ventilation slots (no text or symbols)

1. Secure charcoal filter holder to safety grille body by lifting up on spring clips and twisting. The clip should cover the lip of the charcoal filter holder securely.

Mounting the Hood

Hood is designed for installation under a kitchen cabinet (FIG. B)

1. Select preferred duct location (vertical or horizontal) if ducting out of kitchen. Refer to page 11 for details.
2. Begin installation by removing the filters (if installed) and side spacer panels (36" models only). (FIG. C)
3. Reinforce cabinet with 1"x2" wood strips if additional strengthening is required or if cabinets are framed.
4. Temporarily position the range hood in the desired mounting location. Measure and mark the mounting holes, duct and electrical locations with a pencil.
5. Drill/cut out the required openings for duct and electrical access by following the dimensions on pages 12-13; make sure the duct opening is large enough to apply duct tape.
6. Fasten hood onto cabinet with (4) #6 wood screws with washers provided.
7. Install electrical.
8. Install duct work and seal with duct tape.
9. Reinstall filters and side spacer panels (if applicable).
10. Power up hood and check for leaks around duct tape.
11. If recirculating the hood refer to page 17-18 for AK11 and page 19 for AK12.

Electrical Duct opening cutout Duct/silver tape Add 1x2 wood strips

FIG. B

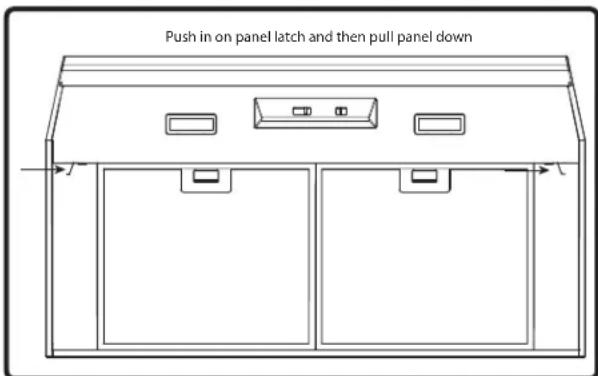

Push in on panel latch and then pull panel down

FIG. C

AK11 Slide Controls

1 Blower On/Off/Speed Selection

2 Lights Off/Dim/Bright

Ⅲ Ⅱ Ⅰ 0 Ⅱ Ⅰ 0

1 Blower On/Off/Speed Selection

This switch turns the blower on and off and controls the speed selection. 0 is off, l is low speed, l is medium speed and is high speed.

2 Lights Off/Dim/Bright

0 is off, I is dim, II is bright.

AK12 Electronic Touch Controls

① Power / Delay Off ② Lights Off/Low/High ③ Speed Indicators

1 Power / Delay Off Button ⏻/💡

• ⏻/ Seoul Button will turn power on and off for entire hood (fan and lights.)
• Hood will remember the last speed and light level it was last turned off at.

(Example: Press how to turn off hood when on fan speed 3 and high lights.

Press (on again and the hood will turn back on at speed 3 and high lights.)

Delay Off

• With the fan on, press and hold the ⏻/➊ button for two seconds. The fan will change to speed 1, the ⏻/➊ button will blink on and off indicating the 5 minute delay off timer has started.
• Pressing ⏻/💡 button while delay off function is enabled will turn the hood off and cancel the delay off function.

2 Lights Button

• Lights are two levels, low and high.
• From off, press one time for low. Press again for high. Press again to power lights off.

3 Speed Level Indicators

- Fan is three speed levels. 1 for low speed, 2 for medium speed, and 3 for high speed.

Hood & Filter Cleaning

Surface Maintenance

▶ Do not use corrosive detergents, abrasive detergents or oven cleaners.
▶ Do not use any product containing chlorine bleach or any product containing chloride.
▶ Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.

After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and buff in the direction of the stainless steel grain.

Cleaning Black Stainless Steel

Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. To remove heavier grease build up use a liquid degreaser detergent.

Due to a built-in layer of protective anti-smudge coating, do not use stainless steel polish/cleaners to buff out black stainless steel.

Aluminum Mesh Filters

The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean.

Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled.

Dry filters and re-install before using hood.

Removing Aluminum Mesh Filters (FIG. D):

1. Push in on filter handles.
2. Pivot front of filter downward.
3. Remove filter by pulling away from hood.

Replacing Aluminum Mesh Filters

Hood Model Part Number Qty. to		Order
AK1124Bx 50200013 2
AK1100Bx / AK1136Bx 50200012 2
AK1200Cx / AK1236Cx 50200012 2

To order parts, visit us online at http://store.zephyronline.com.

Line drawing of a double-door industrial machine with control panel and fan (no text or symbols)

FIG. D

LumiLight LED

In the unlikely event that your LumiLight LED, please contact Zephyr to order replacement parts.

See the list of parts and accessories page for part numbers and contact information.

LED Removal (FIG. E):

1. Remove aluminum mesh filters.
2. Remove light panel by two screws.
3. Disconnect LED light quick connector.
4. Push in the two side clips on the ends of the LED light.
5. Push LED light through the light panel opening.

Push the clip

FIG. E

AK1124Bx Wiring Diagram

B/W B/W BROWN BLACK BLACK RED MOTOR YELLOW GRAY WHITE WHITE LED WHITE BODY GREEN BLUE WHITE

REMARKS:CONDENSER 3 μF 250VAC FIT AC120V 60Hz

AK1100Bx, AK1136Bx Wiring Diagram

REMARKS:CONDENSER 3 μF 250VAC FIT AC120V 60Hz

AK1200Cx, AK1236Cx Wiring Diagram

REMARKS:CONDENSER 3.5+3.5μF 300V AC FITT AC120V 60Hz

Possible Problem Possible Cause Solutions
After installation, the unit doesn't work.	The power source is not turned ON. Make sure the circuit breaker and the unit's power is ON.
	The power line and the cable locking connector is not connecting properly.	Check the power connection with the unit is connected properly.
	The switch board wirings are disconnected.	Make sure the wirings at the switch board are connected properly.
	The switch board is defective. Change the switch board.
Light works, but blower is not turning.	The blower cable is disconnected. Connect the blower cable.
	Debris or obstruction in motor. Remove the debris or obstruction.
	Motor defective or possibly seized. Change the blower.
	Damaged capacitor. Change the capacitor.
	The switch board is defective. Change defective part.
The unit is vibrating. The blower is not secured in place. Tighten the blower in place.
The hood is not secured in place.		Check the installation of the hood.
The blower is working, but the lights are not.	The LED light connector is disconnected.	Connect the LED light connector.
	Defective LED light.	Change the LED light.
	The switch board is defective. Change the switch board.
The hood is not venting out properly.	Using the wrong size of ducting.	Change the ducting to at least 3-1/4"x10" or higher or 7" round or higher (AK12 only).
	Using the wrong type of ducting. Flexible ducting can reduce air flow by up to 50%.	Change the ducting to solid rigid metal ducting.
	The hood might be hanging to high from the cook top.	Adjust the distance between the cooktop and the bottom of the hood within 24" to 36" for gas cooktops and 20" to 36" for electric cooktops.
	The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	Close all the windows and doors to eliminate the outside wind flow.
	Blockage in the duct opening or ductwork.	Remove all the blocking from the duct work or duct opening.
LumiLight LEDs flicker when changing speed levels.	N/A	This is a normal operation and the hood is working correctly.

Description Part Number
Replacement Parts
LumiLight LED, 6W (AK11) Z0B0049
LumiLight LED, 6W (AK12) Z0B0047
Mesh Filter, 24" hoods (each) 50200013
Mesh Filter, 30" and 36" hoods (each)	50200012
Optional Accessories
Recirculating Kit (AK11) 0AK11-21001
Recirculating Kit (AK12) ZRC-0012
Replacement Charcoal Filters (2pk) 0AK11-20001

To order parts, visit us online at http://store.zephyronline.com.

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS

United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contact

Canada Customers please call: 1-800-361-0799 or Email: [e-mail]

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements.

Please check our website for any additional Product information, www.zephyronline.com

Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502

Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

STOP

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368

Breeze I

AK1124Bx, AK1100Bx, AK1136Bx

Breeze II

AK1200Cx, AK1236Cx

EN Use, Care, and Installation Guide

Technical line drawings of a two-tiered industrial fan or enclosure unit (no text or symbols)

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Pièces fournies

Three identical line drawings of conical flutes or containers, no text or symbols present.

Pièces non fournies

14-3/8" 22° 2.5° 19-5/16" 20-3/32"

Line drawing of a double-door refrigerator with doors open and one cabinet closed, showing internal compartments and a control panel (no text or symbols)

1. Retirez les filtres.

Technical line drawing of a front-mounted air conditioner unit with fan and vent (no text or symbols)

Technical line drawing of a 3D mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and mounting brackets (no text or symbols)

Line drawing of a cabinet or storage unit with two doors and a door, showing internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a front-mounted air conditioning unit with two fans and a handle (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and mounting points (no text or symbols)

Technical line drawing of a mechanical housing component with internal components and directional arrows (no text or symbols)

Exploded view of industrial fan components including a circular sleeve, mesh fan, and three parallel slats (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a front-loading washing machine with fan and control panel (no text or symbols)

Technical line drawing of a mechanical device with fan and control panel (no text or symbols)

Simple line drawing of a rectangular container with internal arrows and dots, no text or symbols present

Technical line drawing of a device with internal components and an inset view showing internal wiring (no text or symbols)

Technical line drawing of a rectangular enclosure with internal structure and mounting points (no text or symbols)

Technical line drawing of a front-mounted air conditioner unit with two fans (no text or symbols)

Technical line drawing of a front-mounted air conditioner unit with three fans and cooling fans (no text or symbols)

Technical line drawing of a front-mounted HVAC fan with two blades and ventilation slots (no text or symbols)

Technical line drawing of a mechanical housing component with internal features and directional arrows (no text or symbols)

Control panel interface with directional icons and labeled buttons for light and sun functions

Line drawing of a refrigerator with doors open and a side panel, showing internal components and airflow direction (no text or symbols)

FIG. D

LumiLight LED

POUR OBTENIR UN SERVICE SOUS GARANTIE OU POUR TOUTE QUESTIONS LIÉES AU SERVICE

Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502
