USER MANUAL PRO-PIRAX Create

Security instructions 6

List of parts 7

How to use it 7

Functions of the induction cooker 8

Product maintenance 9

Troubleshooting 10

PORTUGUÊS

Thank you for choosing our induction cooker. Before using the appliance, and to ensure the best use, carefully read these instructions.

The safety precautions enclosed herein reduce the risk of death, injury and electrical shock when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident prevention measures when using an electrical appliance. We assume no liability for customer failing to comply with these requirements.

SECURITY INSTRUCTIONS

When using any electrical appliance, basic safety precautions should always be observed.

- This is a domestic electrical product, which must only be used for its intended purpose in accordance with these instructions. This product should never be used in a commercial environment.

- Check the rating plate to ensure that the connected input voltage is being applied into the product.

- Always switch off the product and remove the plug from the wall socket when not in use and before cleaning or changing accessories.

- Most domestic appliances must be always attended when in use. Never leave this product unattended when connected to the mains supply unless instructed to do so by these instructions.

• Always ensure the product is switched off before connecting it to the mains supply.

- Never reach for an electrical product that has fallen into water. To do so will result in an electrical shock. Switch off the power at the wall socket and disconnect the plug before attempting to remove it from the water. After removing, never attempt to re-connect the product until it has fully dried and has been tested and approved by a qualified person.

- Domestic electrical products are not designed for use by children. Any child using a domestic electrical product should be closely supervised by a responsible adult to ensure all instructions and safety precautions ate adheredto.

- Never let the mains cable to come into contact with a heat source, water or any other liquid. Ensure sharp objects like knives etc. are never used close to a mains cable when the product is in use.

- Never allow the cable of an electrical product to drape over the edge of a work surface where it could be pulled by a small child. Always check the position of the mains cable when the product is in use.

- Never carry an electrical product by the mains cable as it could cause damage resulting in electrical failure when used next.

- Never operate this product if the cable or plug become damaged.

- Be aware that many domestic electrical products become very hot during use. Never touch hot surfaces during use and ensure all users are aware of the risks.

- Where relevant, keep all ventilation slots clear from obstructions and keep safe working distances from walls etc. Never put anything into the ventilation slots of an electrical appliance.

- Never operate this product with wet hands. Always ensure your hands, the appliances and work area are dry before switching on.

- Never use this product outdoors. This product is designed for indoor use only.

- If this product stops working unexpectedly, switch off and unplug it immediately. Seek professional advice before attempting to re-use the product.

• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hot-plate since they can get hot.
• This appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children under 8 years old.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The temperature of accessible surfaces may be high when the appliance is operating.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

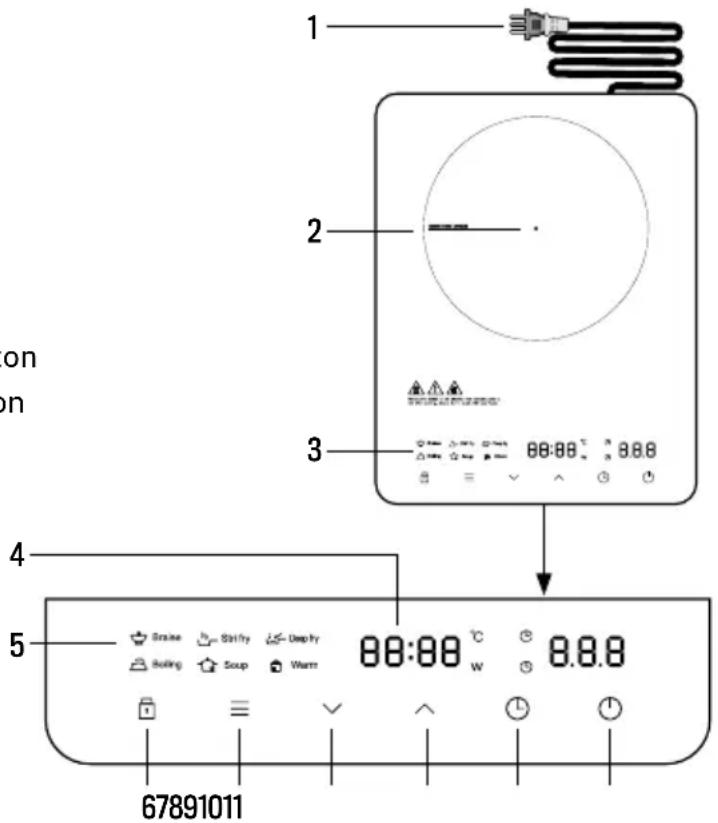

LIST OF PARTS

1. Power cord
2. Crystal board
3. Control panel
4. Temperature and power display
5. Indicator light of functions
6. Lock button
7. Functions selector button
8. Decrease time/temperature button
9. Increase time/temperature button
10. Timer button
11. Power button

1 2 3 4 5 67891011 88:88 °C 8.8.8 Brake Stiffy Deaphy Bulking Soup Warm W S T U

HOW TO USE IT

1. Press the Power button to turn on the induction hob.
2. Choose the desired function by pressing the key≡. Each press of the button corresponds to each of the functions. The indicator light for each function will illuminate on the panel to indicate which one has been selected.
3. Select the desired temperature or power setting by pressing the buttons ∨ ∧ (depending on the selected function, you can adjust the temperature or power).

Soup

Select the function, the icon will light up and the hob will start to heat up to 1700W. The power setting CANNOT be adjusted when using this function.

Boil

Select the function, the icon will light up and the hob will start to heat up to 2200W. The power setting CANNOT be adjusted when using this function.

Warm

Select the function ☐, the icon will light up and the hob will start to heat up to 60 °C. The temperature setting CANNOT be adjusted when using this function.

Deep fry

Select the function ☑, the icon will light up and the hob will start to heat up to 180 °C. You can adjust the temperature you want using the arrows (from 80 °C to 240 °C).

Braise

Select the function, the icon will light up and the hob will start to heat up to 2200W. You can adjust the power setting you want using the arrows (from 300W to 2200W).

Stir fry

Select the function ☐, the icon will light up and the hob will start to heat up to 2200W. You can adjust the power setting you want using the arrows (from 300W to 2200W).

Timer

1. Power-off timer: Press the Power key, choose a function and when the induction hob starts up, press the button to set the when you want the hob to turn off using the arrows.

2. Power-on timer: Press the Power key, press the button to set when you want the hob to turn on using the arrows. Then choose a function (if you don't choose any of the cooking functions, the power-on timer will not work).

Lock

1. Press the Lock key for 2 seconds to lock the induction hob.
2. The LED display will show the word LOC.
3. While in lock mode, the other keys will not work except Lock and Power key. You can turn off the hob with the power key but the Lock will not be deactivated.
4. Press the Lock key again for 2 seconds to exit lock mode.

Pause

While the hob is working, press the key ⏻ to stop heating. If you don't operate the appliance for 30 minutes, it will turn off automatically.

Before use

• Main power supply socket: use government approved safety products.
• Check the socket regularly to prevent any damage.
  • Repairs should be done by qualified technicians only. Do not open the cover on your own.
• Check the power cord and plug for any damage, if found please do not use.
• Do not use any extension power cord, use the main power supply socket point only. This machine needs high power current.
• In case the machine is not in use for a long period of time: first, switch on the machine and allow 10 minutes for the electronic component to stabilize. Second, after 10 minutes of warm-up, start to operate. Do not pull out the plug with wet hands.
• Do not use the machine near water, fire or in a damp area. This machine is for indoor use, it has not been designed for outdoor use.

During use

• Place the machine on a flat, lever and solid surface.
• Keep the machine out of reach for children. The machine can be very hot on the induction area.
• Do not place the below objects on the top plate when the machine is working as they generate heat: stainless steel; iron; cast iron; aluminium foil; lid and enamel; knives, forks and spoons; plates made of iron, stainless steel, cast iron and aluminium; empty pots and pans.
• While the machine is working with pots or pans on top, do not carry or move the machine.
• Allow good surrounding ventilation for the machine. This can avoid overheating problems.
• Do not drop metal objects into the machine from the ventilation gap.

• How to take care of the top plate?

- Do not drop heavy objects on the plate;

- Do not pour water, acid and liquid on the plate;

- Do not burn anything with fire on the plate;

- Do not place hot pots or pans on top, when the machine is not in use.

- In case you find any crack on the plate, cut the power off and do not use it. Send the machine for repair.

- Some pots may produce noises during usage. Move the pot slightly as the noise can disappear or be reduced. If the noise still remains, change the pot.

- Do not place the machine on top of a carpet, cloth or paper materials, when the machine is working. This will help prevent fires.

Warning: Do not touch the top plate after used. The induction cooker is still burning hot, even if the power has just been switched off.

• Do not unplug by pulling the AC cable.
• Switch off the main power before pulling the plug out.
• Keep the pans or pots away from the machine after use.

PROBLEMSOLUTION
No beeping noise is heard when inserting the plug, with nothing shown on the digital display.	·Is the plug properly connected?·Is your auto switch off fuse broken?·Is the power off?
The cooker stopped heating suddenly, no output power.	·Is the ambient temperature too high?·Is the air inlet or outlet blocked?·Maybe, the internal temperature is too high. Restart the cooker a few minutes later.
The cooker is not heating. E1 on display.	You need to put a pot or pan on the crystal board. The cooker won't heat if there is nothing on it.
The cooker stopped heating suddenly. E2 on digital display.	·E2 indicates that the temperature sensor in the cooling fin is damaged.·If after a few minutes E2 is still on display, it must be sent to the repair service.
The cooker stopped heating suddenly and now it heats intermittently.	When low power chosen and for some functions this is a normal behaviour.
The cooker stopped and beeped suddenly. E3 on digital display.	Municipal voltage supply is higher than 275V.
The cooker stopped and beeped suddenly. E4 on digital screen.	Municipal voltage supply is lower than 100V.
The cooker stopped after beeping. E5 on digital display.	·E5 indicates that the temperature sensor in the centre of the coil is damaged.·If after a few minutes E5 is still on display, it must be sent to the repair service.
The cooker stopped and beeped suddenly. E6 on digital display.	·Is a wrong function key pressed (e.g., stir fry under braise function)?·No water in the cooking utensil when making braise, or soup, for example.·Too thick soup content or insufficient water.·The cooker is heating an empty pot or pan.
The cooker stopped and beeped suddenly. E0 on digital display.	·Internal abnormality.·If after a few minutes E0 is still on display, it must be sent to the repair service.

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.
