USER MANUAL Avante Burigotto

EN Instructions for use

FR Notice d'emploi

Diagram showing traffic signs and warning icons on a vehicle ahead, including no signs, checkmarks, and warning symbols.

Interior view of a car showing dashboard, steering wheel, and rear seats with red directional arrows indicating traffic or movement (no text or symbols)

Line drawing of a car seat with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat assembly with seatbelt and seatbelt (no text or symbols)

Line drawing of a car seat with a double-headed arrow indicating motion (no text or symbols)

Simple diagram of a pipe with two curved arrows indicating flow or movement (no text or symbols)

Illustration of a wallet with lock and padlock symbols, plus a green checkmark (no text or labels)

Diagram showing a padlock being locked with a red X mark, indicating no change or failure.

ErratoCorretto

Diagram of a car seatbelt with a green arrow pointing to the seat (no text or symbols)

Illustration of a child wearing a car seatbelt and headboard, with no text or symbols present.

Illustration of a hand pressing down on a surface with directional arrows indicating movement (no text or symbols)

Line drawing of a car seat with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand using a red tool to cut a piece of paper or tape (no text or symbols present)

Illustration of a hand holding a small electronic device with a green indicator light, showing a button and arrow (no text or symbols)

Illustration of a green tool interacting with a coiled, ribbon-like structure (no text or symbols)

Illustration of a car seatbelt buckle with a green clip and white arrow indicating the angle (no text or symbols)

CLICK!

Illustration of a person wearing a pink head covering, with arrows indicating motion direction (no text or symbols)

Illustration of a car seat with pink insulation and directional arrows indicating movement or force (no text or symbols)

1. Safety Instructions.... 15
2. Each Component......17
3. The Vehicle Notice....18
4. Introduction Of Product Functions ....19
   4.1. Installing For ISOFIX attachment....19
   4.2. The Installing Method For Car Seat Belt....20
   4.3. Adjust The Height Of Headrest 21
   4.4. Adjust The Reclining Of Seat....21
   4.5. Detach The Seat Belt....21
5. The Installing Method For Product....22
   5.1. Use ISOFIX Attachment+ 3-point Seat Belt To Install The Child Safety Seat In Forward Facing Position (Suitable For Children 100-150 Cm)....22
   5.2. Use 3-point Seat Belt To Install The Child Safety Seat In Forward Facing Position(Suitable For Children 100-150 Cm)....23
6. Removing The Covers....24
7. Cleaning And Maintenance....25

For future use, please keep the instruction properly

1. Safety instructions

• Read this instruction manual carefully.
• The correct fitting of the ISOFIX attachment anchoring systems of 3-point belt is of vital importance for the safety of your child.
• For the future use of the seat, it is important that you keep the instruction manual carefully.
• Never leave your child unattended in the car.
• Do not use a child safety seat if the vehicle seat is equipped with a front airbags. This can be dangerous. This does not apply to so-called side airbags.
• Before use our product, please read the instruction manual carefully. The product is a safety product and is only safe when used in accordance with the instruction manual.
• The product must only be used on a forward facing seat that is fitted with the ISOFIX attachment anchoring systems.
• The product may be used on either the front or the back seat. However, we recommend that it is fitted on the back seat.
• The product has been approved according to the strictest European safety standards (ECE R129/03) and is suitable for 100-150cm with 3-point belt; 100-150cm with 3-point belt and ISOFIX attachment.
  After an accident the seat may become unsafe due to damage that is not noticeable immediately. It should therefore be replaced.
  The safety of the seat can only be guaranteed by the manufacturer if it is used by the original owner.
  • We advise you strongly that not to use a second-hand product, because you are not sure what has happened to it.
• The harness pads are important for the safety of your child, therefore use them at all the time.

• Ensure that all luggage and objects likely to cause injury in the event of an accident are properly secured.

• It is recommended that the car seat should not be used more than 5 years from the date of production. The properties of the products may deteriorate due to, for example, ageing of the plastic and this may not be visible.

• The moving parts of the car seat should not be lubricated in any way.
• The baby car seat must not be used without the cover. Please use an original cover, as the cover contributes to the safety of the seat.
• The seat must be secured with ISOFIX attachment, even when it not on use. An unsecured seat may injure other passengers in the car in an urgent stop.
• The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.
• Ensure that the seat is not damaged by the webbing between or underneath heavy luggage, adjustable seats or slamming the car door etc.
• No alterations may be made to the product as this could affect part or the overall safety of the seat.
• In hot weather the plastic and metal parts of the product will be hot. You should cover the seat when the car parked under the sun.
• In order to prevent damage to the cover, do not remove the product's logo.
• Use the seat even in s short journey, as this is when most accidents occur.
• Before the purchase, please check that the seat is properly in your car.
• Take a short break in long journey. So that your child has some time for the relaxation.
• Set a good example your child and always wear your seat belt.
• Tell your child that he/she should be never play with the harness buckle.
• Make sure that any straps is properly fastened (worn low down) and not twisted.
• Any lap strap is worn low down, to keep the pelvis is firmly engaged.

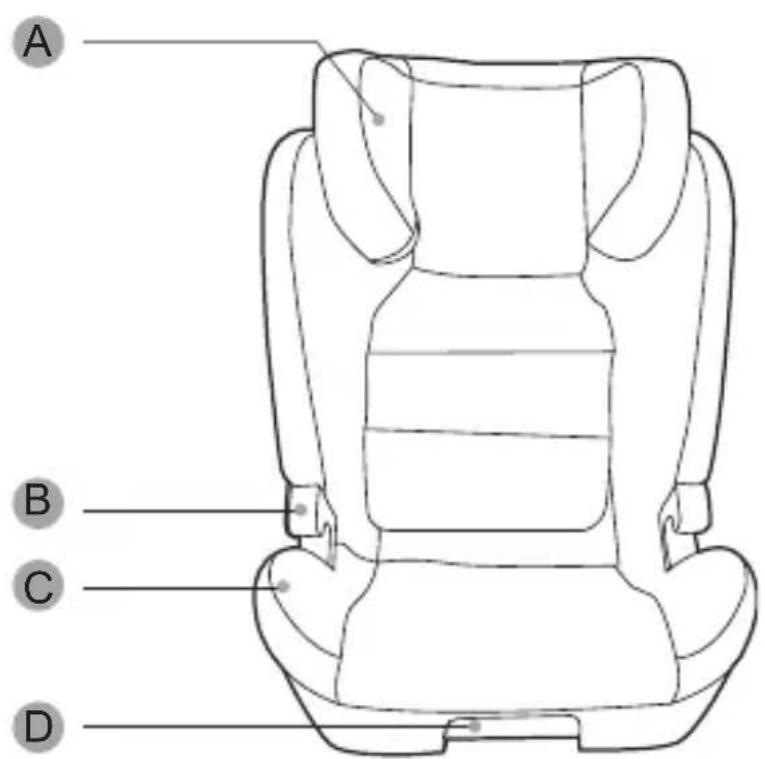

2. Each component

A B C D

A. Head pillow
B. Headrest belt guider
C. Base
D. Angle adjustable handle

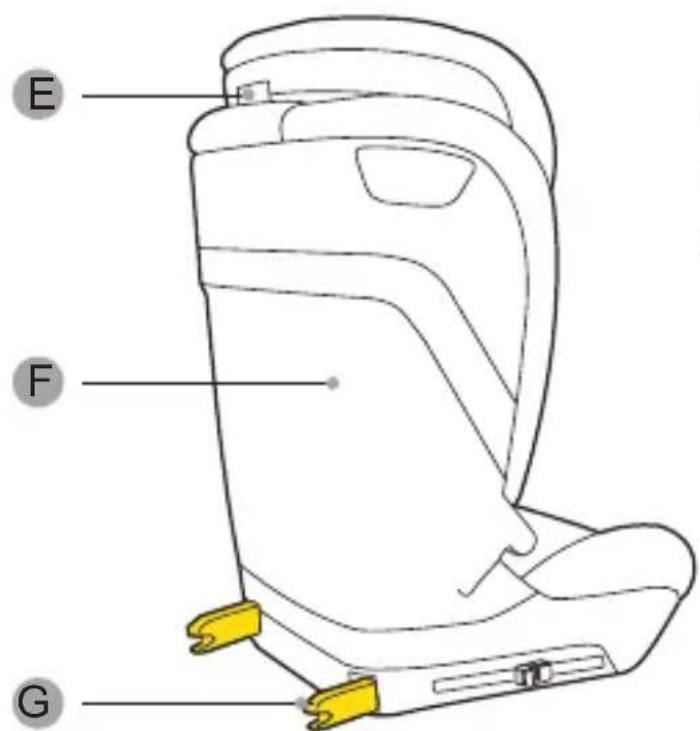

E F G

E. Headrest adjustment
F. Back of seat.
G. ISOFIX attachment

3. Notice for vehicle users

Child safety seat must not be used on the position where an airbag has been activated (airbags can be fatal to children).

Please read the instructions carefully to use the child safety seat properly.

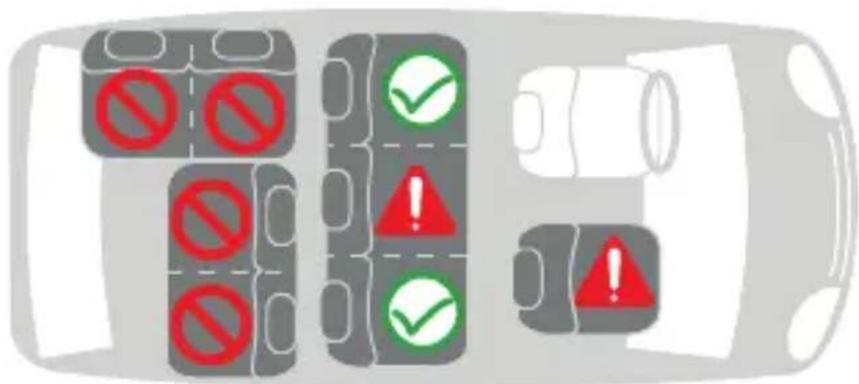

Diagram showing traffic signs and warning symbols on a vehicle, including no signs, checkmarks, and warning indicators.

Correct device/suitable

Wrong device/unsuitable device

Car seats ISOFIX attachment

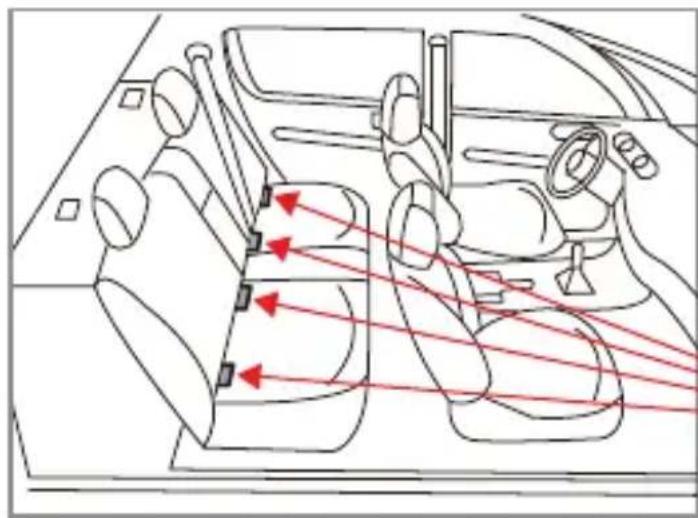

Interior view of a car showing dashboard, steering wheel, and rear seats with red directional arrows indicating traffic flow (no text or symbols)

ISOFIX attachment The car under the seat anchor point

Read the car manual first and check whether the car seat is equipped with ISOFIX attachment fixed anchor points, and check the size of recommended ISOFIX attachment constraints on the system if it is matched our ISOFIX attachment size.

Stature	Size
100-150cm	ISO/B2

4. Introduction of product function

4.1 Installing for ISOFIX attachment

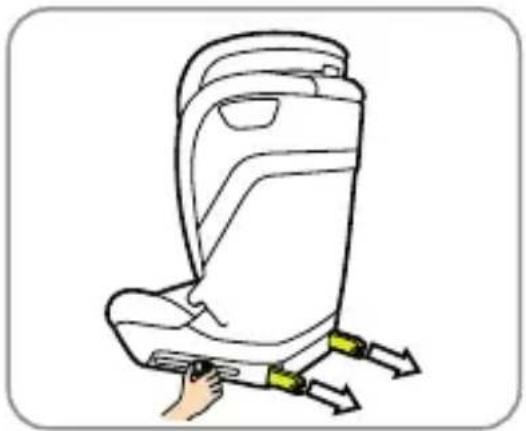

Line drawing of a car seat with a hand holding the seat and arrows indicating motion (no text or symbols)

Press ISOFIX attachment side button and push ISOFIX attachment to the end.

Line drawing of a car seat assembly with neck, seatbelt, and seat (no text or symbols)

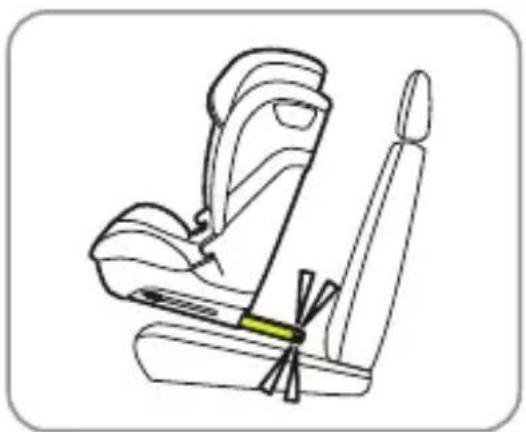

Align the ISOFIX attachment with ISOFIX attachment anchor and insert, it will show green if ISOFIX attachment is properly installed.

Line drawing of a car seat with a right-hand arrow indicating motion (no text or symbols)

Then pushing the child seat towards the car seat direction to the end.

(make sure there is no space for the baby car seat and vehicle seat)

Simple diagram of a pipe with a valve and directional arrow, no text or symbols present

ISOFIX attachment anchor

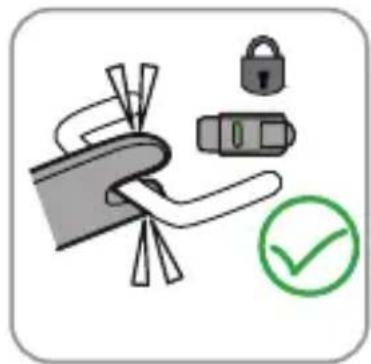

Illustration of a wallet with lock and padlock symbols, plus a green checkmark (no text or labels)

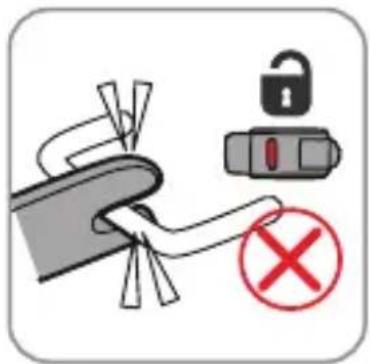

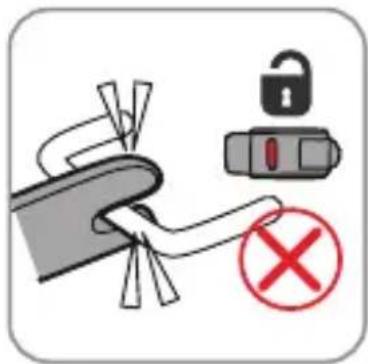

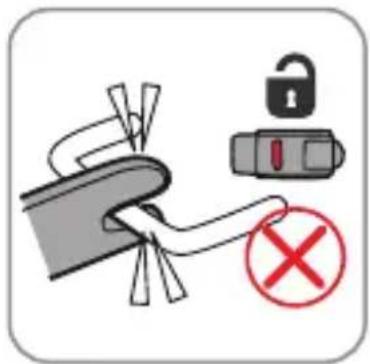

Safety warning illustration showing a wallet with locked padlock and a red prohibition symbol

Wrong wayCorrect way

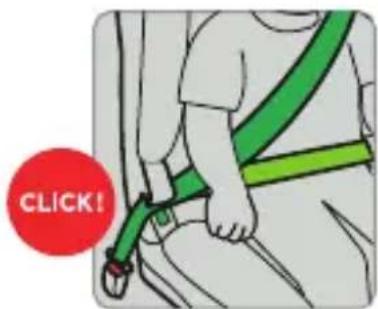

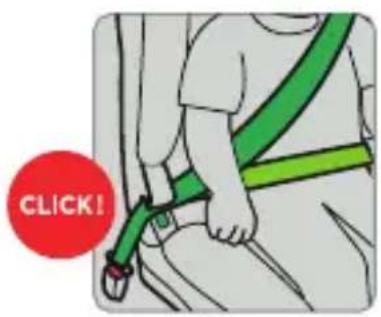

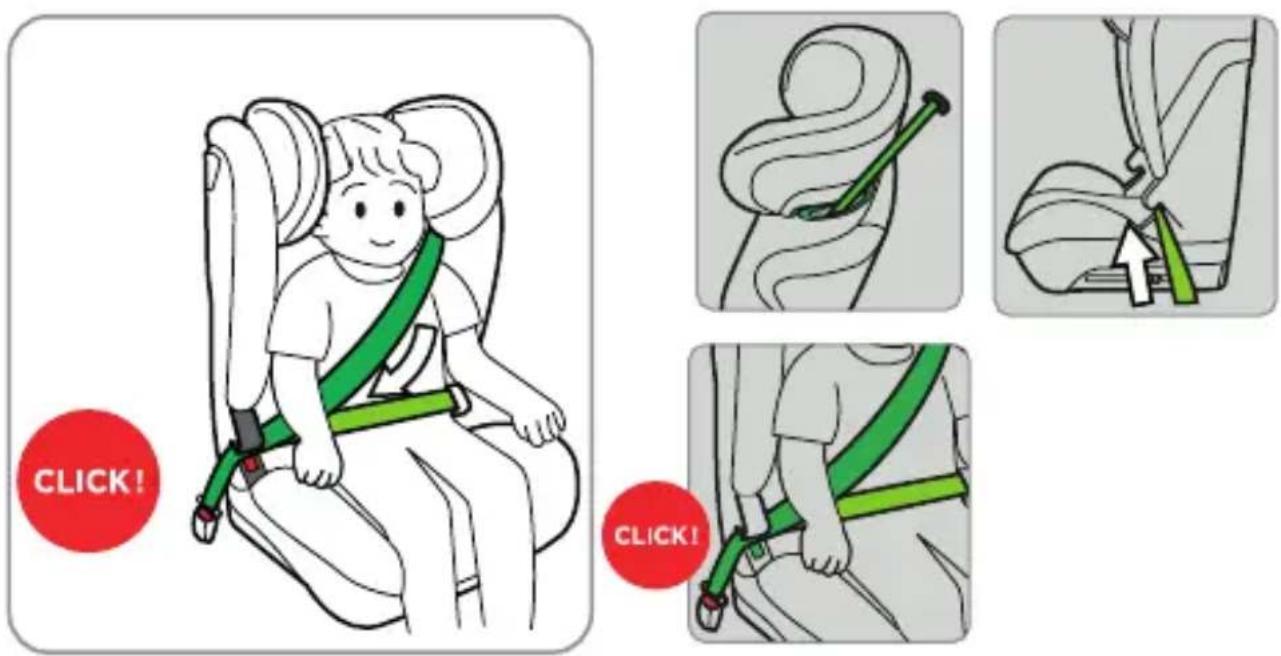

4.2 The installing method for vehicle belt.

CLICK! CLICK!

Make sure that the belt passes as low as possible in order to better secure the child's pelvis.

1. Place the baby car seat in vehicle seat and allow your child to sit in the car seat.

Pass the belt to the car seat belt guider, and through under the armrest, close the buckle.

1. Tighten your seat belt.

4.3 Adjust the height of headrest

Illustration of a child wearing a seatbelt and headboard, with a green band indicating the belt (no text or symbols)

Pull up the handle of the seat on the back of head to adjust it from up and down. Release the handle and lock the head position.

Attention: Please ensure that the seat head is locked.

Illustration of a hand using a tool to lift a surface with directional arrows (no text or symbols)

4.4 Adjust the reclining of seat

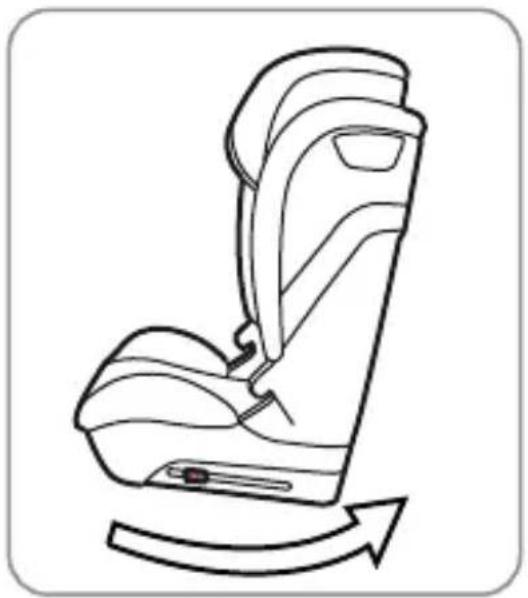

Line drawing of a car seat with a curved arrow indicating rotation (no text or symbols)

Pull adjustable handle to adjust the seat angle.

100-150cm 1/2/3/4 files: ↓ ← 1 2 3 4

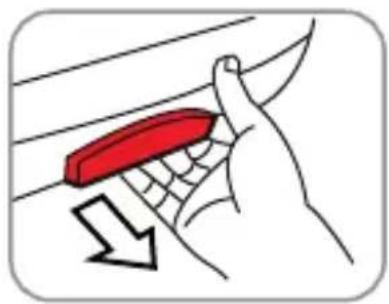

Illustration of a hand holding a red object with a downward arrow, next to a curved surface (no text or symbols)

Attention:

Pull the handle forward towards the seat.

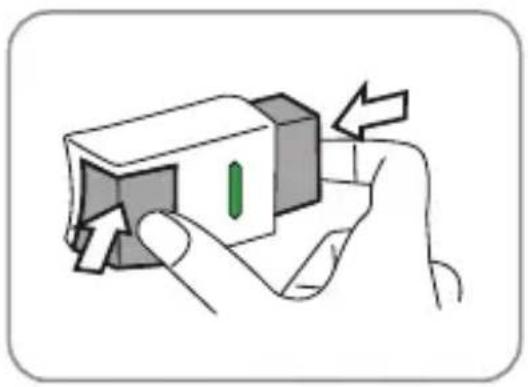

4.5 Unlock the ISOFIX attachment

Illustration of a hand holding a 3D block with a green indicator light, showing a press or control mechanism (no text or symbols present)

Press the button on the side of the ISOFIX attachment to unlock the ISOFIX attachment. Remove the seat when the ISOFIX attachment on both sides are unfastened.

5. Installing method for the product

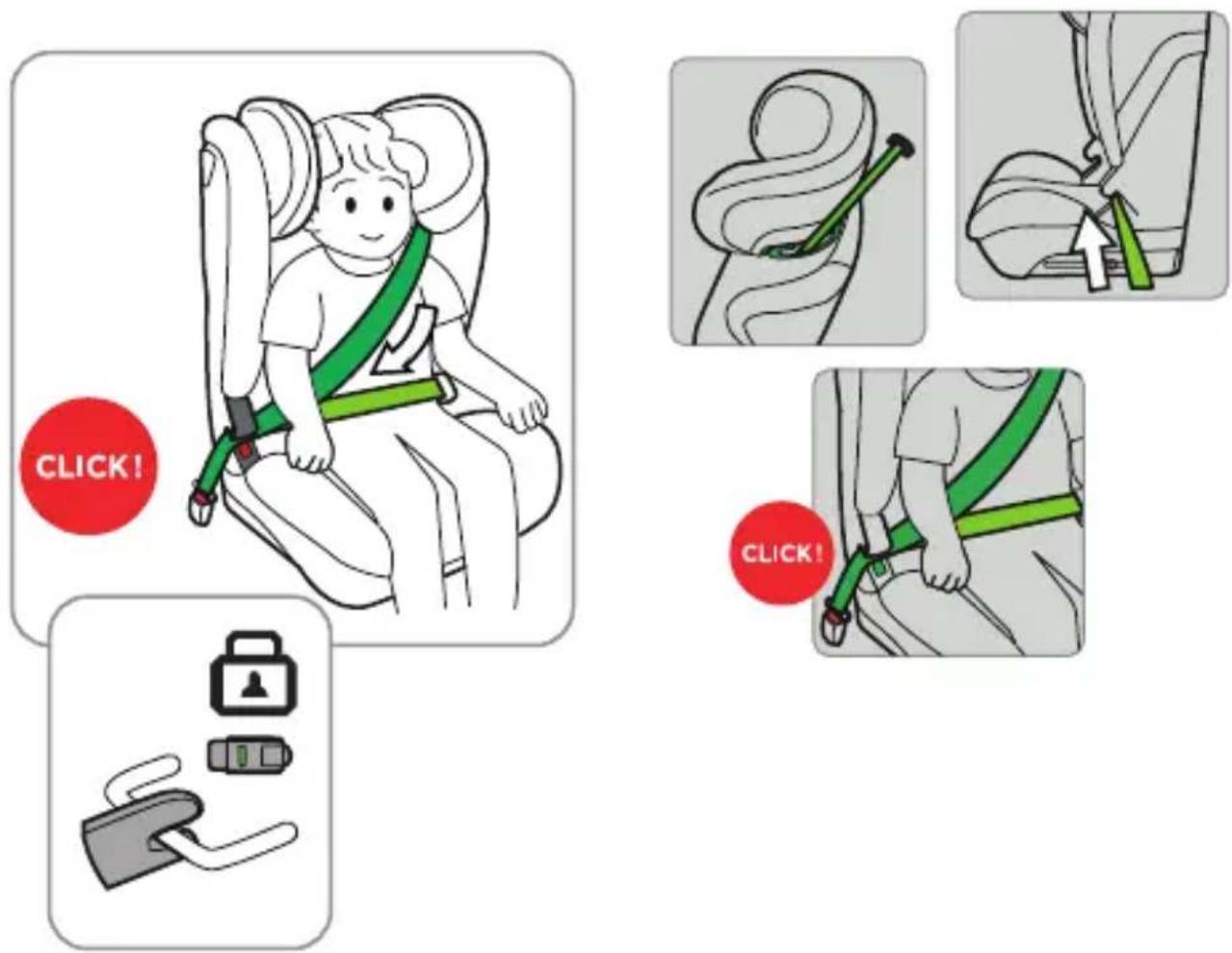

5.1 Use ISOFIX attachment+ 3-point seat belt to install the child safety seat in forward facing position (Suitable for children 100-150 cm)

CLICK! CLICK!

1. According to point 4.2 to connect ISOFIX attachment and ISOFIX attachment anchor.
2. Place the child seat on the car seat and adjust the seat to suitable position. (see page 8).
3. Pass the vehicle belt through the belt guider and bypasses the child's shoulder.
4. Pass the vehicle abdomen belt through the abdomen belt guider and bypasses the child's pelvis.
5. Lock the vehicle belt

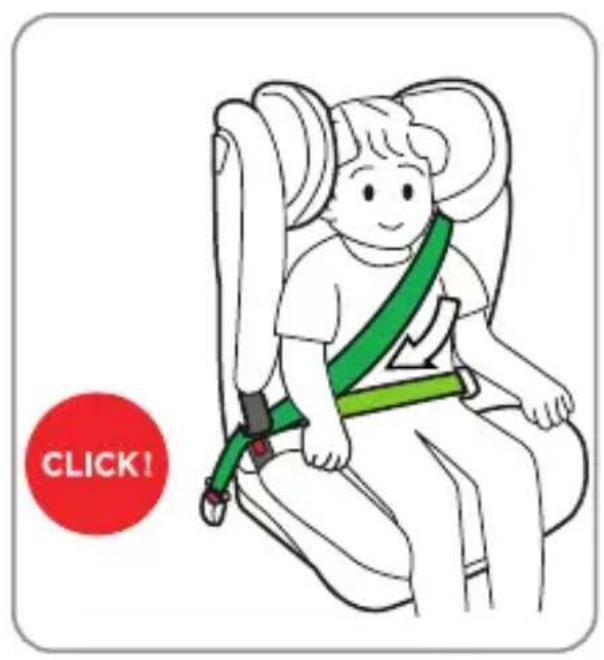

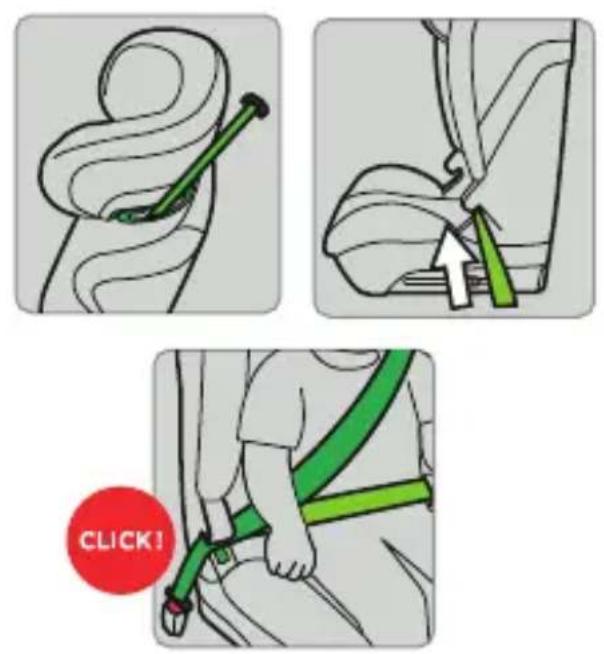

5.2 Use 3-point seat belt to install the child safety seat in forward facing position (Suitable for children 100-150 cm)

CLICK!

CLICK!

1. Place the car seat on the vehicle seat (make sure that there is no space between the car seat and vehicle seat). Adjust the car seat to the suitable position (see 4.4).
2. Pass the vehicle belt through the belt guider and bypasses the child's shoulder.
3. Pass the vehicle abdomen belt through the abdomen belt guider and bypasses the child's pelvis.
4. Lock the vehicle belt

6. Removing the cover

Illustration of a person wearing a pink head covering, with arrows indicating motion or direction (no text or symbols)

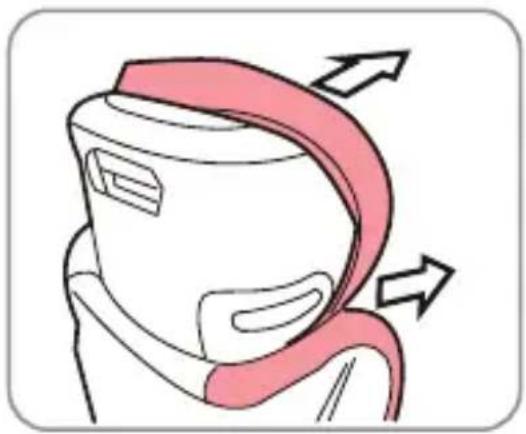

Release the headrest rubber band and remove the headrest cover

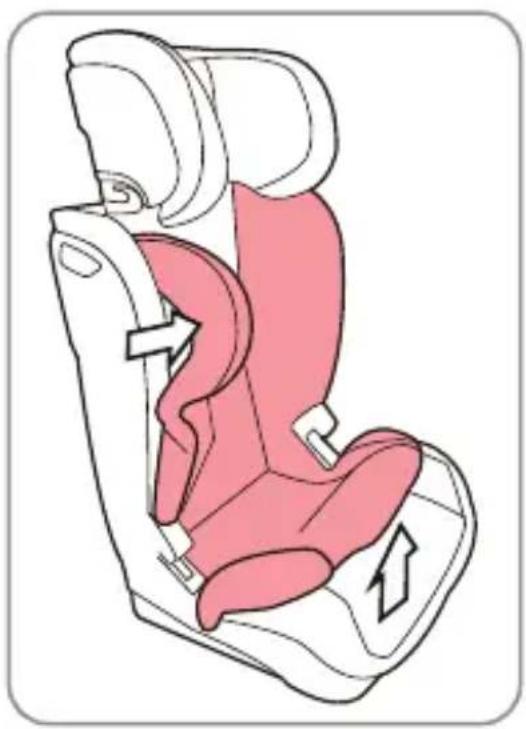

Illustration of a car seat with pink insulation and directional arrows indicating movement (no text or symbols)

Release the back rest cover, then lift the cover from the bottom, and remove it

Attention:

if you need to install the cover, it can be reverse operations.

7. Cleaning and maintenance

1. In the daily using, it is necessary to regularly check the child safety seat.
2. In case of accident, the safety seat must be replaced.
   When the car seat is not in use, the child safety seat should be placed in a dry and ventilated place to avoid damp and mildew.
3. If there is dust on the surface of the child safety seat, we can use a damp sponge to wipe and ventilate it to dry.
4. If food or drink drops onto the seat belt by accident, pls remove the seat belt and rinse thoroughly with warm water and ventilate it to dry.
5. To clean the entire seat cover, please refer to the washing instructions.
6. Slight fading may occur during the first washing, which it is a normal situation.

Washing instructions:

Diagram showing traffic signs and vehicle lane with red prohibition symbols and green checkmarks

Interior view of a car showing dashboard, steering wheel, and rear seats with red directional arrows indicating traffic flow (no text or symbols)

Line drawing of a car seat with a hand holding a tool, showing no text or symbols

Line drawing of a car seat assembly with seatbelt and seatbelt buckle (no text or symbols)

Line drawing of a car seat with a right-hand arrow indicating motion (no text or symbols)

Simple diagram of a pipe with a curved arrow indicating flow or movement (no text or symbols)

Illustration of a wallet with lock and padlock symbols, plus a green checkmark (no text or labels)

Diagram showing a padlock being locked with a lock and marked with a red X symbol indicating no change or failure.

Position incorrectePosition cc

Illustration of a child wearing a seatbelt and headboard, with a green bandage on the chest (no text or symbols)

Illustration of a hand pressing down on a surface with directional arrows indicating movement (no text or symbols)

Line drawing of a car seatbelt with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a red tool with a downward arrow, no text or symbols present

Attention:

Illustration of a hand holding a 3D cube with a green arrow indicating rotation (no text or symbols)

Illustration of a person wearing a pink head covering, with arrows indicating motion or direction (no text or symbols)

Illustration of a car seat with pink insulation and directional arrows indicating movement or force (no text or symbols)

Diagram showing traffic signs and warning symbols on a vehicle ahead, including no signs, checkmarks, and red exclamation marks.

Geeigneter Platz

Ungeeigneter Platz

Line drawing of a car seat with a hand holding a tool, showing no text or symbols

Line drawing of a car seat assembly with seatbelt and seatbelt buckle (no text or symbols)

Line drawing of a car seat with a right-hand arrow indicating motion (no text or symbols)

Simple diagram of a pipe with a valve and directional arrow, no text or symbols present

Illustration of a wallet with lock and padlock symbols, plus a green checkmark (no text or labels)

Diagram showing a padlock being locked with a red X mark indicating no change, symbolizing lock status or safety warning.

FalschRichtig

Illustration of a child wearing a seatbelt and headboard, sitting in a chair (no text or symbols)

Illustration of a hand pressing down on a surface with directional arrows indicating movement (no text or symbols)

Line drawing of a car seat with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a red tool with a downward arrow, no text or symbols present

Achtung:

Illustration of a hand holding a 3D block with a green indicator light, showing a press or action button (no text or symbols present)

Simple line drawing of a curved pipe or tube with a green rod inserted (no text or symbols)

Diagram of a car seatbelt with a green arrow pointing to the seat area (no text or symbols)

CLICK!

Illustration of a person wearing a pink head covering, with arrows indicating motion or direction (no text or symbols)

Illustration of a car seat with pink insulation and directional arrows indicating movement (no text or symbols)

Diagram showing traffic signs and vehicle lane with red prohibition symbols and green checkmarks

Line drawing of a car seat with a hand holding a belt, showing no text or symbols

Line drawing of a car seat assembly with seatbelt and seatbelt buckle (no text or symbols)

Line drawing of a car seat with a belt stopper and a directional arrow indicating motion (no text or symbols)

Simple diagram of a pipe with two curved arrows indicating flow or movement (no text or symbols)

Illustration of a wallet with lock and padlock symbols, plus a green checkmark (no text or labels)

Diagram showing a wallet with lock and battery, plus a red prohibition symbol indicating no protection or disapproval.

IncorrectoCorrecto

Illustration of a child wearing a seatbelt and headboard, with no text or symbols present.

Illustration of a hand pressing down on a bed with arrows indicating pressure or movement (no text or symbols)

Line drawing of a car seat with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a red object with a downward arrow, no text or symbols present

Atención:

Illustration of a hand holding a 3D block with a green arrow indicating movement (no text or symbols)

Illustration of a green tool interacting with a coiled, ribbon-like structure (no text or symbols)

Illustration of a car seatbelt buckle with a green clip and white arrow pointing to the seat (no text or symbols)

CLICK!

Illustration of a person's head with a pink hairnet and directional arrows indicating movement (no text or symbols)

Illustration of a car seat with pink fabric and directional arrows indicating movement or force (no text or symbols)

All of the intellectual property rights for the contents of this instruction manual belong to PEG PEREGO S.p.A. and are protected by the laws in force.
