USER MANUAL BASICR2 Sonoff

Line drawing of a gaming device casing with buttons and display (no text or symbols)

Wi-Fi Smart Switch

· 中文 …… 1-5

• Deutsch ---- - 11-15

N 100-240V AC → N In L In L Out

确保零火线接入无误。

3. 下载 “易微联” APP

易微联

e eWeLink

Android™ & iOS

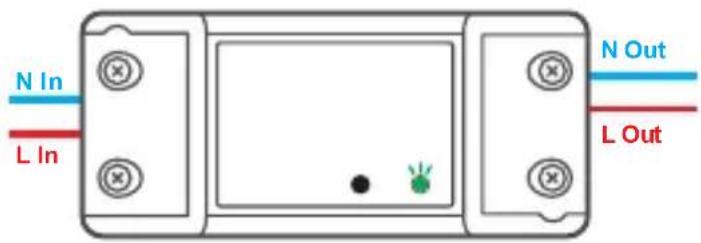

4. 上电

N In L In N Out L Out

Illustration of a hand pressing a button on a device screen (no text or symbols)

恢复出厂设置

Operating Instruction

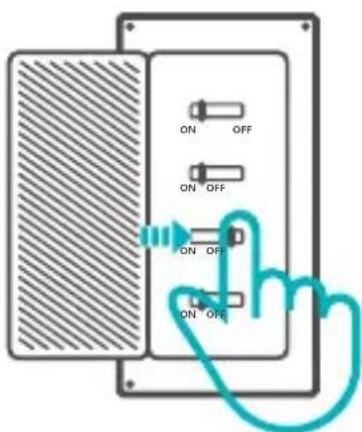

1. Power off

ON OFF ON OFF ON OFF ON OFF

To avoid electric shocks, please consult the dealer or a qualified professional for help when installing and repairing! Please do not touch the switch during use.

2. Wiring instruction

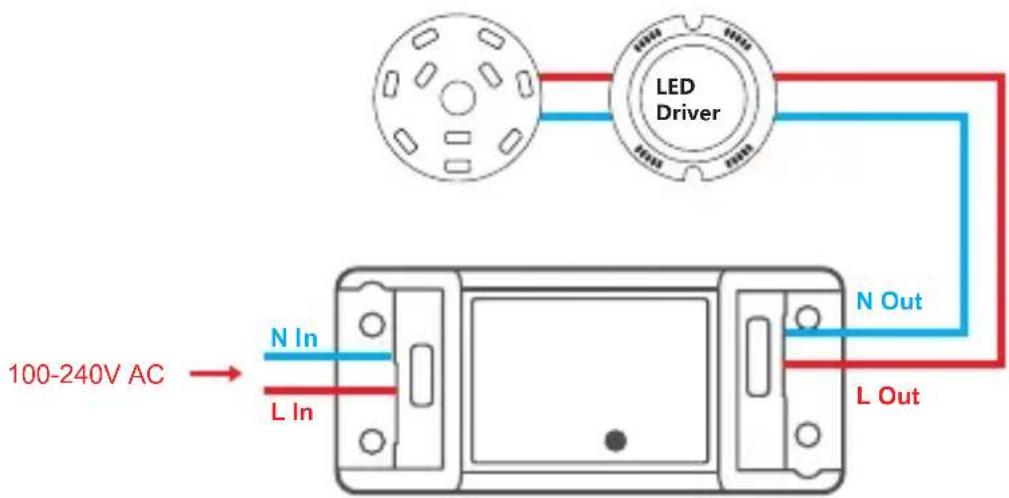

Ceiling lamp wiring instruction :

LED Driver 100-240V AC → N In L In N Out L Out

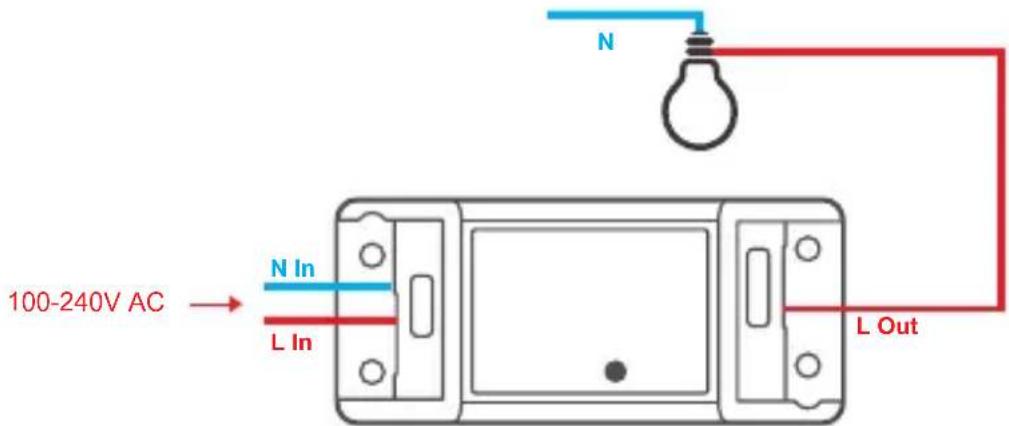

One live wire wiring instruction:

N 100-240V AC → N In L In L Out

Make sure the neutral wire and live wire connection is correct.

3. Download APP

eWeLink Download on the App Store GET IT ON Google Play

e eWeLink

Android™ & iOS

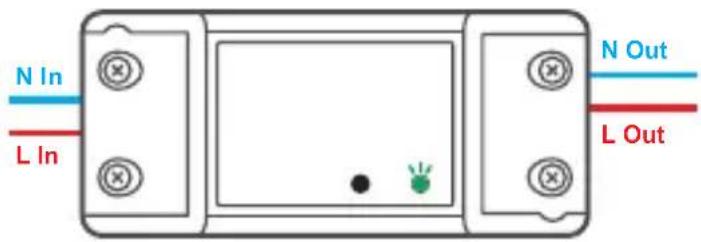

4. Power on

N In L In N Out L Out

After powering on, the device will enter the quick pairing mode (Touch) during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you want to enter this mode, please long press the manual button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

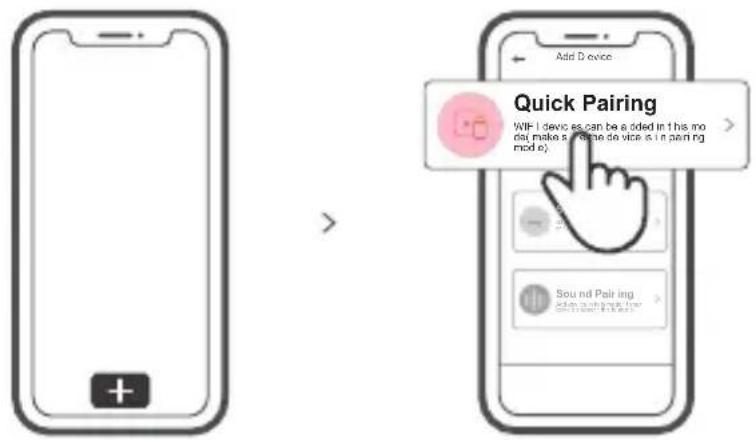

5. Add the device

Add Device Quick Pairing WH I device can be added in this mode, make a software device is in parting mode.) Sound Pairing

Tap "+" and select "Quick Pairing", then operate following the prompt on the APP.

Compatible Pairing Mode

If you fail to enter Quick Pairing Mode (Touch), please try "Compatible Pairing Mode " to pair.

1 Long press Pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short flashes and one long flash and release. Long press Pairing button for 5s again until the Wi-Fi LED indicator flashes quickly. Then, the device enters Compatible Pairing Mode.

2 Tap "+" and select "Compatible Pairing Mode" on APP. Select Wi-Fi SSID with ITEAD-***** and enter the password 12345678, and then go back to eWeLink APP and tap "Next". Be patient until pairing completes.

Specifications

Model	BASICR2/RFR2
Input	100-240V AC 50/60Hz 10A
Output	100-240V AC 50/60Hz Max. Load: 10A
Operating systems	Android & iOS
Wi-Fi	IEEE 802.11 b/g/n 2.4GHz
RF	433,92MHz
Material	PC V0
Dimension	88x39x24mm

BASICR2 does not support the remote controller with 433.92MHz.

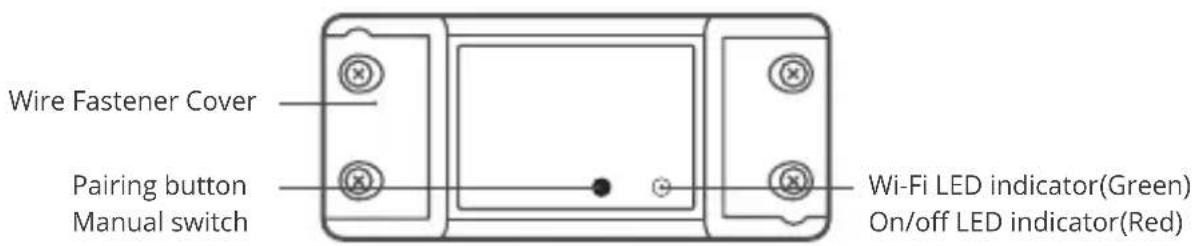

Product Introduction

Wire Fastener Cover Pairing button Manual switch Wi-Fi LED indicator(Green) On/off LED indicator(Red)

The device weight is less than 1 kg. The installation height of less than 2 m is recommended.

Wi-Fi LED indicator status instruction

Wi-Fi LED indicator status	Status instruction
	Quick Pairing ModeFlashes (one long and two short)
Keeps on	Device is connected successfully
Flashes quickly	Compatible Pairing Mode
Flashes quickly once	Unable to discover the router
Flashes quickly twice	Connect to the router but fail to connect to Wi-Fi
Flashes quickly three times	Upgrading

Features

Turn on/off the device from anywhere, schedule power on/off and share APP with your family to control.

Remote Control

Single/Countdown Timing

Voice Control

Share Control

Smart Scene

Sync Status LAN Control MPkVRemortState Control

Camera Linking

RF Remote Controller Pairing

The RFR2 supports the remote controller with 433.92MHz frequency brand to turn on/off, and each channel can learn it independently, which is local short-range wireless control not Wi-Fi control.

Pairing Method:

Long press the configuration button for 3s until the red LED indicator flashesred once, then short press the remote control button you want to pair for successful learning.

Clearing Method:

Long press the configuration button for 5s until the red LED indicator flashesred twice, then short press the learned button corresponding to the remote controller to clear code values of all learned buttons.

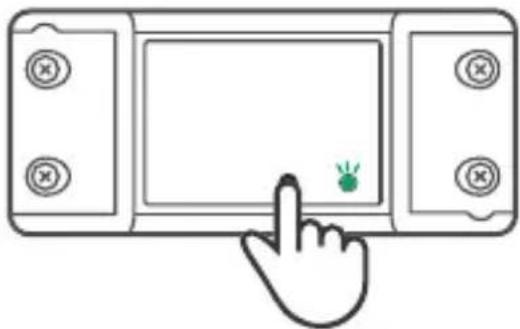

Switch Network

If you need to change the network, long press the pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the device enters quick pairing mode and you can pair again.

Hand cursor clicking a green push button on a device screen (no text or symbols)

Factory Reset

Deleting the device on the eWeLink app indicates you restore it to factory setting.

Common Problems

Q: Why my device stays "Offline"?

A: The newly added device needs 1 – 2mins to connect Wi-Fi and network. If it stays offline for a long time, please judge these problems by the green Wi-Fi indicator status:

1. The green Wi-Fi indicator quickly flashes once per second, which means that the switch failed to connect your Wi-Fi:

① Maybe you have entered a wrong Wi-Fi password.
② Maybe there's too much distance between the switch your router or the environment causes interference, consider getting close to the router. If failed, please add it again.
③ The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.
④ Maybe the MAC address filtering is open. Please turn it off.

If none of the above methods solved the problem, you can open the mobile datanetwork on your phone to create a Wi-Fi hotspot, then add the device again.

1. Green indicator quickly flashes twice per second, which means your device has connected to Wi-Fi but failed to connect to the server.

Ensure steady enough network. If double flash occurs frequently, which means you access an unsteady network, not a product problem. If thenetwork is normal, try to turn off the power to restart the switch.

Betriebsanweisung

1. Ausschalten

ON OFF ON OFF ON OFF ON OFF

LED Driver N In L In 100-240V AC N Out L Out

N 100-240V AC → N In L In L Out

N In L In N Out L Out

Add Devon Quick Pairing WiFi devio es can be a sided in 1 his mo del make a remote de vice e in part ring mode e) Sound Pairing

Illustration of a hand cursor clicking a green play button on a device screen (no text or symbols)

LED Driver N In L In 100-240V AC N Out L Out

N 100-240V AC → N In L In L Out

N In L In N Out L Out

Add Devices Quick Pairing WIF-1 device as can be added in 1 his mode (make a, time de vice is in pairing mode e) Sound Pairing

Illustration of a hand cursor clicking a button on a gaming device (no text or symbols)

LED Driver N In L In 100-240V AC N Out L Out

N 100-240V AC → N In L In L Out

N In L In N Out L Out

Add Device Quick Pairing WIFI device can be added in this mode (make a software device is in pairing mode e). Sound Pairing Sound Pairing

Illustration of a hand cursor clicking a button on a gaming device (no text or symbols)

LED Driver 100-240V AC → N In L In N Out L Out

N 100-240V AC → N In L In L Out

N In L In N Out L Out

Add Device Quick Pairing WIFI device can be added in this mode, make a voice de vice is in pairing mode.

Illustration of a hand cursor clicking a button on a gaming device (no text or symbols)

LED Driver 100-240V AC → N In L In N Out L Out

N 100-240V AC → N In L In L Out

N In L In N Out L Out

Add Device Quick Pairing WIFI devio es can be added in 1 his mo det, make s amie de vice is in pan ring mode e) Sound Pair Img Soud Pair Img

Illustration of a hand cursor clicking a button on a gaming device (no text or symbols)

LED Driver N In L In 100-240V AC N Out L Out

N 100-240V AC → N In L In L Out

N In L In N Out L Out

Add Device Quick Pairing WIF I device as can be added in this mode, make sure, come de vice is in pairing mode).

The RFR2 supports the remote controller with 433.92MHz frequency brand to turn on/off, and each channel can learn it independently, which is local short-range wireless control not Wi-Fi control.

Método de pareamento:

Illustration of a hand cursor clicking a button on a gaming device (no text or symbols)

Changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type BASICR2/RFR2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://sonoff.tech/usermanuals

TX Frequency:

WiFi: 2412-2472MHz

RX Frequency:

WiFi: 2412-2472MHz SRD: 433.92MHz (RFR2)

Output Power:

14.43dBm(802.11b), 11.94dBm(802.11g), 11.96dBm(802.11n20)
