Product Type	Upright Freezer
Brand	Danby
Model	DUFM071A1WDB
Exterior Dimensions (W x H x D)	54.9 cm x 164.2 cm x 56 cm
Interior Dimensions (W x H x D)	39.7 cm x 142.6 cm x 40 cm
Freezing Capacity	7 kg in 24 hours
Temperature Range	Approx. -12°C to -24°C
Temperature Setting	Rotary dial from 0 (off) to 7 (coldest)
Defrost Type	Manual (every 6 months or if frost > 6 mm)
Power Supply	115 V, dedicated circuit (no extension cord)
Grounding	Yes, 3-prong plug
Leveling Legs	Yes, 2 adjustable legs
Door Gaskets	Removable magnetic gasket (regular cleaning recommended)
Shelves	Wire shelves (removable)
Crisper Drawer	Yes, at bottom
Care and Cleaning	Interior: baking soda solution (1 tbsp / 1 L water); exterior: soft cloth and mild detergent; do not use ammonia or alcohol
Safety	Grounding required; do not use extension cord; do not damage refrigerant circuit; child entrapment risk (remove door before disposal)
Warranty	12 months functional parts (plastic parts: 30 days); in-home service under conditions
Customer Service	1-800-263-2629 (Canada / United States)
Installation	Freestanding (not built-in); minimum 12.7 cm clearance at rear, sides, and top; let stand 6 hours after transport

Frequently Asked Questions - DUFM071A1WDB DANBY

How to adjust the temperature of my Danby DUFM071A1WDB freezer?

Turn the thermostat knob on the dial. Setting '1' is the warmest, '7' is the coldest. For household use, setting '3' or '4' is recommended. For fast cooling, set to '7' for 3-4 hours, then adjust. To stop cooling, set to '0'.

Why is my freezer door hard to open right after closing it?

This is normal. The pressure difference between the cold interior air and warm air entering when opened makes the door hard to open. Wait a few minutes for the pressure to equalize, then try again.

How often should I defrost my freezer?

Defrost manually approximately every 6 months or when the frost layer reaches 6 mm (1/4 inch) thickness. To defrost, set the thermostat to '0', unplug and leave the door open until frost melts and interior is dry.

What to do in case of a prolonged power outage?

Most outages are short and do not affect the temperature if you open the door as little as possible. If the outage is long, protect the contents. Wait 3-5 minutes before restarting the appliance after power returns.

How to clean the interior and exterior of my freezer?

First unplug the appliance. For the interior, use a soft cloth with a solution of 1 tablespoon baking soda in 1 liter water, or mild soap. For the exterior, a damp cloth and mild detergent. Never use ammonia or alcohol. Clean the door gasket regularly.

My freezer is making noise, is that normal?

A slight operating noise is normal. Ensure the appliance is level by adjusting the leveling legs. Noises can also come from refrigerant circulation or the compressor. If the noise is excessive, check for contact with walls or objects inside.

Can I use an extension cord to plug in my freezer?

No, use of an extension cord is prohibited as it poses a risk of fire, electric shock, or injury. Always plug the freezer into a dedicated, properly grounded wall outlet (115 V).

How long should I wait before plugging in the freezer after transport?

Let the appliance stand upright for approximately 6 hours after transport. This allows the refrigerant to settle and reduces the risk of cooling system malfunction.

How to level my Danby freezer?

Two adjustable legs are under the appliance. Place it in its final location, then turn each leg counterclockwise to the maximum. Then slowly turn clockwise until the appliance is level. This minimizes noise and vibration.

Where to find the serial number of my DUFM071A1WDB freezer?

The serial number is on the nameplate located inside or at the back of the appliance. You will need it for warranty service requests. Note it down along with the purchase date.

USER MANUAL DUFM071A1WDB DANBY

Owner's Manual....1 - 8

CONGÉLATEUR VERTICAL

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty. You must provide the original purchase receipt to validate your warranty and receive service.

Model Number:

Serial Number:

Date of Purchase:

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

IMPORTANT WARNING

DANGER - Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave the shelves in place so that children cannot easily climb inside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance is equipped with a power cord that has a grounding wire with a grounding plug. The power cord must be plugged into an outlet that is properly installed and grounded. If the outlet is a standard 2-prong wall outlet, it is your obligation to have it replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DO NOT USE AN EXTENSION CORD

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAFETY REQUIREMENTS

Ensure that component parts are replaced with like components and that servicing is done by factory authorized service personnel, to minimize the risk of possible ignition due to incorrect parts or improper service.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING EXPLOSION HAZARD

Risk of fi re or explosion due to puncturing refrigerant tubing. Do not use sharp objects to aid in defrost. Please handle with care. Keep fl ammable materials and vapors such as gasoline away from the refrigerator. Only use nonfl ammable cleaner.

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS

OPERATING INSTRUCTIONS

LOCATION

- Two people should be used when moving the appliance.

- Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.

- Place the appliance on a floor that is strong enough to support it when it is fully loaded.

- Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.

- Do not use the appliance near water, for example, in a wet basement or near a sink.

- This appliance is intended for indoor household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).

- Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- This appliance is 54.9 cm (21.6 inches) wide by 164.2 cm (64.7 inches) high by 56 cm (22.1 inches) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.

- Allow 12.7 cm (5 inches) of space between the back, sides and top of the appliance and all adjacent walls.

- This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

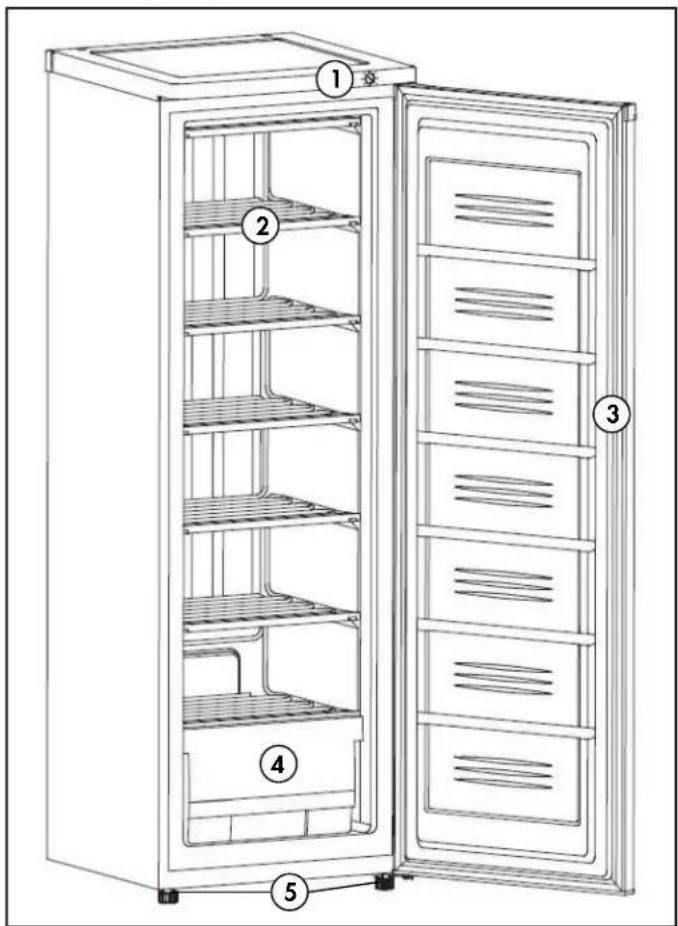

FEATURES

1. Thermostat Dial
2. Freezer Shelves
3. Magnetic Gasket
4. Crisper
5. Leveling Legs

IMPORTANT NOTE

The freezer door may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the freezer and the warm air that has just entered the freezer when the door was opened. The pressure will equalize within a few minutes.

If the door is especially difficult to open, wait 5 minutes to allow the pressure to equalize and then try again.

The interior dimensions of this appliance are: 39.7 cm (15.6 inches) wide by 142.6 cm (56.2 inches) high by 40 cm (15.8 inches) deep.

OPERATING INSTRUCTIONS

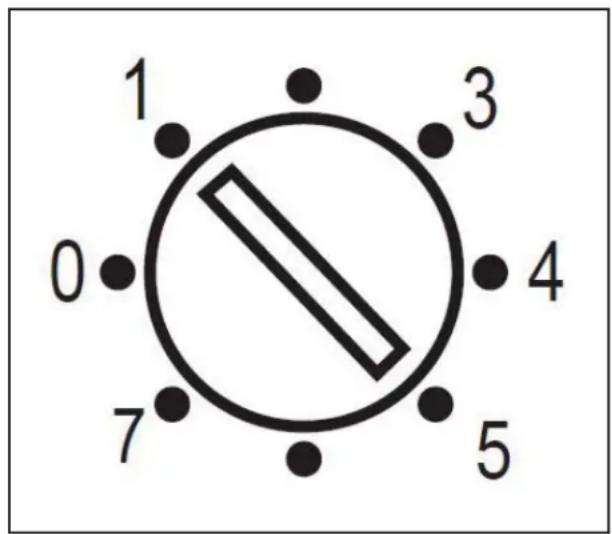

TEMPERATURE SELECTION

The temperature of the appliance can be adjusted by turning the thermostat dial.

To achieve the maximum cooling temperature quickly:

• For best results, the appliance should be empty.
• Turn the temperature control knob to "7" on the dial. "1" is the warmest temperature setting, "7" is the coldest temperature setting.
• The temperature range of the appliance is approximately -12°C (10.4°F) to -24°C (-11.2°F).
• The temperature inside the appliance can vary based on ambient room temperature, the frequency that the door is opened and the amount of fresh food that has recently been added to the unit.
• Allow the appliance to run at the coldest setting for 3 - 4 hours.
• When maximum cooling is achieved, turn the control knob to the desired setting. The setting "3" or "4" should be satisfactory for home use.
• To stop the cooling function, turn the control knob to the "0" position.

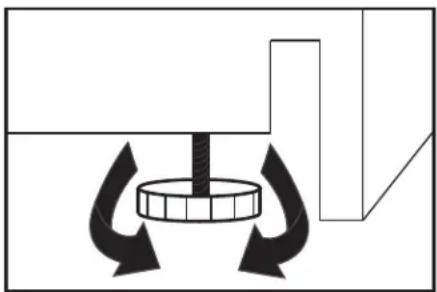

LEVELING INSTRUCTIONS

There are two adjustable legs on the bottom of the appliance that can be turned up or down to ensure that the appliance is level. It is important that the appliance is level to minimize noise and vibration. To level the appliance:

1. Move the appliance to its final location.
2. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the chassis.
3. Slowly turn the leveling leg clockwise until the appliance is level.

Tips when storing fresh food

• The freezing capacity of this appliance is 7 Kg (15 Lbs.) in 24 hours.
• Do not overload the appliance as this can affect performance.
• Do not freeze large quantities of fresh food at the same time.

Pure mechanical diagram showing a rotating shaft and circular component with directional arrows, no text or symbols present.

OPERATING INSTRUCTIONS

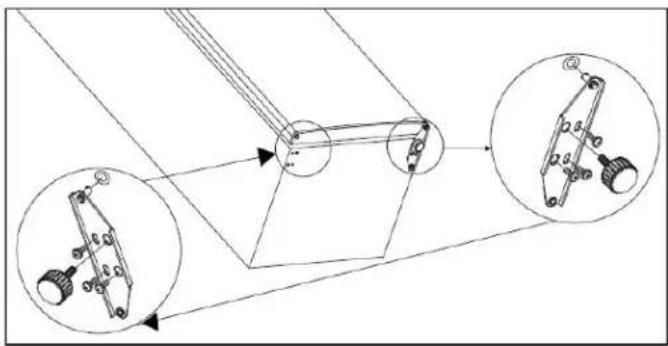

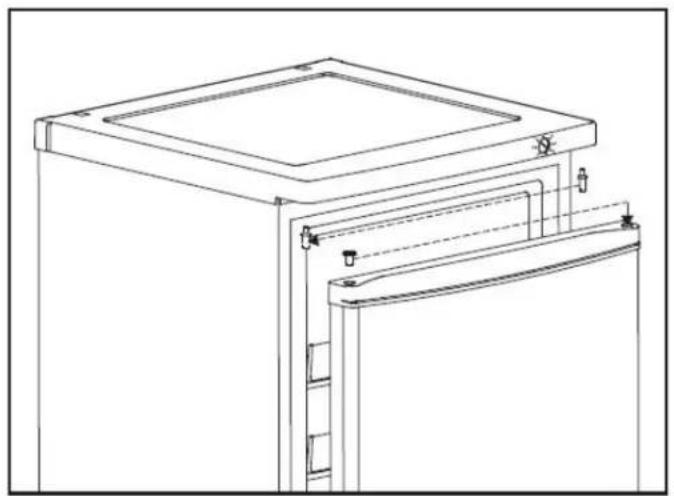

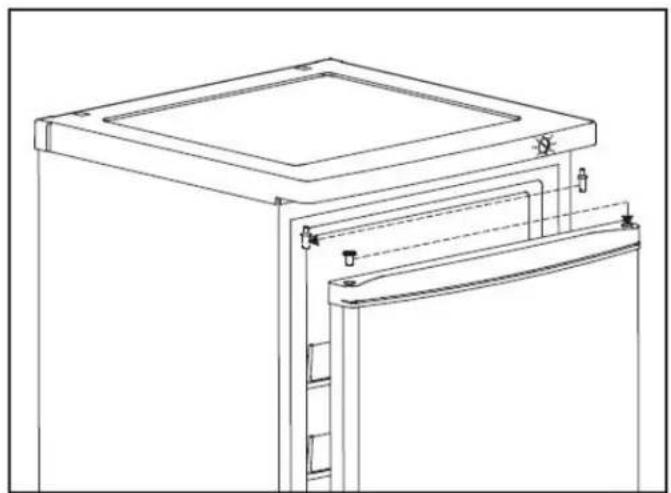

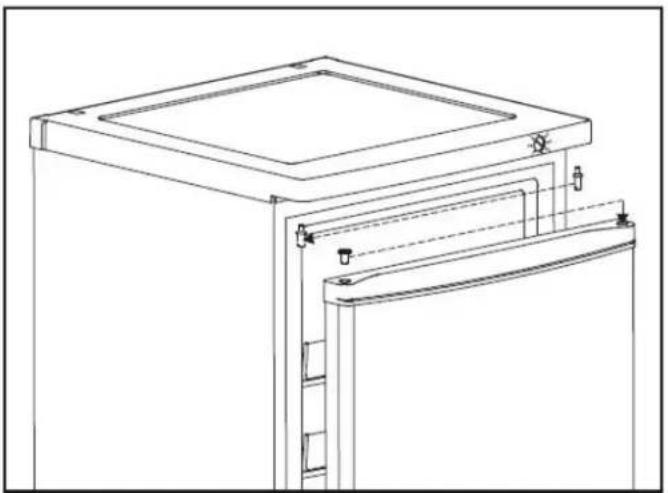

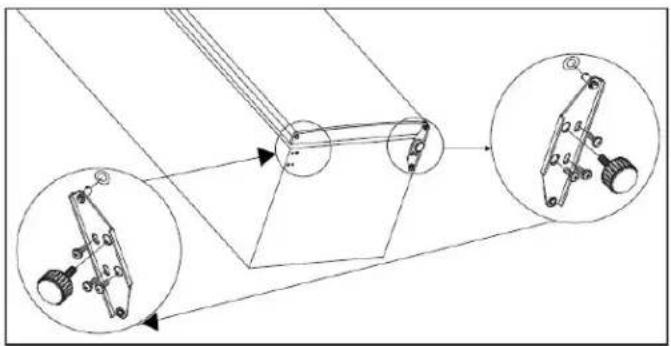

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

1. Remove both leveling legs from the appliance.

2. Remove the screws securing the lower hinge assembly on the right side of the appliance.

3. Move the lower hinge pin from the front of the hinge assembly to the back.

4. Remove the door from the appliance.

5. Remove the hinge pin from the top right side of the worktop and the hole cover from the top left of the door and swap their positions.

6. Remove the hole cover from the bottom left of the door and place it in the hole on the bottom right side of the door.

7. Reinstall the door on the appliance. Ensure the top of the door is properly aligned with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around.

8. Reinstall the lower hinge on the left side of the door. It will need to be fl ipped 180° from its original position to ensure that the hinge pin enters the hinge hole on the bottom left side of the door.

9. Reinstall both leveling legs and ensure that the appliance is level.

Technical diagram showing mechanical assembly with two views of a bracket and a close-up of a component (no text or labels)

Technical line drawing of a cabinet or enclosure with mounting brackets and internal components (no text or symbols)

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area where the lid seals against the cabinet clean to ensure a tight seal. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

DEFROST

This appliance should be manually defrosted approximately every 6 months or whenever the layer of frost reaches 6 mm (1/4") thick.

Remember to protect your floors during the defrosting process by putting towels or a pan under the appliance in case of leaking.

• Remove all food and set the thermostat to the "0" position.
• Unplug the appliance and leave the door open.
• After the frost has melted leave the appliance off with the door open until the interior is dry.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Defrost, clean and dry the interior thoroughly. To prevent odor and mold growth, leave the lid open slightly, blocking it open if necessary.

ENERGY SAVING TIP

The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight. Do not overload the unit or block any ventilation openings.

MOVING

• Remove all items.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a blanket or similar item.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain in its operating position for 6 hours to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

Disposal of this appliance should be in accordance with federal and local regulations.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE
No power • A fuse may be blown or the circuit breaker	trippedPlug not fully inserted into the wall outlet
Internal temperature not cold enough • Temperature setting is too warmDoor is not shut properly or opened excessivelyExhaust vent is obstructedRecently added a large quantity of warm food to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very high
Appliance runs continuously • Temperature setting is too coldDoor not shut properly or opened excessivelyExhaust vent is obstructedRecently added a large quantity of warm food to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very high

LIMITED "IN HOME" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (i.e. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

In Home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby (1-800-263-2629)

GARDER CES INSTRUCTIONS!

INSTRUCTIONS D'INSTALLATION

CONSIGNES D'UTILISATION

EMPLACEMENT

REMARQUE IMPORTANTE

Pure mechanical diagram showing a rotating component with three curved arrows indicating rotational motion (no text or symbols)

CONSIGNES D'UTILISATION

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

1. Remove both leveling legs from the appliance.

2. Remove the screws securing the lower hinge assembly on the right side of the appliance.

3. Move the lower hinge pin from the front of the hinge assembly to the back.

4. Remove the door from the appliance.

5. Remove the hinge pin from the top right side of the worktop and the hole cover from the top left of the door and swap their positions.

6. Remove the hole cover from the bottom left of the door and place it in the hole on the bottom right side of the door.

7. Reinstall the door on the appliance. Ensure the top of the door is properly aligned with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around.

8. Reinstall the lower hinge on the left side of the door. It will need to be fl ipped 180^ from its original position to ensure that the hinge pin enters the hinge hole on the bottom left side of the door.

9. Reinstall both leveling legs and ensure that the appliance is level.

Technical line drawing of a cabinet or enclosure with mounting brackets and internal components (no text or symbols)

SOINS ET ENTRETIEN

NETTOYAGE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

NOTA IMPORTANTE

Pure mechanical diagram showing a rotating component with three curved arrows indicating rotational motion (no text or symbols)

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

1. Remove both leveling legs from the appliance.

2. Remove the screws securing the lower hinge assembly on the right side of the appliance.

3. Move the lower hinge pin from the front of the hinge assembly to the back.

4. Remove the door from the appliance.

5. Remove the hinge pin from the top right side of the worktop and the hole cover from the top left of the door and swap their positions.

6. Remove the hole cover from the bottom left of the door and place it in the hole on the bottom right side of the door.

7. Reinstall the door on the appliance. Ensure the top of the door is properly aligned with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around.

8. Reinstall the lower hinge on the left side of the door. It will need to be fl ipped 180^ from its original position to ensure that the hinge pin enters the hinge hole on the bottom left side of the door.

9. Reinstall both leveling legs and ensure that the appliance is level.

Technical diagram showing mechanical assembly with two views of a bracket and a close-up of a component (no text or symbols)

Technical line drawing of a cabinet or enclosure with mounting bracket and door (no text or symbols)

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

NOTES / REMARQUES / NOTAS :

NOTES / REMARQUES / NOTAS :

MODEL • MODÈLE • MODELO

DUFM071A1WDB
