Brand	Danby
Model	DCR032XA3BDB
Product Type	Freezer
Dimensions (W x H x D)	44.9 cm x 50.1 cm x 47.0 cm (17.7" x 19.7" x 18.5")
Installation Type	Free-standing
Temperature Control	Thermostat dial with graduated blue scale; settings from warm to coldest; off position (0)
Defrost System	Semi-automatic defrost via red button on thermostat dial; defrosts when ice reaches 6 mm (1/4")
Refrigerant	Flammable refrigerant (R600a or similar; not specified)
Compressor	Hermetic, with automatic defrost water evaporation
Shelves	Glass shelves (removable)
Door Storage	CanStor™ door liner for 355 mL cans; bottle rack for tall/large containers
Door Seal	Magnetic gasket (no hooks or latches)
Leveling Legs	Adjustable leg at bottom; clockwise to lower, counter-clockwise to raise
Door Reversal	Reversible door; includes hinge pin relocation
Clearance Required	12.7 cm (5") around back, sides, and top
Rated Voltage/Frequency	115 V / 60 Hz (typical for North America; not explicitly stated but inferred)
Power Cord	3-prong grounded plug; cord length not specified
Interior Light	Not specified
Drip Tray	Collects defrost water; located above compressor for evaporation
Cooling System	Compressor-based with evaporator

Frequently Asked Questions - DCR032XA3BDB DANBY

How do I adjust the temperature on my Danby DCR032XA3BDB freezer?

Turn the thermostat dial located inside the cabinet. The thicker, darker blue side is colder; the thinner, lighter blue side is warmer. Turn to '0' to stop cooling.

How do I defrost the freezer?

When ice reaches 6 mm (1/4 inch), push the red button on the thermostat dial to activate semi-automatic defrost. Remove all food first. The defrost cycle stops automatically when the evaporator reaches about 10°C (50°F). Do not use sharp objects to remove ice.

Can I reverse the door?

Yes, the door is reversible. Follow the instructions in the manual: unscrew the upper hinge pin, move it to the opposite hole, and reinstall the door. After reversal, let the unit stand upright for 6 hours before plugging in.

What are the dimensions and clearance requirements?

Dimensions are 44.9 cm wide, 50.1 cm high, 47 cm deep. Leave at least 12.7 cm (5 inches) of space around the back, sides, and top for proper ventilation.

How do I clean the freezer?

Unplug the unit. Clean inside with a soft cloth and a solution of 1 tablespoon baking soda per quart of water, or mild soap. Wash shelves separately. Avoid ammonia or alcohol-based cleaners.

What should I do during a power failure?

Keep the door closed to maintain temperature. Most failures last a few hours. If prolonged, transfer food to another freezer. Wait 3-5 minutes before restarting after power returns.

How do I level the freezer?

There is an adjustable leveling leg at the bottom. Turn it clockwise to lower until the foot touches the chassis, then counter-clockwise until the unit is level.

What is the warranty coverage?

One year warranty against material or workmanship defects. Includes labor and transportation within the service network. Excludes misuse, unauthorized repairs, or non-compliance with manual.

The freezer is running continuously. What could be wrong?

Check if the temperature setting is too cold, the door is not sealing properly, the vent is blocked, or warm food was added. Also ensure the unit is away from heat sources and direct sunlight.

What should I do before moving or storing the freezer?

Remove all food, clean and dry interior, tape shelves and door shut, adjust leveling leg up, and transport upright. If laid down, let it stand upright for 6 hours before use.

USER MANUAL DCR032XA3BDB DANBY

Owner's Manual....7 - 12

LEVELING LEG

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• To be repaired only by trained service personnel.

WARNING: Fill with potable water only.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Risk of fire or explosion. Flammable refrigerant used.

• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.

CAUTION: To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of freezer or refrigerator. Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

SAFETY REQUIREMENTS

Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

INSTALLATION INSTRUCTIONS OPERATING

INSTRUCTIONS

LOCATION

Selecting the proper location will ensure peak performance levels for your appliance.

• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Place the appliance on a floor or counter that is strong enough to support it when it is fully loaded.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, etc.). Direct sunlight and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
• Do not use the appliance near water, for example in a wet basement or near a sink.
• This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• This appliance is 44.9 cm (17.7 inches) wide by 50.1 cm (19.7 inches) high by 47 cm (18.5 inches) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents. Do not cover any of the ventilation openings with any material as the appliance needs adequate space to breathe.
• Allow 12.7 cm (5 inches) of space between the back, sides and top of the appliance and all adjacent walls.
• This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction and will constitute "improper use" as per the warranty.

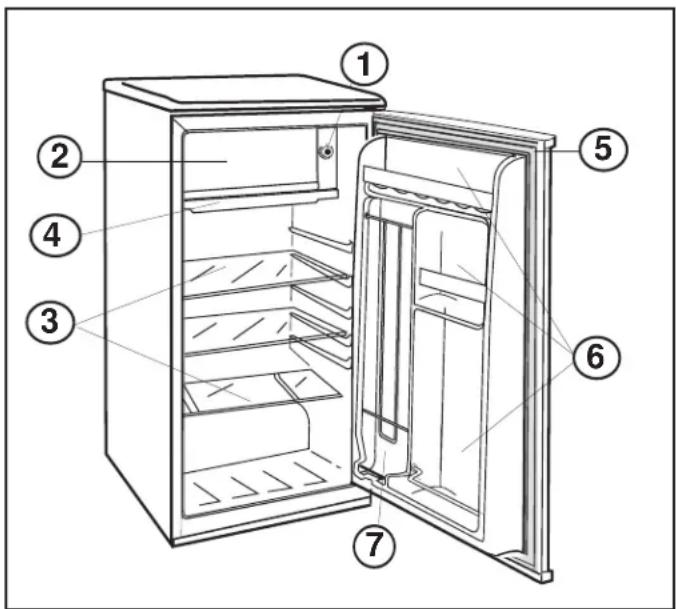

FEATURES

1. Thermostat Dial: Controls the temperature inside the refrigerator. Turns the motor on as soon as the temperature rises above the desired level.
2. Freezer Compartment with Freezer Door
3. Glass Shelves
4. Drip Tray: Catches the water that drips off the evaporator when defrosting.
5. Magnetic Gasket: Tight fitting door seal keeps all the cooling power locked inside. No hooks or latches.
6. Bottle Rack: For tall, medium and large bottles, cans or jars.
7. CANSTOR™ Door Liner: Holds 355mL cans of pop, juice or beer.
8. Leveling Legs (not pictured): Adjust so the unit is level.

LEVELING LEG

There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

1. Turn the leveling leg clockwise as far as it will go, until the top of the foot is touching the bottom of the chassis.
2. Slowly turn the leveling leg counter-clockwise until the appliance is level.

OPERATING INSTRUCTIONS

TEMPERATURE SELECTION

The temperature of the appliance can be adjusted by turning the knob on the graduated blue thermostat dial. The temperature may vary depending on the quantity of food stored and the frequency that the door is opened.

The thicker, darker blue side of the dial is the coldest setting. The thinner, lighter blue side of the dial is the warmest setting. To stop the cooling function, turn the control knob to the "0" position.

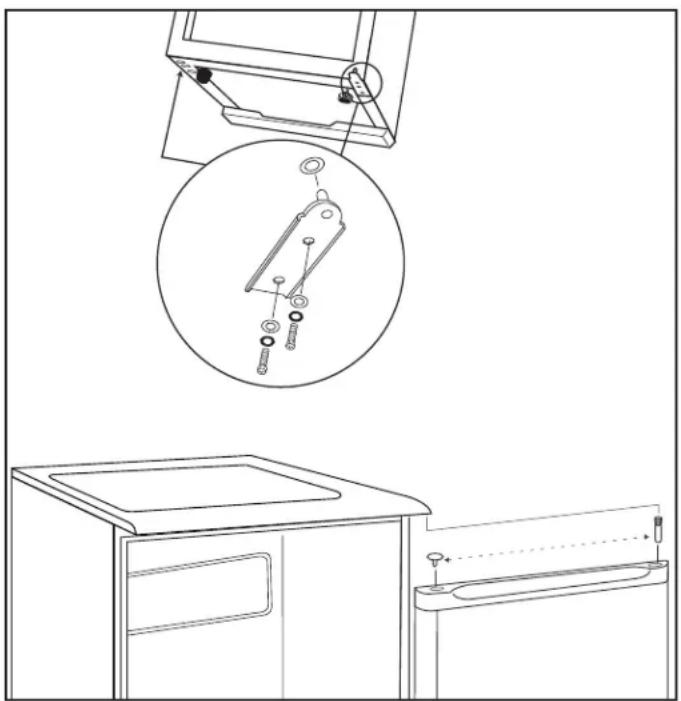

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

Note: The upper hinge pin must be unscrewed from the worktop and screwed into the hole on the other side of the worktop before replacing the door on the chassis.

DEFROSTING THE APPLIANCE

This appliance is equipped with a semi-automatic defrost system. Defrosting should be activated any time the ice build up inside the freezer compartment reaches 6 mm (1/4") thick.

To activate the defrost cycle, push the red button located in the center of the thermostat dial. Activating the defrost cycle will disable the refrigerator function until the temperature surrounding the evaporator inside the appliance reaches approximately 10° C ( 50° F). The refrigerator will automatically resume normal functioning once the defrost cycle is complete.

• Remove all food before starting the defrost cycle.
• Remember to protect your floors or counters during the defrosting process by putting towels or a pan under the appliance in case of leaking.
• Leaving the refrigerator door partially open can help the defrosting process. You must remember to close the door before regular operation resumes.
• Ensure that the drip tray is under the evaporator to collect melted water.

Note: If the red button is pushed accidentally, it is not possible to stop the defrosting process. You must let the defrost cycle run its course before using the refrigerator again.

IMPORTANT

Never use sharp or pointed instruments to remove ice from the freezer compartment.

The freezer compartment contains refrigerated gas lines. If these lines are accidentally pierced it will render the refrigerator inoperable and void the manufacturer's warranty.

Do not allow the refrigerator to continue operation if the freezer compartment is pierced.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water, or a mild soap solution, or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a blanket or similar item.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to allow the coolant to settle.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

Consumer Care: 1-800-953-0750

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE
No power • A fuse may be blown or the circuit breaker	trippedPower surgePlug not fully inserted into the wall outlet
Internal temperature not cold enough • Temperature setting is too warm	Door is not shut properly or opened excessivelyExhaust vent is obstructedRecently added a large quantity of warm food to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very high
Appliance runs continuously • Temperature setting is too cold	Door not shut properly or opened excessivelyExhaust vent is obstructedRecently added a large quantity of warm food to the cabinetClose proximity to heat source or direct sunlightAmbient temperature or humidity is very high

Guarantee Policy

INGRAM MICRO MEXICO, S.A. OF C.V. at Joselillo No. 3, 5th floor Col. El Parque, Naucalpan de Juárez Municipality, State of Mexico, CP 53398. Tel. [phone] guarantees the product described below for a term of 1 year (one year) counted from the moment of purchase against any malfunction or defect in their materials, parts, or components. The labor and transportation costs of the product that are within its service network are included.

The company agrees to exchange the defective product for a similar one with a previous diagnosis made by our service center. The response time will not be more than 30 (thirty) calendar days from the date of receipt of the product.

To make the guarantee effective, you must present the properly sealed policy or the corresponding invoice or receipt and the product and its accessories included to the establishment where you purchased it; or at the following address: Joselillo No. 3, 5th floor Col. El Parque, Naucalpan de Juárez Municipality, State of Mexico, C. P. 53398. Parts, components, and accessories may be obtained at the same location.

This warranty will override any other warranty offered by the manufacturer or distributor.

1. Repair or replacement of the product and workmanship, including transportation costs of the product, will be free of charge to you within the warranty period.
2. You may purchase parts, components, consumables, and accessories at the facility where you purchased your product or at the addresses listed above.

Exceptions:

a) When the product had been used in abnormal conditions. b) When the product has not been operated in accordance with the owner's manual. c) When the product has been altered or repaired by persons not authorized by INGRAM MICRO MEXICO, S.A. OF C.V.

Brand:Model:Dealer name:Dealer address:Dealer telephone number:
