USER MANUAL SINGTOGETHER Party light & sound

With LED light effect, 2 mics & stand

ENSEMBLE KARAOKE

Product photo of a Party Light & Sound device with two microphones and a digital display unit (no visible text or symbols)

ACTIVE ILLUMINATED KARAOKE SET

WITH LED LIGHT EFFECT, 2 MICS & STAND

INSTRUCTION MANUAL

Please read the manual carefully and keep it for future reference.

Important Safety instructions and danger warnings

All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
We assume no liability for personal injury or damage to property caused by incorrect handling or non-observance of the safety instructions. Any guarantee claims expire in such cases.
- Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
The appliance is approved for operation in dry, closed rooms only 📋. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
The appliance may not be exposed to extreme temperatures ( < +5^ / > +35^ ) in operation.
The appliance may not be subjected to strong vibrations or heavy mechanical strain.
The appliance may not be exposed to excessive moisture (due to dripping or sprayed water, for example).
Do not place any recipients filled with liquids, such as glasses or vases, on top of or directly next to the appliance. They could fall over, causing water to enter the appliance. Never pour out liquids above the appliance. Do not place any small objects, such as coins or paper clips, on the appliance since they could fall inside the appliance.

Do not leave the appliance unattended while operating it.

Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.

Do not place any naked flames such as those of burning candles on or next to the appliance.

Do not place the appliance on soft surfaces such as carpets or beds. Do not cover the air vents of the appliance. Do not obstruct the air circulation with objects such as magazines, table cloths or curtains. This prevents the dissipation of heat from the appliance and can result in overheating.

Only use the appliance in a moderate climate, not in tropical environments.

If you are not sure about the correct connection or if questions arise which are not answered by the operating instructions, please do not hesitate to contact support or a specialist of your choice. Consult a specialist if you are in doubt the operating principle or the safety of the product.

Contents of the carton

1 Wireless speaker
2 Microphones with 1.8m leads
1 Adjustable Mic Stand
1 USB Charging Cable
1 3.5mm AUX lead
1 User Manual

Prior to using the system for the first time, plug the small connector of the supplied micro-USB charging cable into the micro-USB charging port on the top of the speaker.

Plug the large connector into a USB charging device or a 5V USB adapter (not included) and plug into a wall socket. The LED indicator on the speaker will turn RED while charging and turn OFF when fully charged.

When the speaker is low on power, a tone will be heard indicating that is needs to be recharged.

NOTE: Please shut down the power switch after you have finished using the system.

Please note: The USB port can provide a current of 0.5A max under a voltage of 5V to charge your smartphone or any other connected device

IMPORTANT NOTE ON LITHIUM-ION BATTERIES

1. PRIOR to using the unit for the first time, please charge fully the battery
2. Charge the battery regularly after each use. Don't wait until it is discharged!
3. DON'T allow the battery to discharge completely, otherwise it will lose 20% of its capacity or even be totally damaged!
   If the voltage becomes too low, the internal circuits are not powered anymore and it will become impossible to recharge the battery!
4. If you don't use the unit for a longer period of time, it is recommended to charge it at 40% of its capacity and check/charge it once per month.

** BATTERIES ARE NOT COVERED BY THE WARRANTY **

We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

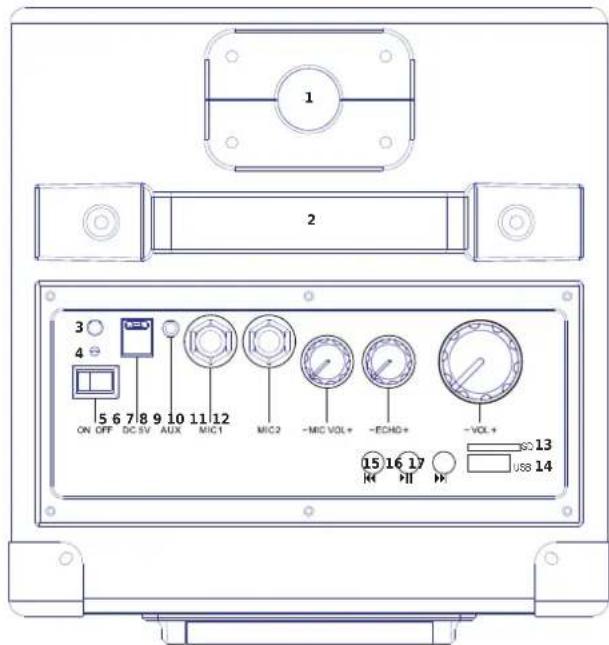

Location of Controls

1. Mic Stand Holder
2. Handle
3. Light effect switch
4. LED indicator
5. ON/OFF switch
6. Micro-USB Charging Port
7. 3.5mm Auxiliary Input Port
8. Mic 1 Input
9. Mic 2 Input
10. Mic Volume Knob
11. Mic Echo Knob
12. Master Volume Knob
13. TF card slot
14. USB slot
15. Go back to the previous song
16. Play/pause
17. Go forward to the next song

1 2 3 4 5 6 7 8 9 10 11 12 ON OFF DC SV AUX MIC1 MIC2 -MIC VOL+ -ECHO+ -VOL+ 15 16 17 H I H SO 13 USB 14

Using the speaker

Flip the on/off switch to the ON position to switch the speaker on. A tone will be heard, and the speaker will enter into Bluetooth pairing mode. The speaker will automatically re-connect to any nearby, previously-paired device when the Bluetooth function is enabled. Flip the on/off switch to the OFF position to switch the speaker off.

Use with a TF card

Connect your TF card to the SD input (13). The speaker will automatically select the SD input. Select a file via the backward (15) or forward (17) buttons. Press the PLAY/PAUSE button (16) to start playing the file.

Use with a USB stick

Connect your USB stick to the USB input (14). The speaker will automatically select the USB input. Select a file via the backward (15) or forward (17) buttons. Press the PLAY/PAUSE button (16) to start playing the file.

Please note: If both inputs, SD and USB, are connected, the player will select automatically the latest connected input source.

Bluetooth Pairing

1. Power the speaker ON. A tone will be heard and the LED indicator will quickly flash BLUE.
2. Enable the Bluetooth search function on your mobile device. Select "PARTY-SINGTOGETHER" in the list of found devices.
3. After successful pairing, a tone will be heard and the LED indicator will slowly flash BLUE.

Use with Wired Device

Insert one connector of a 3.5 mm auxiliary cable into the 3.5mm auxiliary input port on the top of the speaker. Insert the other connector into the headphone jack of your media-playing device. The LED indicator will light BLUE when an AUX cable is connected.

All Bluetooth pairings will be disconnected while the 3.5mm AUX jack is connected.

Operation of the LED light effect

Press the [LED] button to cycle through the light modes.

Specifications

Input voltage	5V= 1A via supplied USB charging lead
USB output voltage 5V= 0.5A
Built-in battery Lithium 3.7V= 1500mAh
Play time at average volume 2 hours
Signal-to-noise ratio >65dB
Frequency response 80Hz - 18kHz
BT frequency 2402-2480MHz
Bluetooth version 5.0
Bluetooth mode HSP, HFP, A2D
Max. RF transmission power 2.09dBm
Dimensions 195 x 208 x 213mm
Height of the stand 35-157cm
Weight	2.08kg

Correct disposal of the product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe

recycling.

ENSEMBLE KARAOKE ACTIF AVEC ANIMATION LUMINEUSE, MICRO & SUPPORT

MANUEL D'INSTRUCTION

RECOMMANDATIONS POUR LES PILES

MANUAL DE INSTRUCTIUNI

EU Declaration of Conformity

Hereby we, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgique

+32.2.390.91.91

Certify and declare under our sole responsibility that the following product:

Party

LIGHT & SOUND

Trade name:

Product name: Portable speaker

Type or model: PARTY-SINGTOGETHER

Conforms to the essential requirements of the:

RED directive 2014/53/EU, 2011/65/EU RoHS directive and the Commission Delegated Directive (EU) 2015/863

EN 62368-1 : 2014+A11 :2017

EN 62479 : 2010

EN 55032 : 2015

EN 55035 : 2017

ETSI EN301 489-1 V2.2.3 : 2019-11

Place and date of issue:

Saintes (Belgium), on 24/08/2020

Manuel De Sousa

Quality Manager

CE
