| Product type | Photovoltaic solar panel |
| Brand | Velleman |
| Model | SOL100F |
| Maximum power (Pmax) | 100 W |
| Voltage at max power (Vmp) | 17.6 V |
| Current at max power (Imp) | 5.72 A |
| Open circuit voltage (Voc) | 21.1 V |
| Short circuit current (Isc) | 6.30 A |
| Cell type | Polycrystalline silicon |
| Number of cells | 32 (4 x 8) |
| Maximum system voltage | 600 VDC |
| Operating temperature | -40 °C to +85 °C |
| NOCT | 47 ± 2 °C |
| Power tolerance | ± 5 % |
| Dimensions (L x W x thickness) | 1150 x 535 x 3 mm |
| Weight | 2.2 kg |
| Recommended orientation | South facing, tilt 0-20° |
| Mounting | Horizontal or vertical, junction box facing up |
| Connection | Via charge controller (not included) |
| Recommended cable | Cross-section 2.5-4 mm², UV-resistant |
| Corrosion protection | Apply Vaseline to cables and terminals |
| Maintenance | Clean regularly, rinse with fresh water in marine environment |
| Safety | Cover the panel during installation; never disconnect under load |
| Warranty | 24 months (Velleman conditions) |
Frequently Asked Questions - SOL100F VELLEMAN
User questions about SOL100F VELLEMAN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Solar panel in PDF format for free! Find your manual SOL100F - VELLEMAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SOL100F by VELLEMAN.
USER MANUAL SOL100F VELLEMAN
USER MANUAL 3
HANDLEIDING 7
MODE D'EMPLOI 11
MANUAL DEL USUARIO 15
CE
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
Caution, risk of electric shock.
Photovoltaic modules generate DC current when exposed to sunlight or other light sources. Although a single module produces only low voltage and current, shocks and burns are still a potential hazard. The shock hazard increases as modules are connected in series. Cover the whole front of the module with a dense opaque material such as cardboard when installing and handling the module. Work under dry conditions only.
Make sure you fully understand the instructions before installing the module. Contact a qualified technician if in doubt.
This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
Never disconnect a module under load.
Install the module horizontally or vertically with the connection box at the top. The solar module should be facing south at an angle of 0-20^ . Bear in mind that if the solar module is cast in shadow, its power output will drop considerably. Choose a location for the module with as little shade as possible.
Do not use sharp metal tools or any other tools that can scratch the surface of the module.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
Keep this manual for future reference.
4. Connection
4.1 Tips
- Use suitable connection cables – preferably UV-resistant cables with section 2.5-4 mm ^2 – depending on the length of the cables and the size of the panel. We recommend using the Velleman SOL/SPC3 cables (not included).
- Connect the negative pole of the panel to the negative pole of the charge controller (not included). Similarly, connect the positive pole of the panel to the positive pole of the charge controller.
4.2 General
- Coat the wires and terminal posts with Vaseline ^ to protect them from corrosion.
• Make sure the connection box is tightly closed to prevent moisture from entering. - If the solar module is to be mounted in a coastal area, it is extra important to protect the installation from moisture to prevent saltwater corrosion.
4.3 Schemes

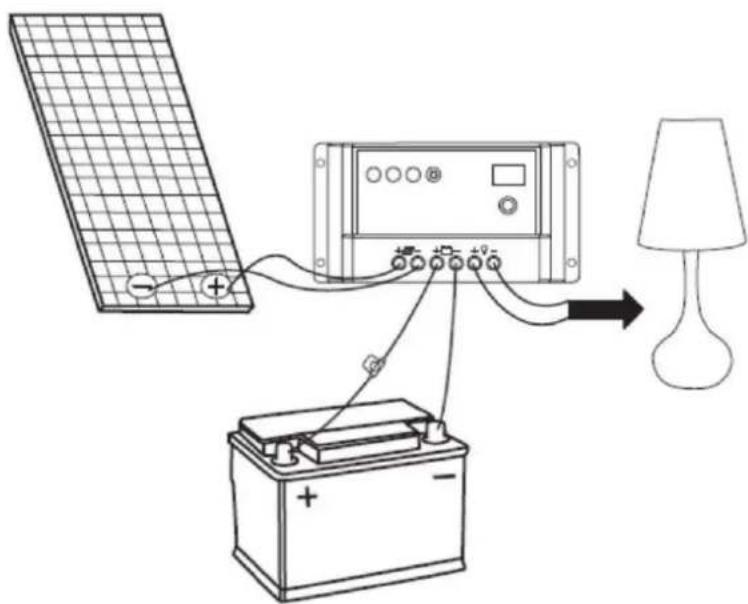

Single-Panel Connection
The solar module should be connected to a battery system via a charge controller.

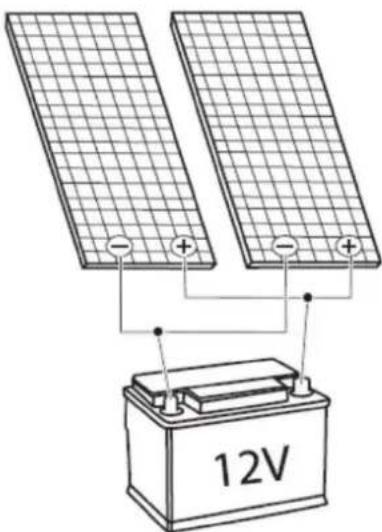

Parallel Connection
Connect your solar modules in parallel by connecting the positive to positive and the negative to negative.

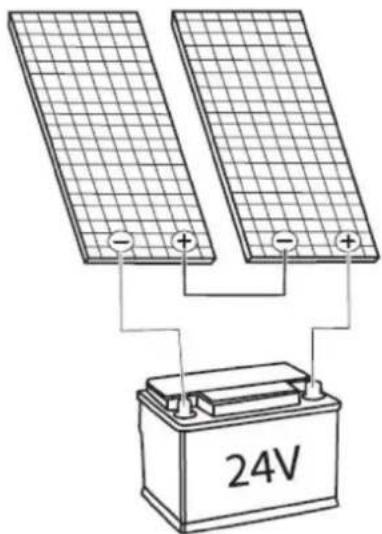

Series Connection
Connect your solar modules in series by connecting the positive of one module to the negative of the next module.
5. Cleaning and Maintenance
This appliance does not require excessive maintenance.
Keep the appliance clean. In a marine environment, rinse often with fresh water to avoid salt build-up.
Periodically check electrical connections and wires.
Periodically check mounting and securing.
6. Technical Specifications
SOL50F
maximum power (Pmax) 50 W
voltage at Pmax (Vmp).... 17.6 V
current at Pmax (Imp) 2.86 A
open-circuit voltage (Voc) 21.1 V
short-circuit current (Isc).... 3.15 A
temperature coefficient of Voc....(0.065 ± 0.015) %/°C
temperature coefficient of Isc....-(80 ± 10) mV %/°C
temperature coefficient of power....-(0.5 ± 0.05) %/°C
NOCT 47 ± 2 °C
operating temperature ....-40 °C to +85 °C
maximum system voltage....600 VDC
power tolerance.... ± 5 %
cells....multi-crystalline silicon solar cell
number of cells and connections.... 32 (4 x 8)
module dimensions 645 x 535 x 3 mm (0.12")
weight....1.6 kg (3.56 lbs.)
SOL100F
maximum power (Pmax) 100 W
voltage at Pmax (Vmp).... 17.6 V
current at Pmax (Imp) 5.72 A
open-circuit voltage (Voc) 21.1 V
short-circuit current (Isc)....6.30 A
temperature coefficient of Voc....(0.065 ± 0.015) %/°C
temperature coefficient of Isc....-(80 ± 10) mV %/°C
temperature coefficient of power....-(0.5 ± 0.05) %/°C
NOCT 47 ± 2 °C
operating temperature ....-40 °C to +85 °C
maximum system voltage....600 VDC
power tolerance.... ± 5 %
cells....multi-crystalline silicon solar cell
number of cells and connections.... 32 (4 x 8)
module dimensions....1150 x 535 x 3 mm (1.12")
weight....2.2 kg (7.68 lbs.)
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.
No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
HANDLEIDING
1. Inleiding
Parallelschakeling
Ligação em Paralelo
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
- Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
