USER MANUAL SOL10P VELLEMAN


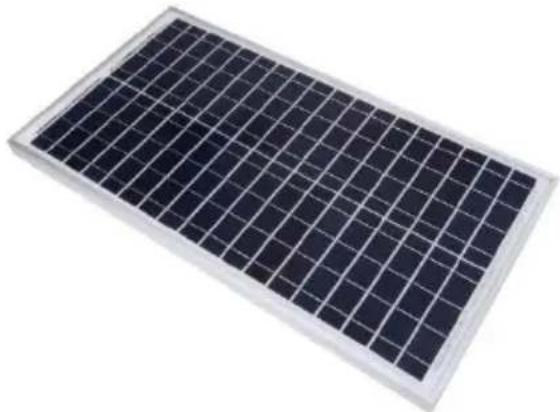

Close-up of a solar panel with grid pattern (no text or symbols visible)SOL10P


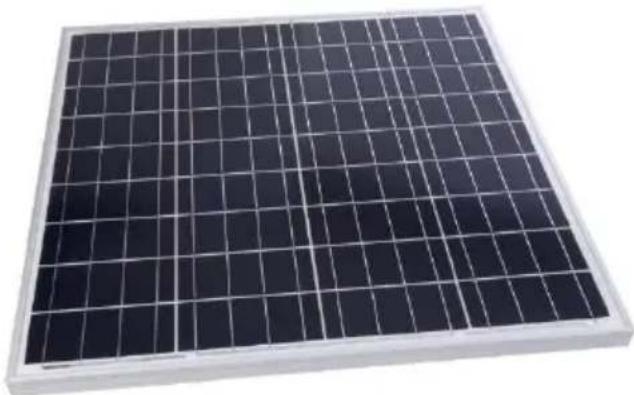

Close-up of a solar panel with grid pattern (no text or symbols visible)SOL60P
USER MANUAL 3
HANDLEIDING 7
MODE D'EMPLOI 11
MANUAL DEL USUARIO 15
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
- Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel. - As soon as the solar module is exposed to (sun)light, the terminals in the connection box will be live. To avoid short-circuits when assembling and connecting, turn them away from the light or cover them so that they are not producing electricity. Remove the covering once all connections have been made.
- Always mount the module on a straight and flat surface. Do not bend or twist the module. - Never attempt to divide or disassemble the module. - Avoid drilling or welding the frame whenever possible. - Do not use sharp metal tools or any other tools that can scratch the surface of the module. - Install the module horizontally or vertically with the connection box at the top. The solar module should be facing south at an angle of 0 - 20^ . Bear in mind that if the solar module is cast in shadow, its power output will drop considerably. Choose a location for the module with as little shade as possible.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
- Familiarise yourself with the functions of the device before actually using it.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, crash, etc. Using the device in an unauthorized way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.
SOL10P/SOL30P/SOL60P
4. Overview
Refer to the illustrations on page 2 of this manual.
| 1 | connection box |
| 2 | negative terminal |
| 3 | positive terminal |
5. Connection
-
Use a suitable cable - preferably a UV-resistant cable with section 1-2.5 mm ^4 - depending on the length of the cable and the size of the panel.
-
Open the connection box. Thread the cable through the cable clamp. Carefully check the polarity markings on the terminal block and connect the positive and negative wires accordingly. There are polarity markings next to the cable clamp screws.
6. Tips
6.1 General
- Coat the wires and terminal posts with Vaseline ^ to protect them from corrosion.
• Make sure that the cable clamp is tightened.
- Close the lid of the connection box tightly to prevent moisture from entering.
- If the solar module is to be mounted in a coastal area, it is extra important to protect the installation from moisture to prevent saltwater corrosion.
6.2 General

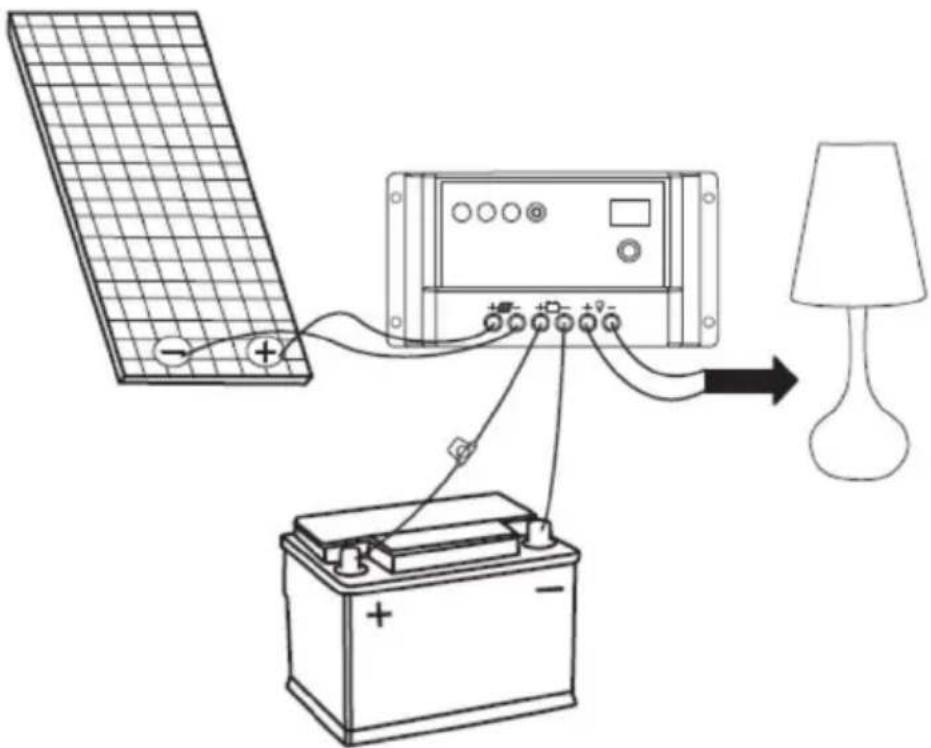

The solar module should be connected to a battery system via a charge controller.
If more than one panel is used, they can be connected in either series or parallel.
SOL10P/SOL30P/SOL60P
Parallel Connection:

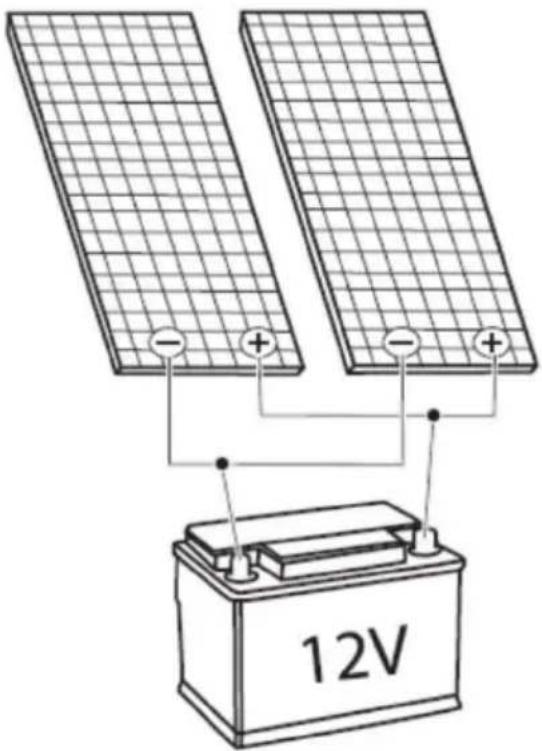

Connect your solar modules in parallel by connecting the positive to positive and the negative to negative.
Series Connection:

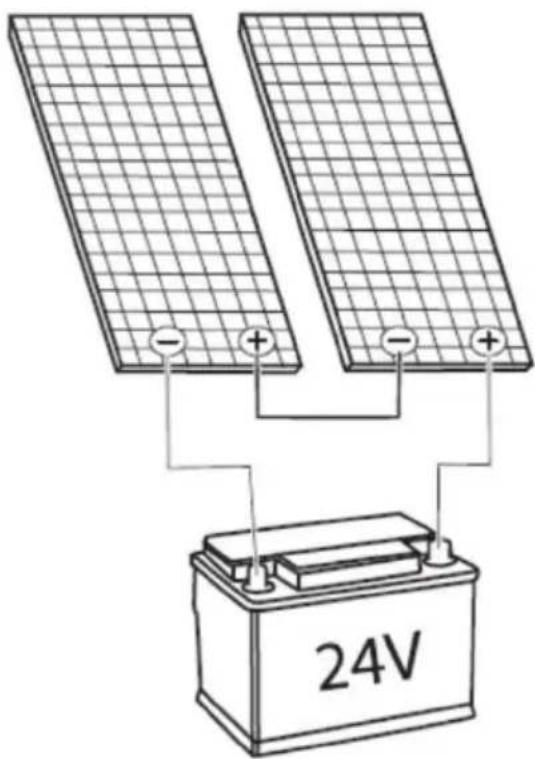

Connect your solar modules in series by connecting the positive of one module to the negative of the next module.
7. Cleaning and Maintenance
Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
8. Technical Specifications
voltage at Pmax (Vmp) 17.6 V
temperature coefficient of Voc....-(0.40 ± 0.05) %/°C
temperature coefficient of Isc (0.065 ±0.01) %/°C
temperature coefficient of power....-(0.5±0.05) %/°C
NOCT (air 20 °C; sun 0.8 kW/m wind 1 m/s)....47 ± 2 °C
operating temperature....-40 °C to 85 °C
maximum system voltage 600 VDC
power tolerance....± 3 %
cells ...... polycrystalline silicon solar cells
SOL10P
maximum power (Pmax).... 10 W
current at Pmax (Imp) 0.58 A
open-circuit voltage (Voc) 21.8 V
short-circuit current (Isc) 0.61 A
no. of cells and connections.... 36 (4 x 9)
module dimensions 356 x 253 x 30 mm
weight....1.16 kg (2.56 lb.)
SOL30P
maximum power (Pmax).... 30 W
current at Pmax (Imp).... 1.71 A
open-circuit voltage (Voc) 22 V
short-circuit current (Isc) 1.81 A
no. of cells and connections....36 (2 x 18)
module dimensions 650 x 350 x 30 mm
weight 3.1 kg (7.68 lb.)
SOL60P
maximum power (Pmax)....60 W
current at Pmax (Imp) 3.46 A
open-circuit voltage (Voc) 22 V
short-circuit current (Isc) 3.66 A
no. of cells and connections.... 36 (4 x 9)
module dimensions 670 x 650 x 30 mm
weight....4.6 kg (10.14 lb.)
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
