USER MANUAL Libero 3 Ritter

Technical illustration of a mechanical device with a circular component and a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a circular component and a magnified inset showing internal features (no text or symbols)

classico¹ varido¹

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a power tool to clean or restore a material in a machine (no text or symbols visible)

Illustration of a hand using a lathe machine to clean or wear a circular component (no text or symbols visible)

G 1b 1a

classico¹ varido¹

Illustration of hands operating a lathe machine with a pulley and directional arrows indicating motion (no text or symbols)

Hand inserting a button into a device (no text or symbols visible)

Hand turning a circular button with an arrow, no text or symbols visible

ritterwerk Made in Germany Industriestraße 13 82194 Gröbenzell Typ: xxx.xxx FD: xxx xxxV~ xxHz xxW KB x min CE

de	Gebrauchsanleitung......3
en	Operating instructions......8
fr	Mode d'emploi......12
cs	Návod k obsluze......16
da	Brugsanvisning......20
es	Instrucciones de uso......24
fi	Käyttöohje......28
hr	Upute za uporabu......32
hu	Használati utasítás......36
it	Istruzioni d'uso......40
nl	Gebruiksaanwijzing......44
no	Bruksanvisning......48
pl	Instrukcja obsługi......52
ru	Руководство по использованию......56
sk	Návod na použitie......60
sl	Navodilo za uporabo......64
sv	Bruksanvisning......68

GENERAL SAFETY INSTRUCTIONS

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

• The food slicer is to be used for domestic purposes only and must not be used commercially.
  – Never set the appliance down on hot surfaces or close to a naked flame.
• Use the accessories included in the delivery specification only.
• Use suitable extension cables only.
• Do not bend the power cord. Never wrap the cable around the appliance.
• Route the power cord so that it does not come into contact with hot or sharp-edged objects.
• Only start to use the appliance after it has been securely set up.
• Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under

supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.

• Do not allow children to play with the appliance.
  – Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.
• This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.
• Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.
  – Never leave the appli- ance unattended while it is operating.
• Do not use it to cut frozen foods, bones, food containing large stones, roast meats that are encased in netting or packaged foods!
  – Never allow the appliance to run for more than 5 minutes at a time.

Risk of electric shock

- Always remove the power plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable.

– Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture. If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water.

Have the appliance inspected at an authorized service location before using it again.

- Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.

- Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.

- If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.

Risk of injury

- This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.

- Before replacing accessories or add-on parts that move when operated, the appliance must be switched off and disconnected from the mains.

– The rotary blade is extremely sharp.

- Never touch the rotating blade when operating the appliance!

- Switch the appliance off before cleaning it; pull the power plug out of the socket and turn the slice thickness adjustment knob to the "0" position.

– The rotary blade will continue to run for a short time after being switched off.

Unfold the illustrations at the front and back of this manual.

Please read these instructions thoroughly before you start to use the appliance. Keep these operating instructions in a safe place and ensure that they are included with the appliance if passing it on to a third party.

Alternatively, the current operating instructions are available at www.ritterwerk.de.

INTENDED USE

The food slicer is used to slice household foods.

If the appliance is used for a purpose other than this, or if it is operated incorrectly, severe injuries may occur or the appliance may be damaged. All warranty and liability claims will be rendered null and void in this case.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Preparation

Remove the appliance carefully from the packaging. Remove all packaging parts and keep these together with the packaging in a safe place. Clean the appliance before allowing it to come into contact with any food (see CLEANING).

Setting up the appliance

- Set the appliance down on a flat, non-skid surface close to a mains socket.

A Using a small amount of force, push the slice carriage (3) vertically into the guide groove on the appliance until it audibly locks into place.

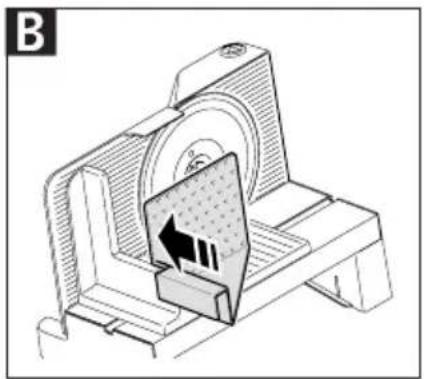

B Slide the left-over holder (9) onto the slice carriage's handle.

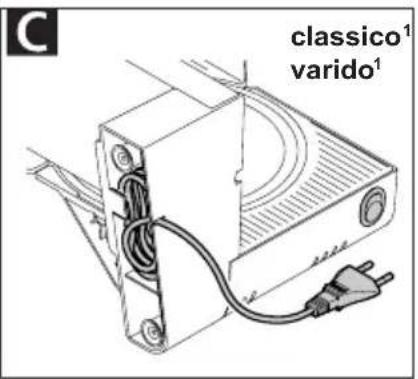

classico ^1 / varido ^1

Unwind the power cord (7) to the length required from the cable compartment (8) under the appliance.

- Plug the cable into the socket.

SLICING

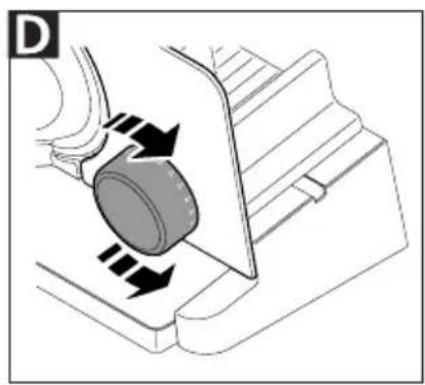

D Use the slice thickness adjustment knob (4) to set the required thickness.

Note:

The slice thickness adjustment scale is not a millimetre scale. For safety reasons, the "0" position is designed to cover the blade.

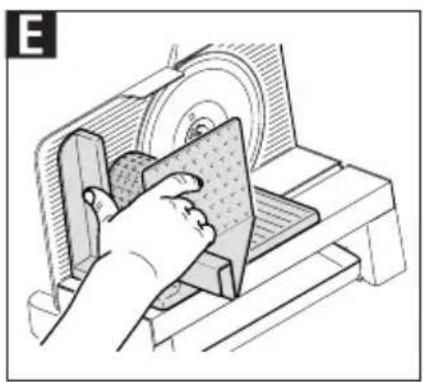

E Place the food to be sliced onto the slice carriage (3). Use the left-over holder (9) to press it up against the stop plate (2).

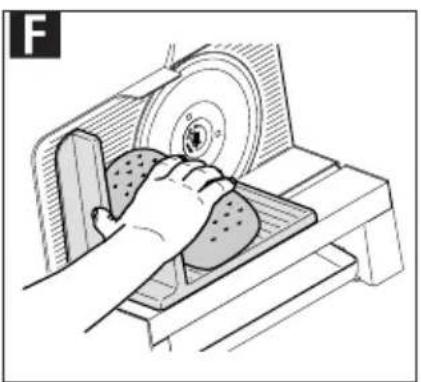

F Protect your hands, by always using the slice carriage and, where applicable, the left-over holder. Exception: Excessively large foods to be sliced.

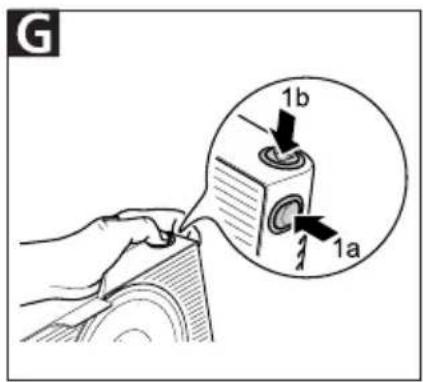

G Switch the appliance on:

- Press and hold down the safety lockout button (1a) with your index or middle finger.

- Press the power button (1b) with your thumb.

Two operating modes are available:

Temporary operation: Keep both power control buttons pressed. The rotary blade (11) will run until you release the power button.

Continuous operation: First release the safety lockout button and then the power button. The rotary blade will continue to run until you press the safety lockout button again.

Note:

Never use the appliance for more than a maximum of 5 minutes in continuous operation.

- With the appliance running, gently feed the food to be sliced into the path of the rotary blade.

- When finished slicing, wait until the rotary blade has come to a complete stop.

• After each use, turn the slice thickness adjustment knob to the "0" position, in order to cover up the sharp rotating blade and to avoid any injuries.

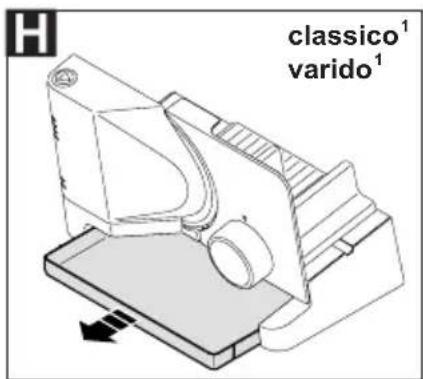

H classico ^1 / varido ^1

Pull the slice tray (5) to the left and out of the appliance.

CLEANING

Caution:

Switch the appliance off before cleaning it; pull the power plug out off the socket and turn the slice thickness adjustment knob (4) to the "0" position.

Clean the food slicer regularly to prevent the accumulation of food residue. The rotary blade must also be cleaned regularly as described below to prevent its surface from rusting.

Note:

Over time, an accumulation of food residue may cause damage to the surface of the rotary blade, causing it to rust.

Preparation

classico ^1 / varido ^1

- Pull the slice tray (5) to the left and out of the appliance.

- Remove the left-over holder (9).

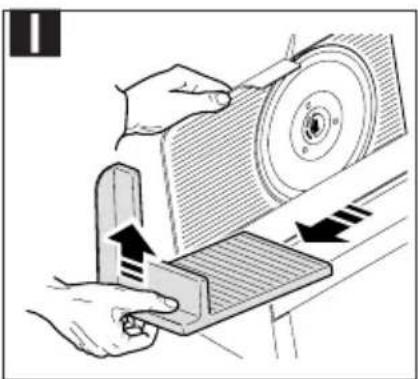

Pull the slice carriage (3) forward and then lift it up and out of the guide groove.

Removing the rotary blade:

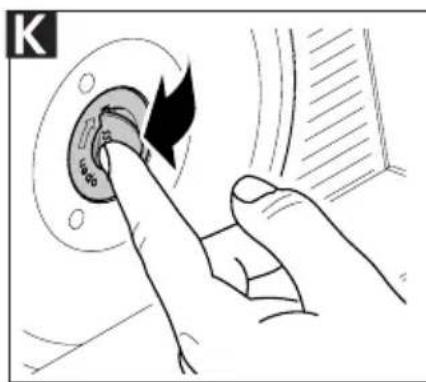

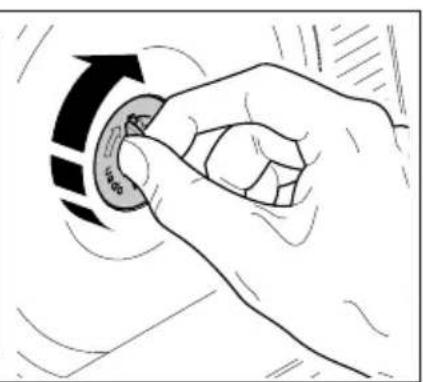

K Open the blade catch (10), by turning it in a clockwise direction.

• Take hold of the rotary blade (11) at its rotational centre and remove it.

Cleaning after each use

- Wipe down the housing and all removed parts, including the rotary blade, with a damp cloth.

Occasional cleaning

• Give all removed parts, including the rotary blade, a thorough wash in warm soapy water (not in the dishwasher!).
• Clean the housing behind the blade using a dry cloth/brush. Note:

Do not use any abrasive cleansers, sponges with rough surfaces or hard brushes to clean the appliance.

• Dry all parts that you have washed.
• Grease the rotary blade's gear wheel with a little Vaseline.
• Fit the rotary blade back into the appliance.

MAINTENANCE

Your food slicer is maintenance-free. However, we recommend that you occasionally apply a little Vaseline to the rails of the slice carriage to keep them lubricated and ensure that the carriage continues to move easily.

STORAGE

Keep the appliance out of the reach of children.

classico ^1 / varido ^1

To store the cable always use the cable compartment (8) integrated into the appliance.

DISPOSAL

At the end of its service life this product may not be disposed of as part of normal domestic waste.

It must be taken to a dedicated collection point for recycling electrical and electronic devices.

This is indicated by the symbol on the product, the operating instructions or the packaging.

The materials can be used again in accordance with their identification. The re-use, material-sensitive recycling or other forms of recycling of old appliances enables you to make a vital contribution to protecting our environment.

Please consult with the disposal office at your local authority.

REACH DIRECTIVE

A special, non-toothed rotary blade is also available for use with sliced meat, sausage and ham.

SERVICE, REPAIRS AND SPARE PARTS

Please contact your local after-sales service for all service, repairs and spare parts matters! See www.ritterwerk.de

TECHNICAL DATA

This appliance complies with the following regulations and directives:

• 2014/30/EU
• 2014/35/EU
• 1935/2004/EG
• ErP 2009/125/EG
• 2011/65/EU

The appliance thus complies with the CE specifications.

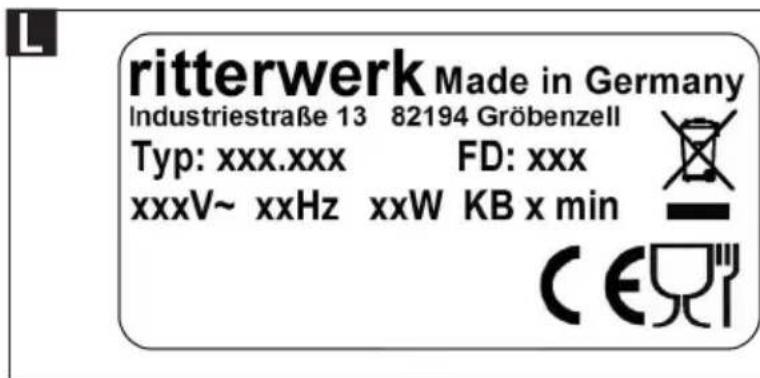

Mains voltage/power consumption: Refer to the type label on the underside of the appliance.

Slice thickness:

0 mm to approx. 23 mm

WARRANTY

This ritter appliance comes with a two-year manufacturer's warranty, starting with the date of purchase and in accordance with the EU warranty directives. In the event of a warranty claim or for servicing, the appliance must always be sent to the appropriate national customer service centre.
