USER MANUAL AP35 IDEAL

EN Operating Instructions

FR Mode d'emploi

White industrial air purifier with textured back panel and 'IDEAL' logo on front (no text or symbols on body)

Simple line icon of an open book with an information symbol (no text or numbers present)

Vorwort

Warning symbol with exclamation mark inside a triangle

Sicherheitshinweise

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

Sicherheitshinweise

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Achtung

Prohibition sign with shower icon and diagonal line, indicating no spray or showering

Achtung

Warning symbol of a flame inside a diamond shape (no text or numbers)

Achtung

Hand inserting a plug into an electrical socket (no text or symbols visible)

FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK

? Service

→ Kontakt: Service
• www.krug-priester.com
• [e-mail]

TASTENSPERRE

Illustration of a hand cleaning a white industrial air purifier with a cloth (no text or symbols)

Illustration of hands handling a rectangular container with a mesh-covered top (no text or symbols)

Illustration of hands cleaning a textured surface in a container (no text or symbols)

Illustration of a hand pressing down on a textured rectangular object (no text or symbols)

Illustration of a computer with a paper being inserted into a device, and a close-up of a textured surface being held by hands (no text or symbols present)

Diagram of a mechanical or electrical component with grid and lever mechanism (no text or symbols)

Illustration showing hands cleaning a water dispenser and collecting water from a drain (no text or symbols)

? Service

→ Kontakt: Service
• www.krug-priester.com
• [e-mail]

Garantiebestimmungen

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

CE

D-72336 Balingen (Germany)

EN Operating Instructions (23 – 43)

Intended Use			24
Safety Instructions			24
Scope of Delivery / Parts Designation 26
Filter Functions			27
Setting Up / Commissioning 28
Designations and Function Control Panel / Display 29
Air Quality Indicator			30
Basic Operation			31
Operating Modes			32
Display			35
Other Settings			36
Cleaning and Maintenance			37
Technical Data			40
Intervals for Maintenance and Filter Change 40
Filter Change			40
Accessories 40
Troubleshooting 41

Simple line icon of an open book with an information symbol (no text or numbers present)

Introduction

Thank you for choosing a device from IDEAL.

Intended use

• The device is used exclusively for cleaning the ambient air indoors.
• Please read these operating instructions before using the machine and please follow the safety instructions.
  The operating instructions must be kept available at all times.

Warning symbol with exclamation mark inside a triangle

Safety instructions

• Keep packing material, such as plastic wrapping, away from children! (Risk of suffocation)
• Please follow the safety instructions to prevent fire or electric shock. Only use the device indoors.
• Only use a socket that supplies the correct voltage (see rating plate).
• Do not modify or repair the device.
• Do not use the device if the power cable or mains plug is damaged or if the connection at the socket is not stable.
• Make sure that the power cable does not get crushed while you are using the device and that it cannot be damaged in any other way. Place the cable so that no one will trip over it. Do not pull the power cable tight.
• Disconnect the plug from the socket for cleaning purposes and whenever the device is not in use for a significant period of time.
• Do not touch the plug or the device if you have wet hands.
• Do not spray any insect repellent.
• Do not use in rooms where the device may come into contact with fuel vapour, oil vapour or metal dust.
• Dot use any volatile liquids, petroleum, kerosene, paint thinner or polishing paste to clean the device. Such liquids may damage the surface of the device.
• Do not expose the device to rain, water, moisture or high humidity, and do not set it up in a bathroom or kitchen next to a sink.
• Make sure that no foreign objects get into the outlet grilles.
• Do not use near a naked flame or sparks.
• The device is not suitable for removing harmful gases (carbon monoxide, e.g. from heating appliances).
• Unless they are supervised, the device must not be used by those (including children) with reduced, physical, sensory and mental abilities or who do not have the required experience and knowledge.

Safety Instructions

Warning symbol with exclamation mark inside a triangle

Safety instructions

• Do not block the air intake or outlet.
• Do not expose the air purifier to direct sunlight, a naked flame or heat.
• Only use the air purifier in closed interiors and within the specified technical parameters. Improper usage may pose a threat to life and health.
• Do not use the device near a smoke detector. Air blowing towards a smoke detector could delay the alarm or not trigger at all.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Caution

Risk of injury due to electric shock. Always disconnect the mains plug prior to:

• Maintenance and cleaning
• Moving the device
• Changing the filter

Prohibition sign with shower icon and diagonal line, indicating no spray or shower in a circular background

Caution

- Do not use any spray cans with flammable content near to the air purifier!

Warning symbol of a flame inside a diamond shape (no text or numbers)

Caution

- Do not use any flammable cleaning agents.

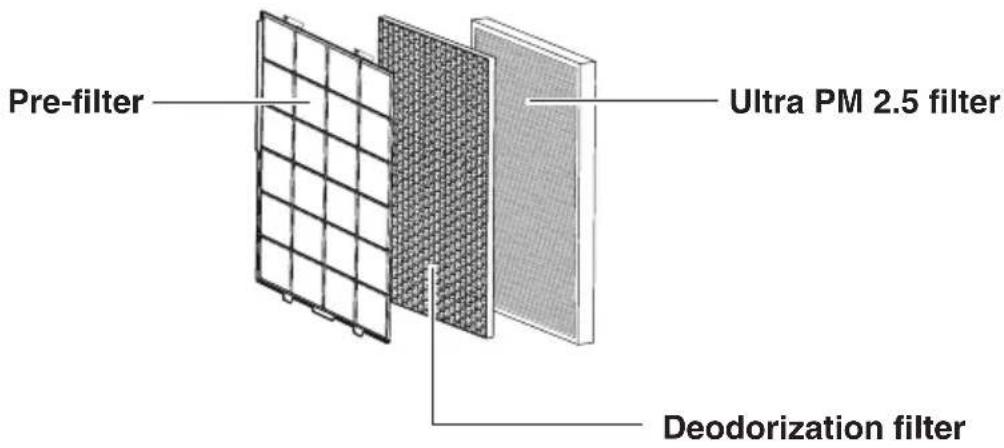

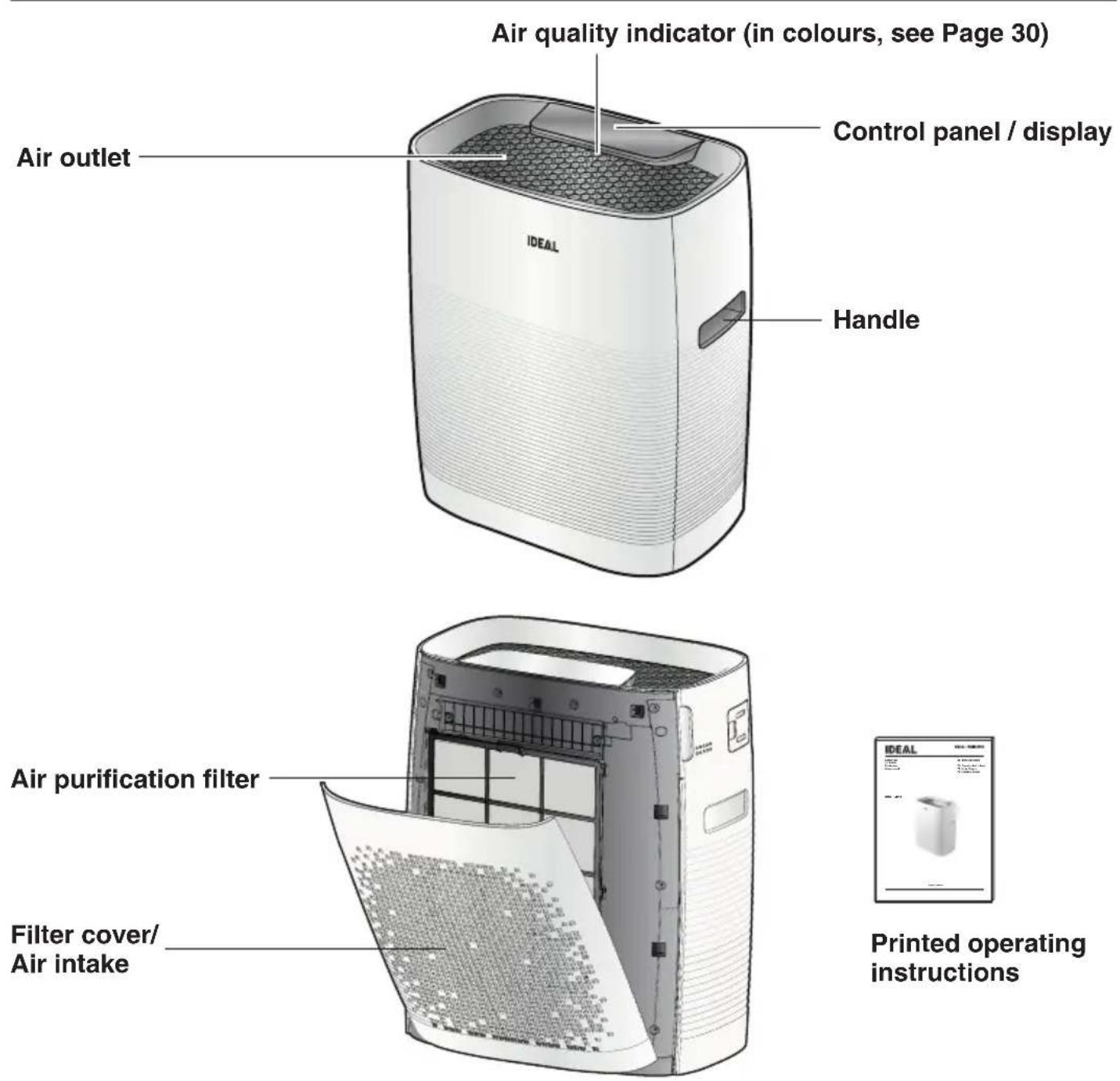

Scope of Delivery / Parts Designation

Air quality indicator (in colours, see Page 30) Control panel / display Handle Air outlet IDEAL Air purification filter Filter cover/ Air intake Printed operating instructions

Pre-filter Ultra PM 2.5 filter Deodorization filter

Stage 1 Pre-filter

Filters large dust particles and hair out of the ambient air and extends the filter service life.

Stage 2 Deodorization filter

The deodorization filter effectively filters unpleasant smells and health-injurious gases out to the ambient air.

Stage 3 Ultra PM 2.5 filter

Ideally suited for filtering pollen, fine dust and sensitizers out to the ambient air.

Filter fitting order:

Ultra PM 2.5 filter → Deodorization filter → Pre-filter

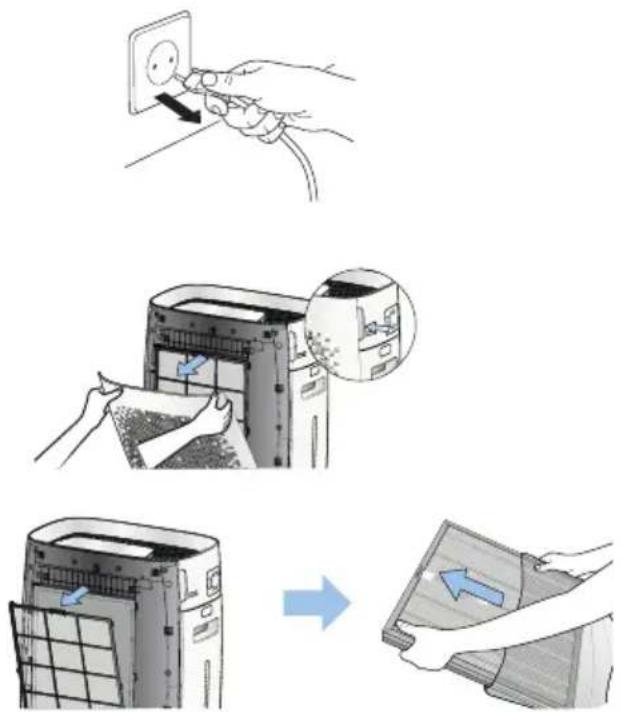

CAUTION!

Unplug the mains plug from the socket.

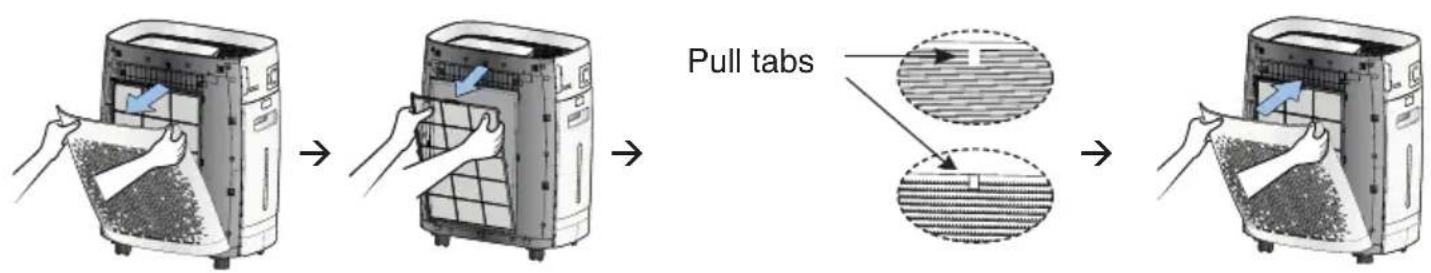

1. Open the filter cover.

To open the filter cover, get hold of it at the top on the right and left-hand sides.

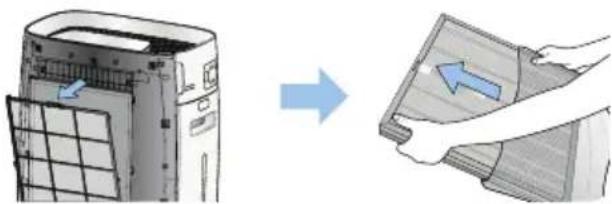

1. Take out the filters.

Remove the plastic sheet packing from all filters and then follow the filter installation instructions. Filter fitting order:

Ultra PM 2.5 filter →

Deodorization filter → Pre-filter

(see Filter functions on Page 27)

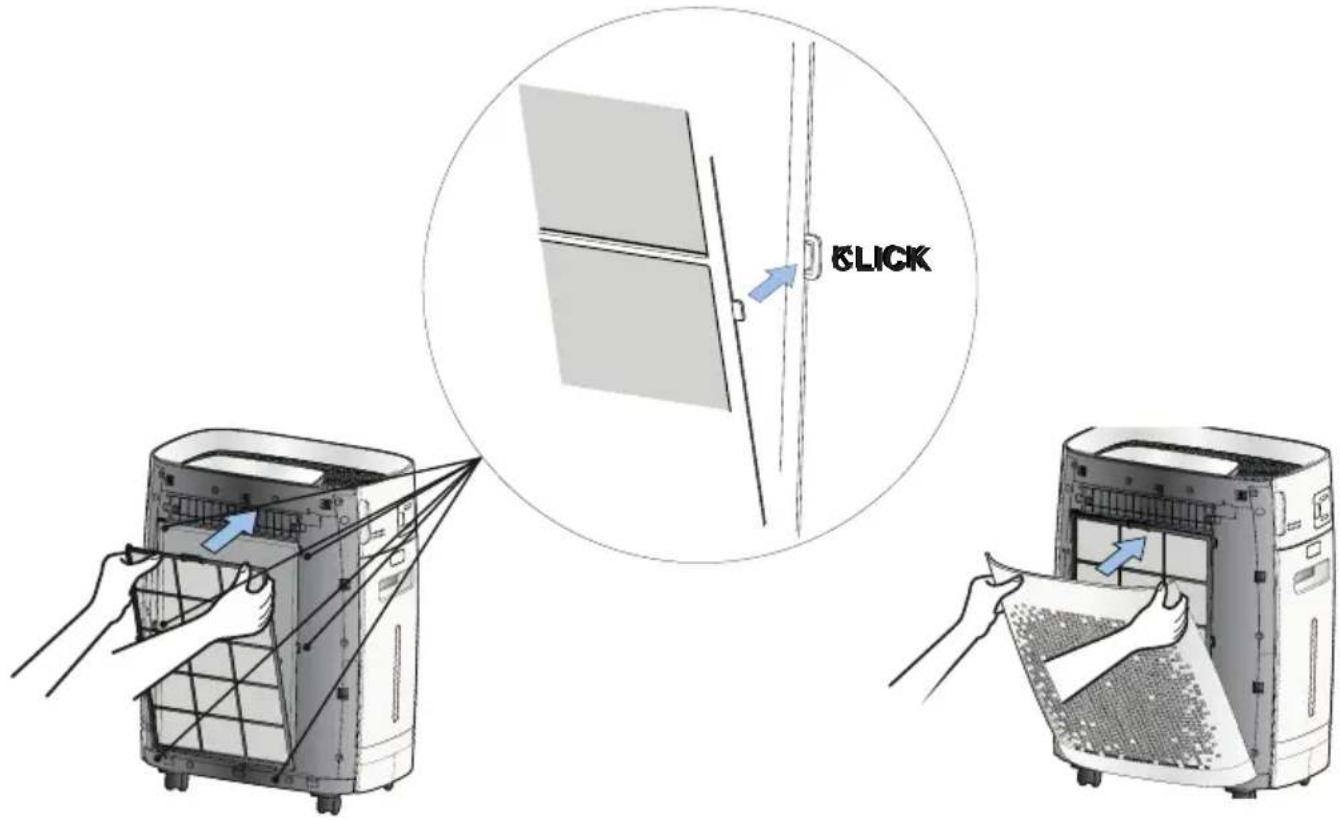

1. Re-attach the filter cover on the device.

Illustration of hands inserting a packet into a printer (no text or symbols visible)

Designations and Function Control Panel / Display

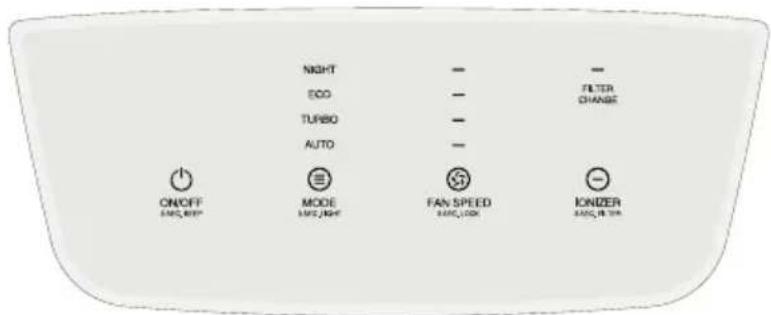

Control panel / display

NIGHT ECO TURBO AUTO ON/OFF EWS, KIR* MODE EWS, KIR* FAN SPEED EWS, LTR* FILTER CHANGE IONIZER EWS, R TR

- ON/OFF: On ( lights up) - and off switching (OFF-operation = Standby) of the device.

- MODE: Selection of the required operating mode. → Each time the button is pressed, the operating mode changes in the following order AUTO, TURBO, ECO and NIGHT.

- FAN SPEED: Setting the fan speeds in the manual operation. → Each time the button is pressed, the fan speed changes in the following order Setting 1 “—” an LED lights up, 2, 3 and 4.

- IONIZER: Switching the plasma ionizer on and off.

• FILTER CHANGE: Filter change reminder.

Air quality indicator: Indicates the cleanliness of the ambient air in various colours.

Degree of contamination	Level 1 (clean)	Level 2 Level 3 Level	4 Level 5 Level 6	(markedly contaminated)
Air quality indicator Blue	Blue- green	Green Yellow	Low Violet Red

Press the ON/OFF button to start the device.

→ After approx. 1 minute the device displays the ongoing degree of contamination (= colour) through the air quality indicator (see Page 26).

→ To switch the air quality indicator on and off, keep the MODE button pressed for 3 seconds (the device is switched on).

→ If various devices are used in the same room, the air flow may cause the fine dust concentration values to vary.

Basic Operation

ON/OFF

3 SEC. BEEP

MODE

3 SEC. LIGHT

FAN SPEED

3 SEC. LOCK

IONIZER

3 SEC. FILTER

1. Insert the mains plug into a socket.

Hand inserting a plug into an electrical socket (no text or symbols visible)

→ With a bleep the device changes to the OFF operation = Standby. (Unplugging the mains plug during the ongoing operation results in the device operating in the operating mode as set beforehand).

1. Press the ON/OFF button.

→ The ON/OFF and AUTO icons light up on the display and the fan begins to run.

The fan runs in the previous operating mode.

The FILTER CHANGE-LED flashes if the filter cover is not fitted.

1. Press the MODE button to manually select the required operating mode.

→ Each time the button is pressed, the operating mode changes in the following order - AUTO, TURBO, ECO and NIGHT.

1. Press the FAN SPEED button to select the fan speed.

→ Each time the button is pressed, the fan speed changes in the following order Speed 1 “-” an LED lights up, 2, 3 and 4.

1. Press the IONIZER button to activate the plasma ionizer (the IONIZER icon lights up) or to deactivate it (icon off).

A crackling may be heard when the plasma ionizer is in operation.

This is absolutely normal.

1. To end operation of the device, again press the ON/OFF button.

→ All lights are extinguished on the control panel and the device changes to the OFF operation = Standby .

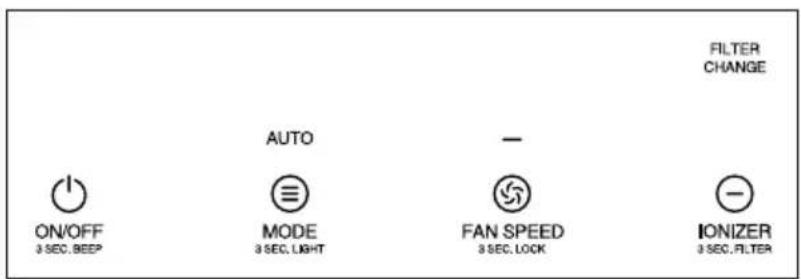

AUTO

Air quality-conditioned automatic mode

- Press the ON/OFF button once in the OFF mode.

→ The device firstly runs in the AUTO mode. Should a different operating mode have been set beforehand, then the device runs in this mode.

• The device checks the purity of the ambient air and adjusts the fan speed accordingly.
• During the operation, the device indicates the ongoing fan speed and degree of contamination (colour from the air quality indicator) of the ambient air.

FILTER CHANGE AUTO — ON/OFF 3 SEC. BEEP MODE 3 SEC. LIGHT FAN SPEED 3 SEC. LOCK IONIZER 3 SEC. FILTER

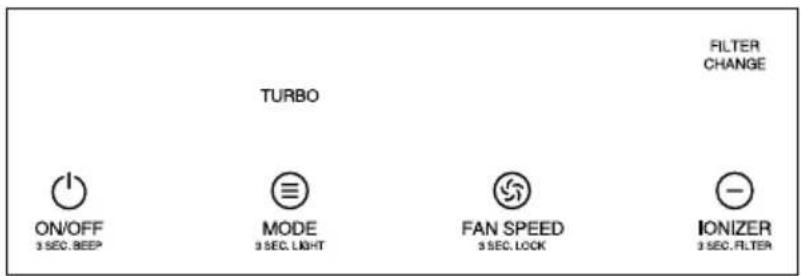

TURBO

Maximum capacity operation

• Press the MODE button once in the AUTO mode.
• For rapid ambient air purification, the fan accelerates up to the maximum speed.
• The device runs in the TURBO mode for 30 minutes. The device then returns to the previous operating mode.

TURBO FILTER CHANGE ON/OFF 3 SEC. BEEP MODE 3 SEC. LIGHT FAN SPEED 3 SEC. LOCK IONIZER 3 SEC. FILTER

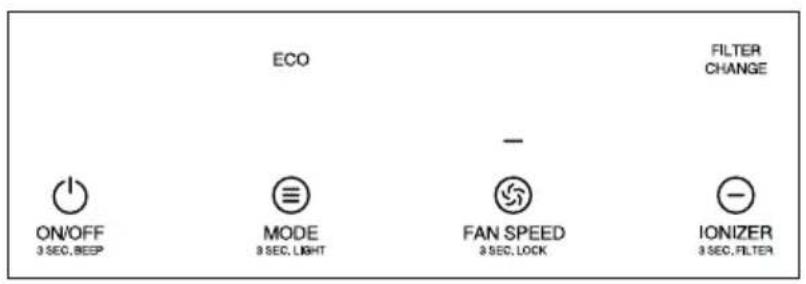

ECO

Operating mode for keeping air pure in an energy-saving way.

• Press the MODE button twice in the AUTO mode, ECO lights up.
• The device adjusts to ambient air purity under minimum energy consumption (If the air is displayed as “clean” over a certain time, the fan runs at lowest level. Only ECO is displayed).

ECO FILTER CHANGE - ON/OFF 3 SEC. BEEP MODE 9 SEC. LIGHT FAN SPEED 3 SEC. LOCK IONIZER 3 SEC. FILTER

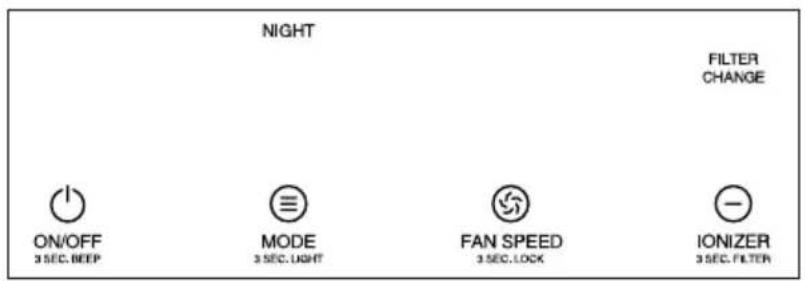

NIGHT

Operating mode with a minimum air flow rate and a minimized display.

- Press the MODE button three times in the AUTO mode.

→ The device minimizes the air flow rate for a peaceful, healthy and deep sleep.

NIGHT FILTER CHANGE ON/OFF 3 SEC. BEEP MODE 3 SEC. LIGHT FAN SPEED 3 SEC. LOCK IONIZER 3 SEC. FILTER

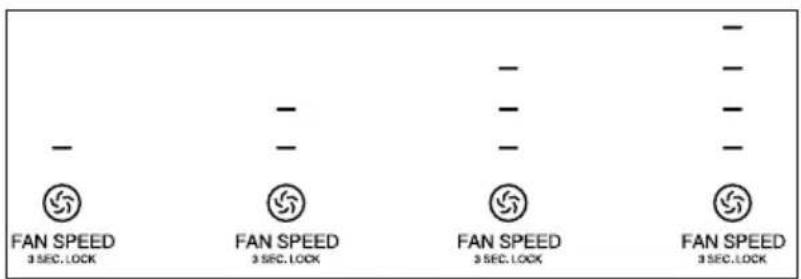

FAN SPEED

Operating mode in which the preferred fan speed is manually selected

• Press the FAN SPEED button to change into the operating mode.
• Press the FAN SPEED button to set the required fan speed (Speed 1, 2, 3 or 4). → The fan firstly starts on Speed 1. Should a fan speed have been set beforehand, then the fan runs under the previous setting. The device indicates the fan speed.

- The LED lights up when a filter needs to be changed. Acknowledge the alarm when you have changed the filter (see Page 40).

→ There are 3 different ways of acknowledging the alarm and switching off the LED:

- Open and close the filter cover whilst the device is connected to the power supply.

- Keep the IONIZER button in the standby mode pressed for at least 3 seconds (all function displays are switched off) the filter change display is re-set.

- The filter change display is also reset when you unplug the mains plug from the socket.

Note

The filter change LED also flickers if the filter cover is, for instance, defective or damaged. → Replace the cover with a new one or contact our Service.

? Service

→ Contact: Service
• www.krug-priester.com
• [e-mail]

BUTTON LOCK

- The device is in the FAN SPEED mode.

- Keep the FAN SPEED button pressed for at least 3 seconds.

→ All LEDs flash twice, the button lock is activated (on tapping the buttons, two audible signals are heard and all the LEDs flash twice).

- Keep the FAN SPEED button pressed for at least 3 seconds to deactivate the button lock.

Setting the bleep

1. The air purifier finds itself in the standby mode (all function displays are switched off) once the mains plug is plugged in.

→ When the device is in operation, press the ON/OFF button to switch it off.

1. Keep the ON/OFF button pressed for 3 seconds under OFF to switch the bleep on or off.

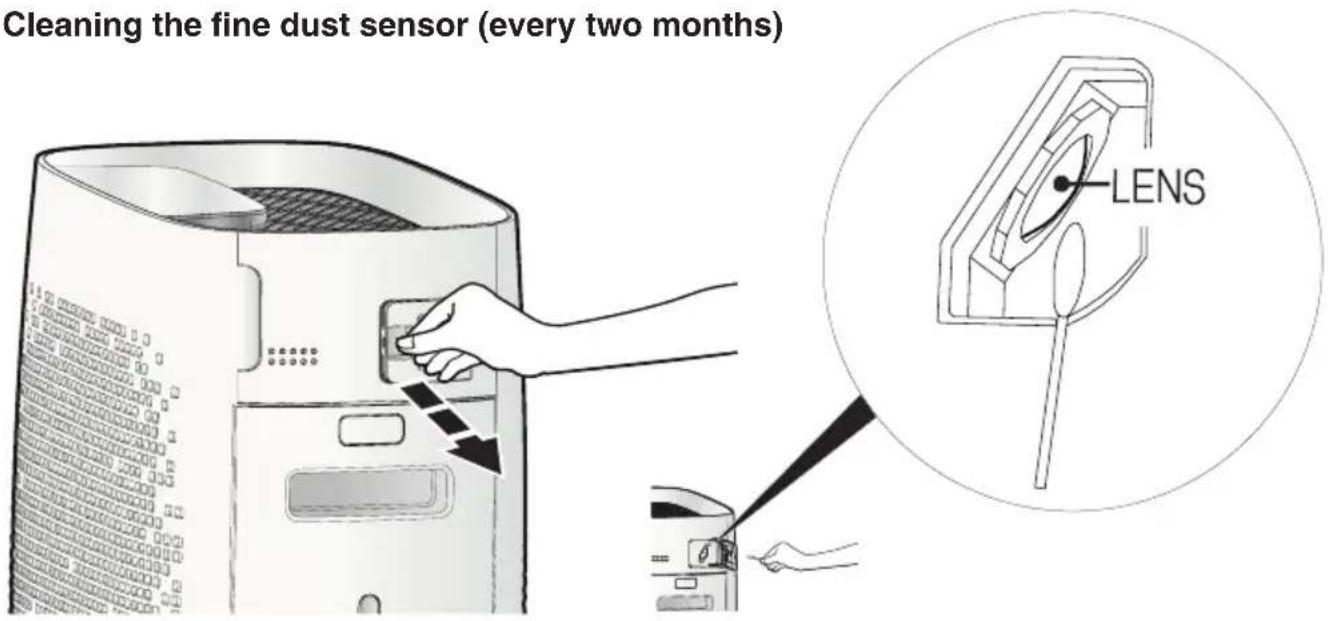

Cleaning the fine dust sensor (every two months)

Cleaning the fine dust sensor (every two months) LENS

1. Open the sensor flap.
2. Carefully clean the sensor with a soft paintbrush or a dust extractor.
3. Carefully wipe the sensor lens (LENS) with a cotton bud.
4. Close the sensor flap.

Note:

Do not clean the sensor with cleaning agents containing volatile constituents such as alcohol or acetone.

If the sensor lens is covered with dust, the air quality indicator might constantly display "red" (very dirty). In this case, again clean the sensor thoroughly.

Cleaning and Maintenance

CAUTION: Unplug the mains plug prior to cleaning and maintenance work!

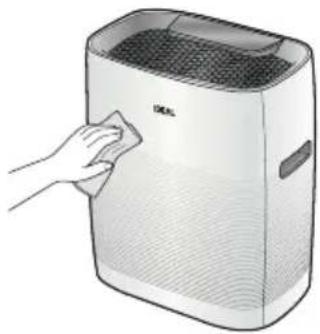

Cleaning the device housing (every two to four weeks)

• Clean the air purifier housing with a lint-free cloth moistened with soapy water.
• Do not use any solvents. Such liquids could damage the surface of the device.
• Protect the air purifier from water.

Illustration of a hand cleaning a white industrial air purifier with a cloth (no text or symbols)

Cleaning the air outlet (every two to four weeks)

1. With both hands, press onto the grille at top of the device at the back - as shown - so that it clips upwards to the front.
2. Take hold of the grille here and pull out to the front.
3. Clean the grille with a soft paintbrush or a dust extractor.
4. Use a soft paintbrush or vacuum cleaner to remove any dust from the ventilation port.

Illustration of hands handling a rectangular container with a mesh-covered top (no text or symbols)

Illustration of hands cleaning a textured surface in a container (no text or symbols)

Illustration of a hand pressing down on a textured rectangular object with a small arrow pointing to it (no text or symbols)

CAUTION: Unplug the mains plug prior to cleaning and maintenance work! Cleaning the device housing (every two weeks)

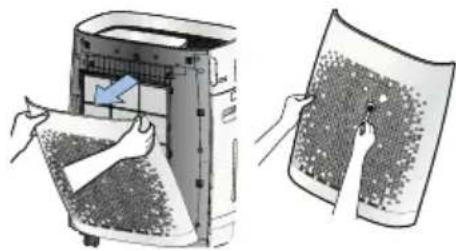

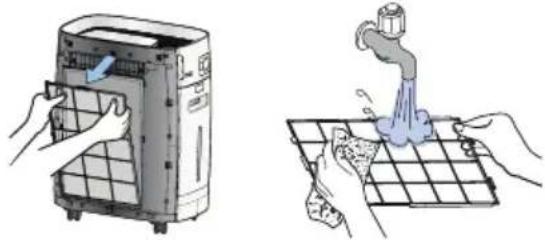

1. Open the filter cover.

→ To open the filter cover, take hold of it at the top on the right and left-hand sides.

1. Clean the filter surface with a dust extractor as set to the lowest setting.

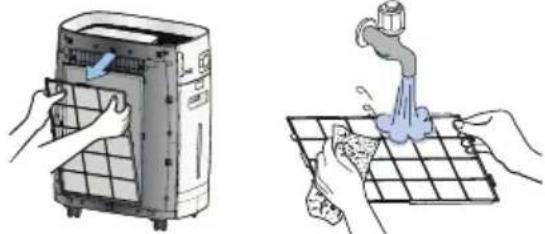

2. Pull out the pre-filter by the hand grip.

Wash it in warm water and allow to dry.

→ A wet or moist filter can result in smells and in malfunctioning.

Illustration of a computer with a paper being inserted into a device, and a close-up of a textured surface being held by hands (no text or symbols present)

Diagram of a mechanical or electrical component with grid and lever mechanism (no text or symbols)

Illustration showing two different cleaning or cleaning methods: a hand washing a water dispenser and a hand cleaning a tiled floor with a faucet (no text or symbols present)

1. Mount the filter and re-fit the filter cover.

→ Make sure you correctly fit the filter into the grooves (CLICK).

CLICK

Technical data / Intervals for Maintenance and Filter Change / Filter Change / Accessories

Technical data

Power supply 220-240 V / 50 Hz
Fan speeds 6 (incl. TURBO & NIGHT)
Power 33 W
Suitable for rooms 25 - 45 m2 *
Cleaning capacity up to 330 m3/h
Noise level 26 - 55 dB (A)
Weight 7.4 kg
Dimensions (H × W × D) 514 × 430 × 275 mm

Subject to technical changes. * For a room height of 2.50 m

Intervals for Maintenance and filter change

Filter Interval Clean / Replace
Pre-filter every 2 weeks Clean
Deodorization filter every 12 months Replace
Ultra PM 2.5 filter every 12 months Replace

Filter change

Note:

On fitting, the filter pull tab must point forwards.

Pull tabs

Accessories

Deodorization filter + Ultra PM 2.5 filter (Set)

Order. No. 8736 001

Troubleshooting

Problem Check list Recommendation
The device does not function even though I pressed the ON/OFF button.	Is the power cable connected to the socket?Is the device not correctly assembled?Isn't the device in the ECO mode?	Insert the mains plug into a 220-240 V, 50 Hz socket.Correctly assemble the device.Check the ECO energy saving function settings (see Page 33)
The air flow rate does not change.	Isn't the device in the manual mode (MANUAL)?	Change to the required operating mode.
The air does not seem to be purified.	Is the ambient air over-contaminated?Is the room too large?Is there any obstacle near the device?Is the device set up where air movements are restricted?Did you miss out on the time for cleaning and replacing the filter?	Ventilate the room before using the device.Use the device where its coverage limit is not exceeded. (Do not set up the device at a well aired spot, such as a door or a window.Remove all obstacles.Set up the device at another place.Note the filter cleaning and replacement intervals and clean the filters regularly or replace them in good time.
There is an unpleasant smell from the blow-off grille.	Did the smell arise on using the device for the first time shortly after its purchase?Do you use the device where there is considerable smoke and smell?Did you miss out on the time for cleaning and replacing the filter?	A smell of activated carbon persists. The smell disappears within one to two weeks after the device is commissioned. The smell is one of activated carbon (charcoal) which is harmless as far as health is concerned.Air purification efficiency may decrease where there is considerable smoke or smell.Air the room before you use the device.Note the filter cleaning and replacement intervals and clean the filters regularly or replace them in good time.

? Service

Did none of the specified solutions help you with your problem?

→ Contact: Service
• www.krug-priester.com
• [e-mail]

Guarantee terms

IDEAL provides a guarantee for this device from the date of purchase.

The guarantee terms are defined by our local representative.

• If a material or design defect occurs during the guarantee period, IDEAL shall, at its discretion, repair or replace the device, or refund the purchase price.
• The warranty will only be honoured if sufficient evidence is submitted, e.g. sales receipt, and the claim under guarantee is made within the guarantee period.
• The guarantee does not cover wearing parts or parts that need to be replaced regularly.
• The guarantee shall be void if the device is not set up, deployed and cleaned/maintained correctly (in accordance with the operating instructions).
• The guarantee shall be void if the device is connected to a power supply that does not comply with the identification plate data.

Storage

We recommend storing the air purifier in its original packaging in a cool, dry place.

Spare parts and accessories

You can source spare parts via your dealer or at www.ideal.de.

Only use the manufacturer's original parts.

Repairs

Repairs must only be carried out by qualified experts or the customer service department. This also applies if you have a defective power cable. Inappropriate repairs may result in considerable hazards for the user and the claim under guarantee is invalidated.

Disposal

This device must not be disposed of with any household waste! Please hand this device in at the collection points provided! Collecting and recycling electrical and electronic waste conserves valuable resources!

The packaging material can be recycled. Dispose of the packaging in an environmentally friendly manner and take it to the recyclable waste collection.

Thanks!

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a black rectangle below (no text or labels)

CE

Legal information

The device is CE-conform and complies with the following directives:

• 2014/35/EU Low Voltage Directive
• 2014/30/EU Electromagnetic compatibility directive

Applied harmonised standards in particular

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-65:2003+A1:2008+A11:2012

EN 60335-2-98:2003+A1:2005+A2:2008

EN 62233:2008

The exact technical specifications can be found on the technical specifications sticker on the machine.

To claim under guarantee, the machine must still carry its original identification label.

Subject to alterations without notice.

Made in South Korea

24.06.2020

Date

- Managing Director -

Authorized representative for technical documentation

D-72336 Balingen (Germany)

Simple line icon of an open book with an information symbol (no text or numbers present)

Préface

Warning symbol with exclamation mark inside triangle

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Attention

Prohibition sign with shower icon and diagonal line, indicating no spray or showering

Attention

Warning symbol of a flame inside a diamond shape (no text or numbers)

Attention

Hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a printer being inserted into a paper, with an inset showing the printer's internal structure (no text or symbols present)

Illustration of a printer or printer with a grid cover and paper outlet, no visible text or symbols

Illustration of hands holding a tablet with a blue arrow pointing upward (no text or symbols)

Illustration of hands operating a printer with a paper sheet, showing no text or symbols

Hand inserting a plug into an electrical socket (no text or symbols visible)

FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK

? Service

→ Contact : Service
• www.krug-priester.com
• [e-mail]

VERROUILLAGE DES TOUCHES

Illustration of a hand cleaning a white industrial air purifier with a cloth (no text or symbols)

Illustration of hands handling a rectangular container with a mesh-covered top (no text or symbols)

Illustration of hands cleaning a textured surface in a container (no text or symbols)

Illustration of a hand pressing down on a textured rectangular object (no text or symbols)

Illustration of a printer being inserted into a grid paper with a paper sheet, showing the process (no text or symbols present)

Diagram of a mechanical or electrical component with grid and lever mechanism (no text or symbols)

Illustration showing hands cleaning a portable device and collecting water from a drain (no text or symbols)

? Service

→ Contact : Service
• www.krug-priester.com
• [e-mail]

Clauses de garantie

Simple line drawing of a trash bin with two crossed x-axes and a blank base (no text or symbols)

CE

Simple line icon of an open book with an information symbol (no text or numbers present)

Wstep

Warning symbol with exclamation mark inside a triangle

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Uwaga

Prohibition sign with shower icon and diagonal line, indicating no spray or showering

Uwaga

Warning symbol of a flame inside a diamond shape (no text or numbers)

Uwaga

Illustration showing hands inserting a power outlet into a printer, with an inset close-up of the printer's internal structure (no text or symbols)

Illustration showing a device being processed with a blue arrow indicating the process (no text or symbols present)

Illustration of hands inserting a printer into a machine (no text or symbols visible)

Hand inserting a plug into an electrical socket (no text or symbols visible)

FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK FAN SPEED 3 SEC. LOCK

? Service

→ Kontakt: Serwis
- www.opus.pl
• www.krug-priester.com
• [e-mail]

BLOKADA PRZYCISKÓW

Illustration of a hand cleaning a white industrial air purifier with a cloth (no text or symbols)

Illustration of hands handling a woven mat on a rectangular tray (no text or symbols)

Illustration of hands cleaning a textured surface in a container (no text or symbols)

Illustration of a hand pressing down on a textured rectangular object (no text or symbols)

Illustration of a computer with a paper feed into the front panel and a close-up of its cover sheet (no text or symbols)

Diagram of a mechanical or electrical component with grid and lever mechanism (no text or symbols)

Illustration showing hands cleaning a water dispenser and collecting water from a drain (no text or symbols)

? Service

• www.opus.pl
  • www.krug-priester.com
  • [e-mail]

Przechowywanie

Simple line drawing of a trash bin with two crossed x-axes and a blank base (no text or symbols)

CE

Wskazówki prawne

For more health, vitality and quality of life. Perceptible.

With every breath you take.

D-72336 Balingen (Germany)

www.krug-priester.com
