USER MANUAL WPS200B Witt

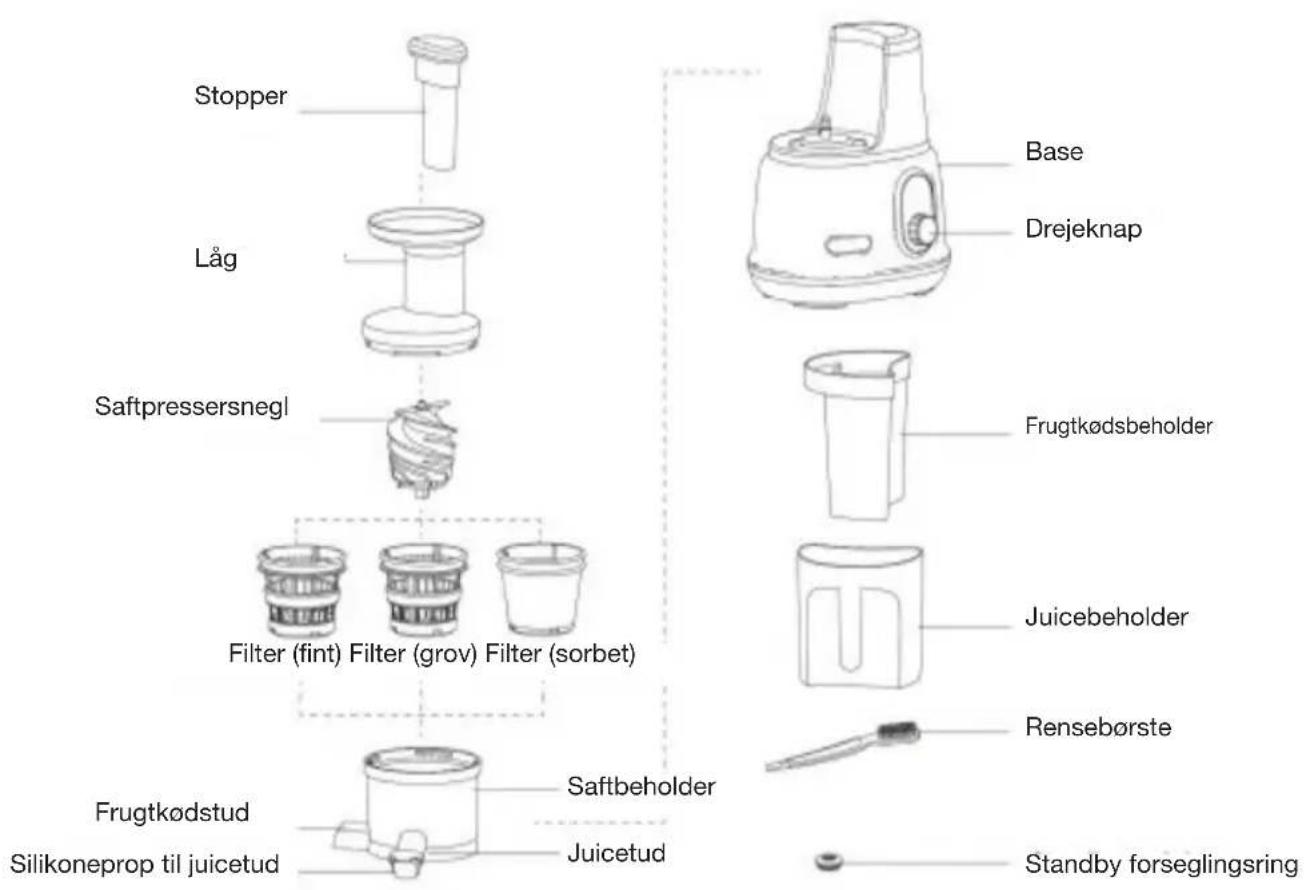

OVERSIGT OVER APPARATETS DELE

HVAD ER DER I KASSEN?

1xbase
1 x stopper
1 x saftbeholder
1 x lag til saftbeholder
1 x saftpressersnegl
1 x filter (fint)
1 x filter (grov)
1 x filter (sorbet)
1 x juicebeholder
1 x frugtkodsbeholder
1 x rensebørste
1 x standby forseglingsring

Montering

Carefully read this User Guide prior to using the machine and properly keep it for further reference.

• This product is only limited to general household use.
• Prior to connecting this product to power supply, confirm whether the voltage indicated at machine bottom is in compliance with local supply voltage.
• Do not connect machine plug and power switch with wet hands, to avoid electric shock or electric leakage.
• This product can only use a power socket with ground lead; before use, ensure the plug is securely inserted into the socket.
• Before each use of the machine, check filter assembly and squeezeer assembly. In case of any crack or damage, do not use the machine again and contact us via the unified national service hotline.
• When the power line, plug or other accessories or parts are damaged, stop using this machine.
• Children are not allowed to use this product when no adult is present.
• Before turning on the power switch, confirm all parts are correctly installed.
• When the cup cover is rotated in place and an obvious locking "click" is heard, the machine can only be used.
• Do not use the product on the table-board which is unstable or has poor heat resistance, to avoid falling from heights which can cause damages due to severe shock or cause a fire.
• During operation of the machine, do not put your fingers or other objects into the feed pipe. Only the pusher can be put into the feed pipe; otherwise, personal injury or damages to equipment can be caused.
• During operation of the machine, do not disassemble or assemble parts.
• Do not move the running machine.
• Under normal use, the continuous operation time can not exceed 1 hour.
• Turn off the power and wait until the juice squeezing assembly stops operation and then you can open the cup cover.
• After completion of juice squeezing, make sure to remove the power plug of the machine.
• Do not use over 60 degrees water or disinfection cabinet for disinfection to avoid thermal deformation of accessories which can influence use of product.
• Do not use chemicals or volatile substances to clean this product; otherwise, discoloration, decoloration or fire may be caused.
• Do not immerse main body of the machine into water or other liquid and do not flush it with tap water; you can only wipe the machine with wet rag.
• If power supply cord is damaged, it will be replaced and repaired by specialized staff of the manufacturer, its maintenance department or similar department, in order to avoid danger.

PRIOR TO USE

Unpacking

Open the package and take out foam insert. Take out all accessories and materials inside. Grasp the machine and take it out of the box.

Remove the plastic bag. Well keep the external package for further transportation.

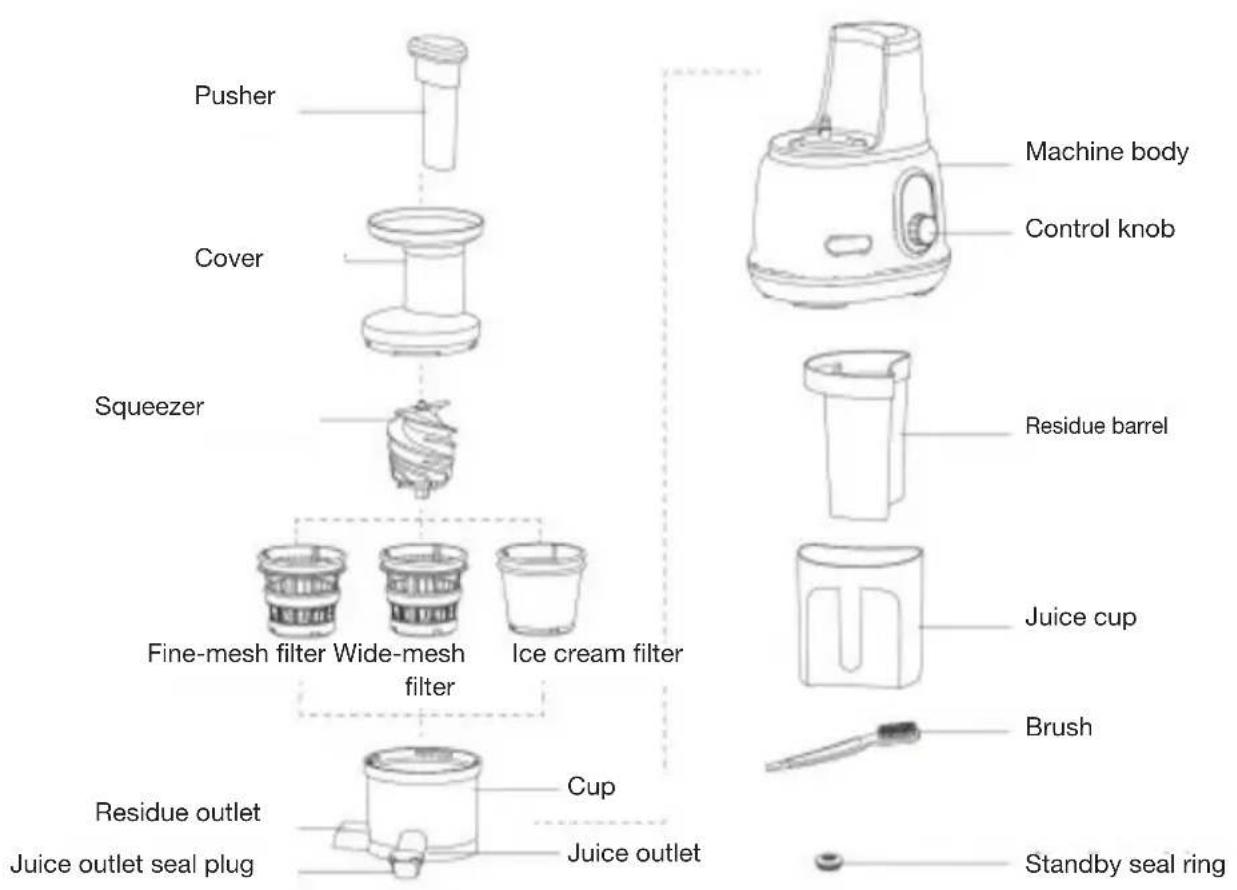

OVERVIEW: PART NAMES

WHAT'S IN THE BOX?

1 x mashine body
1 x pusher
1 x cup cover
1 x Squeezeer
1 x fine mesh filter
1 x wide mesh filter
1 x ice cream filter
1x cup
1 x juice cup
1 x residue barrel
1xbrush
1 x standby seal ring

MOUNTING

Completely clean all parts of the machine before first use (see "Cleaning and maintenance" for more information). Before juice squeezing, ensure all parts are completely dry

1. Check whether cup seal ring and residue outlet seal plug are installed in place.

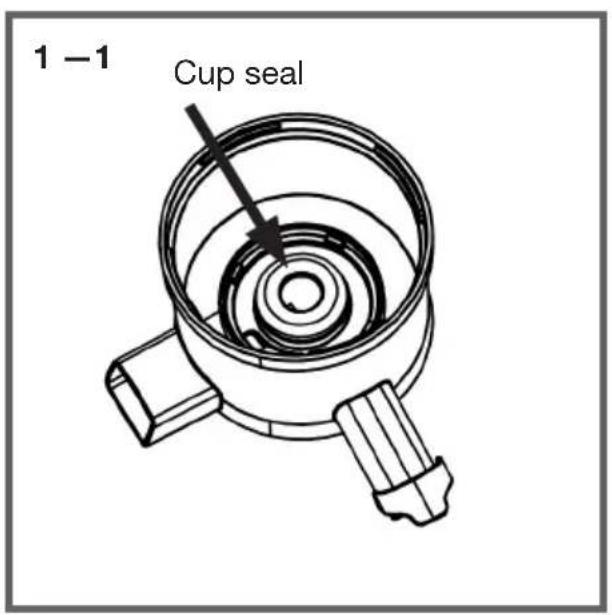

① Check that cup seal ring at the bottom is correctly installed. If not correctly installed, juice leakage will occur. (Fig. 1-1)

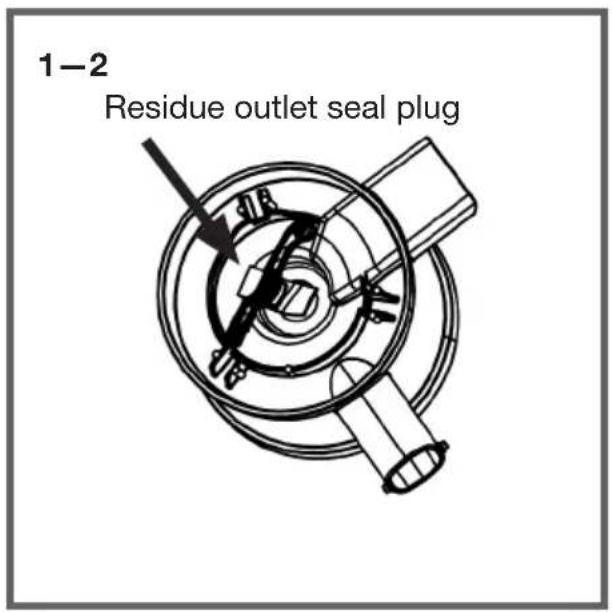

② Check that residue outlet seal plug is correctly installed; if not correctly installed, juice leakage and blocked residue discharge will occur.

Tightly insert the seal plug into the rectangular hole of the cup to make the cup seal ring installed in place. (Fig. 1-2, Fig. 1-3).

1. Install the filter and the squeezeer.

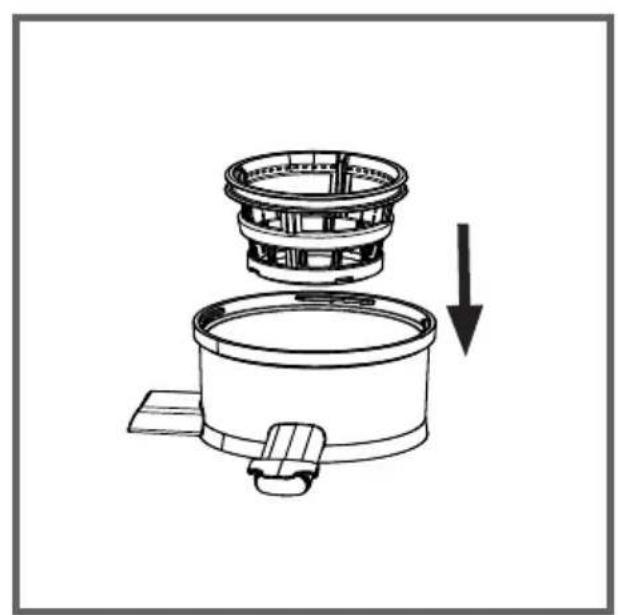

1 Place the filter into the cup. (Fig. 2-1)
② Place the squeezeer into the filter (Fig. 2-2)

Notice: When installing the machine, press down vigorously to make top surface of the squeezeer lower than filter top surface.

1. Install cup cover. (Fig. 3-1, Fig. 3-2)

① Make the "▼" symbol at lower part of the cup cover aligned with " " mark at upper part of cup; install it into the cup.
② Clockwise rotate the cup cover until symbol is aligned with ” mark at upper part of cup; also, there is a "crack" sound which indicates secure tightening.

1. Install cup assembly

Ensure that "symbol at lower part of the cup is aligned with " symbol on the machine body. (Fig. 4-1, fig. 4-2).

1. Connecting power supply, place juice cup and residue barrel (fig. 5).

INSTRUCTIONS ON GEARS

"Ultra-hard" gear: Applicable to various fruit ice cream and hard fruits and vegetables: such as banana smoothie, strawberry smoothie, carrot, etc.

"Hard" gear: Applicable to various hard fruits and vegetables: such as pears, apples, celery, etc.

"Soft" gear: Applicable to various soft fruits and vegetables: such as watermelons, strawberries, tomatoes, etc.

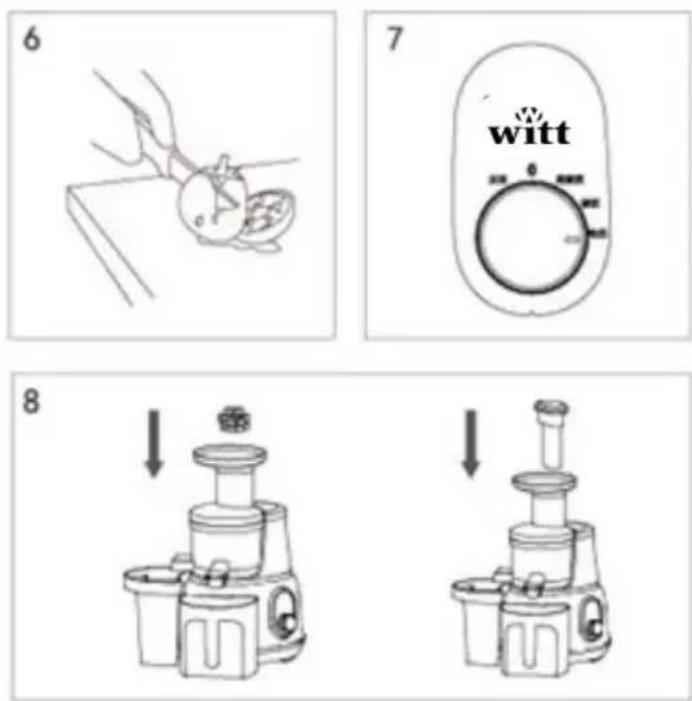

Using method

1. Clean fruits or vegetables and cut them into cubes that can be put into the feed pipe. (Fig. 6).

2. Switch on the power supply and rotate the knob to the corresponding gear according to fruit type. (Fig. 7).

3. Feed cut cubes from the feed pipe and softly press them into the cup with the pusher. (Fig. 8).

4. After all materials are processed and there is no juice flowing out, turn the control knob to the off position; disconnect the power supply; at the same time, close the seal plug at the juice outlet, to prevent residual juice dripping to the table surface.

ADVICE REGARDING USE

Notice:

1. Do not put your fingers or other objects into the feed pipe. Only the pusher can be put into the feed pipe; otherwise, personal injury or damages to equipment can be caused.
2. The machine can only be normally used when all parts are correctly installed and the cup cover and cup are well locked.
3. During juice squeezing, slight shaking of cup is normal.
4. Do not press the pusher with too much force; otherwise, juice quality can be affected and the squeezeer assembly may stop rotation.
5. It is recommended to duly drink the newly squeezed vegetable and fruit juice. Its quality and taste can be affected after a long time of storage.
6. Do not continuously use the product for more than 1 hour, to avoid overheating of machine.
7. After squeezing of some fruits and vegetables, the squeezeer, filters, cup and other accessories may be colored. This is a normal phenomenon and does not affect normal use.
8. Use fresh fruits and vegetables. That is because fresh fruits and vegetables contain much more juice. Pineapples, beet, apples, cucumbers, carrots, any kind of melon or gourd, pomegranates, oranges and grapes are specially applicable to juice squeezing in the machine.
9. It is needed to remove thick skin in advance, such as pineapples, watermelons and pomegranate; it is not needed to remove tender or thin sinks of fruits.
10. It is needed to remove kernels or hard seeds, such as peaches, plums and cherries.
11. Fruits containing starch such as bananas, avocados, figs and mangos are not suitable for juice squeezing in machine, except when using the ice cream filter. These kinds of fruits can be processed with fruit processing machine or mixer.
12. Leaf vegetables and stems of leaf vegetables can also be used for juice squeezing; slightly and slowly press the pusher during squeezing.

FILTERS

Fine-mesh filter: Applicable to hard fruits and vegetables like apples, carrots, etc.

Wide-mesh filter: Applicable to soft fruits and vegetables like tomatoes, organs, etc.

Ice cream filter: Applicable to making various fruit ice cream.

Using ice cream filter

1. Change the juice filter into ice cream filter along with the squeezeer.
2. After installing the machine, switch on the power supply and turn the knob to "ultra-hard" gear.
3. Put frozen fruit into the feed pipe and softly press it into the cup with a pusher.

Notice:

1. After remove skin and kernel of fruit, cut the pulp into small cube 2cm^*2cm and freeze for about 10 hours, before making your ice cream.

HANDLING SPECIAL CASES

If during operation, the machine automatically stops, turn the control knob to OFF position "0"; then, turn the control button to "Reverse" position; then turn the control knob to the corresponding gear for normal use. If stalling still lasts, recommend to remove food in the squeezezer before continuing to use it.

This can protect the motor.

CLEANING AND MAINTENANCE

Turn the control knob to "0" gear to shut down the machine. Remove the plug from the socket and wait until the filter totally stops rotation (Fig. 9).
2. Take the pusher, and move juice cup and residue barrel out (Fig. 10).
3. Rotate the cup cover counterclockwise until the "▼" symbol on the cup cover is aligned with "mark at upper part of cup; then take the cup cover down from the cup (Fig. 11).
4. Take the cup down from the machine body (Fig. 12).

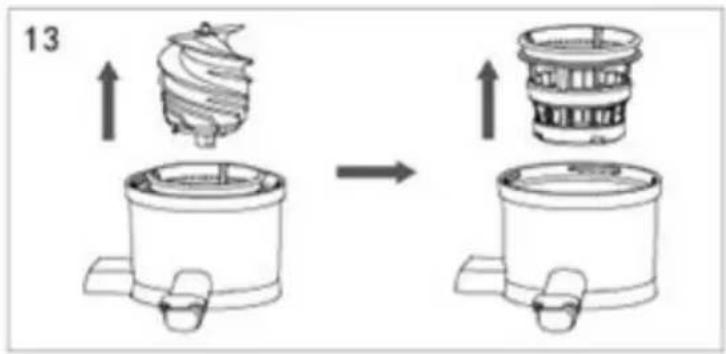

5. Take the squeezeer and filter (Fig. 13).
6. Open the residue hole seal plug at the cup bottom (Fig. 14).
7. Dip the cleaning brush into warm water with a small amount of detergent; clean these parts with the cleaning brush and then flush them with tap water (Fig. 15).
8. Use wet cloth (whose water is squeezed out) to wipe the machine assembly, but do not let water go inside (Fig. 16)

Notice:

1. Do not immerse the machine into water and do not flush it under the faucet.
2. Do not clean the filter directly with hands to avoid scratch.
3. If the product is immediately cleaned after use, it will be more easily cleaned.
4. Do no use steel wool, abrasive, corrosive solvents (acetone and ethyl alcohol), etc. to clean the machine.
5. All dismountable parts can be cleaned.

OVERVIEW: FRUIT AND VEGETABLES

Fruit/vegetable Vitamin	in/mineral Kilocalorie/calorie		Appropriate processing gear
Apple Vitamin C 200g=150KJ (72 calories) Hard
Apricot	Rich in dietary fiber, containing potassium	30g=85KJ (20 calories) Hard
Beet	Folic acid, dietary fiber, Vitamin C and potassium	160 g = 190 KJ (45 calories)	Hard
Blueberry Vitamin C		125 g = 295 KJ (70 calories)	Hard
Cabbage	Folic acid, dietary fiber, Vitamin C and potassium	100 g = 110 KJ (26 calories)	Hard
Carrot	Vitamins A, C and B6 and dietary fiber	120 g = 125 KJ (30 calories)	Ultra hard
Celery Vitamin C and potassium 80 g = 55 KJ (7 calories)	Hard
Cucumber Vitamin C		280 g = 120 KJ (29 calories)	Soft
Fennel Vitamin C and dietary fiber	300 g = 145 KJ (35 calories)	Hard
Grape	Vitamins A and B6, and potassium	125 g = 355 KJ (85 calories)	Soft
Kiwi Vitamin C and potassium	100 g = 100 KJ (40 calories)	Soft
Hami melon	Vitamin C, folic acid, dietary fiber and Vitamin A	125 g = 355 KJ (85 calories)	Hard
Nectarine	Vitamins C and B3, potassium and dietary fiber	180 g = 355 KJ (85 calories)	Hard
Peach	Vitamins C and B3, potassium and dietary fiber	150 g = 205 KJ (49 calories)	Hard
Pear Dietary fiber		150 g = 205 KJ (60 calories)	Hard
Pineapple	Vitamin C	125 g = 355 KJ (85 calories)	Hard
Strawberry	C-vitamin, Fe, K og Mg	125 g = 130 KJ (31 calories)	Soft
Tomato	Vitamin C, dietary fiber, Vitamin E, folic acid and Vitamin A	100 g = 90 KJ (22 calories)	Soft

Fault Possible cause	Remedy
The machine does not work	Poor contact between power plug and socket	Re-insert the plug or change the socket and then try again
	Cover is not rotated in place	Rotate the cover in place according to the indication in the user guide
Peculiar smell is from motor unit	Motor is first used and this is a normal phenomenon	This phenomenon occurs in the first several uses and this is normal.
	Machine overloading for operation	Check whether the voltage is that indicated in the nameplate.
Abnormal vibration or large noise is present on the machine	Motor unit failure	Turn off machine power and remove the power plug; then send it to the local specified maintenance station for repair or dial the service hotline.
Many residues in juice	Juice filter damage	Turn off machine power and remove the power plug; then send it to the local specified maintenance station for repair or dial the service hotline.
	Wide-mesh filter is used to squeeze hard fruit	Use the fine-mesh filter to squeeze hard fruit
The filter is blocked	This product is not applicable to squeezing some fruits	This product is not applicable to squeezing fruits and vegetables that have continuous fiber and is fibrous and hard
	Overloaded amount for processing	1. Turn off machine power and remove the power plug; after the machine completely stops rotation, clean the feed pipe, squeezeer, filter and cup.2. Check amount for processing and processing time according the user guide
	The filter is not cleaned Clean the filter
Problem Mulig Årsag Løsning
The machine stops operation during use	Food with hard kernel is put in	Turn the control knob to “Reverse” position, to take out food; then turn off the machine power and remove the power plug; after the machine totally stops, remove the food from the squeezeer.
	Overloaded amount for processing	Turn off machine power and remove the power plug; after the machine completely stops rotation, clean the feed pipe, squeezeer, filter and cup.
	Too long continues operation time	Turn the control knob to OFF position; disconnect the power supply and let the machine cool down
Juice flows out from the upper part of machine	Check whether residue hole seal plug and cup seal ring are missed or not installed in place.	Reinstall residue hole seal plug and cup seal ring in place.
Upper cover can not be opened	Food piles up at the upper part of squeezeer and is not fully squeezed	Turn the control knob to the corresponding gear to make the machine continue to squeeze food.
	Foreign or hard objects are put in	Turn the control knob to “Reverse” position to take the food out, then switch to the “Off” position.
	Upper cover is deformed or damaged	Turn off machine power and remove the power plug; then send it to the local specified maintenance station for repair or dial the service hotline.
Upper cover can not tightly closed	Filter or the squeezeer is not installed in place	Re-install all parts in place as per the user guide.

If there are other faults and special tools are needed, make sure to come to the specified maintenance station for replacement.

PRODUCT SPECIFICATIONS

ENEN

Machine model: WPS200B

Power supply: 220V - 50Hz

Rated power: 200W

WARRANTY

A two year guarantee on manufacture and material defects is granted on your new appliance valid from the documented purchase date. The guarantee includes materials, salary and transport. When contacting service please state the appliance model and serial number.

The guarantee does not cover:

• Defects and damages which are not caused by manufacture and material defects.
• If original spare parts have not been used.
• If the instructions in the manual have not been carried out.
• If the installation has not been carried out according to this manual.
• If unauthorized personnel has carried out installation or repair word.

Transport damages

A transport damage observed when the dealer delivers the appliance at the customer is solely a matter between the customer and the dealer. If the customer has carried out the transport alone the manufacture / supplier cannot be held responsible for transport damages. All transport damages must be reported no later than 24 hours after delivery otherwise all claims will be rejected.

Unnecessary service visits

If a service technician is called out to a defect and the customer could have corrected the defect without help e.g. by following the instructions within this manual or by changing a fuse the customer will be charged all service costs - even under guarantee.

Commercial purchase

Commercial purchases are any purchase of appliances not used in a domestic household but instead are used for commercial purposes e.g. in a restaurant, café etc. or used to rent out or used for any other purpose including several users. In case of commercial purchase no guarantee is granted on this appliance since this is only meant for domestic household use.

SERVICE

For service and spare parts in England and Ireland please call below-mentioned number and you will be directed accordingly or send us an email.

Witt UK & Ireland Ltd.

(44) 148 351 6633 / [e-mail]

INNHOILDSFORTEGNELSE

SIKKERHETSANVISNINGER 39
FOR BRUK 40
OVERSIKT OVER APPARATETS DELER 40
HVA SOM FOLLGER MED I ESKEN 41
MONTERING 43
SLOWJUICERENS PROGRAMMER 45
GODE RAD VEDR. DRIFT 46
FILTER 47
HANDTERING AV PLUTSELIG MASKINSTOPP 47
RENGJORINGOGVEDLIKEHOLD 48
OVESIKT OVER FRUKT OG GRØNNSAKER 50
FEILSOKING 51
SPESIFIKASJONER 53
REKLAMASJON OG SERVICE 54

SIKKERHETSANVISNINGER

HVA SOM FØLGER MED I ESKEN?

1xbase
1 x stopper
1 x saftbeholder
1 x lokk til saftbeholder
1 x saftpressespiral
1 x filter (fint)
1 x filter (grov)
1 x filter (sorbet)
1 x juicebeholder
1 x beholder til fruktkjott
1 x rensebørste
1 x standby forseglingsring

Montering

För du bruker slowjuiceren for Förste gang, mä du rengjore og törke alle delene grundig (se avsnittet «Rengjöring og vedlikehold»).

Slowjuicerns program
