USER MANUAL EBO SE enabot

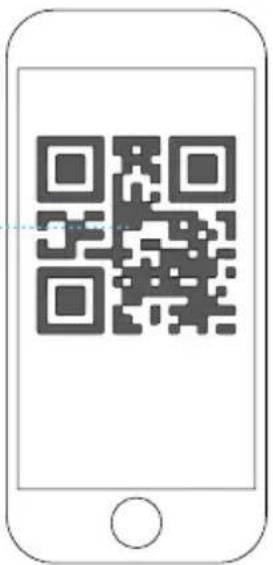

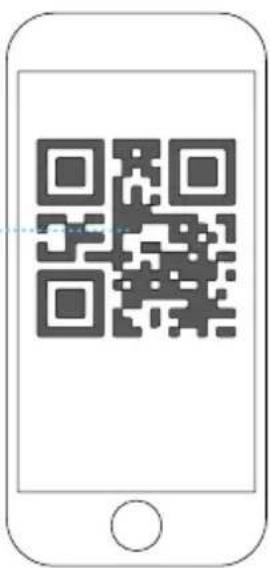

Download the EBO APP by scanning the QR code

English

1. Device Connection ....01
2. Interface Instructions ....03
3. Function Description ....04
4. General Instructions 05
5. EBO HOME ....07

Deutsch

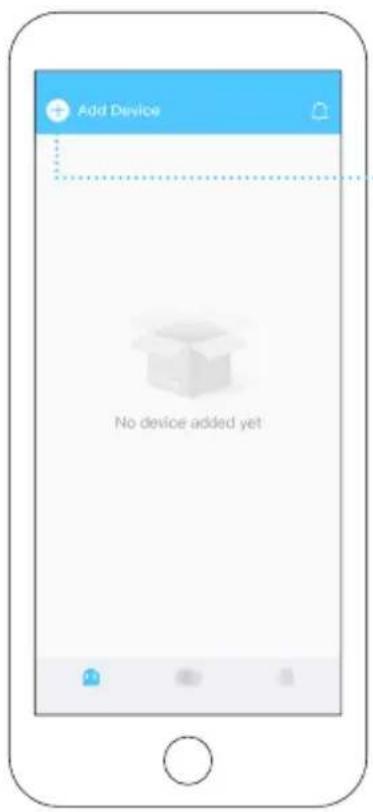

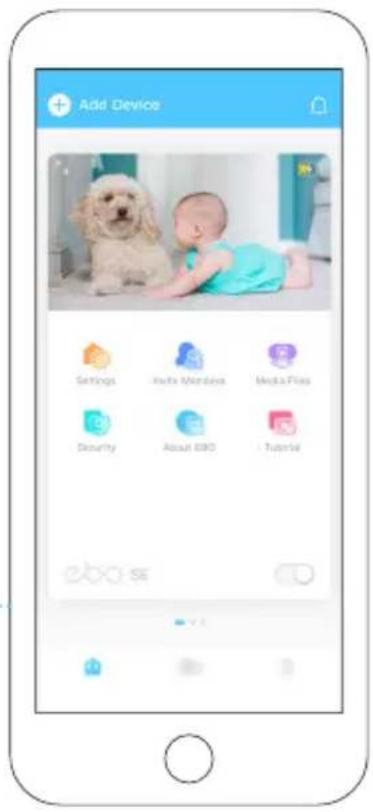

Register on EBO APP and click '+' to connect.

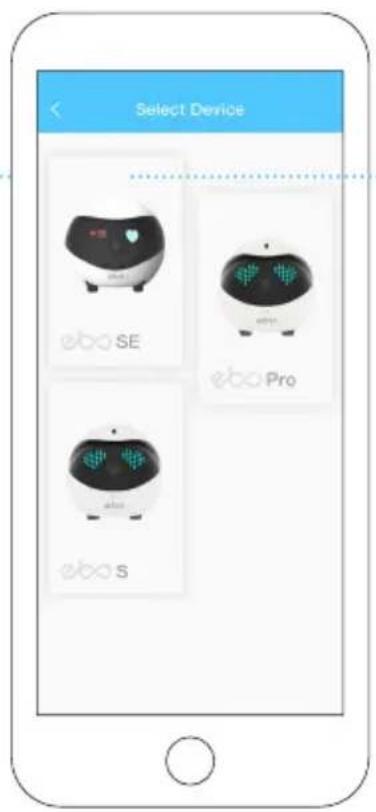

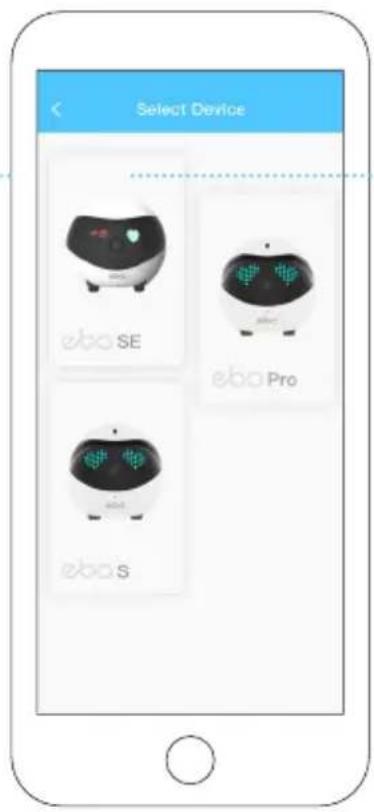

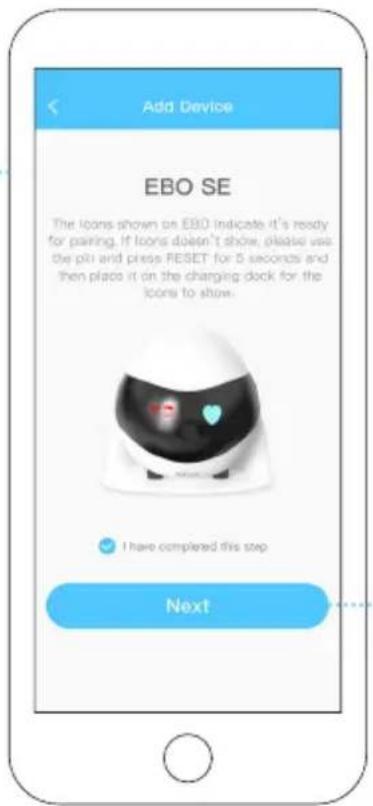

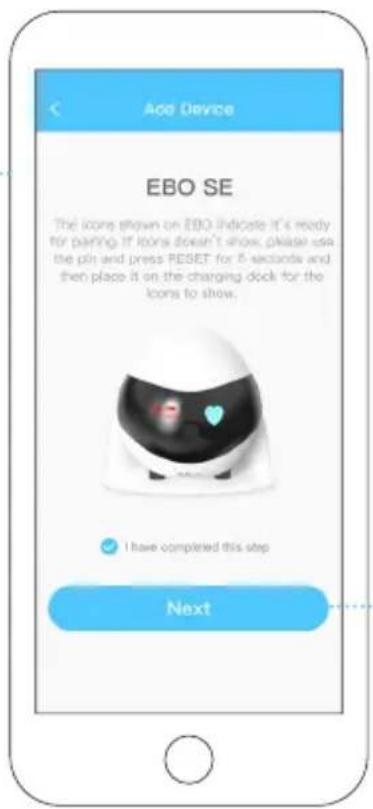

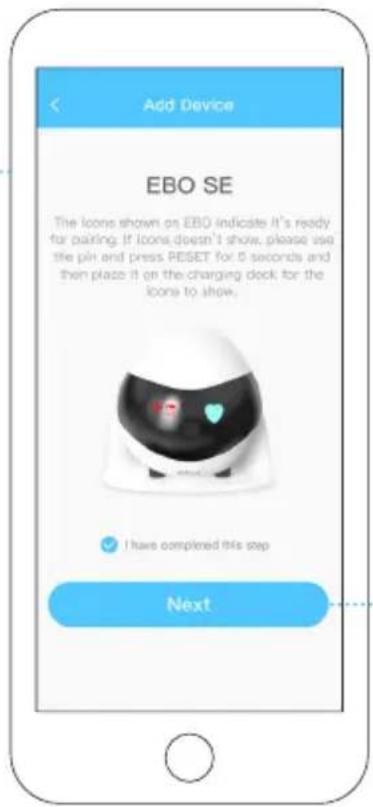

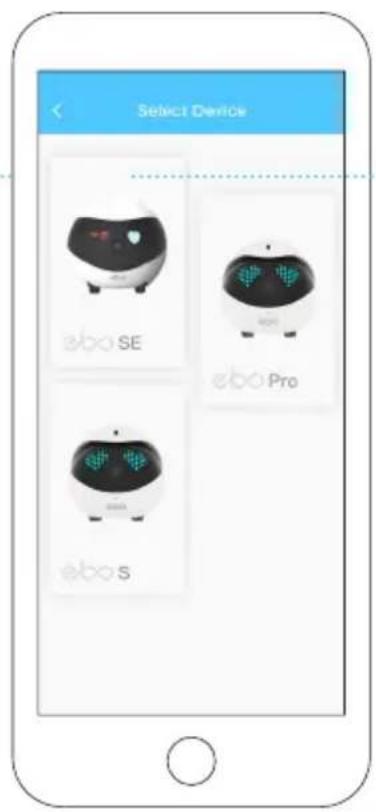

Select device card for EBO SE.

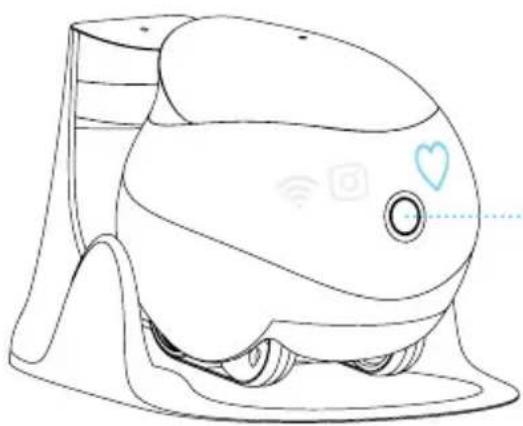

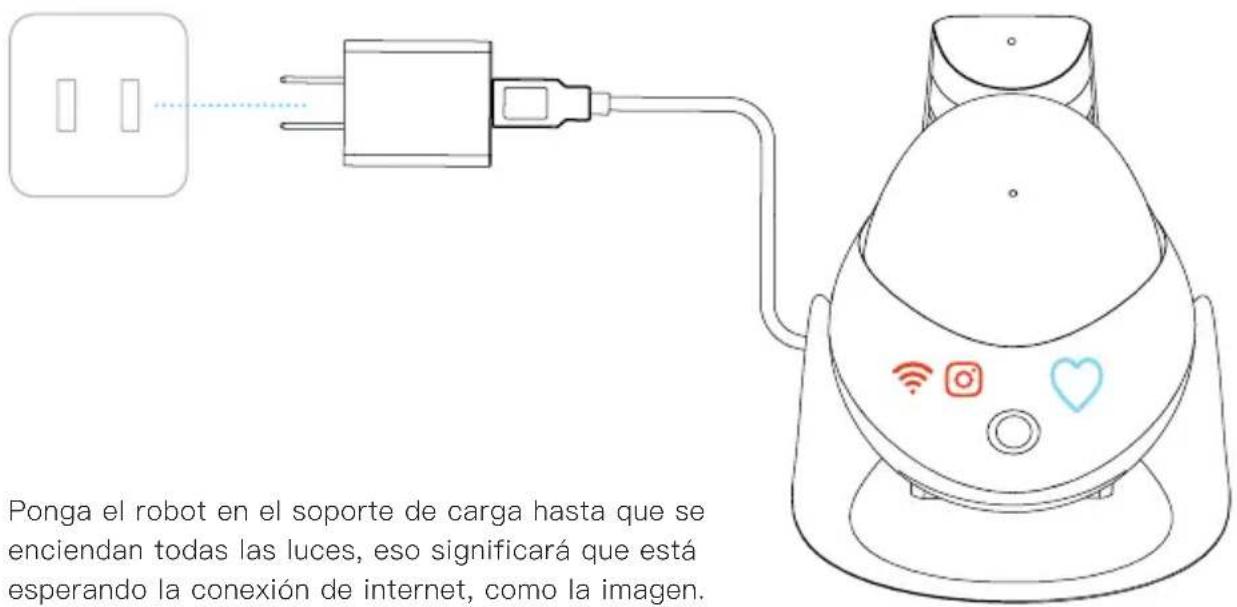

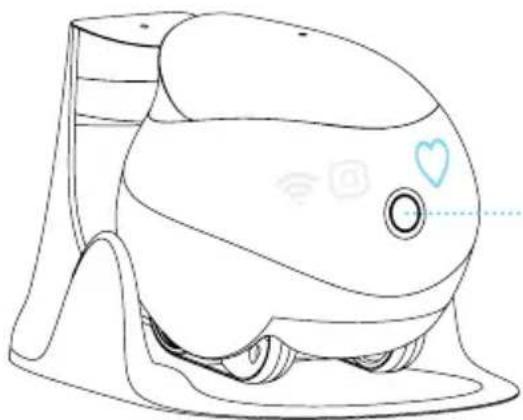

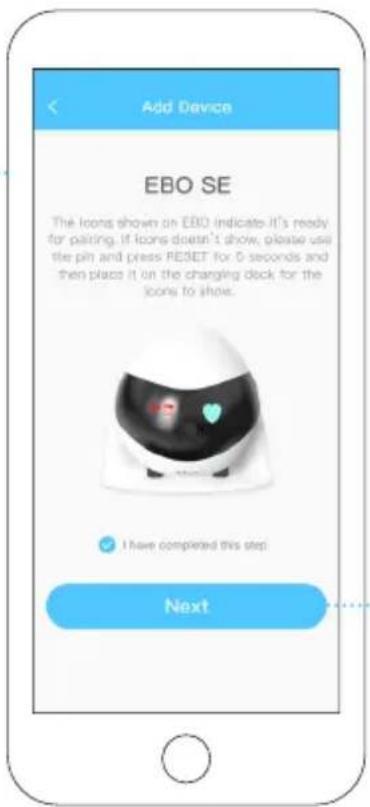

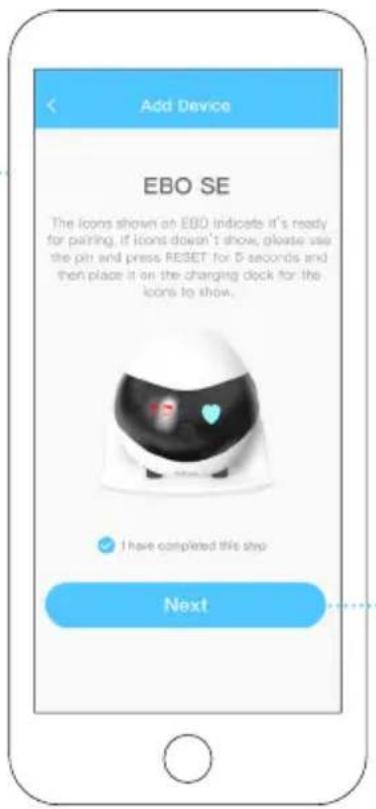

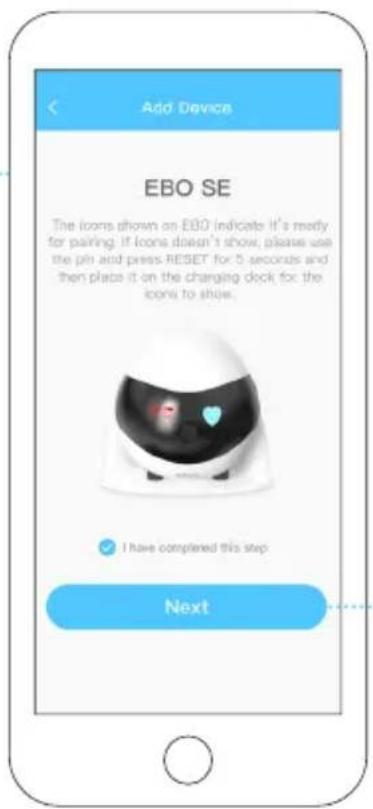

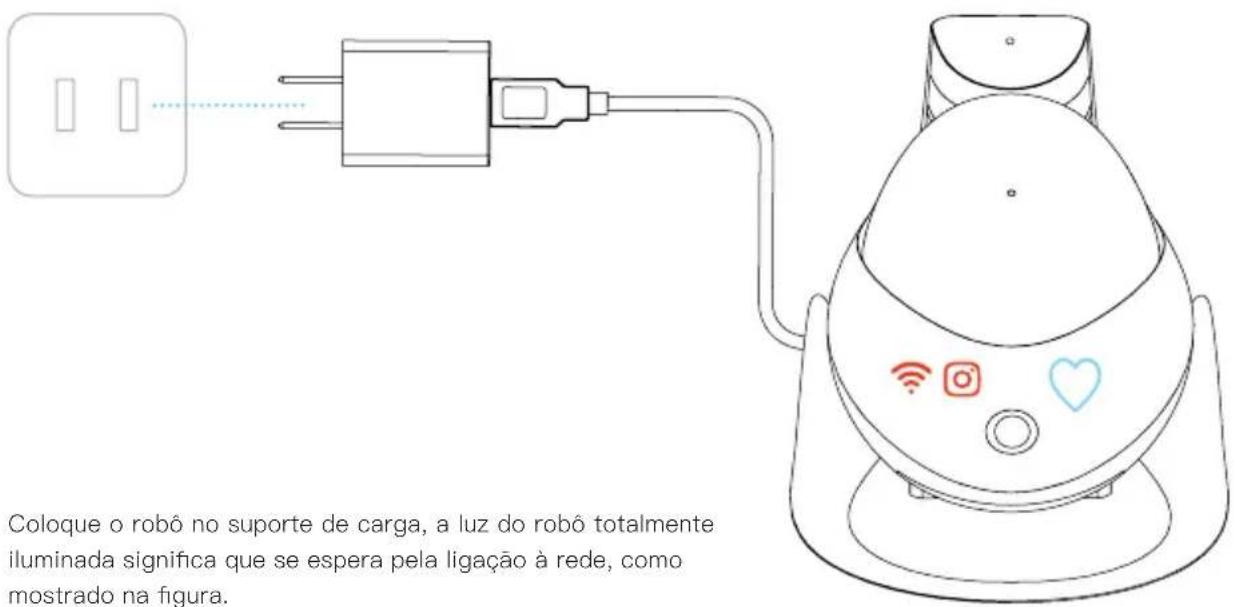

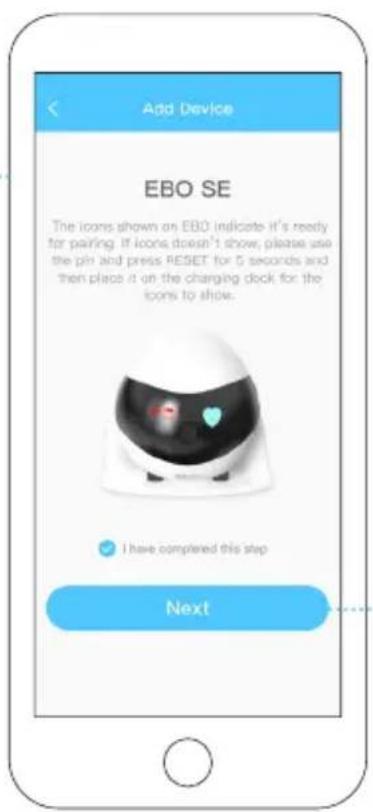

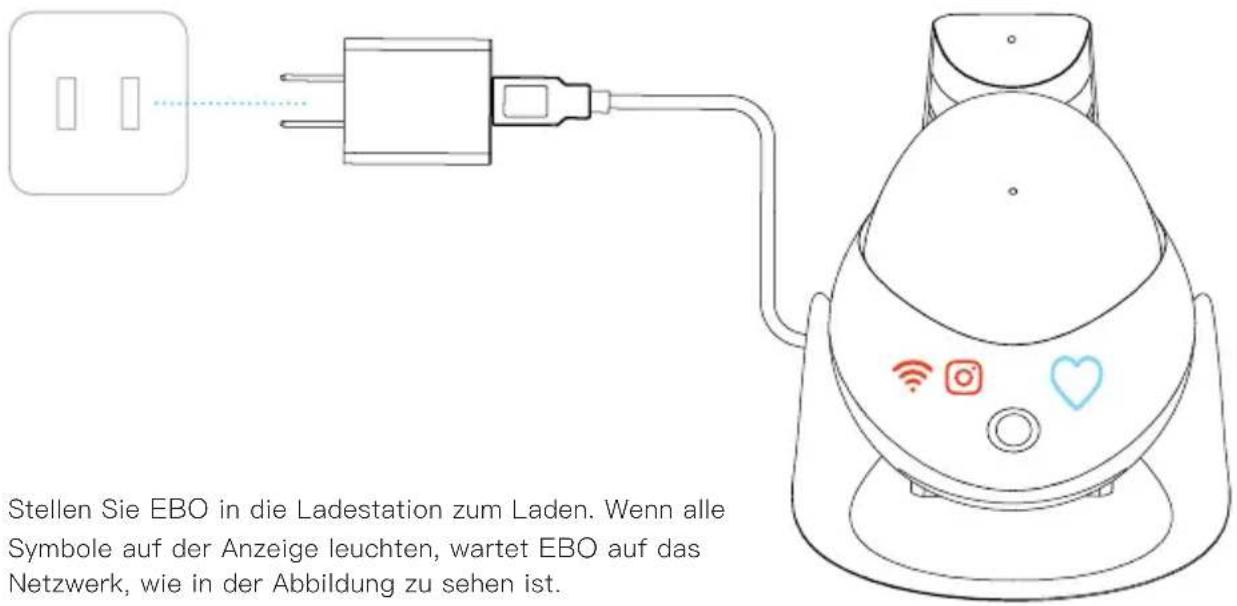

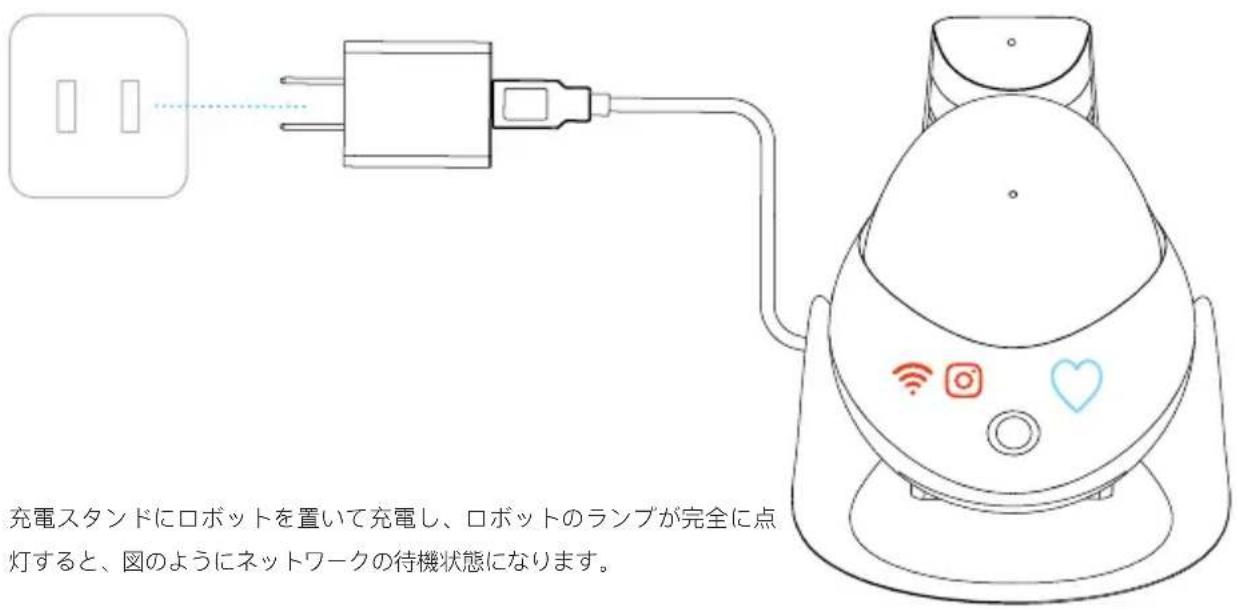

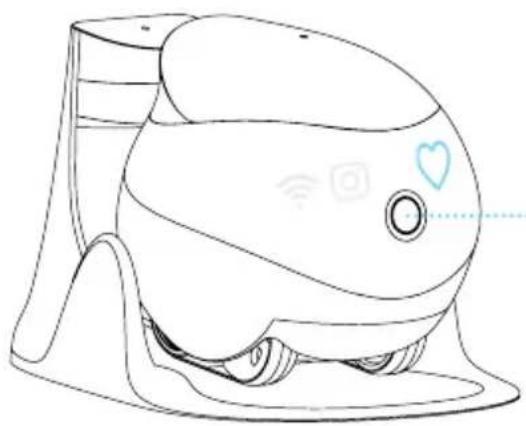

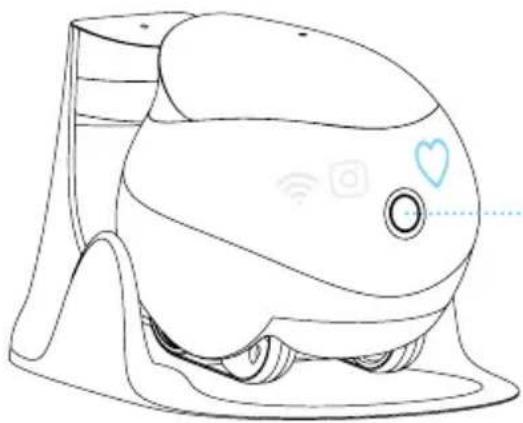

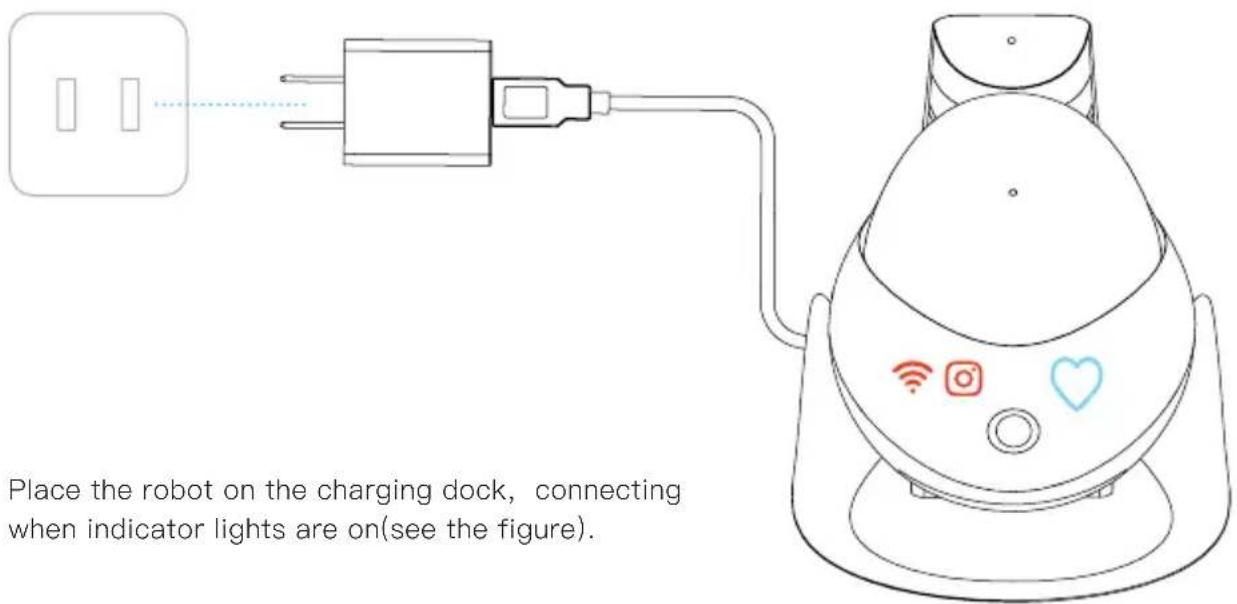

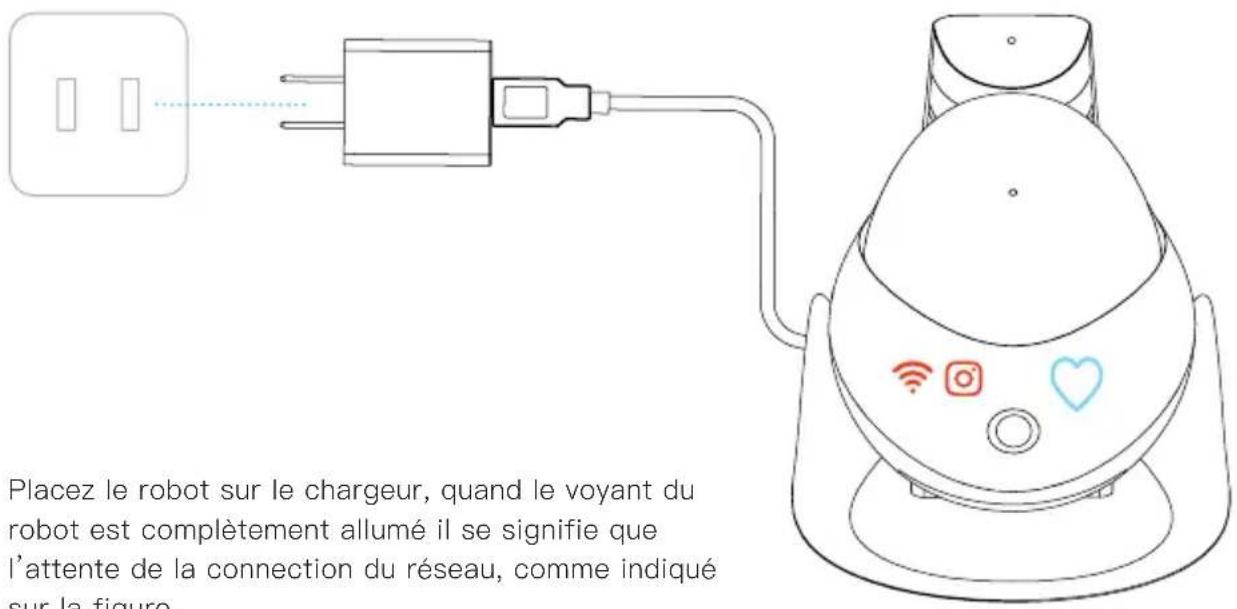

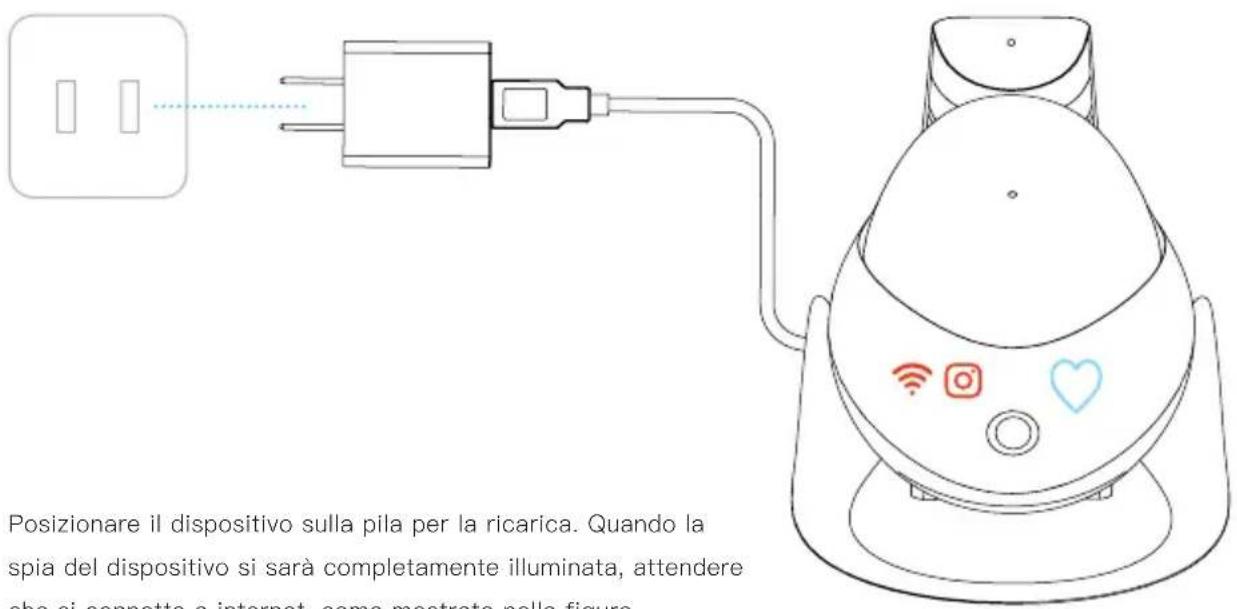

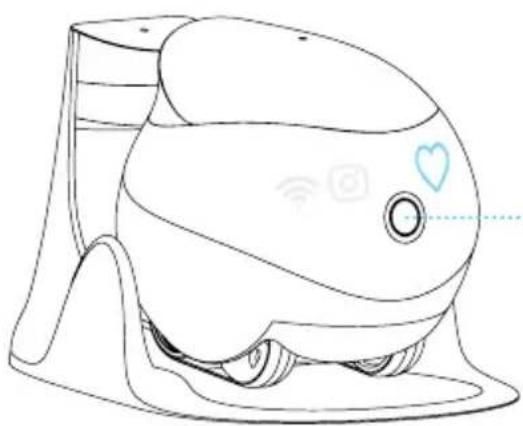

Place the robot on the charging dock.

4

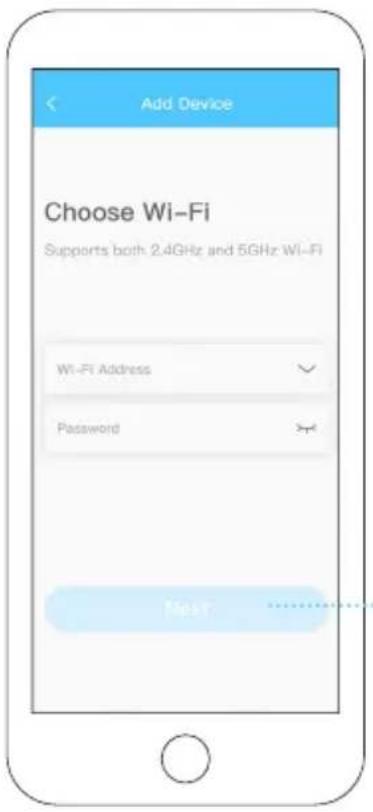

Select Wi-Fi Network; Put in password; Click NEXT

5

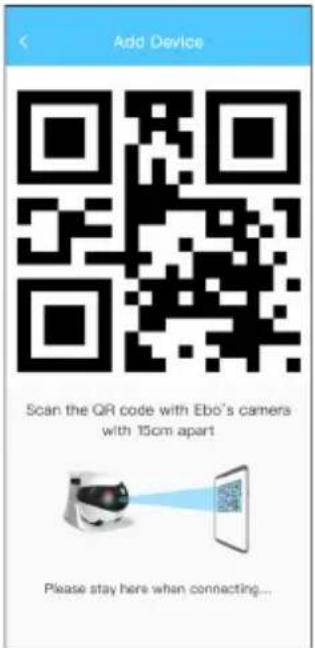

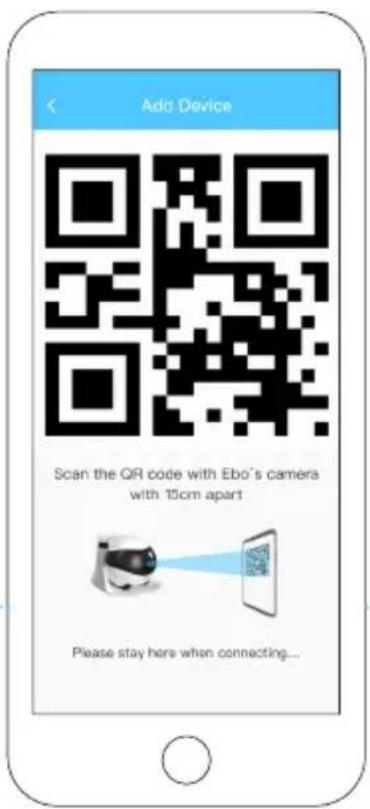

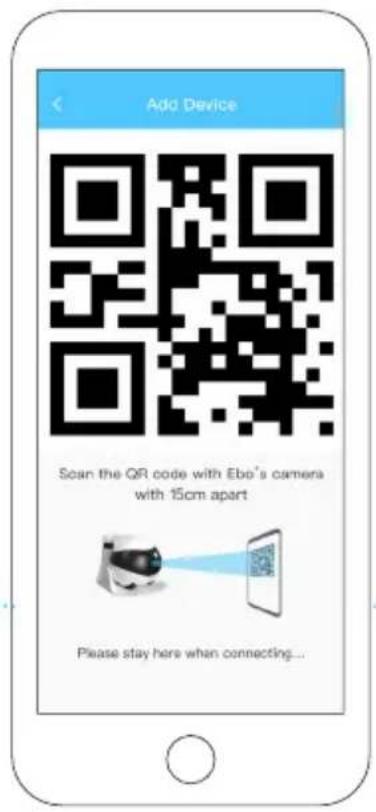

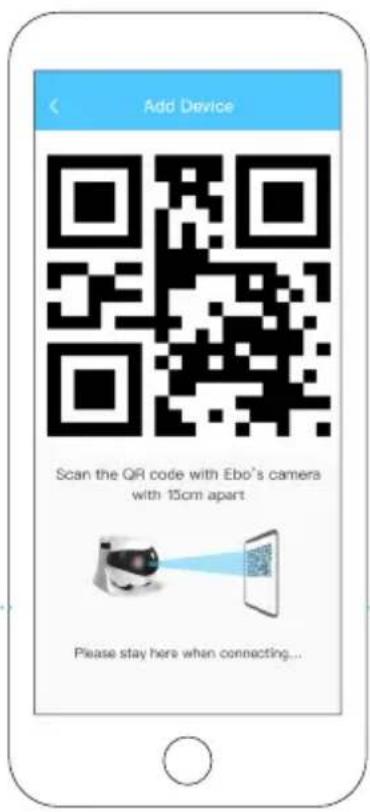

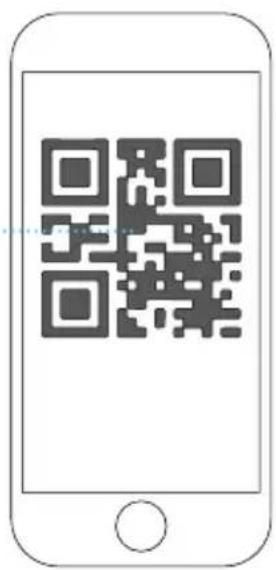

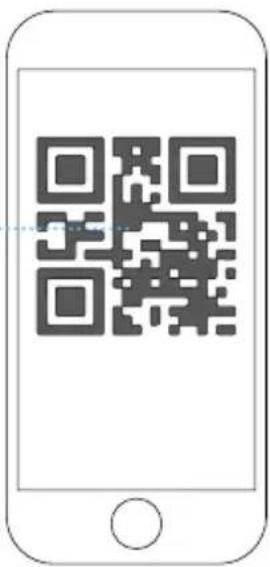

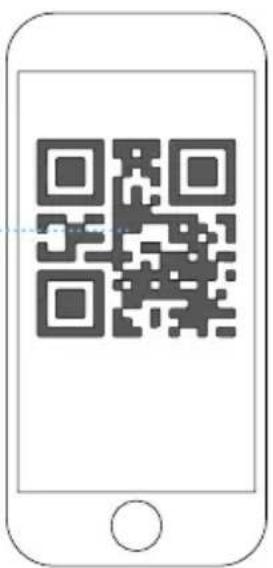

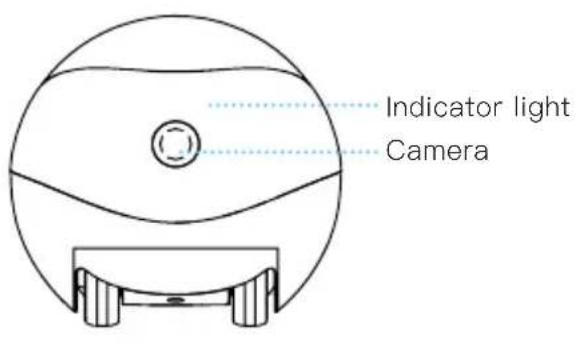

Scan the QR code with the robot camera.

6

Successfully Connected!

Line drawing of a robotic device with sensor icons and heart symbols (no text or labels)

About 15cm Apart

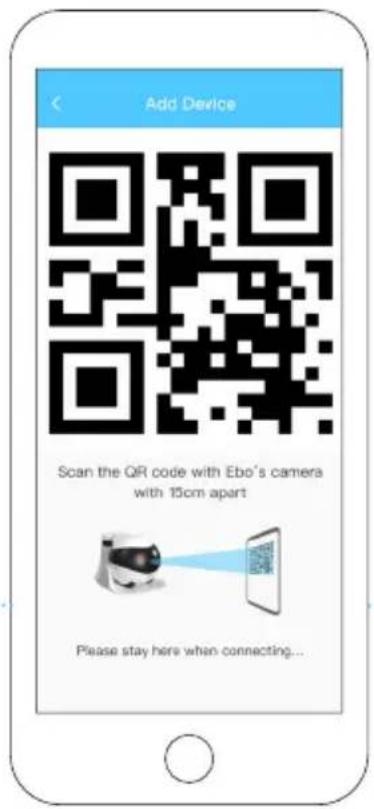

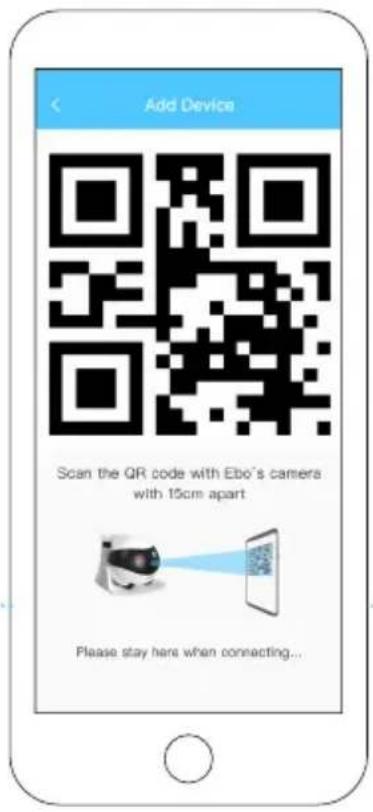

Scan the QR code with EBO's camera until 📷 and 📷 are off, and the pairing is successful.

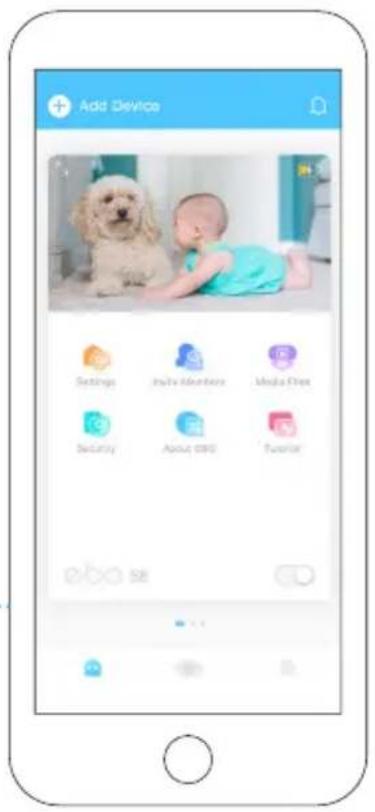

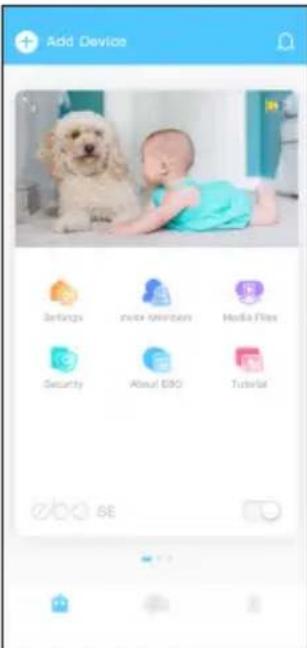

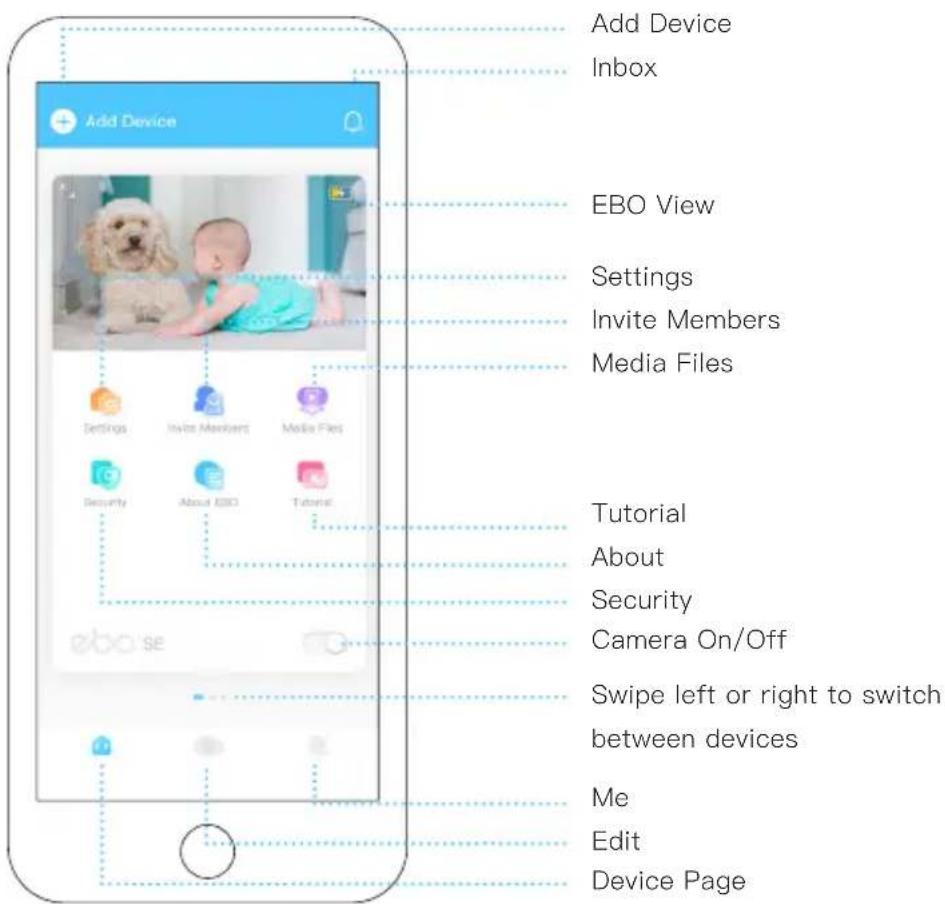

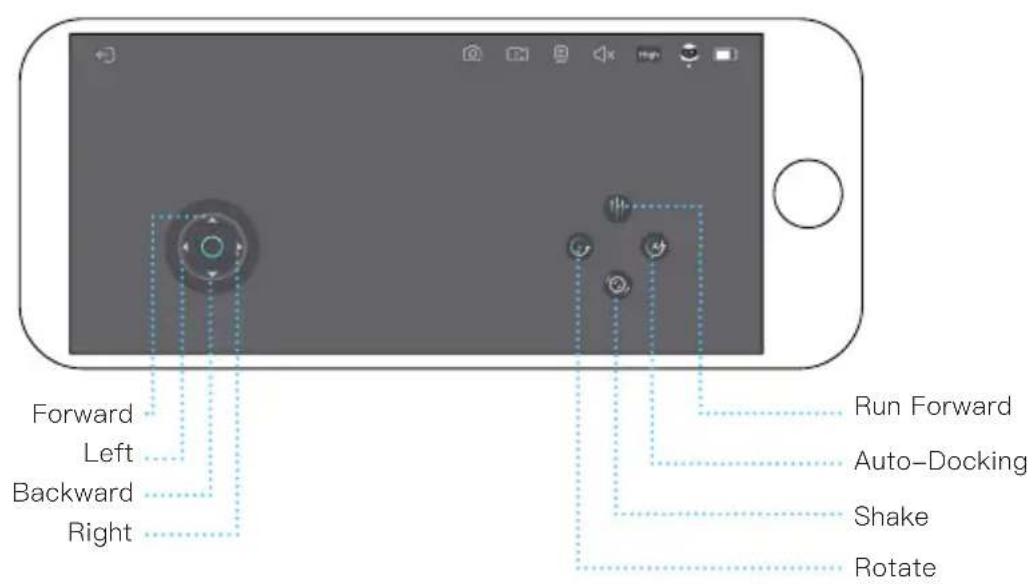

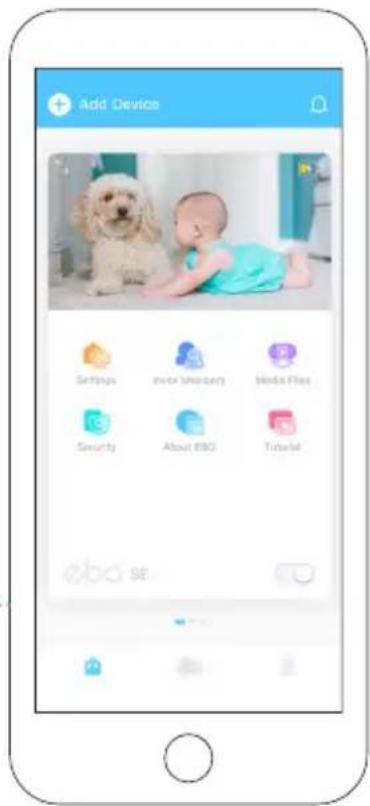

Interface Instructions

Function Description

1. Add Device: Click the + sign in the upper left corner of the page to quickly pair a device;

2. Message: About Device, Detection Warning, Friends Share;

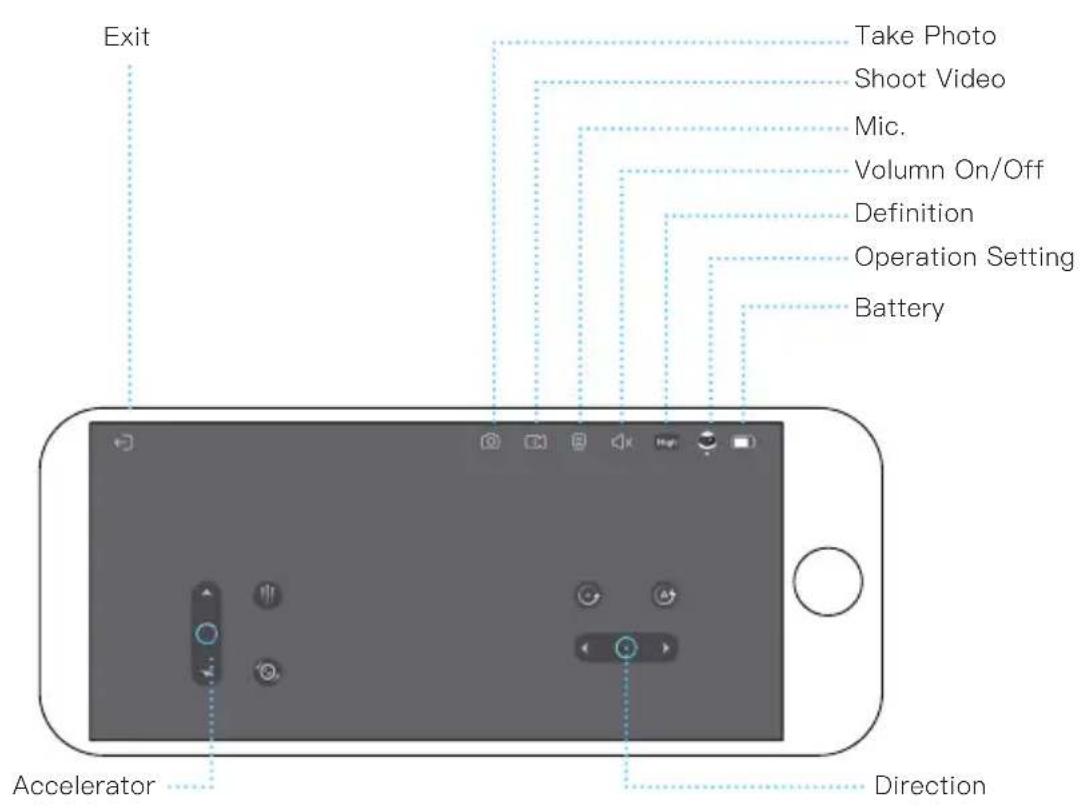

3. EBO View: Remote Control, Talk to your Family, Take Photos/Videos, Play with your Pets;

4. Settings: Wi-Fi, Device Volume, Device Light, Do-Not-Disturb Mode;

5. Invite Members: EBO supports one admin user and multiple guest users;

6. Media Files: Local files (stored in the local SD card), Downloaded files (files downloaded from the local SD card to the phone), Like (Archived files);

7. Security: EBO will protect your home as scheduled;

8. About: About (Device Model, Parameters), Device Report (Robot Status–Check),

Log Upload (Click And Upload Log Files);

9.Tutorial How to use EBO;

1. Sleep On Sleep Mode, both the camera and the speaker are automatically disabled;

(CameraOn/Off):

1. Edit: Can help you make video files quickly.

General Instructions

Technical line drawing of a mechanical component with circular outline and internal features (no text or symbols)

Charging Contact Point

Reset Button

Detachable Screw

*Smaller-end of the pin

Power on/off and RESET of EBO: Use the Smaller-end of the pin to press RESET

POWER ON: Press RESET for 2 seconds (or place the robot on the charging dock)

POWER OFF: Click RESET twice

REBOOT: Click RESET 1 time when EBO is on

RESET: Press RESET for 5 seconds until you hear 'ebo'

*Larger-end of the pin

How to clean the wheels?

Dismount the screws at the bottom with the Larger-end of the pin to disassemble the wheel set for cleaning.

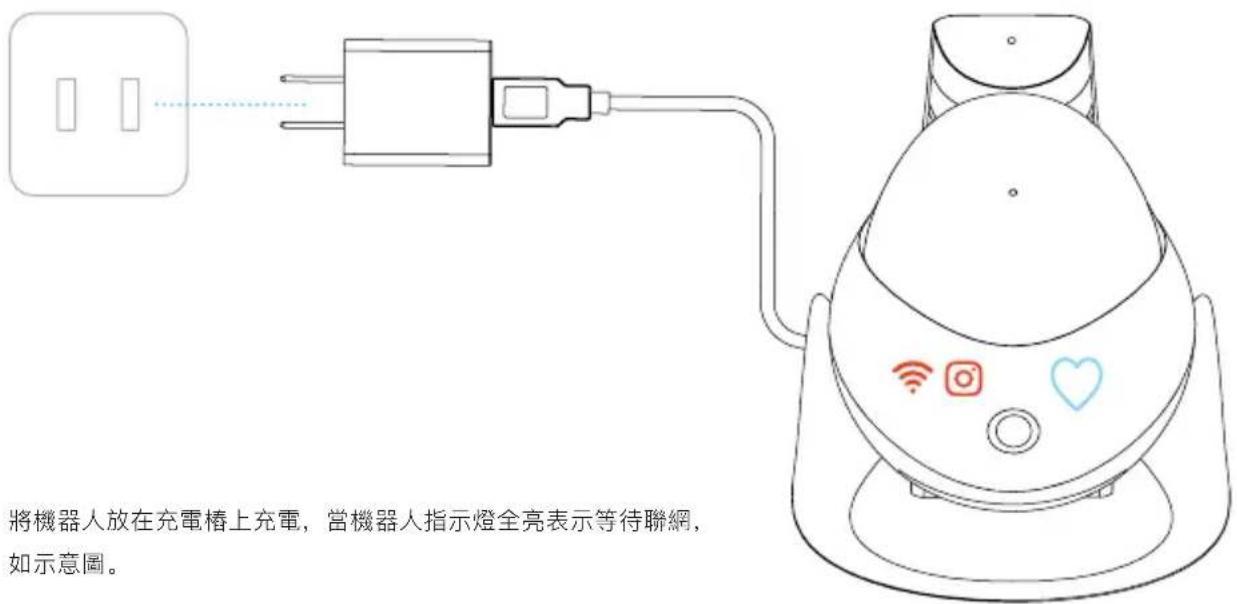

Power Socket

Adapter USB

Connector

2m
Empty Space

Indicator Light

Red Light: Charging

Green Light: Full

○ Lights Off: No Power

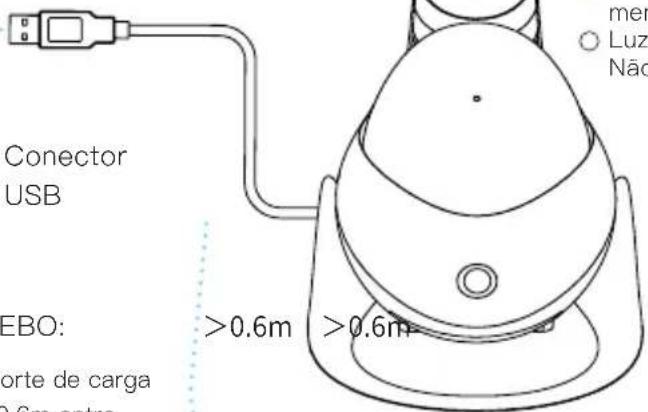

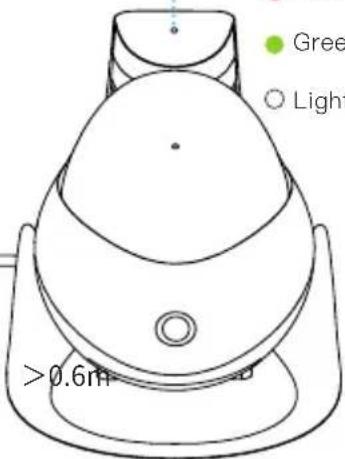

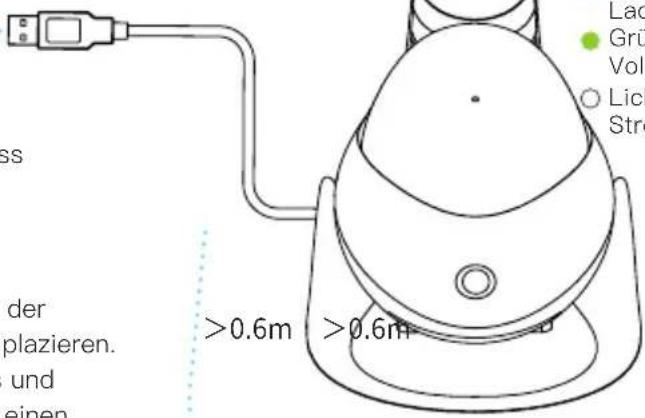

Note for charging EBO:

Place the back side of the charging dock along the wall and free from any obstacles 0.6 meters on right/left and 2 meters in front.

Equipment And Parameters

Function	Remote Control, Talk To Your Family, Take Photos/Videos, Play With Your Pets, Security Function, Sharing Equipment
Definition	1080P
Angle	D: 118° H: 98.5° V: 62.5°
Auto Charging	Infrared
Wi-Fi	2.4G、5G
Moving Speed	20cm/s-60cm/s
Product Size	W95mm*H89.2mm*L95mm
Product Weight	282g±20g
Battery Capacity	2500mAh
Charging Voltage	DC-5V/2A
Charging Time	2~3H
Battery Endurance	4~7H
File Format	AVI、JPG
SD Card	Expandable To 256G Maximum
Executive Standard	GB8898-2011

Precautions:

1. For daily use, it is recommended to place EBO on the charging dock to ensure that EBO is always on-line;
2. EBO is not waterproof. Please keep EBO away from water;
3. Do not apply the "forward" function when EBO is near the stairs;
4. The charger is not a toy. Children must have adult supervision;
5. Children under 3 must have adult supervision;
6. If you have any issues while using EBO, please contact our Customer Service at [e-mail].

Official Website

Global Official Website: www.enabot.com

Social Media

Instagram

@enabot_official

@Enabot @enabot_ebo_

@Enabot

Contact Us

General Enquiries: [e-mail]

Technical Support: [e-mail]

Business Enquiries: [e-mail]

Marketing Enquiries: [e-mail]

enabot
