USER MANUAL Vision CAV190B Caratec

6.1. Common Interface (CI)

1. General Information 44
2. Delivery Contents 45
3. Set-Up and Use 46

3.1. Assembly 46
3.2. Control Buttons 47
3.3. Connections to the television set 48
3.4. Remote Control 49
3.5.Navigating within the menus 50

1. Quick Set-Up 52

4.1. Electrical Connection 52
4.2. Turning the television set on 52
4.3. Set-Up for Satellite Reception 52
4.4. Initial Installation for Reception via DVB-C/DVB-T 54
4.5. Connection to External Sources 55
4.6. Important Operating Instructions 56

1. Main Menu 58

5.1. Selecting the Main Menu 58
5.2. Channel Menu 58
5.3.Picture Menu 62
5.4. Sound Menu 63
5.5.Time Menu 64
5.6. Setup Menu 66
5.7.Lock Menu 67

1. Cl-Modul 69

6.1. Common Interface (CI) 69
6.2.Inserting the smart card and the CI module 69

7.MultimediaOperation 70

7.1. Prerequisites 70
7.2.Playback 70
7.3.EndingPlayback 73

8.Special Functions 74

8.1. Channel Display 74
8.2.Favourites 75
8.3. Channel Information 76
8.4.Subtitel Language 76
8.5. Programme Guide (EPG) 77
8.6. Radio 77
8.7. Teletext 78

1. Trouble Shooting 79

2. Specification 80

1. General Information

To avoid damaging the television set please observe the following safety instructions during setup and use.

Attaching to a wall mount	Please ensure that the screws (M4) project into the television set by no more than 8 mm. The use of longer screws can damage the television set.
Cleaning the television set	Before cleaning, disconnect the television set. Use only a soft damp cloth or a special cleaning product for flat-screens.
LED Display Too much pressure on the screen can damage the television set.
Heat/damp/humidity	The television set should not be exposed to high temperatures (direct sunlight, radiators, open fire) or to damp. The television set should not be used in areas with high humidity.
Condensation If moved from a cool area to one with a higher temperature, the television set should be left for at least an hour before plugging it in. A rapid change of temperature can lead to the formation of condensation in the television set itself. This can lead to damage if the television set is in use.
Air Circulation	To prevent overheating of the television set the ventilation slots at the rear should always be clear.
Small Objects It is important to ensure that no small objects or liquids enter the television set. They can cause damage or even fire.
Liquids/Candles	Do not place anything holding a liquid or any candles on the television set.
Crushing Take care to avoid crushing fingers or other objects when turning the television set in any direction.
Electric Supply Use the television set only with the voltage indicated in the specifications. Ensure that there is easy access to the plug and that the television set can always be disconnected from the electricity supply. Do not disconnect the television set by pulling the power cable. Always take hold of the plug. The power cable must not be kinked or placed over sharp edges.
Moving the Television Set When moving the television set, hold only the casing.
Repairs/Accessories Repairs and servicing must be undertaken only by authorised and trained personnel.
Recycling In accordance with EU Directive 2002/96/EC, electronic devices must be disposed of separately from household waste at authorised disposal sites or handed over to a specialised supplier. In accordance with the Batteries Regulation, batteries are to be disposed of only in containers provided for this purpose.

2. Delivery Contents

LED television
Remote control with 2 AAA batteries
12 volt cable for use with motor vehicle
DVB-T magnetic base antenna
Instructions

Optional available:

Foldable stand, Art.-No. ETC0083
Power supply unit (12V, 4A), Art.-No. ETCV008
AV-Adapter,Art.-No.MCC29060
YPbPr-Adapter, Art.-No. MCC29080

3. Set-Up and Use

3.1. Assembly

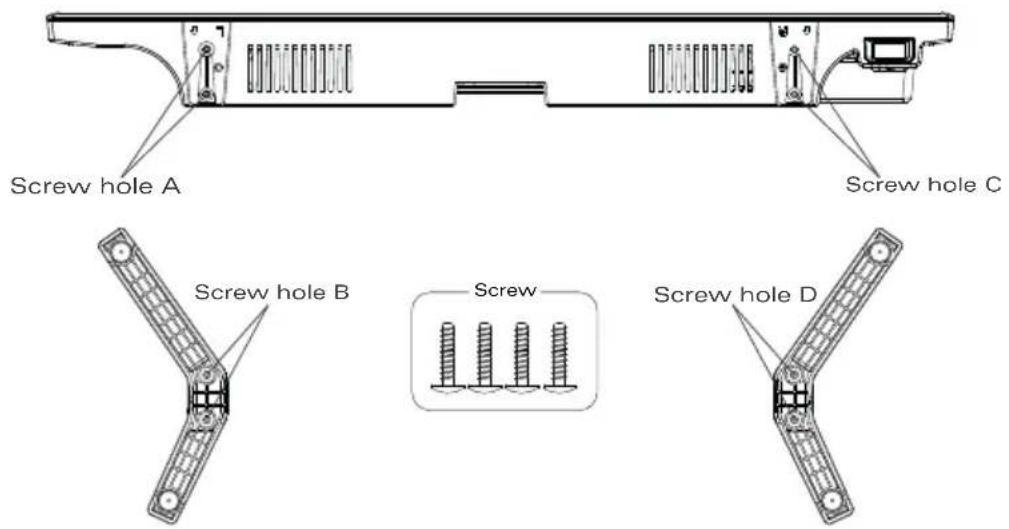

Stand Assembly (optional)

1. To avoid damage, place the screen on a soft flat surface.
2. Attach the stand to the underside of the television set by means of the four screws provided.

NOTE

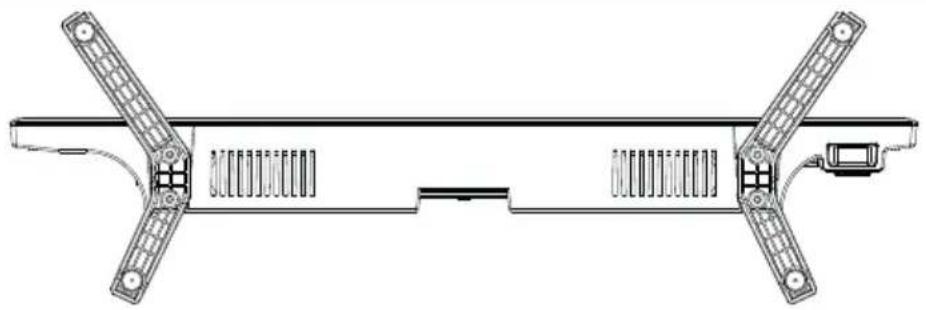

Before attaching the stand ensure that it is the right way round (see the illustration).

Wall Bracket Assembly (optional)

1. Attach the wall bracket to the wall.
2. To avoid damage, place the screen on a soft flat surface.
3. If necessary, remove the stand.
4. Attach the television set to the wall bracket by means of the VESA mounting.

3. Set-Up and Use

NOTE

Make sure that the mounting screws (M4) project into the television set by no more than 8mm Longer screws can damage the set.
A wall bracket can be bought separately.

Product information available at http://halter.caratec.de

Use only a wall bracket suitable for the size and weight of the television set.
Follow the instructions for the assembly of the wall bracket.

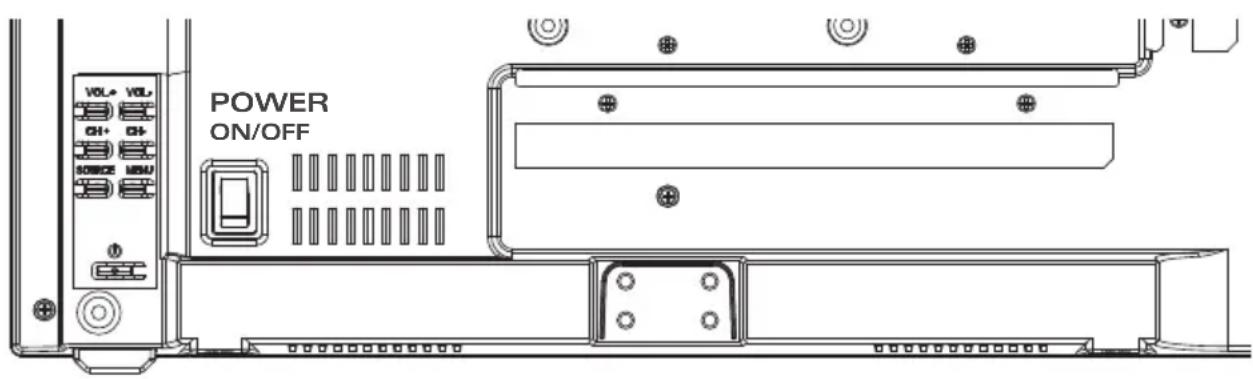

3.2. Control Buttons

The control buttons are on the backside of the casing. They control the most important functions.

Designation Explanation
SOURCE	Source selection Press the button several times to select the signal source
MENU Show menu
CH+	Next channel
	Navigation▲
CH-	Previous channel
	Navigation▼
VOL+	Increase volume
	Navigation▲
VOL-	Reduce volume
	Navigation▲
POWER Turn television	set on/off

3. Set-Up and Use

3.3. Connections to the television set

External devices or sources can be connected at the rear of the television set. Both passive and active antennas (with integrated amplifier and their own power source) can be connected to the antenna input.

Designation Explanation
On/off switch On/off switch reduces power consumption to 0
DC Power cord connection/power supply
SCART AV input for external source
DVB-S2 Satellite antenna connection
RF Connection for DVB-T/DVB-T2 HD or cable television
COAX Digital audio output (co-axial)
Audio out Audio out connection
HDMI/1/2 HDMI connection
USB USB connection
Mini YPbPR Component video input (adapter included)
Mini AV AV input (adapter included)
Headphones Connection for headphones/external speakers (3.5 mm jack)
Common Interface	CI-slot for encrypted programmes (NOTE: insert the right way round)

3. Set-Up and Use

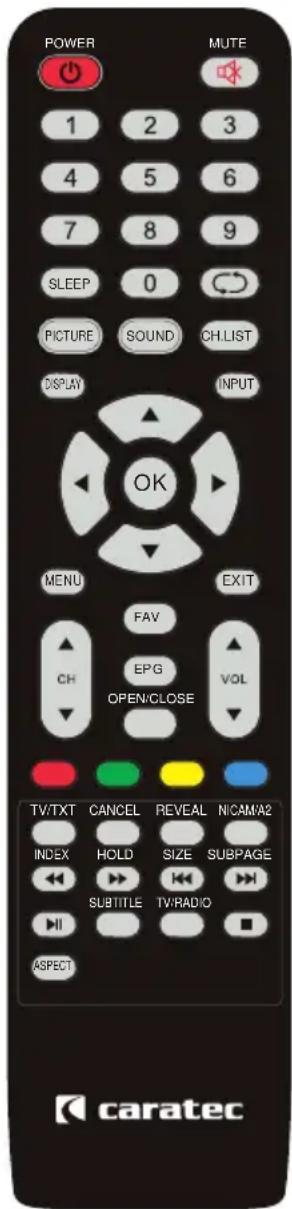

3.4. Remote Control

Place batteries in the remote control

1. Open the battery compartment of the remote control.
2. Insert the batteries provided (AAA, 2 × 1.5 volts).

Key Assignment

Designation Explanation
POWER On/off, standby
MUTE Mute
PICTURE Change picture presets
ASPECT Change picture format
SOUND Change sound presets
SUBTITLE Set subtitles
SLEEP Set sleep timer
CH.LIST Display programme list
Number key Enter numbers
FAV Display favourites
RETURN	Switch to previous channel
VOL+/-	Increase/decrease volume
CH+/-	Next/previous channel
EPG	Programme guide
TV/RADIO	Switch between radio and TV
DISPLAY	Show information
INPUT Select input source
Navigation buttons	Navigate up/down/right/left
OK	Confirm selection
MENU	Show main menu
EXIT	Quit menu
Colour buttons	Quick selection button (red, green, yellow, blue)
TV/TXT	Opening/closing teletext
CANCEL	Quitting
REVEAL	Displaying hidden text
NICAM/A2	Toggling between NICAM / A2
OPEN/CLOSE	Opening and closing the Satellite antenna

3. Set-Up and Use

Designation Explanation

INDEX Opening Index

HOLD Keep teletext sub-page (do not go to next page)

SIZE Enlarging teletext main page/enlarging sub-page/standard size

SUBPAGE Opening/closing teletext sub page

3.5. Navigating within the menus

Navigating in the main menus

You can move through the menus with either the remote control or using the buttons on the television set.

Operation control panel remote control
Opening the main menu MENU MENU
Selecting menu or sub-menu	VOL+ (forward)	(forward)
	VOL- (back)	(back)
	CH+ (up)	(up)
	CH- (down)	(down)
Selecting options within the menu	CH+ (up)	(up)
	CH- (down)	(down)
Switching to the set-up mask VOL+ (forward)		(forward)
Navigating within the set-up mask	CH+ (up)	(up)
	CH- (down)	(down)
Exiting the set-up mask of a menu or exiting a menu MENU MENU
Confirming settings INPUT OK
Confirming setting and exiting set-up mask	MENU	OK
Back to next menu level up	MENU MENU
Exiting menu	MENU EXIT

3. Set-Up and Use

NOTE

Follow the navigation instructions in the individual menus and set-up masks.

4.1. Electrical Connection

1. Connect the television set to a suitable power supply.

4.2. Turning the television set on

1. Turn on the television set using the on/off switch and press the POWER button on the remote control or on the device.

The standby lamp turns green when the television is switched on.
The standby lamp turns red when the television is switched off.
The standby lamp is not illuminated when the on/off switch is in the OFF position.

4.3. Set-Up for Satellite Reception

1. Connect the satellite dish to the DVB-S2 inlet of the television set.
2. Turn on the television set with the on/off switch and press the POWER button on the remote control or on the device.

The First Time Installation Menu is automatically displayed the first time you switch on.

1. Select menu Language and Country.
2. Press OK.

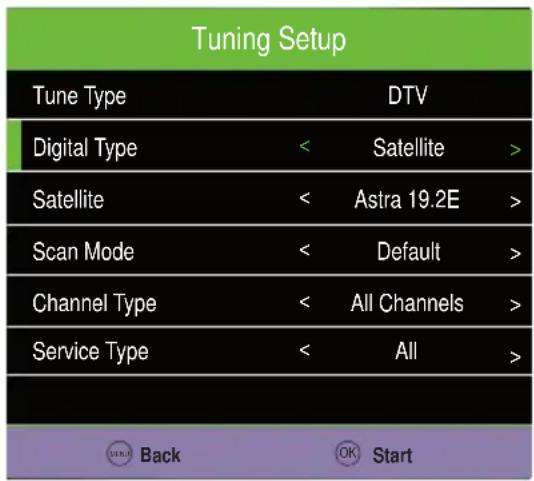

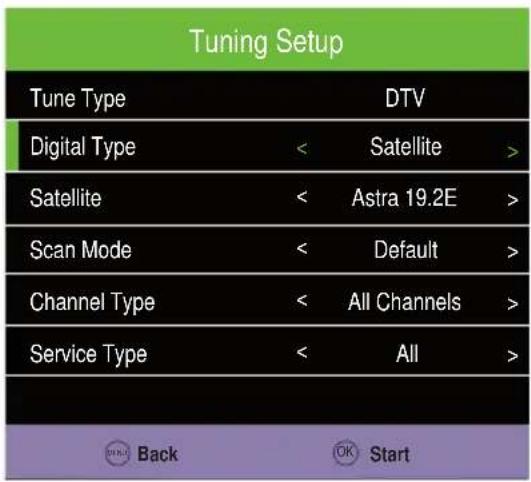

The Tuning Setup Menu is displayed.

4. Quick Set-Up

1. Select DTV or ATV + DTV as the receiving mode (Tune Type).
2. Select Satellite as the input source (Digital Type).
3. Select the desired satellite (ASTRA/HOTBIRD are standard).
4. Press OK.

First Time Installation Dialogue is displayed.

1. Select Yes to load the preset channel list (for ASTRA and HOTBIRD).

Your television set is ready.

Select No to perform a manual search for programmes on the previously selected satellite.

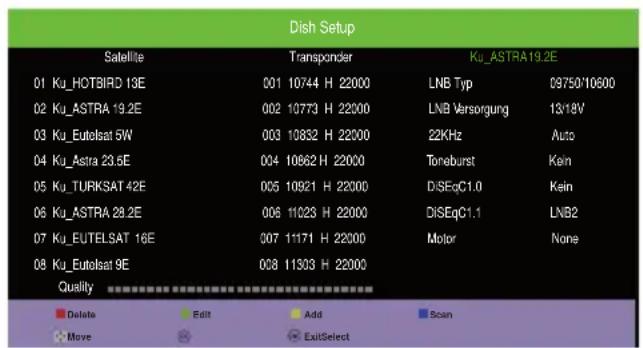

Please follow the detailed instructions for searching for satellite channels and for editing channel lists in chapter 5.2. Channel Menu on page 62

4.4. Initial Installation for Reception via DVB-C/DVB-T.

1. DVB-C: Connect the cable connection to the DBV-C input of the television set.

OR:

DVB-T/ T-2 HD: Connect the terrestrial antenna to the DVBT-input of the television set. If using an active antenna without independent power supply in the menu switch the „5V antenna power“ On (Channel Menu).

1. Turn on the television set with the on/off switch and press the POWER button on the remote control or on the device.

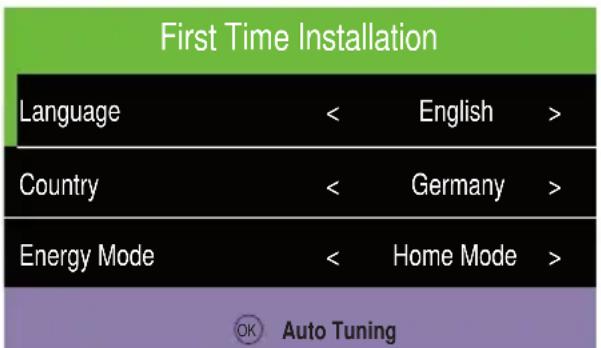

The First Time Installation Menu is automatically displayed the first time you switch on.

1. Slect the menu Language and Country.
2. Press OK.

The Tuning Setup Menu is displayed.

1. Select DTV or ATV + DTV as the receiving mode (Tune Type).

4. Quick Set-Up

1. Select the input source (Digital Type)

DVB-T for input from an antenna,
DVB-C for cable input.

1. Press OK.

The station search dialogue box is displayed (Auto Tuning Status)
The TV and radio station search may last several minutes.
Your television set is ready for use.

Please follow the detailed descriptions in Chapter 5.2. Channel Menu on page 62.

4.5. Connection to External Sources

Connection via HDMI Cable

Connect the HDMI-input on the television set to the HDMI-output of the external device.

Please follow the detailed description for selection of the input source in Chapter 4.6. Important Operating Instructions" on page 60.

Connection via a SCART Cable.

Connect the SCART socket on the television to the SCART output of the external device.

Please follow the detailed description for selection of the input source in Chapter 4.6. Important Operating Instructions" on page 60.

Connection via an AV Cable

Connect the AV adapter to the MINI AV input of the television set. Connect the adapter to the AV output of the external device.

Please follow the detailed description for selection of the input source in Chapter 4.6. Important Operating Instructions" on page 60.

continue on the next page

4. Quick Set-Up

Connection via a YPbPr Cable

Connect the YPbPr adapter to the MINI YPbPr-input of the television set. Connect the adapter to the YPbPr-output of the external device.

Connect the AV adapter to the MINI AV-input of the television set. Connect the adapter to the audio cable and insert the cable into the audio-output of the external device.

Please follow the detailed description for the selection of the input source in Chapter 4.6. Important Operating Instructions" on page 60.

4.6. Important Operating Instructions

Selection of the Input Source

1. Open the Input Source Menu by pressing the INPUT (control panel on the television set or remote control).
2. Select and then confirm the desired option.

Please follow the detailed description in Chapter 3.5. Navigating within the menus" on page 54.

Input Source Explanation
Satellite	Satellite televisionSee chapter▶“Quick Set-Up” on page 56▶“Set-Up for Satellite Reception” on page 56
DTV	Digital TelevisionSee chapter „Initial Installation for Reception via DVB-C/DVB-T” on page 58
ATV Analog Television
AV External device is connected via AV connection
SCART External device is connected via SCART connection
YPbPr External device is connected via YPbPr connection
PC PC is connected
HDMI External device is connected via HDMI connection
USB External device is connected via USB connection

4. Quick Set-Up

Teletext

Turn the Teletext on or off by using the TV/TXT button on the remote control.

Please follow the detailed description in Chapter „9.7. Teletext" on page 86.

EPG-Menu

Use the EPG button on the remote control to turn the programme guide on or off.

Please follow the detailed descriptions in Chapter „9.5. Programme Guide (EPG)“ on page 85.

Multimedia Operation (USB)

1. Connect a device (e.g. USB stick, external hard drive) to the USB port.
2. Press the INPUT key on the remote control.
3. Select USB.

Please follow the detailed description in chapter 7. Multimedia Operation" on page 74.

5.1. Selecting the Main Menu

1. Open the main menu by pressing the MENU button (control panel on the television set or remote control).
2. Select and confirm the desired option.

Please follow the detailed description in chapter 3.5. Navigating within the menus" on page 54.

The Main Menu contains the following sub-menus:

5.2. Channel Menu

1. Open the Main Menu by pressing the MENU button (control panel on the television set or remote control).
2. Select Channel and confirm with the OK button.

The Channels Menu is displayed.

Important functions in the Channel Menu:

Manual or automatic channel scan
Editing the channel list

NOTE

The functions may vary depending on the origin of the signal.

Function Explanation
Antenna1	► DVB-T (antenna reception)► DVB-C (cable reception)
Auto Tuning	Begin automatic channel searchMenu „Tuning Setup" is displayed

5. Main Menu

Funktion Erklärung
ATV Manual Tuning1	Begin manual channel search for the selected source „ATV Manual Tuning" menus are displayed.
DVB-C Manual Tuning1	Beginning manual channel search for selected source. „DVB-C Manual Tuning" or „DVB-T Manual Tuning" menus are displayed
DVB-T Manual Tuning1
Programme Edit	Organising, deleting, skipping, marking as favourites. „Programme Edit" menu is displayed.

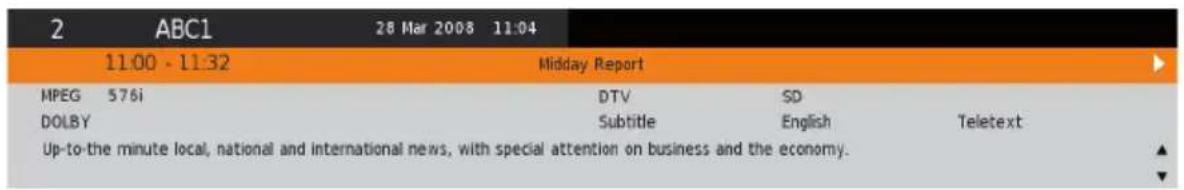

Signal Information Show signal information of the station.
CI-Information	Show information on an inserted CI card. See chapter „6. CI-Modul" on page 29
Dish Setup2	Erasing, managing, re-setting satellites and transponders. Menu „Dish Setup" is displayed.
5V antenna power1	Turning set on with an active antenna in order to feed 5V to the antenna.

1 Input Source DTV // 2 Input Source Satellite

Smart-D function DiSEqC settings for automatic dish alignment

For the use with a compatible Caratec Smart-D dish.

1. In the Channel Menu select Dish Setup.
2. Select the appropriate setting under DiSEqC 1.1 (see table):

Satellite Setting
HotBird 13E LNB 1
Astra 19.2E	LNB 2
Eutelsat 5W	LNB 3
Astra 23.5E LNB 4

It is sufficient to make settings only for the satellites used (e.g. Astra 19.2E und Hotbird 13E).

Automatic Channel Search/Receiver Settings

1. In the Channels Menu select the automatic channel search function (Auto Tuning).

The Receiver Settings Menu (Tuning Setup) is displayed.

With Satellite selected as source:

Function Explanation
Country Set country
Satellite Set satellite
Scan Mode	Full* Network Scan

Funktion Explanation
Channel Type	All Channels* FTA Channels
Service Type	All* DTV Radio

• recommended settings are printed in bold
  continue on the next page

5. Main Menu

With DTV selected as source:

Function Explanation
Country Set country
Tune Type	• ATV (for reception of analogue channels) • DTV (for reception of digital channels) • ATV + DTV (for reception of analogue and digital channels)
Scan Type	• Full* • Network Scan
Network ID	• Auto* • 65535
Frequency	• Auto* • 770000
Symobl(ks/s)	• Auto* • 6900
Sorting by LCN	• On* • Off

• recommended settings are printed in bold

• Press OK to begin automatic channel search.

The status of the channel search (Auto Tuning) is displayed .

Auto Tuning Status

TV : 0 Programme

DTV : 0 Programme

Radio : 0 Programme

Data : 0 Programme

10832 MHz ASTRA 19.2E Please press MENU key to skip

Manual Analogue Search

1. In the Channels Menu select ATV Manual Tuning.

The Menu ATV Manual Tuning is displayed.

1. Enter and confirm the desired settings.

Manual DVB-C Search/Manual DVB-T Search

1. In the Channel Menu select the CADTV Manual Tuning if on cable, or DTV Manual Tuning if receiving via antenna.

The Menu CADTV Manual Tuning or DTV Manual Tuning is displayed.

Managing List of Channels

1. In the Channels Menu select Programme Edit.

The Programme Edit Menu is displayed.

1. The following options are available:

Delete channels (red button on the remote control).
Move channels (yellow button on the remote control).
Skip channels (blue button on the remote control).

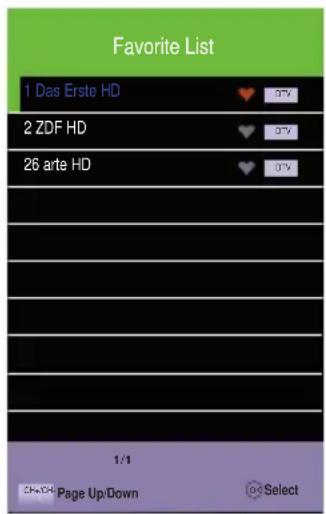

Add channels to favourites list (FAV button on the remote control).

NOTE

Please follow the instructions at the bottom of the screen.

Satellite Configuration

1. In the Channels Menu select Dish Setup.

The Dish Setup Menu is displayed.

Important functions in the Dish Setup Menu:

Edit/add/delete satellites
Edit/add/delete transponders
Edit satellite settings (for example, DiSEq settings)

continue on the next page

5. Main Menu

Column Explanation
Satellite	Satellite list. The satellite settings can be edited (green button). It is also possible to delete satellites (red button) and to add satellites (yellow button).
Transponder	List of the transponders corresponding to the selected satelliten ("Satellite" column). The transponder settings can be edited (green button). It is also possible to delete transponders (red button) and to add transponders (yellow button).
satellite settings (3rd column)	List of the settings for the selected satellite ("Satellite" column). Configure the DiSEqC function to guide a compatible satellite antenna.

NOTE

Please follow the instructions at the bottom of the screen.

NOTE

You can obtain current information on satellite and transponder settings from the appropriate service provider or on websites such as www.lyngsat.com or www.flysat.com.

5.3. Picture Menu

1. Call up the Main Menu by pressing the MENU button (control panel on the television set or remote control).
2. Select Picture and confirm with the OK button.

Menu Picture is displayed.

Important functions in the Picture Menu:

Customising picture settings.

NOTE

Customising picture settings is only possible in Personal Mode.

Function Explanation
Picture Mode	Standard (pre-selected settings)Mild (pre-selected settings)Personal (settings can be adjusted manually)Dynamic (pre-selected settings)
Contrast Setting contrast
Brightness Setting brightness
Colour Setting colour ratio
Tint Setting tint (NTSC only)
Sharpness Setting picture sharpness


5. Main Menu

Function Explanation
Colour Temp	Setting colour temperature: ► Normal ► Warm ► Cold
Noise Reduction	Setting noise reduction: ► Low ► Medium ► High ► Off
Screen Setting position and size	of the PC image
Dynamic CR	► On ► Off
Face Colour Setting skin tones
Aspect Ratio	► 16:9 ► 4:3 ► Auto ► Zoom1 ► Zoom2
Blue Screen	Is displayed when no signal available. ► On ► Off

5.4. Sound Menu

1. Display the Main Menu by pressing the MENU button (control panel on the television set or the remote control).
2. Select Sound and confirm with the OK button.

The Sound Menu is displayed.

Important functions in the Sound Menu: > Adjusting the sound settings

HINWEIS

Adjusting the sound settings is only possible in Personal Mode.

continue on the next page

5. Main Menu

Function Explanation
Bass Adjust Bass
Balance Setting balance between	left and right speakers
Auto Volume	Automatic volume control: ► On ► Off
Surround Sound	Surround reproduction: ► Off ► SRS TruSurround ► TruSurround
SPDIF Mode	Setting digital audio output: ► Auto ► PCM
AD Switch „AD Switch" Menu is	displayed
Hearing Impaired	► Off ► On

AD Switch

1. In the Sound Menu select AD Switch.

The AD Switch Menu is displayed.

Function Explanation
AD Switch	►On (audio description)►Off
AD Volume Setting level of the audio description

5.5. Time Menu

1. Display the Main Menu by pressing the MENU button (Control panel on the television set or remote control).
2. Select Time and confirm with OK button.

Time Menu is displayed.

TIME

Important function in the Time Menu:

Setting the time zone
Setting an automatic on/off time
Setting the sleep timer
Setting automatic switch off
Setting time before menu fade-out

5. Main Menu

Function Explanation
Clock Time and date display (set)	automatically)
Time Zone Setting time zone
Off Time	Setting switch-off time for the television „Off Time“ Menu is displayed
On Time	Setting switch-on time for the television „On Time“ Menu is displayed
Sleep Timer	Setting time after which the television set automatically switches off ▷ Off ▷ 10, 20, 30, 60, 90, 120, 180, 240 min.
Auto Standby	Setting whether and when the television set automatically switches off if no operations are performed ▷ Off ▷ 3, 4, 5 h
OSD Timer	Setting whether and when the menu automatically fades out ▷ Off ▷ 5, 10, 15, 20, 25, 30 s

Switch-off Time

1. In the Time Menu select Off Time.

The Off Time Menu is displayed.

Function Explanation
Off Time	Off Once Everyday Mon-Fri Mon-Sat Sat-Sun Sun
Hour Setting time (Hour)
Minute Setting time (Minute)

Switch-on Time

1. In the Time Menu select On Time.

The On Time Menu is displayed.

continue on the next page

5. Main Menu

Function Explanation
On Time	O Once Everyday Mon-Fri Mon-Sat Sat-Sun Sun
Hour Setting time (Hour)
Minute Setting time (Minute)
Source	Selecting input source for playback when the television set is to be turned on.
Channel Selecting the channel at which the television is to be turned on.
Volume Selecting the volume at which the television is to be turned on.

5.6. Setup Menu

1. Display the Main Menu by pressing the MENU button (control panel on the television set or the remote control).
2. Select Setup and confirm with the OK button.

The Setup Menu is displayed.

Important functions in the Setup Menu: > Setting the language for menu, audio and subtitles > Resetting to factory default settings > Performing software update > Version information on model, panel type, and software version

Function Explanation
Language	Setting menu language (German, Czech, Swedish, Finnish, Portuguese, Dutch, Italian, French, Spanish, English)
TT Language Setting font (West, East, Russian, Arabic, Farsi) for the teletext display
Audio Language	Setting audio language 1 and 2 for multi-channel sound „Audio Language“ Menu is displayed
Subtitle Language	Setting sub-title language 1 and 2 „Subtitle Language“ Menu is displayed
Reset Reset to factory settings
Software Update (USB)	Performing software update (a USB device with the update files must be connected)

SETUP

5. Main Menu

Function Explanation
Version Displaying version (Model, panel type, and software version)
Import DefaultData	Loading ASTRA/HOTBIRD standard channel list (only for satellite reception)

5.7. Lock Menu

1. Display the Main Menu by pressing the MENU button (control panel on the television set or the remote control).
2. Select Lock and confirm with OK button.

The Lock Menu is displayed.

Important functions in the Lock Menu:

> Setting a system lock

> Changing the password

> Locking channels, parental guidance, button lock

NOTE	To change settings in the Lock Menu a password is required. Factory-set password: „0000“.

Function Explanation
System Lock	Off On
Set Password Personalising the	password
Channel Lock	Locking individual channels. Access is only possible with the password. „Channel lock“ Menu is displayed.
Parental Guidance	Setting age limit for parental control settings Off 4 - 18
Key Lock	Activating key lock. Only possible if the option On was selected in the System Lock function. Off On
Hotel Mode	Limiting functions of the television set for the user and importing pre-set database (a USB device with the database files must be connected). The „Hotel Mode“ Menu is displayed.

continue on the next page

Locking Channels

1. In the Lock Menu select Channel Lock.

The Channel Lock Menu is displayed.

1. Lock or release the desired channels and confirm.

Hotel Mode

1. In the Lock Menu select Hotel Mode.

The Hotel Mode Menu is displayed.

Function Explanation
Hotel Mode	►On►Off
Source Lock Locking individual input sources
Default Source Selecting input source with which the television set is to be turned on.
Default Prog	Selecting channel for playback when the television set is to be turned on
Default Volume Selecting volume at which the television set is to be turned on
Max. Volume Selecting maximum volume for the television set
Import Database Importing database from a USB device
Export Database Exporting database to a USB device
Clear Lock Resetting all locks

NOTE

To save and restore your personal channel list use the Export Database and Import Database functions.

6. CI module

6.1. Common Interface (CI)

The television set has a CI slot and supports both CI and Cl +

A CI module is a plug-in card the size of a credit card which fits into the slot of your DVB receiver and which in turn can also hold a smart card. With this combination you have access to encrypted pay channels.

NOTE

Use only CI modules which are authorised or certified by the service provider. This is the only way to guarantee compatibility.

6.2. Inserting the smart card and the CI module

1. Turn the television set off.
2. Insert the CI Module into the CI slot of the television set. Make sure you are inserting it the right way round (see illustration).
3. Insert the smart card into the CI Module. Make sure it is the right way round (see the arrow).
4. Turn the television set back on.

7. Multimedia Operation

7.1. Prerequisites

You can play back files saved on a USB device if the following file formats are on the storage device:

Medium Format
Movie	*.dat, *.mpg, *mpeg *.vob *.mkv *.mp4, *.mov *.avi *.flv *.asf, *.wmv
Music	*.mp3 *.wav *.wma/ASF *.aac *.ac3
Photo	*.jpg, *.jpeg *.png *.bmp
Text t*.txt

7.2. Playback

1. Press the INPUT button on the remote control.
2. Select USB as the input source.

The Multimedia Menu is displayed.

Please follow the detailed description in Chapter 3.5. Navigating within the menus" on page 54.

1. Enter the desired media type (Photo, Music, Movie or Text) and confirm with OK.

The selection screen with the file/director structure is displayed.

7. Multimedia Operation

1. Select the storage location (C) of the medium and, if necessary, the subfolder. The files already present are displayed.
2. Select the desired file. Use the green button on the remote control to mark the files (e.g. photos or music) to be shown/played.
3. Press the Play/Pause button on the remote control.

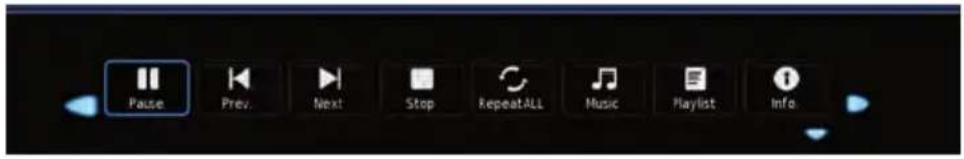

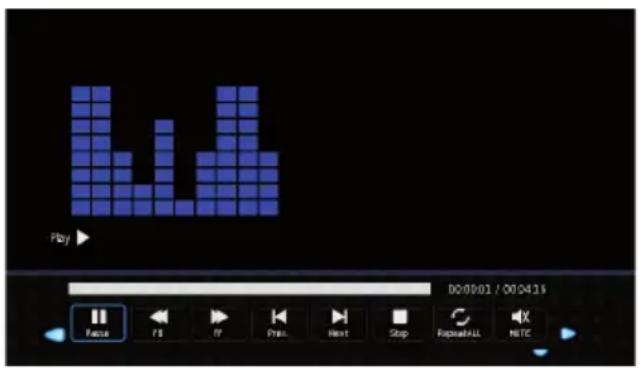

The Media Player menu is displayed.

Movie

Press the OK button on the remote control to display the Movie menu.

Function Explanation
Pause/Play Stopping and re-starting the film
FB Rewinding
FF Fast forward
Prev. Previous film
Next Next film
Stop Stops play
CharSet Changing character set
RepeatNone	No repeat
Repeat1	Repeat current film
RepeatALL	Non-stop playback of all films
Set A/Set B Use this to set point A and point B to repeat a film segment.
Playlist Shows the play list

continue on the next page

7. Multimedia Operation

Function Explanation
Info Displays movie info
Slow Slow-motion playback
Step Stop-start playback
Goto Time Jump to playback time
Zoom In Increases film size
Zoom Out Decreases film size
Aspect Ratio	Auto 4:3 16:9
Move View Move image in increased-size film with the arrow keys

Music

Function Explanation
Pause/Play Stopping and re-starting track
FB Rewinding
FF Fast forward
Prev. Previous track
Next Next track
Stop Stops play
RepeatNone	No repeat
Repeat1	Repeat current track
RepeatALL	Non-stop playback of all tracks
Mute	Mutes the track
Playlist	Shows the playlist
Info Displays track info
Goto Time Jump to playback time

7. Multimedia Operation


Function Explanation
Pause/Play Stopping then re-starting slide show
Prev. Previous image
Next Next image
Stop Stop
RepeatNone	No repeat
Repeat1	Repeat current image
RepeatALL	Non-stop playback of all images
Musik Plays music from USB device during slide show
Playlist Shows the play-back list
Info Shows file info
Rotate Turns the image 90° to the right
Rotate Turns the image 90° to the left
Zoom In Increases image size
Zoom Out Reduces image size
Move View Move image in zoomed view with the arrow keys

7.3. Ending Playback

1. Press the EXIT button on the remote control to end the playback and return to file selection.

To change the media type press the EXIT button on the remote control repeatedly until the Multimedia Menu is displayed.

8. Special Functions

8.1. Channel Display

To open the channel list proceed as follows:

1. Press the CH.LIST button on the remote control or press the OK button on the remote control (only if no menu is displayed).

The Channel List Menu is displayed.

Please follow the detailed description in Chapter „3.5. Navigating within the menus" on page 54.

Symbols indicate whether a channel is locked, encrypted, to be skipped or a favourite.

Use the navigation buttons /> on the remote control to filter the indicated channels.

Name Explanation
All Contains all the channels
DTV List Contains only television channels
Radio List Contains only radio channels
Data List Contains only data channels
FTA List Contains non-pay channels
Scrambled List	Contains only encrypted Pay TV Channels
Satellite Lists	Contains all channels of a satellite

continue on the next page

8. Special Functions

1. Select the desired channel and press OK.

NOTE

To edit the channel list (delete, move, skip, add to favourites), in the Channel Menu select Programme edit. See also „5.2. Channel Menu" on page 62.

8.2. Favourites

To open the favourites list proceed as follows:

1. Press the FAV button on the remote control.

The Favorite List Menu is displayed.

The channels previously designated as favourites are displayed in this view. Symbols indicate if a channel is to be skipped or is marked as a favourite.

1. Select the desired channel and press OK.

NOTE

To edit the channel list (delete, move, skip, add to favourites), in the Channel Menu select Programme edit. See also „5.2. Channel Menu" on page 62.

8. Special Functions

8.3. Channel Information

To open channel information, proceed as follows:

1. Press the DISPLAY button on the remote control.

Channel Information is displayed.

8.4. Subtitle Language

To display the subtitle language, proceed as follows:

1. Press the SUBTITLE button on the remote control.

The Subtitle Language Menu is displayed.

1. Select the desired subtitle language and press OK.

NOTE	The availability of subtitle languages is determined by the service provider.
NOTE	Editing the subtitle languages is not possible at this point. To edit the subtitle languages, in the Setup Menu select Subtitel Language. See also „5.6. Setup Menu" on page 70.

8. Special Functions

8.5. Programme Guide (EPG)

To display the programme guide proceed as follows:

1. Press the EPG button on the remote control.

The 7 Day TV Guide Menu is displayed.

In this view you will find information on the current day's programming, that of the previous day, and also of the following day.

1. Select the desired programme and press OK.

8.6. Radio

To switch between Radio mode and TV mode, proceed as follows:

1. Press the TV/Radio button on the remote control.

You are in Radio mode.

1. Press the blue button on the remote control to deactivate the screen. The radio will continue playing.
2. Activate the screen by pressing any button on the remote control.
3. Press the TV/Radio button on the remote control again to return to the TV mode.

NOTE

It is possible to use the Vol+/Vol- and the MUTE buttons with the screen deactivated. When using these buttons the screen remains deactivated.

8. Special Functions

8.7. Teletext t

Teletext is made available free of charge by most TV stations. It provides various types of information, e.g. News Ticker and updated news, weather forecasts, information on business, sport, culture, advice services, etc. and also on television programming.

1. Press the button TV/TXT on the remote control. To display the teletext a station must be selected which provides this service.

To select a page, with the number buttons on the remote control enter the three-digit number of the desired page.
Use the CH und CH buttons on the remote control to move forwards and backwards between the pages.
Use the HOLD button on the remote control to set a page.
Use the INDEX button on the remote control to move to the opening page or the table of contents.
Use the SIZE button on the remote control to zoom the upper or the lower section of the page or to return to the normal display.
Use the REVEAL button on the remote control to reveal hidden information or to hide this information again.
Use the SUBPAGE button on the remote control to directly select subpages which are then automatically displayed:

1. Press the TV/TXT button on the remote control again to leave the teletext and return to TV mode.

9. Trouble Shooting

Problem Action
Television set cannot be turned on	Make sure that the power cable is properly inserted. Make sure that the On/Off switch on the bottom of the television set is turned on. Make sure that the polarity of the power supply is correct.
No Picture	Make sure that the correct source (INPUT) is selected. Make sure that the correct source or antenna is properly connected.
No Sound	Check the volume setting. Check whether the Mute function is activated.
Poor Picture Quality	Make sure that the antenna cable is properly connected. Check the picture settings.
Picture too large/small, distorted.	Press the ASPECT button of the remote control to change the image display.
Blue screen	Make sure that the appropriate input (INPUT) is selected.
Television set does not react to the remote control	Make sure that the batteries have been inserted correctly. If necessary, insert new batteries.
DTV/DTB-T mode: error message “No signal”	Check the antenna connection. Re-start the automatic channel search.
PC-Mode: the picture is too small, too large, or shifted.	Select PC as input source and adjust the picture settings in the menu.
Satellite - no signal	Check the list of channels. In the configuration section of the menu you can restore the standard list of channels.

10. Specification

Energy efficiency class* A+

Visible diagonal screen size in cm

Visible diagonal screen size in inch

Power consumption ON

Annual energy consumption

Power consumption stand-by

Power consumption OFF

Resolution (Pixel)

Image format

Contrast ratio

Brightness

Viewing angle (R/L/T/B)

Loudspeaker

Smart-D control for satellite antenna

Analog TV-Tuner

USB connection (media player)

PC (VGA)

PC Audio-In (3,5 mm)

Antenna connection analogue/DVB-T2

5V power supply for active DVB-T antennas

Antenna connection DVB-S2

Cl+-Slot

Digital Audio output

Headphone (3,5 mm)

Remote control

Foot (detachable)

12V connection cable

Power supply unit (100 ... 240 V), external

VESA mounting option 100 × 100

Set switch on/off

Supported USB file formats

Operating voltage

Temperature range operation/storage

Pixel defect class to EN ISO 9241-307

Weight (TV-set incl. accessories)

Dimensions (W× H× D in mm) without foot

47

18,5

13,0 Watt

19 Watt

0,50 Watt

0,00 Watt

1366 x 768 (HD ready)

16:9

3.000:1

250 cd/m²

89^ / 89^ / 89^ / 89^ (wide-angle)

2 × 3 Watt

yes

yes

yes

yes

yes (1x)

yes

yes,adapter optional:MCC29080

yes,adapter optional:MCC29060

yes

yes

yes

yes

yes

yes

yes

yes

yes

yes

optional: ETC0083

yes

optional: ETCV008

yes

yes

Video, Foto, Audio; Software Update

9...30V

0...50°C/-20...60°C

0

2,3 kg

440× 263× 48mm

CAV220B

A+

55

21,5

17,0 Watt

25 Watt

0,50 Watt

0,00 Watt

1920 x 1080 (Full HD)

16:9

3.000:1

250 cd/m²

89°/89°/89°/89° (wide-angle)

2 × 3 Watt

yes

yes

yes

yes

yes (1x)

yes

yes,adapter optional:MCC29080

yes,adapter optional:MCC29060

yes

yes

yes

yes

yes

yes

yes

yes

yes

yes

optional: ETC0083

yes

optional:ETCV008

yes

yes

Video, Foto, Audio; Software Update

9...30V

0...50°C/-20...60°C

0

2,7 kg

507× 302× 48mm

Contenu

Configuration satellite

6.1. Common Interface (CI)

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Caratec GmbH declares that the radio equipment type CAV196DSW, CAV226DSW and CAV246DSW is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://doc.caratec.de

DECLARATION DE CONFORMITE UE SIMPLIFIEE
