Features	Details
Product type	Television
Screen size	240 cm
Resolution	4K Ultra HD
Display technology	LED
Connectivity	HDMI, USB, Wi-Fi
Smart TV features	Access to streaming apps
Energy consumption	Energy class A+
Dimensions (W x H x D)	Approx. 150 x 90 x 10 cm
Weight	Approx. 25 kg
Warranty	2 years
Maintenance	Regular cleaning of the screen and ports
Safety	Do not expose to moisture, use a suitable stand
Included accessories	Remote control, power cables

Frequently Asked Questions - Vision CAV240XDB Caratec

How do I adjust the brightness on my Caratec Vision CAV240XDB?

To adjust the brightness, go to the \"Settings\" menu, then select \"Picture\". You can adjust the brightness according to your preferences.

My TV won't turn on, what should I do?

Check that the TV is properly plugged into a working power outlet. Also make sure the remote control has good batteries.

How do I connect my Caratec Vision CAV240XDB to the Internet?

Go to the \"Settings\" menu, select \"Network\", then \"Network settings\". Follow the instructions to connect to your Wi-Fi network.

How do I perform a software update?

Go to the \"Settings\" menu, select \"System\", then \"Software update\". Follow the instructions to download and install the update.

The picture on my TV is blurry, what can I do?

Check that the HDMI cable is properly connected. Also try changing the input source or resetting the picture settings in the \"Settings\" menu.

How do I reset my Caratec Vision CAV240XDB to factory settings?

Go to the \"Settings\" menu, select \"System\", then \"Reset\". Choose the option to reset to factory settings.

Why is there no sound on my TV?

Check that the volume is not muted or set too low. Also make sure the audio source is correctly selected in the \"Settings\" menu.

How do I add channels to my Caratec Vision CAV240XDB?

Go to the \"Channels\" menu, then select \"Auto channel search\". Follow the instructions to add available channels.

My TV frequently disconnects from Wi-Fi, what should I do?

Check the Wi-Fi signal strength and try moving the router closer to the TV. You can also restart your router to fix possible connection issues.

How do I use the Smart TV features on my Caratec Vision CAV240XDB?

Make sure your TV is connected to the Internet. Go to the main menu and select the \"Smart TV\" option to access available apps and features.

Is there an energy saving mode on this model?

Yes, you can activate the energy saving mode in the \"Settings\" menu under \"Energy saving\". This will reduce your TV's energy consumption.

USER MANUAL Vision CAV240XDB Caratec

Caratec Vision CAV220X-DB CAV240X-DB

Bedienungsanleitung

User's Manual

Golden wheat field at sunset with a lone tree and distant hills (no text or symbols)

6.1. Common Interface (CI)

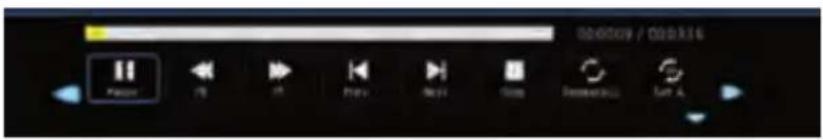

00:00:09 / 00:03:16 Position Play Play Next Show Comments... Set A

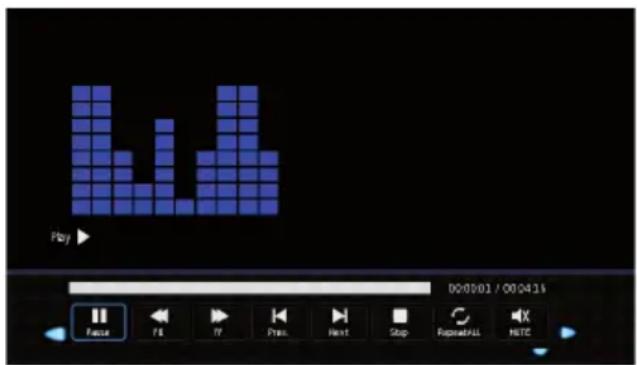

Play 00:05:01 / 00:04:16 Face PS FF Press Rest Stop RepeatALL NOTE

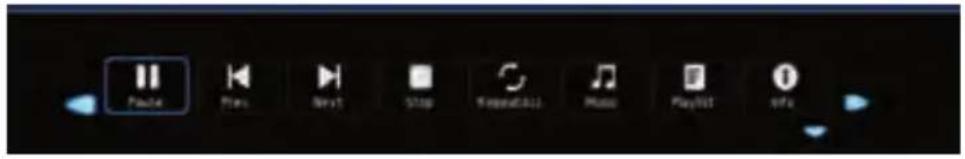

Radio Play Next Stop ReleakUp Music PlayList info

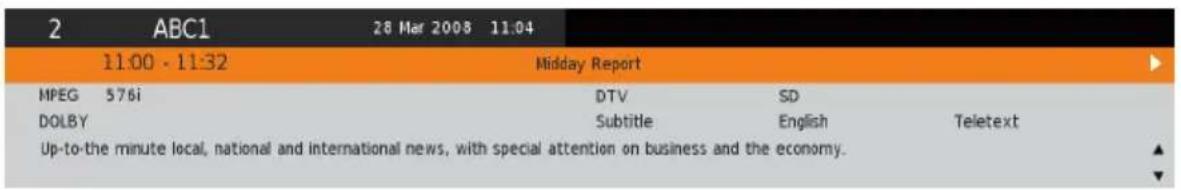

2 ABC1 28 Mar 2008 11:04 11:00 - 11:32 Midday Report MPEG 576i DTV SD DOLBY Subtitle English Teletext Up-to-the minute local, national and international news, with special attention on business and the economy.

1. General Information....48
2. Delivery Contents 49
3. Set-Up and Use ....50

3.1. Assembly 50
3.2. Control Buttons....51
3.3. Connections to the television set 52
3.4. Remote Control 53
3.5. Navigating within the menus....54

1. Quick Set-Up ....56

4.1. Electrical Connection....56
4.2. Turning the television set on....56
4.3. Set-Up for Satellite Reception....56
4.4. Initial Installation for Reception via DVB-C/DVB-T....58
4.5. Connection to External Sources....59
4.6. Important Operating Instructions 60

1. Main Menu....62

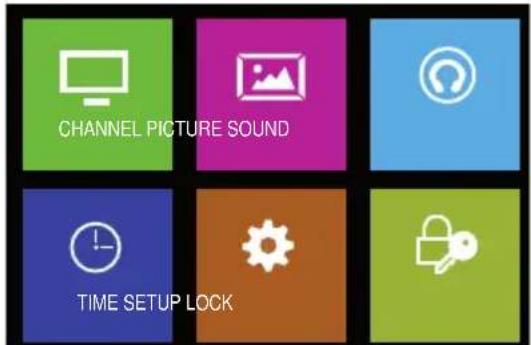

5.1. Selecting the Main Menu 62
5.2. Channel Menu 62
5.3. Picture Menu....66
5.4. Sound Menu....67
5.5.Time Menu....68
5.6. Setup Menu....70
5.7. Lock Menu 71

1. CI-Modul....73

6.1. Common Interface (CI)....73

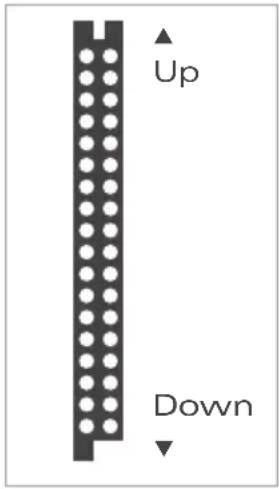

6.2. Inserting the smart card and the CI module....73

1. Multimedia Operation....74

7.1. Prerequisites....74

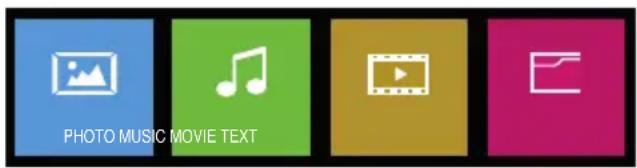

7.2. Playback....74
7.3. Ending Playback 77

1. DVD Operation....78

8.1. Inserting the DVD....78
8.2. Playing the DVD 78
8.3. Ejecting the DVD 78
8.4. General Settings....79
8.5. Audio Settings....79

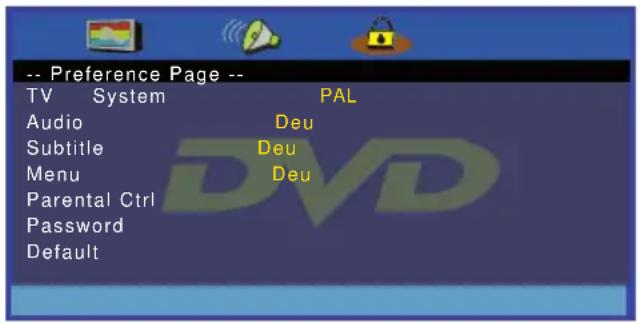

8.6.User Settings....80
8.7. DVD Remote Control 81

1. Special Functions 82

9.1. Channel Display 82

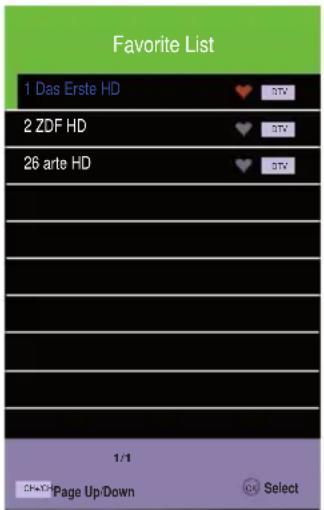

9.2.Favourites 83
9.3. Channel Information....84
9.4.Subtitel Language 84
9.5. Programme Guide (EPG) 85
9.6. Radio 85
9.7. Teletext....86

1. Trouble Shooting 87
2. Specification 88

1. General Information

To avoid damaging the television set please observe the following safety instructions during setup and use.

Attaching to a wall mount	Please ensure that the screws (M4) project into the television set by no more than 8 mm. The use of longer screws can damage the television set.
Cleaning the television set	Before cleaning, disconnect the television set. Use only a soft damp cloth or a special cleaning product for flat-screens.
LED Display Too much pressure on	the screen can damage the television set.
Heat/damp/humidity	The television set should not be exposed to high temperatures (direct sunlight, radiators, open fire) or to damp.The television set should not be used in areas with high humidity.
Condensation If moved from a cool area to one with a higher temperature, the television set should be left for at least an hour before plugging it in. A rapid change of temperature can lead to the formation of condensation in the television set itself. This can lead to damage if the television set is in use.
Air Circulation	To prevent overheating of the television set the ventilation slots at the rear should always be clear.
Small Objects It is important to ensure that no small objects or liquids enter the television set. They can cause damage or even fire.
Liquids/Candles	Do not place anything holding a liquid or any candles on the television set.
Crushing Take care to avoid crushing fingers or other objects when turning the television set in any direction.
Electric Supply Use the television set only with the voltage indicated in the specifications.Ensure that there is easy access to the plug and that the television set can always be disconnected from the electricity supply.Do not disconnect the television set by pulling the power cable.Always take hold of the plug. The power cable must not be kinked or placed over sharp edges.
Moving the Television Set When moving the television set, hold only the casing.
Repairs/Accessories Repairs and servicing must be undertaken only by authorised and trained personnel.
Recycling In accordance with EU Directive 2002/96/EC, electronic devices must be disposed of separately from household waste at authorised disposal sites or handed over to a specialised supplier.In accordance with the Batteries Regulation, batteries are to be disposed of only in containers provided for this purpose.

2. Delivery Contents

LED television
Remote control with 2 AAA batteries
12 volt cable for use with motor vehicle
DVB-T magnetic base antenna
Instructions

Optional available:

Foldable stand, Art.-No. ETC0084
Power supply unit (12V, 4A), Art.-No. ETCV008
AV-Adapter, Art.-No. MCC29060
YPbPr-Adapter, Art.-No. MCC29080

3. Set-Up and Use

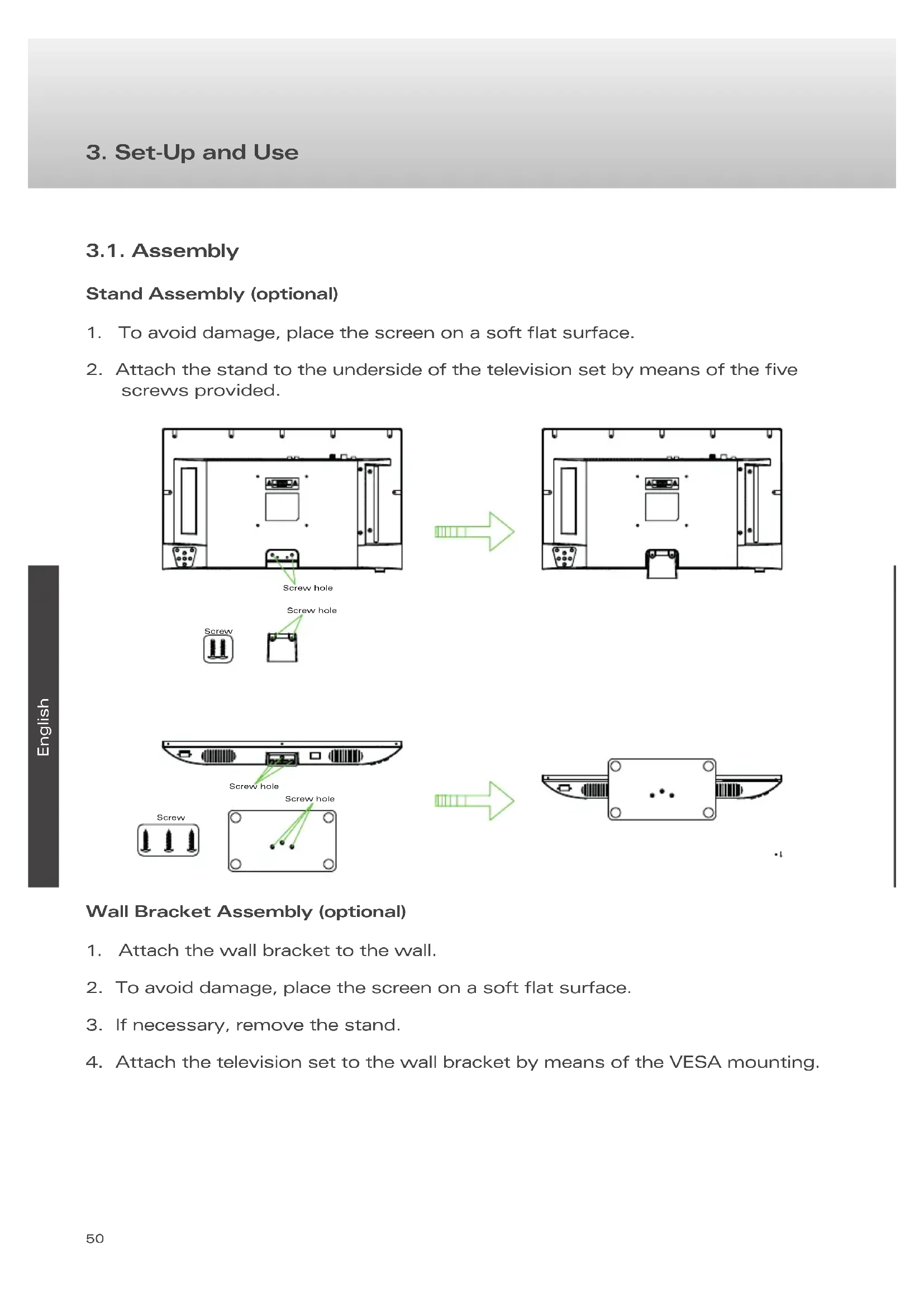

3.1. Assembly

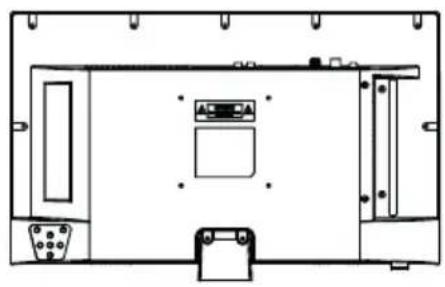

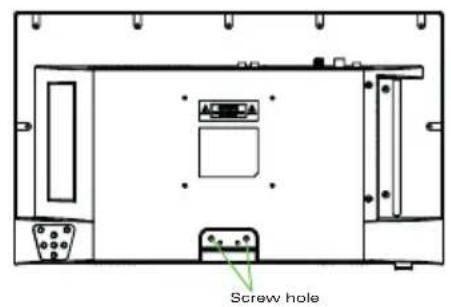

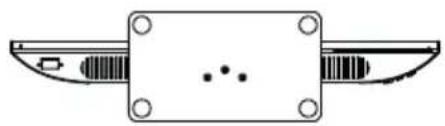

Stand Assembly (optional)

1. To avoid damage, place the screen on a soft flat surface.
2. Attach the stand to the underside of the television set by means of the five screws provided.

Screw hole

Technical line drawing of a device rear panel with ports and connectors (no text or symbols)

Screw hole

Pure mechanical component diagram without any text, numbers, or symbols

-1

Wall Bracket Assembly (optional)

1. Attach the wall bracket to the wall.
2. To avoid damage, place the screen on a soft flat surface.
3. If necessary, remove the stand.
4. Attach the television set to the wall bracket by means of the VESA mounting.

3. Set-Up and Use

NOTE

Make sure that the mounting screws (M4) project into the television set by no more than 8 mm. Longer screws can damage the set.
A wall bracket can be bought separately.

Product information available at http://halter.caratec.de

Use only a wall bracket suitable for the size and weight of the television set.
Follow the instructions for the assembly of the wall bracket.

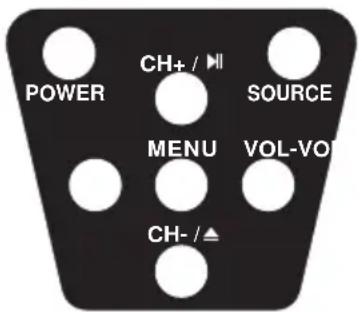

3.2. Control Buttons

The control buttons are on the backside of the housing. They control the most important functions.

POWER CH+/# SOURCE MENU VOL-VO CH-/▲

Designation Explanation
SOURCE	Source selectionPress the button several times to select the signal source
MENU Show menu
CH+	Next channel
	Navigation ▲
CH-	Previous channel
	Navigation ▼
VOL+	Increase volume
	Navigation ▶
VOL-	Reduce volume
	Navigation ◀
PLAY / PAUSE Play/stop DVD (in DVD mode)
EJECT Eject DVD
POWER Turn television set on/off

3. Set-Up and Use

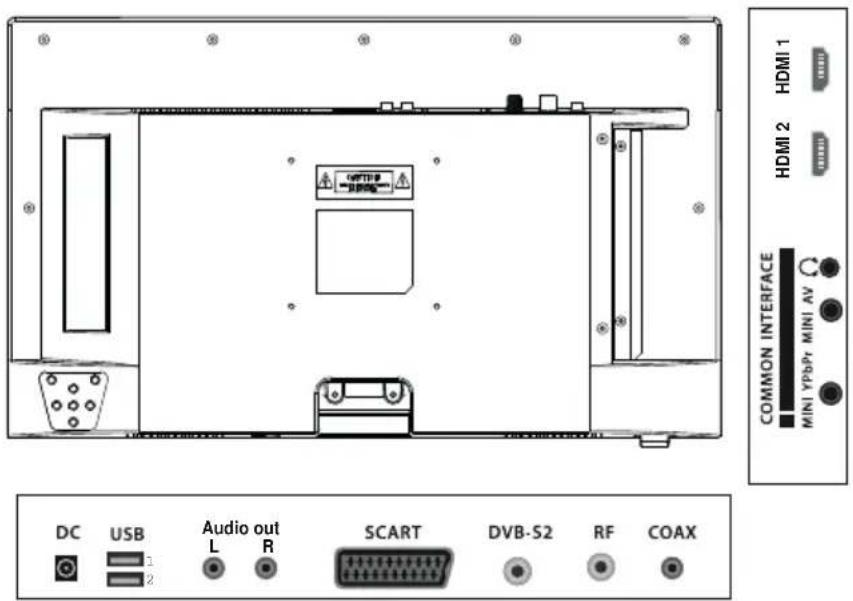

3.3. Connections to the television set

External devices or sources can be connected at the rear of the television set. Both passive and active antennas (with integrated amplifier and their own power source) can be connected to the antenna input.

HDMI 1 HDMI 2 COMMON INTERFACE MINI YPbPr MINI AV DC USB Audio out SCART DVB-S2 RF COAX

Designation Explanation

On/off switch On/off switch reduces power consumption to 0

DC Power cord connection/power supply

SCART AV input for external source

DVB-S2 Satellite antenna connection

RF Connection for DVB-T/DVB-T2 HD or cable television

COAX Digital audio output (co-axial)

Audio out Audio out connection

HDMI 1/2 HDMI connection

USB 1/2 USB connection

Mini YPbPR Component video input (adapter included)

Mini AV AV input (adapter included)

Headphones Connection for headphones/external speakers (3.5 mm jack)

Common Interface CI-slot for encrypted programmes (NOTE: insert the right way round)

3. Set-Up and Use

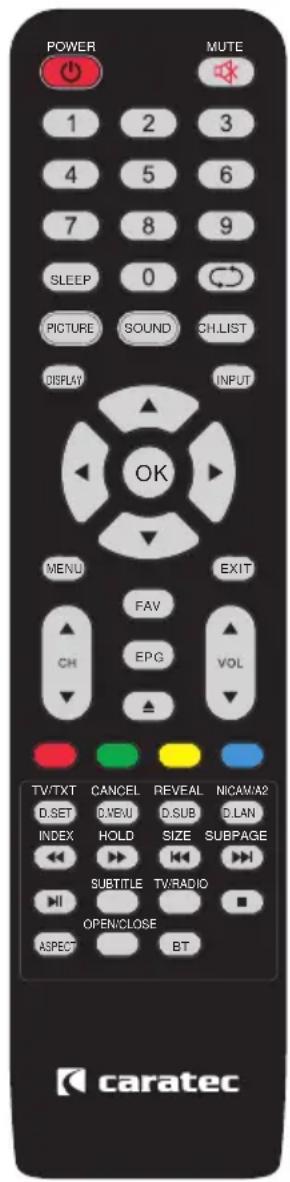

3.4. Remote Control

Place batteries in the remote control

1. Open the battery compartment of the remote control.
2. Insert the batteries provided (AAA, 2 x 1.5 volts).

Key Assignment

Designation Explanation
POWER On/off, standby
EJECT Eject DVD (in DVD mode)
MUTE Mute
PICTURE Change picture presets
ASPECT Change picture format
SOUND Change sound presets
SUBTITLE Set subtitles
SLEEP Set sleep timer
CH.LIST Display programme list
Number key Enter numbers
FAV	Display favourites
RETURN	Switch to previous channel
VOL+/- Increase/decrease volume
CH+/-	Next/previous channel
EPG	Programme guide
TV/RADIO	Switch between radio and TV
DISPLAY	Show information
INPUT Select input source
Navigation buttons	Navigate up/down/right/left
OK	Confirm selection
MENU	Show main menu
EXIT	Quit menu
Colour buttons	Quick selection button (red, green, yellow, blue)
TV/TXT	Opening/closing teletext
CANCEL	Quitting
REVEAL	Displaying hidden text
NICAM/A2	Toggling between NICAM / A2
OPEN/CLOSE	Opening and closing the Satellite antenna

▶ continue on the next page

POWER MUTE 1 2 3 4 5 6 7 8 9 SLEEP 0 PICTURE SOUND CH.LIST DISPLAY INPUT OK MENU EXIT FAV CH EPG VOL TV/TXT CANCEL REVEAL NICAMA2 D.SET D.VBU D.SUB D.LAN INDEX HOLD SIZE SUBPAGE SUBTITLE TW/RADIO OPEN/CLOSE ASPECT BT caratec

3. Set-Up and Use

Designation Explanation
INDEX Opening Index
HOLD Keep teletext sub-page (do not go to next page)
SIZE Enlarging teletext main page/enlarging sub-page/standard size
SUBPAGE Opening/closing teletext sub page
D.SET Displaying DVD settings
D.MENU Displaying DVD main menu
D.SUB Displaying DVD subtitles
D.LAN Selecting DVD language
◀◀	Back
▶▶	Forwards
|◀◀	Back one chapter
▶▶|	Forward one chapter
▶||	Playback/pause
■	Stop
BT Displaying Bluetooth menu

3.5. Navigating within the menus

Navigating in the main menus

You can move through the menus with either the remote control or using the buttons on the television set.

Operation control panel remote control
Opening the main menu MENU MENU
Selecting menu or sub-menu	VOL+ (forward)VOL- (back)CH+ (up)CH- (down)	▸ (forward)▸ (back)▲ (up)▼ (down)
Selecting options within the menu	CH+ (up)CH- (down)	▲ (up)▼ (down)
Switching to the set-up mask	VOL+ (forward)	▸ (forward)
Navigating within the set-up mask	CH+ (up)CH- (down)	▲ (up)▼ (down)
Exiting the set-up mask of a menu or exiting a menu	MENU MENU
Confirming settings	INPUT	OK
Confirming setting and exiting set-up mask	MENU	OK

3. Set-Up and Use

Aktion Bedienleiste Fernbedienung
Back to next menu level up MENU MENU
Exiting menu MENU EXIT

NOTE

Follow the navigation instructions in the individual menus and set-up masks.

Navigating within the DVD menu

You can move through the menus with either the remote control or the buttons on the television set.

Operation remote control
Opening DVD menu D.SET
Selecting menu	▸ (forward)◀ (back)
Switching into the set-up mask	▼ (down)
Exiting the set-up mask	◀ (back)
Moving within the set-up mask	▲ (up)▼ (down)
Enable set-up for editing	▸ (forward)
Changing settings	▲ (up)▼ (down)
Confirming setting and exiting the set-up mask OK
Exiting DVD menu D.SET

NOTE

Follow the navigation instructions in the individual menus and the set-up mask.

4. Quick Set-Up

4.1. Electrical Connection

1. Connect the television set to a suitable power supply.

4.2. Turning the television set on

1. Turn on the television set using the on/off switch and press the POWER button on the remote control or on the device.

The standby lamp turns green when the television is switched on.
The standby lamp turns red when the television is switched off.
The standby lamp is not illuminated when the on/off switch is in the OFF position.

4.3. Set-Up for Satellite Reception

1. Connect the satellite dish to the DVB-S2 inlet of the television set.
2. Turn on the television set with the on/off switch and press the POWER button on the remote control or on the device.

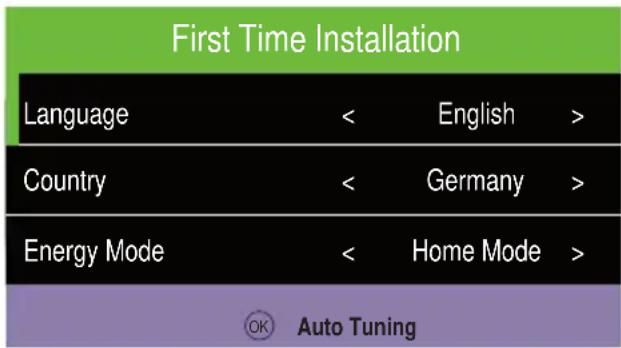

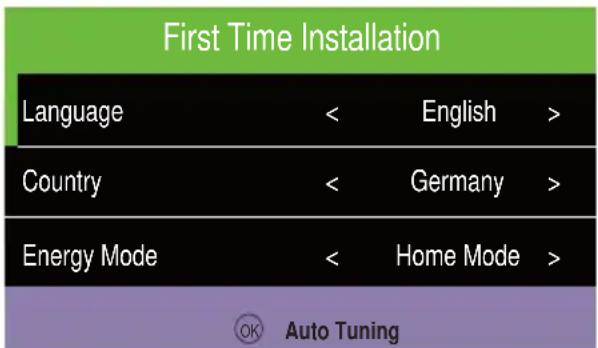

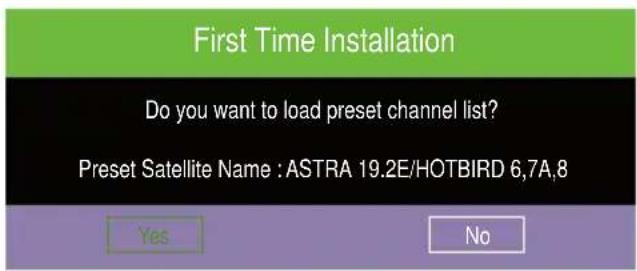

The First Time Installation Menu is automatically displayed the first time you switch on.

First Time Installation Language < English > Country < Germany > Energy Mode < Home Mode > OK Auto Tuning

1. Select menu Language and Country.
2. Press OK.

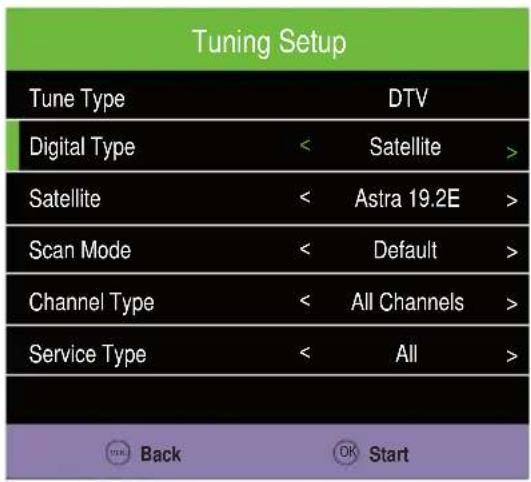

The Tuning Setup Menu is displayed.

4. Quick Set-Up

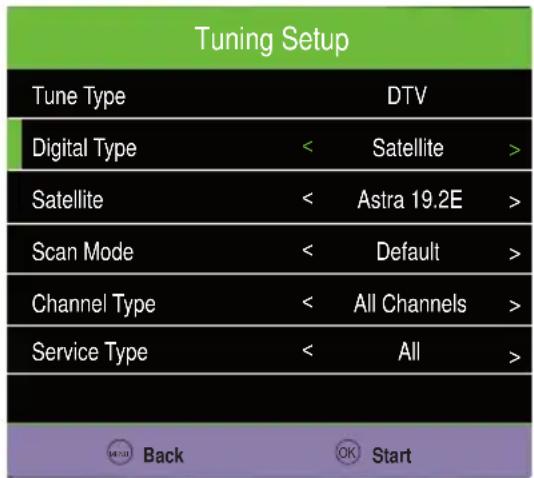

Tuning Setup Tune Type DTV Digital Type < Satellite > Satellite < Astra 19.2E > Scan Mode < Default > Channel Type < All Channels > Service Type < All >

1. Select DTV or ATV + DTV as the receiving mode (Tune Type).
2. Select Satellite as the input source (Digital Type).
3. Select the desired satellite (ASTRA/HOTBIRD are standard).
4. Press OK.

First Time Installation Dialogue is displayed.

First Time Installation Do you want to load preset channel list? Preset Satellite Name : ASTRA 19.2E/HOTBIRD 6,7A,8 Yes No

1. Select Yes to load the preset channel list (for ASTRA and HOTBIRD).

Your television set is ready.

Select No to perform a manual search for programmes on the previously selected satellite.

Please follow the detailed instructions for searching for satellite channels and for editing channel lists in chapter „5.2. Channel Menu” on page 62

4. Quick Set-Up

4.4. Initial Installation for Reception via DVB-C/DVB-T.

1. DVB-C: Connect the cable connection to the DBV-C input of the television set.

OR:

DVB-T/ T-2 HD: Connect the terrestrial antenna to the DVBT-input of the television set. If using an active antenna without independent power supply in the menu switch the „5V antenna power” On (Channel Menu).

1. Turn on the television set with the on/off switch and press the POWER button on the remote control or on the device.

The First Time Installation Menu is automatically displayed the first time you switch on.

First Time Installation Language < English > Country < Germany > Energy Mode <.Home Mode > OK Auto Tuning

1. Sleet the menu Language and Country.

2. Press OK.

The Tuning Setup Menu is displayed.

Tuning Setup Tune Type DTV Digital Type < Satellite > Satellite < Astra 19.2E > Scan Mode < Default > Channel Type < All Channels > Service Type < All > Back OK Start

1. Select DTV or ATV + DTV as the receiving mode (Tune Type).

4. Quick Set-Up

1. Select the input source (Digital Type)

DVB-T for input from an antenna,
DVB-C for cable input.

1. Press OK.

The station search dialogue box is displayed (Auto Tuning Status)

The TV and radio station search may last several minutes.

Your television set is ready for use.

Please follow the detailed descriptions in Chapter „5.2. Channel Menu“ on page 62.

4.5. Connection to External Sources

Connection via HDMI Cable

Connect the HDMI-input on the television set to the HDMI-output of the external device.

Please follow the detailed description for selection of the input source in Chapter „4.6. Important Operating Instructions“ on page 60.

Connection via a SCART Cable.

Connect the SCART socket on the television to the SCART output of the external device.

Please follow the detailed description for selection of the input source in Chapter „4.6. Important Operating Instructions“ on page 60.

Connection via an AV Cable

Connect the AV adapter to the MINI AV input of the television set. Connect the adapter to the AV output of the external device.

Please follow the detailed description for selection of the input source in Chapter „4.6. Important Operating Instructions“ on page 60.

4. Quick Set-Up

Connection via a YPbPr Cable

Connect the YPbPr adapter to the MINI YPbPr-input of the television set. Connect the adapter to the YPbPr-output of the external device.

Connect the AV adapter to the MINI AV-input of the television set. Connect the adapter to the audio cable and insert the cable into the audio-output of the external device.

Please follow the detailed description for the selection of the input source in Chapter „4.6. Important Operating Instructions“ on page 60.

4.6. Important Operating Instructions

Selection of the Input Source

1. Open the Input Source Menu by pressing the INPUT (control panel on the television set or remote control).
2. Select and then confirm the desired option.

Please follow the detailed description in Chapter „3.5. Navigating within the menus“ on page 54.

Input Source Explanation
Satellite	Satellite televisionSee chapter► „Quick Set-Up“ on page 56► „Set-Up for Satellite Reception“ on page 56
DTV	Digital TelevisionSee chapter „Initial Installation for Reception via DVB-C/DVB-T“ on page 58
ATV Analog Television
DVD	DVD OperationSee chapter „DVD Operation“ on page 78
AV External device is connected via AV connection
SCART External device is connected via SCART connection
YPbPr External device is connected via YPbPr connection
PC PC is connected
HDMI External device is connected via HDMI connection
USB External device is connected via USB connection

4. Quick Set-Up

Teletext

Turn the Teletext on or off by using the TV/TXT button on the remote control.

Please follow the detailed description in Chapter „9.7. Teletext“ on page 86.

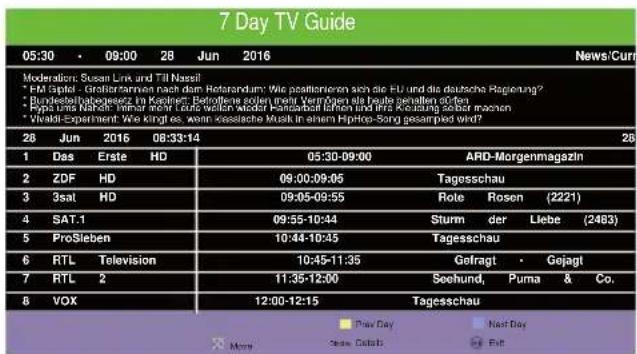

EPG-Menu

Use the EPG button on the remote control to turn the programme guide on or off.

Please follow the detailed descriptions in Chapter „9.5. Programme Guide (EPG)” on page 85.

DVD Operation

1. Press the INPUT button on the remote control.
2. Select DVD operation.
3. Place a DVD disc with the label side facing backwards into the DVD player at the back of the television set.

   After loading, the DVD menu is displayed and playback starts automatically.

Please follow the detailed descriptions in the chapter „8. DVD Operation“ on page 78.

Multimedia Operation (USB)

1. Connect a device (e.g. USB stick, external hard drive) to the USB port.
2. Press the INPUT key on the remote control.
3. Select USB.

Please follow the detailed description in chapter „7. Multimedia Operation“ on page 74.

5. Main Menu

5.1. Selecting the Main Menu

1. Open the main menu by pressing the MENU button (control panel on the television set or remote control).
2. Select and confirm the desired option.

Please follow the detailed description in chapter „3.5. Navigating within the menus" on page 54.

The Main Menu contains the following sub-menus:

CHANNEL PICTURE SOUND TIME SETUP LOCK

5.2. Channel Menu

1. Open the Main Menu by pressing the MENU button (control panel on the television set or remote control).
2. Select Channel and confirm with the OK button.

The Channels Menu is displayed.

CHANNEL

Important functions in the Channel Menu:

Manual or automatic channel scan Editing the channel list

NOTE

The functions may vary depending on the origin of the signal.

Function Explanation
Antenna1	▸ DVB-T (antenna reception)▸ DVB-C (cable reception)
Auto Tuning	Begin automatic channel searchMenu „Tuning Setup“ is displayed

5. Main Menu

Funktion Erklärung
ATV Manual Tuning1	Begin manual channel search for the selected source „ATV Manual Tuning“ menus are displayed.
DVB-C Manual Tuning1DVB-T Manual Tuning1	Beginning manual channel search for selected source. „DVB-C Manual Tuning“ or „DVB-T Manual Tuning“ menus are displayed
Programme Edit	Organising, deleting, skipping, marking as favourites. „Programme Edit“ menu is displayed.
Signal Information Show signal information of the station.
CI-Information	Show information on an inserted CI card.See chapter „6. CI-Modul“ on page 29
Dish Setup2	Erasing, managing, re-setting satellites and transponders.Menu „Dish Setup“ is displayed.
5V antenna power1	Turning set on with an active antenna in order to feed 5V to the antenna.

^1 Input Source DTV // ^2 Input Source Satellite

Smart-D function DiSEqC settings for automatic dish alignment

For the use with a compatible Caratec Smart-D dish.

1. In the Channel Menu select Dish Setup.
2. Select the appropriate setting under DiSEqC 1.1 (see table):

Satellite Setting
HotBird 13E LNB 1
Astra 19.2E	LNB 2
Eutelsat 5W	LNB 3
Astra 23.5E LNB 4

It is sufficient to make settings only for the satellites used (e.g. Astra 19.2E und Hotbird 13E).

Automatic Channel Search/Receiver Settings

1. In the Channels Menu select the automatic channel search function (Auto Tuning).

The Receiver Settings Menu (Tuning Setup) is displayed.

With Satellite selected as source:

Function Explanation
Country Set country
Satellite Set satellite
Scan Mode	►Full*►Network Scan

Funktion Explanation
Channel Type	All Channels*▶ FTA Channels
Service Type	▶ All*▶ DTV▶ Radio

* recommended settings are printed in bold
▶ continue on the next page

5. Main Menu

With DTV selected as source:

Function Explanation
Country Set country
Tun e Ty pe	▸ ATV (for reception of analogue channels)▸ DTV (for reception of digital channels)▸ ATV + DTV (for reception of analogue and digital channels)
Scan Type	▸ Full*▸ Network Scan
Network ID	▸ Auto*▸ 65535
Frequency	▸ Auto*▸ 770000
Symbol(ks/s)	▸ Auto*▸ 6900
Sorting by LCN	▸ On*▸ Off

* recommended settings are printed in bold

1. Press OK to begin automatic channel search.

The status of the channel search (Auto Tuning) is displayed.

Auto Tuning Status
TV	: 0	Programme
DTV	: 0	Programme
Radio	: 0	Programme
Data	: 0	Programme
10832 MHz	ASTRA 19.2EPlease press MENU key to skip

Manual Analogue Search

1. In the Channels Menu select ATV Manual Tuning.

The Menu ATV Manual Tuning is displayed.

1. Enter and confirm the desired settings.

5. Main Menu

Manual DVB-C Search/Manual DVB-T Search

1. In the Channel Menu select the CADTV Manual Tuning if on cable, or DTV Manual Tuning if receiving via antenna.

The Menu CADTV Manual Tuning or DTV Manual Tuning is displayed.

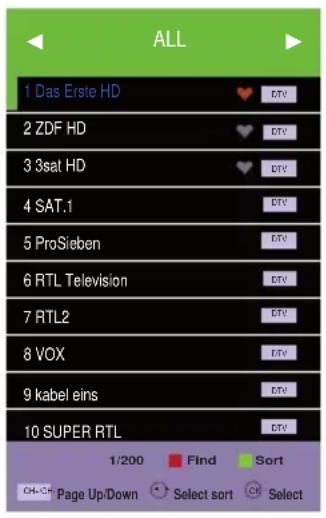

Managing List of Channels

1. In the Channels Menu select Programme Edit.

The Programme Edit Menu is displayed.

1. The following options are available:

Delete channels (red button on the remote control).
Move channels (yellow button on the remote control).
Skip channels (blue button on the remote control).
Add channels to favourites list (FAV button on the remote control).

NOTE

Please follow the instructions at the bottom of the screen.

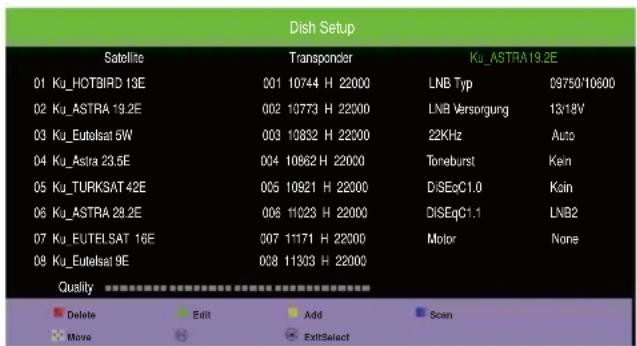

Satellite Configuration

1. In the Channels Menu select Dish Setup.

The Dish Setup Menu is displayed.

Dish Setup Satellite Transponder Ku_ASTRA19.2E 01 Ku_HOTBIRD 13E 001 10744 H 22000 LNB Typ 09750/10600 02 Ku_ASTRA 19.2E 002 10773 H 22000 LNB Versorgung 13/18V 03 Ku_Eutelsat 5W 003 10832 H 22000 22KHz Auto 04 Ku_Astra 23.5E 004 10862 H 22000 Toneburst Kein 05 Ku_TURKSAT 42E 005 10921 H 22000 DiSEoC1.0 Kain 06 Ku_ASTRA 29.2E 006 11023 H 22000 DiSEqC1.1 LNB2 07 Ku_EUTELSAT 16E 007 11171 H 22000 Motor None 08 Ku_Eutelsat 9E 008 11333 H 22000 Quality Delete Edit Add Scan Move ExitSelect

Important functions in the Dish Setup Menu:

Edit/add/delete satellites
Edit/add/delete transponders
Edit satellite settings (for example, DiSEq settings)

▶ continue on the next page

5. Main Menu

Column Explanation
Satellite	Satellite list. The satellite settings can be edited (green button). It is also possible to delete satellites (red button) and to add satellites (yellow button).
Transponder	List of the transponders corresponding to the selected satelliten („Satellite“ column). The transponder settings can be edited (green button). It is also possible to delete transponders (red button) and to add transponders (yellow button).
satellite settings (3rd column)	List of the settings for the selected satellite (“Satellite” column). Configure the DiSEqC function to guide a compatible satellite antenna.

NOTE

Please follow the instructions at the bottom of the screen.

NOTE

You can obtain current information on satellite and transponder settings from the appropriate service provider or on websites such as www.lyngsat.com or www.flysat.com.

5.3. Picture Menu

1. Call up the Main Menu by pressing the MENU button (control panel on the television set or remote control).
2. Select Picture and confirm with the OK button.

Menu Picture is displayed.

Important functions in the Picture Menu:

Customising picture settings.


NOTE

Customising picture settings is only possible in Personal Mode.

Function Explanation
Picture Mode	► Standard (pre-selected settings)► Mild (pre-selected settings)► Personal (settings can be adjusted manually)► Dynamic (pre-selected settings)
Contrast Setting contrast
Brightness Setting brightness
Colour Setting colour ratio
Tint Setting tint (NTSC only)
Sharpness Setting picture sharpness

5. Main Menu

Function Explanation
Colour Temp	Setting colour temperature:▸ Normal▸ Warm▸ Cold
Noise Reduction	Setting noise reduction:▸ Low▸ Medium▸ High▸ Off
Screen Setting position and size of the PC image
Dynamic CR	▸ On▸ Off
Face Colour Setting skin tones
Aspect Ratio	▸ 16:9▸ 4:3▸ Auto▸ Zoom1▸ Zoom2
Blue Screen	Is displayed when no signal available.▸ On▸ Off

5.4. Sound Menu

1. Display the Main Menu by pressing the MENU button (control panel on the television set or the remote control).
2. Select Sound and confirm with the OK button.

The Sound Menu is displayed.

Important functions in the Sound Menu: >Adjusting the sound settings

SOUND

HINWEIS

Adjusting the sound settings is only possible in Personal Mode.

▶ continue on the next page

5. Main Menu

Function Explanation
Bass Adjust Bass
Balance Setting balance between	left and right speakers
Auto Volume	Automatic volume control:▸ On▸ Off
Surround Sound	Surround reproduction:▸ Off▸ SRS TruSurround▸ TruSurround
SPDIF Mode	Setting digital audio output:▸ Auto▸ PCM
AD Switch „AD Switch“ Menu is	displayed
Hearing Impaired	▸ Off▸ On
Bluetooth	Activate Bluetooth-Modul ▶ Bluetooth (On/Off)
Bluetooth Pair	Activate the Bluetooth device to be connected (speaker or headphone) to start pairing. Press the button ▶ on the TV remote to search and pair the Bluetooth device.
Bluetooth Paired List	Press OK on the TV remote, to display connected Bluetooth devices.Disconnect: Press the button ▶ on the TV remote to disconnect connected Bluetooth devices.
Bluetooth Reset	Press the button ▶ on the TV remote to reset the Bluetooth module.
AD Switch	▸ On (audio description)▸ Off
AD Volume Setting level of the audio description

5.5. Time Menu

1. Display the Main Menu by pressing the MENU button (Control panel on the television set or remote control).
2. Select Time and confirm with OK button.

Time Menu is displayed.

Important function in the Time Menu:

Setting the time zone
Setting an automatic on/off time
Setting the sleep timer
Setting automatic switch off
Setting time before menu fade-out

TIME

5. Main Menu

Function Explanation
Clock Time and date display (set automatically)
Time Zone Setting time zone
Off Time	Setting switch-off time for the television „Off Time“ Menu is displayed
On Time	Setting switch-on time for the television „On Time“ Menu is displayed
Sleep Timer	Setting time after which the television set automatically switches off ▶ Off ▶ 10, 20, 30, 60, 90, 120, 180, 240 min.
Auto Standby	Setting whether and when the television set automatically switches off if no operations are performed ▶ Off ▶ 3, 4, 5 h
OSD Timer	Setting whether and when the menu automatically fades out ▶ Off ▶ 5, 10, 15, 20, 25, 30 s

Switch-off Time

1. In the Time Menu select Off Time.

The Off Time Menu is displayed.

Function Explanation
Off Time	▸ Off▸ Once▸ Everyday▸ Mon-Fri▸ Mon-Sat▸ Sat-Sun▸ Sun
Hour Setting time (Hour)
Minute Setting time (Minute)

Switch-on Time

1. In the Time Menu select On Time.

The On Time Menu is displayed.

▶ continue on the next page

5. Main Menu

Function Explanation
On Time	▸ Off▸ Once▸ Everyday▸ Mon-Fri▸ Mon-Sat▸ Sat-Sun▸ Sun
Hour Setting time (Hour)
Minute Setting time (Minute)
Source	Selecting input source for playback when the television set is to be turned on.
Channel Selecting the channel at which the television is to be turned on.
Volume Selecting the volume at which the television is to be turned on.

5.6. Setup Menu

1. Display the Main Menu by pressing the MENU button (control panel on the television set or the remote control).
2. Select Setup and confirm with the OK button.

The Setup Menu is displayed.

SETUP

Important functions in the Setup Menu:

> Setting the language for menu, audio and subtitles

> Resetting to factory default settings

> Performing software update

> Version information on model, panel type, and software version

Function Explanation
Language	Setting menu language (German, Czech, Swedish, Finnish, Portuguese, Dutch, Italian, French, Spanish, English)
TT Language Setting font (West,	East, Russian, Arabic, Farsi) for the teletext display
Audio Language	Setting audio language 1 and 2 for multi-channel sound „Audio Language“ Menu is displayed
Subtitle Language	Setting sub-title language 1 and 2 „Subtitle Language“ Menu is displayed
Reset Reset to factory settings
Software Update (USB)	Performing software update (a USB device with the update files must be connected)

5. Main Menu

Function Explanation
Version Displaying version (Model, panel type, and software version)
Import DefaultData	Loading ASTRA/HOTBIRD standard channel list (only for satellite reception)

5.7. Lock Menu

1. Display the Main Menu by pressing the MENU button (control panel on the television set or the remote control).
2. Select Lock and confirm with OK button.

The Lock Menu is displayed.

LOCK

Important functions in the Lock Menu:

Setting a system lock Changing the password Locking channels, parental guidance, button lock

NOTE

To change settings in the Lock Menu a password is required. Factory-set password: „0000”.

Function Explanation
System Lock	▸ Off▸ On
Set Password Personalising the	password
Channel Lock	Locking individual channels. Access is only possible with the password. „Channel lock“ Menu is displayed.
Parental Guidance	Setting age limit for parental control settings▸ Off▸ 4 - 18
Key Lock	Activating key lock. Only possible if the option On was selected in the System Lock function.▸ Off▸ On
Hotel Mode	Limiting functions of the television set for the user and importing pre-set database (a USB device with the database files must be connected). The „Hotel Mode“ Menu is displayed.

▶ continue on the next page

5. Main Menu

Locking Channels

1. In the Lock Menu select Channel Lock.

The Channel Lock Menu is displayed.

1. Lock or release the desired channels and confirm.

Hotel Mode

1. In the Lock Menu select Hotel Mode.

The Hotel Mode Menu is displayed.

Function Explanation
Hotel Mode	▸ On▸ Off
Source Lock Locking individual input sources
Default Source Selecting input source with which the television set is to be turned on.
Default Prog	Selecting channel for playback when the television set is to be turned on
Default Volume Selecting volume	at which the television set is to be turned on
Max. Volume Selecting maximum	volume for the television set
Import Database Importing database from a USB device
Export Database Exporting database to a USB device
Clear Lock Resetting all locks

NOTE

To save and restore your personal channel list use the Export Database and Import Database functions.

6. CI module

6.1. Common Interface (CI)

The television set has a CI slot and supports both CI and CI+.

A CI module is a plug-in card the size of a credit card which fits into the slot of your DVB receiver and which in turn can also hold a smart card. With this combination you have access to encrypted pay channels.

NOTE

Use only CI modules which are authorised or certified by the service provider. This is the only way to guarantee compatibility.

6.2. Inserting the smart card and the CI module

1. Turn the television set off.
2. Insert the CI Module into the CI slot of the television set. Make sure you are inserting it the right way round (see illustration).
3. Insert the smart card into the CI Module. Make sure it is the right way round (see the arrow).
4. Turn the television set back on.

Up Down

7. Multimedia Operation

7.1. Prerequisites

You can play back files saved on a USB device if the following file formats are on the storage device:

Medium Format
Movie	*.dat, *.mpg, *mpeg*.vob*.mkv*.mp4, *.mov*.avi*.flv*.asf, *.wmv
Music	*.mp3*.wav*.wma/asf*.aac*.ac3
Photo	*.jpg, *.jpeg*.png*.bmp
Tex t *.txt

7.2. Playback

1. Press the INPUT button on the remote control.
2. Select USB as the input source.

The Multimedia Menu is displayed.

PHOTO MUSIC MOVIE TEXT

Please follow the detailed description in Chapter „3.5. Navigating within the menus“ on page 54.

1. Enter the desired media type (Photo, Music, Movie or Text) and confirm with OK.

The selection screen with the file/directory structure is displayed.

7. Multimedia Operation

5 Autism Cancel OFF Finish OK Cancel Cancel OK Cancel OK Finish Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel Cancel OK Cancel 完毕

1. Select the storage location (C) of the medium and, if necessary, the subfolder. The files already present are displayed.
2. Select the desired file. Use the green button on the remote control to mark the files (e.g. photos or music) to be shown/played.
3. Press the Play/Pause button on the remote control.

The Media Player menu is displayed.

Movie

Press the OK button on the remote control to display the Movie menu.

Function Explanation
Pause/Play Stopping and re-starting the film
FB Rewinding
FF Fast forward
Prev. Previous film
Next Next film
Stop Stops play
CharSet Changing character set
RepeatNone Repeat1 RepeatALL	No repeat Repeat current film Non-stop playback of all films
Set A/Set B Use this to set point A and point B to repeat a film segment.
Playlist Shows the play list

▶ continue on the next page

7. Multimedia Operation

Function Explanation
Info Displays movie info
Slow Slow-motion playback
Step Stop-start playback
Goto Time Jump to playback time
Zoom In Increases film size
Zoom Out Decreases film size
Aspect Ratio	Auto4:316:9
Move View Move image in increased-size film with the arrow keys

Music

Play 00:00:01 / 00:04:16 Pause PS TV Press Next Stop Repeat/All NETE

Function Explanation
Pause/Play Stopping and re-starting track
FB Rewinding
FF Fast forward
Prev. Previous track
Next Next track
Stop Stops play
RepeatNone	No repeat
Repeat1	Repeat current track
RepeatALL	Non-stop playback of all tracks
Mute	Mutes the track
Playlist	Shows the playlist
Info Displays track info
Goto Time Jump to playback time

7. Multimedia Operation


Radio Play Next Stop RelevelAll Music Playlist info

Function Explanation
Pause/Play Stopping then re-starting slide show
Prev. Previous image
Next Next image
Stop Stop
RepeatNone Repeat1 RepeatALL	No repeat Repeat current image Non-stop playback of all images
Musik Plays music from USB device during slide show
Playlist Shows the play-back list
Info Shows file info
Rotate Turns the image 90° to the right
Rotate Turns the image 90° to the left
Zoom In Increases image size
Zoom Out Reduces image size
Move View Move image in zoomed view with the arrow keys

7.3. Ending Playback

1. Press the EXIT button on the remote control to end the playback and return to file selection.

To change the media type press the EXIT button on the remote control repeatedly until the Multimedia Menu is displayed.

8. DVD Operation

8.1. Inserting the DVD

To insert the DVD proceed as follows:

1. Turn on the television set.
2. Press the INPUT button on the remote control and select DVD as source.
3. Insert the DVD with the label side facing backwards slowly into the DVD drive. It will automatically be pulled into the drive.

The DVD will be loaded automatically.

NOTE	Inserting the DVD is only possible when the television set is in DVD mode. The DVD is pulled in automatically.Do not use any force when inserting.
NOTE	To avoid damaging the DVD, the label side of the disc must face towards the back.

8.2. Playing the DVD

1. Using the disc menu on the DVD, you can either start the film or choose other options.
   OR:
   Press the ▶ll button on the remote control to start the film.

NOTE	You can return to the disc menu by pressing the D.MENU button on the remote control. Navigating through the disc menu is by means of the navigation buttons on the remote control.

8.3. Ejecting the DVD

1. To eject the DVD, press the EJECT button on the control panel on the television set or on the remote control.

NOTE	Ejecting a DVD is possible only when DVD is selected as the input source.

8. DVD Operation

8.4. General Settings

To display the DVD settings proceed as follows:

1. Press the D.SET button on the remote control.

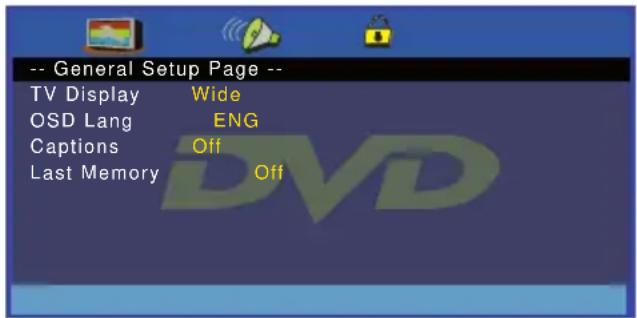

The General Setup Page is displayed.

-- General Setup Page -- TV Display Wide OSD Lang ENG Captions Off Last Memory Off

Pease follow the detailed description in Chapter „3.5. Navigating within the menus“ on page 54.

Function Explanation
TV-Display Setting the screen display
OSD Lang Setting the display language
Captions Turn captions on/off
Last Memory	▸ On (the last playback position of the DVD is stored and then starts from there when the DVD player is next turned on)▸ Off (the DVD starts from the beginning each time it is turned on)

1. Press the D.SET button on the remote control again to exit the menu and return to DVD playback.

8.5. Audio Settings

To display the audio settings proceed as follows:

1. Press the D.SET button on the remote control.

The General Setup Page Menu is displayed.

▶ continue on the next page

8. DVD Operation

1. In the General Setup Page press the right-hand arrow key on the remote control and select the speaker symbol.

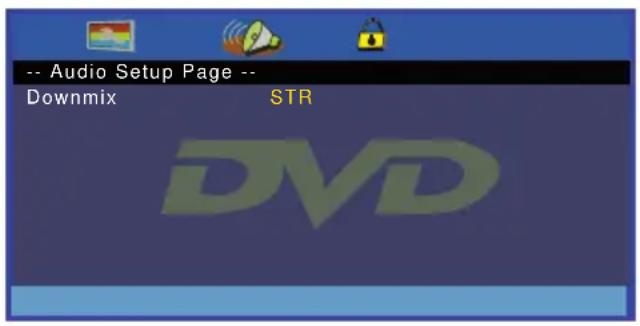

The Audio Setup Page is displayed.

-- Audio Setup Page -- Downmix STR DVD

Please follow the detailed description in Chapter „3.5. Navigating within the menus“ on page 54.

Function Explanation
Downmix	▸ LT/RT▸ Stereo

1. Press the D.SET button again on the remote control to exit the menu and return to DVD playback.

8.6. User Settings

To show the Dolby digital settings proceed as follows:

1. Press the D.SET button on the remote control.

The General Setup Page is displayed.

1. In the General Setup Page Menu press the right-hand arrow key on the remote control and select the screen symbol.

The Preference Page Menu is displayed.

-- Preference Page -- TV System PAL Audio Deu Subtitle Deu Menu Deu Parental Ctrl Password Default

8. DVD Operation

Please follow the detailed description in the Chapter „3.5. Navigating within the menus“ on page 54.

Function Explanation
TV System	▸ PAL▸ Multi▸ NTSC
Audio Select audio language
Subtitle Select subtitel language
Menu Select menu language
Parental Ctrl Select age category
Password	Change password (default: 1234)
Default Reset to factory settings

1. Press the D.SET button on the remote control again to exit the menu and return to DVD playback.

8.7. DVD Remote Control

Please follow the detailed description of the remote control in Chapter „3.4. Remote Control“ on page 53.

9. Special Functions

9.1. Channel Display

To open the channel list proceed as follows:

1. Press the CH.LIST button on the remote control or press the OK button on the remote control (only if no menu is displayed).

The Channel List Menu is displayed.

ALL 1 Das Erste HD 2 ZDF HD 3 3sat HD 4 SAT.1 5 ProSieben 6 RTL Television 7 RTL2 8 VOX 9 kabel eins 10 SUPER RTL 1/200 Find Sort OK-CH Page Up/Down Select sort Select

Please follow the detailed description in Chapter „3.5. Navigating within the menus“ on page 54.

Symbols indicate whether a channel is locked, encrypted, to be skipped or a favourite.

Use the navigation buttons ◀/▶ on the remote control to filter the indicated channels.

Name Explanation
All Contains all the channels
DTV List Contains only television channels
Radio List Contains only radio channels
Data List Contains only data channels
FTA List Contains non-pay channels
Scrambled List	Contains only encrypted Pay TV Channels
Satellit Lists	Contains all channels of a satellite

▶ continue on the next page

9. Special Functions

1. Select the desired channel and press OK.

NOTE

To edit the channel list (delete, move, skip, add to favourites), in the Channel Menu select Programme edit. See also „5.2. Channel Menu“ on page 62.

9.2. Favourites

To open the favourites list proceed as follows:

1. Press the FAV button on the remote control.

The Favorite List Menu is displayed.

Favorite List 1 Das Erste HD 2 ZDF HD 26 arte HD 1/1 Page Up/Down Select

The channels previously designated as favourites are displayed in this view. Symbols indicate if a channel is to be skipped or is marked as a favourite.

1. Select the desired channel and press OK.

NOTE

To edit the channel list (delete, move, skip, add to favourites), in the Channel Menu select Programme edit. See also „5.2. Channel Menu“ on page 62.

9. Special Functions

9.3. Channel Information

To open channel information, proceed as follows:

1. Press the DISPLAY button on the remote control.

Channel Information is displayed.

2 ABC1 28 Mar 2008 11:04 11:00 - 11:32 Midday Report MPEG 576i DTV SD DOLBY Subtitle English Teletext Up-to-the minute local, national and international news, with special attention on business and the economy.

9.4. Subtitle Language

To display the subtitle language, proceed as follows:

1. Press the SUBTITLE button on the remote control.

The Subtitle Language Menu is displayed.

Subtitle Language Off English Ok

1. Select the desired subtitle language and press OK.

NOTE	The availability of subtitle languages is determined by the service provider.
NOTE	Editing the subtitle languages is not possible at this point.To edit the subtitle languages, in the Setup Menu select Subtitel Language. See also „5.6. Setup Menu“ on page 70.

9. Special Functions

9.5. Programme Guide (EPG)

To display the programme guide proceed as follows:

1. Press the EPG button on the remote control.

The 7 Day TV Guide Menu is displayed.

In this view you will find information on the current day's programming, that of the previous day, and also of the following day.

1. Select the desired programme and press OK.

9.6. Radio

To switch between Radio mode and TV mode, proceed as follows:

1. Press the TV/Radio button on the remote control.

You are in Radio mode.

1. Press the blue button on the remote control to deactivate the screen. The radio will continue playing.
2. Reactivate the screen by pressing any button on the remote control.
3. Press the TV/Radio button on the remote control again to return to the TV mode.

NOTE

It is possible to use the Vol+/Vol- and the MUTE buttons with the screen deactivated. When using these buttons the screen remains deactivated.

9. Special Functions

9.7. Teletex t

Teletext is made available free of charge by most TV stations. It provides various types of information, e.g. News Ticker and updated news, weather forecasts, information on business, sport, culture, advice services, etc. and also on television programming.

1. Press the button TV/TXT on the remote control. To display the teletext a station must be selected which provides this service.

To select a page, with the number buttons on the remote control enter the three-digit number of the desired page.
Use the CH▲ and CH▼ buttons on the remote control to move forwards and backwards between the pages.
Use the HOLD button on the remote control to set a page.
Use the INDEX button on the remote control to move to the opening page or the table of contents.
Use the SIZE button on the remote control to zoom the upper or the lower section of the page or to return to the normal display.
Use the REVEAL button on the remote control to reveal hidden information or to hide this information again.
Use the SUBPAGE button on the remote control to directly select subpages which are then automatically displayed:

1. Press the TV/TXT button on the remote control again to leave the teletext and return to TV mode.

10. Trouble Shooting

Problem Action
Television set cannot be turned on	Make sure that the power cable is properly inserted.Make sure that the On/Off switch on the bottom of the television set is turned on.Make sure that the polarity of the power supply is correct.
No Picture	Make sure that the correct source (INPUT) is selected.Make sure that the correct source or antenna is properly connected.
No Sound	Check the volume setting.Check whether the Mute function is activated.
Poor Picture Quality	Make sure that the antenna cable is properly connected.Check the picture settings.
Picture too large/small, distorted.	Press the ASPECT button of the remote control to change the image display.
Blue screen	Make sure that the appropriate input (INPUT) is selected.
Television set does not react to the remote control	Make sure that the batteries have been inserted correctly. If necessary, insert new batteries.
DTV/DTB-T mode: error message “No signal”	Check the antenna connection.Re-start the automatic channel search.
PC-Mode: the picture is too small, too large, or shifted.	Select PC as input source and adjust the picture settings in the menu.
Satellite - no signal	Check the list of channels. In the configuration section of the menu you can restore the standard list of channels.

11. Specification

Technical Data	CAV220X-DB
Energy efficiency class*	A
Visible diagonal screen size in cm	55
Visible diagonal screen size in inch	21,5
Power consumption ON	21,0 Watt
Annual energy consumption	31 Watt
Power consumption stand-by	0,50 Watt
Power consumption OFF	0,00 Watt
Resolution (Pixel)	1920 x 1080 (Full HD)
Image format	16:9
Contrast ratio	3.000 : 1
Brightness	250 cd/m2
Viewing angle (R/L/T/B)	89°/89°/89°/89° (wide-angle)
Loudspeaker	2 x 3 Watt
Smart-D control for satellite antenna	yes
Analog TV-Tuner	yes
DVB-T2 HD (H.265) Tuner	yes
DVB-S2 Tuner	yes
DVD player (laterally integrated)	yes
HDMI	yes (2x)
Scart	yes
Component (Y, Pb, Pr) 3,5 mm jack	yes, adapter optional: MCC29080
Composite (FBAS) 3,5 mm jack	yes, adapter optional: MCC29060
USB connection (media player)	yes (2x)
Integrated Bluetooth transmitter	yes
Antenna connection analogue/DVB-T	yes
5V power supply for active DVB-T antennas	yes
Antenna connection DVB-S2	yes
CI+-Slot	yes
Audio Ausgang (fixed level)	yes
Digital audio output	yes
Headphone (3,5 mm)	yes
Remote control	yes
Foot (detachable)	optional: ETC0084
12V connection cable	yes
Power supply unit (100 ... 240 V), external	optional: ETCV008
VESA mounting option 100 x 100	yes
Set switch on/off	yes
Supported USB file formats	Video, Foto, Audio; Software Update
Operating voltage	9...30V
Temperature range operation/storage	0...50°C/-20...60°C
Pixel defect class to EN ISO 9241-307	0
Weight (TV-set incl. accessories)	3,3 kg
Dimensions (W x H x D in mm) without foot	489 x 289 x 48 mm
Visible diagonal screen size in cm	60
Visible diagonal screen size in inch	23,6
Power consumption ON	26,0 Watt
Annual energy consumption	38 Watt
Power consumption stand-by	0,50 Watt
Power consumption OFF	0,00 Watt
Resolution (Pixel)	1920 x 1080 (Full HD)
Image format	16:9
Contrast ratio	3.000 : 1
Brightness	250 cd/m2
Viewing angle (R/L/T/B)	89°/89°/89°/89° (wide-angle)
Loudspeaker	2 x 3 Watt
Smart-D control for satellite antenna	yes
Analog TV-Tuner	yes
DVB-T2 HD (H.265) Tuner	yes
DVB-S2 Tuner	yes
DVD player (laterally integrated)	yes
HDMI	yes (2x)
Scart	yes
Component (Y, Pb, Pr) 3,5 mm jack	yes, adapter optional: MCC29080
Composite (FBAS) 3,5 mm jack	yes, adapter optional: MCC29060
USB connection (media player)	yes (2x)
Integrated Bluetooth transmitter	yes
Antenna connection analogue/DVB-T	yes
5V power supply for active DVB-T antennas	yes
Antenna connection DVB-S2	yes
Cl+-Slot	yes
Audio Ausgang (fixed level)	yes
Digital audio output	yes
Headphone (3,5 mm)	yes
Remote control	yes
Foot (detachable)	optional: ETC0084
12V connection cable	yes
Power supply unit (100 ... 240 V), external	optional: ETCV008
VESA mounting option 100 x 100	yes
Set switch on/off	yes
Supported USB file formats	Video, Foto, Audio; Software Update
Operating voltage	9...30V
Temperature range operation/storage	0...50°C/-20...60°C
Pixel defect class to EN ISO 9241-307	0
Weight (TV-set incl. accessories)	4,0 kg
Dimensions (W x H x D in mm) without foot	542 x 318 x 48 mm

Contenu

Configuration satellite

6.1. Common Interface (CI)

Play 00:00:01 / 00:04:15 Paste PS IT Press Next Stop Repeat/ALL NETC

Radio Play Next Stop ReleakUp Music PlayList info

2 ABC1 28 Mar 2008 11:04 11:00 - 11:32 Midday Report MPEG 576i DTV SD DOLBY Subtitle English Teletext Up-to-the minute local, national and international news, with special attention on business and the economy.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Caratec GmbH declares that the radio equipment type CAV220X-DB and CAV240X-DB is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: doc.caratec.de

DECLARATION DE CONFORMITE UE SIMPLIFIEE

Blank white image with no visible content, text, or symbols
