USER MANUAL Victoria Sonnenkönig

White and black industrial air purifier with perforated ventilation grille (no visible text or symbols)

INDEX

Technical line drawing of a mechanical component with concentric grooves and flanges (no text or symbols)

Pure geometric diagram of concentric circles with radial lines, no text or symbols present

Sicherungsmutter

Standfuss

Mittelloch

Illustration of a handheld device next to a row of vertical panels, with no visible text or symbols.

BATTERIEWECHSEL

Diagram showing a battery with a downward arrow and two batteries labeled 'AAA' with positive charge.

Illustration of a cable inserted into a wall socket connected to a power outlet (no text or symbols)

1H 4H 2H 8H ↑ ↓

Line drawing of a kitchen utensil with a textured surface and handle (no text or symbols)

Festnetz 14 Cent/Minute

White and black industrial air purifier with ventilation grille (no visible text or symbols)

SOMMAIRE

Technical line drawing of a mechanical component with concentric grooves and flanges (no text or symbols)

Pure geometric diagram of concentric circles with radial lines, no text or symbols present

Écrou de blocage

Socle

trou central

Illustration of a handheld device next to a row of vertical panels, with an arrow pointing to the panel (no text or symbols present)

REPLACEMENT DES PILES

Diagram showing a battery with a downward arrow and two batteries labeled 'AAA' with positive charge.

Illustration of a cable inserted into a wall socket connected to a power outlet (no text or symbols)

Close-up of a cylindrical object with a textured top and base, no visible text or symbols

Affichage LED

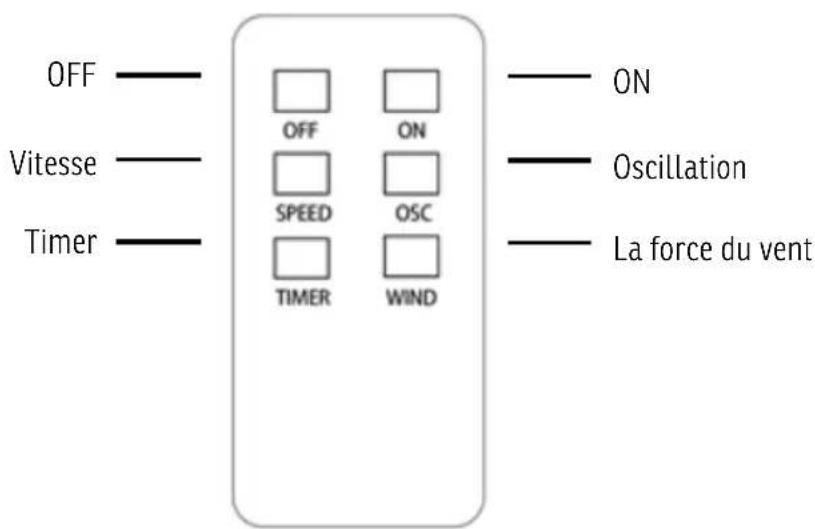

FERNBEDIENUNG

OFF Vitesse Timer OFF ON SPEED OSC TIMER WIND ON Oscillation La force du vent

LED DISPLAY

1H 4H - ↑ 2H 8H

Close-up of a black plug inserted into two white electrical socket plates (no text or symbols visible)

FR

• ENTRÉE D'AIR, SORTIE D'AIRA

Illustration of a handheld device next to a vertical screen with a mesh pattern, accompanied by two hand gestures (no text or symbols present)

Modifications techniques

White and black industrial air purifier with ventilation grille (no visible text or symbols)

IT

INDICE

Technical line drawing of a mechanical component with threaded flange and bolted end (no text or symbols)

Pure geometric diagram of concentric circles with radial lines, no text or symbols present

controdado

stand

foro centrale

Illustration of a handheld device next to a row of vertical panels, with an arrow pointing to the panel (no text or symbols present)

Diagram showing a battery with a downward arrow and two batteries labeled 'AAA' with positive charge.

Illustration of a cable inserted into a wall socket connected to a power outlet (no text or symbols)

3D diagram of a cylindrical object with internal components and a base, labeled 'D' (no text or symbols on the object itself)

Display a LED

5 Telecomando

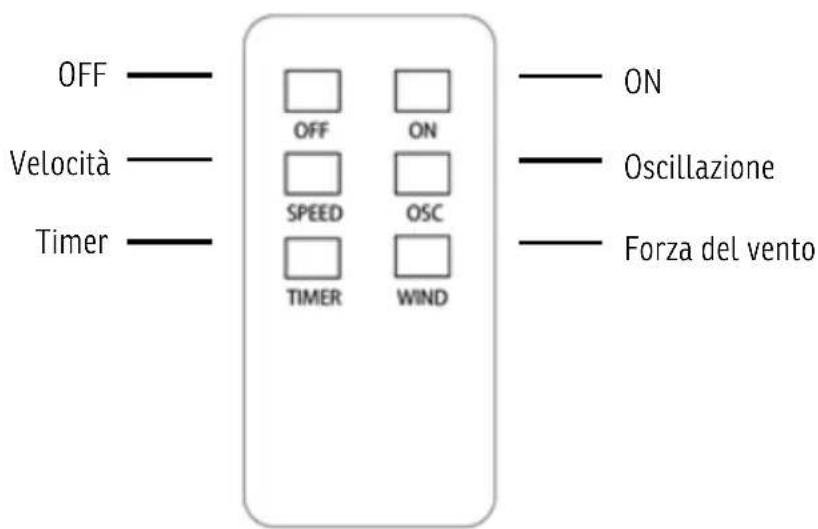

TELECOMANDO

1H 4H - ↑ 2H 8H

Illustration of a handheld device next to a vertical screen with a mesh grille, accompanied by two hand gestures (no text or symbols present)

Telefono flsso 14 Cent/Minute

Telefono mobile fino a 42 Cent/Minute

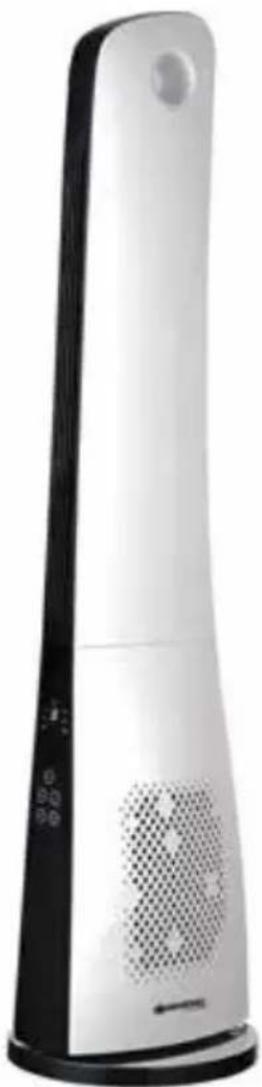

VICTORIA

TOWER FAN Instruction manual

White and black industrial air purifier with perforated ventilation grille (no visible text or symbols)

EN

INDEX

1 Safety instructions....33
2 Components ....35
3 Assembling ....35
4 How to use ....36
5 Remote control ....37
6 Maintenance....37
7 Warranty / Disposal / Technical change....38

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• To ensure you are satisfied with the product and properly clean and maintain it, please read the instruction manual carefully before use. Also, please take good care of this manual for future reference.
• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
• Persons, who are not able to operate the device because of any physical, mental may only use the device under the supervision or under the instructions of a responsible person.
• Do not permit children to use the device, unless they are supervised.
• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed.
  • This appliance is to be used in the household only
• Please use a separate outlet in accordance with the appliance current/voltage. Don't use more than one electrical appliance at the same time on the same outlet.
• Do not pull the connecting cable to remove the plug from the mains socket.
• Do not use the appliance if the mains cable or mains plug is damaged.
• Do not open the housing of the appliance.
• Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.

• Never immerse the appliance or the mains cable into water or other liquids.

• Do not touch the connecting cable with wet hands when disconnecting the appliance from the mains supply.

• This appliance may be used by children under the age 8 years and by persons with decreased physical, sensory or mental abilities or lack of experience and/or knowledge only if they are
• supervised or were instructed on using the appliance and have understood the resulting dangers.

- Cleaning or user-maintenance may not be performed by children who are not under supervision. Children must be supervised to ensure that they do not play with the appliance.

- Store the appliance and accessory parts out of the reach of children.

- Never cover the appliance when it is in operation.

- Do not put the appliance in the vicinity of easily inflammable materials such paint, varnish or gas.

- Allow a gap of at least 1 metre between the fan and all flammable and heat-sensitive materials (furniture, curtains, paper, clothes etc.).

- Place the appliance on a firm, dry, flat and waterproof surface.

- Do not install the appliance in a hot, wet or very humid environment.

- Never place the appliance or parts of the appliance in the vicinity of strong heat sources and hot surfaces (e.g., heating, oven, grill).

- Do not place the appliance in a confined, in an alcove, corner or constricted between items of furniture. Allow sufficient space around it so that the air can circulate.

- The appliance becomes very hot during operation. Therefore, do not touch the hot surfaces

- of the appliance during operation and for a short time afterwards.

- Wait until the appliance has cooled down before transporting it.

- Do not spray air freshener into the airflow.

- Do not place the appliance in front of an automatic air freshener atomizer system.

- Always switch off the appliance at the control panel and wait for it to run down before switching the main ON/OFF switch and pulling the plug out.

- Do not put objects into the openings or ventilation grilles.

- Keep the appliance free from dust, fluff, hair and above all, anything that could restrict the airflow.

- Children and infant must be supervised to ensure that they do not play with the appliance.

- Check the air inlets and the air slot for free flow. Eliminate contamination such as dirt or dust particles with a soft brush.

Model Name VICTORIA column fan
Power Supply 220-240V~ 50-60 Hz
Rated Power Ventilation: 50 W
Package Dimension 27 x 114 x 27 cm

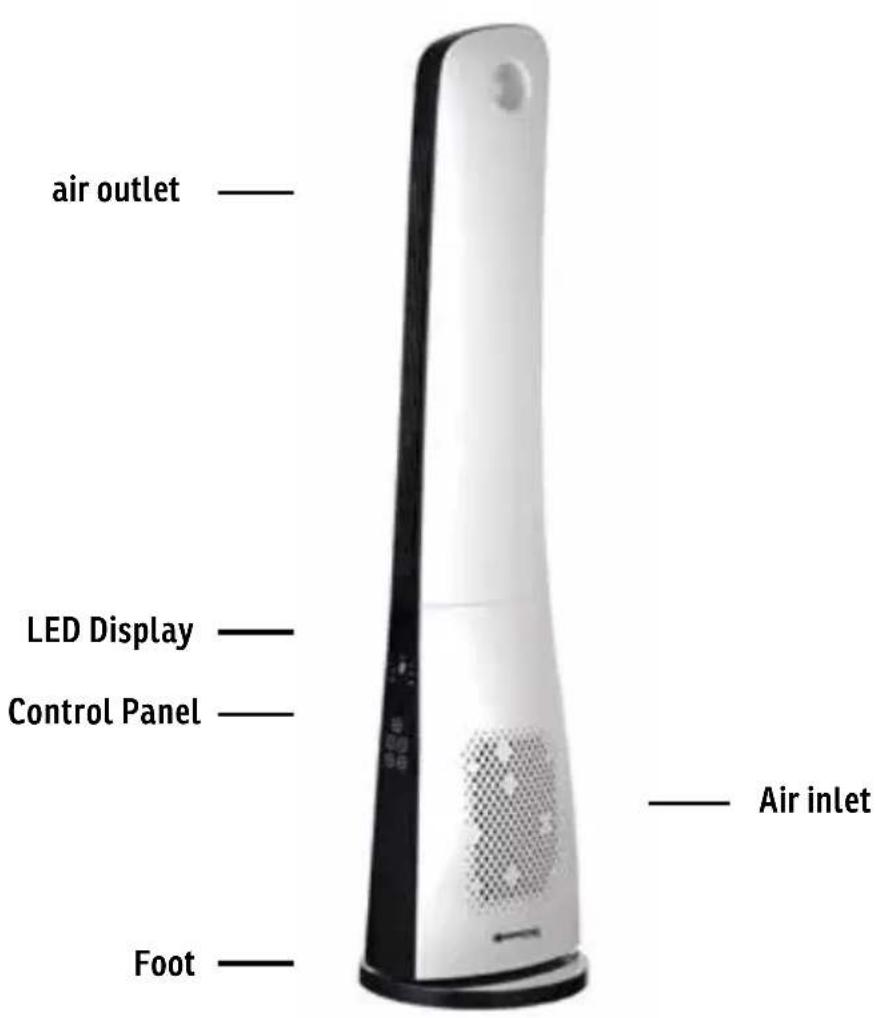

2 Components

air outlet LED Display Control Panel Foot Air inlet

EN

3 Assembling

Figure 1 Figure 2

Technical line drawing of a mechanical component with concentric grooves and flanges (no text or symbols)

Pure geometric diagram of concentric circles with radial lines, no text or symbols present

Lock Nut

Base

Center Hole

• Remove the chassis lock from the bottom of the fuselage. (Figure 1)
• Align the bottom of the machine with the center hole of the chassis, attach the chassis to the body, and finally lock the nut. (Figure 2)
• Note: When installing the chassis, place the machine upside down on the packaging foam or other soft surface to avoid scratching.

4 How to use

EN

• The fan shall be put in a leveled place. Please don't place the fan in unstable places, such as slope, soft surfaces to avoid the fan to be damaged or malfunction due to overturned
• Keep curtains away from the sides and rear when the fan is plugged in. Don't put any object into the inlet grille.

Don't place any objects

within a radius of 30 cm

Illustration of a handheld device next to a row of vertical panels, with an arrow pointing to the panel (no text or symbols present)

BATTERY REPLACEMENT

1. Slide the lid firmly down on the back of the unit.
2. Remove the old batteries.
3. Insert the new batteries.
4. Close the cover.

Diagram showing a battery with a downward arrow and two batteries labeled 'AAA' with positive charge.

! Please take out the battery if it is not used for a long time

Insert the power plug into the socket and the LED display will switch on.

Press the front panel screen once to turn on the unit.

Press the screen again to gradually increase the ventilation level.

Press and hold the screen to turn off the unit.

Illustration of a cable inserted into a wall socket connected to a power outlet (no text or symbols)

LED display

5 Remote control

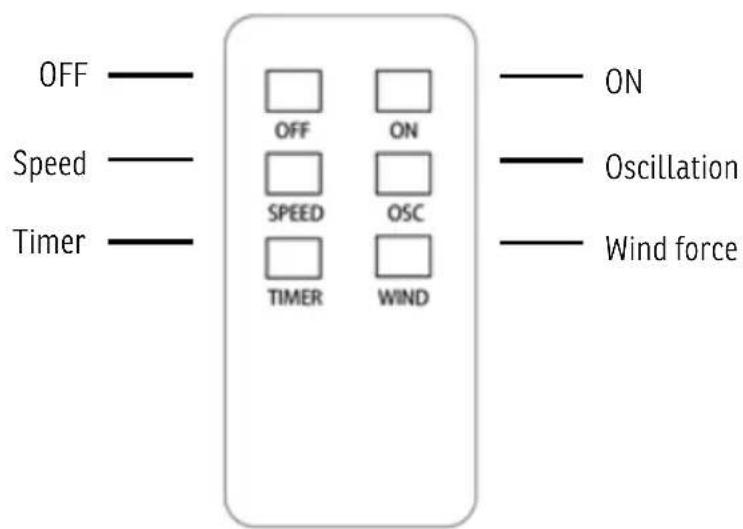

REMOTE CONTROL

OFF Speed Timer OFF ON SPEED OSC TIMER WIND ON Oscillation Wind force

EN

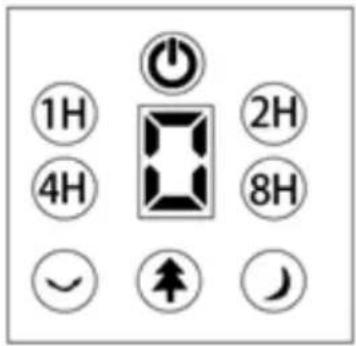

LED DISPLAY

1H 4H - ↑ 2H 8H

To switch the fan on/off
Oscillation
To activate night mode

H Set the desired timer duration
ECO modus

6 Maintenance

• Switch off the fan and unplug it from the wall outlet
• Don't splash water on the fan, it could be damaged.
• Please don't use banana oil, gasoline, alcohol, bleach or metal object to clean surface of the fan
• FAN SURFACE

Please gently wipe the surface which a clean soft cloth you can use a mild detergent after diluted with wet cloth to wipe the fan surface, then wipe with a soft dry cloth if the fan surface is dirty

• AIR INLET, AIR OUTLET

Use a soft brush to clean the opening around the air outlet, alternatively, lightly run a vacuum cleaner nozzle (soft brush) over the air outlet to remove any debris that may have accumulated inside.

- REMOTE CONTROL

Wipe the remote control surface gently with a dry, soft cloth. remove the battery inside of remote control If it is not used for a long time

- POWER PLUG

Please clean the power plug with a dry soft cloth

- STORAGE

Place in a large plastic bag for dust protection.

Please avoid to put in the shaking places and nearby electrical appliances with refrigeration/heating function.

Please store the fan in the clean and dry place.

Please place it where children can't touch it.

Line drawing of a handheld device next to a vertical screen with a mesh grille (no text or symbols)

7 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

CE Declaration of Conformity

This device complies with the following standards

EMC EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

LVD EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019

EN 60335-2-30:2009 + Cor. :2010 + A11:2012

EN 60335-2-80:2003 + A1:2004 + A2:2009

EN 62233:2008

RoHS 2015/863/EU

LVD 2014/35/EU

EMC 2014/30/EU

VICTORIA
Description Symbol Value Unit
Maximum fan volume flow F 2.7 m3/min
Power consumption of the fan P 52.7 W
Service value SV 0.05			(m3/min)W
Standby power consumption P	SB	0.7	W
Sound power level of the fan	LWA	57.3	dB(A)
Maximum air speed	c	6.2	Meter/sec
Contact details for receiving further information	Firma Armin SchmidOlensbachstrasse 9-159631 UlisbachSwitzerlandwww.sonnenkoenig.ch

EN

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

Company

Armin Schmid

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Company

Armin Schmid

Landline 14 Cent/Minute

Mobile network 42 Cent/Minute
