Product type	Tower fan
Brand	Sonnenkönig
Model	Venedig
Power supply	220-240 V, 50 Hz
Energy consumption	35 W
Speeds	3 speeds (low, medium, high)
Oscillation	Yes, selectable via rotary knob
Control type	Manual rotary knob
Dimensions (height x base)	Approximately 75 cm x 30 cm
Weight	Approximately 3.5 kg
Material	Plastic and metal
Safety	Use by children from 8 years with supervision; unplug before maintenance; do not immerse
Maintenance and cleaning	Clean the grille with a brush vacuum; body with a soft cloth; no solvents
Storage	In original packaging, cool and dry place
Warranty	24 months from date of purchase
Repairability	Repairs by a professional only; do not disassemble yourself
Included accessories	User manual, packaging

Frequently Asked Questions - Venedig Sonnenkönig

How to assemble the Venedig fan?

Pass the cable through the opening at the back of the base, then assemble the front and back base. Screw the four screws into the base and the main unit, then attach the protective grille with the cable. Only use the fan once fully assembled.

How to adjust speed and oscillation?

Use the rotary knob on top of the unit. Positions 1, 2, 3 correspond to low, medium, and high speeds. For oscillation, turn the knob to one of these positions in the oscillation section (marked with a rotation symbol). To turn off, turn to OFF.

How to clean the fan?

Always unplug the unit before cleaning. Use the brush of your vacuum cleaner to clean the ventilation grille. The body can be wiped with a soft, dry cloth. Never use harsh products like gasoline, alcohol, or thinner.

What safety precautions should be followed?

Place the fan on a flat, stable surface. Do not use it outdoors. Supervise children under 8 years and persons with reduced abilities. Always unplug before moving or cleaning. Never immerse the unit in water.

What to do if the fan does not work?

Check that the unit is properly plugged in and that the outlet works. Make sure the knob is not on OFF. If the problem persists, contact a professional or the dealer. Do not attempt to repair it yourself.

Is the fan noisy?

The noise level depends on the selected speed. On low speed, it is generally quiet. If unusual noise appears, check that the screws are tightened and the grille is not obstructed.

How to store the fan at the end of the season?

Clean it first, then store it in its original packaging in a cool, dry place. Also keep the user manual for the next season.

What is the warranty of the Venedig fan?

The warranty is 24 months from the date of purchase. For any claim, contact your dealer with proof of purchase. Repairs must be carried out by a professional.

Can I use an extension cord with the fan?

Yes, but make sure the extension cord is suitable for the 35 W power and is in good condition. Avoid running the cable under rugs or bending it excessively.

Where to find the complete user manual?

The manual is available for free download in PDF format on notice-facile.com or on the manufacturer's website Sonnenkönig (www.sonnenkoenig.ch). You can also request a translation by email.

USER MANUAL Venedig Sonnenkönig

Modern vertical stainless steel electric fan with a circular top and heat sink (no text or symbols visible)

D

INDEX

Festnetz 14 Cent/Minute

Modern vertical stainless steel electric vacuum tower with heat dissipation panel (no text or symbols visible)

F

SOMMAIRE

Modifications techniques

Festnetz 14 Cent/Minute

Modern vertical stainless steel electric vacuum tower with heat dissipation panel (no text or symbols visible)

|

INDICE

Modern vertical stainless steel electric fan with a circular top and heat sink (no text or symbols visible)

GB

INDEX

1 Safety information....27
2 Assembly 28
3 Operating Instructions.... 29
4 Cleaning and care .... 30
5 Technical information.... 30
6 Warranty / Disposal / Technical change 31

1 Safety Information

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• Do not operate this unit after it malfunctions, has been dropped or damaged in any manner. Return it to an authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• Use this unit only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
• Make certain that the power source conforms to the electrical requirements of this unit.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Children should be supervised to ensure that they do not play with the appliance.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction

codes and standards.

• Please do not use this unit before the assembly is completed.
• Unplug or disconnect the appliance from the power supply before cleaning, moving or servicing.
• Do not immerse this unit in water, oil, basic or acidic liquids and do not expose to high temperatures.

2 Assembly

1. Guide the power cord through the centre of the rear base and connect the rear base to the main unit.
2. Fit the front base onto the rear base and the main unit.
3. Screw the four screws through the base parts and into the main unit.
4. Attach the power cord guard over the power cord and to the rear base.

Do not use the fan if it has not been fully assembled. Make sure that the screws that hold the base parts and the main unit together are tightened securely.

3 Operating Instructions

• The fan must be placed on a firm, level surface..
• Plug the cord set into an electrical outlet. The power light will come on. The light will remain lit until the fan is unplugged from the electrical outlet.

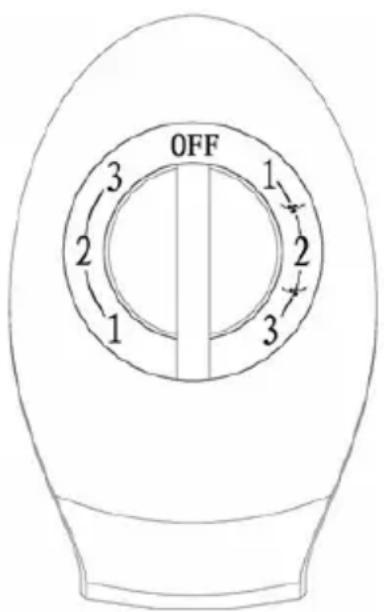

All the features of this fan can be controlled from the turning knob on top of the fan.

The functions are as follows:

Turn the turning knob to 1,2,3, the fan will run at "low, medium, high" speed. Turn the turning knob to OFF; the fan will be switched off. Turn the turning knob to 1,2,3, the fan will run at "low, medium, high" speed with oscillation.

OFF 1 2 3 1 2 3

4 Cleaning and care

GB

Always unplug the cord before moving or servicing.

Cleaning: clean the fan grills with the vacuum brush attachment on your vacuum cleaner. This will remove lint and dirt from the inside of the fan. do not attempt to take the fan apart! Clean the body of the fan with a soft cloth. CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc. as they will damage the fan. never use alcohol or solvents.

Storage: store the fan with these instructions in the original carton in a cool, dry place.

5 Technical information

• Rated voltage: 220–240 V
• Rated frequency: 50 Hz
  • Power consumption: 35W

6 Warranty / Disposal / Technical change

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees.

Disposal

Please remove the heater properly. You can bring the product to any specialist dealer fort he removal.

Technical changes

Technical changes in technique and design are possible.

Please save the packaging materials of the unit.

CE declaration of Conformity

This device complies with the following standards:

EN 62233:2008

EN 60335-2-80:2003+A1:04+A2:09

EN 60335-1:2002+A11,A1:04+A12,A2:06+A13:08+A14:10+A15:11
