USER MANUAL Windmaschine 14'' Sonnenkönig

Windmaschine 14" / 18"

Festnetz 14 Cent/Minute

Modifications techniques

Festnetz 14 Cent/Minute

1 Safety Instructions. 21
2 Characteristics 22
3 Operation instructions 23
4 Technical informations. 23
5 Warranty / Disposal / Technical change 24

1 Safety instructions

GB

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

2 Characteristics

This sleek and modern high-velocity fan provides more powerful wind than ordinary plastic fans. It draws air off the floor and circulates it through the entire room keeping the room cool and breezy. Put it near the windows and it helps to exchange the hot, stuffy air from the room with fresh air from outside.

GB

• Energy-saving, high velocity motor for maximum air circulation
• Tilt-adjustment for flexible use
• Triple speed selection
• Precision fan blades for powerful wind but low noise
• Chrome stand, solid construction with thermal protection to prevent the motor from overheating
• Versatile use, can be put on the floor, the desk or mounted on a wall

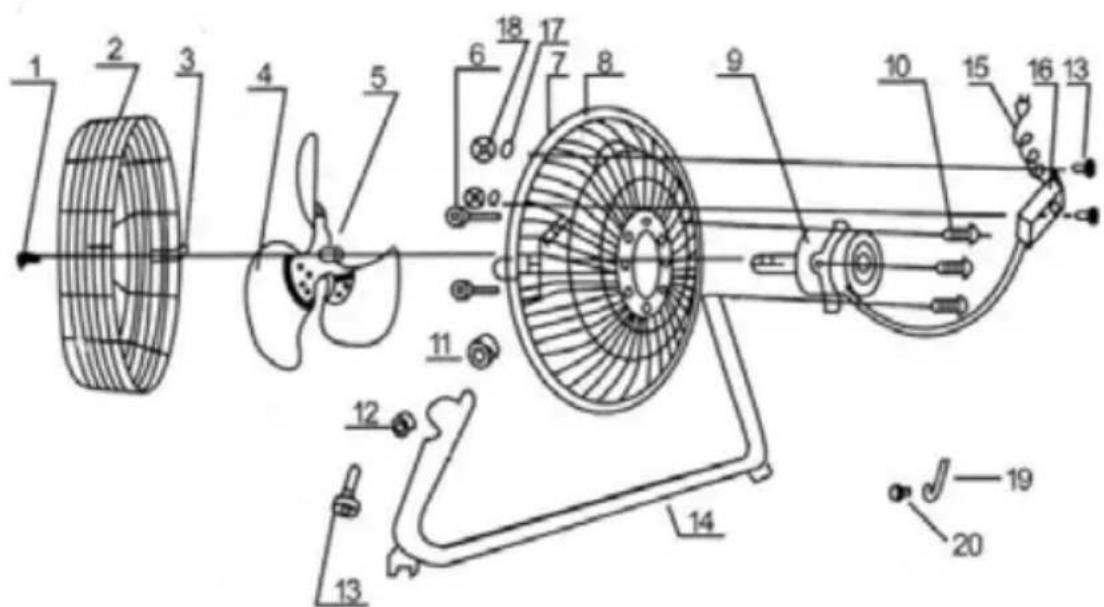

1.Screw 10.Screw
2. Front guard 11. Plastic bearer
3. Guard clips 12.Locknut
4.Blade 13.Screw
5. Set screw 14. Tube base
6.Nut 15.Power cord
7. Square bolt 16. Control box
8. Rearguard 17.Washer
9.Motor 18.Nuts

3 Operation instructions

GB

• Ensure that the voltage used corresponds with the voltage indicated.
• Turn the speed control to select the speed: 0 (off) and speeds 1, 2, 3 mean slow, medium, fast.
• Tilting angle: By pushing the tilt guard you can adjust the fan to the elevation preferred.
• Never touch the blades with your hands or any object!
• Do not pull the cord too hard. If is damaged after extensive use, get it repaired by an authorized electrician.
• To clean it: Disconnect the power cord from the mains. Remove the guard and the blades carefully. Do not drop the blades! First use a soft cloth with a little bit of soap to clean off oil stains. Then wipe and polish with a dry cloth. Never use a cleaning agent or any corrosive liquid that will damage the paint, metal or plastic! Put back the blades and lock the guard securely before use.
• To mount on it walls, ensure that strong, durable tools are used. Make sure holes are properly drilled and the fan is firmly fixed to the wall to support the weight of the fan.

No exchange will be made if the above instructions are not followed. Always test the product first before purchase.

4 Technical informations

Fan 14"

Rated Voltage: 220-240 V

Rated Frequency: 50 Hz

Power Consumption: 70 W

Fan 18"

Rated Voltage: 220-240 V

Rated Frequency: 50 Hz

Power Consumption: 100 W

5 Warranty / Disposal / Technical change

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees.

GB

Disposal

Please remove the heater properly. You can bring the product to any specialist dealer for he removal.

Technical changes

Technical changes in technique and design are possible.

Please save the packaging materials of the unit.

CE declaration of Conformity

This device complies with the following standards

EN 60704-2-7:1998

EN 60704-1:2010

EN 50564:2011
