USER MANUAL Black 12 Sonnenkönig

Front view of a modern electric fan with mesh grille and black base (no visible text or symbols)

Exploded view diagram of a mechanical device with numbered parts for identification

3 Montage

Basismontage

DE

Black and white photo of a Siemens 1919 electric fan with mesh grille and base (no visible text or symbols)

Article-nr. 10500011

FR

Sommaire

Exploded view diagram of a mechanical device with numbered parts for identification

3 Montage

Montage de base

Modifications techniques

Black and white photo of a Siemens 1900 electric fan with mesh grille and base (no visible text or symbols on the fan body)

Nr. articolo 10500011

IT

Indice

Exploded view diagram of a mechanical device with numbered parts for identification

3 Montaggio

Black and white photo of a Siemens 1974 electric fan with mesh grille and base (no visible text or symbols on the fan body)

1 Safety Instructions.... 28
2 Product parts .... 30
3 Product assembly 30
4 Operation of the product.... 31
5 Cleaning 32
6 Warranty / Disposal / Technical change 32

1 Safety Instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

GB

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

When using the electrical appliance, the following basic safety precautions should always be followed.

• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• The appliance may be used only for its intended purpose. No responsibility can be taken for any possible damage caused through incorrect use or improper handling.
• Before connecting the appliance to the power source, check that the current and power match those indicated on the rating label.
• Do not put the appliance or the plug in water or any other liquid. However, should

the appliance accidentally fall into water, unplug the appliance immediately and have it checked by a qualified person before using it again. Non-observance could cause a fatal electric shock!

• Never attempt to open the housing yourself.
• Do not place any kind of object into the inside of the housing.
• Do not use the appliance with wet hands, on a damp floor or when the appliance itself is wet.
• Do not touch the plug with wet or damp hands.
• Check the cord and the plug regularly for any possible damage. If the cord or plug is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid a hazard.
• Do not use the appliance if it is dropped or otherwise damaged or if the cord or plug are damaged. In the case of any damages, take the appliance to an authorized service centre for examination and repair if necessary.
• Never attempt to repair the appliance yourself. This could cause an electric shock.
• Do not allow the cord to run over sharp edges and keep it well away from hot objects and open flames. Remove the plug from the socket only by pulling the plug.
• Make sure there is no danger of the cord or extension cord inadvertently being pulled out or causing anyone to trip when in use.
• If an extension cord is used, it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur.
• This appliance is not suitable for commercial use or outdoor use.
• Never leave the appliance unattended while it is in use.

ATTENTION:

• Children cannot recognize the dangers involved in the incorrect use of electrical appliances. Therefore never allow children to use household appliances without supervision.
• Always remove the plug from the socket when the appliance is not in use and each time before it is cleaned.
• Danger! Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.
• Switch the appliance off before disconnecting from the mains.
• Never use the cord to carry the appliance. Use the handle to carry the appliance.

Special security advice

• The protective frame must be closed properly during operation.
• Do not place anything in the protective frame. Do not cover the protective frame during operation.

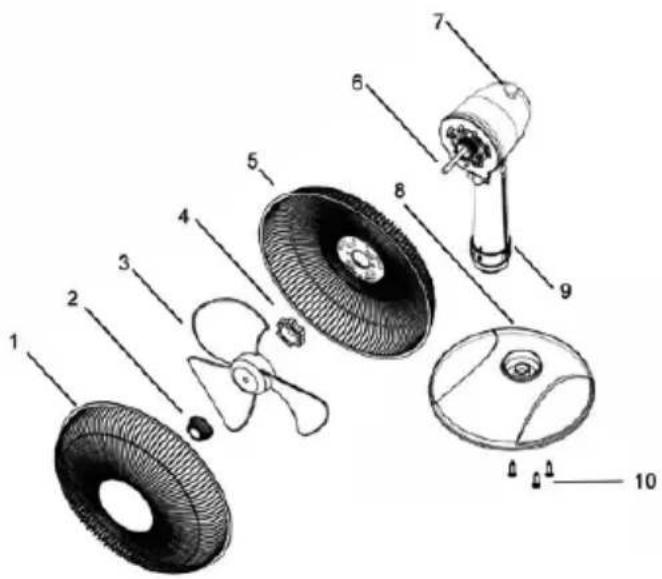

2 Product parts

GB

1 Front Grille
2 Spinner
3 Fan Blade
4 Locking Nut
5 Rear Grille
6 Motor Spindle
7 Oscillating Knob
8 Round Base
9 Rotating Switch
10 Screws (3Pcs)

Exploded view diagram of a mechanical device with numbered parts for identification

3 Product Assembly

Base assembly

• Put the round base on flat ground.
• Place the bottom of the fan body into the round base, and then fix it with screws (you find them in a small plastic bag at the inside of the round base). Do not over-tighten these screws.

How to assemble the fan

• To assemble the safety grille and blade assembly, remove the spinner (by turning it clockwise) and then the locking nut (by turning it anticlockwise) from the motor spindle.
• Place the rear safety grille into position. Ensure the safety grille fits onto the locating lugs (Fig. 1). If this is done correctly, the safety grille's carry handle will be at the top.
• Fix the safety grille into position by screwing the locking nut back on tightly by hand. Do not apply force on the locking nut.

• The groove in the centre of the fan blade aligns with a T-bar on the motor spindle to ensure correct positioning.

• Fix the blade into place by gently hand-tightening the spinner anticlockwise onto the end of the motor spindle. The spinner is self-tightening, so do not force it.

• Lift up all locking clips on the front safety grille.
• Place the safety grille into position and secure it by fastening the clips over the outer rim. The screw and nut at the bottom of the grille must be fitted.

4 Operation of the product

GB

Caution:

• Select a suitable location for the fan. Always choose a safe location in accordance with the safety recommendations outlined.
• When placing a fan on a table or shelf, always ensure that the power cord does not hang where it can accidentally be pulled out and that the unit cannot accidentally fall down.
• Do not hang or mount the fan on a wall or ceiling.
• Remove the cable tie and unravel the cord set before operation.

• To blow air in one direction and stop oscillation, allow the Table Fan to move into the desired position and pull the oscillating knob up. To return to a normal oscillating function, press the oscillating knob down.

• On/Off and Speed Control

On/Off and Speed is controlled by the rotating switch.

0— the fan is switched off, 1— the lowest speed, 2— medium speed, 3— the highest speed

1. Angle Adjustment

Switch off the fan. Adjust the fan to the desired angle by hand.

5 Cleaning

• Switch off and unplug from the power supply before assembling or disassembling and cleaning.
• Keep the air vents at the rear of the main body free from dust or fluff – use a vacuum cleaner to remove these when necessary. Do not insert any object into any opening to remove fluff.
• Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter the motor housing.
• Thoroughly remove the soap film with clean water.

CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the fan components.

6 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

Please save the packaging materials of the unit.

Firma

Armin Schmid

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch
