USER MANUAL CR-H101DAB TEAC

This Owner's Manual explains the main functions of this unit.

Please see the Reference Manual for information about all the unit's functions.

The Owner's Manual and Reference Manual can be downloaded from the TEAC Global Site (http://www.teac-global.com/).

ITALIANO

NEDERLANDS

SVENSKA

STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The nameplate is located on the bottom of the unit as shown below.

Front side Nameplate

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Symbolic icon of a person lifting a ladder inside a circle with a diagonal line (no text or symbols)

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.

- The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Precautions concerning batteries

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

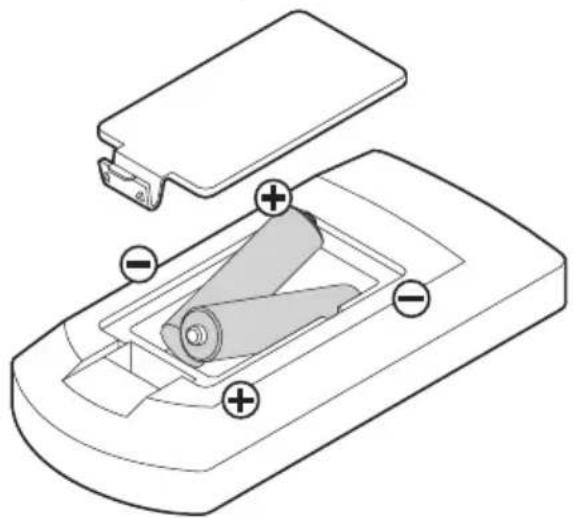

• Be sure to insert the batteries with correct positive (⊕) and negative (⊖) orientations.
• Use batteries of the same type. Never use different types of batteries together.
• If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
• Do not use batteries of types other than those specified. Do not mix new batteries with old ones or use different types of batteries together.
• Do not heat or disassemble batteries. Never throw batteries into fire or water.
• Do not carry or store batteries with other metallic objects. The batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

Laser information

This product contains a semiconductor laser system inside the cabinet and is classified as a "CLASS 1 LASER PRODUCT". To prevent being exposed to the laser beam, do not try to open the enclosure.

Laser:

Type: EP-HD870PB

Manufacturer: GUANGDONG EVER BRIGHT GROUP CO.,LTD

Laser output: Less than 1 mW on the objective lens

Wavelength: 792±25 nm

DECLARATION OF CONFORMITY

We, TEAC AUDIO EUROPE, Gutenbergstr. 3, 82178 Puchheim, Germany declare in own responsibility, the TEAC product described in this manual is in compliance with the corresponding technical standards.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

(a) All electrical/electronic equipment and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more

than the specified values of lead (Pb),

mercury (Hg), and/or cadmium (Cd) as

defined in the Battery Directive (2006/66/

EC), then the chemical symbols for those

elements will be indicated beneath the WEEE symbol.

(e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Pb, Hg, Cd

Wireless equipment precautions

Compliance of radio transmitter and interference

Model for EEA (European Economic Area)

This equipment complies with the harmonised standards of DIRECTIVE 1999/5/EC (R&TTE).

Labeling of conformity

CE marking:

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

Authorization of wireless devices are different in countries or regions. Please use only in the country where you purchased the product.

- Depending on the country, restrictions on the use of Bluetooth wireless technology might exist.

Radiation Exposure requirements

This equipment meets the regulation, which is recognized internationally, for the case of human exposure to radio waves generated by the transmitter.

Statement of compliance

EEA (European Economic Area) model

This equipment complies with EN.62311; Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields; the harmonised standard of DIRECTIVE 1999/5/EC.

Included accessoriesTable

Thank you for choosing TEAC product.

Read this manual carefully to get the best performance from this unit.

After reading it, keep it in a safe place for future reference.

This Owner's Manual explains the main functions of this unit. Please see the Reference Manual for information about all the unit's functions.

The Owner's Manual and Reference Manual can be downloaded from the TEAC Global Site (http://www.teac-global.com/).

IMPORTANT SAFETY INSTRUCTIONS 2

Wireless equipment precautions....5

Included accessories....6

Using the TEAC Global Site....6

Before use....7

Setting the clock....7

Notes about discs 8

Connecting the DAB/FM antenna....9

Connections....10

Connecting speakers 12

Using the remote control 13

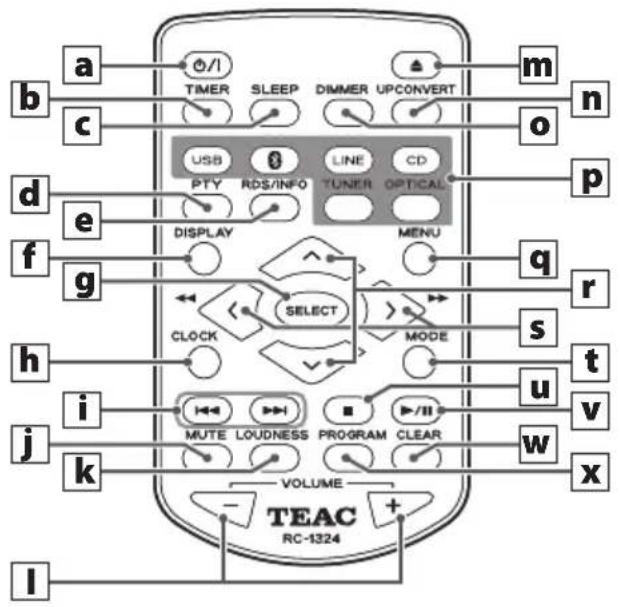

Names and functions of parts (remote control)....14

Names and functions of parts (main unit) ..... 16

Basic operation....17

Listening to CDs....18

Listening to FM radio 19

RDS (European model only)....20

Using DAB tuner....22

Bluetooth® function 24

Settings 25

Playing back music on a computer....27

Troubleshooting....28

Specifications....29

Check to be sure the box includes all the supplied accessories shown below.

Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.

Power cord × 1

Remote control (RC-1324) × 1

Batteries for remote control (AAA) × 2

Basic DAB/FM antenna × 1

Owner's manual (this document) × 1

- Keep this manual in a safe place for future reference.

- See page 200 for information about the warranty.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site: http://teac-global.com/

1) Open the TEAC Global Site.

2) In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

3) Click the product name in the "Products" section.

4) Select and download the updates that are needed.

Setting the clockBefore

Placement of the unit

• Avoid placing it in high temperature environments such as in direct sunlight or close to a source of heat. Moreover, do not place the unit on an amplifier or any other device that generates heat. Doing so could cause discoloration, deformation or malfunction.
• Do not place anything on top of the unit. Do not put cloth on top of the unit or place it on top of bedding or thick carpet.

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser.

Do not use chemically-treated wipes, thinner or similar substances because they could damage the surface of the unit.

For safety, disconnect the power cord from the outlet before cleaning.

This unit has a clock built-in.

After completing connections, set the current time.

The time appears on the display when, for example, the unit is in standby mode.

- See "Set clock (time settings)" on page 26 for how to set the clock.

Example of display when in standby

T AM 09:18 Current time

Appears when the on/off timer is on

• The clock will be reset if the unit's power cord is disconnected from an outlet. Reset the current time when you use the unit.
• The clock is not perfectly precise, so we recommend resetting the time occasionally.

Types of discs that can be played by this unit

CDs (12cm) with the Compact Disc Digital Audio logo

● This logo appears on disc labels and packaging.

● This unit cannot play 8cm CDs.

CD-R and CD-RW discs that have been properly recorded and finalized using the audio CD format. CD-R and CD-RW discs that have been written with MP3 or WMA files and finalized.

● Multi-session discs are not supported.

This unit cannot play discs of types other than those above.

If you try to play any other type of disc with this unit, loud noises that damage speakers or harm hearing could occur. Never try to play any type of disc other than those shown above.

• WMA files
  Windows Media Audio Professional (WMA Pro) and Windows Media Audio Lossless (WMA Lossless) formats are not supported.
• Depending on the quality of the disc and the condition of the recording, playback might not be possible.
  ● This unit cannot read or play the following types of discs.
  CD-ROM discs
  Video CDs
  Super Audio CDs
  DVD video discs
  DVD audio discs
  DVD-ROM discs

If you load a DVD video, DVD audio, DVD-ROM or similar disc into this unit, the unit will try to play it and spin at high speed. If you accidentally load such a disc, the disc could be damaged, so do not try to remove it until it stops spinning.

- This unit might not be able to properly play Copy Control CDs, Dual Discs or other special CDs that do not conform to the Red Book CD standard. Operation and sound quality cannot be guaranteed when special discs are used in this unit. If playback of a special disc should cause trouble, contact the seller of the disc.

CD-R/CD-RW discs

This unit can play CD-R/CD-RW discs that are in audio CD format (CD-DA) or that contain MP3 or WMA format files.

• In order to play a disc created by a CD recorder, be sure to finalize it.
• Depending on the quality of the disc and the condition of the recording, playback might not be possible. For details, see the operation manual for the device you are using.
• If you have any questions about how to handle a CD-R or CD-RW disc, contact the seller of the disc directly.

Precautions for use

• Do not use cracked discs because they could damage the unit.
• Do not apply labels or other materials to discs. Do not use discs that have had tape, stickers or similar materials removed from them as they may have left a sticky residue on the disc's surface. Other discs to avoid are ones that have exposed glue around the edges of stickers, for example. Using such a disc in this unit could cause the disc to become stuck or could damage the unit.
• When writing something on the label side of a disc, use a felt tip permanent marker. The use of a ballpoint pen or other pen with a hard tip could damage the disc, making it unplayable.
• Never use commercially-available CD stabilizers. Doing so could make the disc unplayable or damage the unit.

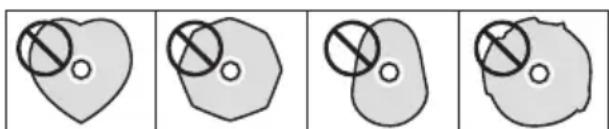

• Never use discs with irregular shapes, including heart-shaped and octagonal discs, because they could damage the unit.

Four-panel image showing a heart-shaped object with a crossed-out circle and a crossed-out circle with an 'X' symbol, likely illustrating a concept or concept.

- To remove a disc from its case, while pressing down on the center of the case, hold the disc by its edges. Do not touch the side of the disc that has the data encoded on it (unlabeled side).

Connecting the DAB/FM antenna

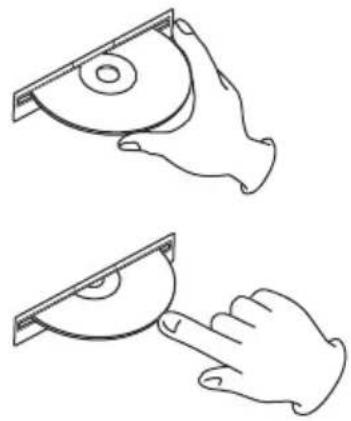

If a disc will not load properly

If a disc becomes caught or is otherwise difficult to insert, do not push it in forcefully. Press the eject (▲) button and remove the disc once before reinserting it. (Pushing a disc forcefully could damage the unit.)

Storing discs

• Discs should be stored in their cases when not being used. Failure to do so could result in warping and scratches.
• Do not leave discs in places that are exposed to direct sunlight or that are very humid or hot. Doing so could cause discs to become deformed or degraded, making them unplayable.
• CD-R and CD-RW discs are more susceptible to the impacts of heat and ultraviolet rays than ordinary CDs. For this reason, do not leave them for long times in places that are exposed to direct sunlight or near devices that generate heat, for example.
  ● Always clean discs before storing them. Leaving a disc in an unclean state might result in skipping or degraded sound quality.

Maintenance

- If the side of the disc that has the data encoded on it (unlabeled side) becomes dirty with fingerprints or dust, use a soft cloth to wipe the surface from the center directly toward the edge.

- Never use record cleaners, antistatic treatments, thinners or similar chemicals to clean discs. Such chemicals could harm the surface of the disc.

Indoor antenna

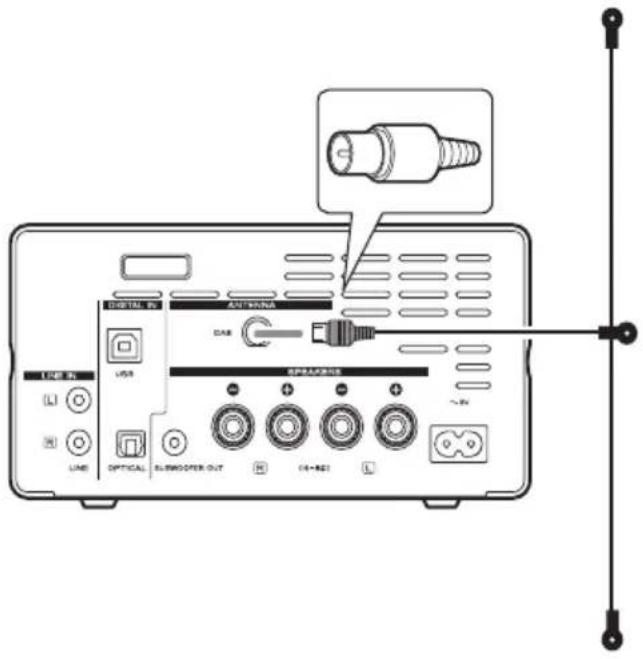

Connect the included antenna to the antenna connector on the rear panel and extend the antenna.

Fix the antenna to a window frame, wall or other position that improves reception the most.

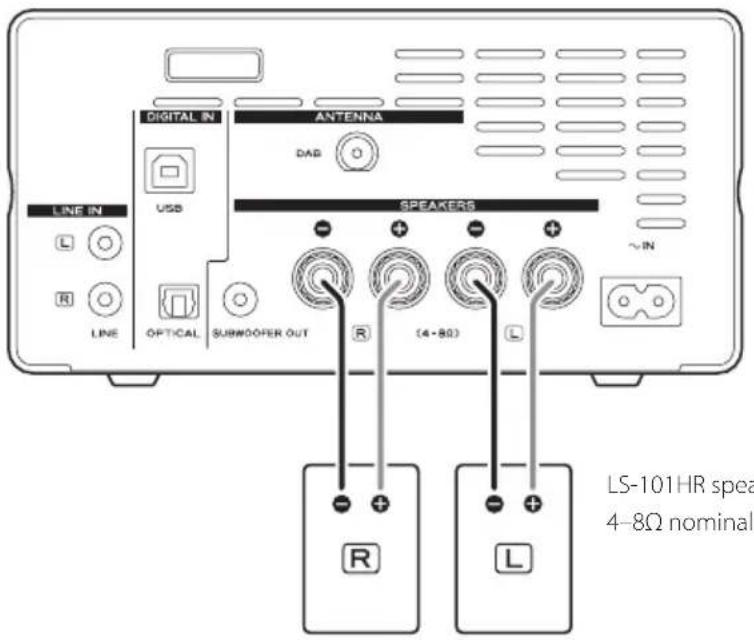

USB USB OPTICAL AUDIO/PSR AUDIO/RNA CAB SPREAD/RESET (4+82) ~8V

Outdoor antenna

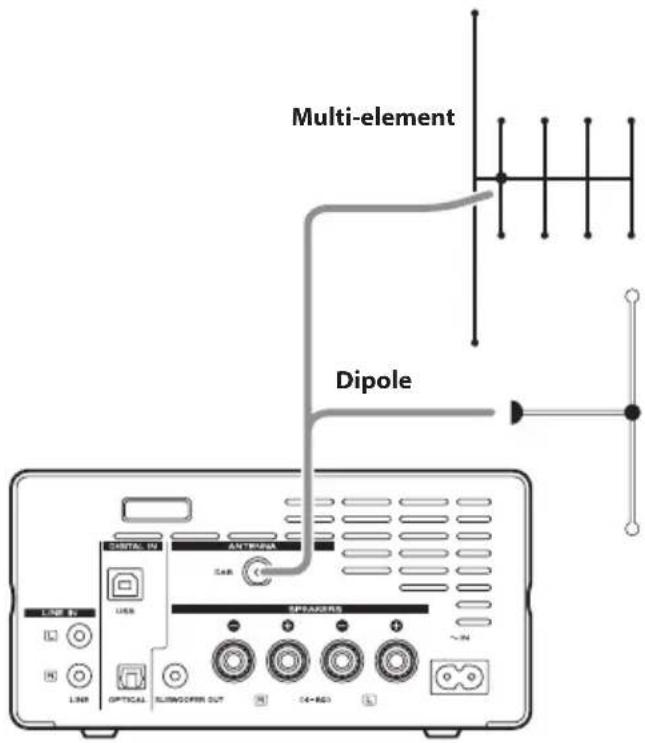

In an area where DAB signals are weak, use an outdoor DAB antenna.

There are two main types of antennas available.

Multi-element Dipole

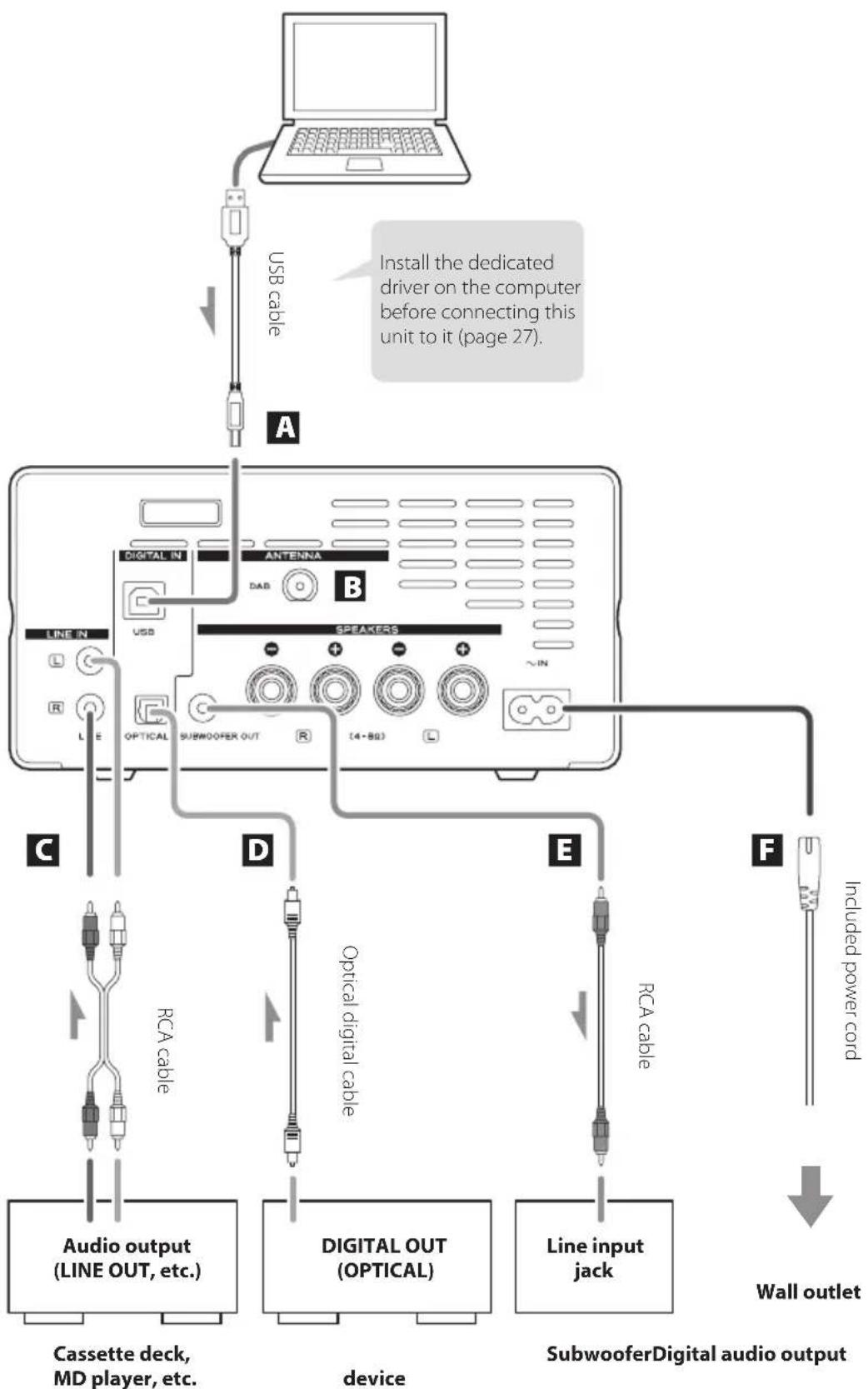

Connections

After all connections are complete, connect the power cord's plug to the AC wall outlet.

• Read the instructions of each device that you intend to use with this unit.
• Do not bundle connecting cables with power cords. Doing so could cause noise.
• Be sure to connect each plug securely.

A USB port

Use to input digital audio from a computer. Connect to the USB port of a computer to input digital audio from it.

Use a commercially-available USB cable.

ATTENTION

Install the dedicated TEAC driver software on the computer before connecting the unit (page 27).

B DAB/FM antenna connector

When receiving a DAB/FM broadcast, extend this antenna and position it for the best reception.

After moving this unit, readjust the position again.

For detailed information about how to make DAB/FM antenna connections, see page 9.

C Analog audio input connectors (LINE IN)

Use these to input analog audio.

Connect an audio output device such as a cassette deck or MD player to these jacks using commercially-available RCA cables.

Use commercially-available cables for connections.

Connect the R connector of this unit to the right (R) connector of the audio output device and the L connector of this unit to the left (L) connector of the audio output device.

D Digital audio input connector (OPTICAL)

Input digital audio. Connect the digital audio output connector of a digital audio device to it.

Use a commercially-available optical digital (TOS) cable to make the connection.

- Sampling frequencies up to 192 kHz are supported.

E SUBWOOFER OUT connector

If you want to use a subwoofer, connect it to this connector.

- The output level is linked to the VOLUME controls on the front of the unit and on the remote control.

F Power inlet (\~IN)

Insert the included power cord here.

After all other connections are complete, connect the power cord's plug to a wall outlet.

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock. Unplug the cord from the outlet when not using the unit for a long time.

LINE IN L R LINE OPTICAL SUBWOOPER OUT DIGITAL IN USB ANTENNA DAB SPEAKERS ~IN (4 - 8Ω) LS-101HR spea 4-8Ω nominal R L

LS-101HR speakers or speakers with
4–8Ω nominal impedance

Precautions when making connections

• After all connections are complete, connect the power cord's plug to the AC wall outlet.
• Read the instructions of each device that you intend to use with this unit.

CAUTION

• When not connecting LS-101HR speakers, use speakers with 4–8Ω nominal impedance. If speakers with different impedance ratings are used, the protection circuit could operate, causing sound output to stop.
• The red speaker terminals are positive (+) and the black speaker terminals are negative (−). Generally, the + wire of the speaker cable is marked to distinguish it from the − wire of the cable. Connect the marked wire to the red + terminal and the unmarked wire to the black − terminal.
• The metal portions of the two separate wires should not touch. If they touch an electrical short might occur. Shorted wires can create a fire hazard or cause equipment failure.

Never allow speaker cables to cause a short.

- Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the cables together with the AC power cord or other cables.

How to connect speakers

1 Turn the terminal cap counterclockwise to loosen it. The speaker terminal caps cannot be fully removed from the unit.
2 Insert the wire into the terminal and turn the terminal cap clockwise to securely connect it.

Diagram showing a tool interacting with a cylindrical device, before and after assembly (no text or symbols)

- Make sure none of the wire insulation is under the terminal and only the bare, stripped wire is touching the terminal.

3 Confirm that the cable is fastened securely by gently pulling the cable.

Using the remote control

Connecting with banana plugs

You can also make connections using commercially-available banana plugs. First, connect the banana plugs to the speaker cables and then connect the plugs to the terminals.

• Keep the caps tightened when in use.
• Carefully read the instructions for the banana plugs that you are using.

Notice about the European model

In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models. The holes into which banana plugs could be inserted have been covered with black caps. Connect speakers using bare wires or spade lugs. If a black cap should become separated from its terminal, return it to its original position.

Precautions for use

△Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of items nearby. Please read and observe the precautions on page 3 carefully.

• When using the remote control, point it toward the remote control signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
• The remote control might not work if the remote control signal receiver on the main unit is exposed to sunlight or bright lights. In this case, try moving the main unit.
• Beware that use of this remote control could cause the unintentional operation of other devices that can be controlled by infrared rays.

Installing batteries

Remove the cover on the back of the remote control, and insert 2 AAA batteries into the case, aligning them with the ⊕ and ⊖ indications. Replace the cover.

Diagram of a battery pack with labeled components and polarity indicators (no text or symbols present)

Battery Replacement

If the operation range of the remote control decreases, the batteries have become exhausted. In this case, replace the batteries with new ones.

Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

Names and functions of parts (remote control)
When both the main unit and the remote control have buttons with the same functions, the instructions in this manual refer only to one, but the other can be used in the same way.

a Standby/on ( ⏻/|) button

Press this button to turn the unit on and put it in standby. When the unit is ON, the ring around the main unit STANDBY/ON (☐/I) button lights blue.

b TIMER button

Use to set the on/off timer.

C SLEEP button

Use to set the sleep timer.

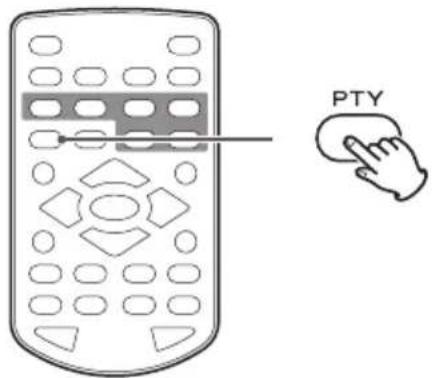

d PTY button

Use to search for stations by program type (PTY).

e RDS/INFO button

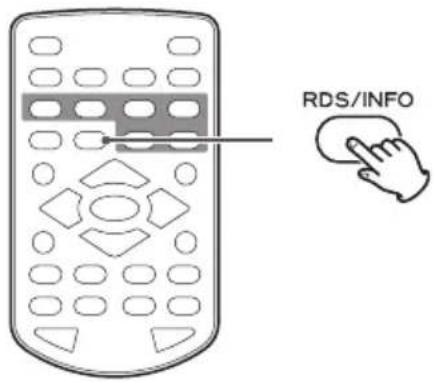

When the playback source is FM, use this button to select an RDS mode. Please ignore "INFO" on the remote control unit. (INFO function does not work on this unit.)

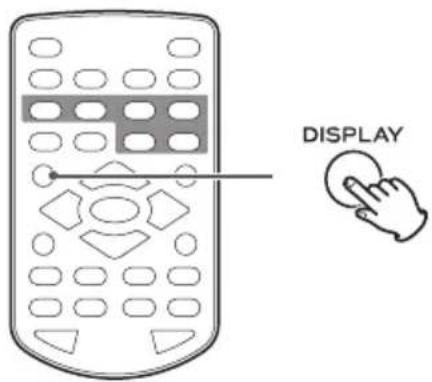

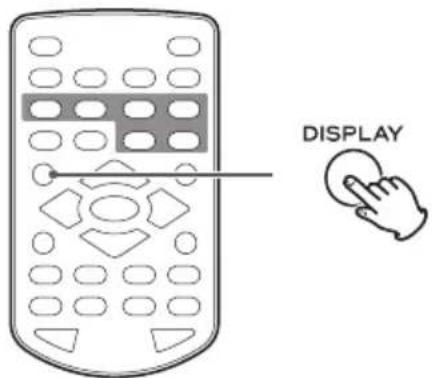

f DISPLAY button

Use to change the text shown on the bottom line of the display.

g SELECT button

Use to change settings.

h CLOCK button

Press repeatedly to show the time and the on/off timer setting, and then return to showing the previous information on the display.

i Skip (|◄◄/►►|) buttons

When the playback source is CD, use to skip to the previous or next track.

When the playback source is DAB/FM, use to change presets.

j MUTE button

Press this button to mute the sound temporarily. To restore the sound, press it again.

k LOUDNESS button

Press to turn low-frequency emphasis on and off. When on, the icon appears on the display.

I VOLUME (- / + ) buttons

Use these to adjust the volume.

m Eject (▲) button

Press to partially eject the disc. Hold the disc by its edges and pull it out.

n UPCONVERT button

Press this button to turn upconversion on and off.

DIMMER button

Press to change the display brightness.

p Source buttons

Use these buttons to select the playback source.

q MENU button

Press to enter setting mode.

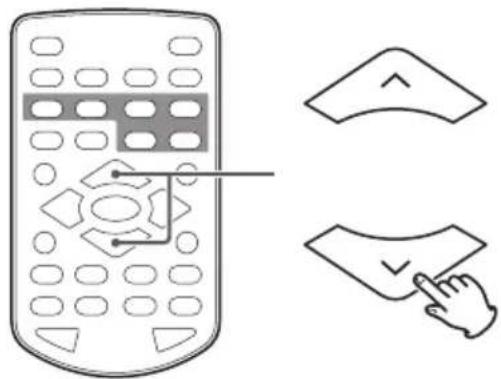

r Direction (^^/∨) buttons

When the playback source is CD, use to select folders. (MP3/WMA only)

When the playback source is DAB/FM, use to change presets.

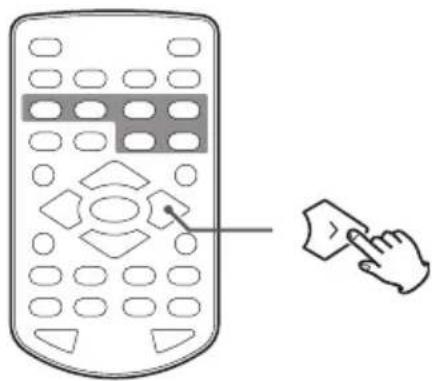

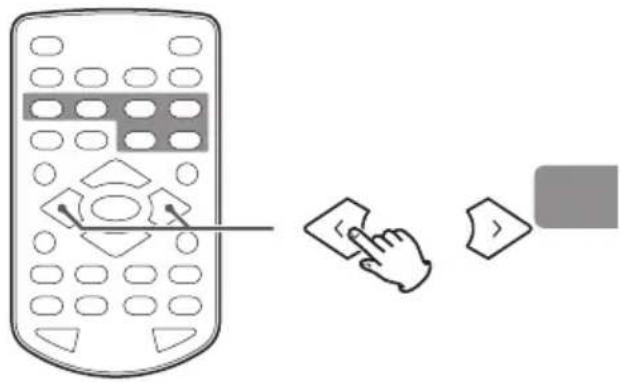

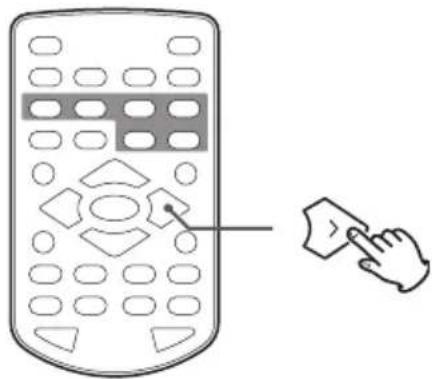

S Direction ( / ) buttons

Search (◀◀/▶▶) buttons

When the playback source is CD, press during playback to search backward/forward.

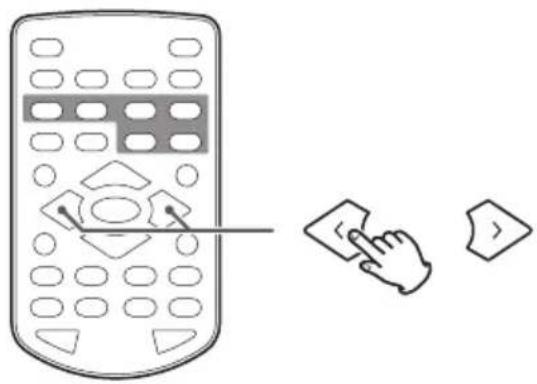

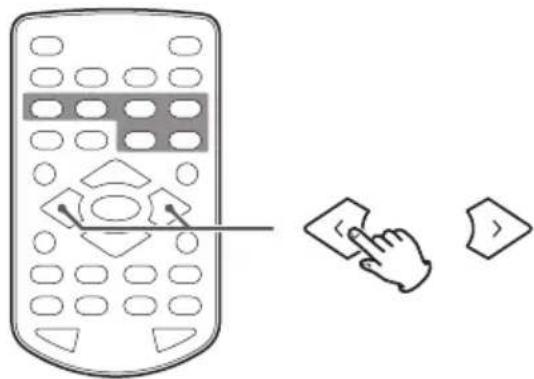

When the playback source is FM, use to lower/raise the frequency received. Press and hold for at least two seconds to begin automatically selecting stations.

When the playback source is DAB, press to select a DAB menu item.

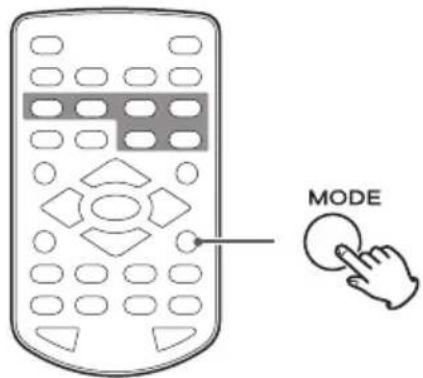

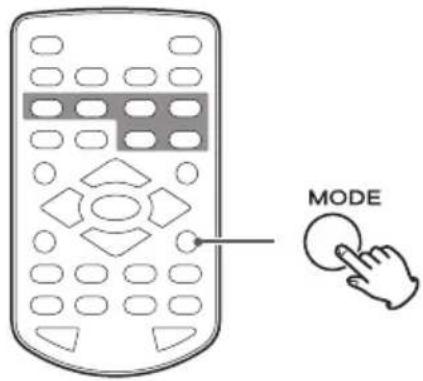

t MODE button

When the playback source is CD, use to switch between repeat playback and shuffle playback.

When the playback source is FM, use to switch between stereo and mono.

u Stop (■) button

Press during playback to stop playback.

V Play/pause (▶ / II) button

When the playback source is CD and the unit is stopped or paused, press to start disc playback.

Use this button to pause playback during playback.

When the playback source is FM, use to select presets and frequencies.

W CLEAR button

Use to clear programmed tracks.

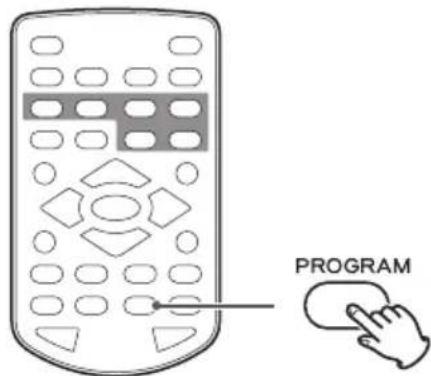

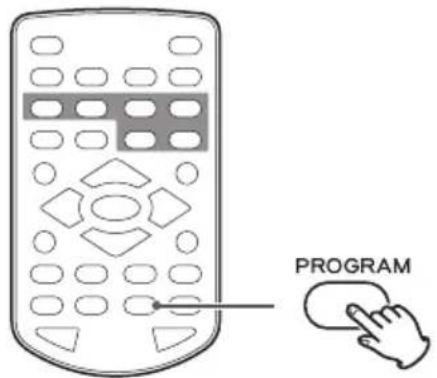

X PROGRAM button

When the playback source is CD, use with program playback.

When the playback source is DAB/FM, use with radio station presets.

Names and functions of parts (main unit)

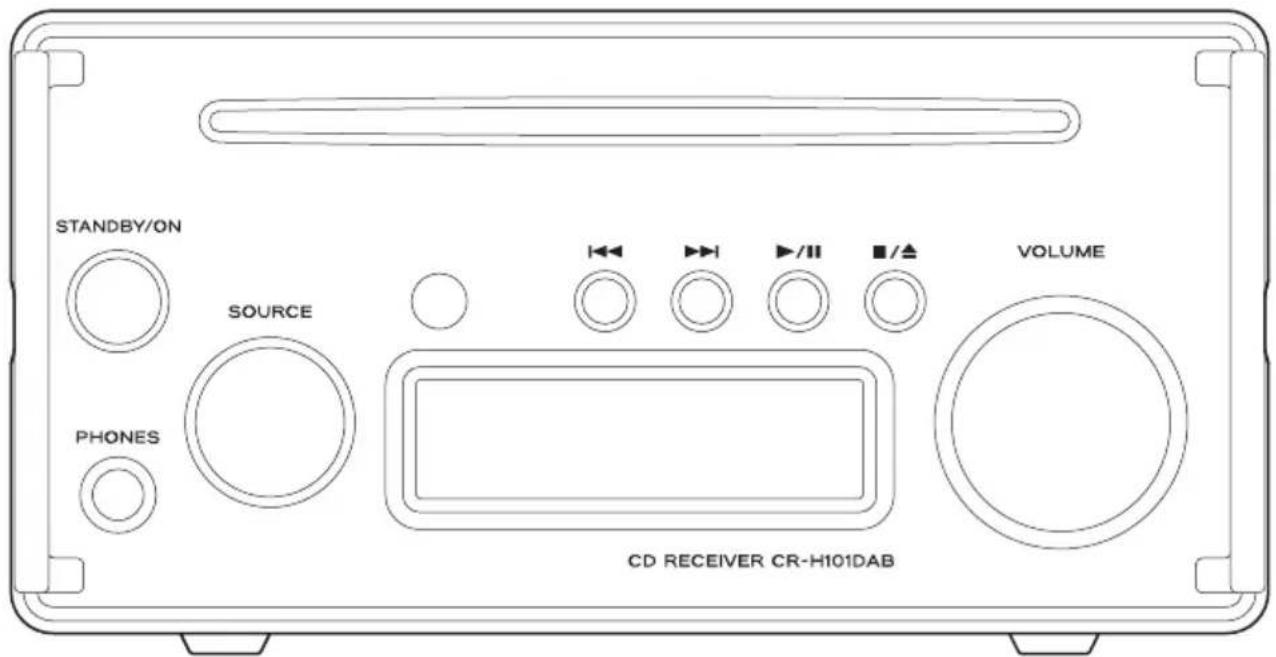

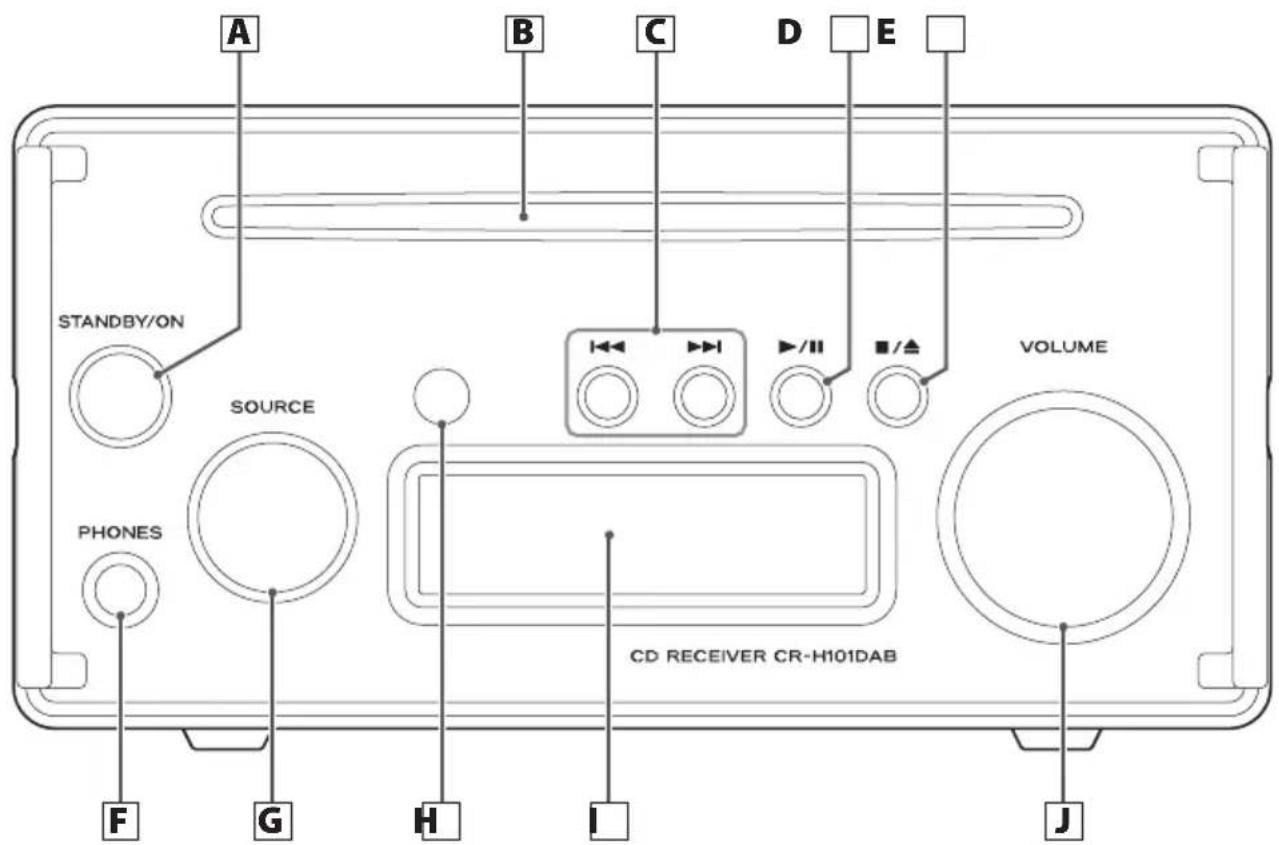

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

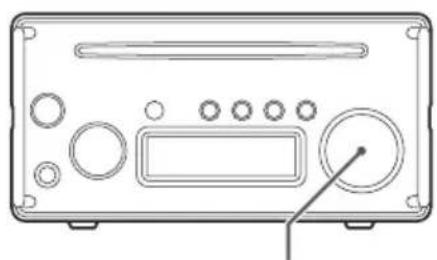

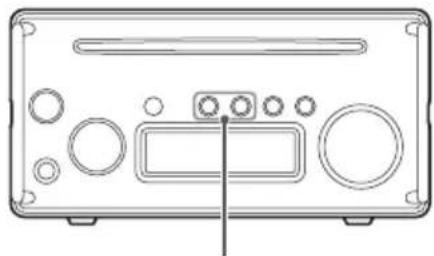

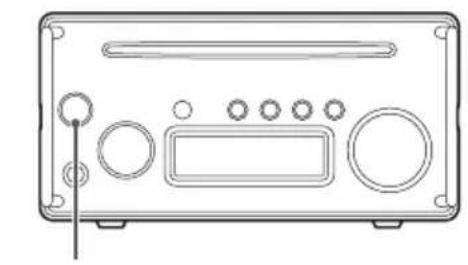

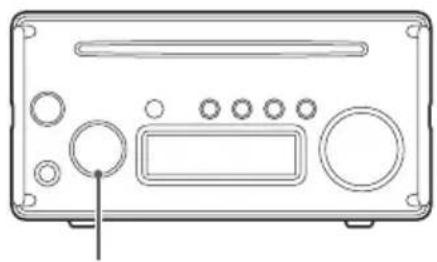

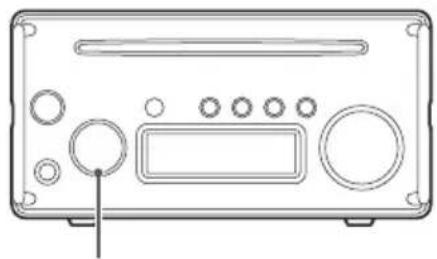

A STANDBY/ON ( ⏻/| ) button

Press this button to turn the unit on and put it in standby. When the unit is ON, the ring around the button lights blue.

- When this unit is in standby mode, it consumes standby power. For this reason, we use the term "standby" rather than "off".

B Disc slot

Insert a disc here. After a disc is inserted partway, the unit will automatically draw it in.

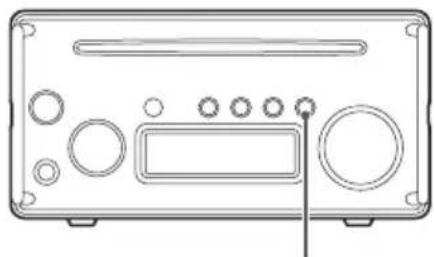

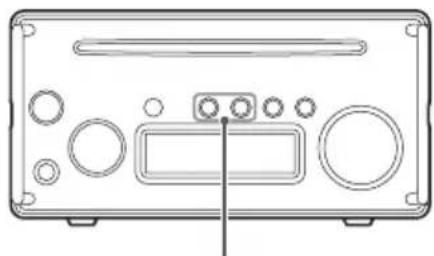

When the playback source is CD, use to skip to the previous or next track. During playback, press and hold to search backward/forward.

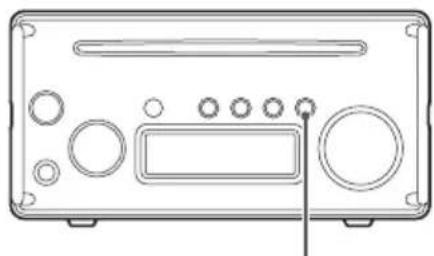

D Play/pause (▶ / II) button

When paused, press to resume playback. Press during playback to pause. Press again to resume playback.

E Stop/eject (■/▲) button

Press during playback to stop playback. When stopped, press to partially eject the disc. Hold the disc by its edges and pull it out.

F PHONES jack

Connect headphones (3.5mm stereo mini plug) here.

- When headphones are connected to the unit, audio will not be output from the SPEAKERS terminals on its back.

G SOURCE knob

Turn to select the playback source.

H Remote control signal receiver

Receives signals from the remote control. When operating the remote control, point it at this sensor.

I Display

This shows a variety of information.

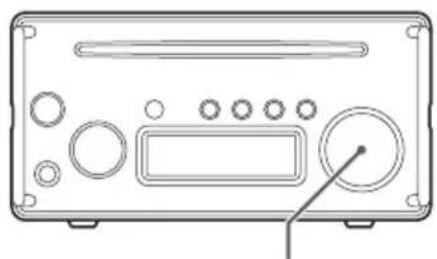

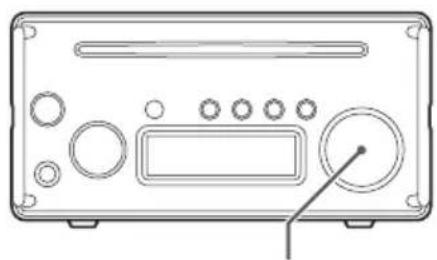

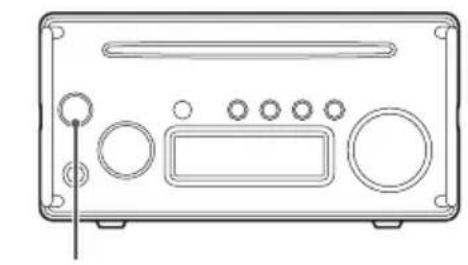

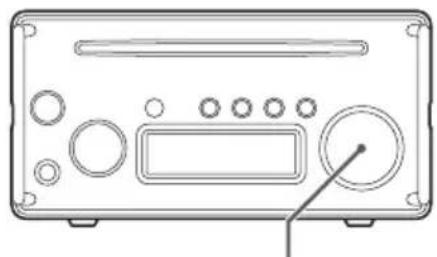

J VOLUME knob

Use this knob to adjust the volume. To increase the volume, turn the knob clockwise. To decrease the volume, turn the knob counterclockwise.

- When the volume is adjusted with the remote control, the main unit volume knob will not turn in response.

Basic operation

Turning the unit on/off (standby)

Press the STANDBY/ON (☐/I) button to turn the unit on. The indicator lights blue when on.

Press the button again to put the unit in standby. The indicator becomes unlit.

Changing the playback source

Turn the SOURCE knob to select the playback source.

The name of the selected playback source is shown.

Turn the SOURCE knob clockwise to change the playback source in the following order.

USB → Bluetooth → LINE → CD → DAB → FM → OPTICAL

• If a digital audio format other than PCM is input, "No Signal" will be shown and no sound will be output.
  If this is the case, the connected digital audio output device might have a "PCM" digital output format setting that would enable playback. Refer to the operation manual for that device to make this setting.

- To use this unit with a Windows computer, you must install the dedicated driver on that computer before setting this unit to USB and playing audio files on the computer (page 27).

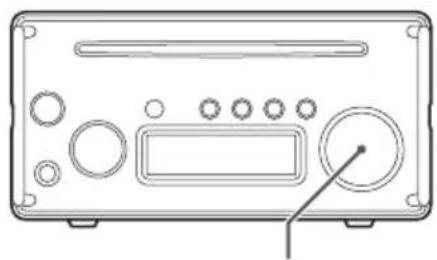

Adjusting the volume

Turn the VOLUME knob or use the VOLUME buttons on the remote control to adjust the volume to the appropriate level.

• The volume setting will be shown when you turn the VOLUME knob.
  As the value increases, the volume becomes louder.

Display example

CD VOLUME 15 Volume

Front view of a portable electronic device with buttons, display, and control panel (no text or symbols)

STANDBY/ÖN

Front view of a portable electronic device with buttons and display panel (no text or symbols)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a central display (no text or symbols visible)

VOLUME

Simple line drawing of a hand pointing at a circular shape (no text or symbols)

MIN: Minimum volume
MAX: Maximum volume

Playing a CD

1 Hold the disc by its edges with the labeled side up and insert it partway.
2 Push the disc in further until just before it disappears. It will automatically be drawn in to the slot.

If a disc becomes caught or is otherwise difficult to insert, do not push it in forcefully. Press the eject (▲) button and remove the disc once before trying to reinsert it. (Pushing a disc forcefully could damage the unit.)

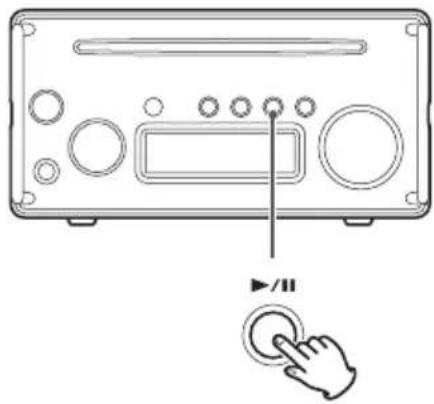

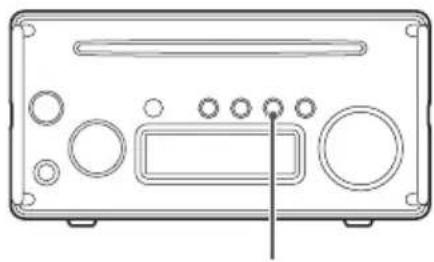

3 Press the play/pause (▶ / II) button.

During playback, PLAY appears at the top of the display.

- If CD Auto Start is ON when a CD is loaded, the playback source will be set to CD and playback will start automatically (page 26).

Pausing playback

Press the play/pause (▶/Ⅲ) button to pause playback.

To resume playback from the position where it was paused, press the play/pause (▶/■) button again.

When paused, PAUSE appears at the top of the display.

Stopping playback

Press the stop/eject (■/▲) button to stop playback.

Ejecting a disc

When CD playback is stopped, press the stop/eject (■/▲) button.

Press to partially eject the disc. Hold the disc by its edges and pull it out.

- Pressing the stop/eject (■/▲) button will eject the disc regardless of the selected playback source.

Skipping to search for a track

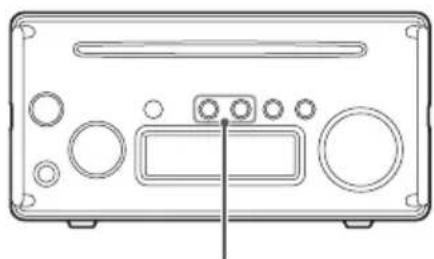

Press a skip (I◄◄/►►I) button to skip to the previous or next track. Keep pressing until you reach the track you want.

• During playback, press the ◀◀ button once to return to the beginning of the current track. When you want to play an earlier track, press the ◀◀ button repeatedly until you reach that track.
• During program playback, tracks from earlier or later in the program will be played back.

Line drawing of two hands holding a CD or DVD disc, no text or symbols present

Line drawing of a device control panel with buttons and a finger pressing a button (no text or symbols)

Line drawing of a portable electronic device front panel with buttons and a central indicator (no text or symbols)

Illustration of a hand pressing a button on a circular object, with no text or symbols present.

Front view of a portable electronic device with buttons and display (no text or symbols visible)

FM mode

Press the MODE button to switch between stereo and mono reception.

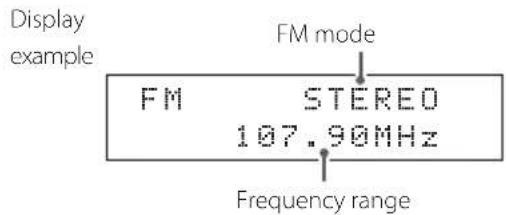

Display example FM mode FM STEREO 107.90MHz Frequency range

STEREO

Receive stereo FM broadcasts in stereo.

- "STEREO" will be shown when receiving in stereo.

MONO

Receive FM broadcasts in mono. When the reception of an FM stereo broadcast is poor, select this mode. The sound becomes mono, but noise is also reduced, making it sound better.

MODE

Changing the received frequency

Increasing the received frequency

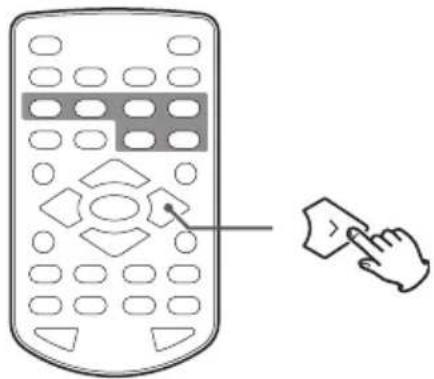

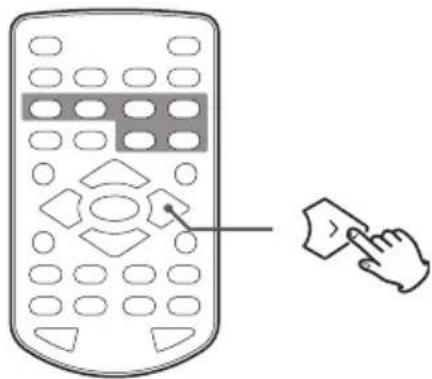

Press the direction (>) button to increase the received frequency one step. Press and hold the direction (>) button to search for a station in the higher-frequency direction.

Decreasing the received frequency

Press the direction ( ) button to decrease the received frequency one step. Press and hold the direction ( ) button to search for a station in the lower-frequency direction.

Line drawing of a remote control with a hand interacting with a device (no text or symbols)

Setting presets automatically

The unit can automatically search for stations that it can receive and assign them to preset numbers.

Press and hold the PROGRAM button.

The unit will search for stations from the lowest receivable frequency to the highest and assign them to preset numbers.

- After 20 presets have been assigned, "Full" will blink on the display and automatic preset assignment will stop.

PROGRAM

Selecting presets

Use the direction (∧/∨) buttons to change the preset number.

Display example FM P03 87.5MHz Preset number

Diagram showing a remote control with labeled buttons and three UI icons: an upward arrow, a curved arrow, and a hand pointing to a document.

RDS (European model only)

The Radio Data System (RDS) is a broadcasting service that allows stations to send additional information along with the regular radio program signal.

● RDS works on the FM frequency band in Europe only.

1 Tune in to an FM RDS station (page 17).

2 Press the remote control RDS button.

Pressing the RDS button cycles through RDS modes as follows:

Program service (PS)

When you select Program service, "PS" will appear to the right of "FM" and then the program service name or station's name will be displayed. If there is no program service data, the frequency will be displayed.

RDS Program type (PTY)

When you select RDS Program type, "PTY" will appear to the right of "FM" and then the program type will be displayed.

RDS Radio text (RT)

When you select RDS Radio text, "RT" will appear to the right of "FM" and then information from the station consisting of up to 64 characters will be displayed.

RDS Clock time (CT)

Displays time information provided by the station.

- This setting is disabled when the unit is shipped new from the factory.

PTY search

You can search for stations by program type. This function is available only through the RDS services of FM frequency stations in Europe.

1 Press the PTY button.

"PTY SEARCH" appears on the display.

FMPTYSEARCH < NEWS

2 Use the direction (^^/√) buttons to select the desired program.

You can select from 31 program types (PTY).

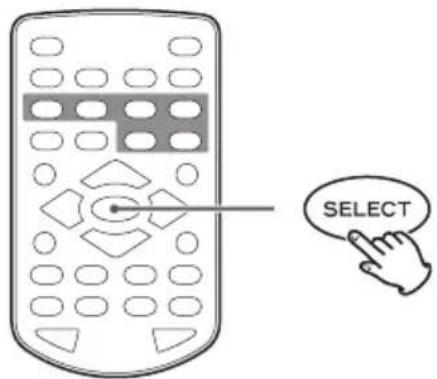

3 Press the SELECT button.

The unit starts searching.

• When the program type that you have selected is found, searching stops and the program type will be displayed.
• If a matching program type is not found during PTY Search, it will stop at the frequency set before searching started.
• If you want to stop searching, press the PTY button.

RDS/INFO

The clock setting of this unit is automatically adjusted according to the RDS Clock time (CT) data it receives.

To turn on automatic clock adjustment, hold down the RDS button for more than 8 seconds.

- When automatic clock adjustment is enabled, the unit adjusts its clock in response to received CT data no matter which RDS mode is selected.

If you tune in an RDS station that is broadcasting incorrect CT data, the clock might be incorrectly adjusted. This could eventually affect timer operation.

If you do not want the clock of this unit to be set according to received CT data, turn off automatic clock adjustment.

To turn off automatic clock adjustment, hold down the RDS button for more than 8 seconds.

PTY

NEWS:

Brief announcements, events, public opinion, reports and real situations.

AFFAIRS:

Suggestions, including practical announcements other than news, documents, discussion and analysis.

INFO:

Useful and reference information, such as weather forecasts, consumer guides and medical advice.

SPORT:

Sports-related programs.

EDUCATE:

Educational and cultural information.

DRAMA:

All kinds of radio concerts and serial dramas.

CULTURE:

All aspects of national or local culture, including religious events, philosophy, social science, language and theatre.

SCIENCE:

Programs on natural science and technology.

VARIED:

Popular programs such as quizzes, entertainment news, interviews, comedy and satire.

POP M:

Programs of commercial and popular songs, including music sales volumes, etc.

ROCK M:

Modern music generally composed and played by young musicians.

EASY M:

Popular music usually lasting for less than 5 minutes.

LIGHT M:

Classical music, instrumental music, chorus, and light music favored by general audiences.

CLASSICS:

Orchestral music including great operas and symphonies, chamber music and so on.

OTHER M:

Other music styles, including rhythm & blues and reggae.

WEATHER:

Weather reports and forecasts.

FINANCE:

Financial reports, commerce and trading.

CHILDREN:

Children's programs.

SOCIAL:

Social affairs.

RELIGION:

Religious programs.

PHONE IN:

Programs in which the public expresses its views by phone.

TRAVEL:

Travel reports.

LEISURE:

Programs concerning recreational activities.

JAZZ:

Jazz music.

COUNTRY:

Country music.

NATION M:

National music.

OLDIES:

Music from the so-called golden age of popular music.

FOLK M:

Folk music.

DOCUMENT:

Documentaries.

TEST:

Broadcast when testing emergency broadcast equipment or receivers. Not intended for searching or dynamic switching for consumer receivers.

ALARM:

A program with notifications about emergencies and natural disasters.

Setting up your DAB tuner

The first time you listen to the DAB radio, it will scan for DAB stations and build a station list.

The unit will scan for broadcast services in the local area and add them to the station list as they are found.

Listening to DAB Radio

1 Turn the SOURCE knob or press the remote control TUNER button to select DAB.

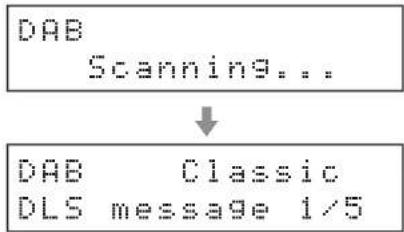

When the scanning process has finished, the DLS (Dynamic Label Segment) will appear on the second line of the display.

2 Select the station you want to listen to using the direction (>) button.

Setting the DAB display

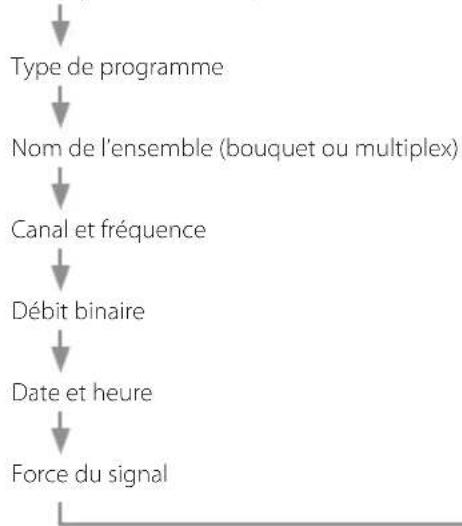

You can change what is shown on the second line of the display while listening to DAB.

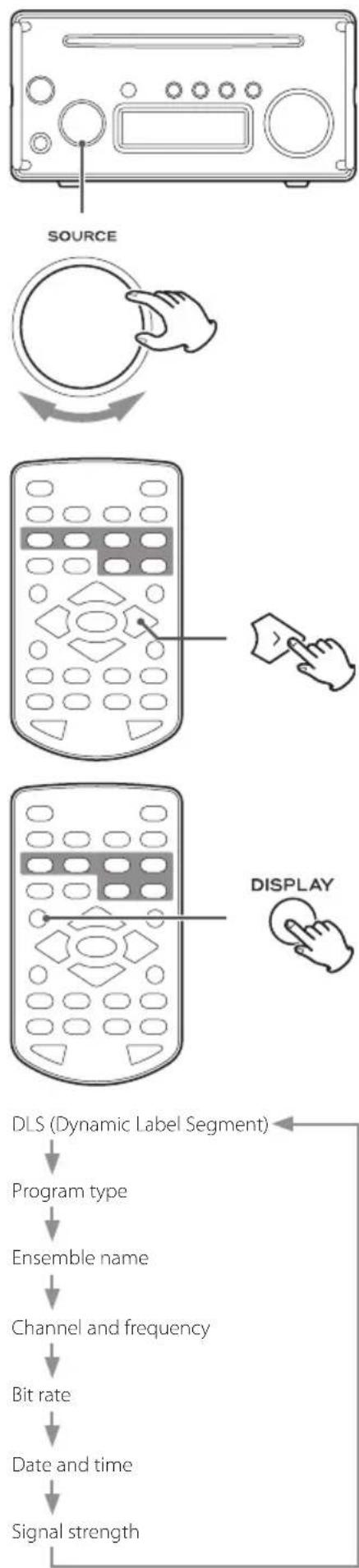

Each time you press the DISPLAY button, the information shown changes as shown in the illustration to the right.

DLS message

The Dynamic Label Segment (DLS) is a scrolling text label supplied by the radio station. It may be information about music titles or details regarding the program or station.

Program type

This is a description of the type of music broadcast by the radio station such as Pop, Rock or Classical music.

Ensemble name

This is the name of the ensemble that is broadcasting the program.

Channel and frequency

This is the station and frequency of the currently playing broadcast.

Bit rate

The is the bit rate and sound mode of the broadcast currently being received.

Date and time

This is the current date and time.

- When shipped new from factory, DAB clock time (CT) setting is enabled and FM RDS CT setting is disabled.

Signal strength

Use this to check the signal strength of the current station.

Using the DAB menu

In DAB mode, use the DAB menu to access various functions.

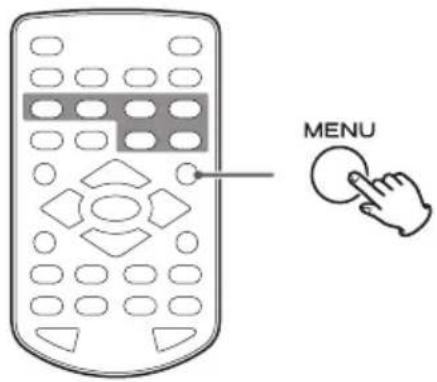

1 In DAB mode, press the remote control MENU button.

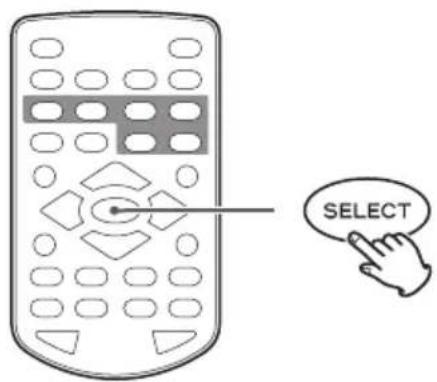

2 Press the direction ( I ) buttons to select the menu item you want, and press the SELECT button.

Local scan

The unit will scan the DAB bands between 10A and 13F and add the stations found to the station list.

Full scan (auto scan)

The unit will scan the DAB bands between 5A and 13F and add the stations found to the station list.

Manual tune

This option allows you to manually tune in a station and view the strength of the signal as it changes. This could be useful when adjusting or positioning an antenna for better reception.

Preset mode

Use this to select the DAB preset station you want.

DRC

Use this option to adjust the amount of Dynamic Range Control (DRC) applied to received broadcasts. DRC is used to reduce the range between high and low volumes of audio and is sometimes applied at the broadcast source. Pop music might have a high value of DRC applied, appropriate for constantly high listening levels, while classical music broadcasts might have no DRC applied to allow the listener to hear the full dynamic range of the source volume.

- You can select one of the three DRC settings: off, low, high.

When set to high, the broadcast DRC is applied. Set to low, only half the broadcast DRC value is applied. Set to off, no DRC is applied.

Station order

You can set the order in which stations are listed.

Alphanumeric

This is the default order. Stations are listed by name with numbers first and then alphabetically by station name.

Ensemble

Channels are listed by ensemble name.

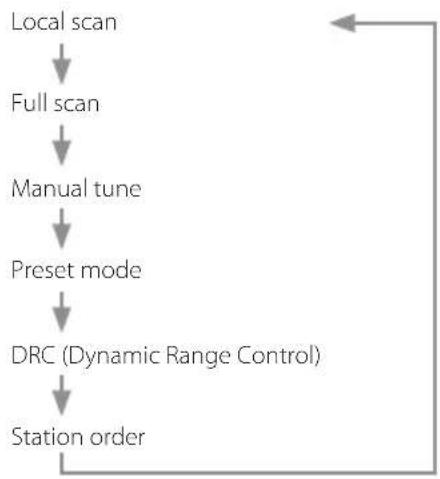


MENU

Line drawing of a remote control with a hand interacting with a device (no text or symbols)

SELECT

Bluetooth notes

When using this unit with a mobile phone or other Bluetooth devices, they should be no more than about 10 m (33 ft) apart. Depending on the circumstances of use, however, the effective transmission distance might be shorter.

Wireless communication with every device that supports Bluetooth wireless technology is not guaranteed.

To determine the compatibility between this unit and another device that supports Bluetooth wireless technology, refer to that device's operation manual or contact the shop where you purchased it.

1 Turn the SOURCE knob to select Bluetooth.

Display example Bluetooth indicator Bluetooth *.* PM 07:28

2 Pair or connect with another Bluetooth device.

Pairing with another Bluetooth device

Pairing this unit with another Bluetooth device is necessary the first time you connect with that Bluetooth device.

If no paired Bluetooth device is found, this unit will become ready to pair with another device. When this unit is ready to pair, its Bluetooth indicator blinks.

When this unit's Bluetooth indicator is blinking, conduct pairing using the other Bluetooth device.

For details, refer to the operation manual of that Bluetooth device.

When pairing with a Bluetooth device that supports Qualcomm® aptX™ audio or AAC, it will automatically connect using Qualcomm® aptX™ audio or AAC.

Connecting with an already paired Bluetooth device

When the playback source of this unit is set to Bluetooth and the other Bluetooth device is on, the Bluetooth function will be enabled and they should connect automatically.

If they do not connect automatically, connect them manually.

• If a request for a passcode appears on the screen of the Bluetooth device, enter "0000" (four zeros).
• When this unit and the other Bluetooth device are connected, the Bluetooth indicator stops blinking and stays lit.
• When pairing or connecting with another Bluetooth device, they should be within a few meters of each other. If they are too far apart, pairing and connection afterwards might become impossible.
• When Bluetooth is selected as the playback source for this unit, the Bluetooth device that was last connected to it will automatically be connected again. If you want to connect with a different Bluetooth device, conduct pairing with that device.
• This unit will store information for up to eight pairable devices. If more than eight devices are paired, the oldest pairing information will be deleted and the new pairing information will be added.

ATTENTION

Even when this unit or the other Bluetooth device is ready to connect, if the Bluetooth indicator on this unit continues to blink for 10 minutes, it will automatically enter standby mode. To use this unit, you must turn it on again.

If the indicator continues blinking for a long time, restart both this unit and the other Bluetooth device and then reconnect them.

Settings

3 Start playback on the other Bluetooth device.

• Confirm that the volume is turned up on the other Bluetooth device. If you do not turn up the volume on the playback device, no sound might be output from this unit.
• Depending on the connected Bluetooth device, you might not be able to adjust the volume. For details, refer to the operation manual of that Bluetooth device.

Warning about Bluetooth device operation

You can use the following buttons on the main unit or the remote control to control a connected Bluetooth device.

Play/pause (▶/■) button

Skip (I◄◄/►►I) buttons

- Depending on the Bluetooth device being used, it might not respond to remote control operations and actual operations could differ.

1 Press the MENU button.

2 Use the direction (<>) buttons to change the setting item and press the SELECT button.

Display example Menu < 1.Set clock >

Press the > button to cycle through the following items.

Press the < button to cycle through these items in reverse order.

3 Use the direction (^^/√) buttons to change the setting, and press the SELECT button to confirm the change.

Display example

Current Time 12H/24H

The selected item blinks.

- When there are multiple settings, press the SELECT button to show the next setting.

Repeat procedures 2-3 to set other items as necessary.

- Press the MENU button instead to cancel the setting change.

4 Press the MENU button to complete making settings.

Settings (continued)

Set clock (time settings)

Set the clock in the following manner.

Current Time (time display)

Select 12-hour or 24-hour display.

Display example

Current Time 12H/24H

Current Time (time shown)

Set the current time in order of hours and minutes.

Display example

Current Time PM 11:45

1 Use the direction (^^/√) buttons to select "12h" or "24h", and press the SELECT button.
2 Use the direction (^^/∨) buttons to input the hour, and press the SELECT button.
3 Use the direction (^^/∨) buttons to input the minute, and press the SELECT button.

This completes setting the time.

CD setting

CD Auto Start

● This is set to OFF when shipped new from the factory.

OFF: CD will not automatically play when loaded.

ON: CD will automatically play when loaded.

Display example

CD Auto Start OFF

APS (automatic power saving) setting

Display example

Menu APS OFF

● This is set to ON when shipped new from the factory.

OFF: The automatic power saving function is disabled.

ON: The automatic power saving function is enabled.

FA. Reset (restoring default settings)

Display example

Factory Reset OK?

When "OK?" appears, press the SELECT button to restore settings to their factory default values.

The unit will enter standby after settings are restored.

Playing back music on a computer

Installing the driver on a computer

This unit can be connected by USB and used with a computer running one of the following operating systems. Operation is not guaranteed with operating systems other than the following (As of September 2015).

Mac

The unit works with the following versions.

OS X Lion 10.7

OS X Mountain Lion 10.8

OS X Mavericks 10.9

OS X Yosemite 10.10

This unit can be operated with the standard OS driver, so there is no need to install a driver.

Windows

The unit works with the following versions.

Windows 7 (32/64-bit)

Windows 8 (32/64-bit)

Windows 8.1 (32/64-bit)

Windows 10 (32/64-bit)

Installing the driver on the computer

Before you can use this unit to play files on a Windows computer, you must first download the dedicated driver from the TEAC Global Site and install it on the computer.

TEAC Global Site

http://teac-global.com/

ATTENTION

Install the dedicated driver software on the computer before connecting the unit by USB.

If a computer is connected to this unit before the driver is installed, proper operation will not be possible.

• For instructions about driver installation procedures, please access the Downloads page from the TEAC Global site (http://teac-global.com/).
• Depending on the combination of hardware and software, proper operation might not be possible even with the above operating systems.

About the transmission mode

This unit connects using high-speed asynchronous mode. Transmittable sampling frequencies are 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz.

When properly connected, you will be able to select "TEAC USB AUDIO DEVICE" as an audio output from the computer.

- In asynchronous mode, the audio data sent from the computer is processed using this unit's clock, reducing data transmission jitter.

Downloading the TEAC HR Audio Player application

Our TEAC HR Audio Player application (Mac and Windows versions available) supports playback of high-resolution audio files. You can download it from TEAC Global Site.

TEAC Global Site

http://teac-global.com/

- This unit does not support the playback of DSD files.

Troubleshooting

General

The unit does not turn on.

(The power switch LED does not light.)

→ Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
→ Connect a different electrical device to the outlet to confirm that it is supplying power.

Remote control does not work.

→ Point the remote control at the front panel of the unit from a distance of less than about 5 m (16 ft).

The remote control will not work if there is an obstruction between it and the main unit. In this case, try changing the position.

→ If the batteries are exhausted, replace both of them with new ones.

A television set or another device operates in error.

→ Some televisions that are able to receive signals from wireless remote controls might be operated in error by this unit's remote control. If this should occur, use the main unit's buttons.

No sound is output or very little sound is output.

→ Confirm connections with the amplifier and speakers.
→ Confirm connections with other devices.

There is noise.

→ Place the unit as far away as possible from TVs, microwave ovens and other devices that have strong magnetism.

Radio

A station cannot be received. The reception is poor.

→ Select a broadcast station.
→ If reception is poor, try repositioning the antenna.
→ If a TV is near the unit, turn the TV off.

Stereo broadcasts become mono.

→ Press the remote control MODE button to select stereo.

CD Player

Playback is not possible.

→ If the disc is upside down, reload it with the labeled side up.
→ If the disc is dirty, wipe it clean.
→ Depending on the quality and recording conditions of the disc, some CD-R/CD-RW discs cannot be played back.
→ CD-R/CD-RW discs that have not been finalized cannot be played back.

The sound skips.

→ Vibrations can cause the sound to skip. Install this unit in a stable location.
→ If the disc is dirty, wipe it clean.
→ Do not use discs that are scratched or cracked.

MP3 and WMA files

Playback is not possible.

→ Check the file extension. Files are recognized by their extensions: ".mp3" for MP3 files and ".wma" for WMA files.
→ The MP3/WMA file might be damaged.
→ Check the file format. This unit can play MP3 and WAV files (page 29)

The names of tracks, artists and albums are not shown.

There is no ID3 tag information for the music file. Use a computer, for example, to prepare MP3/WMA files with corrected ID3 tag information. ID3 tags cannot be used with WAV files.

Some characters are not shown correctly.

If the file information uses Japanese, Chinese or other double-byte characters, playback is possible but the name will not be shown correctly.

Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the power back on to restart operations.

Specifications

CD Player

Playback media.... CD-DA, CD-R/RW

Only 12cm discs can be used

Format.... ISO9660 LEVEL 1/2/JOLIET

Maximum number of files ..... 250 (including folders)

Maximum number of folders....99

playable audio formats

MP3

Extension ...." .mp3", ".MP3"

Bit rate .... 32 kbps – 320 kbps or VBR

Sampling frequency

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

Supported standards ..... MPEG-1/2 Audio Layer-3

WMA

Extension.....".wma",".WMA"

Bit rate 32 kbps - 320 kbps or VBR

Sampling frequency

8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz,

44.1 kHz, 48 kHz

Supported standard....WMA ver.9

Digital audio input

Supported sampling frequencies (PCM)

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Supported bit depths....16/24

Bluetooth

Bluetooth version....3.0

Output Class 2

Supported profile....A2DP

Codecs....SBC, AAC, Qualcomm® aptX™ audio

Headphones output

Rated output 80 mW + 80mW (32 Ω, 1 kHz)

Total harmonic distortion 0.03%

Tuner

Frequency range

FM 87.5 MHz to 108.0 MHz

DAB tuner

Tuning range.... Band 3, 174 MHz – 240 MHz

Input 50 Ω, unbalanced

Max signal.... 0 dBm

Sensitivity .... -97 dBm typ

Adjacent channel rejection 35 dB typ

Amplifier Section

Maximum output.....26 W + 26 W (JEITA 10%, 1 kHz, 4 Ω)

Rated output....20 W + 20 W (JEITA 1%, 1 kHz, 4 Ω)

Total harmonic distortion.... 0.08% (1 kHz, 4 Ω, 1 W)

Signal-to-noise ratio

LINE IN 90 dB

(IHF-A/LPF 20kHz/1kHz, 2V input)

Frequency Response 20 Hz - 45 kHz (-5 dB)

General

Power supply.... AC 220–240 V (50 Hz)

Power consumption 21 W

External dimensions

182×93×221 mm (7 1/4"×3 3/4"×8 3/4")

(W × H × D, including protrusions)

Weight 2.2kg (4 7/8 lb)

Operating temperature.... +5°C to +35°C

Operating humidity ..... 5% to 85% (no condensation)

Storage temperature -20^ to +55^

Included accessories

Power cord × 1

Remote control (RC-1324) × 1

Batteries for remote control (AAA) × 2

Basic DAB/FM antenna × 1

Owner's manual (this document) × 1

- In order to improve the product, specifications and appearance could be changed at any time without warning.

● Weight and dimensions are approximate.

- Illustrations in this manual might differ in part from the actual product.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE). AUCUNE PIÈCE INTERNE N'EST RÉPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRÈS-VENTE QUALIFIÉ.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Symbolic icon of a person pushing a cart with a large block, enclosed in a circle (no text or symbols)

DÉCLARATION DE CONFORMITÉ

Diagram showing a tool interacting with a cylindrical device, before and after assembly (no text or symbols)

Diagram of a battery pack with internal components and polarity indicators (no text or labels)

V Touche Lecture/Pause (▶/II)

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

A Touche STANDBY/ON ( ⏻/I )

D Touche Lecture/Pause (▶ /II)

USB → Bluetooth → LINE → CD → DAB → FM → OPTICAL

CD VOLUME 15 Volume

Front view of a portable electronic device with buttons, display screen, and control panel (no text or symbols)

STANDBY/ÖN

Front view of a portable electronic device with buttons and display (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a pointer (no text or symbols visible)

VOLUME

Simple line drawing of a hand pointing at a circular frame (no text or symbols)

MIN: volume minimal
MAX: volume maximal

Lecture d'un CD

Line drawing of two hands holding a CD or DVD disc, showing front and side views (no text or symbols)

Line drawing of a device control panel with buttons and a finger pressing a button (no text or symbols)

Line drawing of a portable electronic device front panel with buttons and a central indicator (no text or symbols)

Illustration of a hand pressing a button on a circular object, with no text or symbols present.

Front view of a portable electronic device with buttons and display (no text or symbols visible)

Mode FM

FM P03 87.5MHz

Numéro de preset

Line drawing of a remote control with a hand interacting with a device (no text or symbols)

PROGRAM

Diagram showing a remote control with labeled buttons and three hand-drawn icons: an upward arrow, a curved arrow, and a checkmark.

Émissions sportives.

Front view of a rectangular electronic device with labeled buttons and ports (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Line drawing of a remote control with a hand pointing to the right button (no text or symbols)

DISPLAY

DLS (Dynamic Label Segment)

Local scan (balayage local)

Line drawing of a remote control with a hand interacting with a touchpad (no text or symbols)

SELECT

Current Time 12H/24H

Current Time PM 11:45

16 kHz, 22,05 kHz, 24 kHz, 32 kHz, 44,1 kHz, 48 kHz

Norme prise en charge ..... MPEG-1/2 Audio Layer-3

WMA

8 kHz, 11,025 kHz, 16 kHz, 22,05 kHz,

32 kHz, 44, 1 kHz, 48 kHz

Norme prise en charge .... WMA ver.9

Simple line drawing of a rectangular enclosure with mounting feet and a central rectangular component (no text or symbols)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Symbolic icon of a person pushing a ladder with a box, enclosed in a circle (no text or symbols)

A Puerto USB

E Terminal SUBWOOFER OUT

Si desea utilizar un subwoofer, conéctelo a este terminal.

Diagram showing a tool inserting into a cylindrical device into a hollow cylindrical device (no text or symbols present)

Diagram of a battery pack with internal components and polarity indicators (no text or symbols)

Cambio de las pilas

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

A Botón STANDBY/ON ( ⏻/I)

USB → Bluetooth → LINE → CD → DAB → FM → OPTICAL

CD VOLUME 15 Volumen

Front view of a portable electronic device with buttons, display screen, and indicator lights (no text or symbols)

STANDBY/ÖN

Front view of a portable electronic device casing with buttons and display (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a screen (no text or symbols visible)

VOLUME

Simple line drawing of a hand pointing at a circular ring (no text or symbols)

Line drawing of two hands holding a CD or DVD disc, no text or symbols present

Line drawing of a device front panel with buttons and a finger pressing a button (no text or symbols)

Front view of a portable electronic device with buttons and display (no text or symbols visible)

Illustration of a hand using a circular dial to interact with a screen (no text or symbols present)

Line drawing of a device front panel with buttons and display (no text or symbols)

Modo de FM

FM P03 87.5MHz

Line drawing of a remote control with icons and a hand interacting with a device (no text or symbols)

PROGRAM

Diagram showing a remote control with labeled buttons and three hand-drawn icons: an upward arrow, a curved arrow, and a checkmark.

Front view of a device control panel with buttons and display (no text or symbols)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Line drawing of a remote control with a hand pointing to the button (no text or symbols)

DISPLAY

Line drawing of a remote control with a hand pointing at a button, next to a separate icon (no text or symbols)

SELECT

Current Time 12H/24H

Current Time 12H/24H

Current Time PM 11:45

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Profundidades de bits admitidas....16/24

Bluetooth

FM de 87.5 MHz a 108.0 MHz

Sintonizador DAB

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Symbolic icon of a person pushing a ladder inside a circle (no text or symbols)

Diagram showing a tool interacting with a cylindrical device, before and after assembly (no text or symbols)

Technical diagram of a remote control device showing battery, casing, and internal components (no text or labels)

Batteriewechsel

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

Front view of a portable electronic device with buttons, display screen, and control panel (no text or symbols)

STANDBY/ÖN

Front view of a portable electronic device with buttons and display (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a screen (no text or symbols visible)

VOLUME

Simple line drawing of a hand pointing at a circular frame (no text or symbols)

Line drawing of two hands holding a CD or DVD disc, no text or symbols present

Line drawing of a device control panel with buttons and a finger pressing a button (no text or symbols)

Front view of a portable electronic device with buttons and a central indicator (no text or symbols)

Illustration of a hand pressing a button on a circular object, with no text or symbols present.

Front view of a portable electronic device with buttons and display (no text or symbols visible)

FM-Modus

Line drawing of a remote control with a hand pointing at a button, next to a separate diagram showing a hand pressing a button (no text or symbols)

PROGRAM

Diagram showing remote control with labeled buttons and three UI icons: a curved arrow, a hand pointing at a document.

Program service (PS)

RDS Program type (PTY)

Channel and frequency

Front view of a device control panel with buttons and display (no text or symbols)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Line drawing of a remote control with a hand pointing to the right button (no text or symbols)

DISPLAY

DLS (Dynamic Label Segment)

Line drawing of a remote control with icons and a hand interacting with a pad (no text or symbols)

SELECT

Current Time 12H/24H

Current Time (Zeitformat)

Current Time 12H/24H

Current Time (Zeitanzeige)

Current Time PM 11:45

16 kHz, 22,05 kHz, 24 kHz, 32 kHz, 44,1 kHz, 48 kHz

8 kHz, 11,025 kHz, 16 kHz, 22,05 kHz, 32 kHz,

44,1 kHz, 48 kHz

Simple line drawing of a rectangular enclosure with circular holes and a small rectangular base (no text or symbols)

Targhetta

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Silhouette of a person climbing a ladder inside a circle (no text or symbols)

CAUTELA

Antenna DAB/FM base × 1

Diagram showing a tool inserting into a cylindrical device into a hollow cylindrical device (no text or symbols present)

Diagram of a battery pack with internal components and polarity indicators (no text or symbols)

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

A Pulsante STANDBY/ON ( ⏻/I )

USB → Bluetooth → LINE → CD → DAB → FM → OPTICAL

CD VOLUME 15 Volume

Front view of a portable electronic device with buttons and display (no text or symbols visible)

STANDBY/ON

Front view of a rectangular electronic device with labeled buttons and ports (no text or symbols)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a screen (no text or symbols visible)

VOLUME

Simple line drawing of a hand touching a circular ring (no text or symbols)

MIN: volume minimo
MAX: volume massimo

Line drawing of a remote control with a hand interacting with a device (no text or symbols)

PROGRAM

Diagram showing a remote control with labeled buttons and three hand-drawn icons: an upward arrow, a curved arrow, and a finger pointing at a document.

Program service (PS)

RDS Program type (PTY)

Channel and frequency

Front view of a rectangular electronic device with labeled buttons and ports (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Line drawing of a remote control with a hand pointing to the right button (no text or symbols)

DISPLAY

DLS (Dynamic Label Segment)

Ensemble name

Date and time

Signal strength

Uso del menu DAB

Line drawing of a remote control with a hand interacting with a device (no text or symbols)

SELECT

Note sul Bluetooth

Current Time 12H/24H

Current Time 12H/24H

Current Time PM 11:45

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

Standard supportati ..... MPEG-1/2 Audio Layer-3

WMA

Estensione ..... "wma", "WMA"

Bit rate .... 32 kbps - 320 kbps o VBR

8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz,

44.1 kHz, 48 kHz

Standard supportati ....WMA ver.9

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

FM.....da 87.5 MHz a 108.0 MHz

Sintonizzatore DAB

(L × A × P, parti sporgenti incluse)

Peso....2,2 kg

Antenna DAB/FM base × 1

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Symbolic icon of a person pushing a ladder inside a circle (no text or symbols)

Specificaties....169

Controleer of de verpakking alle hieronder weergegeven accessoires bevat.

E Aansluiting SUBWOOFER OUT

Diagram showing a cable being inserted into a cylindrical device, with no text or symbols present.

Diagram of a battery pack with internal components and polarity indicators (no text or symbols)

Batterijen vervangen

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

A Toets STANDBY/ON ( ⏻/I )

CD VOLUME 15 Volume

Front view of a portable electronic device with buttons, display screen, and indicator lights (no text or symbols)

STANDBY/ÖN

Front view of a portable electronic device with buttons and display (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a screen (no text or symbols visible)

VOLUME

Simple line drawing of a hand pressing a circular button (no text or symbols)

MIN: minimum geluidsvolume MAX: maximum geluidsvolume

Een CD afspelen

Line drawings of two hands holding a CD or DVD disc, no text or symbols present

Front view of a rectangular electronic device with labeled buttons and ports (no text or symbols visible)

Line drawing of a portable electronic device front panel with buttons and display (no text or symbols)

Illustration of a hand pressing a button on a circular object, with no text or symbols present.

Front view of a portable electronic device with buttons and display (no text or symbols visible)

FM-modus

FM P03 87.5MHz

Presetnummer

MODE

Illustration of a remote control with a hand interacting with a device, next to a separate geometric shape (no text or symbols)

PROGRAM

Diagram showing a remote control with labeled buttons and three hand-drawn icons: an upward arrow, a curved arrow, and a checkmark.

RDS (alleen Europees model)

RDS programmatype (PTY)

Channel and frequency

Line drawing of a remote control with hand interacting with a device (no text or symbols)

SELECT

Opmerkingen over Bluetooth

Current Time
12H/24H

Current TimePM 11:45

16 kHz, 22,05 kHz, 24 kHz, 32 kHz, 44,1 kHz, 48 kHz

Ondersteunde standaarden .. MPEG-1/2 Audio Layer-3

WMA

Extensie.....".wma",".WMA"

Bit rate 32–320 kbps of VBR

Samplingfrequentie

8 kHz, 11,025 kHz, 16 kHz, 22,05 kHz, 32 kHz,

44,1 kHz, 48 kHz

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Symbolic icon of a person lifting a ladder inside a circle with a diagonal line (no text or symbols)

Diagram showing a tool applying material to a cylindrical component, with no text or symbols present.

Diagram of a battery pack with internal components and polarity indicators (no text or symbols)

Byta ut batterier

A B C D E STANDBY/ON SOURCE PHONES VOLUME CD RECEIVER CR-H101DAB F G H I J

A STANDBY/ON-knapp (⏻/I)

USB → Bluetooth → LINE → CD → DAB → FM → OPTICAL

Front view of a portable electronic device with buttons and display (no text or symbols visible)

STANDBY/ON

Front view of a portable electronic device with buttons and display panel (no text or symbols)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Front view of a portable electronic device with buttons and a screen (no visible text or symbols)

VOLUME

Simple line drawing of a hand touching a circular ring (no text or symbols)

Line drawing of two hands holding a circular object, one pointing at the edge and the other touching it (no text or symbols)

Line drawing of a device control panel with buttons and a finger pressing a button (no text or symbols)

Front view of a portable electronic device with buttons and a central indicator (no text or symbols)

Illustration of a hand pressing a button on a circular component (no text or symbols)

Front view of a portable electronic device with buttons and display (no text or symbols visible)

FM-läge

FM P03 87.5MHz

Line drawing of a remote control with a hand interacting with a touchpad (no text or symbols)

PROGRAM

Diagram showing a remote control with labeled buttons and three UI icons: an upward arrow, a curved arrow, and a hand pointing at a document.

RDS (endast europeiska modellen)

Channel and frequency

Front view of a rectangular electronic device with labeled buttons and ports (no text or symbols visible)

SOURCE

Simple line drawing of a hand pressing a circular button with an arrow below (no text or symbols)

Line drawing of a remote control with a hand pointing to the right button (no text or symbols)

DISPLAY

DLS (Dynamic Label Segment)

Använda DAB-menyn

Line drawing of a remote control with a hand interacting with a touchpad (no text or symbols)

SELECT

Bluetooth-notiser

Current Time 12H/24H

Current TimePM 11:45

16 kHz, 22,05 kHz, 24 kHz, 32 kHz, 44,1 kHz, 48 kHz

Standarder som stöds ..... MPEG-1/2 Audio Layer-3

WMA

Tillägg.....".wma",".WMA"

Bithastighet 32–320 kbps eller VBR

Samplingsfrekvens

8 kHz, 11,025 kHz, 16 kHz, 22,05 kHz, 32 kHz,

44,1 kHz, 48 kHz

Stödjad standard ...... WMA ver.9

Digital ljudingång

Total harmonisk distorsion....0,08% (1 kHz, 4 Ω, 1 W)

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

In countries/regions other than the USA, Canada and Europe

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.

If you have a warranty claim or request, please contact the dealer where you bought the product.

This product has a serial number located on the rear panel. Please write it here and retain this for your records.

Model name: CR-H101DAB Serial number
