Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 26

Installation Instructions 29

Device Overview 30

Operation 32

Cleaning and Care 33

Troubleshooting 33

Product Data Sheet 34

Disposal considerations 44

Manufacturer & importer (UK) 44

TECHNICAL DATA

Article number 10045375 1	0045376
Volume 31 L 30 L
Power supply 100-240 V ~	50/60 Hz

Article number 10045377 1	0045378
Volume 39 L 46 L
Power supply 100-240 V ~	50/60 Hz

Article number 10045379
Volume 45 L
Power supply 100-240 V ~	50/60 Hz

SAFETY INSTRUCTIONS

• Before use, check the voltage indicated on the nameplate. Ensure that you only connect the appliance to sockets with the appropriate voltage.
• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the appliance if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Make sure that the ventilation openings are free and clean them regularly.
• Do not use mechanical devices to speed up the defrosting process.
• Do not place electrical appliances, such as ice machines, in the refrigerator.
• Be careful not to damage the coolant circuit.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Check the power cord regularly for any damage. Do not use the device with a damaged power cord.
• Do not handle the appliance, plug or power cord with wet hands.
• If possible, do not use an extension cord. If you do use one, make sure that the ampere rating of the connected device does not exceed the maximum ampere rating of the power cord.
• Leave at least 5 cm space around the device on the sides and 10 cm space on the back for sufficient air circulation.
• Do not put hot food in the appliance. Let it cool down to room temperature first.
• Close the door as soon as possible after stowing food to prevent cold from escaping.
• Place the device on a firm, level surface. Do not place it on a soft surfaces, such as carpet.
• Do not place any objects on the appliance.
• Do not store flammable or explosive substances in the unit.
• Do not use the device outdoors.
• Do not pull the plug out of the socket by the cable; instead, hold it securely with your hand while unplugging it.
• Make sure that the power cord does not touch any hot surfaces.
• Only connect the unit to earthed sockets.
• Do not connect the device to sockets that are already connected to other kitchen appliances.
• Defrost the freezer compartment regularly.
• If the refrigerator goes out, breaks down or is turned off, wait 5 minutes before turning it back on, otherwise the compressor could be damaged.

This unit contains the refrigerant Isobutane (R600a), a natural gas with high environmental compatibility, but flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

Special Notes

• Children aged 3 to 8 may fill refrigerators with food and remove food.
- When positioning the unit, take care not to pinch or damage the power cord.
- Make sure that there are no power strips or power supply units on the back of the device.

WARNING

When using, during maintenance and when disposing of the device, pay attention to the left symbol located on the back or on the compressor of the device. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of drinks.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
• This appliance is not suitable for freezing food.

Special notes on efficient use

• The shelves have been pre-set to allow the most efficient use of energy.
• Use only the shelves provided by the manufacturer.
• Never block the holes in the shelves and do not use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
  • We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

10045375 10045376

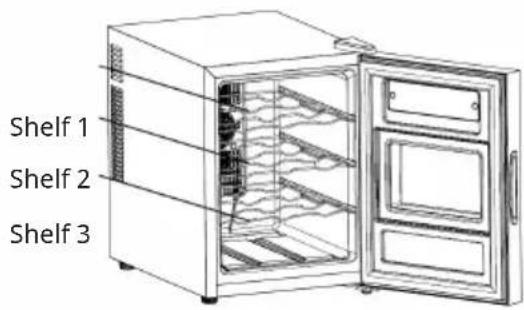

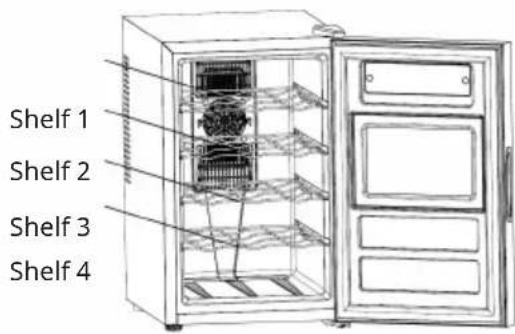

Shelf 1 Shelf 2 Shelf 3

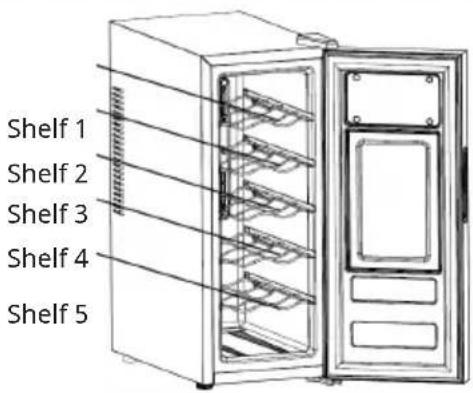

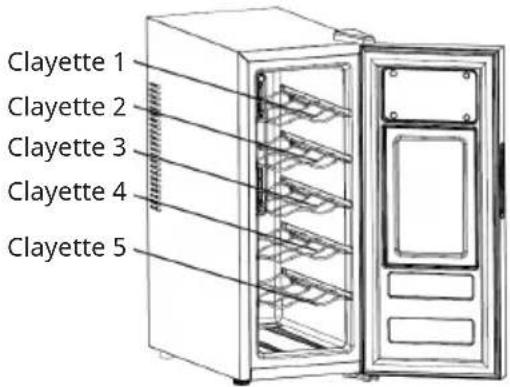

Shelf 1 Shelf 2 Shelf 3 Shelf 4 Shelf 5

10045377 10045378

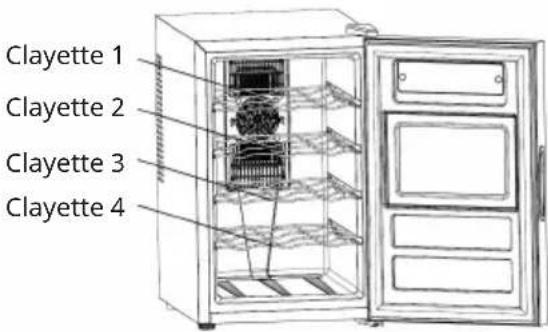

Shelf 1 Shelf 2 Shelf 3 Shelf 4

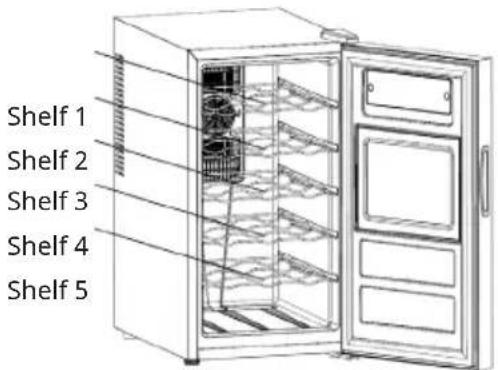

Shelf 1 Shelf 2 Shelf 3 Shelf 4 Shelf 5

10045379

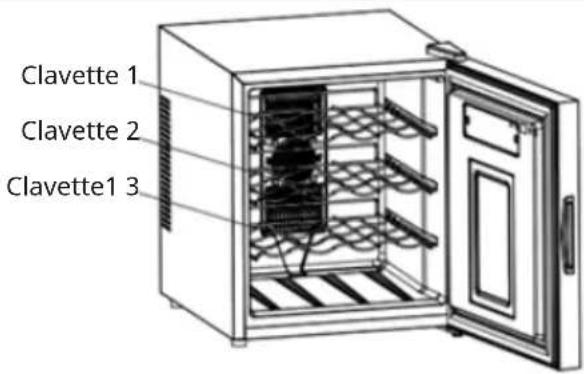

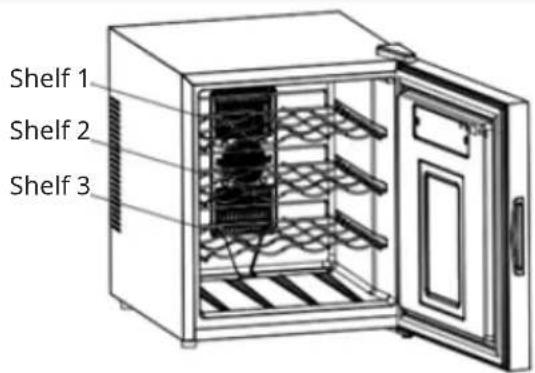

Shelf 1 Shelf 2 Shelf 3

When the ambient temperature is 25 °C and the device is not loaded, it takes about 3.5 hours to change the temperature of the device from 25 °C to 17 °C .

It is recommended to set the device to 17 °C . When the set temperature is higher than 17 °C , the energy consumption is lower. When the set temperature is lower than 17 °C , the energy consumption is higher.

INSTALLATION INSTRUCTIONS

• Position the device so that the plug is accessible.
• Protect the device from direct sunlight.
• Do not place the device next to a heat-generating device.
• The device performs better at an ambient temperature of 16-32 °C. We recommend turning off the device when the ambient temperature is below 10 °C.
  • After plugging in the appliance, allow it to cool down for 2-3 hours before placing drinks in the cooling compartment.
• Ventilation is very important for this type of thermoelectric cooler. The inner circuit board is easy to break if the ventilation is poor.
  • These models use a thermoelectric cooling system with automatic defrost system, so manual defrosting is not required.

Power supply

The refrigerator must be plugged into a properly grounded outlet that conforms to applicable national codes before operation.

Check the rating plate (located on the side of the device) to ensure that the voltage and frequency are the same as those in your country. If not, do not insert the plug into the outlet.

Ventilation

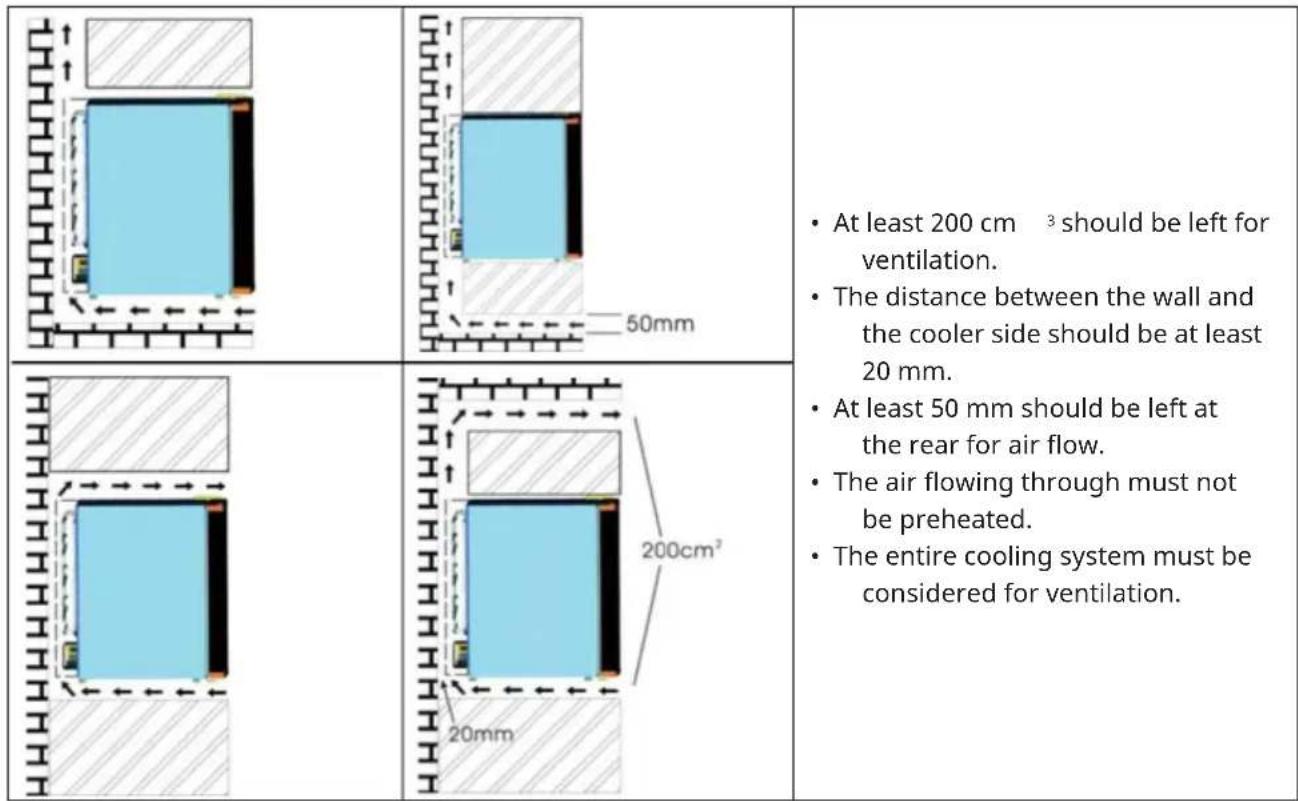

• At least 200 cm ^3 should be left for ventilation.
• The distance between the wall and the cooler side should be at least 20 mm.
• At least 50 mm should be left at the rear for air flow.
  • The air flowing through must not be preheated.
• The entire cooling system must be considered for ventilation.

DEVICE OVERVIEW

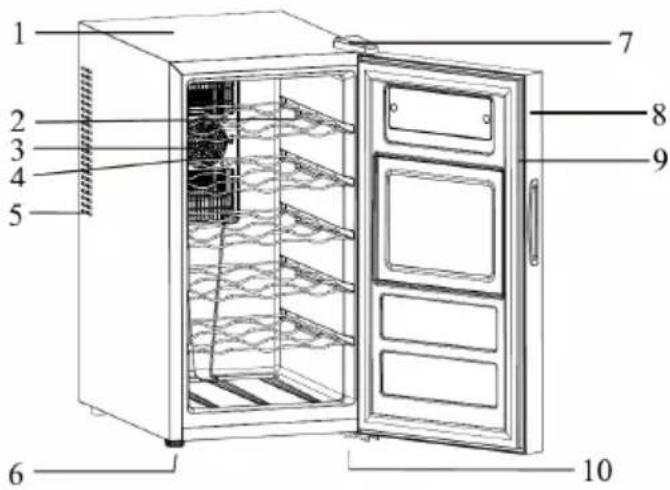

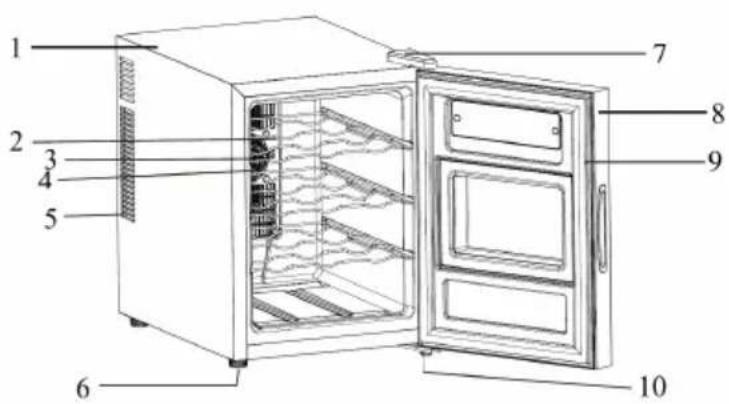

10045375

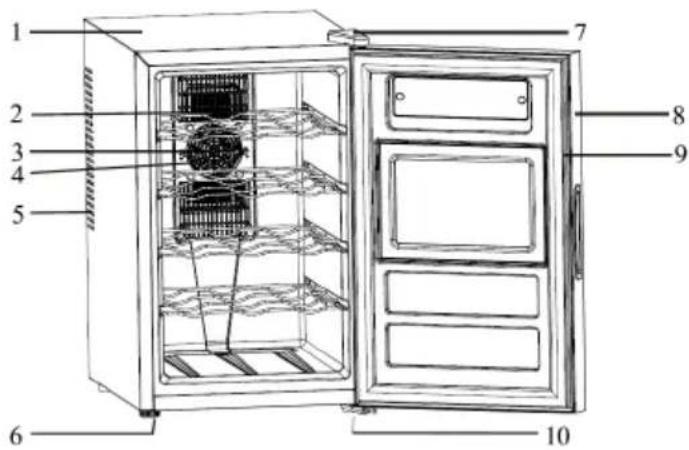

1 2 3 4 5 6 7 8 9 10

10045377

1 2 3 4 5 6 7 8 9 10

10045378

1 2 3 4 5 6 7 8 9 10

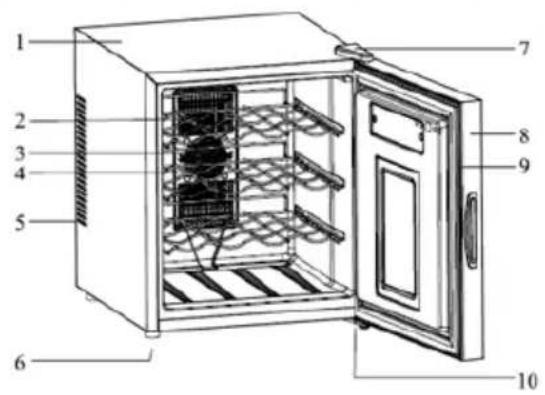

10045379

Labeled diagram of an oven with numbered parts for identification

Model 10045375, 10045377, 10045378, 10045379

1 Case 6 Feet
2 Shelf 7 Upper hinge
3 Fan 8 Door
4 Fan cover 9 Door seal
5 Ventilation openings 10 Lower hinge

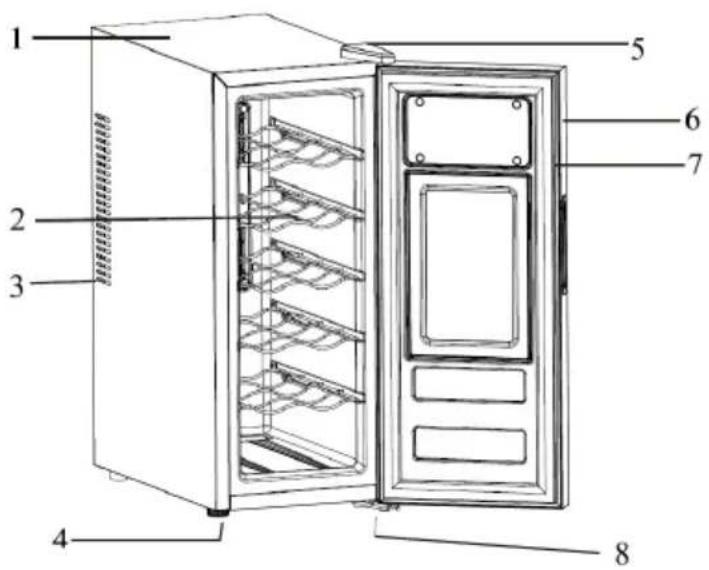

10045376

Labeled diagram of an oven or refrigerator interior with numbered parts for identification.

Model 10045376

1 Housing 5 Upper hinge
2 Shelf 6 Door
3 Ventilation openings 7 Door seal
4 Feet 8 Lower hinge

OPERATION

The temperature of the device may be set between 8-18 °C (46-64 °F).

It is recommended to place the device in a place where the ambient temperature is between 16-32 °C (61-90 °F). If the ambient temperature is above or below the recommended temperatures, the performance of the device may be affected. For example, if you place the unit in an extremely cold or hot place, the internal temperature may fluctuate. The range of 8-18 °C (46-64 °F) may then not be reached.

You can switch the temperature display from Fahrenheit to Celsius by pressing the button for two seconds. The temperature reading in Fahrenheit or Celsius appears on the display in white with a blue background.

Control panel and button functions

• You can turn the interior light on or off with a single press of the button. The light will turn off automatically after it has been on for a few minutes. If you press the button again, the light will turn on again.
• You can switch the temperature display from Celsius to Fahrenheit by pressing and holding the button for 2 seconds.
• The cooling device is equipped with an automatic control panel lock that is activated 20 seconds after the last time a button is touched. Press and hold the button for 2 seconds to unlock the control panel. You will hear a beep indicating that the control panel is now active.
• You can set the desired temperature by pressing the or button on the control panel. Pressing the button once increases the desired temperature by 1 C. Pressing the button once decreases the temperature by 1 C.

Note: When you use the device for the first time or turn it on again after a long break, there may be a difference of a few degrees between the temperature you have selected and the temperature shown on the LED display. This is normal and is related to the duration of the on-time. Once the device has been running for a few hours, everything will be back to normal.

CLEANING AND CARE

• Switch off the appliance first and disconnect the power cord from the mains socket.
• Remove all the contents.
• Wipe the inside with a damp cloth dipped in lukewarm water with a little washing-up liquid.
• Make sure the rubber seal on the door is clean so that the appliance remains efficient.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
• Dry the inside and outside with a soft cloth.
• Dust and anything else that clogs the exhaust vents will reduce the cooling capacity of the appliance. If necessary, vacuum the exhaust air opening.

TROUBLESHOOTING

Problem Possible cause and solution
The appliance is not working.	It is not plugged in.
	It is switched off.
	The fuse is out or blown.
The appliance is not cold enough.	Check the temperature settings.
	The environment requires a lower setting.
	The door was opened too often.
	The door is not closed properly.
	The door seal does not seal properly.
The light doesn't work.	The appliance is not plugged in.
	The fuse is out or blown.
	The light bulb is broken.
	The light switch is set to "off".
Vibrations Check if the device is level.
The door does not close properly.	The device is not level.
	The door was turned upside down and not fitted properly.
	The seal or the magnet are damaged.
	The shelves stick out too far.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045375
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 480		Total volume (dm3 or L)	31
	Width 345
	Depth 515
EEI		105 Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		37	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		80 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 31,0 17 - A
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045376
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:			Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 645		Total volume (dm3 or L) 30	Width 265
	Depth 515
EEI 112 Energy efficiency class F
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		85 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 30,0 14 - A
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045377
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 560		Total volume (dm3 or L) 39	Width 345
	Depth 515
EEI 107 Energy efficiency class F
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		82 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 39,0 17 - A
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045378
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 645		Total volume (dm3 or L) 46	Width 345
	Depth 515
EEI 117 Energy efficiency class F
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		90 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 46,0 14 - A
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045379
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 517		Total volume (dm3 or L) 45	Width 430
	Depth 515
EEI 99 Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW)		37	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		76 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 45,0 17 - A
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Labeled diagram of an oven with numbered parts for identification

Modelo 10045375, 10045377, 10045378, 10045379

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

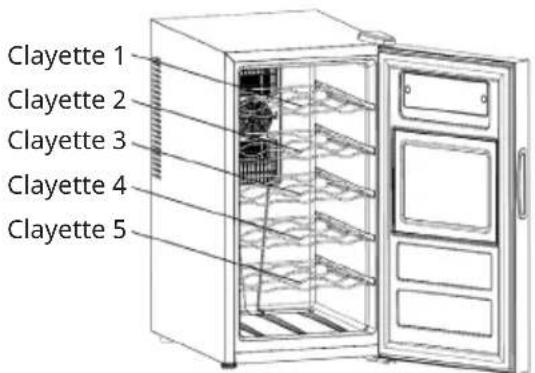

Clayette 1 Clayette 2 Clayette 3

Clayette 1 Clayette 2 Clayette 3 Clayette 4 Clayette 5

10045377 10045378

Clayette 1 Clayette 2 Clayette 3 Clayette 4

Clayette 1 Clayette 2 Clayette 3 Clayette 4 Clayette 5

10045379

Clavette 1 Clavette 2 Clavette1 3

Labeled diagram of an oven with numbered parts for identification

Modèle 10045375, 10045377, 10045378, 10045379

Technical diagram of an oven with numbered parts for identification

Modèle 10045376

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Labeled diagram of an oven with numbered parts for identification

Modelli 10045375, 10045377, 10045378, 10045379

Technical diagram of an oven with numbered parts for identification

Modello 10045376

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
