USER MANUAL Vinovilla 17 Duo Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical diagram of an internal server rack with numbered components for identification

Line drawing of a refrigerator with labeled components and an inset close-up showing internal wiring (no text or symbols present)

Simple line drawing of a rectangular frame with a side panel and a numbered label (2) at the bottom right corner.

Technical diagram of a multi-level refrigerator with numbered labels pointing to different compartments.

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Simple line drawing of a rectangular frame with a label '11' at the bottom (no text or symbols on the frame itself)

Line drawing of a refrigerator with labeled components and zoomed-in detail (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 26

Description of the Appliance 29

Installation 30

Operation 32

Reversing the Door 34

Equipment 38

Loading 38

Cleaning and Care 39

Problems and Solutions 40

Product Data Sheet 42

Disposal Considerations 44

Manufacturer & Importer (UK) 44

TECHNICAL DATA

Item number 10032030, 10034154, 10034725

Power supply 220-240 V ~ 50 Hz

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is fl ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special notes

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
  • Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

- A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
  • This appliance is not suitable for freezing food.
• The shelves have been installed in advance to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil; if the temperature is set too low, a lot of electricity is consumed.

Special notes on the shelves

Shelf 1 Shelf 2 Shelf 3 Shelf 4

·The shelves were placed in advance in such a way that they allow the most efficient use of energy. ·Only use the shelves provided by the manufacturer. ·Never block the holes in the shelves or use other types of shelves not approved by the manufacturer, which may cause poor cooling or increase energy consumption. ·We recommend that you use the shelves as shown to ensure the most efficient use of energy.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate.

SN	Extended temperate	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature and humidity of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.

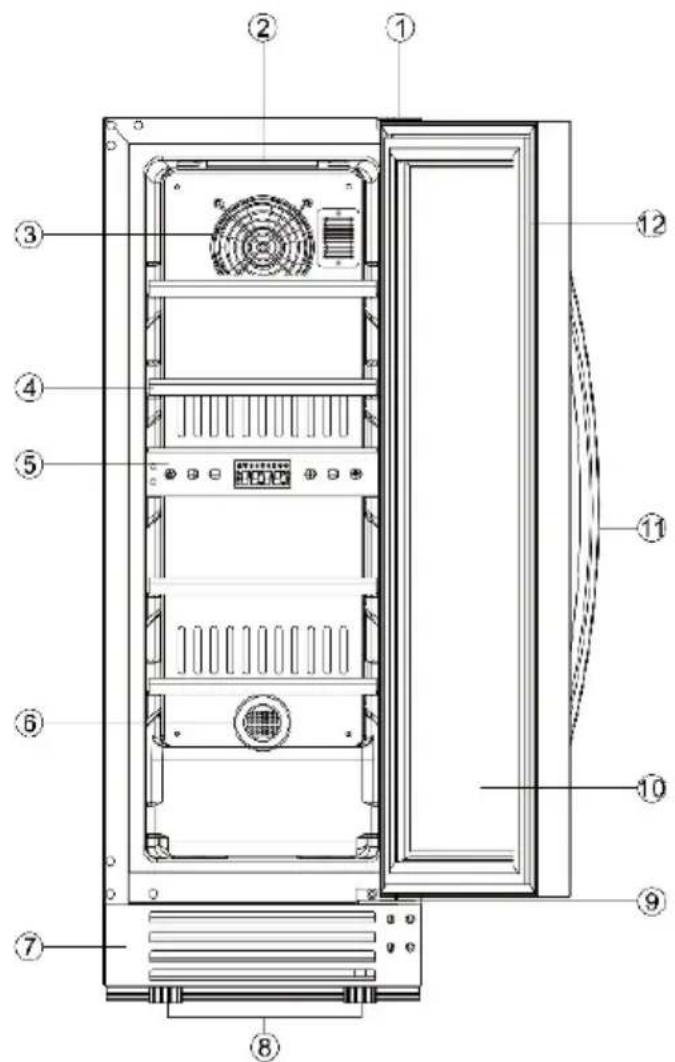

Technical diagram of a server rack with numbered components for identification

1 Upper hinge
2 Light
3 Fan
4 Shelf
5 Control panel
6 Carbon filter
7 Plinth
8 Adjustable feet
9 Lower hinge
10 Door
11 Handle
12 Door seal

INSTALLATION

Before using your appliance

To ensure proper electrical connection, follow the recommendations given in the present manual.

- Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.

- It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.

- Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.

- In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.

- The appliance should not be placed close to radiators or cooking hot plates or gas rings.

- Check that electrical sockets remain accessible when the appliance is installed.

- Before connecting the appliance to the electrical socket, leave it in position for 24 hours. This will reduce the possibility of malfunction of the refrigeration circuit due to transport.

- Clean the inside using a soft cloth and lukewarm water.

Installing your appliance

• This appliance should be placed in a well ventilated, dry room.
- Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is level, adjust the height of the feet underneath.
- To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.
- Plug the appliance into an exclusively, easily accessible plug socket. Any questions power and /or grounding should be directed toward a certified electrician or an authorized service centre.
- To prevent the appliance from heating up, ensure adequate ventilation and never block or cover the air vents.

Note: Make sure that the socket and ON/OFF switch are easily accessible after the appliance has been installed.

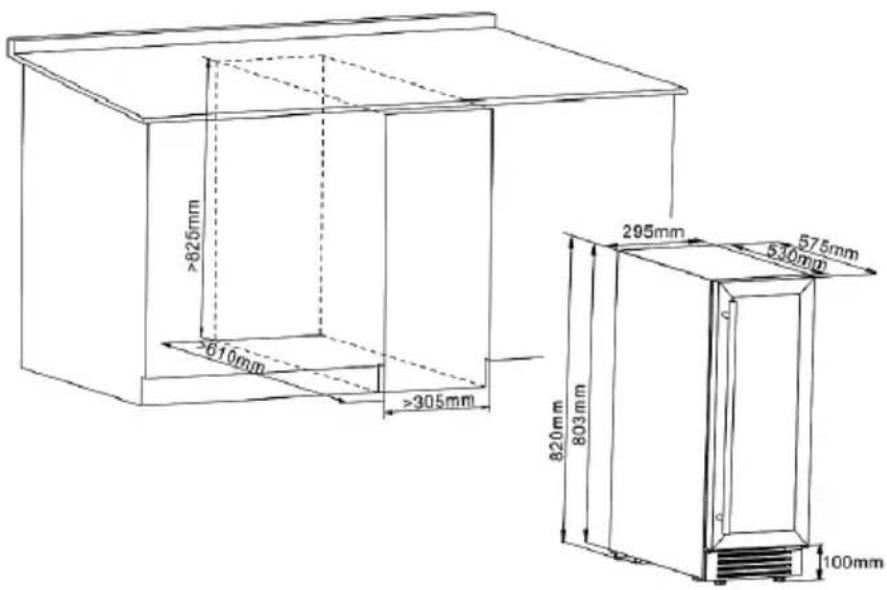

>825mm >610mm >305mm 295mm 575mm 530mm 820mm 803mm 100mm

OPERATION

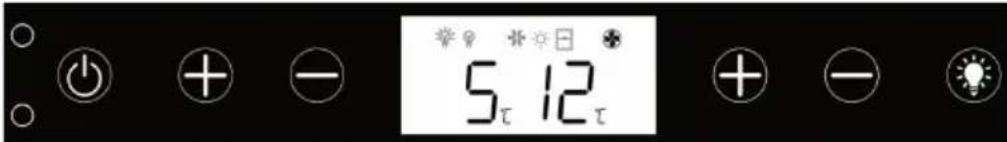

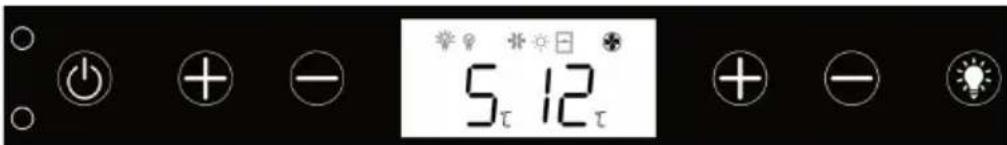

Control panel

5.12℃

Upper zone temperature range is 5-12 °C and lower zone temperature range is 12-20 °C.

• Press and hold 🏠r 2 seconds to turn on or turn off the appliance.
• There are two light modes, press and hold 🏠r 3 seconds to select light mode.
• Light on and off mode: The default setting of light will be controlled by sensor and LCD screen will show ☐, when door is opened, the light will turn on automatically, when door is closed, the light will be turned off.
• Light on model: Press and hold 3 seconds to enter light on mode, when in this mode, the LCD screen will display and light will always be on.
• Change light colour. The unit is equipped with a three-colour lighting system which will allow you to select the interior lighting colour from white to blue to orange. To change the interior lighting colour, simply press and release the light button. The light colour will change from white, blue to orange.

Temperature setting and setting humidity display

• Press and to adjust the temperature of the appliance, and each press on the button will alter the temperature by 1 °C.
• and buttons at left of LCD screen will control the temperature of upper zone at right of the LCD screen will control the temperature of upper zone.
• and buttons at right of LCD screen will control the temperature of upper zone at right of the LCD screen will control the temperature of lower zone.
• Press and together at the left of LCD screen and hold for 3 seconds to change temperature display from Celsius to Fahrenheit.
• Press and together at the right of LCD screen and hold for 3 seconds to show the humidity.

Warning system

1. Door open alarm: When door has been opened for over 5 minutes, door open alarm will be on and LCD screen display ☐ and beep 3 times every 5 seconds, press any key or close the door to stop the alarm.
2. Low temperature alarm: When upper or lower zone temperature is below 2 ^ for over 3 hours, it will beep to alarm and the left or right side of LCD screen will display △ LPress any key to stop the beeping alarm.
3. High temperature alarm: When upper temperature is above 25 °C for over 6 hours, it will beep to alarm and left side of LCD screen will display △. When lower zone temperature is above 25 °C for over 6 hours, it will beep to alarm and right side of LCD screen will display △ press any key to stop the beeping alarm.
4. Low humidity alarm: When upper or lower zone humidity is less than 40 % for over 3 hours, the left side of LCD screen will display △ △ L. When lower zone humidity is lower than 40 % for 3 hours, the right side of LCD screen will display △ warning mark will disappear when humidity returns to normal range.
5. High humidity alarm: When lower/higher zone humidity is higher than 80 % for over 1 hour, the left/right side of LCD will display △△H

REVERSING THE DOOR

In the instruction manual bag, there is a left upper hinge and left lower hinge for you to reverse the door, please follow below instructions:

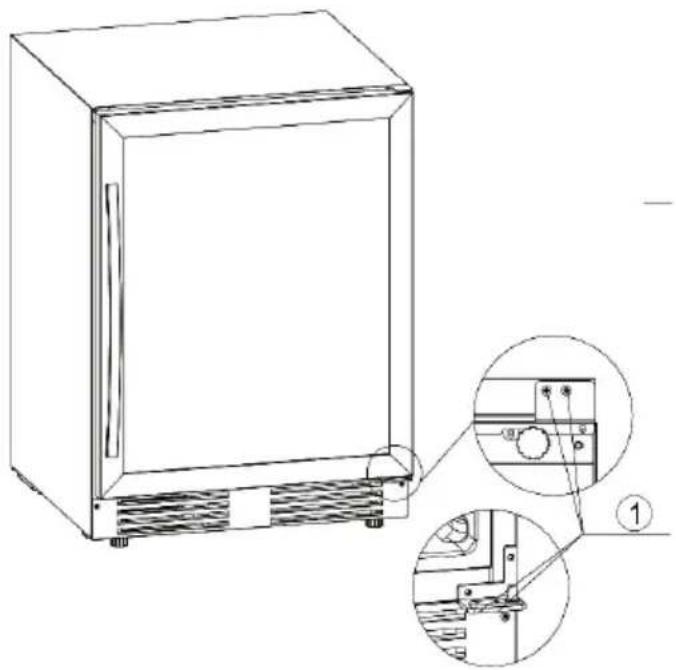

1. Unscrew the two screws which fix the door axis onto the lower hinge at the bottom of hinge, then remove the door.

Line drawing of a refrigerator with labeled components and an inset close-up showing internal wiring (no text or symbols present)

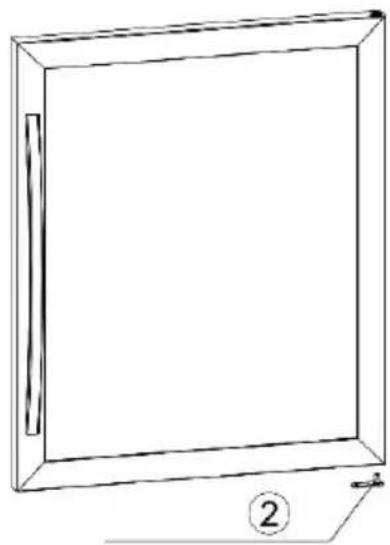

1. Remove the door axis from door axis hole at the left bottom of the door.

Simple line drawing of a rectangular frame with a label '②' at the bottom (no text or symbols on the frame itself)

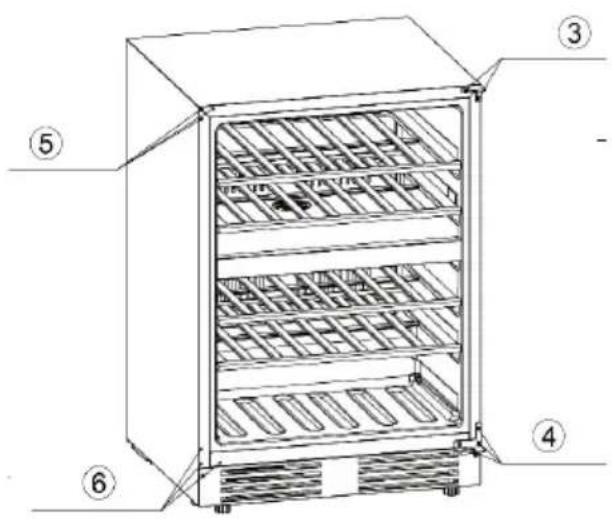

1. Remove right upper hinge by unscrewing three screws.
2. Remove right lower hinge by unscrewing three screws.
3. Remove the decorative plastic caps at left upper hinge hole and
4. Remove the decorative plastic caps at left lower hinge hole

Technical diagram of a multi-level refrigerator with numbered labels pointing to different compartments.

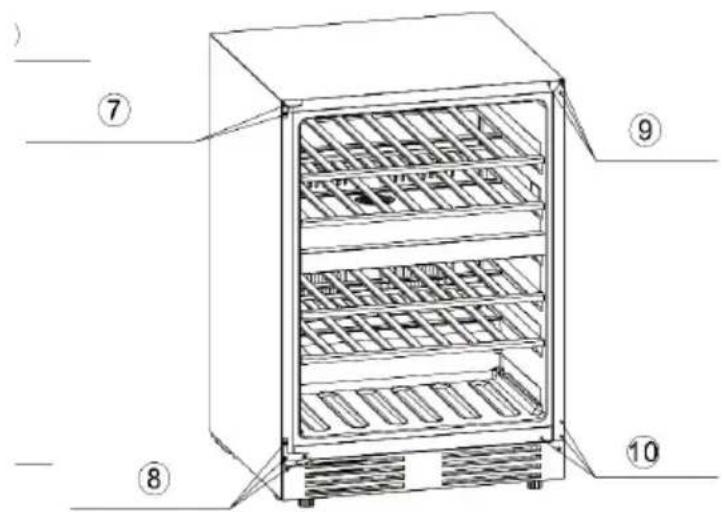

1. Install left upper hinge
2. Install left lower hinge
3. Insert decorative caps to cover right upper hinge holes
4. Insert decorative caps to cover right lower hinge holes.

Technical diagram of a refrigerator with numbered labels pointing to different compartments

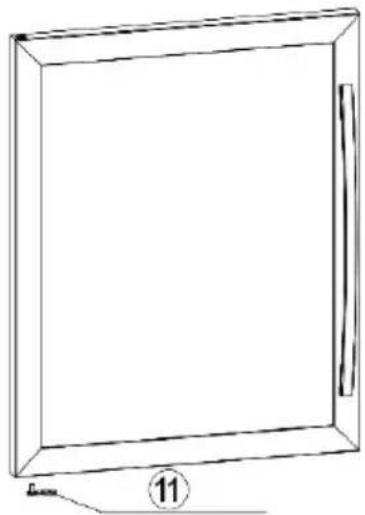

1. Turn the door by 180^ , and insert the door axis into bottom door axis hole.

Simple line drawing of a rectangular frame with a label '11' at the bottom (no text or symbols on the frame itself)

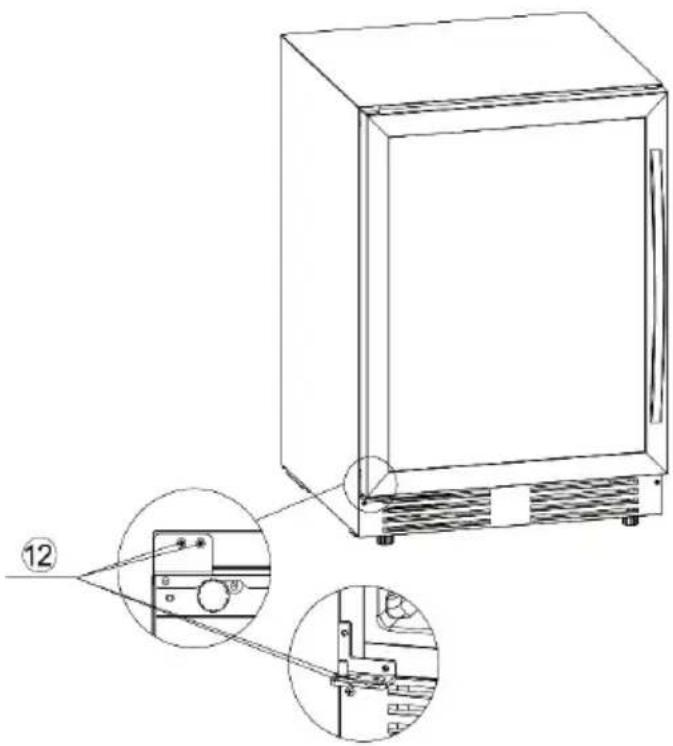

1. Put the door into left upper hinge axis, align the door with lower hinge, and fix door axis to left lower hinge.

Line drawing of a refrigerator with labeled components and zoomed-in detail (no text or symbols)

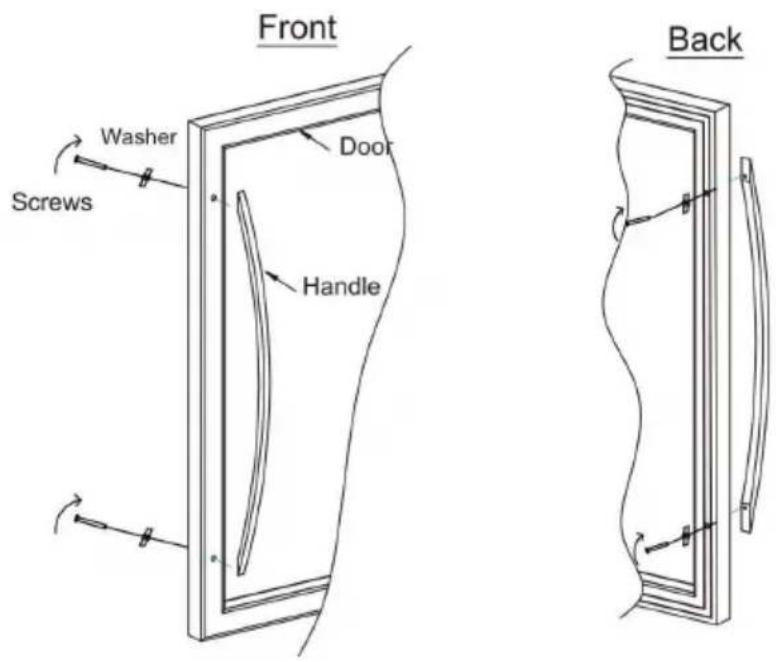

Installing handle

This appliance is with a stainless steel handle, to fix it, please follow below instruction:

1. Open the door and pull out the door gasket carefully only at the area where handle is to be installed.
2. Insert the washer onto the screws, then insert the two screws into two slots on the door.
3. Align the handle with the screw and tighten it with a screwdriver.
4. Press the door gasket back to its original position.

Front Washer Screws Door Handle Back

EQUIPMENT

The climate control system

According to advice from specialists, the ideal temperature for storing wine is around 12 °C , within a bracket of 10 to 14 °C . Do not confuse this with service temperature, which varies between 5 and 18 °C , depending on the specific nature of the wine.

It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature.

The anti-vibration system

The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines.

Defrosting

Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.

LOADING

The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in litres).

They correspond to tests conducted with a standard bottle: the standard "75 cl light Bordeaux" bottle – standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.

In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum.

CLEANING AND CARE

Cleaning

• Before cleaning your appliance (something to be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.
• Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.
• When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kills any odours.
• Wash the plastic coating on the steel shelves with a mild detergent solution.

Storage

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance
• Unplug the appliance
• Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould.

PROBLEMS AND SOLUTIONS

If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre approved by the brand or by the retailer. In all cases, it must be replaced by qualified personnel, so as to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!: Unplug the appliance before carrying out any maintenance or repair work. You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your after-sales department. Try the following suggestions:

Problems Possible Causes
Appliance is not running • Appliance is not plugged in• Appliance is not turned on• Check if voltage of the installation• Check the circuit breaker or if fuse has blown.
Appliance is not cold enough • The external temperature is high.• A large quantity of bottles has been put into the cellar.• The appliance is opened frequently.The door is not properly closed.• The cellar has not been correctly set.
The compressor starts and stops frequently	• The appliance is not plugged in• The fuse has blown• LED lights are not broken• The light switch is off.
LED lights do not operate • The appliance is not plugged in• The fuse has blown• LED lights are not broken• The light switch is off.
Vibration Check and ensure that the appliance is level
The appliance makes a lot of noise	• A noise resembling circulating water is produced by the coolant gas and this is normal.• At the end of a cooling cycle, you can hear the noise of water circulating.• Expansion and contraction of the internal walls may cause a cracking sound.• The appliance is not level• Check if fan is in good condition.
The door does not close properly	The appliance is not level.The door seal is dirty or damaged.The shelves are not positioned correctly.A part of the contents is preventing the door from closing.
LED display is not working properly	Control panel failedPower PCB has brokenThe appliance is not plugged inThe probe is not working.

In the event of a breakdown

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• the appliance is properly plugged in;
• there is not a power cut in progress;
- the breakdown is not one of those described in the table at the end of this manual.

If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre approved by the brand or by the retailer. In all cases, it must be replaced by qualified personnel, so as to avoid any risk of injury.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10032030, 10034154, 10034725
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 820		Total volume (dm3 or L)	53Width 295
	Depth	575
EEI		172	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		43	Airborne acoustical noise emission class	D
Annual energy consumption (kWh/a)		137.97	Climate class:	temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage Yes 53	12 - A
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

Technical diagram of an internal server rack with numbered components for identification

Line drawing of a refrigerator with labeled components and an inset close-up showing internal wiring (no text or symbols present)

Simple line drawing of a rectangular frame with a side panel and a numbered label (2) at the bottom right corner.

Technical diagram of a multi-level refrigerator with numbered labels pointing to different compartments.

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Simple line drawing of a rectangular frame with a label '11' at the bottom (no text or symbols on the frame itself)

Line drawing of a refrigerator with labeled components and zoomed-in detail (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical diagram of an internal server rack with numbered components for identification

≥825mm ≥610mm ≥305mm 295mm 575mm 530mm 820mm 803mm 100mm

UTILISATION

Panneau de commande

5.12℃

Line drawing of a refrigerator with labeled components and an inset close-up showing internal wiring (no text or symbols present)

Simple line drawing of a rectangular frame with a side panel and a numbered label (2) at the bottom right corner.

Technical diagram of a multi-level refrigerator with numbered labels pointing to different compartments.

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Simple line drawing of a rectangular frame with a label '11' at the bottom (no text or symbols on the frame itself)

Line drawing of a refrigerator with labeled components and zoomed-in detail (no text or symbols)

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Technical diagram of a server rack with numbered components for identification

≥82.5mm ≥610mm ≥305mm 295mm 575mm 530mm 820mm 803mm 100mm

UTILIZZO

Line drawing of a refrigerator with labeled components and an inset close-up showing internal wiring (no text or symbols present)

Simple line drawing of a rectangular frame with a side panel and a numbered label (2) at the bottom right corner.

Technical diagram of a multi-level refrigerator with numbered labels pointing to different compartments.

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Simple line drawing of a rectangular frame with a label '11' at the bottom (no text or symbols on the frame itself)

Line drawing of a refrigerator with labeled components and zoomed-in detail (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
