Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 27

Installation 30

Product overview 34

Operation 35

Wine Storage 37

Cleaning and Care 38

Troubleshooting 39

Product Data Sheet 40

Disposal Considerations 42

Manufacturer & Importer (UK) 42

TECHNICAL DATA

Item number 10041286, 10041287,	10041288
Power supply	220-240 V ~ 50 Hz
Capacity 92 litres	36 bottles
Dimensions (B*T*H) (mm) 590 x 563	x 595
Weight 32.3 kg
Climate classSuitable ambient temperature	N/ST16-34 °C
Installation type built in

SAFETY INSTRUCTIONS

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of drinks, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note: This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

WARNING

When using, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Special notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
  • This appliance is not suitable for freezing food.
• The racks were pre-set to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been pre-set to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN	Extended temperate	This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ to 25^ .

INSTALLATION

Before first Use

Allow 24 hours before switching on the wine cellar. During this time we recommend that you leave the door open to clear any residual odors.

Note: All models without front venting (air opening) are strictly for free standing only.

Location

The location you have selected for your wine cellar should:

• be unencumbered and well ventilated;
- be well away from any heat source and direct sunlight;
• not be too damp (laundry, pantry, bathroom etc.);
• have a flat floor;
• have a standard and reliable electricity supply
• have a surge protector fitted to the electrical outlet;
- Away from the microwave oven. Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect the operation of the wine cabinet.

Placing in cold or hot temperature conditions may cause cellar's temperatures fluctuating, and it will not reach the ideal one.

Installation

• Unpack and remove all of the protection and adhesive strips from the packaging around and inside the wine cellar.
• The wine cellar must be positioned such that the plug is accessible. Release the power cord. Move your wine cellar to its final location. The wine cellar should be installed in a suitable place where the compressor will not be subject to physical contact.
• Wine cellar must be leveled before loading your wines. Your wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. The cooler recommends that you tighten the back feet to the maximum and adjust the front feet to level the wine cellar.

The appliance is designed to fully build into the cabinet

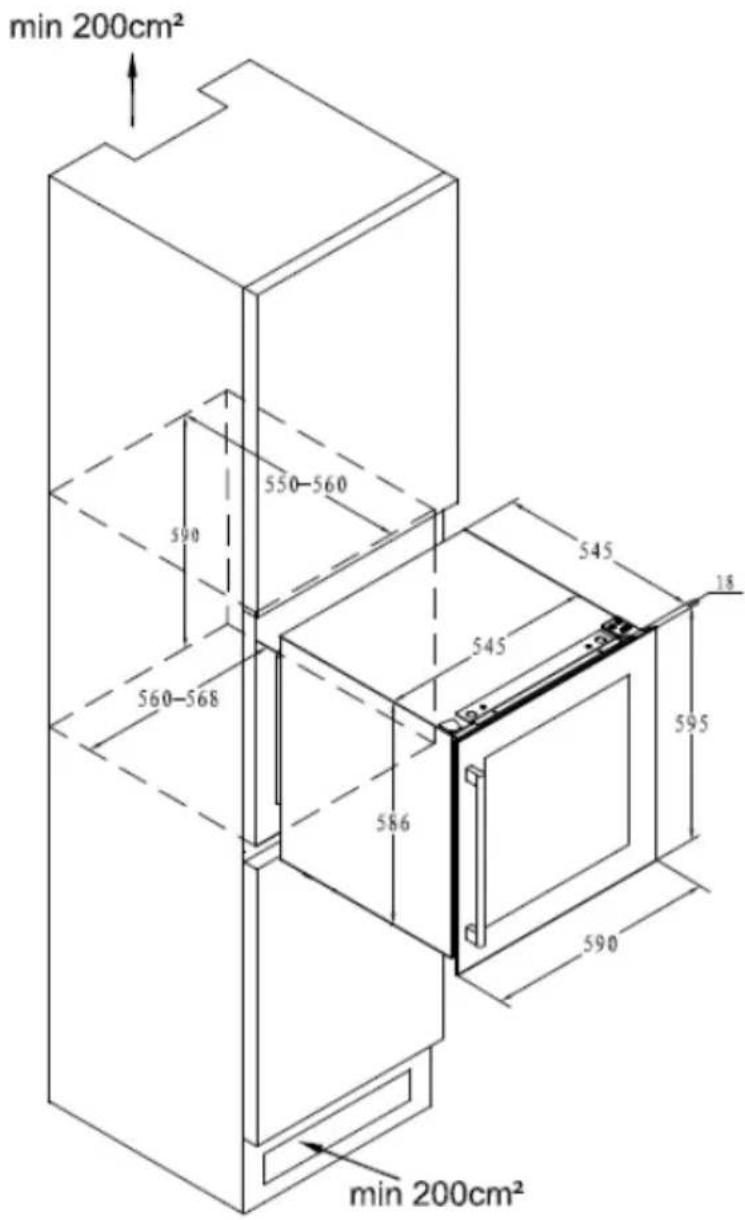

Demonstration for building into the cabinet:

min 200cm² 590 550-560 560-568 586 545 545 595 590 min 200cm²

Wine bottles could be stored when you feel cooling inside after the appliance operates around 1 hour.

Installing the handle

The handle is delivered in a separated package with screws together inside the carton.

1. Reveal two small holes on the door frame from inner side by pulling out a bit the door seal.
2. Aim the handle to the holes and insert the screws from inside.
3. Screw them up with screw-driver.
4. Put back door seal to cover the screws.

Technical diagram showing labeled components of a cable or wire structure with numbered parts 1 to 4.

Reversing the door

The wine cooler is delivered with the door opening from left to right. To reverse the opening direction.

1

Open the door at 90 degrees and keep it steady.

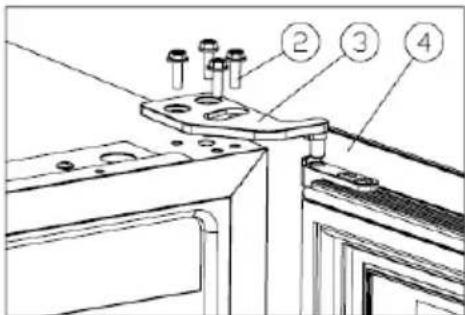

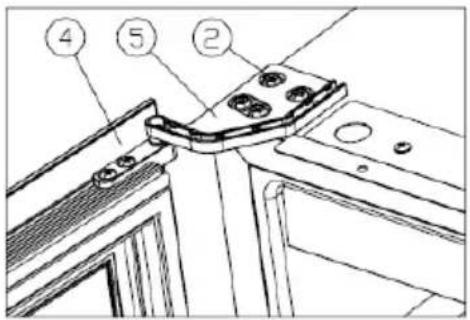

Unscrew the M5*16 ② screws, dismantle the right upper hinge ③, and remove the door.

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

2

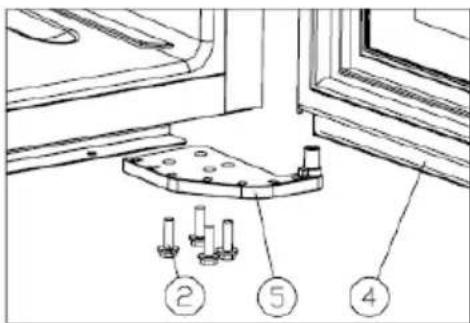

Unscrew the M5*16 screws ②, dismantle the right lower hinge ⑤.

Technical diagram showing a mechanical assembly with numbered components labeled 2, 5, and 4.

3

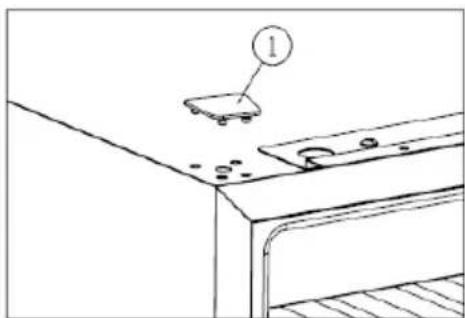

Remove the drill-hole cover ①.

Simple line drawing of a kitchen sink with a cart and a tray, no text or symbols present

4

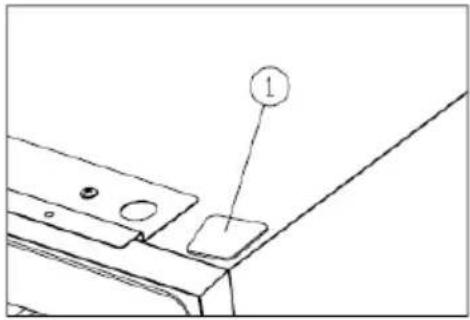

Install the drill-hole cover on the opposite side ①.

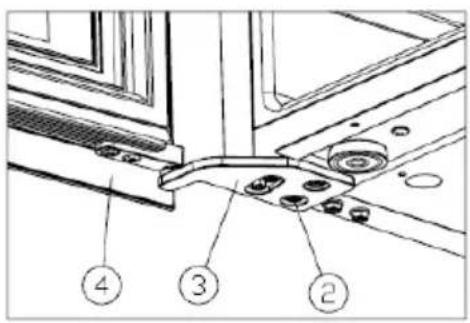

Technical diagram showing a mechanical component with a labeled feature marked '1'

5

Install the right upper hinge ③, and screw tight theM5*16 screws ②.

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

6

Turn the door ④ 180 degrees, and insert the right lower hinge ⑤, screw tight M5*16 screws ②. The door can now be opened from right to left.

Technical diagram showing labeled components of a mechanical assembly with numbered parts 2, 4, and 5.

PRODUCT OVERVIEW

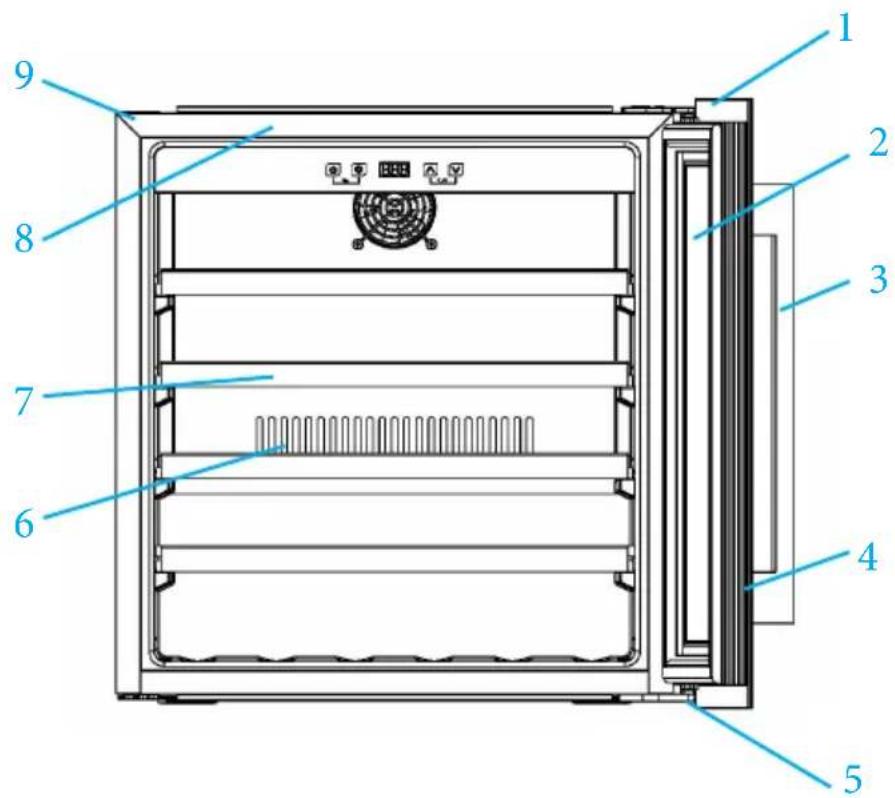

Technical diagram of a refrigerator with numbered parts for identification

1 Upper hinge
2 Door seal
3 Handle
4 Door
5 Lower hinge

6 Cover board
7 Shelf
8 Control panel
9 Housing

OPERATION

1. Cleaning the compartment

Before power on, clean inside of the appliance and check the drainage pipe in good connection. For details, please refer to the "Maintenance and cleaning".

2. Placement

Before power on in the first time, keep it static at least 30 minutes.

3. Power on

The appliance start operation and it will cool down inside after 1 hour, otherwise you should check the power connection.

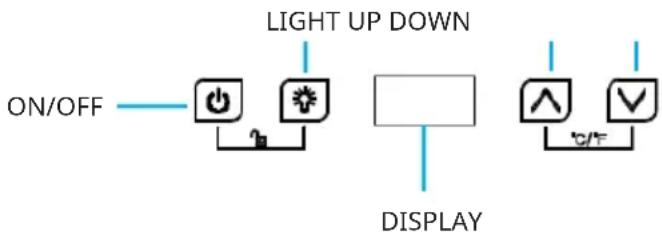

Control panel

ON/OFF LIGHT UP DOWN DISPLAY

	ON/OFF	1. Keep pressing the key 3 seconds, power down, goes to stand-by mode.2. Keep pressing the key again 3 seconds to return back to normal working.
	LIGHT	Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid.
	UP	Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press increase 1°C. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.
	DOWN	Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1°C. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.
	CHILD LOCK	1. Lock: Press both keys at the same time for 3 seconds to lock.2. Unlock: Press both keys at the same time for 3 seconds to unlock.
	°F/°C - display change	Switch temperature display between Fahrenheit and Celsius by pressing both keys for 3 seconds.

Attention

1. The ex-factory temperature of this product is 12^ C, and the corresponding temperature range needs to be set according to the actual wine.
2. The cooling temperature could be set from 5 to 20°C.
3. Alarm sound: when the system malfunctionoccur and alarm sound, press any key on the control panel to cancel the alarm sound.
4. Error code:

When the temperature sensor failures occur, error code displays: E1 for open circuit; E2 for short circuit.

When the defrost sensor failures occur, error code displays: E3 for open circuit; E4 for short circuit.

WINE STORAGE

• The appliance equips with independent shelf to allow your collection of wine get mature quietly and peacefully.

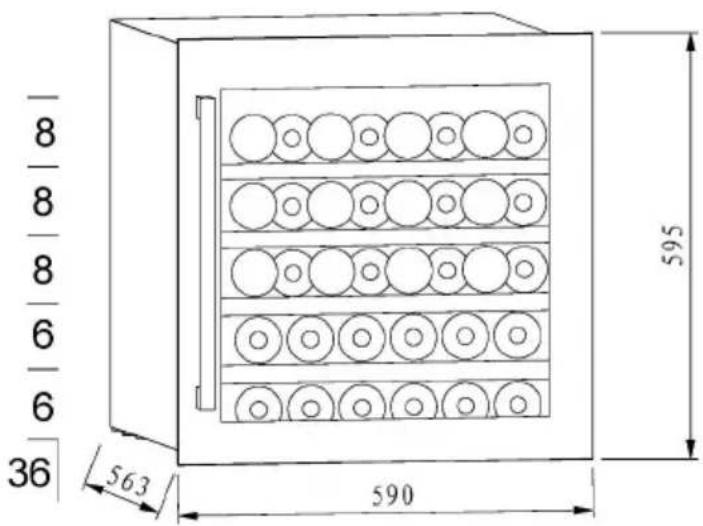

• 4 wooden shelves loading capacity: 36 bottles. (standard Bordeaux with 750 ml).

8 8 8 6 6 36 563 590 595

• Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.
  • Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of bottle arrangement on one shelf are not recommended.
  • Each shelf could pull out partly to store wine bottles easily.
• Open the door straight enough before pulling out shelves.
• The shelf should be avoided in front of the fan as much as possible to avoid blocking the air inlet and affecting the cooling efficiency.
• If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation.
• Below table is the recommended temperature for wine storing & drinking.

Storage table

Type of wine Temperature Celsius
Red wine 15 – 18 °C
White wine 9 – 14 °C
Rose wine 10 – 11 °C
Champagne / sparkling wine 5 – 8 °C

CLEANING AND CARE

Defrosting and condensation

Defrosting of your wine cabinet is fully automatic. It requires no action on your part.

During operation, you may notice condensation drops forming on the rear inside wall of the cabinet. They will be eliminated during automatic defrosting.

Cleaning

Before any cleaning, unplug the device from the mains.

Never use abrasives or a scraper sponge when cleaning the inside or the outside of your wine cabinet.

• Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been added a gentle unscented detergent (dishwashing liquid for example); rinse with bleach water and carefully dry off.
• Wash the inside walls in the same way; pay particular attention to the rack supports
• Wash the door seal as well as under the seal.
• Plug the wine cabinet into the mains.

From time to time, dust off the condenser behind the device; accumulated dust may reduce the efficiency of your wine cabinet.

In the event of a prolonged absence, empty and clean out the device; maintain the door slightly open during the period of non-use.

Replacing the illuminating lamp

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. The life cycle of the LEDs is long enough so that they do not need to be changed.

If however, in spite of the care taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any repair.

TROUBLESHOOTING

Problem Solution
The appliance makes lots of noise.	Please adjust the front foot, keep the appliance leveling. Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet.	It is normal because of the refrigerant working inside.
The appliance does not start.	Make sure the appliance is connected to the power properly.Make sure switch on the power.The compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously.	If no cold is being produced, call theafter-sale service.
Door does not seal tightly?	After long time use, the door seal might get stiff & distorted partially.1. Heat the door seal with hot-wind blower or hot towel.2. The door seal get softened and close the door
The appliance does not cool sufficiently.	Please adjust temperature setting.Keep the appliance away from sunlight or heat.Please do not open the door frequently if no need.
Unpleasant smells inside cabinet	A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time.Clean the compartment and ventilate it for a few hours.
Condensate on the glass door.	Please do not open the door frequently or for a long time.Please do not set the temperature too low.High ambient temperature and humidity would cause condensate.
The light is not working.	Check the power supply first.Call the retailer's after-sale service if the light is broken.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041286, 10041287, 10041288
Type of refrigerating appliance:
Low-noise appliance: No D		Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 595		Total volume (dm3or L)	92Width 590
	Depth 563
EEI		167	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		139	Climate class:	temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (oC)	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage Yes 92	12 - M
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking	No	- - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - -
Light source parameters:
Type of light source LED
Energy efficiency class G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical diagram showing labeled components of a cable or wire structure with numbered parts 1 to 4.

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

2

Technical diagram showing a mechanical assembly with numbered components labeled 2, 5, and 4.

3

Line drawing of a kitchen sink with a cart and a numbered label (1), no text or symbols present

4

Technical diagram showing a mechanical component with a labeled feature marked '1'

5

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

6

Technical diagram showing labeled components of a mechanical assembly with numbered parts 2, 4, and 5.

APERÇU DE L'APPAREIL

Technical diagram of a refrigerator with numbered parts for identification

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

Grande-Bretagne

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Technical diagram showing labeled components of a cable or wire structure with numbered parts 1 to 4.

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

2

Technical diagram showing a mechanical assembly with numbered components labeled 2, 5, and 4.

3

Line drawing of a kitchen sink with a cart above it and a numbered label (1) pointing to the top object, no text or symbols present.

4

Technical diagram showing a bracket with a labeled component marked '1'

5

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

6

Technical diagram showing labeled components of a mechanical assembly with numbered parts 2, 4, and 5.

VISTA GENERAL DEL APARATO

Technical diagram of a refrigerator with numbered parts for identification

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

Gran Bretaña

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Technical diagram showing labeled components of a cable or wire structure with numbered parts 1 to 4.

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

2

Technical diagram showing a mechanical assembly with numbered components labeled 2, 5, and 4.

3

Line drawing of a kitchen sink with a cart and a numbered label (1), no text or symbols present

4

Technical diagram showing a mechanical component with a labeled feature marked '1'

5

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

6

Technical diagram showing labeled components of a mechanical assembly with numbered parts 2, 4, and 5.

DESCRIZIONE DEL DISPOSITIVO

Technical diagram of a refrigerator with numbered parts for identification

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

Casella postale/PO Box 1145

Oxford

OX1 9UW

Gran Bretagna

KLARSTEIN
