Your new appliance is designed exclusively for domestic use.

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the appliance and advice on storing and preserving food.

Keep this handbook for future reference.

BEFORE USING THE APPLIANCE

1. Packing

The packing material is 100% recyclable and bears the recycling symbol. Comply with the local regulations for disposal. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct scrapping of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol 📄 on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a suitable collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside. Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this appliance, contact your

"FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance"

1. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
2. Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.
3. Make sure installation and the electrical connection are carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.
4. Clean the inside of the appliance before using it.

competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFC (the refrigerant circuit contains R134a) or HFC (the refrigerant circuit contains R600a) (refer to the rating plate inside the appliance).

Appliances with isobutane (R600a): Isobutane is a natural gas without environmental impact but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

Declaration of conformity

. This appliance is intended for storing food and is manufactured in conformity with European regulation (EC) No. 1935/2004.

CE

. This product has been designed, manufactured and marketed in compliance with:

- the safety objectives of Low Voltage Directive 2006/95/EC;

- the protection requirements of EMC Directive 2004/108/EC

. Electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand

all before installing or using this appliance. Your safety is of paramount importance.

If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Installation

• This appliance is heavy. Care should be taken when moving it.
- It is dangerous to alter the specifications or attempt to modify this product in any way.
- Ensure that the appliance does not stand on the electrical supply cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
- Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
- The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

WARNING: Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

Child Safety

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Young children should be supervised to ensure that they do not play with the appliance.

During Use

• This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.
• Frozen food should not be refrozen once it has thawed out.
• Do not place carbonated or fizzy drinks in the freezer.
• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Maintenance and Cleaning

- Switch off, and unplug the appliance before carrying out any cleaning or maintenance work.

- Do not use sharp instruments to scrape off frost or ice. (See defrosting instructions).

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliance inside the food storage compartments of the appliance, unless they are of the recommended

WARNING: Do not damage the refrigerant circuit.

Servicing

This product should be serviced by an authorised engineer, and only genuine spare parts should be used.

- Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the End of the Appliance Life

• Before discarding an old PRODUCT, switch off and disconnect it from the power supply. Cut off and render any plug useless.
• Ensure that the door cannot jam (removing it is best), regardless of whether or not it can be pushed open from inside.

AN OLD PRODUCT CAN BE A DEADLY PLAYTHING FOR CHILDREN

CAUTION: At the end of the function life of the appliance it must be disposed in accordance with the W.E.E.E directive (See below). You appliance contains R600a refrigerant and inflammable gas in the insulating foam.

16

Please read this instruction book carefully before use and retain for future reference.

2. CORRECTLY POSITIONING

Well Ventilating

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160°.

Power Supply

The refrigerator is only applied with power supply of single phase alternating current of (220-240)V\~/50Hz;230V\~/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid.

It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably, the refrigerator should not be placed near anything which may echo.

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

Moving

When fixed or moved, the refrigerator can not be set horizontally or declinet to more than 45^ or upside-down.

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/ tray	·Foods for long-term storage.·Bottom drawer for raw meat, poultry, fish.·Middle drawer for frozen vegetables, chips.·Top tray for ice cream, frozen fruit, frozen baked goods.

- It's suggested to set the temperature at 4^ in the fridge compartment, and, whether possible, at -18^ in the freezer compartment.

- For most food categories, the longest storage time in the fridge compartment i achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.

- For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6^ , two stars -12^ , three stars -18^ )

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment	Fridge compartment
Winter	/
		Set on 4~6
Normal	/
		Set on 4
Summer	/
		Set on 2~4

• Information above give users recommendation of temperature setting.

• extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
• temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

3. Cautions

• Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside. It will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
• Defrosting in freezer chamber is operated manually. Before defrosting, take the food, the ice tray and the shelf out into the cold storing chamber temporarily then set the knob of the temperature regulator to position"0"(where the compressor will stop working) and leave the door open until ice and frost dissolve thoroughly deposited at the bottom of the freezer chamber, wipe off the water with soft cloth..In the case of speeding up the defrosting, you may put a bowl of warm water (about 50 C )into the freezer chamber, and be sure to set the knob of the temperature regulator to original position after defrosting.
• It's inadvisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to prevent deformation of the inner case.
• It's also inadvisable to scrape of ice and frost or separate food from the containers which have been congealed together with the food with sharp tool or wooden bars, so as not to damage the inner casing or the surface of the evaporator.
• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

4. Care and maintenance

Replacing lamps

When replacing the lamp, proceed as follows:

• Unplug the appliance from the mains.
• Squeeze the tabs on the sides of the lamp cover and remove it.
• Replace the lamp with a new one, maximum watts recommended in the label inside the appliance next to the lamp.
• Put the lamp cover back on and wait 5 minutes before plugging the appliance back into the mains.

5. Troubleshooting

1. WHEN THE REFRIGERATOR DOES NOT WORK

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

2. WHEN THE REFRIGERATOR IS COOLING EXCESSIVELY

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily. This does not indicate a malfunction.

3. WHEN THE REFRIGERATOR IS NOT COOLING SUFFICIENTLY

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated

There may be insufficient clearance between the refrigerator and the surfaces

Immediately both sides and above.

The temperature control dial may not be set properly

4. WHEN THE DEFROSTING WATER OVERFLOWS INSIDE THE REFRIGERATOR AND ONTO THE FLOOR.

Check that the drain pipe and the drain hose are not clogged.

Check that the drain pan is housed properly.

5. WHEN CONDENSATION FORM ON THE OUTSIDE OF THE REFRIGERATOR

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

6. WHEN YOU HEAR A SOUND LIKE WATER FLOWING

A sound like water flowing is the refrigerant flowing. It does not indicate a malfunction.

7. WHEN THE CABINET'S SIDE PANEL HEATS UP

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

6.Technical specifications

*For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator.

*Specifications are subject to change without prior notice.

DOUBLE DOOR

Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.

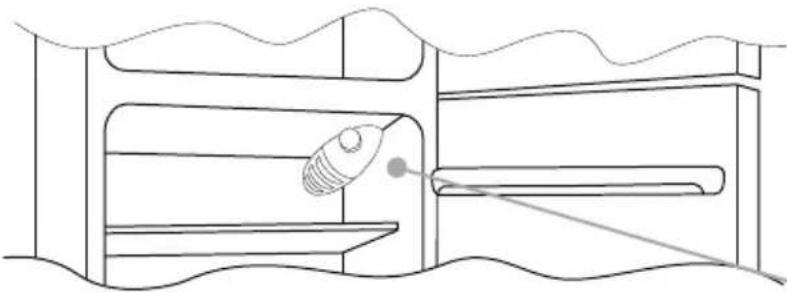

CONTROL PANEL

Line drawing of a fish inside a container with wavy lines indicating depth (no text or symbols)

The thermostat box to control the appliance is located inside the fridge compartment on the top right. To check whether the appliance is functioning, make sure that the thermostat knob is not set on "0".

Refrigerator Compartment Fan (if present)

Technical line drawing of a device with an arrow pointing to a magnified view (no text or symbols present)

The fan is preset to OFF.

To activate, press the switch (fig. 6)

To optimize energy consumption, it is recommended that you turn the fan on only when the ambient air temperature exceeds 28 / 30 °C.

DEFROSTING and FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see figure 2).

Freezing is guaranteed with any knob setting.

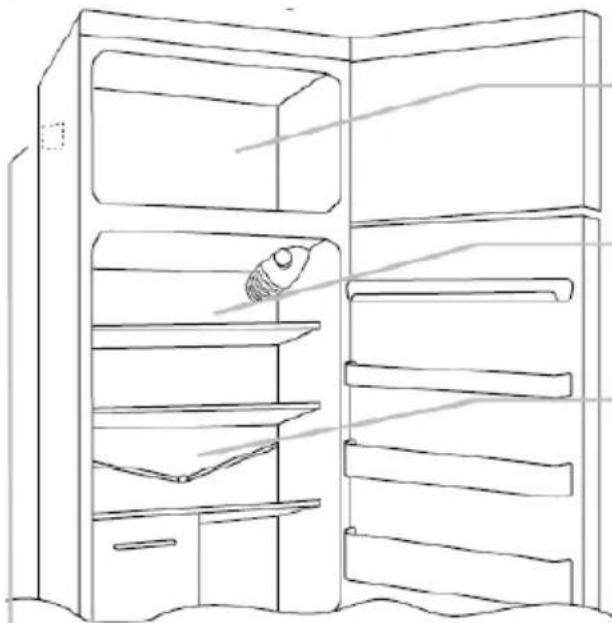

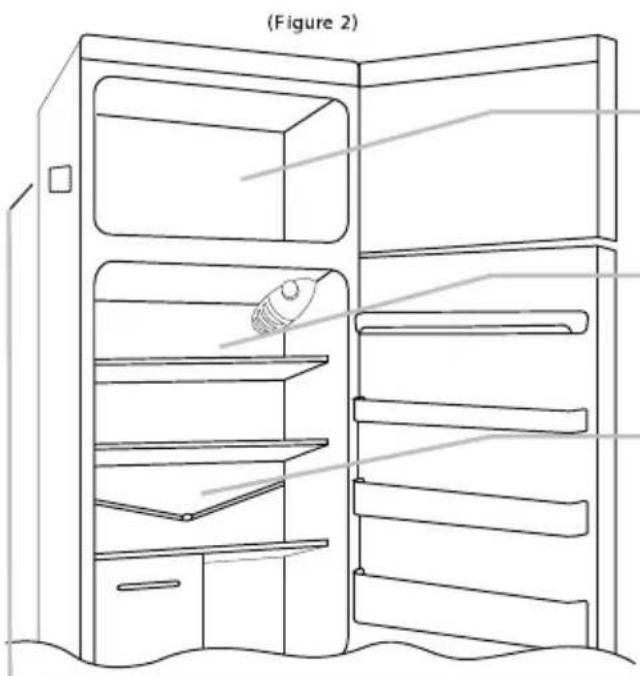

Line drawing of a refrigerator cabinet with shelves and doors, labeled as Figure 2 (no text or symbols on the diagram itself)

Defrosting of the fridge compartment occurs automatically in this product.

We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick.

A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge compartment

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

NB. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the knob to lower settings (1-2).

In order to reverse the opening of the doors, follow the indications in relation to insert and hinge type your product is made up of.

Place or tilt the fridge at a 45° angle, since it's necessary to work on the bottom of the appliance.

1 45°

Remove the bottom hinge by removing the screws, the plug and washers, then remove the door.

Pure technical line drawing of two mechanical components without any text, numbers, or symbols

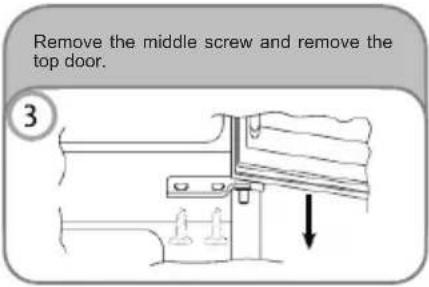

Remove the middle screw and remove the top door. 3

Remove the cover. 4

Unscrew the right hinge. ⑤

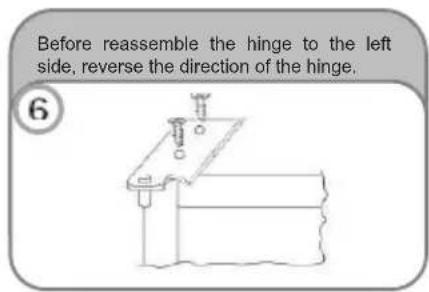

Before reassemble the hinge to the left side, reverse the direction of the hinge.

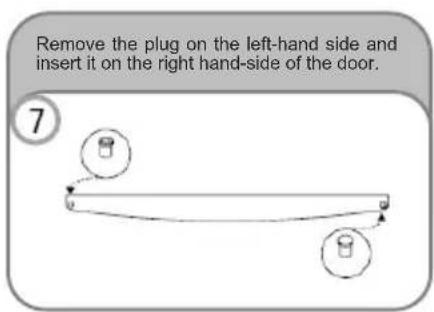

Remove the plug on the left-hand side and insert it on the right hand-side of the door. 7

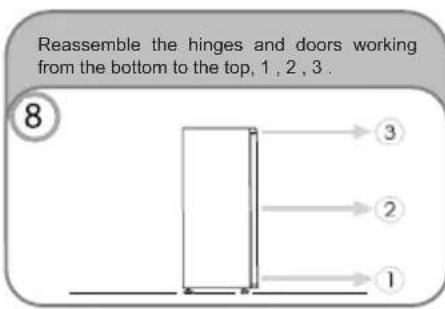

Reassemble the hinges and doors working from the bottom to the top, 1, 2, 3. ⑧ → 3 → 2 → 1

Reassemble the cover . 9

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

This symbol below indicates the location of the coldest area of the refrigerator. This area is bounded near the fan and above it by the icon or shelf positioned at the same level.

To maintain temperatures in this area, be careful not to move this shelf.

INSTALLING THE TEMPERATURE GAUGE

To help you set up your fridge correctly, it features a temperature gauge that allows you to

monitor the average temperature in the coldest area.WARNING: This ad is only intended for use with the refrigerator. Be careful not to use it in another refrigerator (in fact the coldest area is not the same) or for another use.

Temperature control in the coldest area

Once the installation of the temperature gauge is complete, it is possible

You can periodically check that the temperature of the coldest zone is correct.

If necessary, adjust the thermostat accordingly. The internal temperature of the refrigerator is influenced by several factors such as: B. the ambient temperature in the room, the amount of food stored and the frequency with which the door is opened. Consider these factors when setting the temperature.

Be careful to properly store food in the refrigerator and especially in the coldest area. Make sure the temperature display indicates "OK".

OK

If "OK" does not appear, the temperature of the zone is too high. Set the thermostat to a higher position. Wait at least 12 hours before resetting the thermostat. After loading fresh food into the appliance or opening the door again (or for a long time), it is normal for the "OK" indicator not to appear on the temperature display.

GUARANTEE

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

AVAILABILITY OF SPARE PARTS

“Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market".

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

AVANT TOUTE UTILISATION

Simple line drawing of a four-leaf clover with a leafy top (no text or symbols)

INSTRUCTIONS DE SECURITE IMPORTANTES

Line drawing of a fish inside a container with wavy walls and a pointed outlet (no text or symbols)

Technical line drawing of a mechanical component with an arrow pointing to a detail (no text or symbols present)

Line drawing of a refrigerator cabinet with shelves and doors, no text or symbols present

Pure technical line drawing of two vertical panels with base and corner features, no text or symbols present

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure technical line drawing of a mechanical bracket or clamp assembly without any text, numbers, or symbols

Simple line drawing of a mechanical component or bracket with a pin and base (no text or symbols)

Left Right

Simple line drawing of a mechanical joint or bracket (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Line drawing of a mechanical component with a bulb inside, showing internal structure and no text or symbols

Technical line drawing of a device with an inset close-up showing a magnified view of a screen (no text or symbols)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Pure technical line drawing of two vertical panels with wavy internal lines and base supports (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a curved beam with two circular markers at both ends (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple circular shape with no text, numbers, or symbols

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Line drawing of a fish inside a container with wavy walls and a diagonal line extending from the bottom (no text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

Line drawing of a refrigerator cabinet with shelves and doors, labeled as Figure 2 (no text or symbols on the diagram itself)

Simple circular shape with no text, numbers, or symbols

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

Line drawing of a mechanical component with a cylindrical object inserted into a housing (no text or symbols)

Technical line drawing of a device with an inset close-up showing a magnified view (no text or symbols)

Line drawing of a refrigerator cabinet with shelves and doors, no text or symbols present

Pure technical line drawing of two identical mechanical components with no text or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Retire a tampa.
4

Pure technical line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a curved object with two circular markers on top (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple circular shape with no text, numbers, or symbols

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Line drawing of a fish inside a container with a rod extending into it (no text or symbols)

Technical line drawing of a device with an arrow pointing to a magnified view (no text or symbols present)

Line drawing of a refrigerator with shelves and doors, no text or symbols present

Pure technical line drawing of two mechanical components with no text or symbols

Pure mechanical assembly diagram showing a bracket with mounting holes and a downward arrow (no text or symbols)

Pure technical line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Simple line drawing of a horizontal beam with two circular markers at both ends (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple black-and-white sketch of a four-leaf tree on a hill (no text or symbols)

ZALECENIA DOTYCZĄCE BEZPIECZEŃSTWA

Line drawing of a mechanical component with a curved housing and internal structure (no text or symbols)

Technical line drawing of a device with an open lid and internal components, showing no text or symbols.

Line drawing of a refrigerator with shelves and doors, labeled (rysunek 2) (no text or symbols on the diagram itself)

Pure technical line drawing of two mechanical components with no text or symbols

Diagram of a mechanical assembly with a downward arrow indicating motion (no text or symbols present)

Usu* os/on-.

Simple line drawing of a mechanical clamp or bracket with a numbered label (4) pointing to the handle (no text or symbols on the diagram itself)

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Simple line drawing of a mechanical device with no text or symbols

8 ⑧ ③ ② ①

Na/ó0 os/on- .

Simple line drawing of a mechanical joint or bracket assembly (no text or symbols)

Simple circular shape with no text, numbers, or symbols

Simple line drawing of a four-leaf clover tree with a curved trunk (no text or symbols)

7. KDYŽ SE HŘEJÍ STĚNY CHLADNIČKY:

Line drawing of a mechanical component with a curved housing and internal structure (no text or symbols)

Technical line drawing of a device with an open lid and a close-up view of its internal components (no text or symbols)

Ventilátor je automaticky prednastaven jako vypnutý - OFF.

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Pure technical line drawing of two vertical panels with no text, numbers, or symbols

Pure mechanical diagram showing a lever mechanism with no text or symbols

Sejm8te kryt.

4

Pure mechanical diagram showing a lever and fulcrum without any text, numbers, or symbols

Simple line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a curved object with two circular markers on top (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a four-leaf clover tree with a curved base (no text or symbols)

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Line drawing of a fish inside a container with wavy walls and a pointed outlet (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up view showing a magnified view (no text or symbols)

Line drawing of a refrigerator cabinet with shelves and doors, labeled (Figure 2) (no text or symbols on the diagram itself)

Pure technical line drawing of two mechanical components with no text or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Verwijder de cover.

4

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with a pin and base (no text or symbols)

Pure technical line drawing of a mechanical assembly (no text or symbols)

Simple line drawing of a horizontal beam with two circular markers at both ends (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple black-and-white warning symbol with exclamation mark and droplet (no text or numbers)

Plain beige circular shape with black border (no text or symbols)

Line drawing of a mechanical device with a suspended object and connecting lines (no text or symbols)

Technical line drawing of a device with an open lid and a close-up view of its internal components (no text or symbols)

Line drawing of a multi-level refrigerator with shelves and doors, labeled (Kuva 2) at the top (no text or symbols on the diagram itself)

Pure technical line drawing of two mechanical components with no text or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Poista suojakansi.

4

Pure mechanical diagram showing a lever and bracket without any text, numbers, or symbols

Simple line drawing of a mechanical or electrical component with no text or symbols

Simple line drawing of a horizontal beam with two circular end points and directional arrows (no text or symbols)

Plain beige circle with black outline (no text or symbols)

Line drawing of a mechanical component with a bulb inserted into a housing (no text or symbols)

Technical line drawing of a device with an inset close-up showing a magnified view of a screen (no text or symbols present)

Kjøleviftens standardmodus er avstengt.

Line drawing of a refrigerator with shelves and a fish inside (no text or symbols)

Avising av kjøledelen foregår automatisk på dette produktet.

Vi anbefaler at du aviser frysedelen när islaget blir tykkere enn 3 mm.

Diagram showing two identical views of a door with base and legs, connected by a wavy line (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a numbered label (4) pointing to the handle (no text or symbols on the diagram itself)

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a horizontal beam with two circular markers and directional arrows, no text or symbols present.

8 → 3 → 2 → 1

Line drawing of a mechanical component with a spring-like component inside a housing (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Line drawing of a refrigerator cabinet with shelves and doors, no text or symbols present

SAFETY INSTRUCTIONS AND CAUTIONS

Line drawing of a fish inside a container with wavy walls and a small boat on the side (no text or symbols)

Technical diagram showing a device labeled 'PUBO' with an arrow pointing to its component, likely illustrating a mechanical or electrical assembly.

Ventilatoren er slået fra som standard. For at aktiverer den, tryk på kontakten (fig. 6). For at optimere energiforbruget, anbefales det at ventilatoren slås fra og kun aktiveres när rum temperaturen kommer over 28/30°C.

Line drawing of a refrigerator cabinet with shelves and doors, no text or symbols present

Pure technical line drawing of two identical mechanical components with no text or symbols

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Fjern hætterne.

Simple line drawing of a mechanical bracket or hinge with a numbered label (4) pointing to the edge, no text or symbols present.

Simple line drawing of a mechanical component or bracket with a pin and base, no text or symbols present.

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a horizontal beam with two circular markers and directional arrows, no text or symbols present.

Black and white warning symbol with exclamation mark and droplet (no text)

For at opretholde temperaturen i denne zone skal du passe på ikke at flytte dette gitter.

INSTALLATION AF TEMPERATURMÅLER

Plain beige circular shape with black outline (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

MĂSURI IMPORTANTE PRIVIND SIGURANȚA

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Line drawing of a refrigerator with shelves and a rocket-shaped object on top (no text or symbols)

Pure technical line drawing of two mechanical components without any text, numbers, or symbols

Pure mechanical assembly diagram showing a bracket and mounting base without any text or symbols

Pure mechanical diagram showing a lever and pivot (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a horizontal beam with two circular endpoints and a central support (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple circular shape with no text, numbers, or symbols

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

FONTOS BIZTONSÁGI UTASÍTÁSOK

3. HA A HÚTŐSZEKRÉNY NEM HÚT MEGFELELŐEN

Simple line drawing of a mechanical component inside a housing (no text or symbols)

Technical line drawing of a device mounted on a stand, showing front and side views with no visible text or symbols.

Line drawing of a refrigerator cabinet with shelves and a rocket on top (no text or symbols)

Simple line drawing of a four-leaf clover tree with a curved trunk (no text or symbols)

Simple line drawing of a fish inside a rectangular enclosure with horizontal supports (no text or symbols)

Termostat v hladilnem delu desno zgoraj omogoča upravljanje aparata. Aparat deluje, će gumb termostata ni obrnjen na 0.

Ventilatorvhladilnemdelu(nekaterimodeli)

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Plain beige circle with black outline (no text or symbols)

Če se "OK" ne prikaže, je temperatura cone previsoka. Nastavite termostat na višji položaj. Počakajte vsaj 12 ur, preden ponastavite termostat. Po nalaganju svežih živil v aparat ali po ponovnem odprtju vrat (ali daljšem času) je normalno, da se indikator "OK" ne prikaže na prikazovalniku temperature.

JAMSTVO

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Line drawing of a fish inside a container with wavy lines indicating depth (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Line drawing of a multi-level refrigerator cabinet with shelves and doors (no text or symbols)

V tomto zariadenie je odmrazovanie chladničky automatické.

Pure technical line drawing of two mechanical components with no text or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Zložte kryt.
4

Pure mechanical diagram showing a lever and fulcrum without any text, numbers, or symbols

Simple line drawing of a mechanical component or bracket with no text or symbols

Pred montážou závesu na l'avú stranu ho otočte správnym smerom.

6

Simple line drawing of a curved object with two circular markers on the left side (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Simple line drawing of a fish inside a container with wavy walls and horizontal bars (no text or symbols)

Technical line drawing of a device with an inset close-up showing a magnified view (no text or symbols)

Line drawing of a multi-level refrigerator with shelves and a hanging egg (no text or symbols)

Plain beige circular shape with black outline (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

VAŽNE SIGURNOSNE NAPOMENE

Niže navedena upozorenja odnose se na vašu sigurnost. Budite sigurni da ste ih u potpunosti razumjeli prije instalacije ili korištenja ure, aja. Vaša sigurnost je najvažnija.

Ako ste nesigurni u navedena značenja ili upozorenja molimo da se obratite ovlaštenom servisu.

INSTALACIJA UREĐAJA

Line drawing of a mechanical device with a gear and handle, no text or symbols present

Gumb termostata za kontrolu temperature uređaja nalazi se u unutamjem prostoru hladnjaka s gornje desne strane. Da provjerite da li uređaj funkcionira, budite sigumi da gumb termostata nije postavljen na položaj "0".

Ventilatoruodjeljkuhladnjaka(ukolikopostoji)

Technical line drawing of a device with an open lid and a magnified inset showing a screen (no text or symbols)

Ventilator je postavljen na OFF položaj (isključeno).

Za uključivanje, pritisnite prekidač (slika 6)

Za optimalnu potrošnju energije, preporuča se uključivanje ventilatora samo kada temperatura prostora prelazi 28/30 °C.

ZALEĐIVANJE I ODLEĐIVANJE

Na pločici s tehničkim podacima navedena je maksimalna količina hrane koja se može zalediti (pogledajte sliku 2). Zaleđivanja je zajamčeno na bilo kojem položaju gumba termostata.

Line drawing of a refrigerator cabinet with shelves and doors (no text or symbols)

Na ovom modelu, odleđivanje hladnjaka izvodi se automatski.

Preporučujemo da ledenicu odledite kada je sloj inja na unutarnjim stijenkama ledenice deblji od 3 mm.
