USER MANUAL professionalLINE LA 4010 BRENNENSTUHL

G H D I E C F A B

Mechanical assembly diagram showing a rotating shaft and housing components (no text or labels)

Technical line drawing of mechanical components with no visible text or symbols

The hybrid SMD LED light is intended for indoor and outdoor lighting.

SAFETY INSTRUCTIONS

• Please read the operating instructions carefully prior to use and do not throw them away.
• Prior to each use, make sure the light and mains supply cable are not damaged in any way. Never use the light if you find damage. In this case, please contact an electrician or write to the service address provided by the manufacturer.

Caution! A damaged light or mains supply cable pose a risk to life due to electric shock!

- Damaged protective covers must be replaced with an original brennenstuhl® protective cover before the spotlight can be used again.

• Before opening the device, may sure the light is disconnected from the power grid. Risk of life due to electric shock!
• Do not use the work light in explosive environments in which flammable liquids, gases or dusts are present. Risk to life!
• The light is splash water-resistant (IPx5) if the battery compartment is properly closed. Never immerse the light or individual components in water or other liquids. Risk of explosion and fire!
• Make sure the light is securely placed and stable. Make sure the cable is not crimped or otherwise damaged.
• Keep children away from the lamp. Children cannot estimate the risk of electric shock.
  • To prevent blinding, do not look directly into the light.

www.professionalline.com

professionalLINE

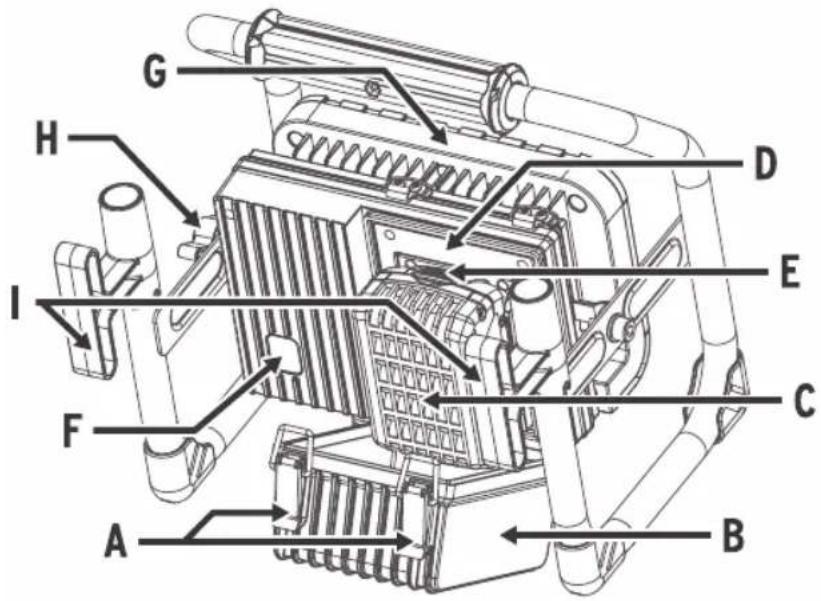

ILLUSTRATED COMPONENTS

G H D I E C F A B

A Battery cover locks
B Battery cover
C Battery*
D Battery compartment
E Battery unlock button*
F On/off button
G Light head
H Locking screw
I Cable holder/suspension device

* Illustrated or described accessories may not be included in the standard delivery. You can find all of the accessories in our accessories program.

INSERTING AND REMOVING THE BATTERY

The light is intended for use with the following batteries: brennenstuhl® professionalLINE AB 1805 battery BOSCH battery GBA 18 V x,x Ah (up to max. 6.0Ah) Professional

Depending on the version, a battery is included in the delivery or can be purchased separately.

The battery can be quickly and easily installed. Open the two locks A and fold the battery cover B down. Insert the charged battery C into the battery compartment D from above until you feel it lock into the end position (last of the two locking positions). To remove the battery, press the battery unlock button E and pull the battery upward and out of the battery compartment.

The light may only be used if the battery cover is properly locked!

Remove the batteries from the unit in the event of longer periods of disuse!

SWITCHING THE LAMP LIGHT ON/OFF

Press the button F to switch the light on. The light will then be lit at 50% brightness. To switch to maximum brightness (100%), press the F button again. Please note: When selecting 50%, the lighting time (when using a battery) of the lamp extends in comparison to the 100% setting as it consumes less energy. Press the F button again to turn the lamp off.

If the light is connected to the mains, the light is operated, as a standard, with mains voltage. In the event of a power failure or it the power plug is disconnected, the light will automatically switch to battery mode if a battery with a sufficient charge is installed in the battery compartment D.

If the battery is nearly empty, the LED light will blink 5 times. The light will then remain on for approx. 10 minutes at 50% brightness, until the deep discharge protection switches the light off. This provides sufficient time to replace the battery or stop working. After the battery-operated light automatically shuts off, do not keep pressing the on/off switch. The battery may be damaged.

INSTRUCTIONS FOR CHARGING THE BATTERY

Only use one of the chargers listed in the following.

Only these chargers are calibrated to the Li-Ion batteries used in your battery-operated light.

brennenstuhl® professionalLINE CB 1801 charger

BOSCH AL 1820 CV Professional charger

BOSCH AL 1860 CV Professional charger

Note: The battery is delivered with a partial charge. To ensure the full capacity of the battery, fully charge the battery in the charger prior to the first use. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not harm the battery. The Li-Ion battery is protected against deep discharges by the "electronic cell protection (ECP)". If the battery is discharged, the battery-

operated light will be shut off by a circuit breaker.

PIVOTING THE LIGHT HEAD

The light head G can be pivoted as needed. To set the tilt angle, loosen the locking screw H (turn counterclockwise),

set the desired tilt angle and tighten the locking screw again (turn clockwise).

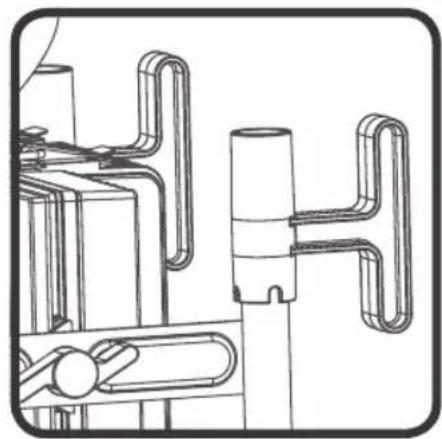

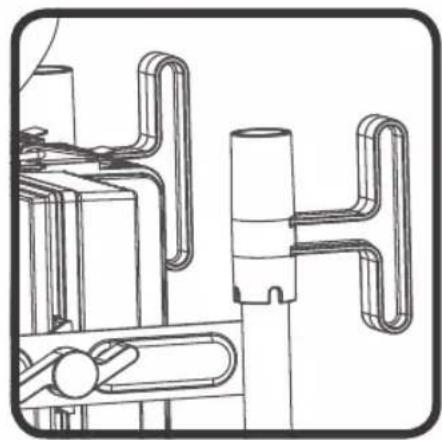

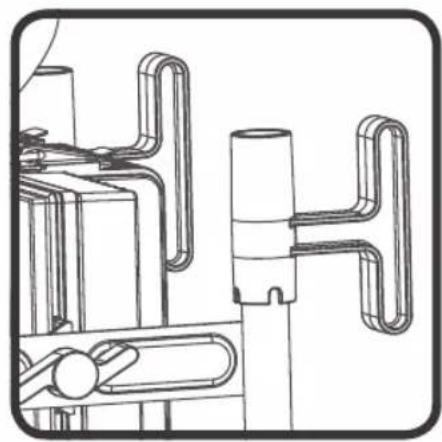

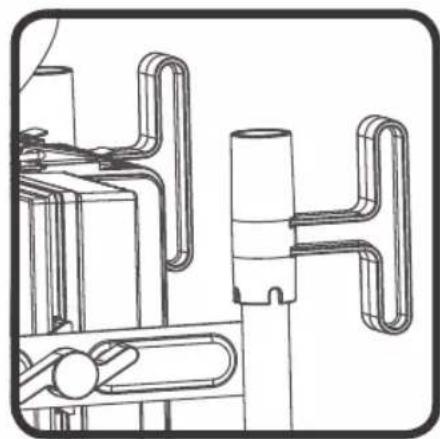

CABLE HOLDER / SUSPENSION DEVICE

The light is equipped with a cable holder ① which can house the power cable during transport or when used with a battery.

Unfolding the cable holder:

The cable holder is folded back when the unit is delivered.

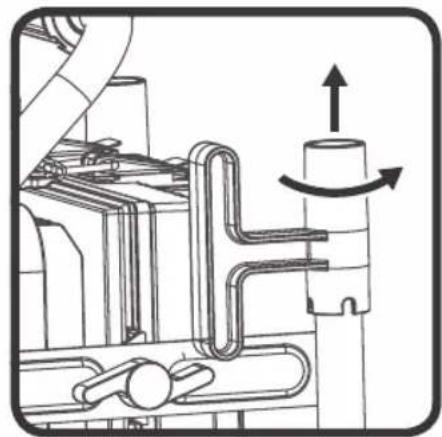

To use the cable holder, pull the two brackets slightly upward and then turn them outward until they reach the position shown in the illustration. Now the cable can be coiled on the two holders.

If the cable holder is unwound, the cable holder can also be used to hang the light, e.g. on a railing, etc.

MAINTENANCE AND CLEANING

If the battery is no longer functional, it must be replaced.

The battery-operated light does not require maintenance.

Mechanical assembly diagram showing pipe connections and rotation arrows (no text or labels)

Technical line drawing of mechanical components with no visible text or symbols

The LED light source cannot be replaced. If necessary, replace the entire spotlight. Never open the light when the mains supply cable is connected. Risk of life due to electric shock!

Switch the light off and disconnect the power plug before cleaning. Clean the light regularly with a dry, lint-free cloth. To remove dirt, a damp cloth can be used. Do not use any solvents, caustic cleaning agents, etc.

www.professionalline.com

professionalLINE

TECHNICAL SPECIFICATIONS

Type designation
Output
Nominal voltage battery operation
Nominal voltage mains operation	Hz
Battery (if included)
Operating time (when using an 18V 5Ah battery)	h (100%) bzw. 5 h (50%)
Type of protection*
Protection class
Temperature range when charging the battery	-45°C
Operational temperature range**
Temperature range when storing the battery	-50°C

* only if the battery cover is properly locked ** limited output at temperatures <0 °C

TRANSPORT

Li-Ion batteries are subject to the requirements of hazardous substance law. The batteries may be transported by the user on roads without further constraints. When shipped by third parties (e.g.: air transport or freight forwarder), special requirements for the packaging and labeling must be observed: Here, a hazardous goods expert must be involved in the preparation of the shipped part.

Only ship batteries if the housing is undamaged. Cover the contacts with tape and package the battery so it cannot move in the packaging. Please note that there may be further national regulations.

DISPOSAL

dispose of electronic devices in the rubbish bin!

According to Directive 2012/19/EC of the European Parliament and of the Council on waste electrical and electronic equipment and its transposition into national law, used electronic devices must be collected separately and recycled in an environmentally sound way. Contact your local authorities for information on where to take your used device for recycling.

er disposal of batteries and rechargeable batteries can harm the environment!

Batteries and rechargeable batteries do not belong in the household rubbish. They may contain toxic heavy metals and must be treated as hazardous waste. Take your used batteries and rechargeable battery packs to a communal collection point.

HERSTELLER

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
