Product type	Color multifunction printer (print, copy, scan, optional fax)
Brand	Canon
Model	imageRUNNER C3025
Power supply	220-240 V, 50/60 Hz
Energy consumption	Not specified (standby and energy-saving modes available)
Network connectivity	Wireless LAN (2.4 GHz band, max power 15.98 dBm), Ethernet, USB 2.0
Print functions	Duplex printing, N-up, booklet, secure printing
Copy functions	Black-and-white and color copying, N-up, duplex, enlarge/reduce, ID card copy
Scan functions	Scan to email, file server, USB key, PC (MF Scan Utility)
Fax functions	Optional (Super G3 FAX board), sequential broadcast, memory reception, PC Fax
Touchscreen	Yes, control panel with color screen
Paper capacity	Paper cassettes (2) and multi-purpose tray (A4, envelopes, etc.)
Supported paper sizes	Up to A4 (via cassettes and multi-purpose tray)
Duplex printing	Automatic (standard)
Consumables	Canon C-EXV 54 toner cartridges (Black, Cyan, Magenta, Yellow), staples (Staples-P1) for optional finisher

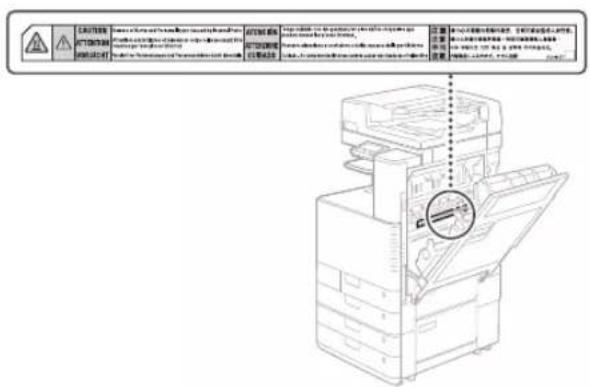

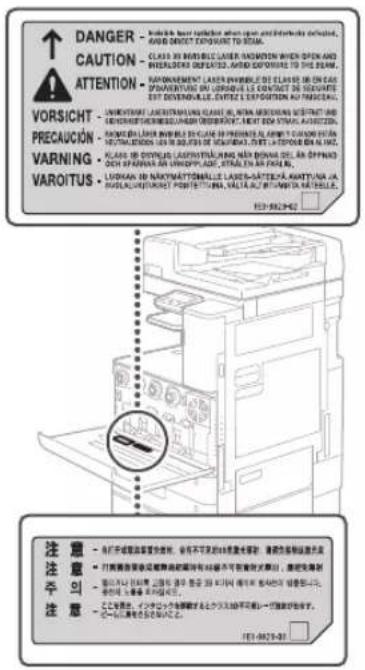

Laser safety	Class 1 (IEC60825-1:2014, EN60825-1:2014)
Routine maintenance	Cleaning the charger, dust-resistant glass, document reading areas
Troubleshooting	Paper jams, image quality (faded, black/white streaks), error messages
Supplied software	Windows/Mac drivers, MF Scan Utility, Online User's Guide
Warranty and repairability	Use genuine Canon parts; contact an authorized dealer for repairs

Frequently Asked Questions - imageRUNNER C3025 CANON

How to set up the wireless network connection?

Make sure the computer is connected to the router. Note the SSID and network key. On the touchscreen, press Home then Settings > Network > Wireless LAN. Select the access point, enter the WEP key, and confirm. The IP address is configured automatically.

What to do in case of a paper jam?

Follow the on-screen instructions. Open the upper cover on the right side and carefully remove the jammed paper. Refer to the User's Guide for more details. Avoid forcing to prevent damage to the rollers.

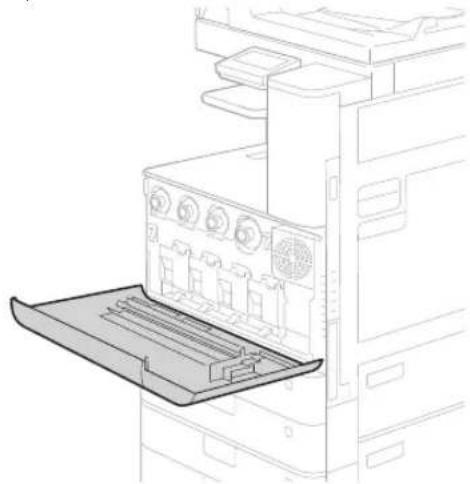

How to replace the toner cartridge?

Open the front cover. Remove the empty cartridge and insert the new one (Canon C-EXV 54, matching color). Close the cover. The screen confirms replacement. Never throw cartridges into fire.

How to improve print quality if images are faded?

First check that the paper is not damp. Perform a gradation adjustment via Settings/Maintenance > Adjust Image Quality > Auto Gradation Adjustment. Follow the on-screen instructions.

How to configure the fax function?

The fax function requires an optional FAX board. Connect the telephone line to the rear jack. On the screen, press Fax then follow the setup guide to register the number and name. Configure the reception mode as needed.

How to scan a document to a computer?

Place the document on the platen or in the feeder. Press Scan on the touchscreen. Choose the destination (email, server, USB) or use the MF Scan Utility software on your PC. Follow the on-screen instructions.

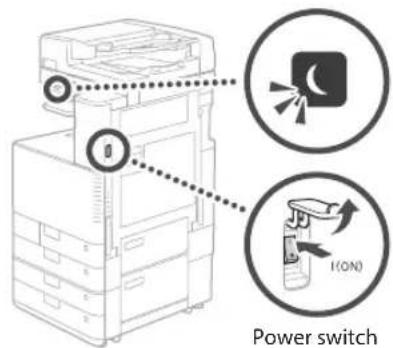

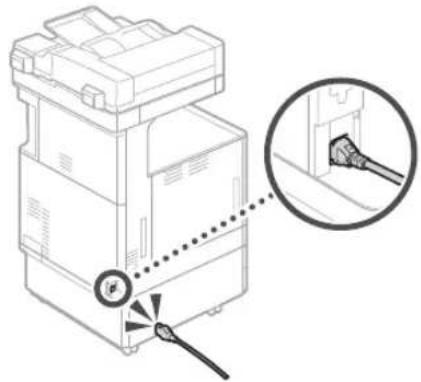

What to do if the touchscreen remains black?

Check that the device is powered on. Press the power switch. If the screen does not turn on, check the power cord and outlet. If the problem persists, contact an authorized dealer.

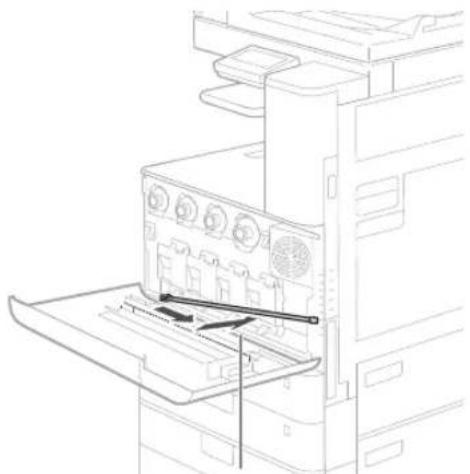

How to clean the exposure glass?

Open the front cover. Use the supplied cleaning stick: insert it into the four holes (cotton end down) and move back and forth. Close the cover. Do not use glass cleaner or alcohol.

How to save energy?

Press the Energy Saver key on the control panel to enter sleep mode. For extended absence, turn off the main switch and unplug. These settings reduce consumption.

Where to find the complete User's Guide?

The User's Guide is available online at canon.com/oip-manual. It details all functions, maintenance, and troubleshooting. You can also download the PDF manual from notice-facile.com.

USER MANUAL imageRUNNER C3025 CANON

Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

You can access canon.com/oip-manual

to read the User's Guide that describes all functions of this machine.

Getting Started

Please read "Important Safety Instructions" before operating this product.

After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

Mise en route

canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

Rendez-vous sur

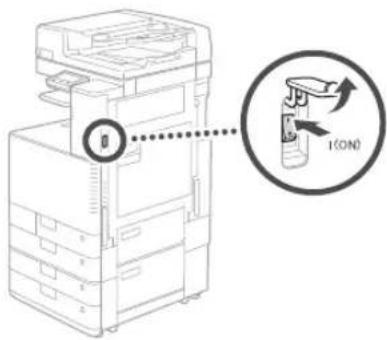

Configuring the Initial Settings of the Machine

1.

1(ON)

1. Follow the instructions on the screen to perform the following:

2. Set the language

3. Set the country and region
4. Set the time zone
5. Set the date and time
6. Set the Remote UI Access PIN
   • Perform color correction

IMPORTANT

Setting the Remote UI Access PIN is recommended to reduce the risk of unauthorized access by outside third parties.

Configuring the Method of Connecting to a Computer

Before starting the configuration

• The machine cannot be connected to both wired and wireless LANs at the same time.
• If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this.
• The machine does not come with a router. Please have one ready, if necessary.
• Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).

→ User's Guide

Specifying the connection method

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

• To connect via wireless LAN :
• To connect via wired LAN or USB :

To connect via wireless LAN

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

1. Make sure that the computer is connected to a router properly.

For details

"Setting up Using the Setup Guide" in the User's Guide

1. Check the network settings on the computer.
2. Take note of the SSID and network key.

- Check the label on the router. ➕ User's Guide

- The setting operation is easier if the router is provided with a WPS mark. ➤ User's Guide

1. Set the access point and network key according to the screen below.

For more information, refer to the manual. OK

1. Press .
2. Press .
3. Press .
4. Select the access point (SSID), and press .
5. Enter a WEP key (network key), and press .
6. Press .
   • The IP address will be automatically configured in a few minutes.

7. "Connected." is displayed.

8. Install the driver and software.

→ "Installing the software" on P.6

Now you are finished with the configuration of the initial settings.

To configure the optional fax function, proceed to configuring the fax settings. P.7

To connect via wired LAN

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

The machine does not come with a LAN cable.

Please have one ready, if necessary.

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.
3. Connect the LAN cable.

Diagram of a server rack connected to an Ethernet port via cable, showing internal connection (no text or symbols)

• After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address has been set on the computer, set the machine's IP address manually.

1. Install the driver and software.

→ "Installing the software" on P.6

Now you are finished with the configuration of the initial settings.

To configure the optional fax function, proceed to configuring the fax settings. P.7

To connect via USB

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

• The machine does not come with a USB cable. Please have one ready, if necessary.
• Make sure that the USB cable you use has the following mark.
- Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.

1. Install the driver and software.

"Installing the software" on P.6

Now you are finished with the configuration of the initial settings.

To configure the optional fax function, proceed to configuring the fax settings. P.7

Installing the software

• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual.
- For the installation when your computer runs on the Mac OS, see the driver's manual.
- Your machine may not come with the driver for the Mac OS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.

1.

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

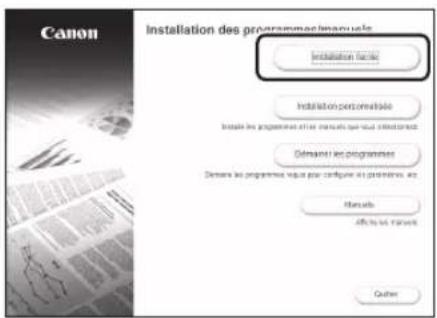

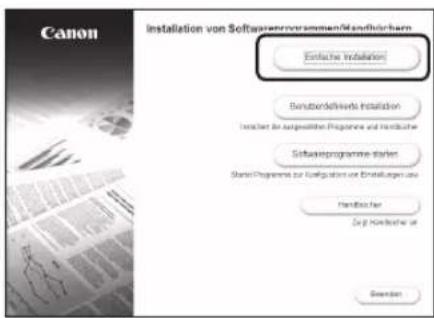

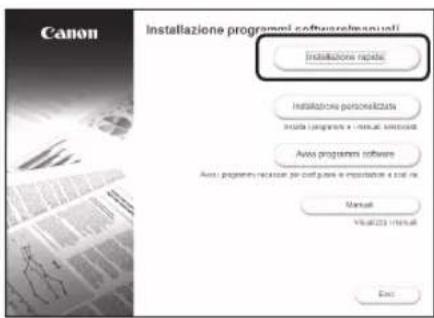

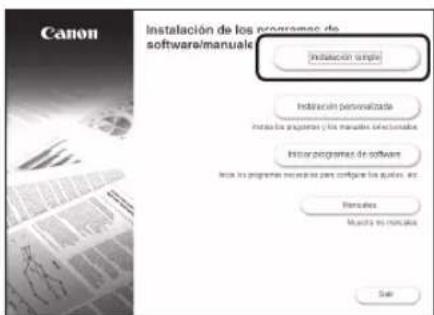

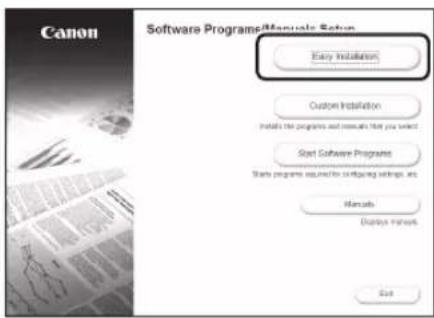

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the programs and manuals that you want Start Software Programs Start programs suitable for configuration settings, etc. Manuals Display Network Exit

If the screen is not displayed properly, re-insert the CD-ROM/DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the CD-ROM/DVD-ROM drive name).

For details

"Configuring Initial Settings for Fax Functions" in the User's Guide

Configuring Fax Settings

Before starting the configuration:

The machine does not come with a telephone cable. Please have one ready, as necessary.

Configure the fax settings, according to the screen below.

Home Check Counter Copy Fax Scan Memory Media Print Secure Print Menu Address Book Paper Settings Status Monitor

1. Press .
2. Press .
3. Register the machine's telephone number (fax number) and abbreviated user name.

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

• The information below will be printed at the top part of the paper output from the destination machine as sender information.

Fax Number Number's Type Sent Time Unit Name Page Number 02/02 2017 10:00AM CAVCN123000000-AX 0001

1. Set the reception mode.

• Make the setting by answering the questions on your purposes of using the fax function.

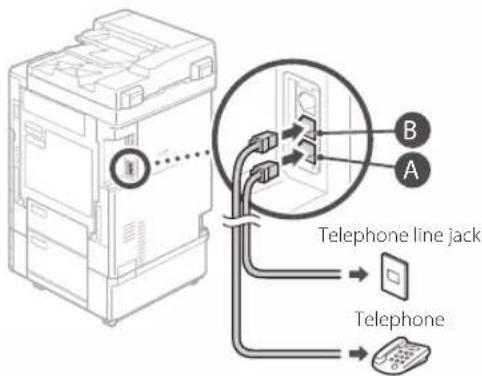

1. Connect to a telephone line.

Connect Telephone Line C B A Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Telephone line jack Telephone

1. Press .
2. Press .

Now you are finished with the configuration.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a server rack connected to an external port via cable, showing internal wiring and connection points (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Diagram showing a printer stack with an icon labeled '1(ON)' and a magnified view of the device's tip.

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram of a server rack connected to an Ethernet port, showing cable routing and connection points (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a server rack connected to an external port via cable, showing internal wiring and connection points (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Diagram showing a printer with an icon labeled '1(ON)' and a magnified view of its device.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a server rack connected to an external device via cable, showing internal components and connection points (no text or symbols)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Place the Original Document Properly

Remember before You Start Operation

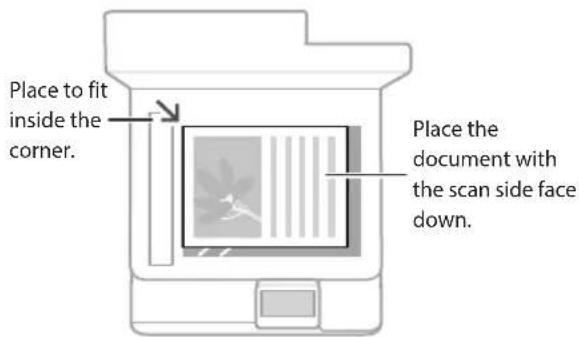

Place your original on the platen glass

Place to fit inside the corner. Place the document with the scan side face down.

Suitable for scanning book pages, magazine pages and newspaper clips.

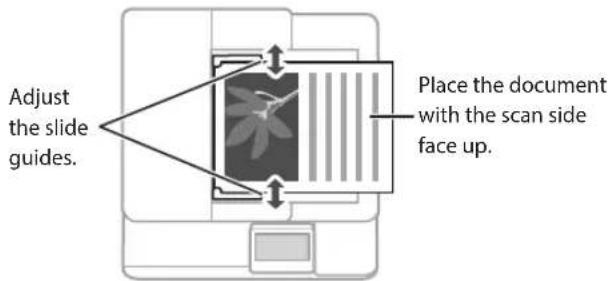

Place your originals into the feeder*

* This operation is available only on models that have a feeder attached.

Adjust the slide guides. Place the document with the scan side face up.

Suitable for continuously scanning many pages of literature, quotation, etc.

Start the Operation from the Operation Panel
Machine

Line drawing of a printer with a paper clip inserted into the cover (no text or symbols)

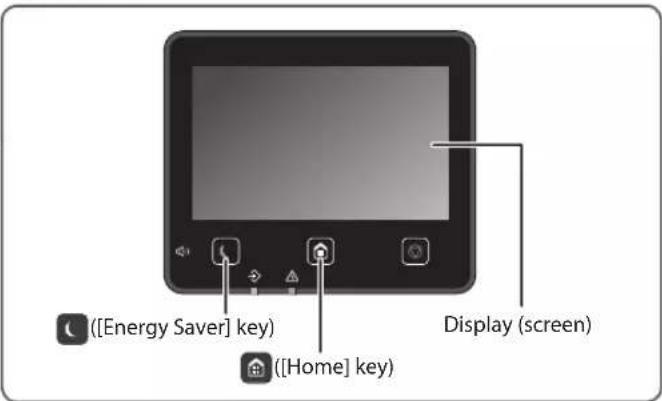

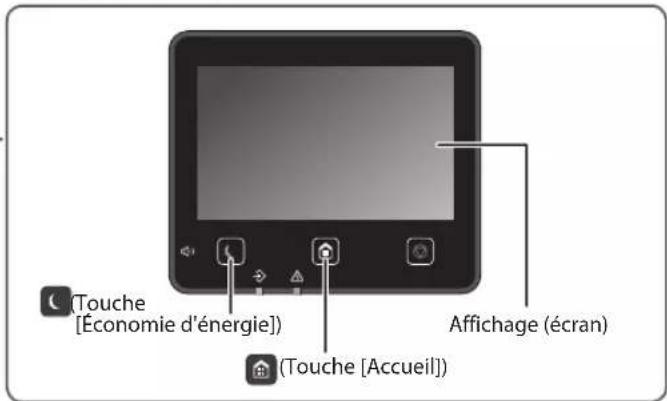

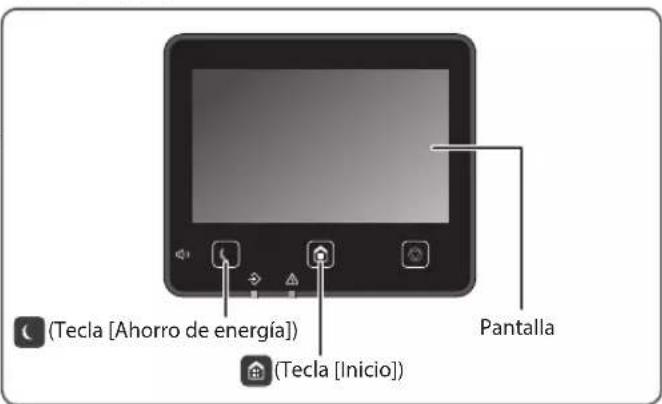

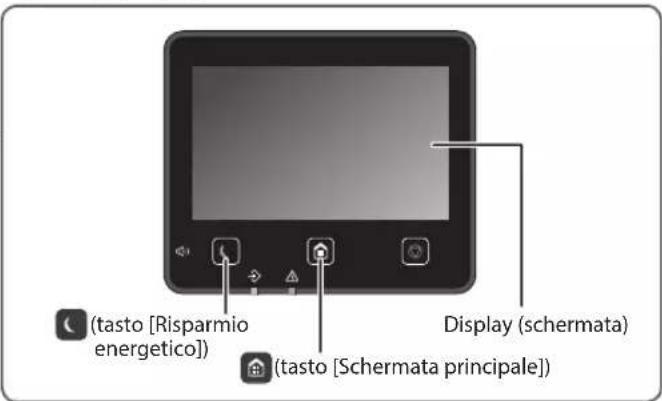

Operation Panel

([Energy Saver] key) ([Home] key) Display (screen)

Scanning

1. Place the original document.
2. Press 🏠, and select .
3. Select the type of scan, and enter the necessary information.
4. Select (or, or ).

Types of scan

■ Store in USB memory device
■ Send e-mail
■ Send to file server

To scan from a computer

■ MF Scan Utility

Scan Select a scan type. Computer USB Memory E-Mail H-Fax File Status Monitor

For details

→ "Scanning" in the User's Guide

Copying

1. Place the original document.
2. Press 📋, and then select .
3. Specify the copy settings, as necessary.
4. Enter the desired number of copies.
5. Select .

Useful copy settings

■ Non 1
■ 2-Sided or 1-Sided
■ Enlarging or reducing
■ Copying ID cards

Copy Select Color B&W Color Ratio Point Number of Copies 100 A4 1 3-Select: 50 R in T: 0.5P Reset Start Status Monitor Other Settings

For details

"Copying" in the User's Guide

Faxing\*

1. Place the original document.
2. Press 📋, and select .
3. Enter the destination information.
4. Specify the fax settings, as necessary.
5. Select .

Useful fax functions

■ Sequential Broadcast
■ Memory Reception
PC Fax

* This function is available only if the FAX Board is installed.

Fax [phone]:00AM Specify the destination. Enter Dest. Speech Destination TXRX Settings Address Book 1 2 3 Book 4 5 6 Future 7 8 9 Next card Start + 0 # Time Status Monitor

For details

→"Faxing" in the User's Guide

Printing

1. Open the document to print, and select the print function of the application.
2. Select the printer driver for the machine, and select [Preferences] or [Properties].
3. Specify the paper size.
4. Specify the paper source and paper type.
5. Specify the print settings, as necessary.
6. Select [OK].
7. Select [Print] or [OK].

Useful print settings

■ 2-sided
■ Non 1
■ Booklet Printing

New Document - [Page 1] - [Drawing1] - [Name Document (Table)] File Edit View Help Page Type: Page Type: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: Page Count: PageCount Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count Page Count

For details

"Printing" in the User's Guide

Loading in the Paper Drawer

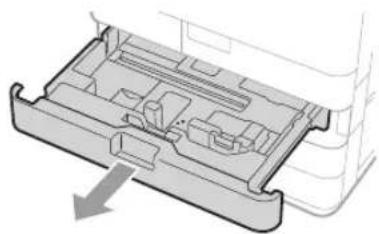

In the following, the operations that are common to paper drawers 1 and 2 are described by taking drawer 2 as example.

1

Technical diagram of a mechanical component with internal compartments and an arrow indicating direction (no text or symbols)

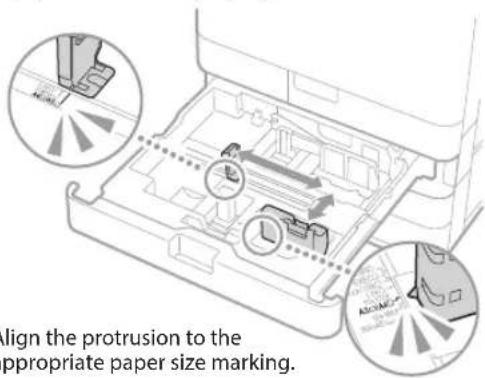

2 Slide the light blue knobs to adjust the positions of the paper guides.

align the protrusion to the appropriate paper size marking.

Align the protrusion to the appropriate paper size marking.

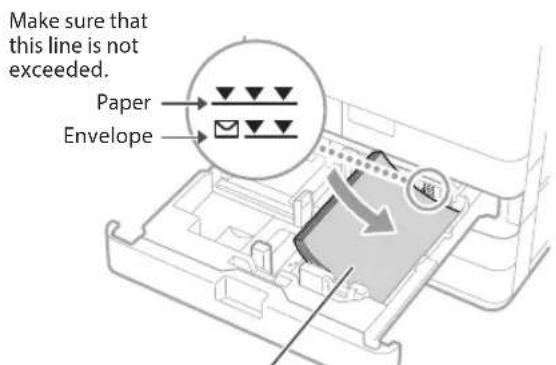

3 First fan the paper stack well and then load it.

Make sure that this line is not exceeded. Paper Envelope

The print side face up

4 Place the paper drawer back into the machine.

CAUTION!

Be careful not to get your fingers caught between the paper drawer and the machine.

NOTE

If you have changed the paper size, replace the label with one corresponding to the paper size as necessary.

If you have changed the paper type, be sure to change the paper settings.

5 Press and then select .

6 Specify the size and type of paper, according to the screen.

Loading in the Multi-Purpose Tray

CAUTION!

When using coated paper or paper that does not feed well, load one sheet at a time.

1

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

2

Adjust the position of the paper guides.

Tray extension Align the paper

Align the paper guides to the paper size markings.

NOTE

Pull out the tray extension when loading large-sized paper.

3

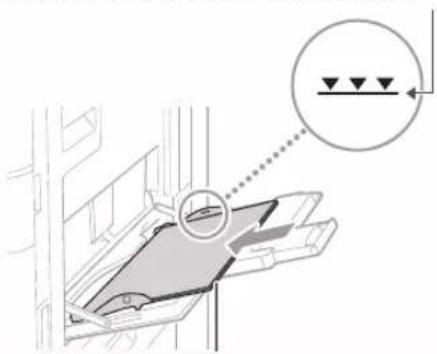

Fan the paper stack well, align the edges on a flat surface, and then load it.

Make sure that this line is not exceeded.

Diagram of a mechanical assembly with a magnified inset showing a gear or guide mechanism (no text or symbols present)

The print side face down

4 Check the paper size and type, and press on the screen.

If the paper size/type setting does not match the paper you have loaded on the screen shown in step 4, change the setting manually.

5

Press .

6

Specify the paper size.

7

Press .

8

Specify the paper type.

The Machine Does Not Seem to Work

Check the following.

• Is the power turned ON?
• Is the machine out of sleep mode?

If both the display and 📁 are not lit, press the power switch.

Power switch

• Is the power cord connected correctly?

Technical line drawing of a mechanical component with an inset close-up showing a pin inserted into a socket (no text or symbols present)

If the problem persists, see the User's Guide.

Paper Jams Have Occurred

When paper is jammed, a screen, as shown below appears.

Clear the paper jams, according to the on-screen instructions.

Paper jammed. Open the cover on the right side of the main unit. Previous 1/2

Replacing Consumables

Toner Cartridge

Canon genuine toner cartridge

• Canon C-EXV 54 Toner Black
• Canon C-EXV 54 Toner Cyan
• Canon C-EXV 54 Toner Magenta
• Canon C-EXV 54 Toner Yellow

Staple

Staple-P1

This can be used with the following options.

- Inner Finisher-K

Printing Results Are Not Satisfactory

Irregularities Appear in Images/Images Are Faint

Solution 1

The paper may have absorbed moisture. Replace it with paper that has not absorbed moisture.

Solution 2

Perform gradation adjustment.

1. Press and then select

   .

2. Press [Adjustment/Maintenance] ▶ [Adjust Image Quality] ▶ [Auto Adjust Gradation] on the screen.

Follow the instructions on the screen to perform gradation adjustment. For more information, see the User's Guide.

For details

"Adjusting Gradation" in the User's Guide

Black Streaks Appear in Images

Clean the document feed scanning areas.

1. Open the feeder, and clean the lower side document feed scanning area using the supplied glass-cleaning sheet.

NOTE

Do not use glass cleaner or an alcohol solution, etc., as they will strip away the stain-proof coating.

Line drawing of a hand inserting a component into an open printer (no text or symbols)

1. Close the feeder.

If black streaks still appear after the document feed scanning area has been cleaned

Perform feeder cleaning.

1. Press 📋, and then select

   .

2. Press [Adjustment/Maintenance] ▶ [Maintenance] ▶ [Clean Feeder] [Start] on the screen.

NOTE

It takes approximately 20 seconds to clean the feeder.

White Streaks/Color Streaks Appear in Images

Solution 1

Clean the dust-proof glass.

1. Open the front cover.

Line drawing of an open industrial machine with internal components and a handle (no text or symbols)

1. Take out the cleaning stick.

Line drawing of a printer's internal structure showing paper tray, fan, and printer (no text or symbols)

Slide the stick to the right to take it out.

1. Insert the cleaning stick into the hole with the pad on its tip facing down.

Pad

1. Insert the cleaning stick in until it hits the bottom of the hole, and gently move it back and forth.

CAUTION!

Insert the cleaning stick into all four holes to clean them.

1. Put the cleaning stick back in the original location, and close the front cover.

Memo

En

Appendix

Important Safety Instructions

This chapter describes important safety instructions for the prevention of injury to users of this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.

Installation

To use this machine safely and in a trouble-free way, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a fire or electrical shock

• A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
  • A damp or dusty location
  • A location exposed to direct sunlight or outdoors
  • A location subject to high temperatures
  • A location exposed to open flames
• Near alcohol, paint thinners or other flammable substances

Other warnings

• Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
• Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
• If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.

Do not install in the following locations

The machine may drop or fall, resulting in injury.

• An unstable location

• A location exposed to vibrations

CAUTION

Do not install in the following locations Doing so may result in damage to the machine.

• A location subject to temperature and humidity extremes, whether low or high
• A location subject to dramatic changes in temperature or humidity
• A location near equipment that generates magnetic or electromagnetic waves
• A laboratory or location where chemical reactions occur
• A location exposed to corrosive or toxic gases
- A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

Avoid poorly ventilated locations

This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Do not install in a location where condensation occurs

Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.

In altitudes of above sea level 3,000 m or higher Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

Leveling feet (only for products with leveling feet)

Do not remove the machine's leveling feet after the machine has been installed, as this may cause the machine to fall or tip over, resulting in personal injury.

Connecting the Telephone Line (Only for Products with a Fax Function)

This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confirm a type of telephone line before connecting the machine. Contact your optical fiber line or IP telephone line service providers if you want to connect the machine to those telephone lines.

When using wireless LAN (only for products with a wireless LAN function)

• Install the machine at a distance of 50 meters or less from the wireless LAN router.
- As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or floors.
- Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
- Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

Power Supply

WARNING

• Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
• The machine must be connected to a socket-outlet with grounding connection by the provided power cord.
• Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.
• Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
• Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.
• Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
  • Make sure that the power supply for the machine is safe, and has a steady voltage
• Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.
• If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire. Avoid the following situations:
• Connecting and disconnecting the power cord frequently.
• Tripping over the power cord.
• The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
• Applying excessive force on the power plug.

CAUTION

Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

IMPORTANT

When connecting power

• Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
• If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
• Do not connect the power cord to the auxiliary AC power outlet on a computer.

Other precautions

Electrical noise may cause this machine to malfunction or lose data.

Handling

WARNING

- Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual

noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fire or electrical shock.

• Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modification may result in a fire or electrical shock.
• Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
• Do not use flammable sprays near this machine. If flammable substances come into contact with electrical parts inside this machine, it may result in a fire or electrical shock.
• When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fire or electrical shock.
• When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.
• Use a modular cable that is shorter than 3 meters.
• Use a USB cable that is shorter than 3 meters.

If the operating noise concerns you

Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be installed in a place other than the office.

If you are using a cardiac pacemaker

This machine generates a low level magnetic flux and ultrasonic waves. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately.

CAUTION

• Do not place heavy objects on this machine as they may fall, resulting in injury.
• For safety, unplug the power plug if the machine will not be used for a long period of time.
• Use caution when opening and closing covers to avoid injury to your hands.
• Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.
• The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

Feeder (only for products with a feeder)

• Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
• Close the feeder gently to avoid catching your hands, as this may result in personal injury.
• Close the feeder gently to avoid catching your hands in the back of the feeder, as this may result in personal injury.

Finisher (only for products with a finisher)

- Do not place your hands in the part of the tray where stapling is performed (near the rollers), especially pay careful attention to the sharp staples, as this may result in personal injury.

Paper drawer (only for products with a paper drawer)

- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

Energy Saver key (only for products with an Energy Saver key)

- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Laser Safety

This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.

CAUTION

Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure

Other precautions

• Follow the instructions on the caution label attached to this machine.
• Do not subject the machine to strong shocks or vibration.
• Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.
• Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.

Maintenance and Inspections

Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see Troubleshooting. If the problem cannot be resolved or you feel the machine requires an inspection, see When a Problem Cannot Be Solved.

WARNING

- Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fire or electrical shock.

• Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fire if it comes into contact with electricity.
• Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzine, paint

thinner, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a fire or electrical shock.
- Check the power cord and plug periodically for rust, bent prongs, fraying, cracks, or excessive heat generation. Use of poorly-maintained power cord or plug may result in a fire or electrical shock.

CAUTION

• The inside of the machine has high-temperature and high-voltage components. Touching these components may result in injury or burns. Do not touch any part of the machine that is not indicated in the manual.
- When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

Legal Limitations on the Usage of Your Product and the Use of Images

Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

• Paper Money
• Travelers Checks
• Money Orders
• Food Stamps
  • Certificates of Deposit
• Passports
• Postage Stamps (canceled or uncanceled)
• Immigration Papers
  • Identifying Badges or Insignias
• Internal Revenue Stamps (canceled or uncanceled)
• Selective Service or Draft Papers
  • Bonds or Other Certificates of Indebtedness
• Checks or Drafts Issued by Governmental Agencies
  • Stock Certificates
  • Motor Vehicle Licenses and Certificates of Title
  • Copyrighted Works/Works of Art without Permission of Copyright Owner

Safety-Related Symbols

Power switch: "ON" position

Power switch: "OFF" position

Power switch: "STAND-BY" position

① Push-push switch "ON" "OFF

Protective earthing terminal

Dangerous voltage inside. Do not open covers other than instructed.

CAUTION: Hot surface. Do not touch.

Class II equipment

Moving parts: Keep body parts away from moving parts

[NOTE]

Some of symbols shown above may not be affixed depending on the product.

v1602_00_en-GB

Appendix

Installation Precautions

Avoid installing the machine near computers or other precision electronic equipment.

Electrical interference and vibrations generated by the machine while printing can adversely affect the operation of such equipment.

Avoid installing the machine near televisions, radios, or similar electronic equipment.

The machine might interfere with sound and picture signal reception. Insert the power plug into a dedicated power outlet, and maintain as much space as possible between the machine and other electronic equipment.

Moving the Machine

If you intend to move the machine, even to a location on the same floor of your building, contact your local authorized Canon dealer beforehand. Do not attempt to move the machine yourself.

Laser Safety Label

When removing jammed paper or when inspecting the inside of the machine, do not expose yourself to the heat emitted from the fixing unit and its surroundings for a prolonged period of time. Doing so may result in low temperature burns, even though you did not touch the fixing unit and its surroundings directly.

Technical diagram of a printer with warning labels and a magnified view of the printer's internal structure.

Consumables

WARNING

• Do not throw toner cartridges or waste toner containers into open flame, or do not store them or printing/copy paper in a place exposed to open flame. This may cause them to ignite, resulting in burns or fire.
• If you accidentally spill or scatter toner, carefully gather the toner particles together or wipe them up with a soft, damp cloth in a way that prevents inhalation. Never use a vacuum cleaner that does not have safeguards against dust explosions to clean up spilled toner. Doing so may cause a malfunction in the vacuum cleaner, or result in a dust explosion due to static discharge.

CAUTION

• Keep toner and other consumables out of the reach of small children. If these items are ingested, consult a physician immediately.
• If toner touches your clothes or skin, wash it away with water immediately. Do not use warm water, as this may cause toner to fix, resulting in a permanent stain.
• Do not dismantle the toner cartridge, as doing so may cause toner to fly out and enter your eyes or mouth. If toner gets into your eyes or mouth, wash them immediately with cold water and immediately consult a physician.
• If toner escapes from the toner cartridge, make sure not to ingest the toner or allow it to directly touch your skin. If your skin still feels irritated after washing it, or you ingest toner, consult a physician immediately.
• When pulling out the waste toner container, be careful not to let it fall. This may result in injury.

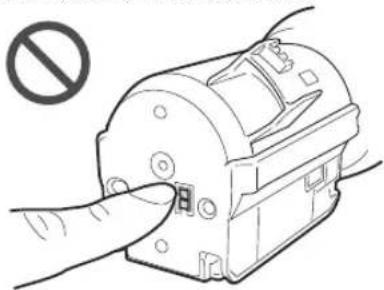

• Do not touch the electrical contacts.

Illustration of a hand inserting a button into a device with a prohibition symbol (no text or labels)

IMPORTANT

• Store toner cartridges in a cool location, away from direct sunlight.
• Do not store toner cartridges in an upright position.

Notices

Product Name

Safety regulations require the product's name to be registered. In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.

imageRUNNER C3025/C3025I (F172500)

EMC requirements of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

EU WEEE and Battery Directives

You can see the WEEE and Battery Directives information in the latest User's Guide (HTML manual) from the Canon website (canon.com/oip-manual).

Wireless LAN Regulatory Information

Regulatory information for users in Jordan

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. (only for radio equipment) The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.98 dBm

The information in this document is subject to change without notice.

CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED

HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OF USE, OR NON-INFRINGEMENT.

CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

Super G3

SUPER

Super G3 is a phrase used to describe the new generation of fax machines that use ITU-T V.34 standard 33.6 Kbps* modems. Super G3 High

Speed Fax machines allow transmission times of approximately 3 seconds* per page which results in reduced telephone line charges.

* Approximately 3 seconds per page fax

transmission time based on CCITT/ITU-T

No.1 Chart, (JBIG, Standard Mode) at 33.6

Kbps modem speed. The Public Switched

Telephone Network (PSTN) currently

supports 28.8 Kbps modem speeds or slower, depending on telephone line conditions.

[NOTE]

The fax function is available only if the FAX Board is installed.

About This Manual

Screens

Screens of the touch panel display used in this manual are those taken when the imageRUNNER C3025i has the following optional equipment attached to it:

• Inner 2way Tray-J
  • Cassette Feeding Unit-AP
  • Super G3 FAX Board

Note that functions that cannot be used depending on the model or options do not appear on the touch panel display.

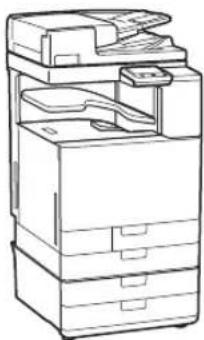

Illustrations

Illustrations used in this manual are those displayed when the imageRUNNER C3025i has the following optional equipment attached to it:

• Inner 2way Tray-J
• Cassette Feeding Unit-AP
• Super G3 FAX Board

Line drawing of a multi-tiered office or filing cabinet with drawers and folders (no text or symbols)

Trademarks

Mac is a trademark of Apple Inc.

Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.
(3) You may use the SOFTWARE solely for use with the PRODUCT.
(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.
(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.
(6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions.

Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http://canon.com/oip-manual.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

Placer correctement le Document Original

Line drawing of a printer with a paper clip inserted into the cover (no text or symbols)

Panneau de commande

File Options - Options Format: 100% Name: Size: 5 px Size: 1 px Size: 2 px Size: 3 px Size: 4 px Size: 5 px Size: 6 px Size: 7 px Size: 8 px Size: 9 px Size: 10 px Size: 11 px Size: 12 px Size: 13 px Size: 14 px Size: 15 px Size: 16 px Size: 17 px Size: 18 px Size: 19 px Size: 20 px Size: 21 px Size: 22 px Size: 23 px Size: 24 px Size: 25 px Size: 26 px Size: 27 px Size: 28 px Size: 29 px Size: 30 px Size: 31 px Size: 32 px Size: 33 px Size: 34 px Size: 35 px Size: 36 px Size: 37 px Size: 38 px Size: 39 px Size: 40 px Size: 41 px Size: 42 px Size: 43 px Size: 44 px Size: 45 px Size: 46 px Size: 47 px Size: 48 px Size: 49 px Size: 50 px Size: 51 px Size: 52 px Size: 53 px Size: 54 px Size: 55 px Size: 56 px Size: 57 px Size: 58 px Size: 59 px Size: 60 px Size: 61px Size: 62px Size: 63px Size: 64px Size: 65px Size: 66px Size: 67px Size: 68px Size: 69px Size: 70px Size: 71px Size: 72px Size: 73px Size: 74px Size: 75px Size: 76px Size: 77px Size: 78px Size: 79px Size: 80px Size: 81px Size: 82px Size: 83px Size: 84px Size: 85px Size: 86px Size: 87px Size: 88px Size: 89px Size: 90px Size: 91px Size: 92px Size: 93px Size: 94px Size: 95px Size: 96px Size: 97px Size: 98px Size: 99px Size: 100px

Technical diagram of a mechanical component with internal channels and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

2

Technical line drawing of a mechanical component with an inset close-up showing a pin inserted into a bracket (no text or symbols present)

Line drawing of a hand inserting a component into a printer case (no text or symbols)

1. Fermez le chargeur.

Line drawing of an open printer with internal components and a handle (no text or symbols)

Line drawing of a printer's internal structure showing paper feed, paper tray, and paper holder (no text or symbols)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram of a printer with warning labels and a magnified view of the device's internal structure.

Consommables

AVERTISSEMENT

Illustration of a hand inserting a switch into a device with a no-smoking symbol (no text or labels)

IMPORTANT

Wireless LAN Regulatory Information

Regulatory information for users in Jordan

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in Russia

Regulatory information for users in UAE

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. (only for radio equipment) The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.98 dBm

europe.com/ce-documentation

The information in this document is subject to change without notice.

CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED

HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OF USE, OR NON-INFRINGEMENT.

CANON INC. SHALL NOT BE LIABLE FOR ANY

DIRECT, INCIDENTAL, OR CONSEQUENTIAL

DAMAGES OF ANY NATURE, OR LOSSES OR

EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

Super G3

SUPER

Super G3 is a phrase used to describe the new generation of fax machines that use ITU-T V.34 standard 33.6 Kbps* modems. Super G3 High

Speed Fax machines allow transmission times of approximately 3 seconds* per page which results in reduced telephone line charges.

* Approximately 3 seconds per page fax

transmission time based on CCITT/ITU-T

No.1 Chart, (JBIG, Standard Mode) at 33.6

Kbps modem speed. The Public Switched Telephone Network (PSTN) currently

supports 28.8 Kbps modem speeds or slower, depending on telephone line conditions.

[NOTE]

The fax function is available only if the FAX Board is installed.

Line drawing of a multi-tiered office or filing cabinet with drawers and folders (no text or symbols)

Marques Déposées

Edit Subscribers Subscribers: 12.0x (12.0x) / 12.0x (12.0x) / 12.0x (12.0x) Add: 12.0x (12.0x) / 12.0x (12.0x) / 12.0x (12.0x) Apply/Subtract... Remove Export Save Import Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subscribers Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes Subletes

Für Details

Technical diagram of a mechanical component with internal compartments and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

2

Technical line drawing of a mechanical component with an inset close-up showing a pin inserted into a socket (no text or symbols present)

Line drawing of a hand inserting a component into a computer case (no text or symbols)

Line drawing of an open printer with internal components and a handle (no text or symbols)

Line drawing of a printer internal structure with no visible text or symbols

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Line drawing of a hand inserting a device into a cylindrical device with a prohibition symbol (no text or labels)

OWICHTIG

Wireless LAN Regulatory Information

Regulatory information for users in Jordan

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in Russia

Regulatory information for users in UAE

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14 DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. (only for radio equipment) The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.98 dBm

Line drawing of a multi-tiered office or paper filing cabinet with drawers and folders (no text or symbols)

Warenzeichen

Line drawing of a printer with a paper clip inserted into the cover (no text or symbols)

Panel de control

Technical diagram of a mechanical component with internal compartments and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

2

Diagram of a mechanical assembly with a circular component and directional arrow, no readable text or symbols present.

Technical line drawing of a mechanical component with an inset close-up showing a pin inserted into a socket (no text or symbols present)

Line drawing of a hand inserting a component into a printer case (no text or symbols)

Line drawing of an open printer with internal components and a handle (no text or symbols)

Line drawing of a printer's internal structure showing paper feed, paper tray, and printer panel (no text or symbols)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram of a printer with warning labels and a magnified view of the device's internal structure.

Line drawing of a hand inserting a button into a device with a prohibition symbol (no text or labels)

IMPORTANTE

Wireless LAN Regulatory Information

Regulatory information for users in Jordan C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. (only for radio equipment) The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.98 dBm

The information in this document is subject to change without notice.

CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER

EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

Súper G3

SUPER

Súper G3 is a phrase used to describe the new generation of fax machines that use ITU-T V.34 standard 33.6 Kbps* modems. Super G3 High

Speed Fax machines allow transmission times of approximately 3 seconds* per page which results in reduced telephone line charges.

* Approximately 3 seconds per page fax transmission time based on CCITT/ITU-T No.1 Chart, (JBIG, Standard Mode) at 33.6 Kbps modem speed. The Public Switched Telephone Network (PSTN) currently supports 28.8 Kbps modem speeds or slower, depending on telephone line conditions.

[NOTE]

The fax function is available only if the FAX Board is installed.

Line drawing of a multi-tiered office or filing cabinet with drawers and folders (no text or symbols)

Marcas comerciales

Line drawing of a printer with a paper clip inserted into the cover (no text or symbols)

Pannello operativo

(tasto [Risparmio energetico]) Display (schermata) (tasto [Schermata principale])

Scansione

Screenshot of a software interface showing file selection and export options in Chinese

Per i dettagli

Technical diagram of a mechanical component with internal compartments and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

2

Diagram of a mechanical device with a dotted line indicating alignment or connection, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with an inset close-up showing a pin inserted into a socket (no text or symbols present)

Line drawing of a hand inserting a component into an open computer case (no text or symbols)

Line drawing of a printer's internal structure showing the open lid and tray (no text or symbols)

Line drawing of an open printer with internal components and a handle, no text or symbols present

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram of a printer with warning labels and a magnified view of the printer's internal structure.

Consumabili

AVVERTENZA

Illustration of a hand inserting a device into a device with a prohibition symbol (no text or labels)

IMPORTANTE

Wireless LAN Regulatory Information

Regulatory information for users in Jordan

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38

Regulatory information for users in UAE

C3025/C3025i includes approved Wireless LAN Module (Model name: AW-NM383).

TRA

REGISTERED No: ER0126617/14

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. (only for radio equipment) The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 15.98 dBm

The information in this document is subject to change without notice.

CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED

HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OF USE, OR NON-INFRINGEMENT.

CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

Super G3

SUPER

Super G3 is a phrase used to describe the new generation of fax machines that use ITU-T V.34 standard 33.6 Kbps* modems. Super G3 High

Speed Fax machines allow transmission times of approximately 3 seconds* per page which results in reduced telephone line charges.

* Approximately 3 seconds per page fax transmission time based on CCITT/ITU-T

No.1 Chart, (JBIG, Standard Mode) at 33.6

Kbps modem speed. The Public Switched Telephone Network (PSTN) currently

supports 28.8 Kops modem speeds or slower, depending on telephone line conditions.

[NOTE]

The fax function is available only if the FAX Board is installed.

Line drawing of a multi-tiered office or paper filing cabinet with drawers and folders (no text or symbols)

Marchi registrati

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC.

One Canon Park, Melville, NY 11747, U.S.A.

CANON CANADA INC.

8000 Mississauga Road Brampton ON L6Y 5Z7, Canada

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

(See http://www.canon-europe.com/ for details on your regional dealer)

CANON AUSTRALIA PTY LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON CHINA CO.LTD.

2F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China

CANON SINGAPORE PTE LTD

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522
