USER MANUAL KF 6011 AMICA

Black Amica water heater with digital display and control icons (no text or symbols on the device itself)

PL INSTRUKCJA OBSŁUGI 2

EN USER MANUAL 5

CS NÁVOD K OBSLUZE 8

SK NÁVOD NA OBSLUHU 11

100 5 2 BOIL KEEP WARM 3 4 + - 1 Amica

1. Napełnić czajnik 3 filiżankami białego octu, a następnie dodać wodę do takiej ilości, aby całkowicie pokryła dno czajnika. Pozostawić roztwór w czajniku na noc.

2. Następnie wylać mieszaninę z czajnika, napełnić czajnik czystą wodą do maksymalnego poziomu, zagotować, a następnie wyłać wodę. Powtarzać kilka razy, aż zniknie zapach octu. Wszelkie plamy pozostałe wewnątrz dzióbka można usunąć przecierając wilgotną ściereczką.

3. If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.

4. This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
5. This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
6. Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
7. Do not expose the appliance to rain or humidity, and do not

use it outdoors. Do not operate the appliance with wet hands.

• This appliance is not intended for use at altitude greater than 2000 metres above sea level.
• If you want to turn off the appliance completely, pull the plug out of the wall outlet.
• Warning: the escaping water or steam causes a risk of burns. When using the appliance, do not touch any parts of the kettle except the handle. Also, make sure the lid is properly closed. This appliance is suitable for water heating only. Never pour any other liquids into the kettle.

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user

is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

Carefully read this instruction before using the appliance.

This appliance is for household use only.

Note! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.

Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.

If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.

When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.

Do not attempt to remove any parts of the housing.

Using attachments that were not supplied with the product may cause damage to the appliance.

Never place the appliance on hot surfaces.

Do not place the cord over sharp edges or near hot surfaces.

Before you put the plug into the wall outlet, make sure your hands are dry.

The kettle is a class I electrical shock protection appliance, and therefore power outlet to which it is connected to must be equipped with grounding pin.

Do not put any objects inside the appliance.

Use only clean, cold water and fill the kettle slowly - strong water jet causes water splashing.

Never fill the appliance with water above the maximum level indicated.

This appliance generates heat.

The kettle switches off automatically when water boils. You can switch the kettle off before water boils using a switch. When the kettle switches off automatically (or when it was switched off manually), it may take some time (approximately 15 - 20 seconds to cool down) to be ready for re-use.

The kettle must only be used with the supplied base.

Do not touch the surface marked with this symbol. Do not touch the surfaces during or after operation of the appliance. These surfaces are hot.

Unplug the kettle from the power outlet and wait until it cools down before cleaning.

When boiling the water, parts of the kettle made of stainless steel become very hot.

Do not switch on the kettle without an adequate amount of water (level marked as "min" on the scale).

Do not leave the kettle unattended, and when not completely cooled down.

Use only the handle to move the kettle, other external parts may be hot.

Use the appliance on a flat and stable surface.

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked \~.

This appliance is intended for use at home or in facilities, such as kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities.

SPECIFICATION:

Power specification: AC 220-240V / 50-60Hz
Power rating: 1850-2200W
Capacity: 1.5l

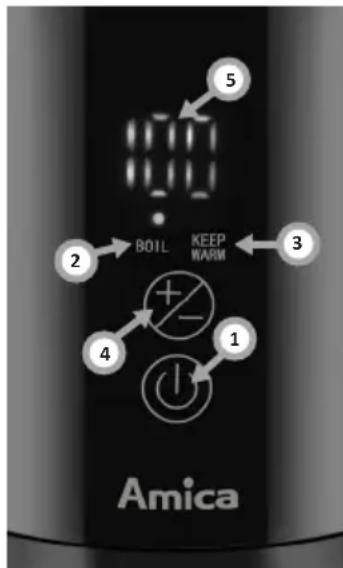

CONTROL PANEL:

1. On/Off
2. BOIL indicator
3. KEEP WARM indicator
4. Temperature setting button: 40, 50, 60, 70, 80, 90 and 100°C
5. Temperature display

Amica 5 2 BEOL KEEP WARM 3 4 1 + -

1. Two touch sensors (boil / keep warm)

a. ON/OFF touch sensor: touch sensor: Touch the ON/OFF sensor to start heating water. The default setting for the water temperature is 100^ C. Press and hold for approximately 3 seconds to switch to the keep warm mode.
b. Set temperature touch sensor: Touch the set temperature sensor to select the temperature that suits your needs.

2. Indicator

a. Temperature display is the water boiling mode, it displays the actual temperature of the water in the kettle. In keep-warm

mode, it displays the kettle's set temperature;

b. The water boiling indicator lights up when the kettle is in water boiling mode.
c. Keep Warm Indicator lights up when the kettle is in Keep Warm mode.

3. Operate the appliance

When you turn on the kettle, the boil water indicator, keep warm indicator and temperature indicator flash and the appliance beeps twice. Then the water boiling and keep warm indicators turn off and the temperature indicator stays on. The kettle displays the current water temperature.

4. Water boiling function

a. Boil the water: when the appliance is plugged in, touch the ON/OFF sensor to directly use the 100°C water boiling mode. When heating starts, the appliance beeps and the boiling indicator lights up. When the water temperature in the kettle reaches 100°C, the appliance beeps twice and the water boiling indicator will turn off. The kettle will turn off automatically. b. Select the temperature to heat the water: when the appliance is plugged in, touch the Set temperature sensor to adjust the temperature to your needs. Then touch the On/Off sensor. The kettle turns on and the boiling indicator lights up. When the desired temperature is reached, the kettle turns off. When you touch the On/Off sensor while in the keep warm mode, the kettle will turn off.

5. The Keep Warm function

When the appliance is plugged in, touch the "Set Temperature" sensor to select one of the 7 temperatures 40^ , 50^ , 60^ , 70^ , 80^ or 90^ (Keep Warm feature is not available for the 100^ setting). Once you have selected the desired temperature, touch and hold the ON / OFF sensor for approximately 3 seconds and the keep warm indicator will flash 5 times. Once it is on, the water begins to boil. When the water temperature in the kettle reaches the set temperature, the appliance will beep twice and the appliance turns off. The kettle cools down. When the temperature drops enough, the kettle starts heating water again. It stops heating the water when it reaches the set temperature. The cycle begins again. During the cycle, the keep warm indicator is always on and the boiling water indicator is off. If the initial water temperature poured into the kettle is higher than the set temperature, then the keep warm indicator will flash 5 times. Then it stops flashing. Beep sounds 5 times as a special reminder. The kettle cools down to the set temperature and then starts to heats the water. Keep warm time: Keep warm cycle continues for 2 hours and then the appliance and the indicator turn off.

6. Time and temperature

The water temperature display accuracy is ±5^ (for at least 0.5l of water in the kettle). Temperature display accuracy is lower for less water.

7. Turn off the appliance

Touch the On / Off sensor at any time. The appliance and indicators will turn off. The temperature indicator continues to show temperature. The temperature indicator turns off after about 20 minutes.

8. Memory feature

The keep warm mode has a memory function. If the water temperature in the kettle is higher than the keep warm temperature the keep warm function continue to operate. If the water temperature in the kettle is lower than the set keep warm temperature, the appliance will turn off.

Note! Figures are for illustrative purposes only. Individual models may vary.

CLEANING:

Before cleaning, always unplug the appliance from the wall outlet and allow it to cool down completely.

1. Do not immerse the kettle, cord and power base in water and protect against contact with moisture.
2. Wipe the outside of the kettle with a damp cloth or mild cleaning agent; never use any poisonous cleaning agents.
3. Remember to clean the filter regularly. To facilitate cleaning, remove the filter by pressing the filter tab inside the kettle, and reinstall it after cleaning.

NOTE: To prevent matting, do not use any abrasive cleaners, harsh chemicals, steel or wood to clean the outside of the kettle.

1. When the kettle is not in use and in storage, you can wind the power cord under the kettle base.

5

DESCALE YOUR APPLIANCE

If the appliance switches off before the water boils, it means descaling is required. Descale your kettle periodically, as minerals dissolved in the tap water can form limescale on the bottom of the kettle, which reduces the water heating efficiency. You can use a commercially available descaler and follow the instructions on its packaging. You can also use white vinegar and follow the instructions below.
