KF 5011 - Kettle AMICA - Free user manual and instructions
Find the device manual for free KF 5011 AMICA in PDF.
| Type | Electric Kettle |
| Model | KF 5011 |
| Brand | Amica |
| Capacity | 1.7 L |
| Rated Voltage | 220-240 V ~ 50 Hz |
| Nominal Power | 1850-2200 W |
| Housing Material | Stainless steel with plastic parts |
| Water Level Indicator | Yes, external scale |
| Lid Opening | Button on handle |
| Automatic Shut-off | Yes, when water boils |
| Boil-Dry Protection | Yes, automatic safety switch |
| Base | Swivel base with cord storage |
| Power Cord Length | Approx. 0.75 m (estimate based on typical models) |
| Weight | Approx. 1.0 kg (estimate) |
| Dimensions | Approx. 22 x 15 x 24 cm (estimate) |
| Color | Silver and black |
| Cleaning | Wipe with damp cloth; descale regularly |
| Safety Class | Class I (requires grounded outlet) |
| Certifications | CE, RoHS |
Frequently Asked Questions - KF 5011 AMICA
User questions about KF 5011 AMICA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual KF 5011 - AMICA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KF 5011 by AMICA.
USER MANUAL KF 5011 AMICA
EN OPERATING INSTRUCTIONS
4
9
SPIS TREŚCI
WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA 3
USUWANIE / ZŁOMOWANIE ZUŻYTEGO SPRZĘTU 6
BUDOWA I WYPOSAŻENIE 7
OBSŁUGA, CZYSZCZENIE I KONSERWACJA 7
DANE TECHNICZNE 8
GWARANCJA, OBSŁUGA POSPRZEDAŻNA 8
CONTENTS
SAFETY INSTRUCTIONS FOR USE 9
DISPOSING/SCRAPPING OF USED EQUIPMENT 10
THE APPLIANCE'S CONSTRUCTION AND FEATURES 13
OPERATION, CLEANING AND MAINTENANCE 14
SPECIFICATION 15
WARRANTY AND AFTER SALES SERVICE 15
GRATULUJEMY WYBORU SPRZĘTU MARKI AMICA
SZANOWNI PAŃSTWO!
ROZPAKOWANIE
THANK YOU FOR CHOOSING OUR APPLIANCE
DEAR CUSTOMER,
Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.
Before using the appliance, please carefully read these Operating Instructions
The appliance is designed for household use only.
The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
Important! To minimize the risk of fire, electric shock or injury:
Carefully read this instruction before using the appli- ance.
If water spills on the external electrical components or the base of a kettle, dry it thoroughly before switching back on.
Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
After use, always pull out the plug from the socket, and also in case of any malfunction or before cleaning.
When pulling out the plug from the wall outlet, never pull by the cord, only the plug.
The kettle is a class I shock protection appliance, and therefore power outlet to which it is connected to must be equipped with grounding pin.
Children do not realize the dangers that can arise when using electrical appliances; therefore keep the kettle out of reach of children.
Do not attempt to remove any parts of the housing or insert any objects into the appliance.
To prevent damage to the power cord, do not place it over sharp edges or close to hot surfaces.
Do not expose the appliance to rain or humidity, and do not use it outdoors. Do not operate the appliance with wet hands.
Use only clean cold water and fill the kettle slowly (for about 2 minutes) - strong water jet causes water splashing.
Never fill the kettle with more water than up the indicated maximum water level.
This appliance generates heat.
Never place the appliance on hot surfaces.
Warning: the escaping water or steam causes a risk of burns. When using the appliance, do not touch any part of the kettle except the handle and make sure the cover is properly closed. This appliance is suitable for water heating only. Never pour any other liquids into the kettle.
The kettle switches off automatically when water boils.
You can switch the kettle off before water boils using a switch. When the kettle switches off automatically (or when it was switched off manually), it may take some time (approximately 15 - 20 seconds to cool down) to be ready for reuse.
The kettle must only be used with the supplied base.
If the power cord is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
Unplug the kettle from the power outlet and wait until it cools down before cleaning.
This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
Children shall not play with the appliance.
When boiling the water, parts of the kettle made of stainless steel become very hot*.
Do not switch on the kettle without an adequate amount of water (level marked as "min" on the scale).
Do not leave the kettle unattended, and when not completely cooled down.
Use only the handle to move the kettle, other external parts may be hot.
Use the appliance on a flat and stable surface.
Children do not realize the dangers that can arise when using electrical appliances; therefore keep the kettle out of reach of children.
This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
Keep the appliance away from children under 8 years of age when it is hot or not completely cooled down.
Do not allow children to engage in activities associated with cleaning and maintenance of the appliance without supervision.
Make sure that the voltage indicated on the nameplate corresponds to the electric power parameters at home, power must be marked as \~ (alternating current).

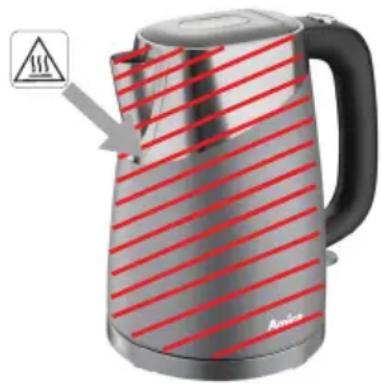

WHEN THE KETTLE IS HOT, ONLY TOUCH PLASTIC PARTS: HANDLE, BASE, LID OPEN BUTTON OR SWITCH.
Do not touch the surface marked with the symbol when the appliance is on or after operation. These surfaces are hot.
UNPACKING
During transportation, protective packaging was used to protect the appliance against any damage.
After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.
All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.
Important! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out of reach of children.
DISPOSAL OF THE APPLIANCE
At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operating Instructions or packaging.
The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part in protecting our environment.
Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.
Appliance's parts
- Body of the kettle
- Water level indicator
- Handle
- Lid opening button
- Lid
- On/off switch
- Base
- Power Cord
OPERATION, CLEANING AND MAINTENANCE
Before use:
Rinse the kettle and boil water in it several times using clean water in each boiling cycle and filling the kettle to the maximum level. Water will boil in approximately 5 minutes, and the kettle will switch off automatically.
Use:
Place the base on a solid and level surface. If the appliance switches off before the water boils, it means descaling is required.
You can use standard descaling agents, provided that appropriate instructions are followed. Do not fill the kettle up to the top mark to prevent spillage, if the descaling agent causes water foaming.
To thoroughly remove any deposits after descaling, boil clean water several times, then rinse the kettle with clean water.
Pour the required amount of clean water into the kettle. When the appliance is being used (or immediately after use), do not touch any part of the kettle except the handle and make sure the lid is properly closed. The amount of water can be checked on the level indicator on the outside of the kettle. Always pay attention to the minimum and maximum levels, make sure the lid is properly and firmly closed.
Place the kettle on the base, so that the bottom part of the kettle fits closely to the base.
Connect the power plug to an electrical outlet.
Depending on the model move the on/off switch down (on) to start the heating process, the indicator light lights up or use the button in the handle.
When the water boils, the on/off switch automatically returns to its original position and the indicator light goes off. You can also switched off the kettle manually by moving the on/off switch up.
It is now safe to pour hot water into another vessel through the outlet pout.
The kettle is equipped with an automatic safety switch. To prevent damage in case of improper use or if the appliance is switched on by accident without water or if the water evaporates - then automatic safety switch automatically turns off the heating element.
In this case, immediately pull out the power plug from the wall outlet and refill the kettle only after sufficient time for it to cool down, i.e. after approximately 15-20 minutes.
OPERATION, CLEANING AND MAINTENANCE
Descaling:
If the appliance switches off before the water boils, it means descaling is required.
You can use standard descaling agents, provided that appropriate instructions are followed. Do not fill the kettle up to the top mark to prevent spillage, if the descaling agent causes water foaming.
To thoroughly remove any deposits after descaling, boil clean water several times, then rinse the kettle with clean water.
Cleaning:
Before cleaning, make sure the appliance is disconnected from the power source. Furthermore, it must cool down completely.
Do not use abrasive or harsh cleaning agents.
Do not immerse the base or the kettle in any liquid. Use a slightly damp, lint-free cloth to clean the inside of the kettle.
It is recommended to regularly remove limescale deposits from the kettle.
Descaling:
Fill the kettle half-full with tap water and add lemon juice of one lemon.
Bring to the boil and wait 15 minutes. Bring to the boil again and wait further 15 minutes. Bring to the boil for the third time, empty the kettle and rinse well.
SPECIFICATION
Type KF 5011; KFT 5012
| Rated voltage | 220V - 240V ~50Hz |
| Nominal power | 1850-2200 W |
| Capacity | 1,7 l |
WARRANTY AND AFTER SALES SERVICE
Warranty
Warranty service as stated on the warranty card
The manufacturer shall not be held liable for any damage caused by improper use of the product.
Boiling water in the kettle is accompanied by noise. This is normal during rapid heating of the liquid and does not constitute grounds for complaint.
Manufacturer's Declaration
The manufacturer hereby declares that this product meets the requirements of the following European directives:
• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC
and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
Amica S.A.
ul.Mickiewicza 52
64-510 Wronki
tel. 67 25 46 100
fax 67 25 40 320
www.amica.pl
